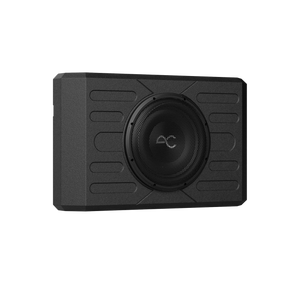

TXFBB12 Ford Bronco (2021-2025) 12" Swing Gate Loaded Sealed Subwoofer Enclosure
TXFBB12 Ford Bronco (2021-2025) 12" Swing Gate Loaded Sealed Subwoofer Enclosure
Description

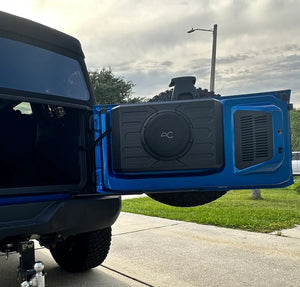

For 2021-2025 Ford Bronco 2-Door and 4-Door Model. Built tough and made to fit your Bronco’s tailgate, this 12” bass enclosure offers a quick and easy way to add a high-powered subwoofer to your audio system. The subwoofer enclosure utilizes the tailgate for mounting, saving space while also being rugged and weatherproof. AudioControl designed a subwoofer specifically for this enclosure to maximize performance and deliver deep, accurate bass. Get ready to enhance your next adventure with the addition of this custom subwoofer solution.
All mounting hardware is included. *Does not fit Sport Model
400 Watt RMS / 800 Watt Max
ENCLOSURE FEATURES
-
Roadkill-Armor Coat
-
Permanent Heat Bonded EPM Enclosure Coating (Elastomeric Polyurethane Molecule)
-
Weather-Resistant for Harsh Outdoor Environments
-
Sound Dampening Properties for Resonance Reduction
-
Scratch, Crack, and Peel-Resistant
-
Chemical and Stain-Resistant
-
Impact Absorption
-
UV Protection
-
Provides Leak and Corrosion Prevention
-
Heavy-Duty 11-Layer High-Density Plywood Construction
-
Durable, Coated Steel Subwoofer Grill for Extra Protection
SUBWOOFER FEATURES
- Low-Profile Shallow Mount Subwoofer
- Fiber Matrix Injection Molded Polypropylene Cone
- Weather-Resistant Design
- 3-Layer High Temp Voice Coil Former
- Optimal Thermal Efficiency
- Wrap-Sealed Rubber Gasket to Protect Enclosure Interior
- Removable Subwoofer Grille Included
The Kaos Run Down
| Part Number | TXFBB12 |
|---|---|
| UPC | 609098900553 |
| Specification | THIELE/SMALL PARAMETERS |
| Specification | Nominal Impedance (Z) 2 ohms |
| Specification | DC Resistance (Re) ]] 1.8 ohms |
| Specification | Resonance Frequency (Fs) 27.8430 Hz |
| Specification | Piston Area (Sd) 0.0511 m2 |
| Specification | Force Factor (BL) 10.3379 T.m |
| Specification | Mechanical Q Factor (Qms) 4.0762 |
| Specification | Electrical Q Factor (Qes) 0.4073 |
| Specification | Total Q Factor (Qts) 0.4216 |
| Specification | Sensitivity 1W/M (SPL) 87.3655 |
| Specification | Mechanical Comp (Cms) 0.2047 mm/N |
| Specification | Moving Mass (Mms) 159.6086 g |
| Specification | Linear Excursion (Xmax) . 9 mm |
| Specification | Volume Acoustic Comp (Vas) 74.5578 Ltr/2.632984 cu ft |
| Specification | Reference Efficiency (NO.) 0.33% RMS |
| Specification | Power (Pe) 400 Watts |
| Specification | Frequency Response 20-250 Hz |
| Specification | Voice Coil Diameter 2.5 in/63.5 mm |
| Specification | Displacement 0.0619 cu ft/1.752 Ltr |
| IN THE BOX | TXFBB12 Subwoofer, Manual, Warranty |
| Specification | ENCLOSURE DIMENSIONS |
| Specification | Internal Volume 0.706 cu ft. / 19.99 Ltr |
| Specification | Enclosure Weight 16.25 lbs |
| Specification | Height 17in / 43.2cm |
| Specification | Width 27.5in / 69.9cm |
| Specification | Depth 4.6in / 11.7cm |
