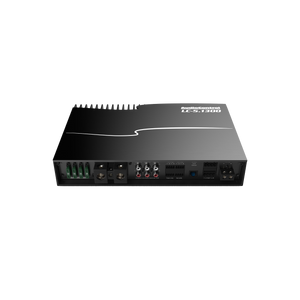

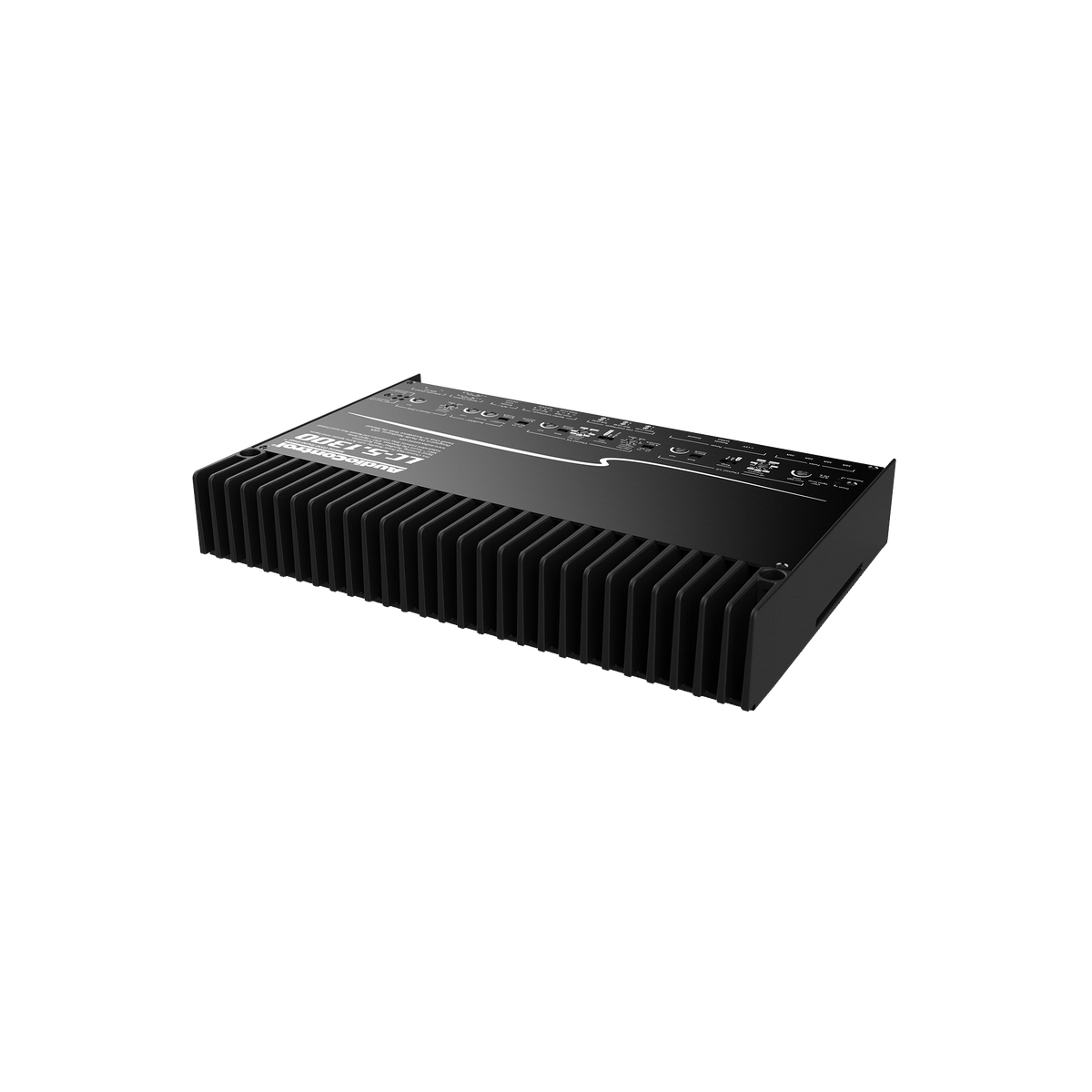

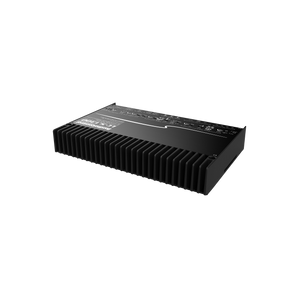

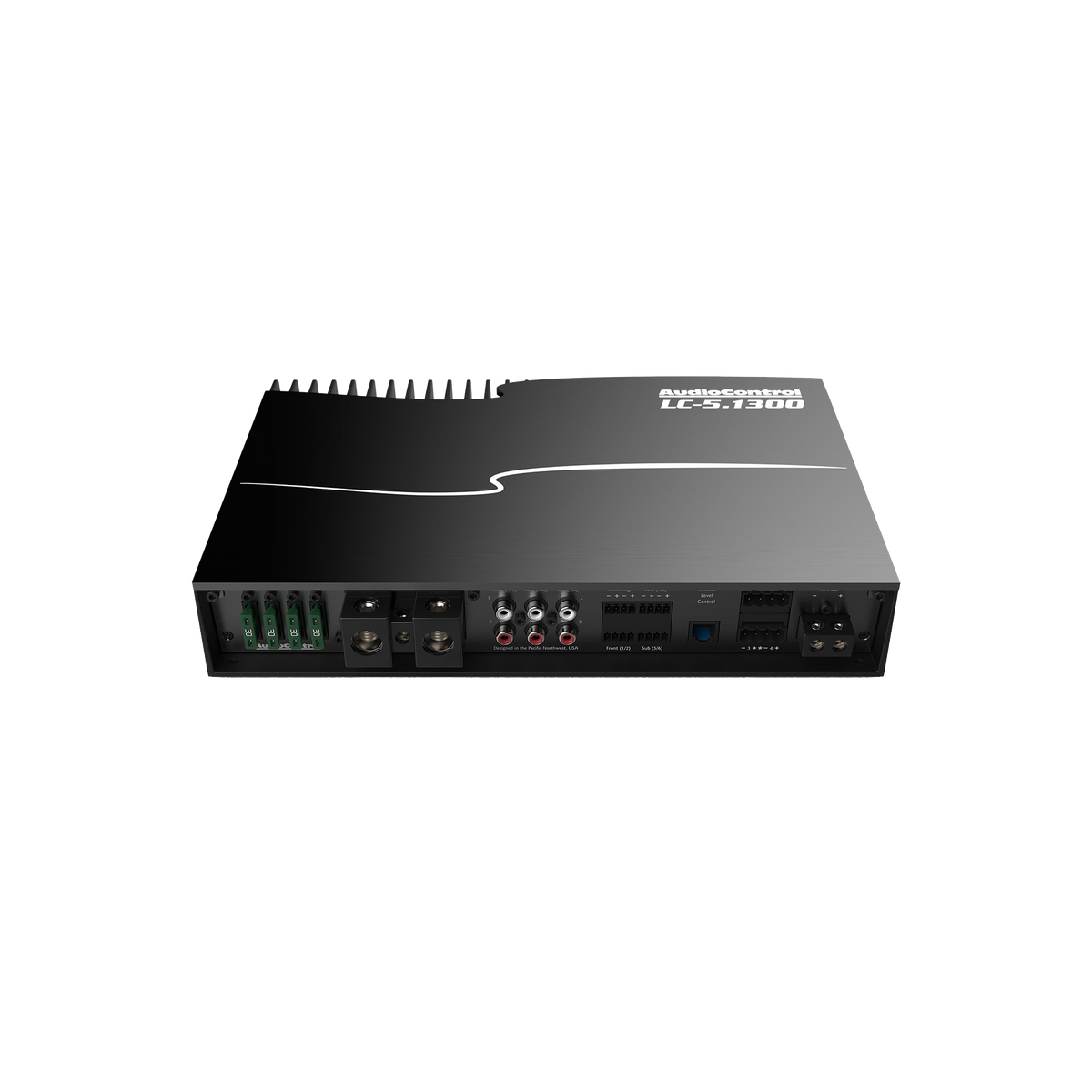

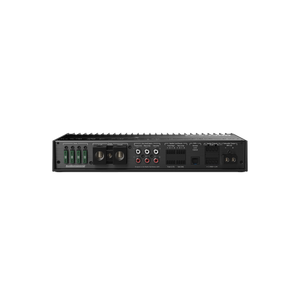

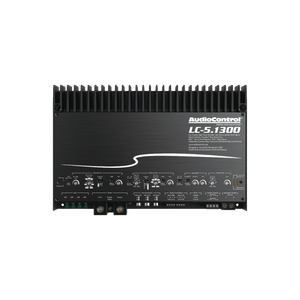

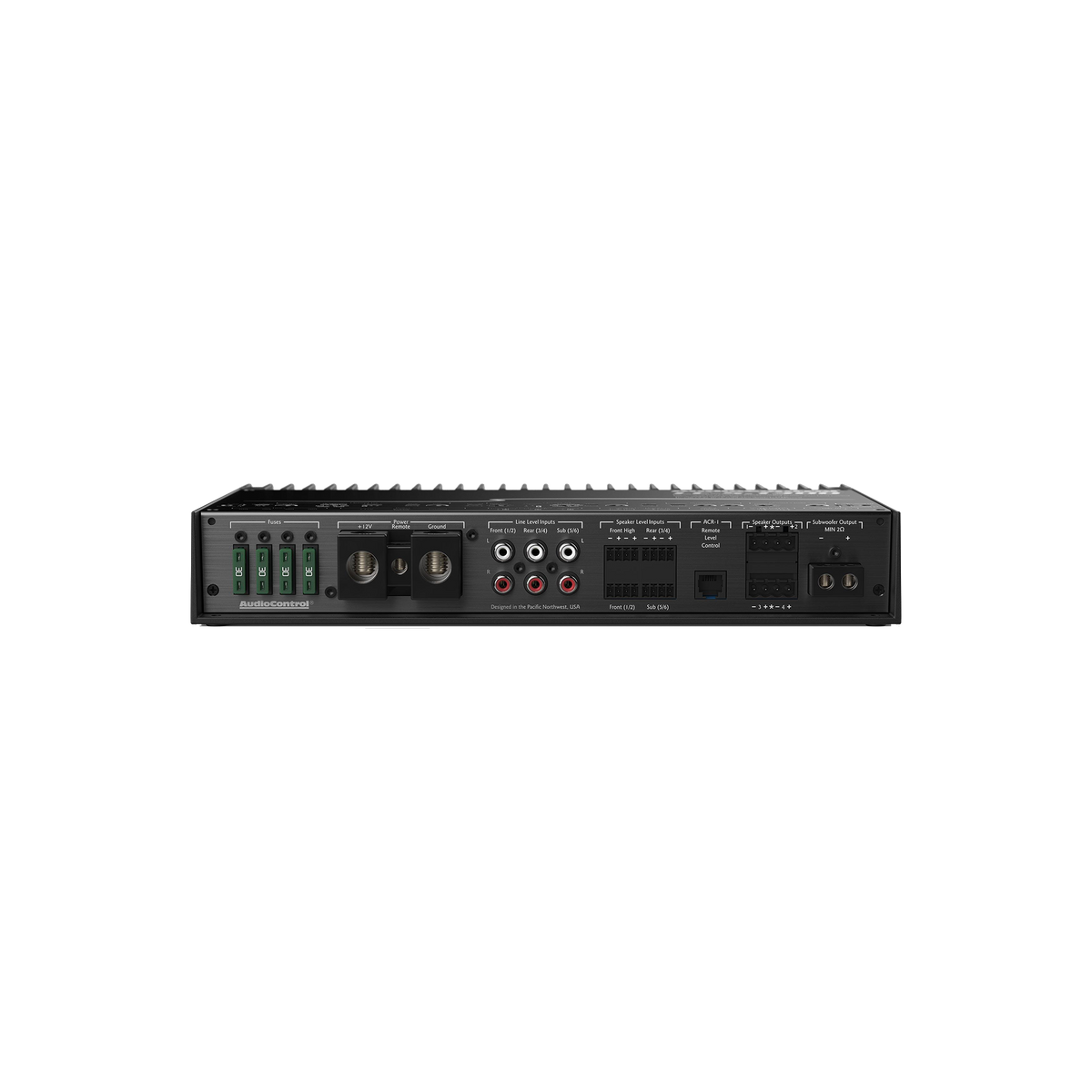

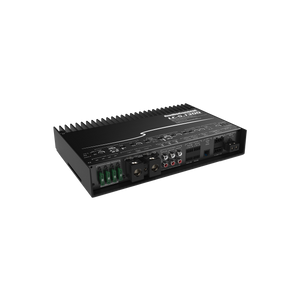

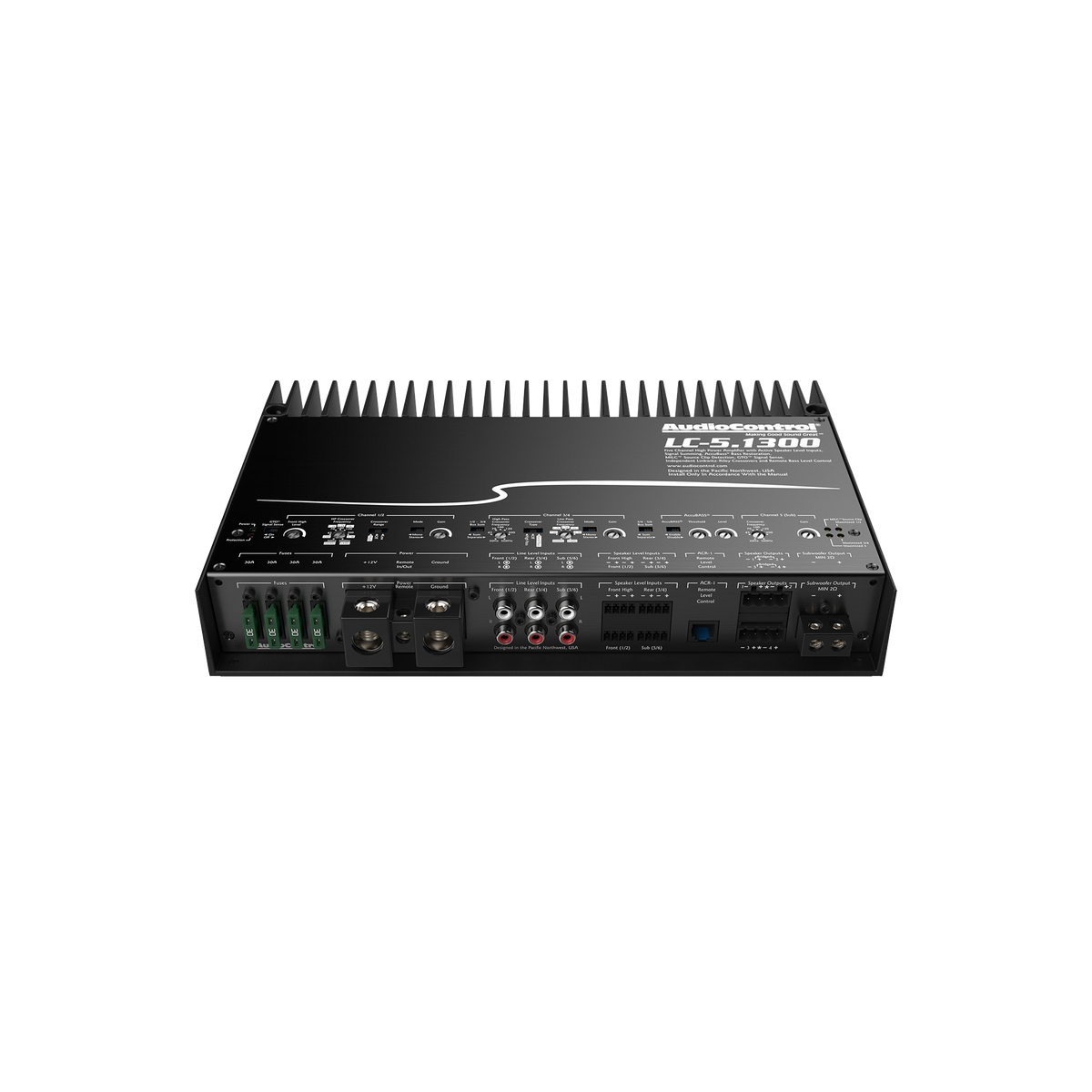

LC-5.1300 High-Power 5-Channel or 3-Channel Amplifier w/AccuBASS
Description
The LC-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl. Featuring eight active speaker level inputs, six line level inputs, the LC-5.1300 is packed with intuitive setup controls for high-pass, band-pass, and low-pass filters, automatic and selectable signal summing, and AccuBASS. Integrate seamlessly with your OEM or aftermarket sound system with this single-amp solution, which will transform your audio with impressive power levels delivered to your speakers and subs. Add the optional ACR-1 remote for level control.
Features
- Configurable as 5 or 3 channel amplifier
- 4 x 200 watts + 1 x 500 watts @ 2 ohms
- 4 x 100 watts + 1 x 300 watts @ 4 ohms
- 400 watts @ 4 ohms bridged
- AccuBASS® Processing
- MILCTM Maximum Input Level Control (Patent Pending)
- GTOTM Signal Sense
- 3-way Independent Linkwitz-Riley Alignment crossovers
- Summable active speaker-level inputs (8 channels) for OEM integration
- 6 preamp inputs
- PFM Subsonic Filter
- Optional ACR-1 assignable remote control
- Solid One-Piece Aluminum Chassis
The Kaos Run Down
| Part Number | LC-5.1300 |
|---|---|
| UPC | 851523007805 |
| Specification | INPUTS |
| Preamp Inputs | 6 balanced |
| Preamp Input Voltage Range | 500 mV – 6 Vrms |
| Speaker Level Inputs | 8 |
| Speaker Level Input Voltage Range | 3 V – 40 Vrms |
| Specification | OUTPUTS |
| Rated Continuous (RMS) Power at 14.4V | |
| Specification | 4 Ω – 100 W x 4 + 300 W x 1 |
| Specification | 2 Ω – 200 W x 4 + 500 W x 1 |
| Specification | Bridged 4 Ω – 400 W |
| Specification | PERFORMANCE |
| Frequency Response | 20 Hz – 22 kHz |
| Signal to Noise | 102 dBa, Ref 200 W @ 2 Ohm |
| THD+N | < 0.1% |
| Minimum Power / Ground Wire Gauge | 3 AWG wire |
| Fuse Rating | 4 x 30 A |
| Crossover | 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz |
| Dimensions | 12.0″W x 8.0″D x 2.1″H |
| Weight | 7.2lbs. (3.3kg) |
| IN THE BOX | LC-5.1300, Speaker Connectors, Fuses, Manual, Warranty |
