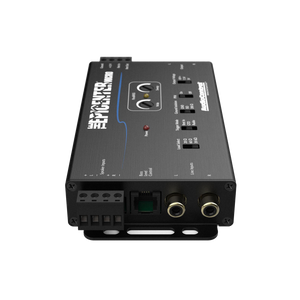

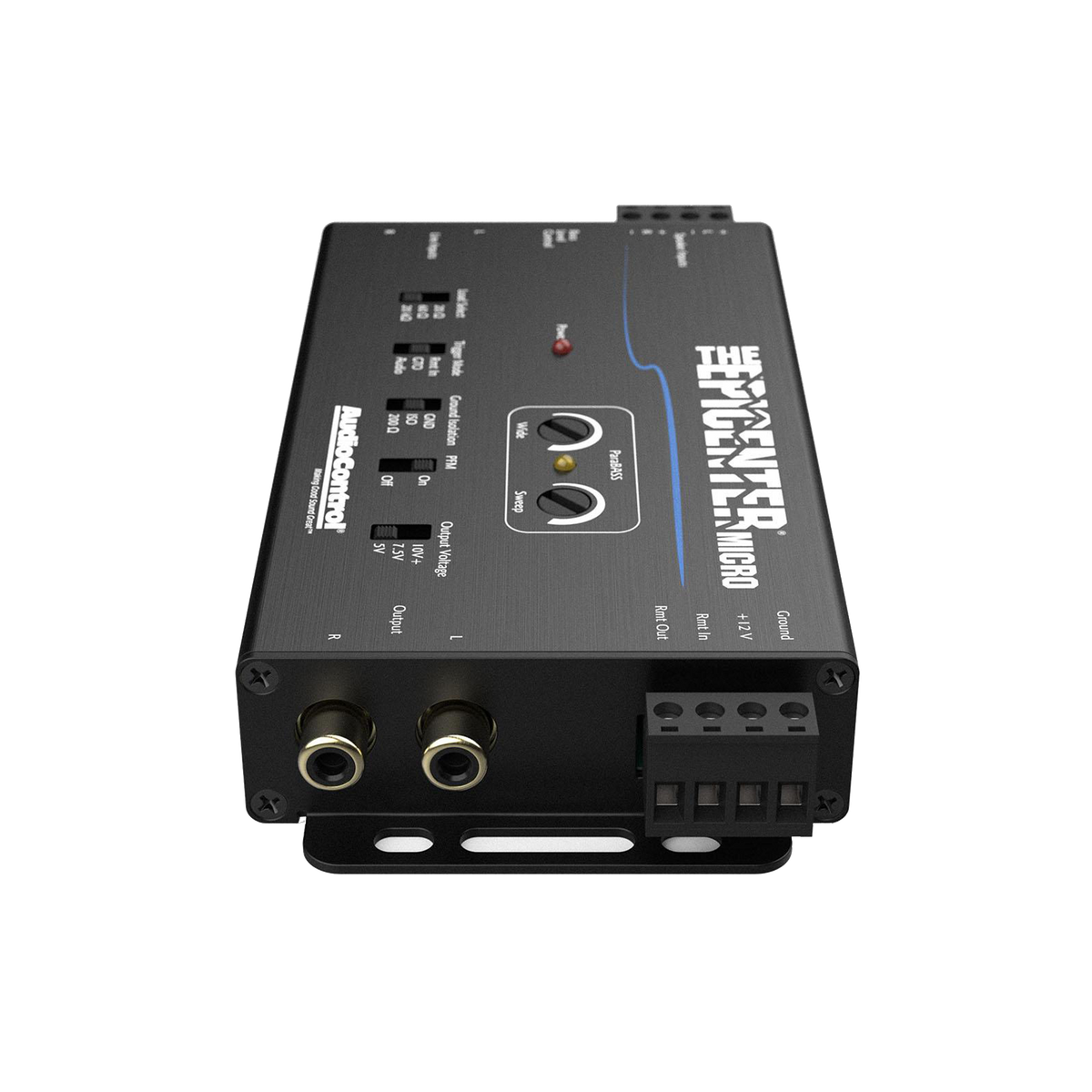

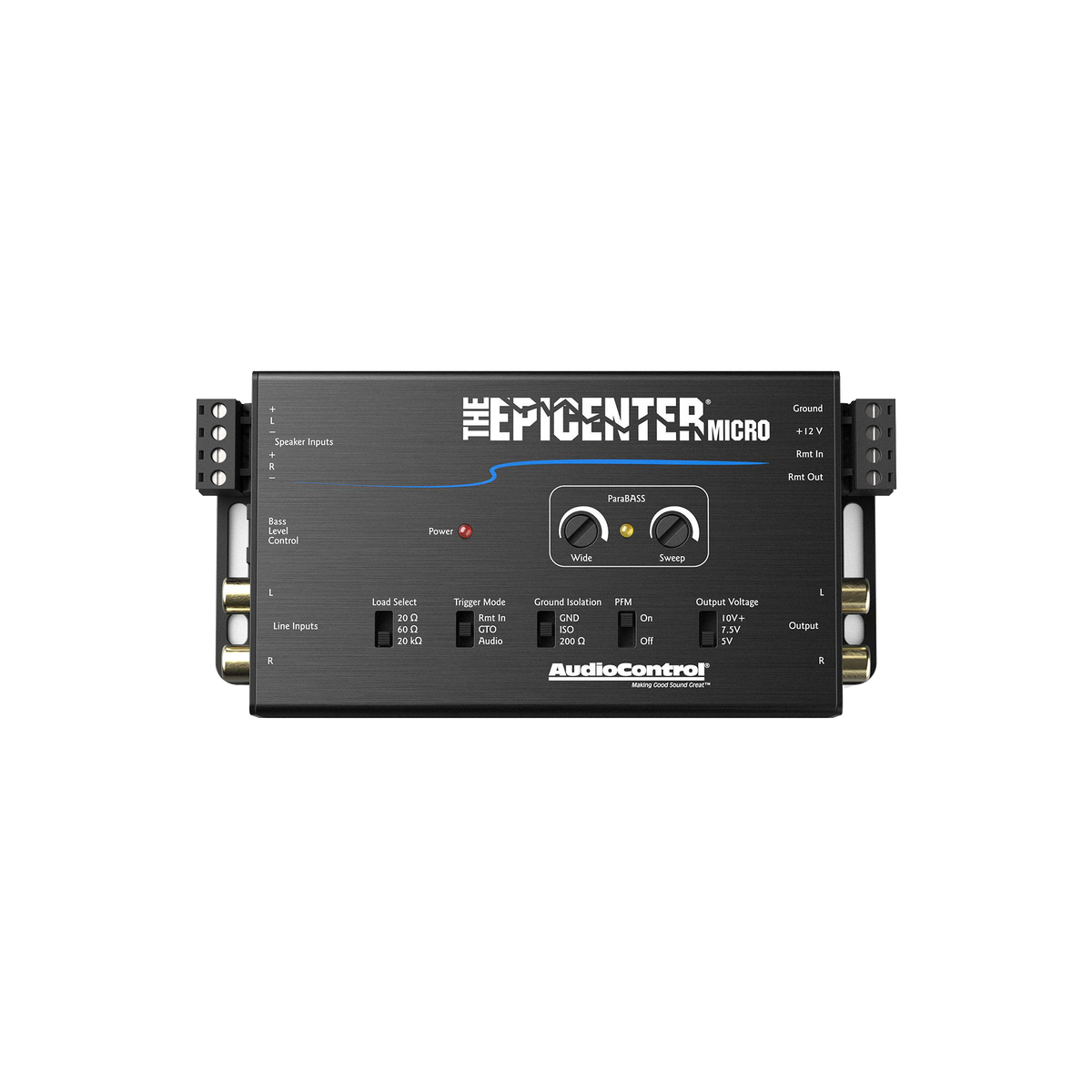

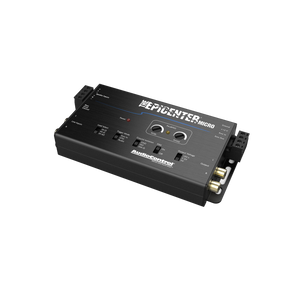

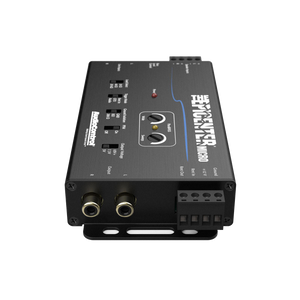

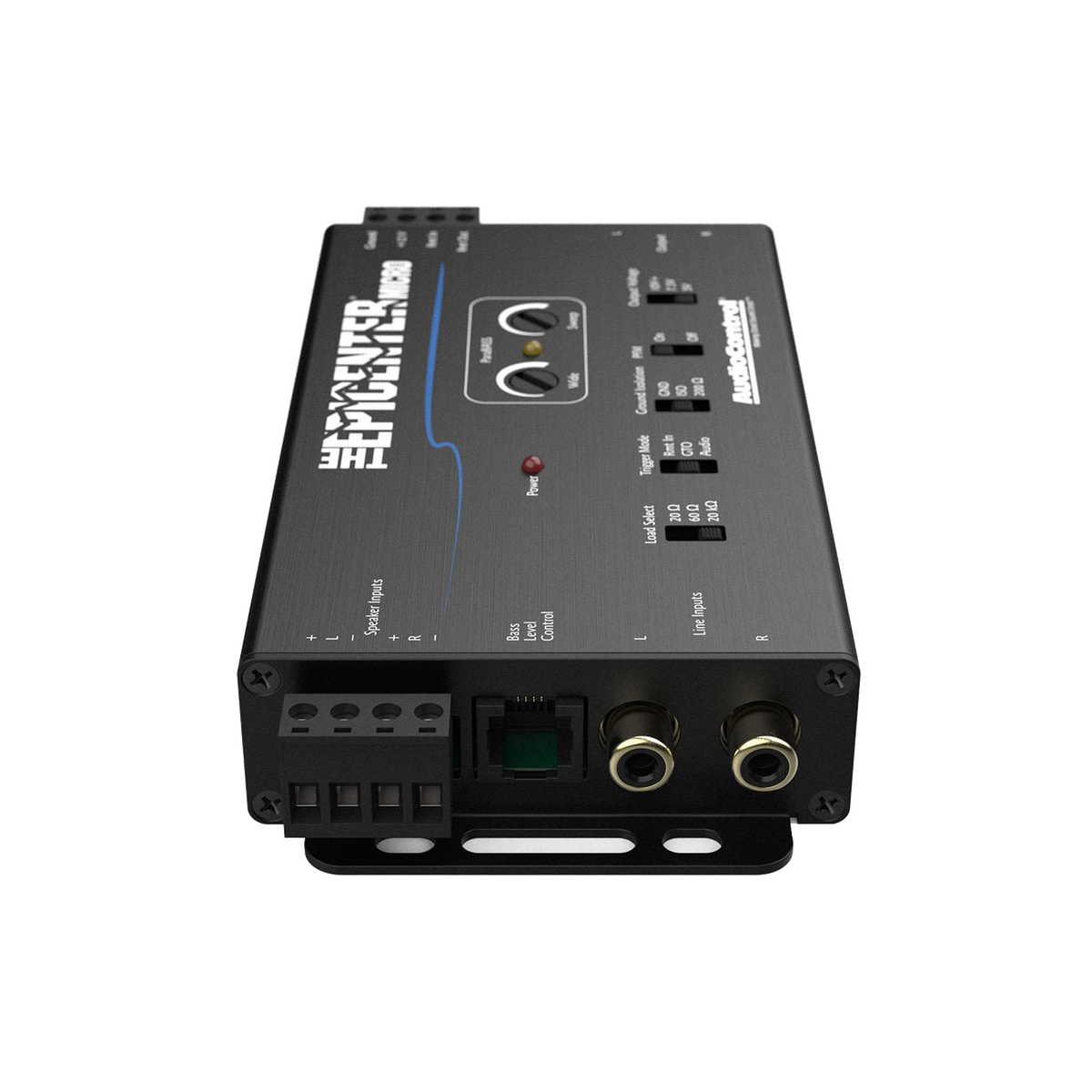

The EPICENTER Micro Bass Restoration Processor & Line Output Converter w/ACR-4 Remote
The EPICENTER Micro Bass Restoration Processor & Line Output Converter w/ACR-4 Remote
The EPICENTER Micro Bass Restoration Processor & Line Output Converter w/ACR-4 Remote
Description
The EPICENTER Micro combines AudioControl’s legendary digital bass restoration with world-renowned OEM integration capabilities. Featuring a speaker-level input stage with selectable impedance loads, as well as traditional line-level inputs, The EPICENTER Micro brings out the best bass in any system. Trigger modes include traditional +12V remote in, GTO™ Signal Sense, and Audio Sense. The PFM Subsonic Filter can be bypassed for the truly dedicated, and the 10V+ output voltage setting beckons only the bravest among us. Use the included ACR-4 remote to independently adjust bass restoration and output level.
Features
- Patented Digital Bass Restoration
- ParaBASS® Bass Shaping
- Speaker and Line Level Inputs
- Load Matching Circuit
- Multiple Trigger Modes
- ACR-4 Dual Knob Dash Mount Control Included
- Conformally Coated PCB for Increased Resistance to the Elements
The Kaos Run Down
| Part Number | EPICENTER MICRO |
|---|---|
| UPC | 851523007997 |
| Specification | INPUTS |
| Speaker Level Input | 1 (2 channels) |
| Maximum Speaker Level Input | 40 Vrms / 400 W (20kΩ setting) |
| Speaker Level Input Impedance (selectable) | 20Ω, 60Ω, 20kΩ |
| Line Level Input | 1 (2 channels) |
| Line Level Input Impedance | 7kΩ |
| Specification | OUTPUTS |
| Preamp Outputs | 1 (2 channels) |
| Maximum Output Level | 9.5Vrms/13V peak |
| Output Impedance | 150Ω |
| Specification | PERFORMANCE |
| Total Harmonic Distortion | 0.03% |
| Signal to Noise | >105 dB |
| Frequency Response | 10 Hz – 22 kHz ±1 dB |
| Specification | CONTROL |
| Specification | Remote In / GTO™ Signal Sense / Audio Sense |
| Specification | 12VDC Remote Out (always active when unit is on) |
| Specification | GENERAL |
| Current Draw | 300 mA |
| Recommended Fuse Rating | 1 A |
| Dimensions | 5.9″L x 3″D x 1″H |
| Weight | 0.6 lbs. (0.27 kg) |

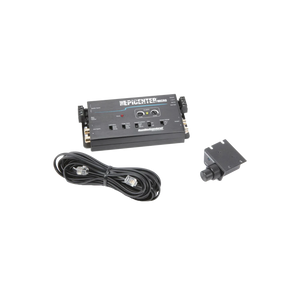

| IN THE BOX | The Epicenter Micro, ACR-4, Remote Cable, Speaker and Power connectors, Manual, Warranty |
