1" Throat Twist on Driver 200 Watts 2" Phenolic Vc 8-Ohm
1" Throat Twist on Driver 200 Watts 2" Phenolic Vc 8-Ohm
Product Overview

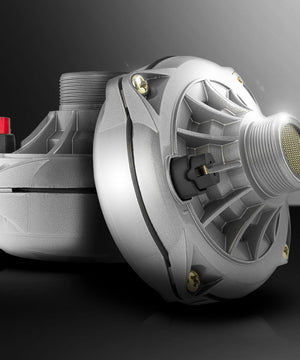

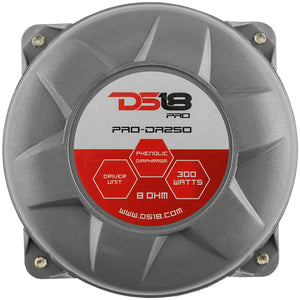

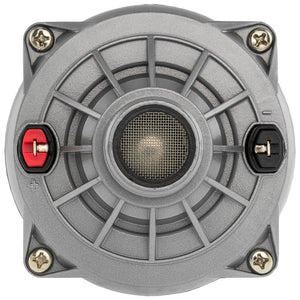

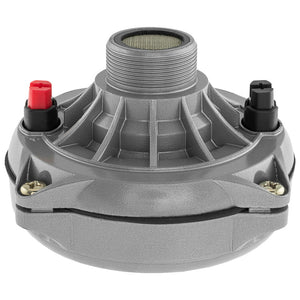

DS18 PRO-DR250 1" Throat Twist On Compression Driver with 2" Throat Phenolic VC 300 Watts 8 ohm
|
Engineered and Designed in the US, the DS18 Compression Drivers with aluminum horns are the top of the line high frequency driver/tweeter/horns in the market. These bad boys deliver so much power that you'd think with one horn your whole sound system is ready to deploy for a major concert. Simply put, there are no compression drivers that can compare to the sophistication, beauty, and precision of these horns especially in the Pro Audio/Voceteo World. Thanks to the demands of our customers, after months of relentless tests and experiments, our team of audio-experts perfected the PRO line. We are ecstatic to share with you the product of hard-work and "non-stop innovating attitude." We are sure that you will love your Compression Driver as much as we do. WARNING: EXTREMELY LOUD!! Highlights
|
Technical Details
| Model: | PRO-DR250 |
| Type: | Compression Driver |
| RMS Power: | 200W |
| MAX Power: | 300W |
| Sensitivity: | 94dB |
| Voice Coil Size: | 2" |
| Impedance: | 8 Ohms |
| Frequency Response: | 650Hz - 13KHz |
| Magnet: | High Strength Ferrite |
| Diaphragm Material: | Phelonic |
| Voice Coil Wire: | Kapton 2 Layer |
| Magnet Weight: | 10.5 oz |
| Throat Diameter: | 1" |
| Replacement Diaphragm Model: | PRO-DR250VC |
Key Features
- 1" Compression Driver
- RMS Power: 200 Watts(300 Watts Peak)
- Impedance: 8 Ohm ~ 94dB
- Ferrite Magnet - Phenolic Diaphragm
- Twist On
- Repaired With: PRO-DR250VC - PRO-DR250TIVC
Specifications
| SKU | PRO-DR250 |
|---|---|
| Nominal Impedance | 8 ohms |
| Throat Diameter | 1" |
| RMS Power Handling | 200W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 94dB |
| Frequency Response | 650Hz-13KHz |
| Recommended Hi Pass Crossover | 800Hz |
| Voice Coil Diameter | 2" |
| Voice Coil Former Material | KSV |
| Diaphragm Material | Phenolic |
| Magnet Material | Ferrite |
| Magnet Weight | 10.5 oz |
| Bolt Type | Screw Down |
| Overall Diameter | 111mm / 4.37" |
| Overall Depth | 79.5mm / 3.83" |
| Mounting Depth | 64 mm / 2.51" |
| Product Weight | 3 lbs |
| Product Dimensions | 5 x 4.75 x 3.25 |
| M/C Weight | 37 lbs |
| M/C Dimensions | 15 x 11.25 x 8 |
| M/C QTY | 12 |
| Sold In | Piece |
