Product Overview

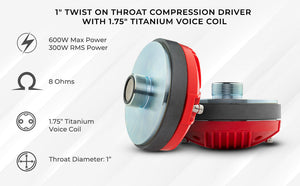

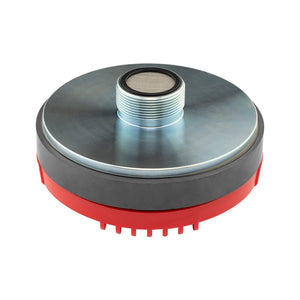

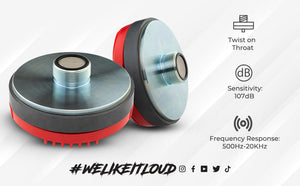

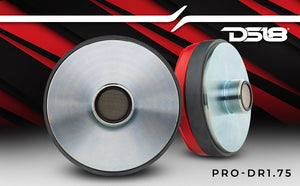

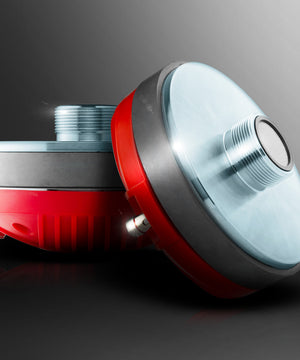

DS18 PRO-DR1.75 1" Twist On Throat Compression Driver with 1.75" Titanium VC 600 Watts 8 ohm
With the ever evolving PRO audio that DS18 provides, we are happy to present out next evolution of driver, the PRO DS1.75 Titanium Compression Driver! This 1.75-inch driver features a titanium compression diaphragm RMS rating states a handling of 300W RMS and 600W MAX power. These compression horns have a great frequency response of 500Hz to 20KHz, so they can play a much wider range than normal.
They come in 8 ohms DCR and with a sensitivity of 107dB, they will not require full power to get loud and sound great! They all come with beautiful push terminals and are surrounded by a very aesthetic red DS18 cover. These drivers will require a 1" Horn Throat to complete the package that is sold separately. These new DS18 titanium horns are sure to bring brightness to any system needing massive high-end drivers!
Highlights
- High powered DS18 high frequency driver made to blast the high frequencies for all to be heard.
- Compatible with all DS18 screw on throats of various sizes and colors so you can get the perfect look and fitment for your system.

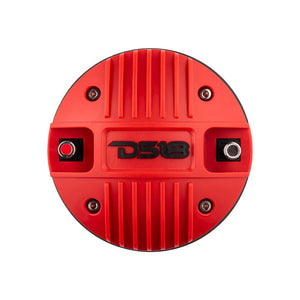

- High quality terminals making connectivity secure and easy.
- Easily exchange voice coils in minutes.
Technical Details
| Model: | PRO-DR1.75 |
| Nominal Impedance | 8 Ohms |
| RMS Power: | 300W |
| MAX Power: | 600W |
| Sensitivity: | 107dB |
| Voice Coil Size: | 1.75" |
| Magnet Weight | 24 oz |
| Frequency Response: | 500Hz-20KHz |
| Diaphragm Material: | Titanium |
| Bolt Type | Screw Down |
| Overall Depth | 2.76" (70mm) |
Key Features
- 1" Compression Driver
- RMS Power: 300 Watts(600 Watts Peak)
- Impedance: 8 Ohm ~ 107dB
- Ferrite Magnet - Titanium Diaphragm
- Twist On
- Easily Repaired With The PRO-DR1.75VC
Specifications
| SKU | PRO-DR1.75 |
|---|---|
| Nominal Impedance | 8 ohms |
| Throat Diameter | 1" |
| RMS Power Handling | 300W |
| MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 107dB |
| Frequency Response | 500Hz-20KHz |
| Recommended Hi Pass Crossover | 800 Hz |
| Voice Coil Diameter | 1.75" |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |

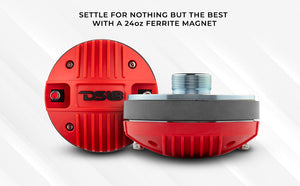

| Magnet Weight | 24 oz |
| Bolt Type | Screw Down |
| Overall Diameter | 4.53" / (115mm) |
| Overall Depth | 2.76" / (70mm) |
| Product Weight | 3.5 lbs |
| Product Dimensions | 5.25 x 5.25 x 3.75 |
| M/C Weight | 28.5 lbs |
| M/C Dimensions | 11.25 x 11.25 x 8.5 |
| M/C QTY | 8 |
| Sold In | Piece |
