ZXI 8" High Excursion Subwoofer Quad Stacked Magnets | 600W RMS DVC 2-Ohm
ZXI 8" High Excursion Subwoofer Quad Stacked Magnets | 600W RMS DVC 2-Ohm
Product Overview
DS18 ZXI8.2D ZXI High Excursion 8" Car Audio Subwoofer 1200W Watts 2-Ohm DVC Quad Stacked Magnets
Do you want more excursion, more thumping power, and to shake everyone's mirrors around you?
DS18 has the perfect subwoofer to satisfy all your bass head needs in the newly designed for the ZXI8.2D high excursion subwoofer. This monster sub packs a 2 inches coil made to withstand high amounts of power with the utmost efficiency while producing thunderous distortion free bass.
This sub has a low FS so it can be used in large boxes with lower than normal tuning. Not only will this subwoofer slay the lows, it is versatile enough to also play higher frequencies in the bass zone of sub frequencies.
The ZXI subline is a great high excursion line of subwoofers that both handle great power and give you smooth clean bass while playing ultra low frequencies. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle.
This 8 inches model comes dual 2 ohms and comes with a 2 inches voice coil that handles 600w RMS and 1200w MAX power.
The large foam surround and non-pressed paper cone works greatly together to deliver smooth crisp bass that can be heard strongly throughout the vehicle giving you an amazing bass experience.
Order the DS18 ZXI8.2D today to turn up the bass with thunderous power!
Highlights
- Large foam surround giving great high xmax and bass precision while keeping great cone control when the subwoofer is close to maximum power.
- Great power handling of 600w RMS and 1200w MAX through a high strength 2 inches CCAW Aluminum voice coil.
- Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, and dust cap.
- Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes.
Key Features
- 8 inches High Excursion Subwoofer
- Impedance: DVC 2-ohms
- Max Power Handling: 1200 watts
- RMS Power Handling: 600 watts
- Frequency Response: 25-880Hz
- Voice Coil Diameter: 2"
- Voice Coil Material: CCAW
- Sensitivity: 86 dB
- Magnet Weight: 104 oz (4 x 26 oz)
- Magnet Material: Ferrite
- Mounting Depth: 5.51"
- Xmax: 18.5mm one way
Great for
- Car Audio
- Motorcycles
- Home Studios
- Hi-Fi Installation
- DIY Projects
Technical Details
| Nominal Diameter | 8" / 203.2mm |
| Nominal Impedance | 2 + 2 ohms |
| RMS Power Handling | 600w |
| MAX Power Handling | 1200w |
| Sensitivity (1w/1m) | 86dB |
| Frequency Response | 25-880Hz |
| Recommended Lo Pass Crossover | 90Hz |
| MOTOR | |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color/Finish | Black Sandblasted |
| Magnet Material | Ferrite |
| Magnet Weight | 104 Oz (4 x 26 oz) |
| Displacement Volume | 1.02L / 0.036ft3 |
| MEASUREMENT | |

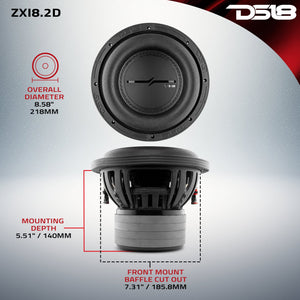

| Overall Diameter | 8.58" / 218mm |
| Overall Depth | 6.83" / 173.5mm |
| Front Mount Baffle Cutout | 7.31" / 185.8mm |
| Mounting Depth | 5.51" / 140mm |
| Motor Diameter | 5.27" / 134mm |
Key Features
- 8" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 2-Ohm 2" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Specifications
| SKU | ZXI8.2D |
|---|---|
| Nominal Diameter | 8" / 203.2mm |
| Nominal Impedance | 2 + 2 ohms |
| RMS Power Handling | 600W |
| Maximum Power Handling | 1200W |
| Sensitivity (1w/1m) | 86dB |
| Frequency Response | 25-880Hz |
| Recommended Lo Pass Crossover | 90Hz |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color/Finish | Black Sandblasted |
| Magnet Material | Ferrite |
| Magnet Weight | 104 Oz (4 x 26 oz) |
| Displacement Volume | 1.02L / 0.036ft3 |
| Equivalent Volume Vas | 7L / 0.25ft3 |
| Free Air Resonance Fs | 45Hz |
| Mechanical Factor Qms | 6.499 |
| Electrical Factor Qes | 0.946 |
| Total Factor Qts | 0.826 |
| Moving Mass Mms | 92.55g |
| Compliance Cms | 0.142mm/N |
| Bl Factor Bl | 6.2 |
| Voice Coil Inductance Le | 0.373 mH |
| Diaphragm Area Sd | 188.69cm2 |
| DC Resistance Re | 2.8+2.8 ohms |
| Efficiency Bandwidth Product EBP | 47.5 |
| Sealed Internal Volume | 17L / 0.6ft3 |
| Sealed Box Output Response F3 | 50Hz |
| Ported Internal Volume | 28.3L / 1ft3 |
| Port Size *Square (W x H x Long) | 1.75" x 7.99" x 14.67" / 44.5 x 203 x 372.7mm |
| Port Tuning Frequency FB | 35Hz |
| Ported Box Output Response F3 | 28Hz |

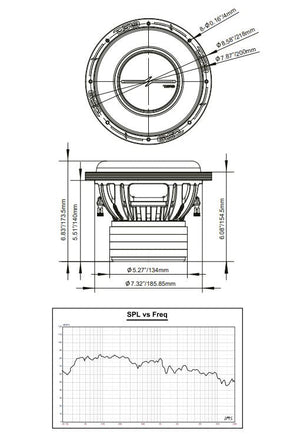

| Overall Diameter | 8.58" / 218mm |
| Overall Depth | 6.83" / 173.5mm |
| Front Mount Baffle Cutout | 7.31" / 185.8mm |
| Mounting Depth | 5.51" / 140mm |
| Motor Diameter | 5.27" / 134mm |
| Gross Single Unit Weight | 14 |
| Dimensions W x L x H | 9.5 x 9.5 x 7.75 |
| Quantity of Units in Master Carton | 2 |
| Gross Master Carton Weight | 29.5 |
| Master Carton Dimensions W x L x H | 19.5 x 10.25 x 8.5 |
