3.75" Die Cast Compression Neodymium Super Bullet Tweeter 1.3" Aluminum | 160W RMS 4-Ohm
Product Overview DS18 GTX1XL 3.75" Die Cast Compression Neodymium Super Bullet Tweeter 320 Watts 1.3" Aluminum 4-Ohm...
- $53.95
- $53.95
- Unit price
- per
Subtotal:
$53.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

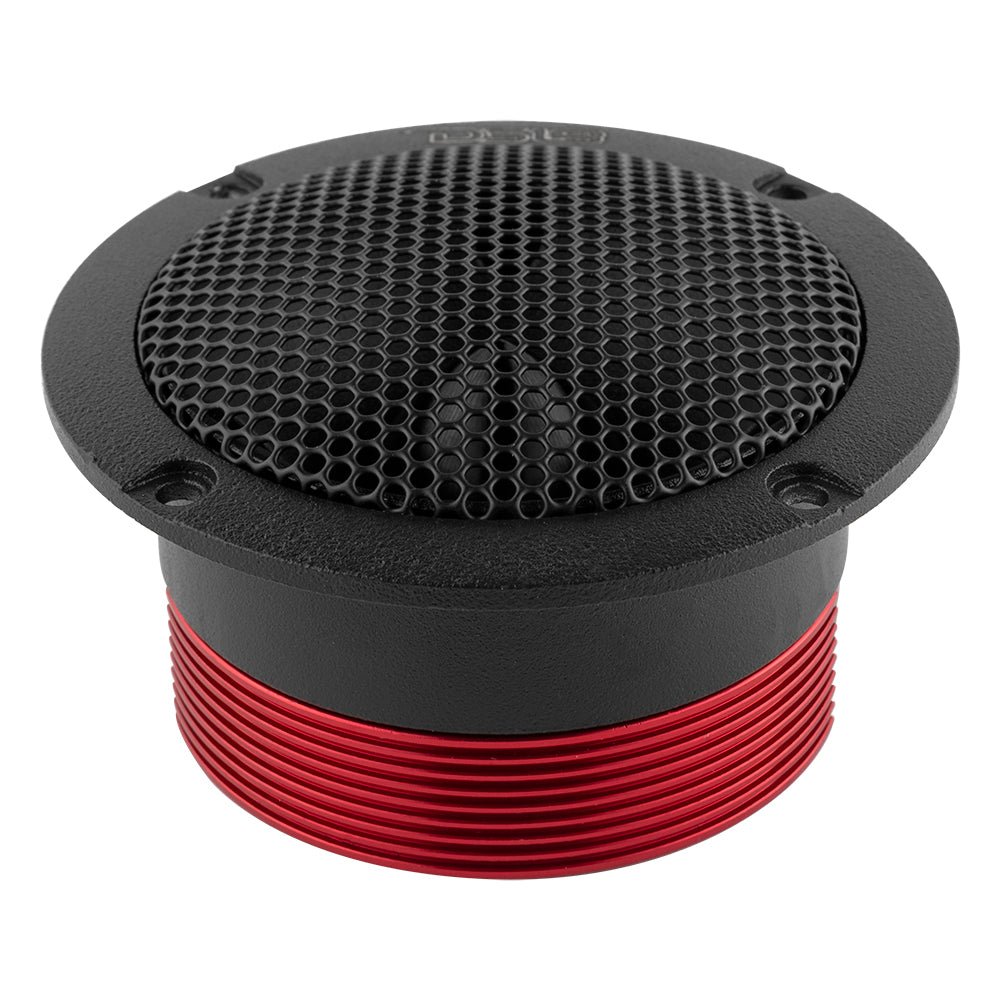

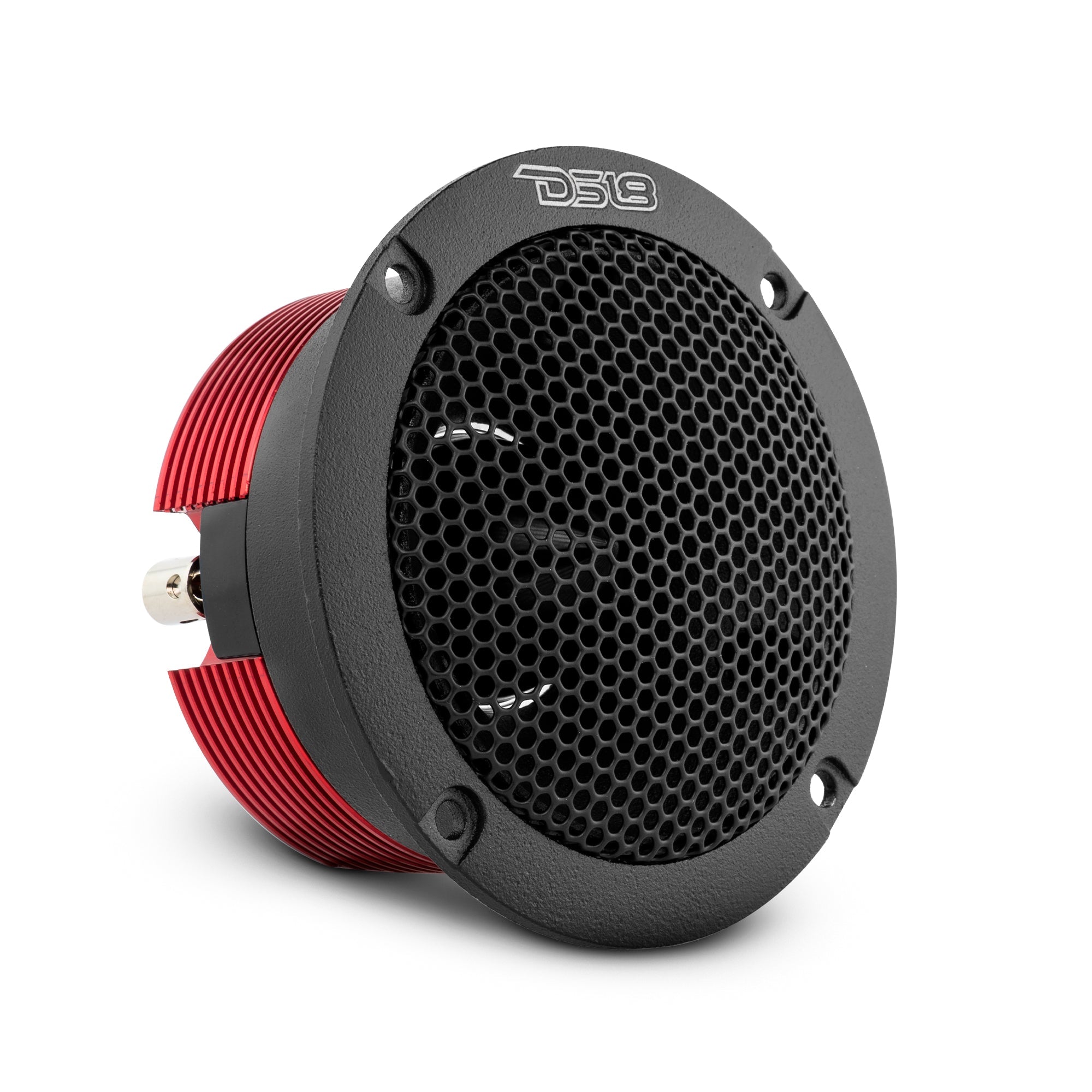

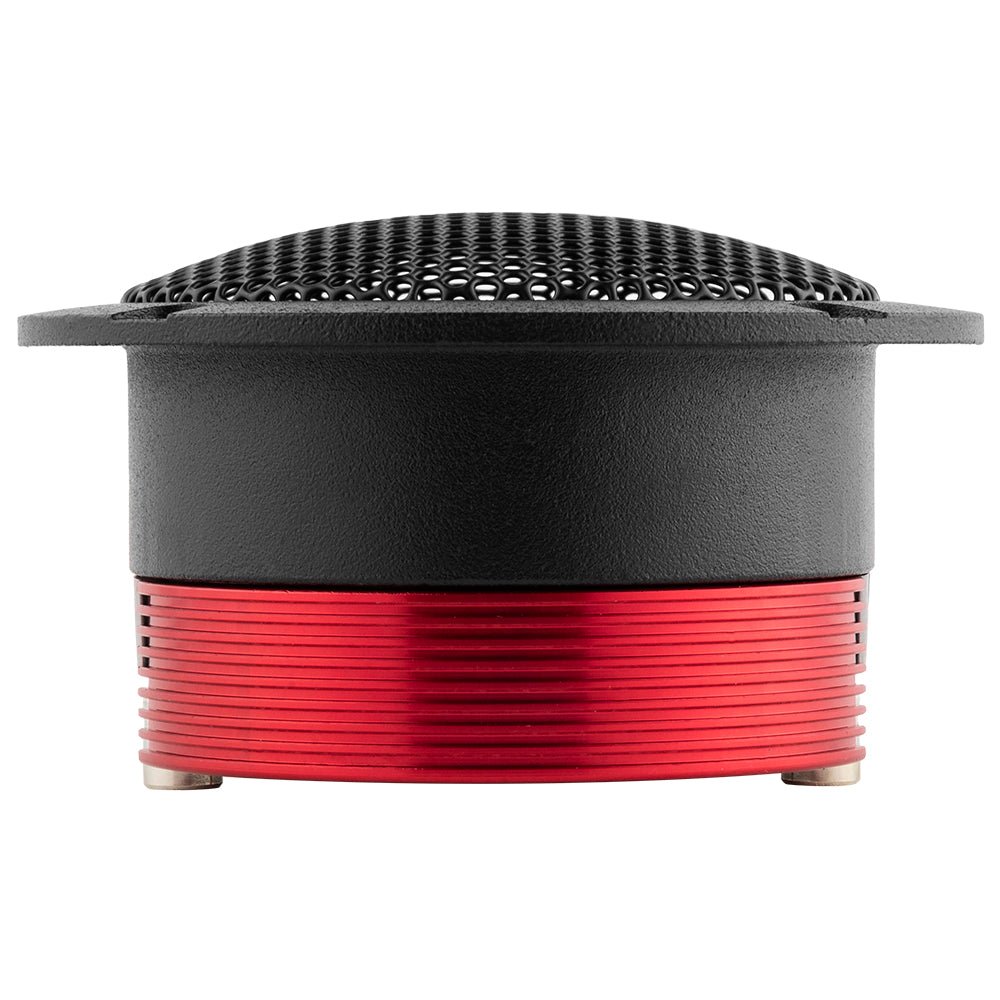

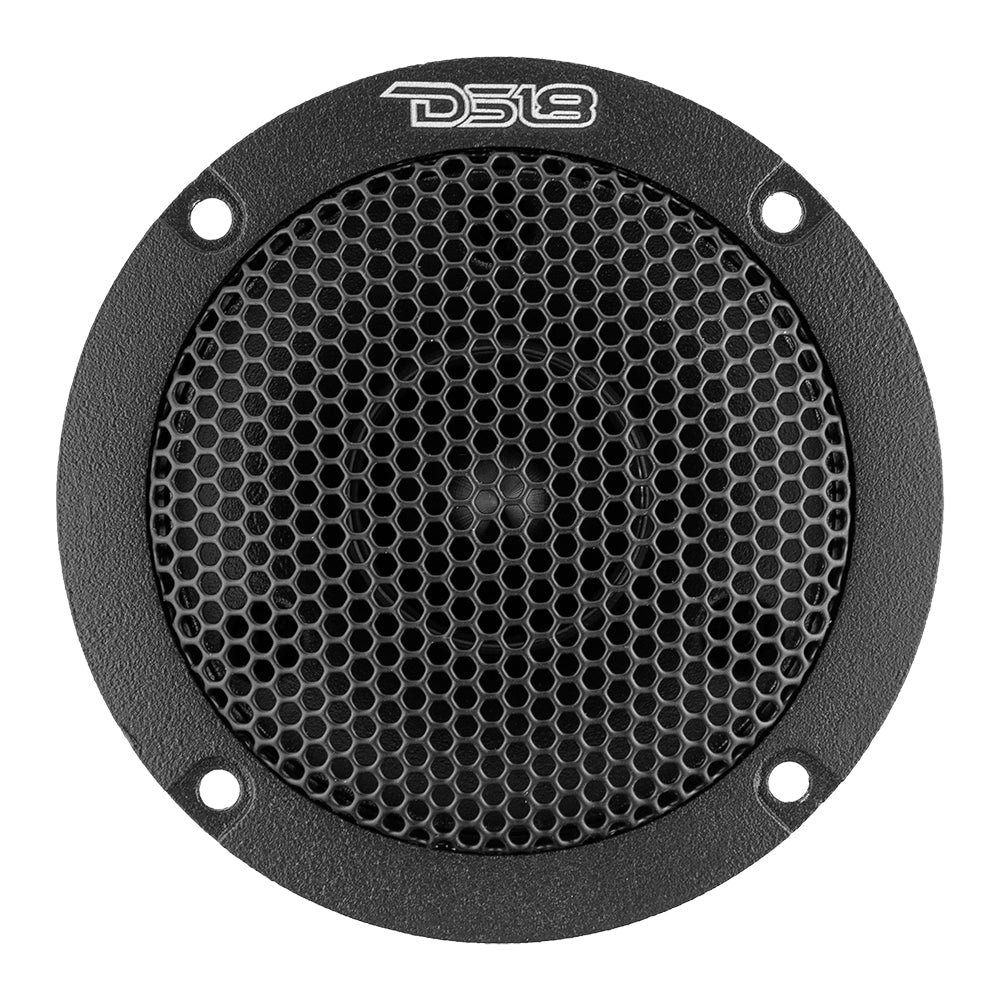

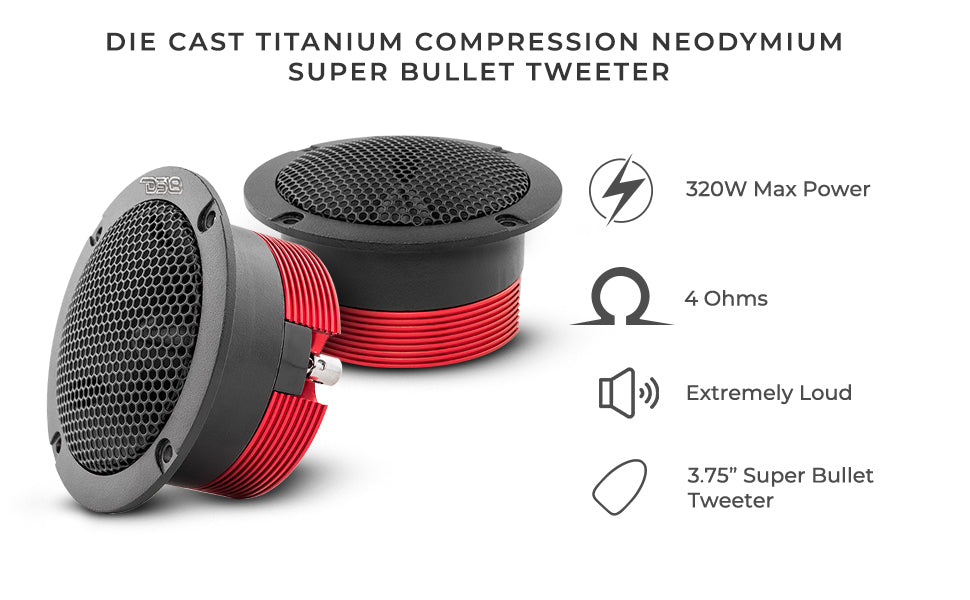

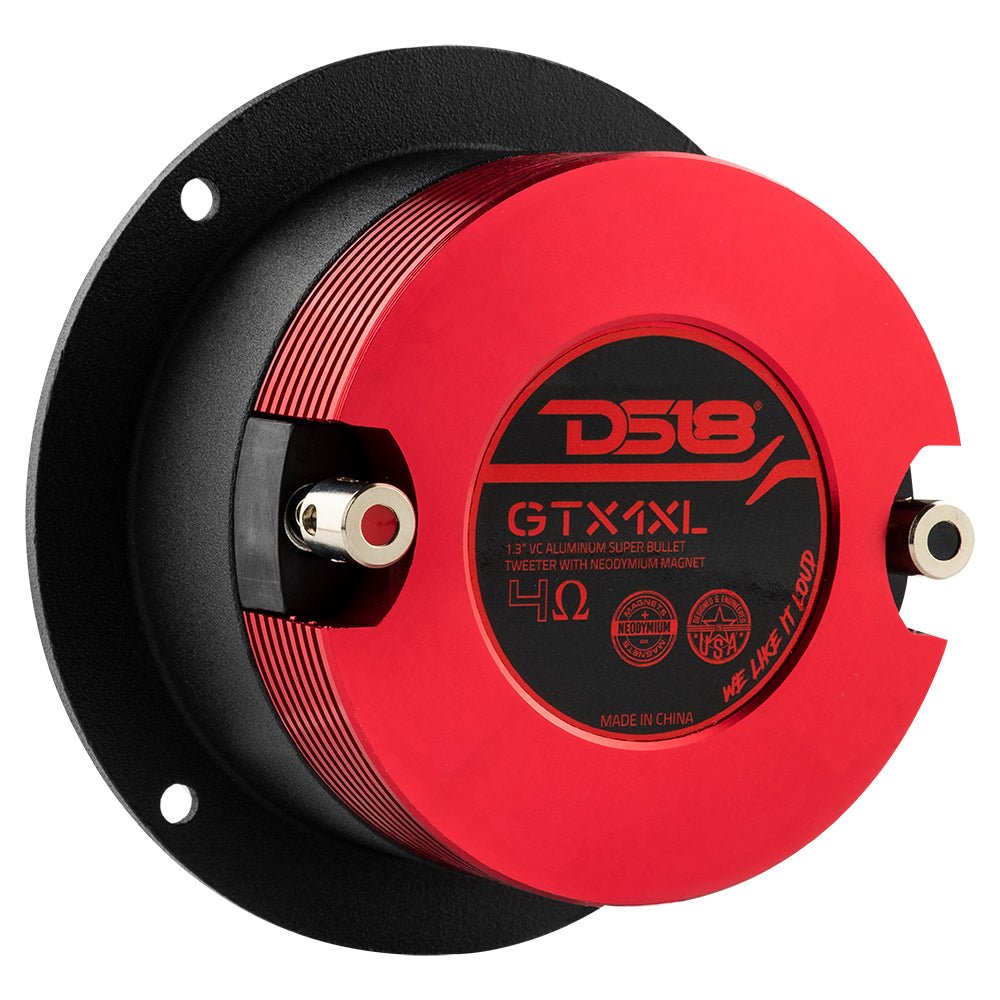

DS18 GTX1XL 3.75" Die Cast Compression Neodymium Super Bullet Tweeter 320 Watts 1.3" Aluminum 4-Ohm Vc
The new standard of neodymium tweeters have broken onto the audio scene like a freight train! These large tweeters come with high precision 1.3 inch Aluminum voice coils that are sure to leave your ears tingling. The housing is cast out of high strength aluminum with DS18 stamped on the front. The high quality mesh grill will look amazing while also protecting your investments! These tweeters have an RMS rating of 160w at 4 ohms and are your solution to crispy clean highs in your audio system!
Highlights
- Highly powerful and extremely loud super tweeter for its size.
- High versatility as these super tweeters can be mounted anywhere you have space for them.
- Easily disassembled and can be repaired on the spot in 60 seconds if you find yourself pushing them past their limits.
Technical Details
| Model: | GTX1XL |
| Peak Power Handling | 320 Watts |
| Program Power Handling | 160 Watts |
| AES Power Handling | 80 Watts |
| Sensitivity: | 100dB |

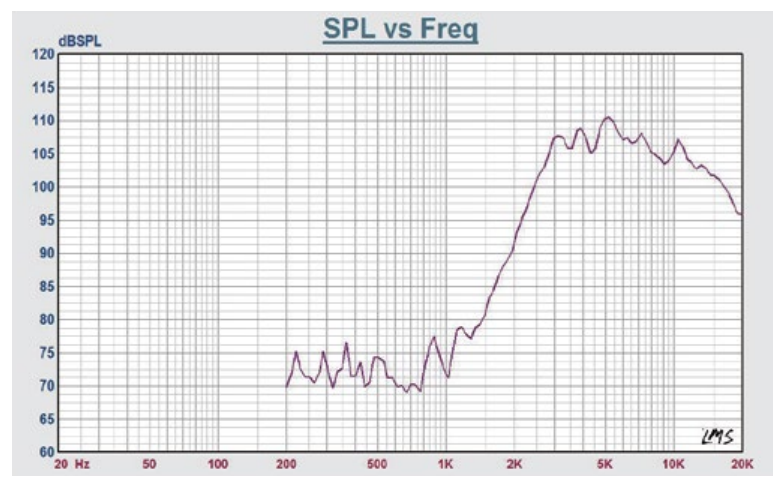

| Frequency Response: | 2.5KHz - 20KHz |
| Impedance: | 4 Ohms |
| Voice Coil Diameter: | 1.3" (33.5mm) |
| Magnet: | Neodymium |
| Package Quantity: | 1 |

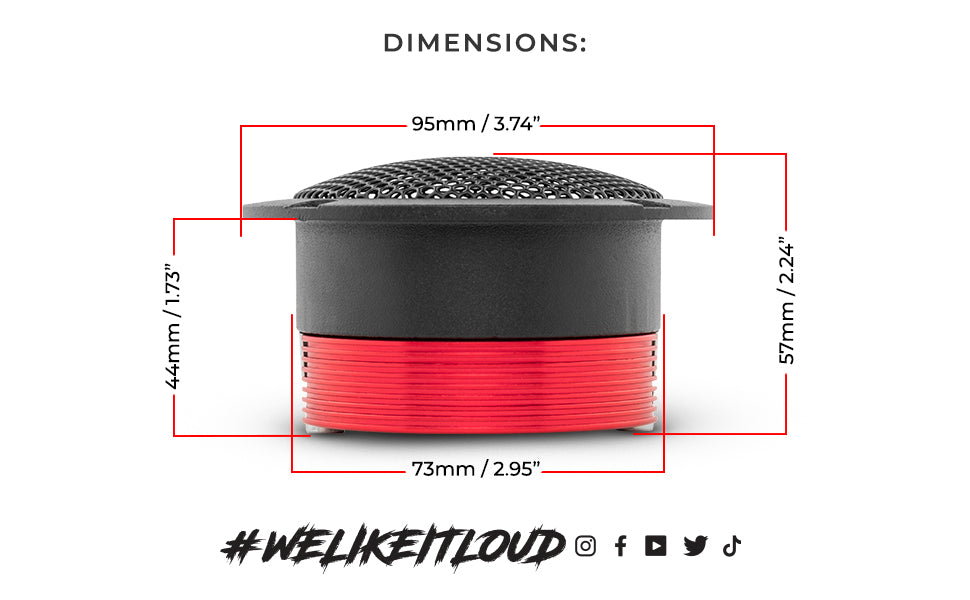

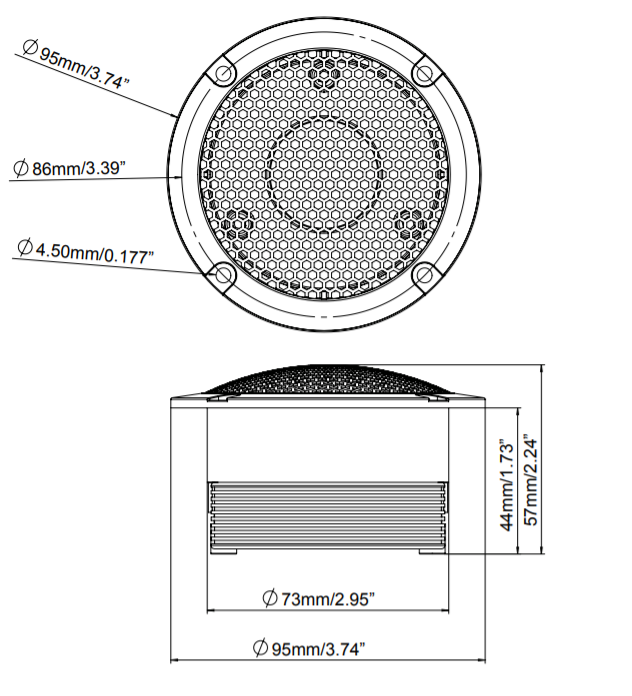

| Measurements | |
| Overall Depth | 2.24" |
| Mounting Depth | 1.73" |
| Overall With | 3.74" |
| Cutout Diameter | 2.95" |

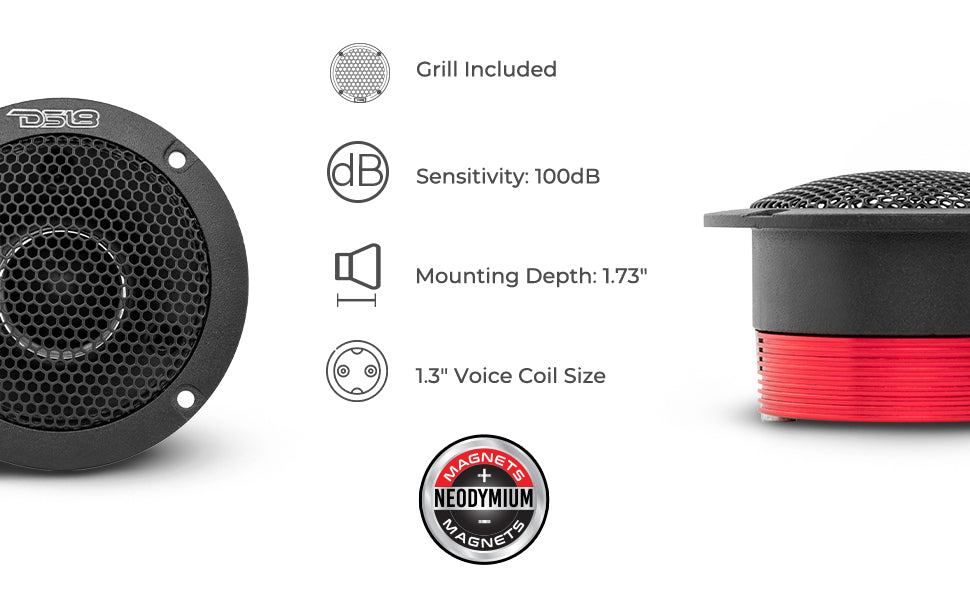

Key Features
- 3.75" Compression Super Bullet Tweeter
- RMS Power: 160 Watts(320 Watts Peak)
- Impedance: 4 Ohm ~ 100dB
- Flush Mount with Grill
- Neodymium Magnet
- Easily Repaired With The GTX1XLVC
Specifications
| SKU | GTX1XL |
|---|---|
| Nominal Diameter | 3.75" / 95mm |
| Nominal Impedance | 4 Ohm |
| AES Power Handling | 80 Watts |
| Program Power Handling | 160 Watts |
| Peak Power Handling | 320 Watts |
| Sensitivity (1w/1m) | 100 db |
| Frequency Response | 2.5 K - 20 KHz |
| Recommended Hi Pass Crossover | 2.5 KHz |
| Pair or Single | Single |
| Voice Coil Diameter | 1.3" / 33.5mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAW |
| Diaphragm Material | Aluminum |
| Magnet Material | Neodymium |
| Magnet Weight | 1.45 Oz |
| Body Material | Aluminum |
| Body Color / Finish | Black/Red |
| Overall Diameter | 3.75" / 95mm |
| Overall Depth | 2.24" / 57mm |
| Front Mount Baffle Cutout | 2.95" / 73mm |
| Mounting Depth | 1.73” / 44mm |
| Gross Single Unit Weight (lb) | 1.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 4.75 x 4.25 x 2.87 |
| Quantity of Units in Master Carton | 24 |
| Gross Master Carton Weight (lb) | 26.5 |
| Master Carton Dimensions W x L x H (Inches) | 22 x 10.25 x 6.25 |
Manuals & Documents
