XL 12" Mid-Range Loudspeaker 750 Watts Rms 8-Ohm
Product Overview DS18 XL 12" Mid-Range Loudspeaker 750 Watts Rms 8-Ohm DS18’s 12XL1500-8 is power and precision...
- $275.95
- $275.95
- Unit price
- per
Subtotal:
$275.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 XL 12" Mid-Range Loudspeaker 750 Watts Rms 8-Ohm
DS18’s 12XL1500-8 is power and precision personified. Designed for an unparalleled sound experience, this speaker is sure to change the way you experience music.
DS18’s 12XL1500-8 stands head and shoulders above the mid-range competition. This 12-inch loudspeaker comes in 4-ohm and 8-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup.
With power handling of 750W RMS and 1500W MAX these speakers are guaranteed to blow you away. The frequency response of 45Hz-6.5KHz ensures an extensive range that captures every nuance of your favorite music genres while the sensitivity rating of 98.7 dB guarantees crystal-clear sound reproduction, even in large venues.
Crafted with precision, DS18’s 12XL1500-8 features a 3.5" Kapton voice coil and a non-pressed paper cone for enhanced durability and optimal sound reproduction. The satin black aluminum basket not only enhances the speaker's aesthetics but also provides structural integrity. The ferrite magnet weighing in at a whopping 93 ounces ensures powerful and accurate bass responses that will leave you amazed.
Elevate your audio game with the DS18 12XL1500-8!
Key Features
- 12" Mid-Range
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98.7dB
Specifications
| SPECS | 12XL1500-8 |
|---|---|
| Nominal Diameter | 12" / 305mm |
| Nominal Impedance | 8 Ohm |
| RMS Power Handling | 750 watts |
| MAX Power Handling | 1500 watts |
| Sensitivity (1w/1m) | 98.7 dB |
| Frequency Response | 45Hz-6.5KHz |
| Recommended HI Pass Crossover | 60Hz |
| Sold in Pair or Single | Single |
| Grill Included | No |
| Voice Coil Diameter | 3.5" / 89mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW (2 Layers IN/OUT) |
| Cone Material | Non-pressed Paper |
| Dust Cap Material | Paper |
| Bullet Material | N/A |
| Bullet Color/Finish | N/A |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color/Finish | Satin Black |
| Magnet Material | Ferrite |
| Magnet Weight | 93 Oz |
| Displacement Volume | 2.2L / 0.09ft3 |
| Equivalent Volume | 62.7L / 2.21ft3 |
| Excursion (one way) | 4.5mm |
| Free Air Resonance | 54Hz |
| Mechanical Factor | 6.98 |
| Electrical Factor | 0.41 |
| Total Factor | 0.38 |
| Mechanical Mass | 56.4g |
| Mechanical Compliance | 0.16mm/N |
| BL Factor | 16.92 |
| Voice Coil Inductance | 0.12mH |
| Cone Area | 526.85cm2 |
| DC Resistance | 5.8 ohm |
| Mechanical Mass w/o air | 57g |

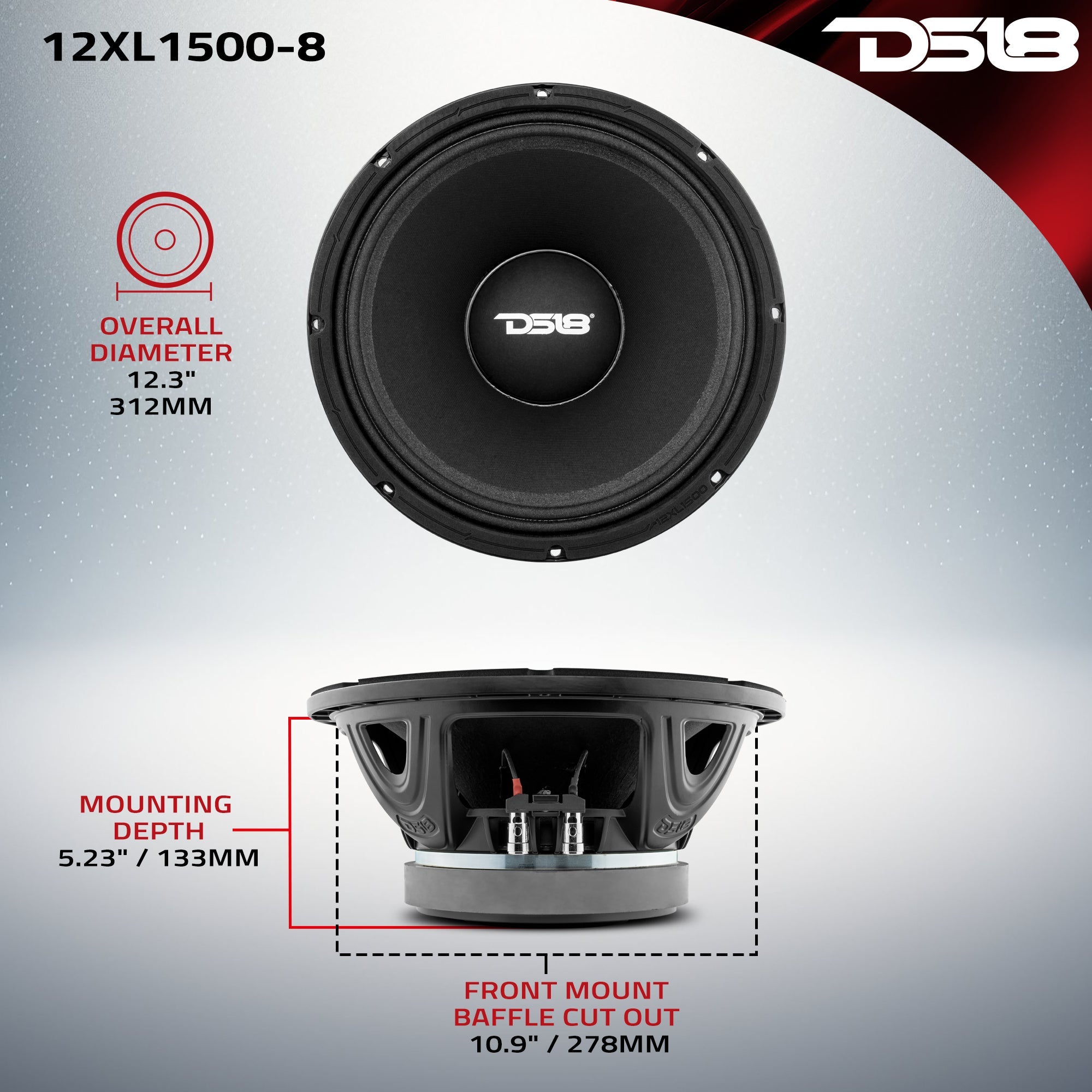

| Overall Diameter | 12.3" / 312mm |
| Overall Depth | 5.76" / 146.2mm |
| Front Mount Baffle Cutout | 10.9" / 278mm |
| Mounting Depth | 5.23" / 133mm |
| Motor Diameter | 7.48" / 190mm |
