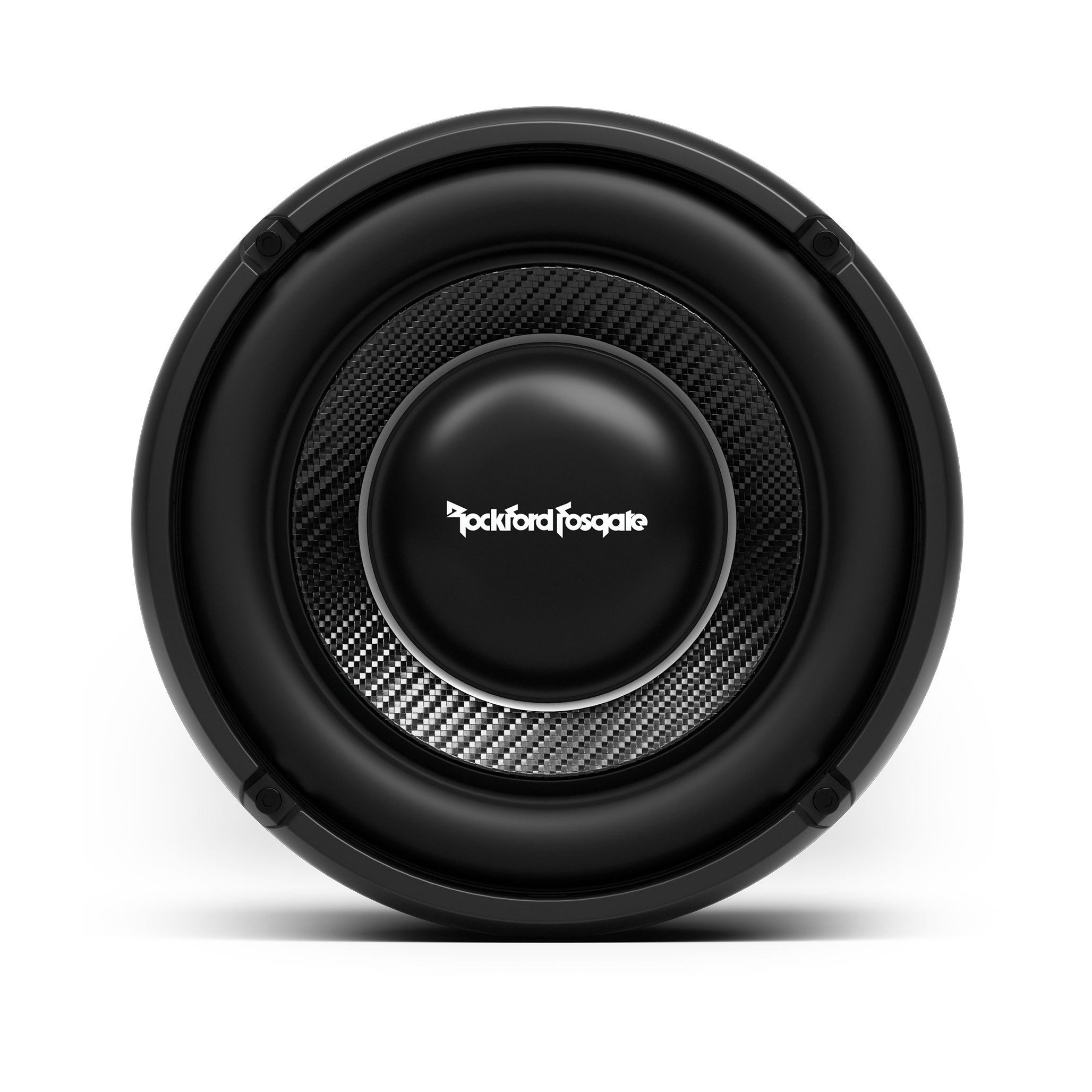

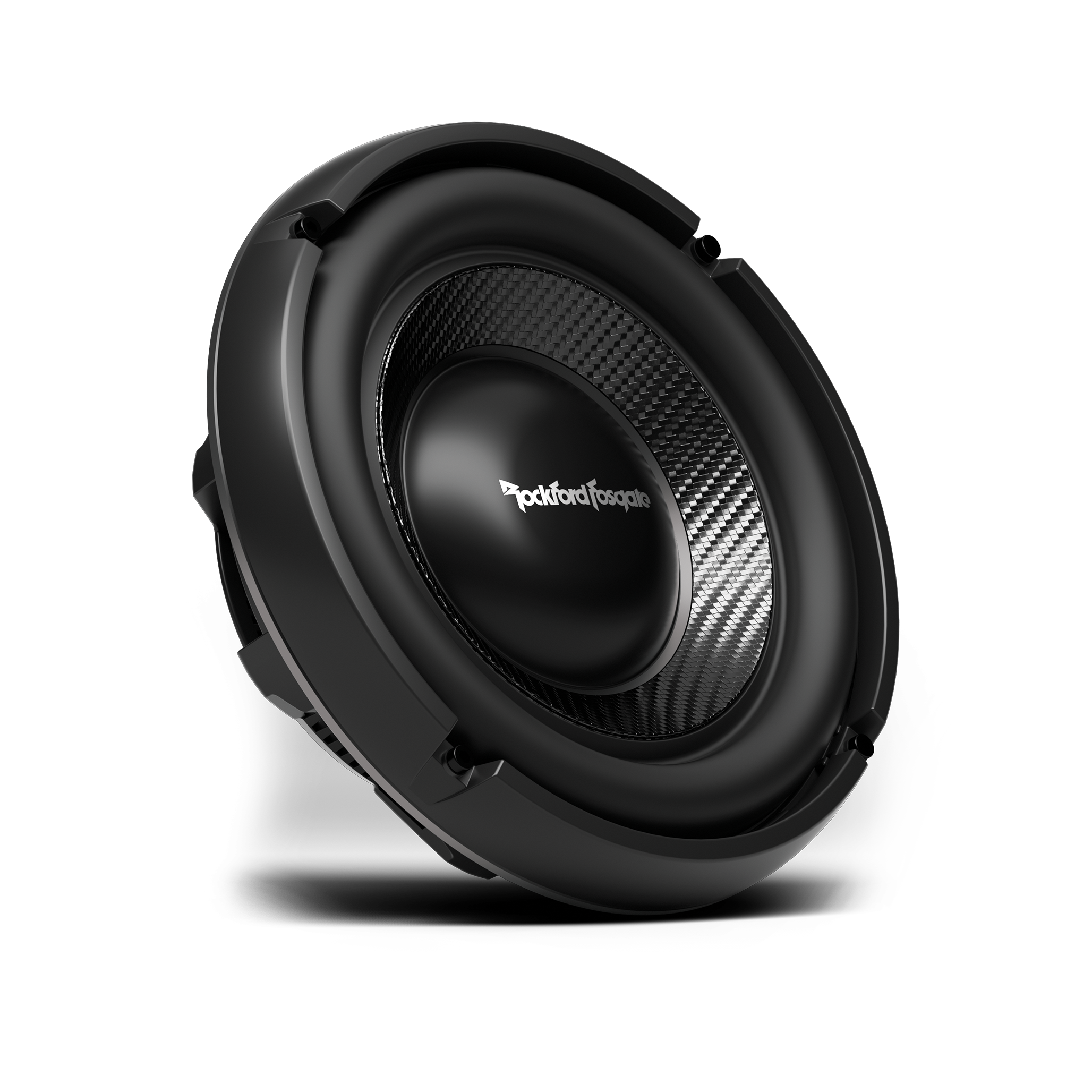

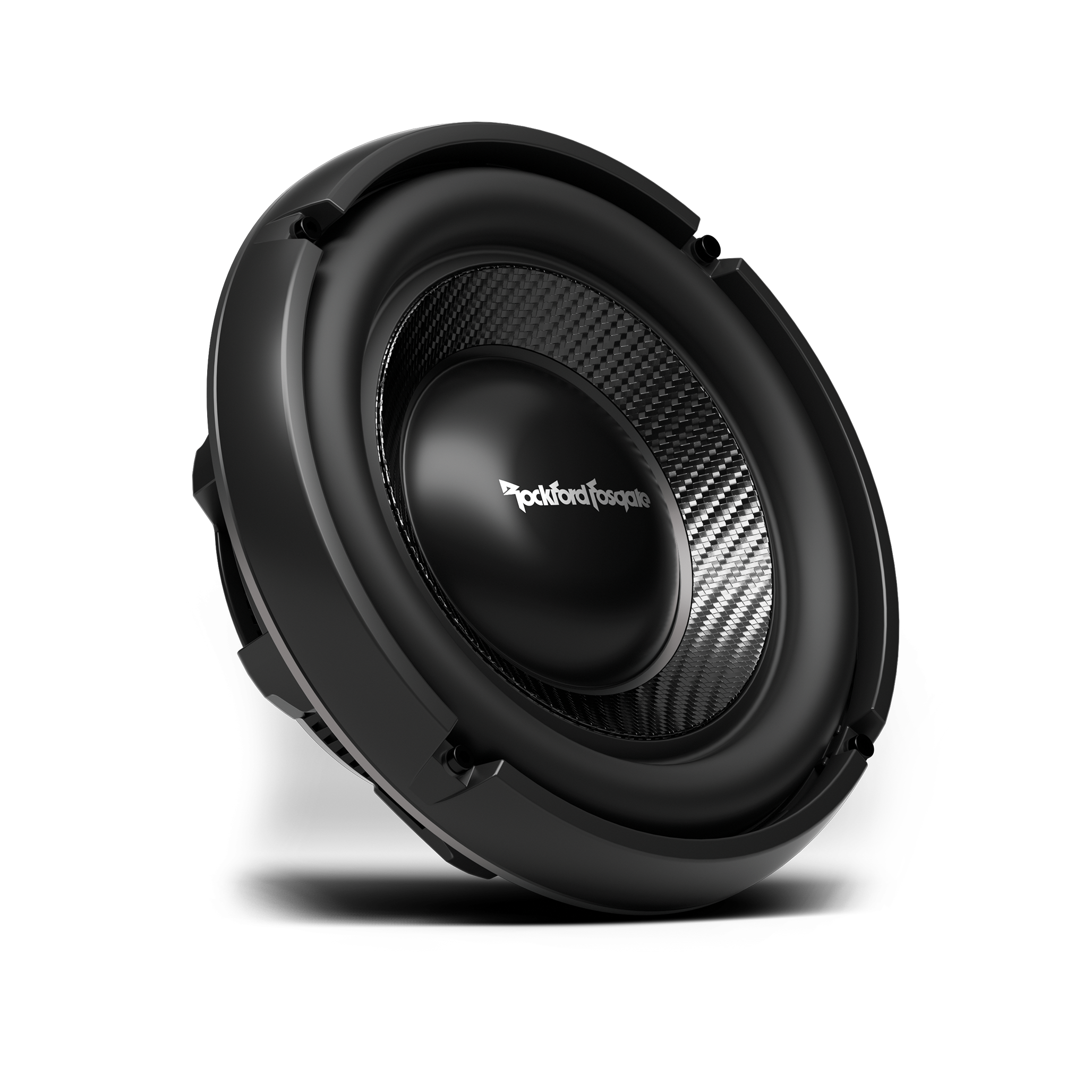

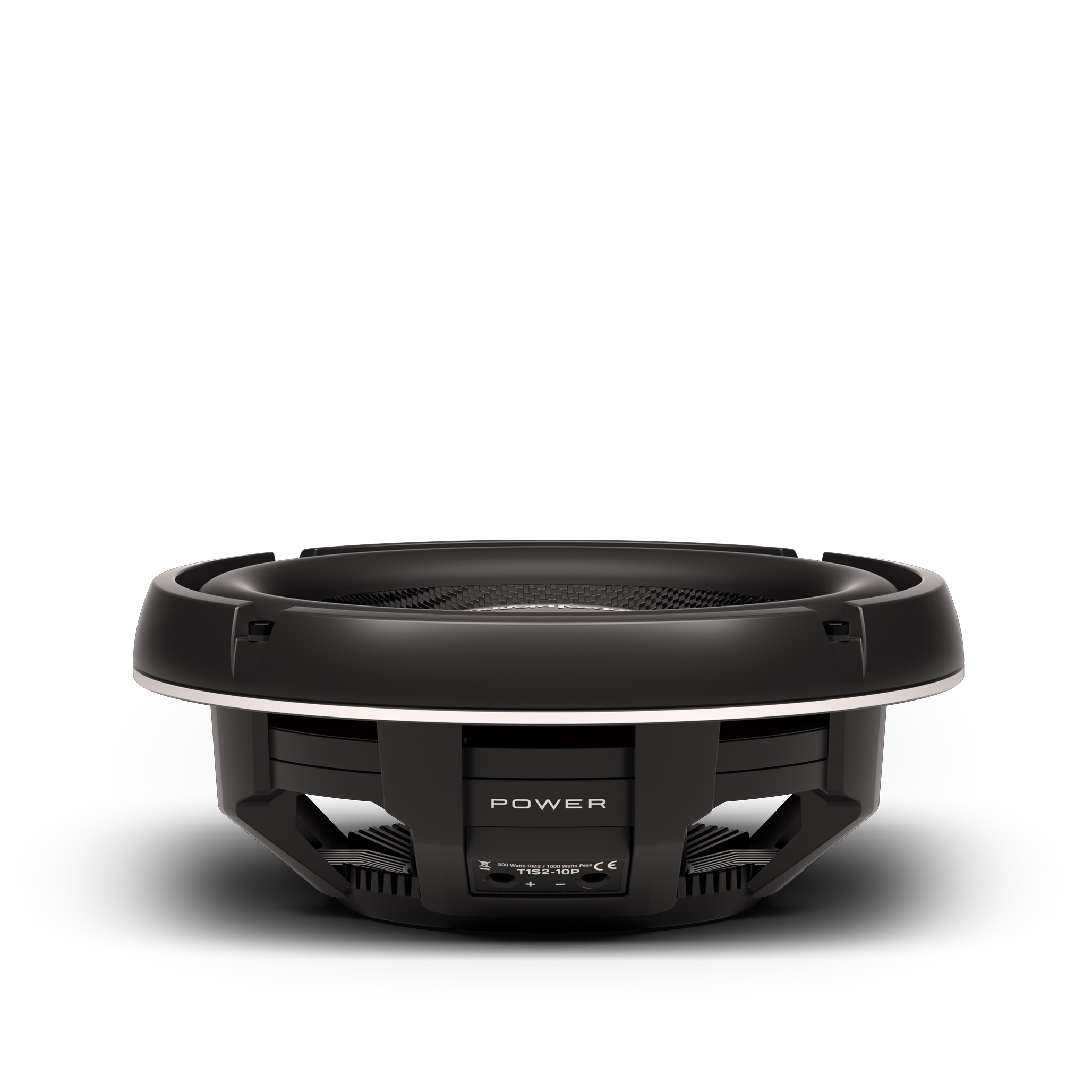

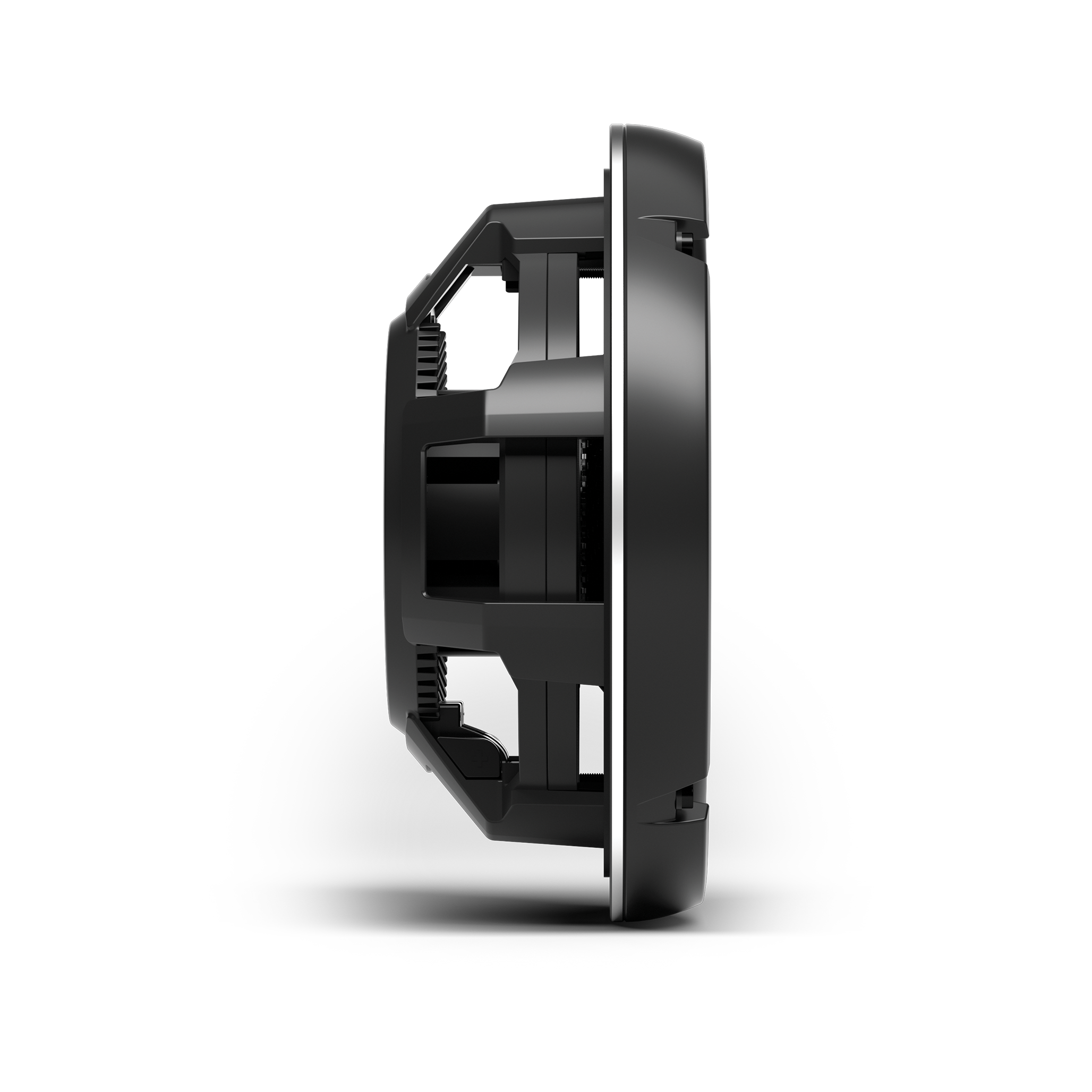

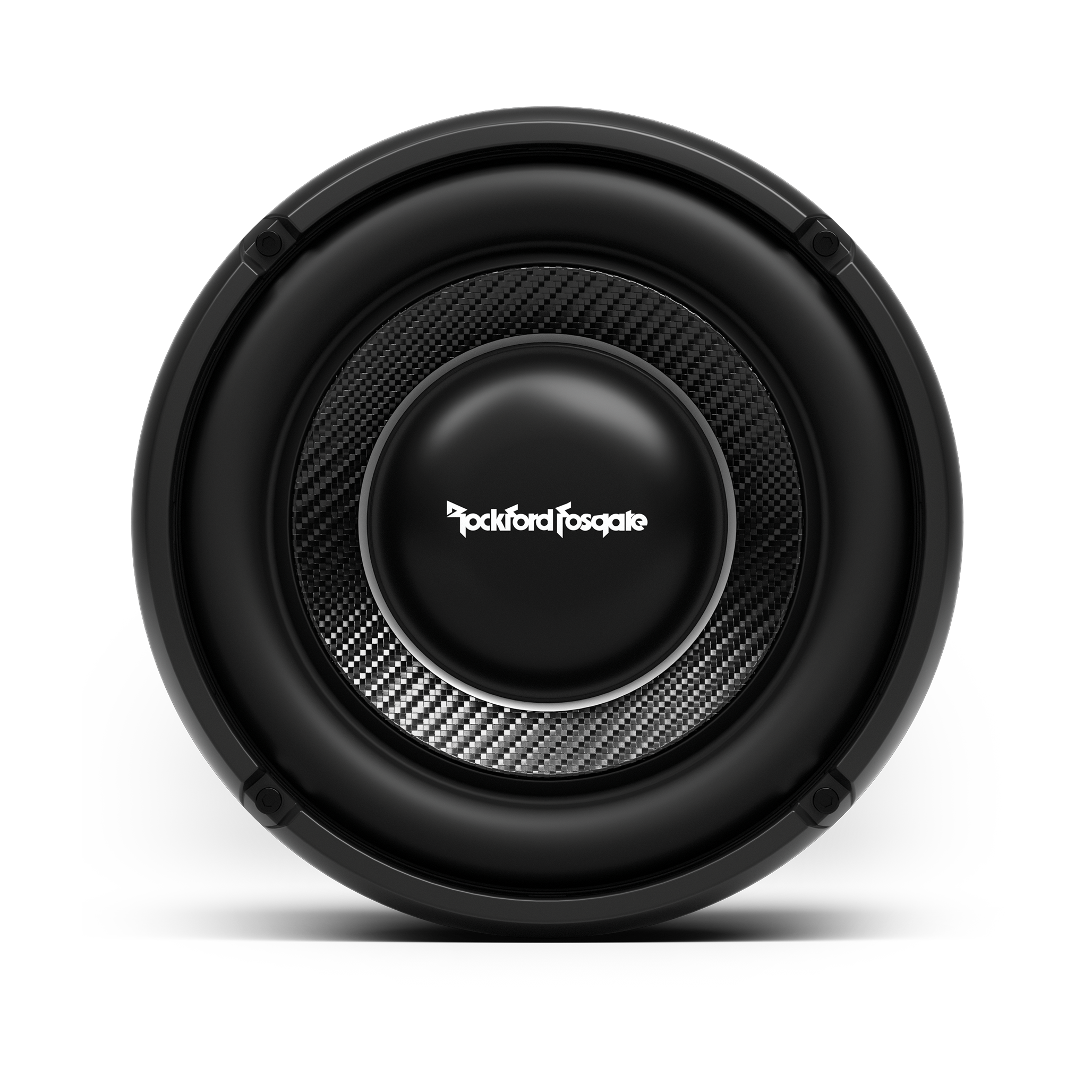

Power 10" T1 Slim 2Ω SVC Subwoofer for Ported Enclosures

Overview

The Power T1S2-10P is a slimline 10" subwoofer designed for small ported enclosures. Features a single 2-ohm single voice coil.

Features

• Supercritical synthetic organic polymer surround
• Linear Carbon Fiber/PMI/Glass Fiber cone with aluminum dustcap
• Chemically bonded co-molded surround for a stronger attachment
• Symmetrical ultra-flexible braided flat tinsel leads resistant to fatigue
• Dual Nomex progressive spiders with stitched tinsel leads
• Dual wound single 2.5" pure copper voice coil with interior and exterior coils
• High temp, high energy Neodymium motor structure

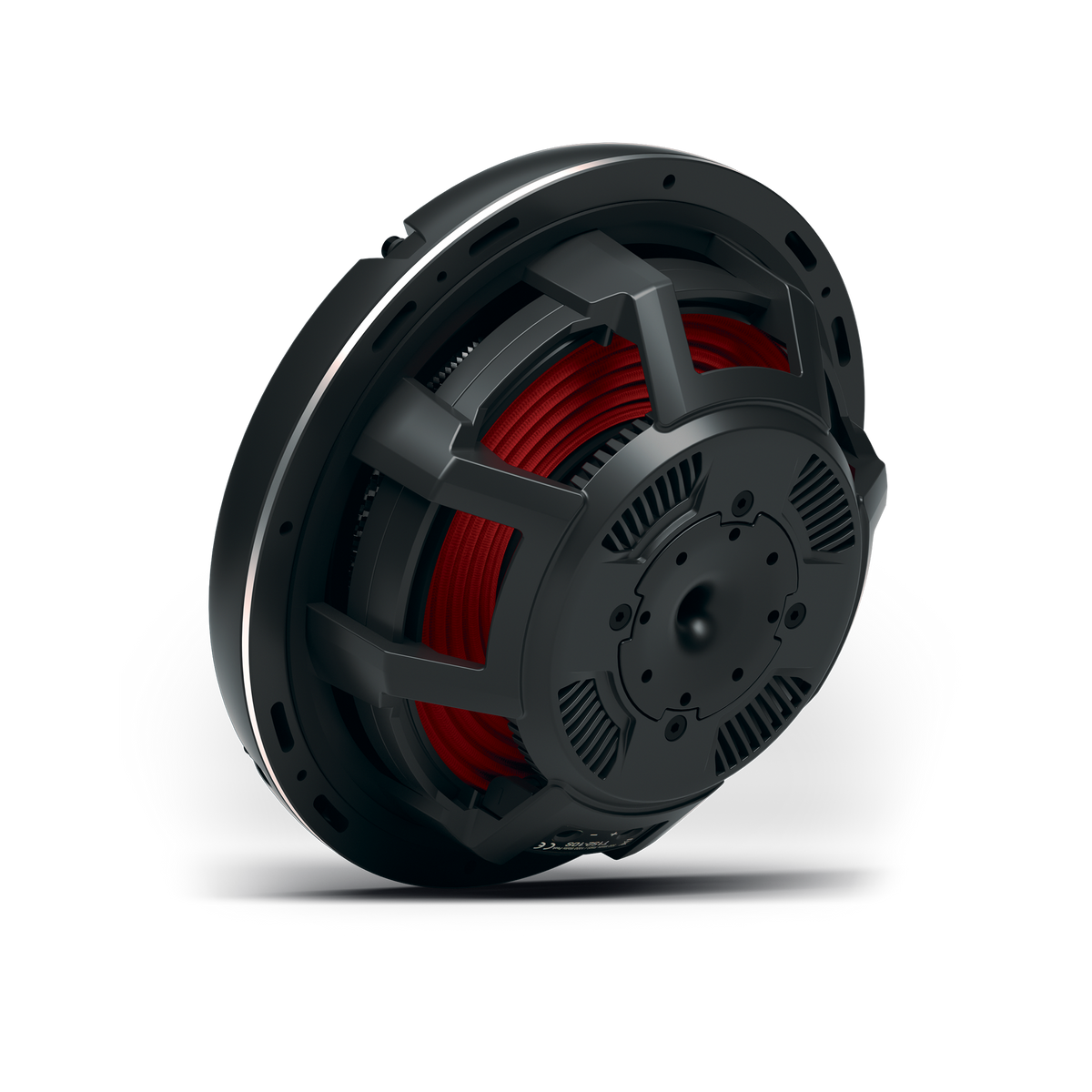

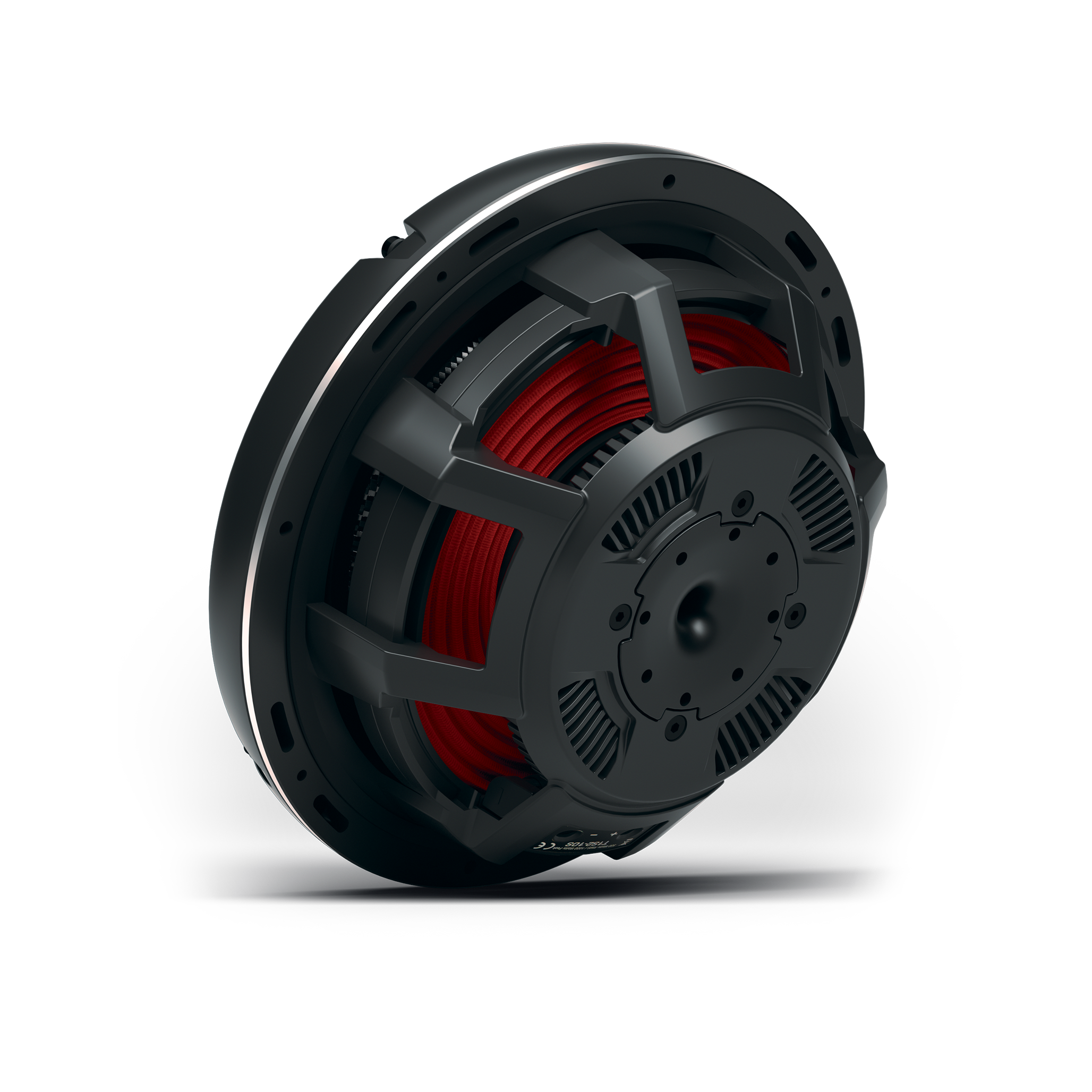

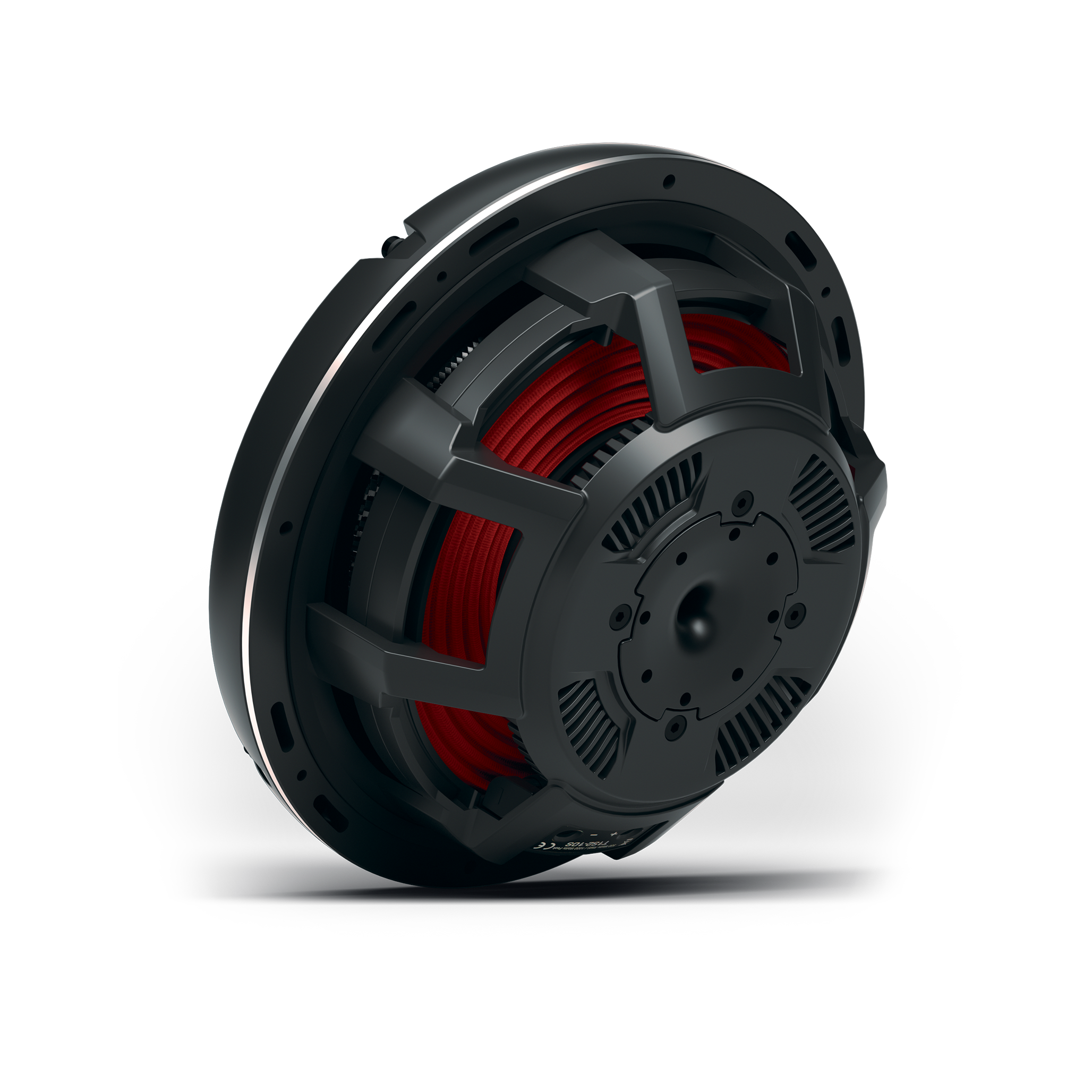

• Diecast aluminum frame with integrated heat sink fins
• Custom 10 AWG slot loaded brass push spring terminals with corrosion resistant tin plating
• Detachable die cast aluminum trim ring
• Optional protective grille insert available
• Optimized for compact ported enclosures
• 1 Year Warranty

Technologies

• NCDI Surround: This improved surround uses a supercritical synthetic organic polymer created through an NDCI (Nano-Cell Direct Injection) molding process. This high efficiency design offers low distortion with low-end bass extension in a surround technology resistant to dry rot.
• VCCF (Voice Coil Composite Former): The voice coil former is comprised of a high-performance composite material (polyimide resin glass & epoxy resin glass fiber) rigorously tested to withstand extreme heat. This material has low magnetic susceptibility and is an insulator to prevent inductive effects and eddy currents, resulting in minimal motor distortion.
• Dual Spiders: The voice coil carrier features an asymmetrically aligned 2-spider design to deliver enhanced bass response. Each spider works together to handle a range of low-end notes, ensuring you never miss any bass-hits in your music.
• Multi-Vent Pole Piece: The pole piece uses a voice coil direct venting array system to further dissipate heat generated by the voice coil.
• CTA-2031: Power handling on Rockford Fosgate speakers conform to CTA-2031 industry standards.
• Klippel Verified: Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
• IDHSTM Inductive Damping Heat Sink: Secures directly to the top of magnet structure to improve system efficiency by reducing both distortion and back EMF (Electo-Magnetic Force) of the woofer. IDHS also utilizes fins to radiate heat and reduce voice coil temperature.
• SYMS: The unique motor structure design allows full excursion capabilities of the woofers voice coil while allowing an overall reduction in woofer mounting depth.
• EVCC: Our EVCC (Encapsulated Voice Coil Coupling) technology connects to the woofers voice coil from both the top and bottom and provides a more secure mounting platform for both the dual spiders and cone assembly.
• VAST Surround - Subs: The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
• FlexFit Basket - Subwoofer: The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.
• Stitched Tinsel Leads: Improved reliability and performance by reducing fatigue and possible shorting.

Specifications

CTA-2031 Compliant
Size	10"
Frequency Response	28 - 250 Hz
Subwoofer Type	Shallow
Nominal Impedance	2-Ohm
Fs (Hz)	43.5
Re (Ohms)	1.6
Qms	9.21
Qes	1.17
Qts	1.04
Sd (cm2)	356
Vas (Liters)	13.1
Le (mH)	0.42
Xmax (mm)	15
SPL (dB @ 1w/1m)	83
Power Handling (Watts RMS)	500 Watts RMS 1000 Watts Max
Voice Coil Type	Single Voice Coil
Voice Coil Diameter	2.5" (63.5mm)
Magnet Weight (oz)	15.1 oz. (0.43 Kg)
Speaker Connector	10 AWG slot loaded
Cutout Diameter	9.13 in. (232 mm)

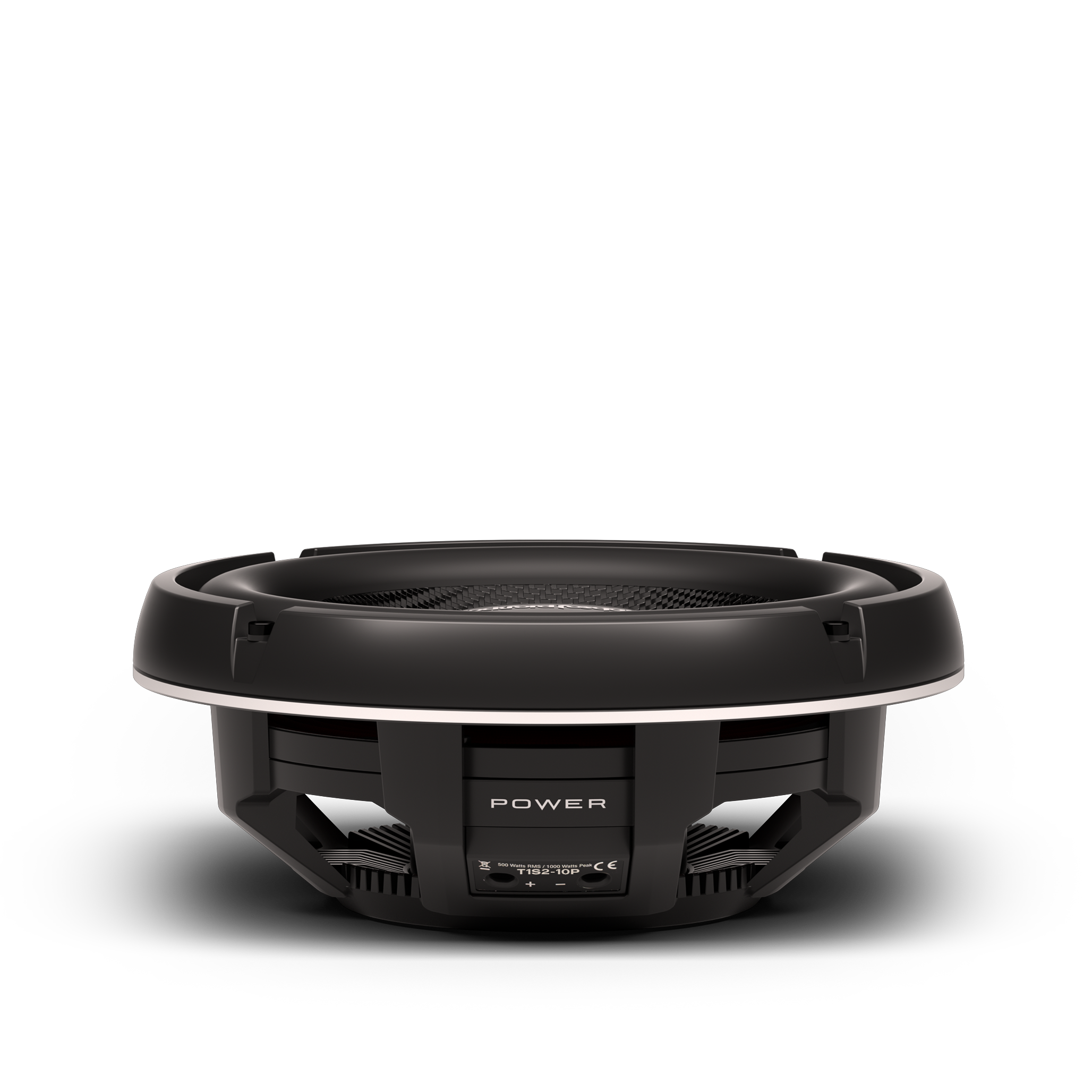

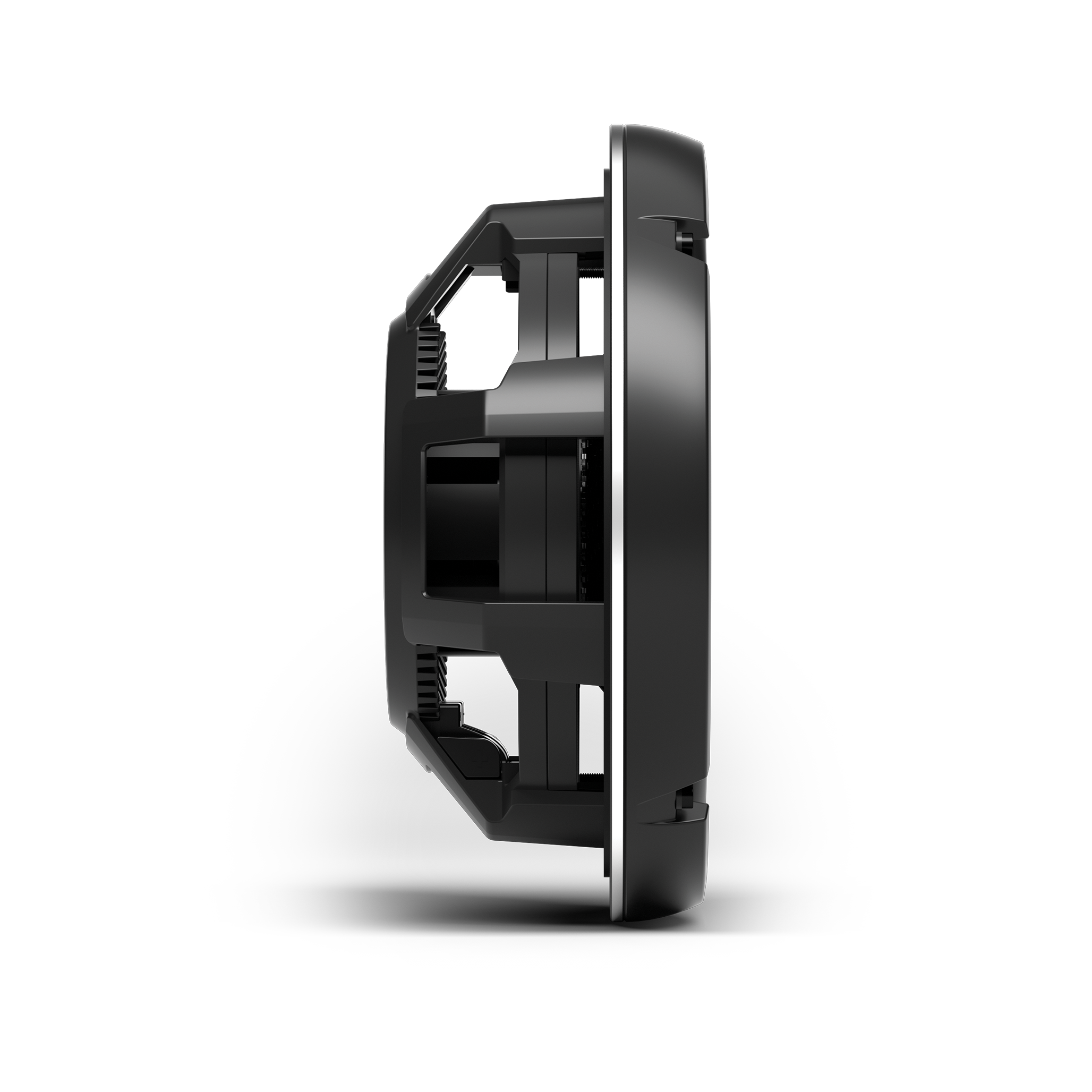

Mounting Depth	3.01 in. (76.5 mm)
Woofer Displacement	0.028 cu. ft. (0.82 Liters)
Sealed Box Volume (Vb)	Not Recommended
Vented Box Volume (Vb)	1.0 - 1.50 cu.ft. (28.3 - 42.5 Liters)
In The Box	(1) 1125-73494-01 Bit Driver, 40mm 5.0mm (4) 1125-80626-01 4mm Hex, M5x43mm (8) 1125-80626-01 4mm Hex, M5x43mm Self Tap
Shipping Weight	11 lb. (4.99 Kg.)
