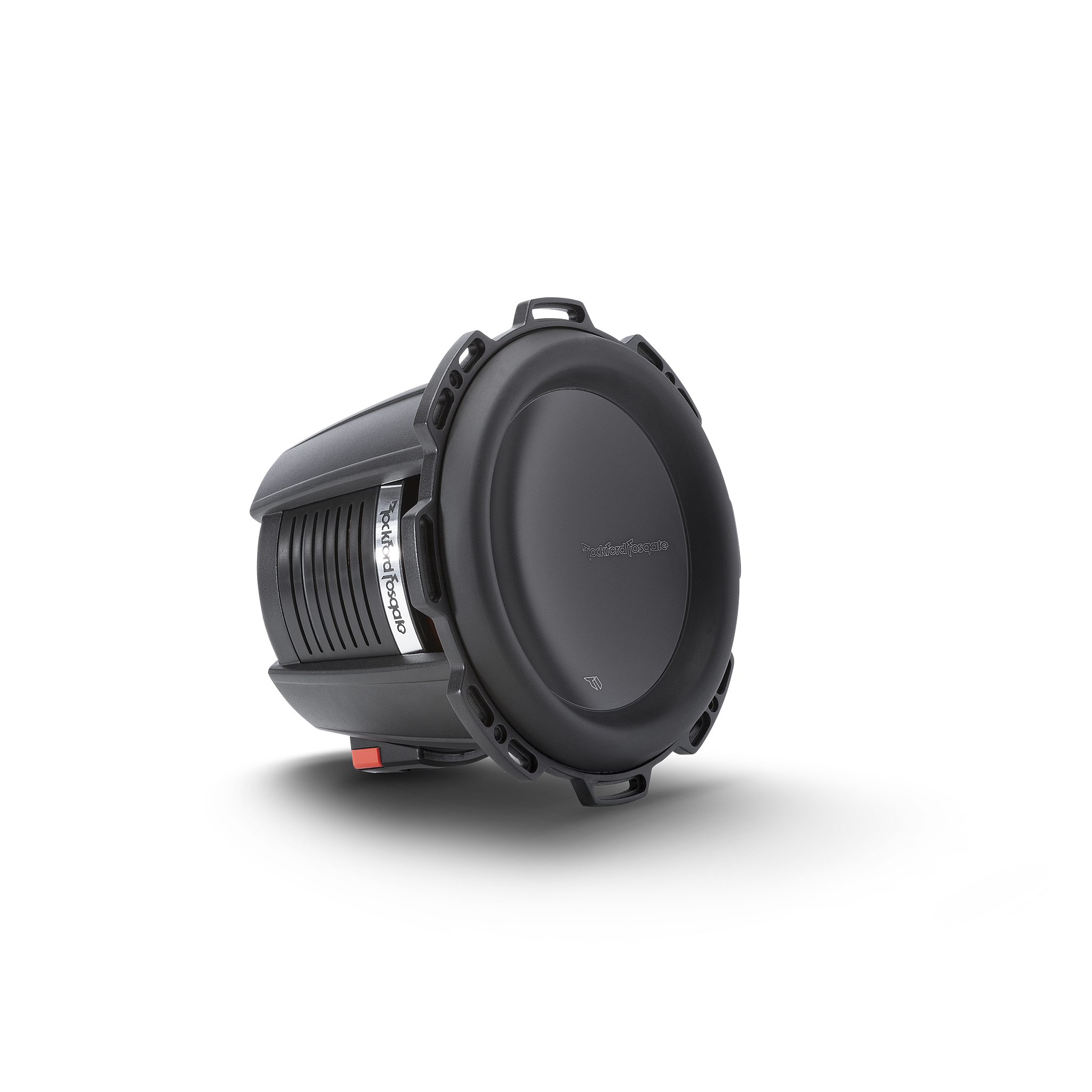

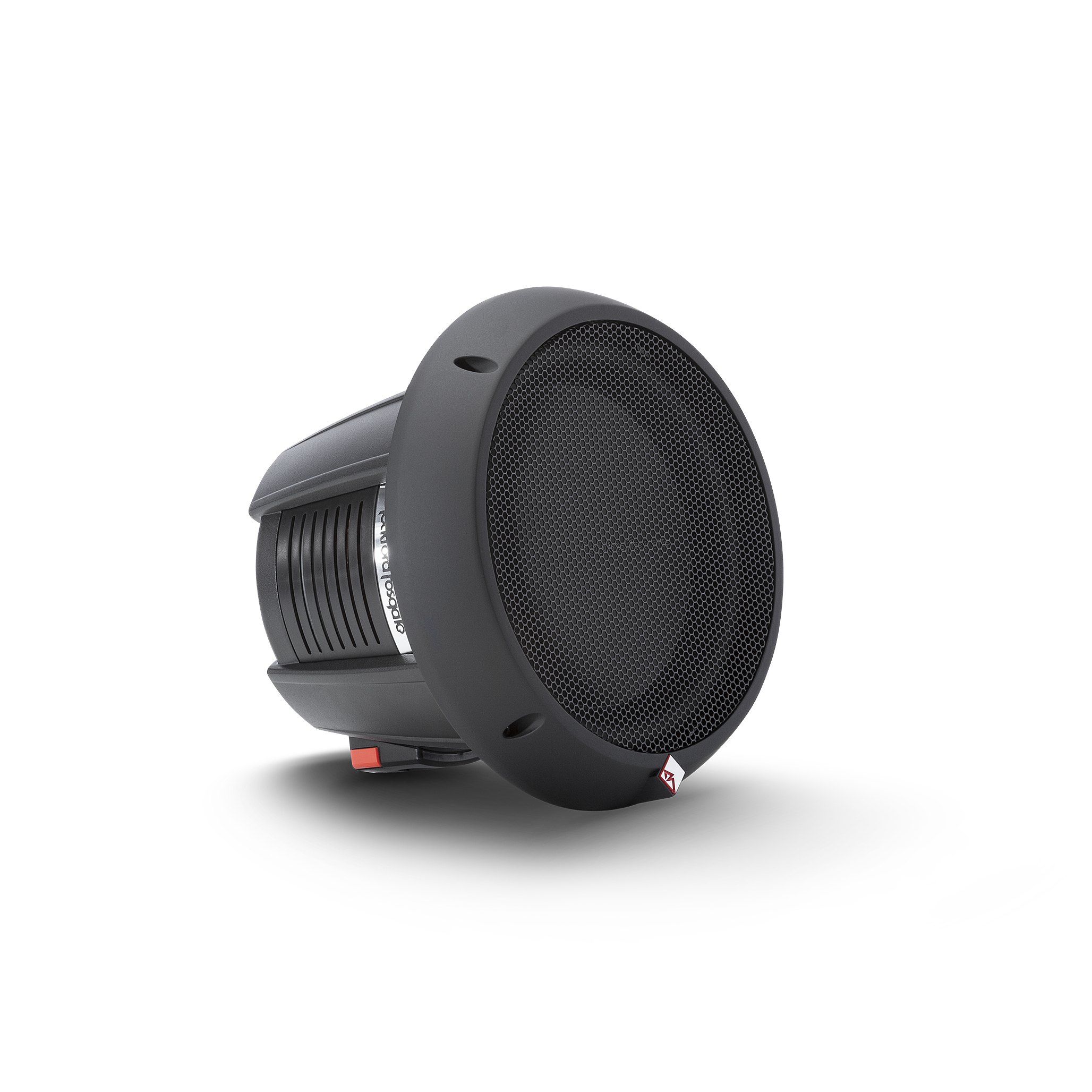

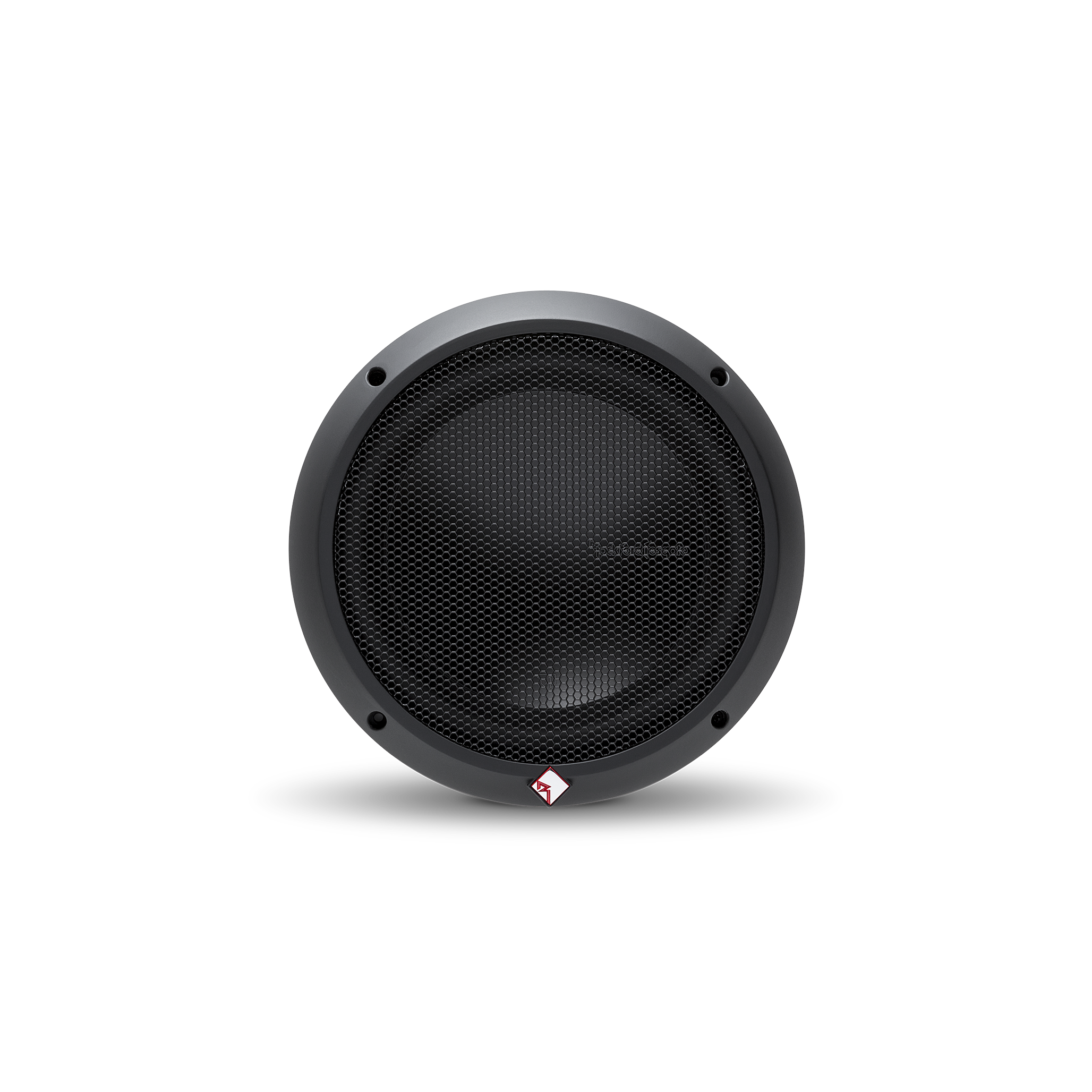

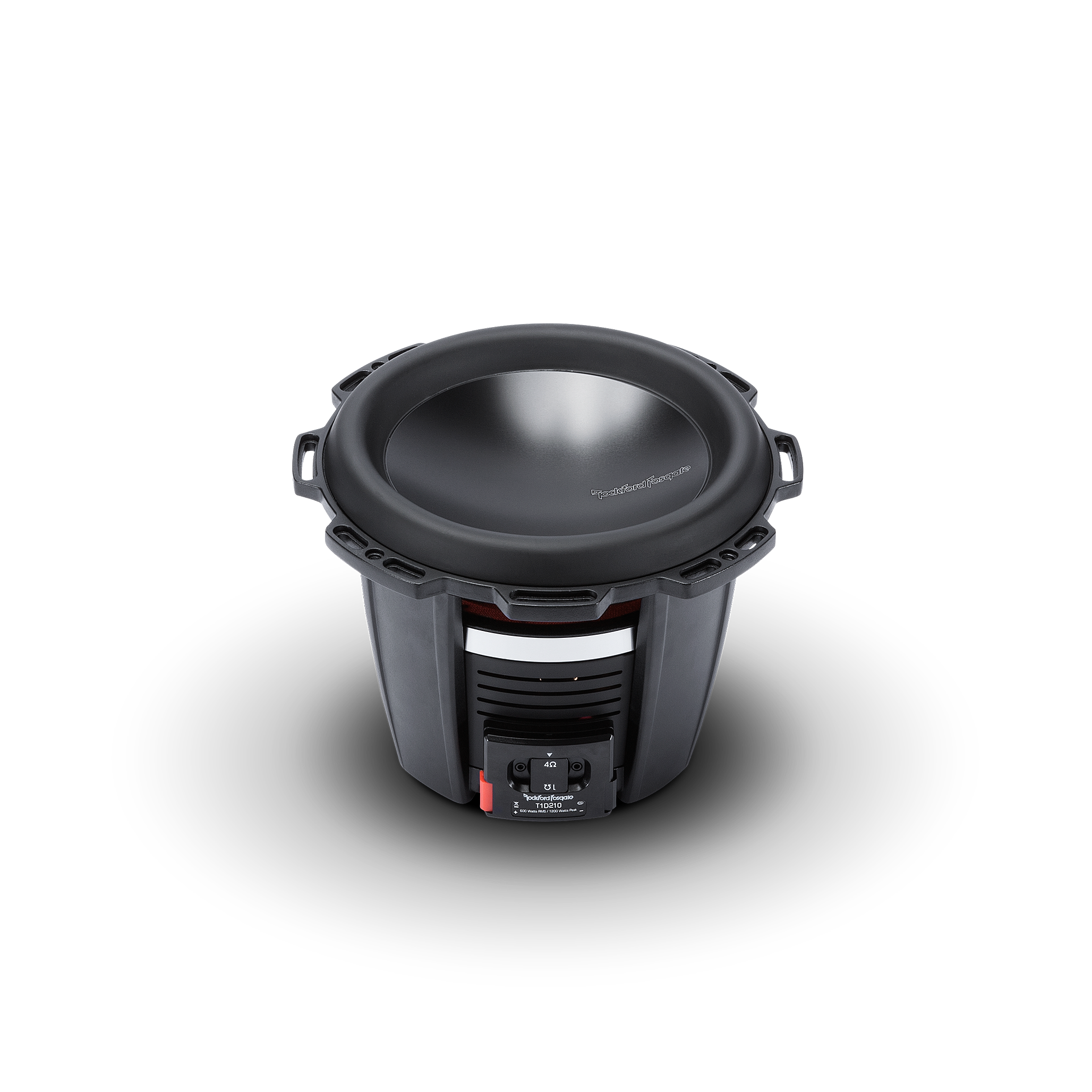

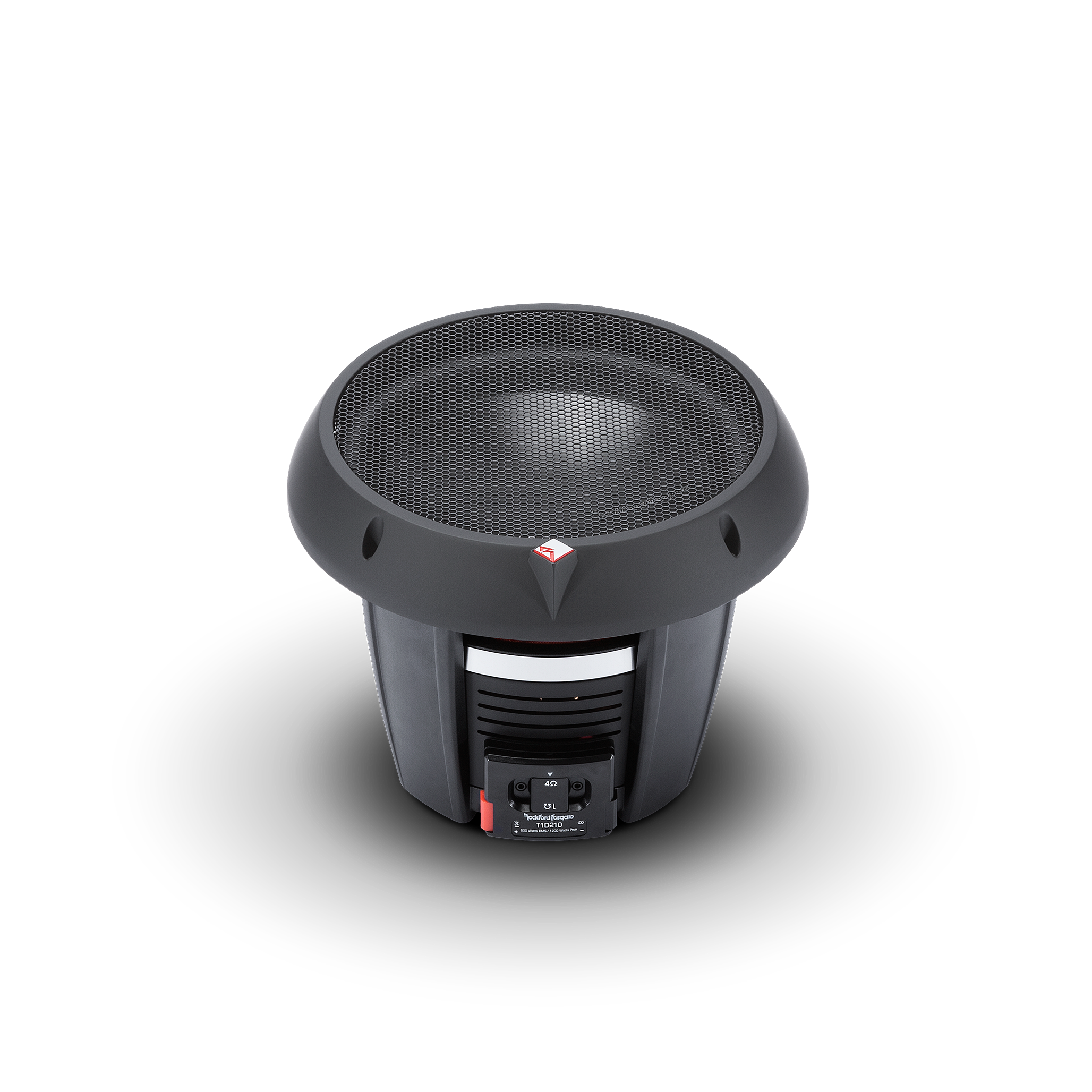

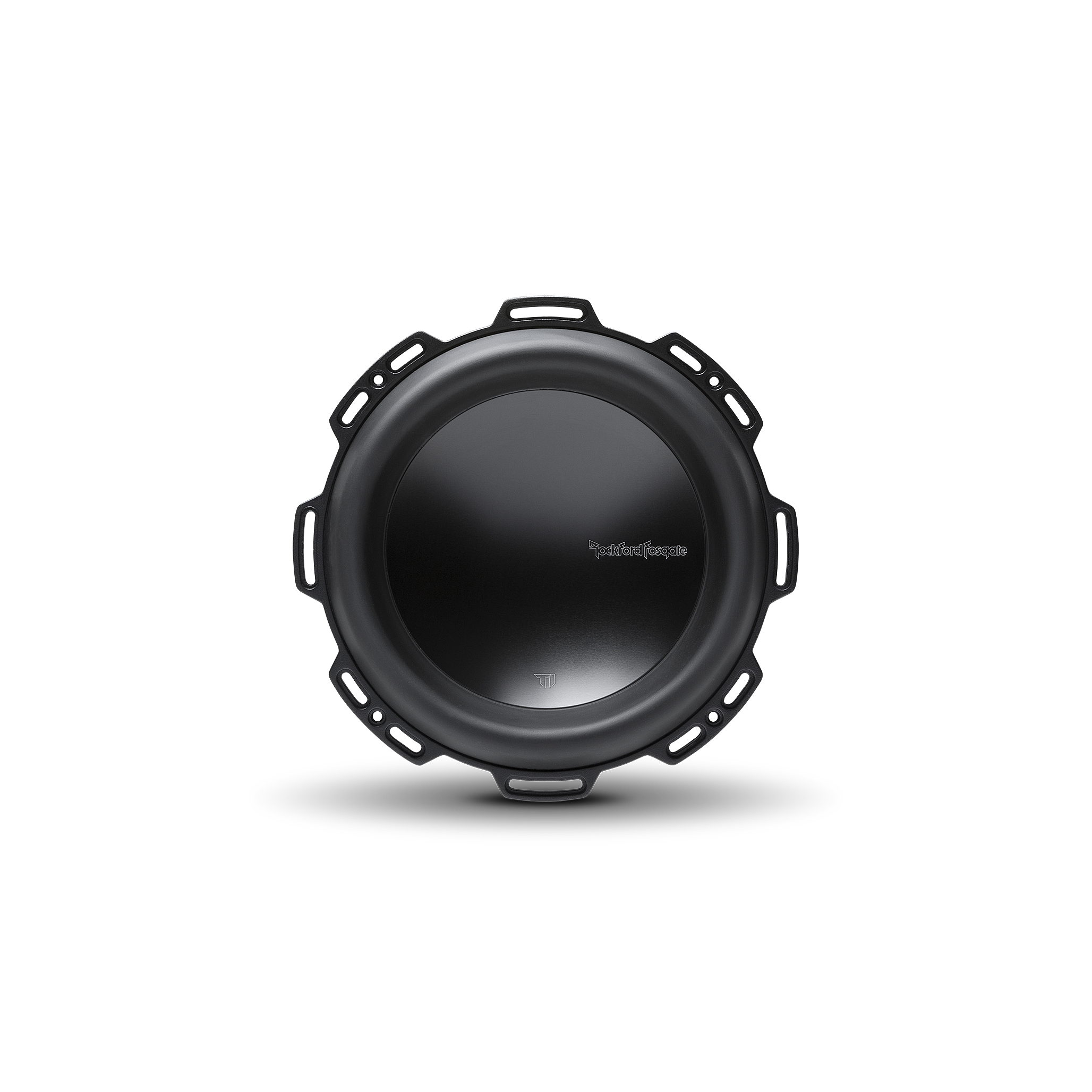

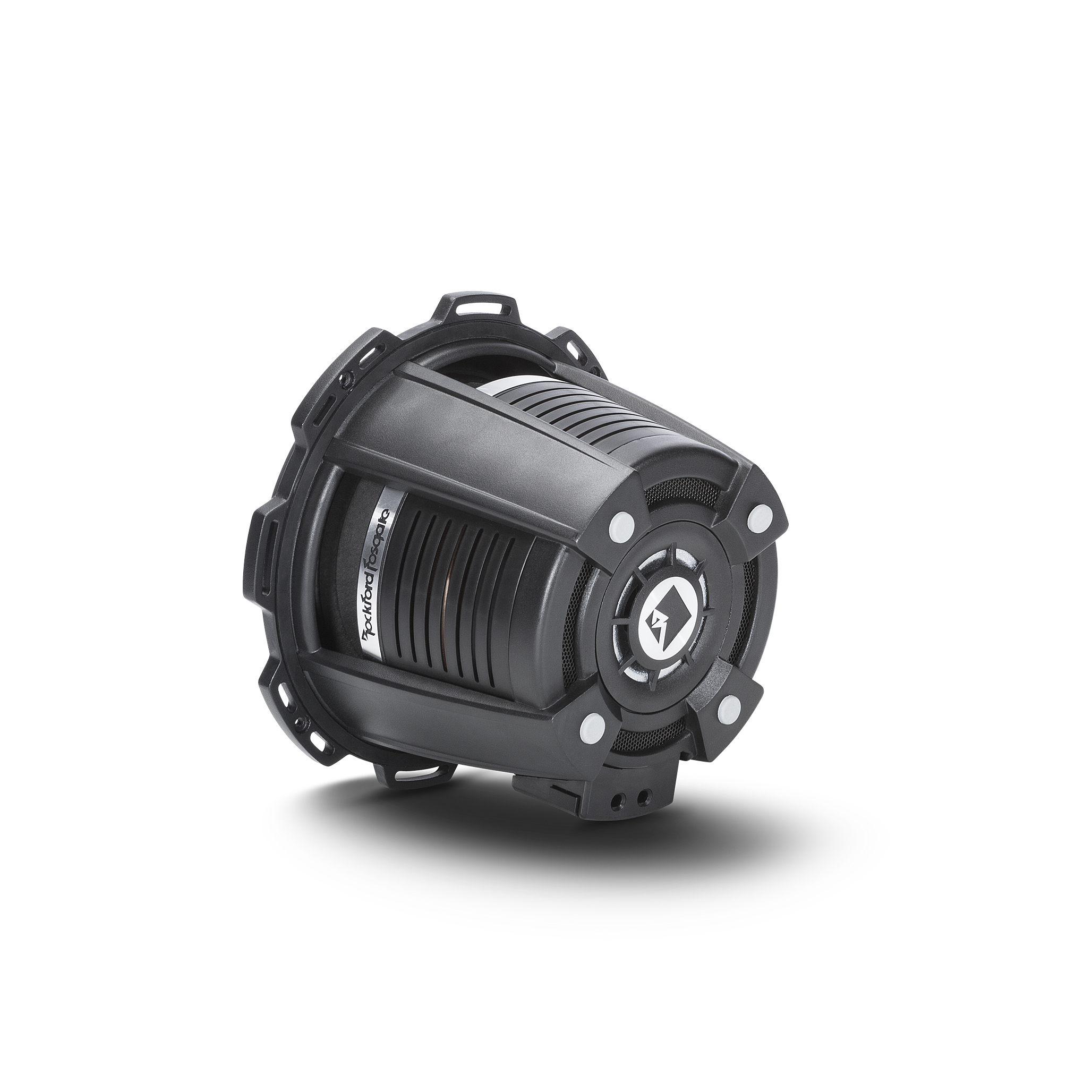

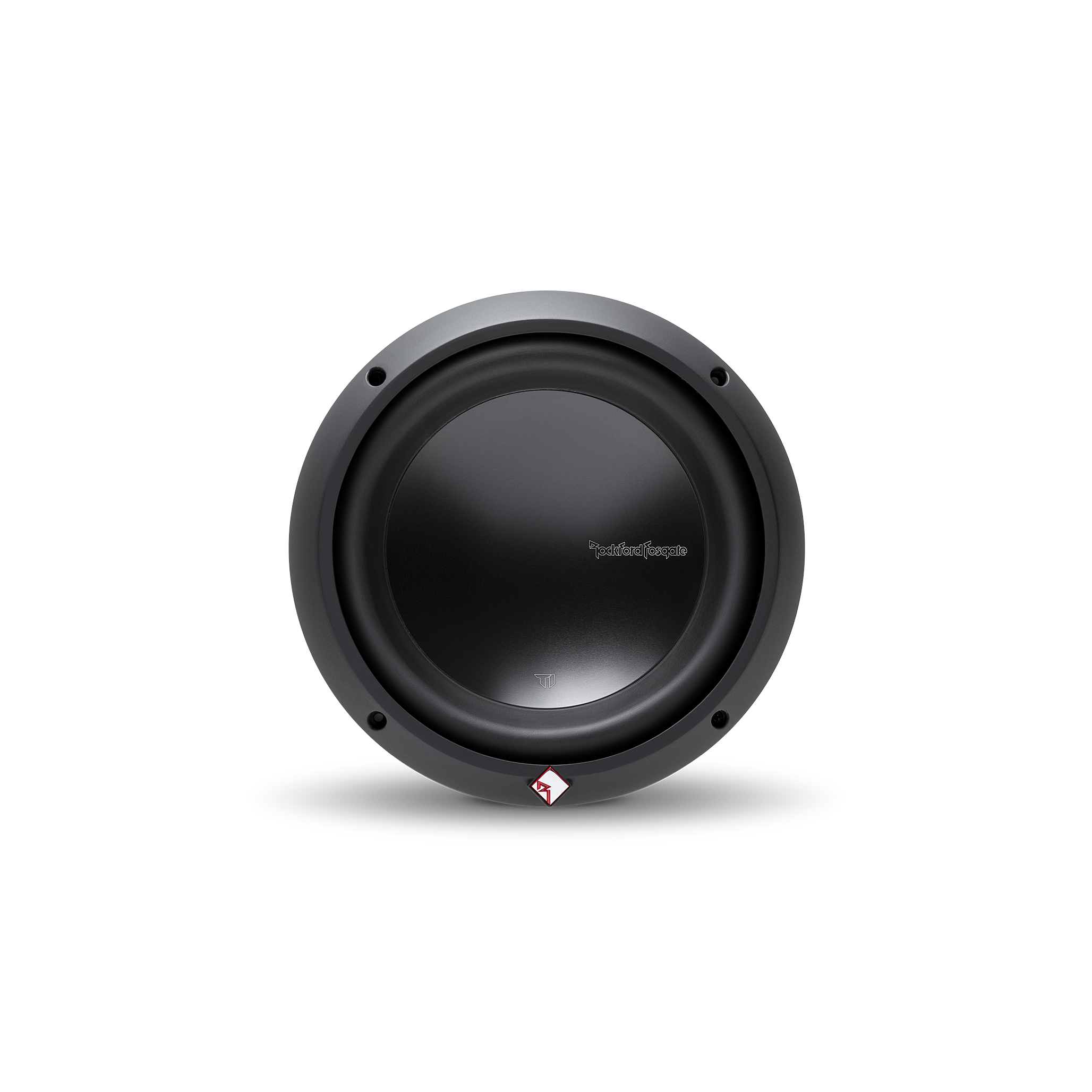

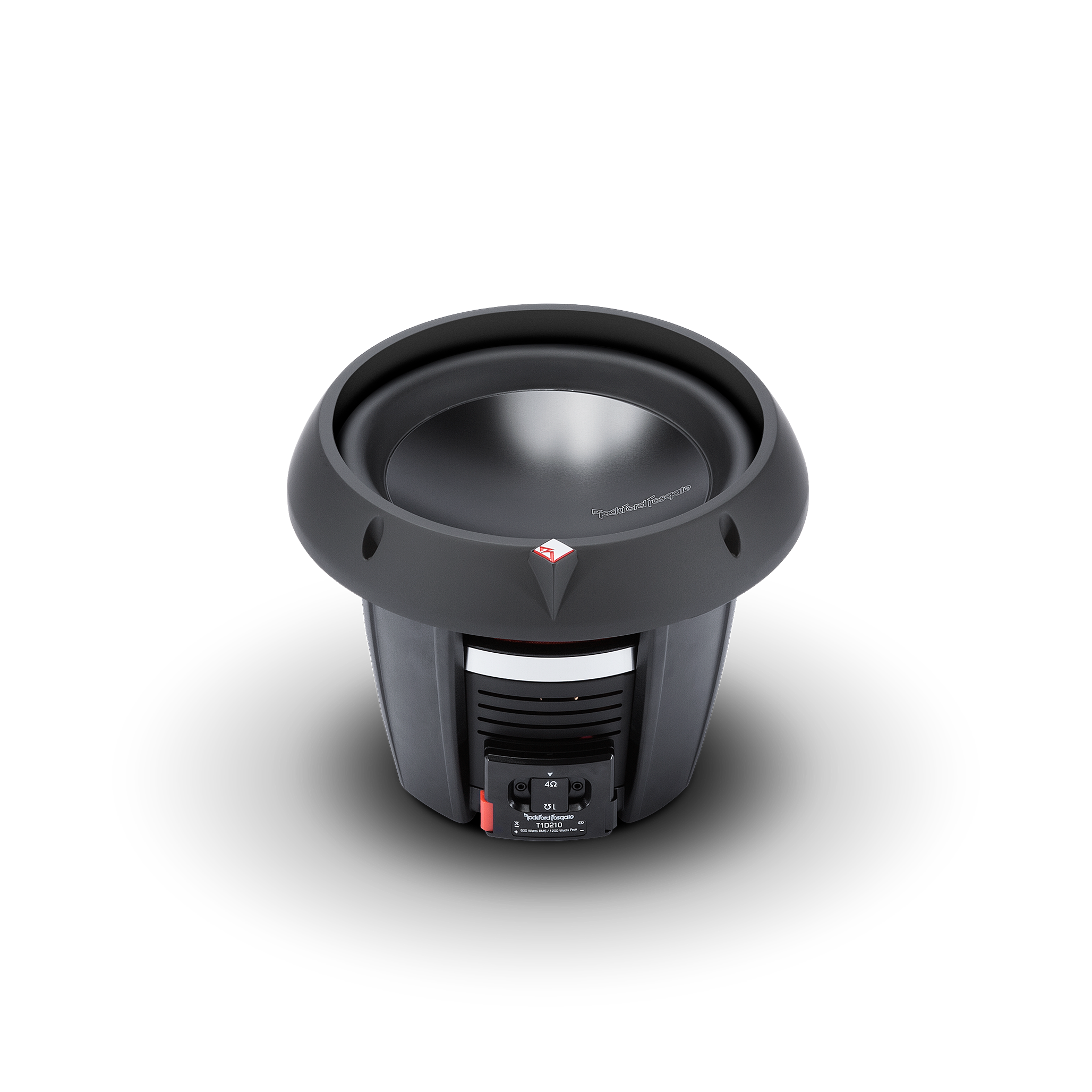

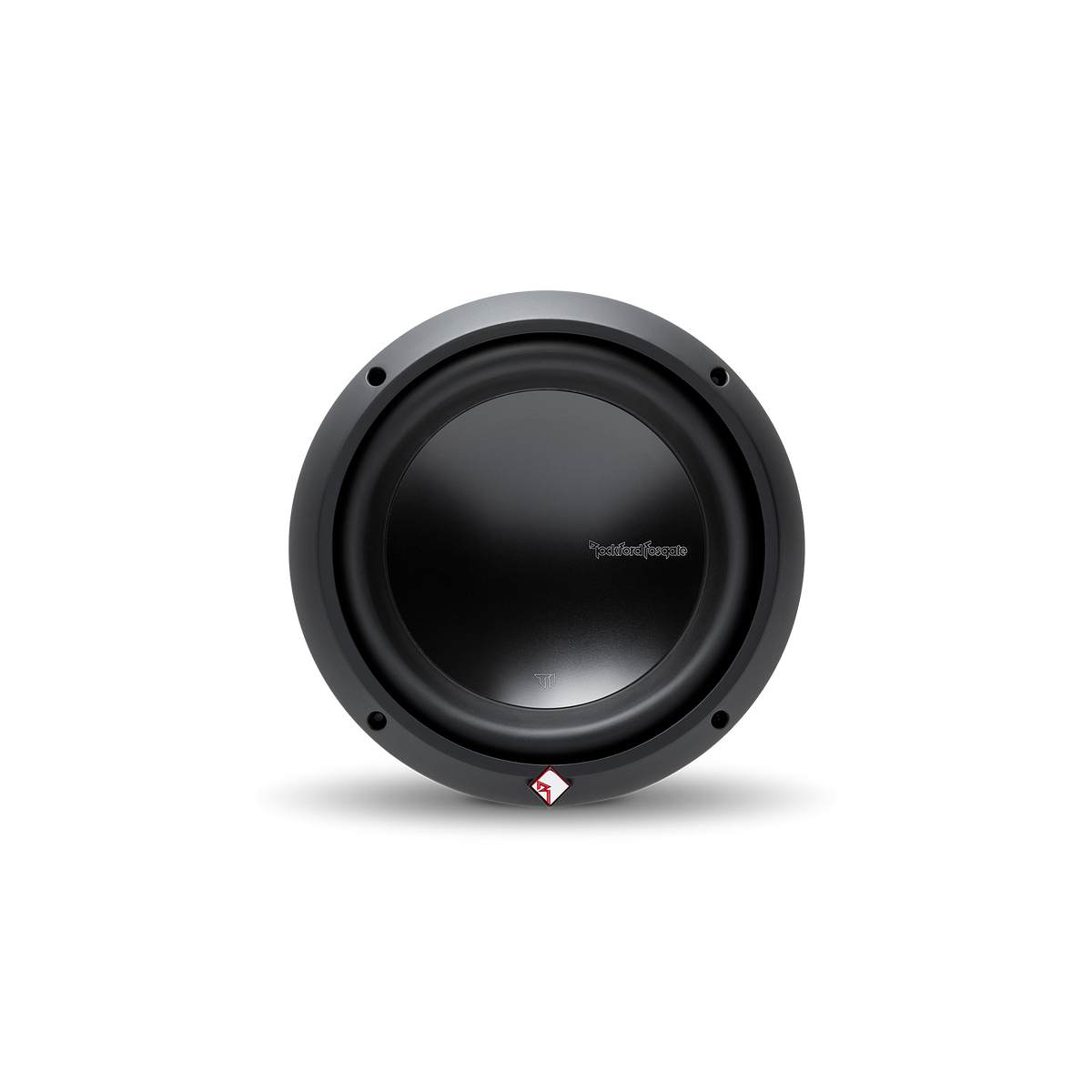

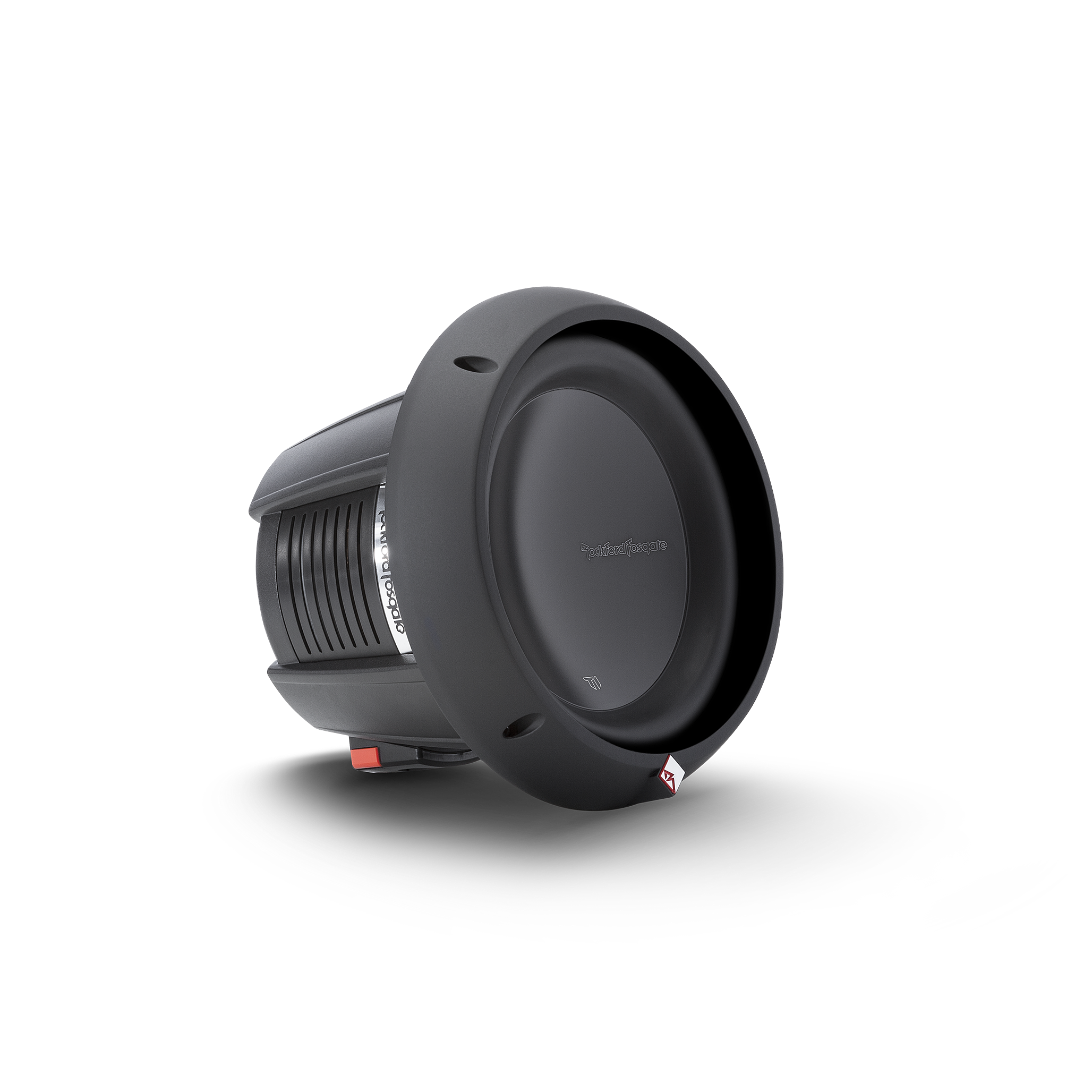

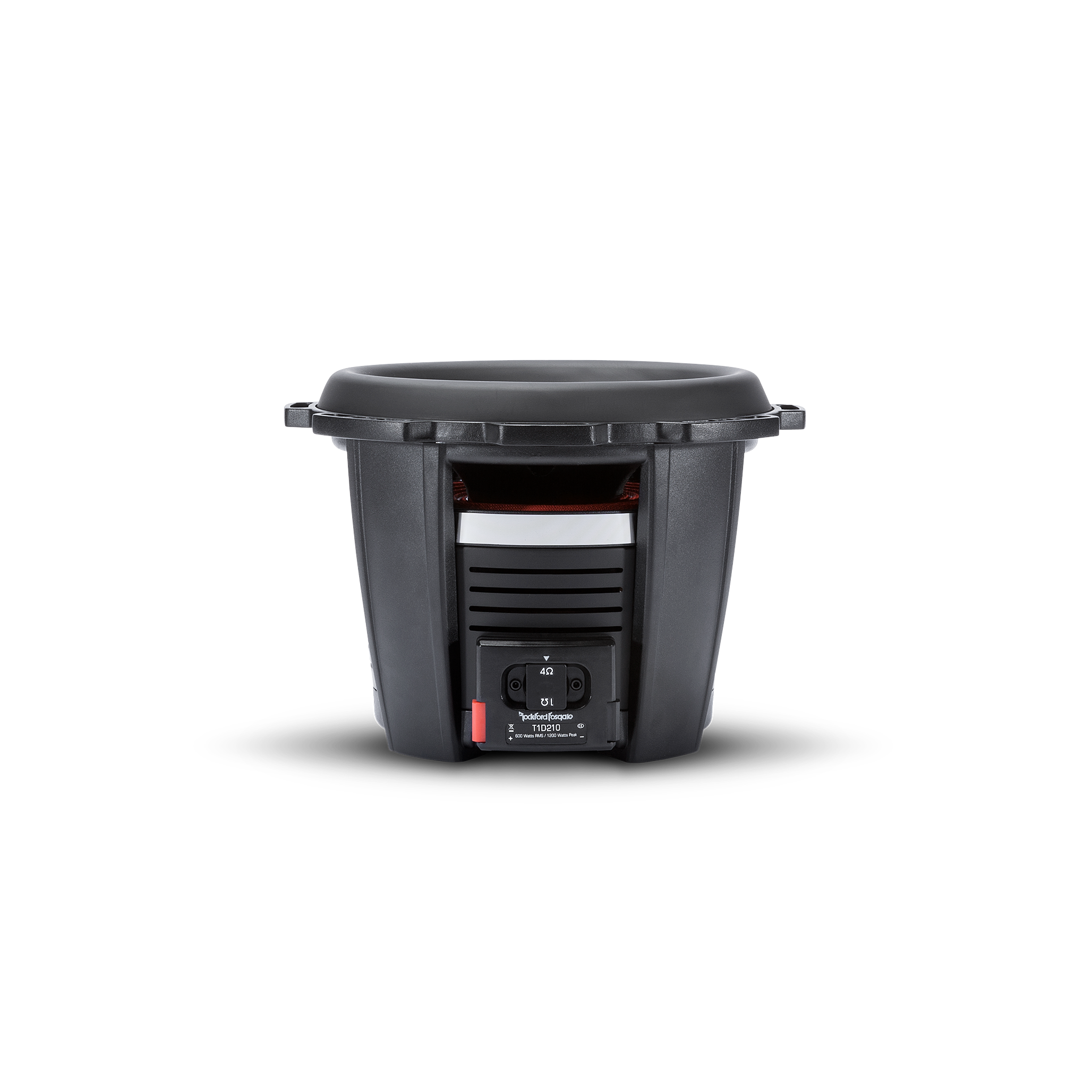

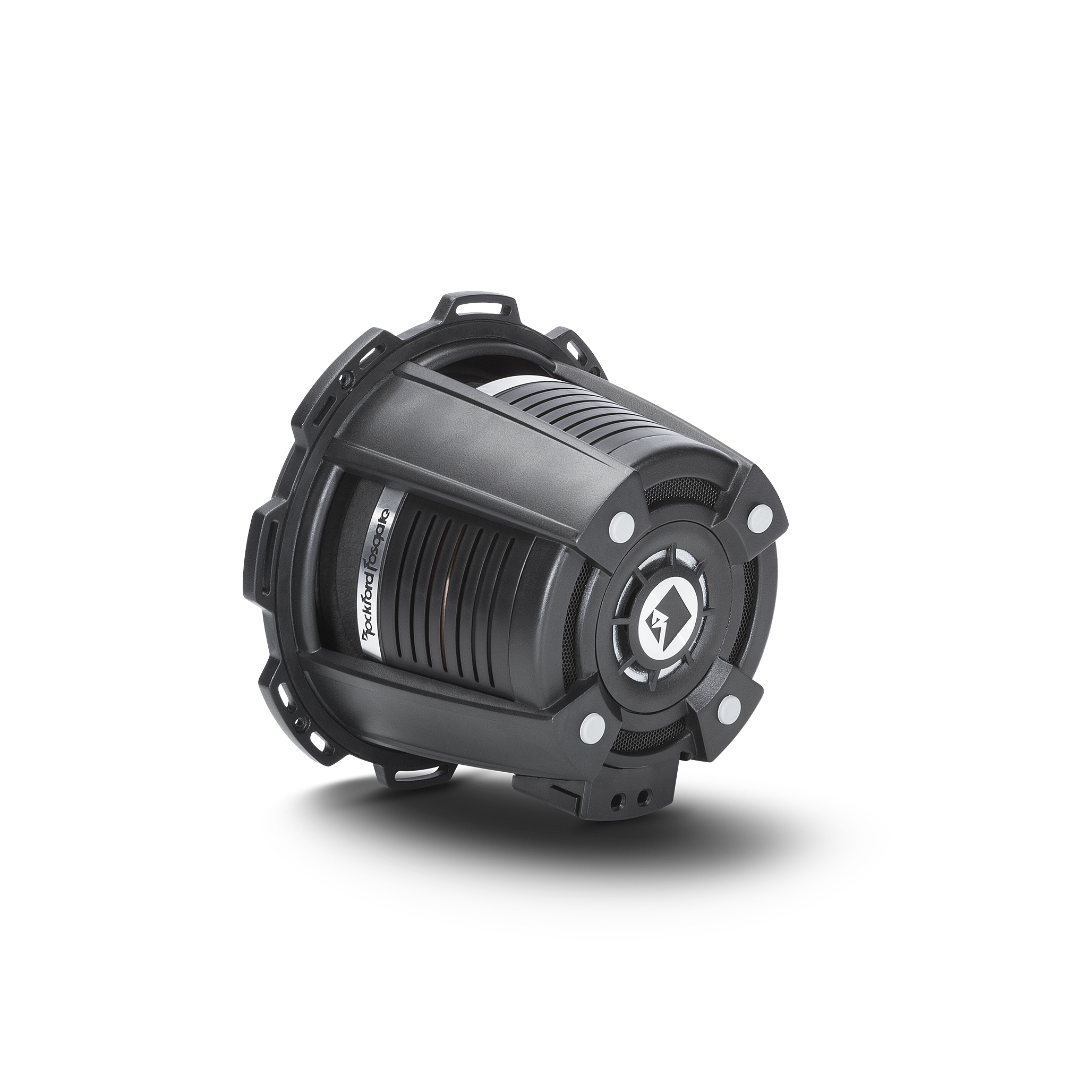

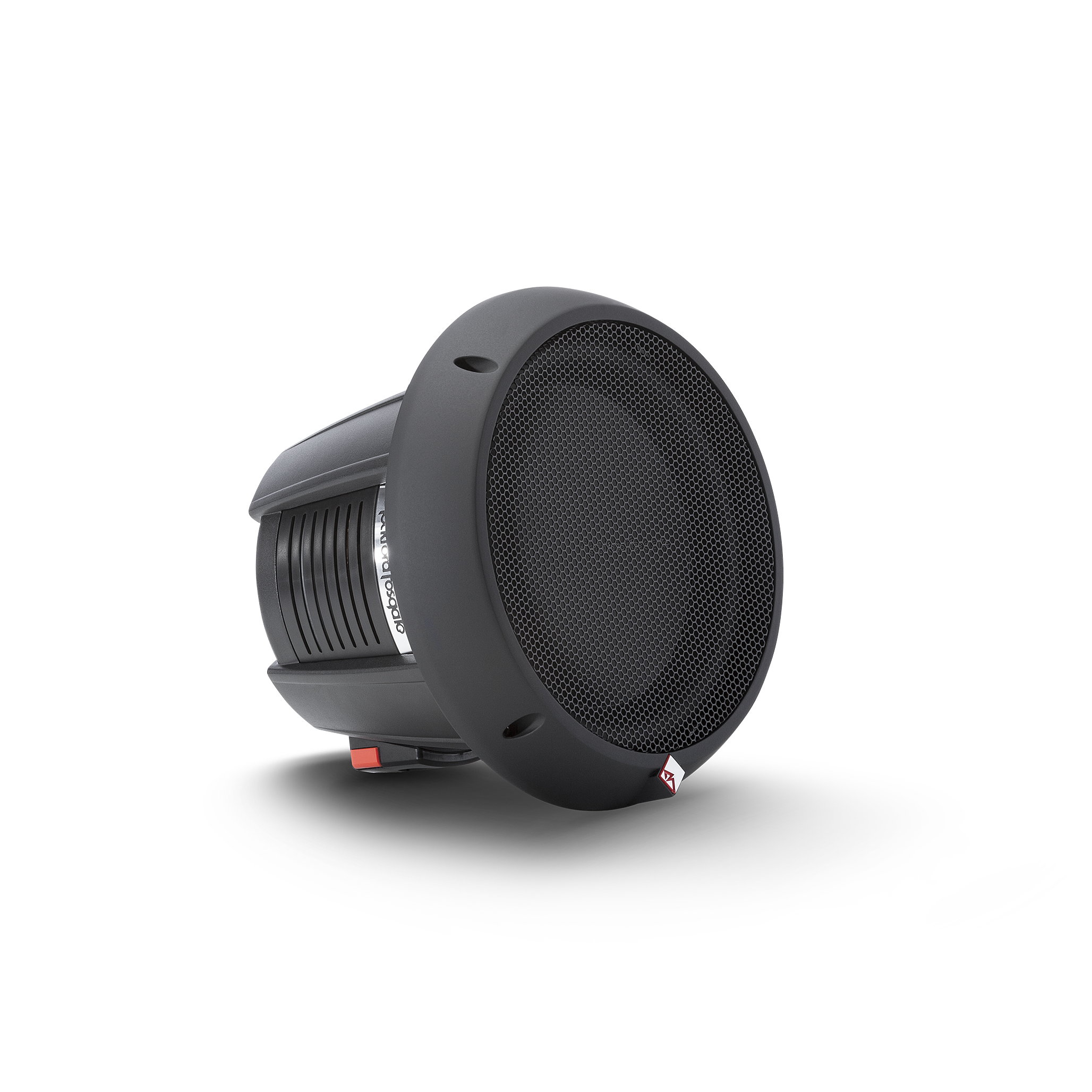

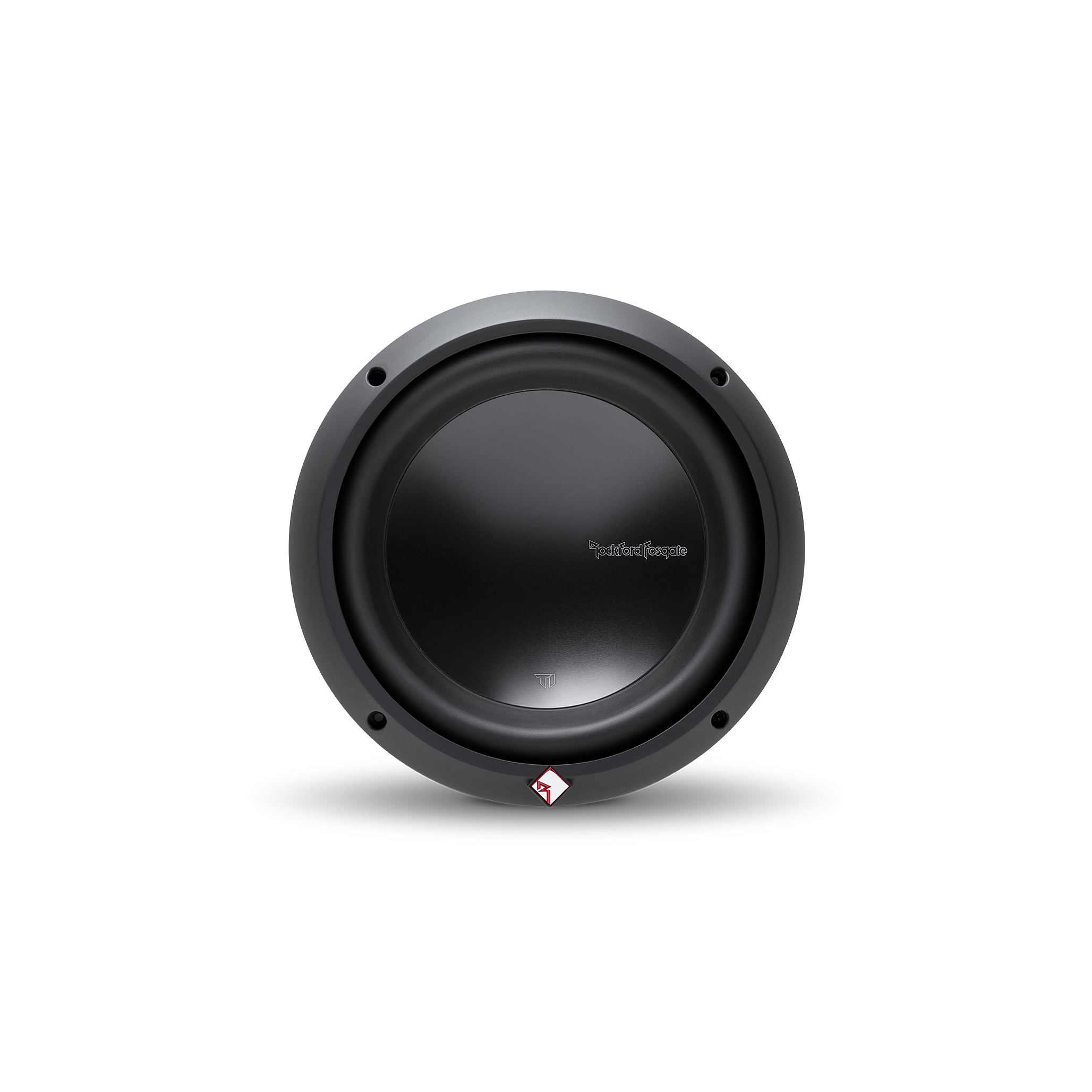

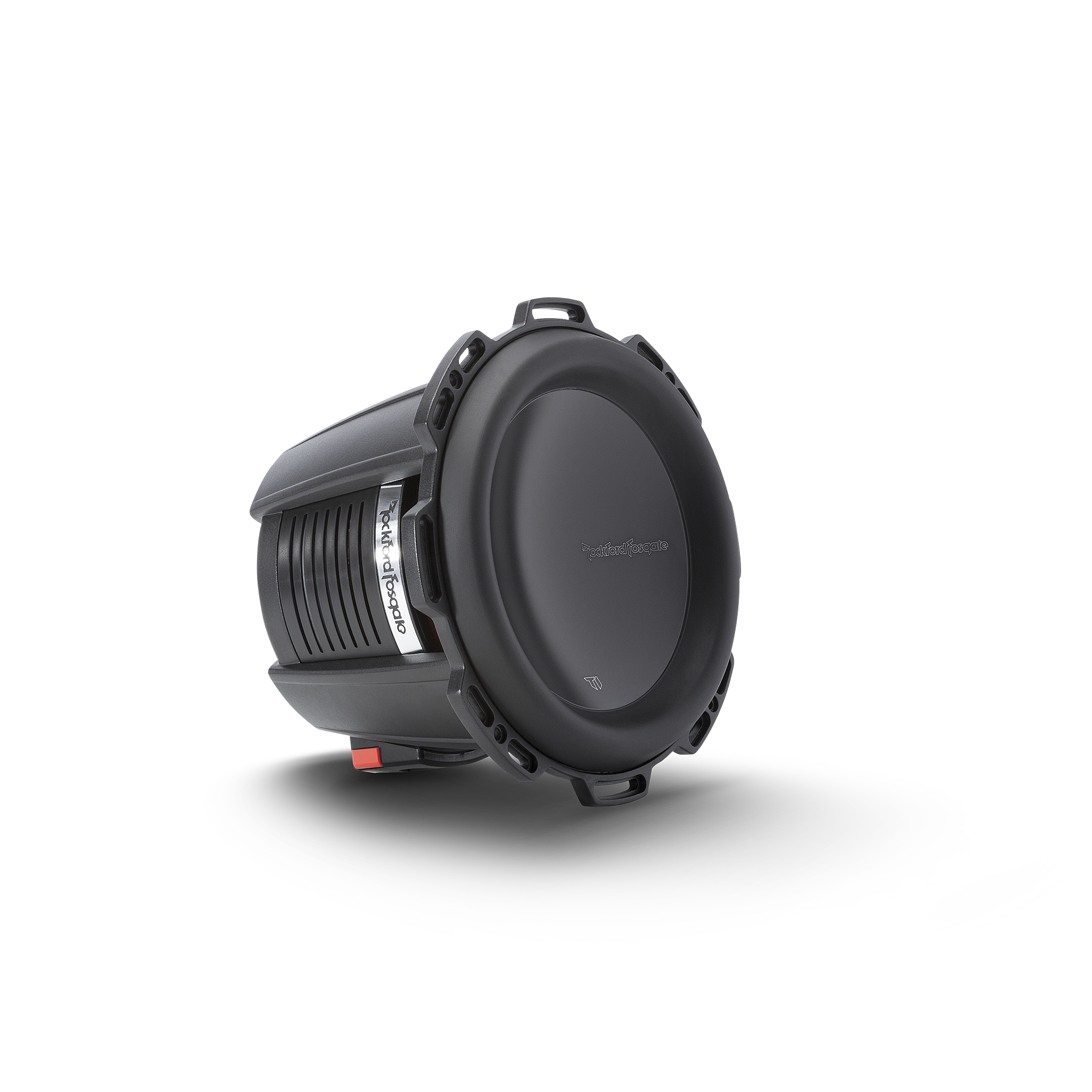

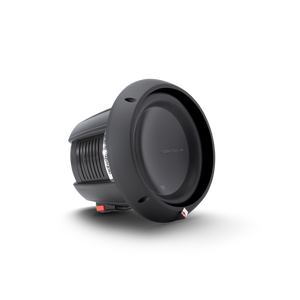

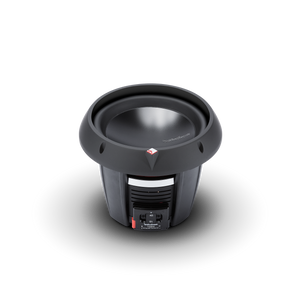

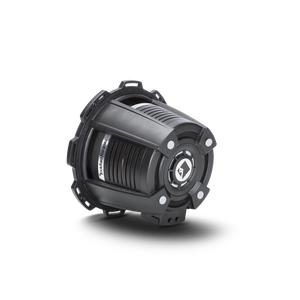

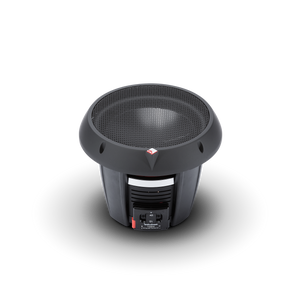

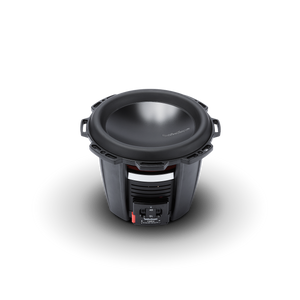

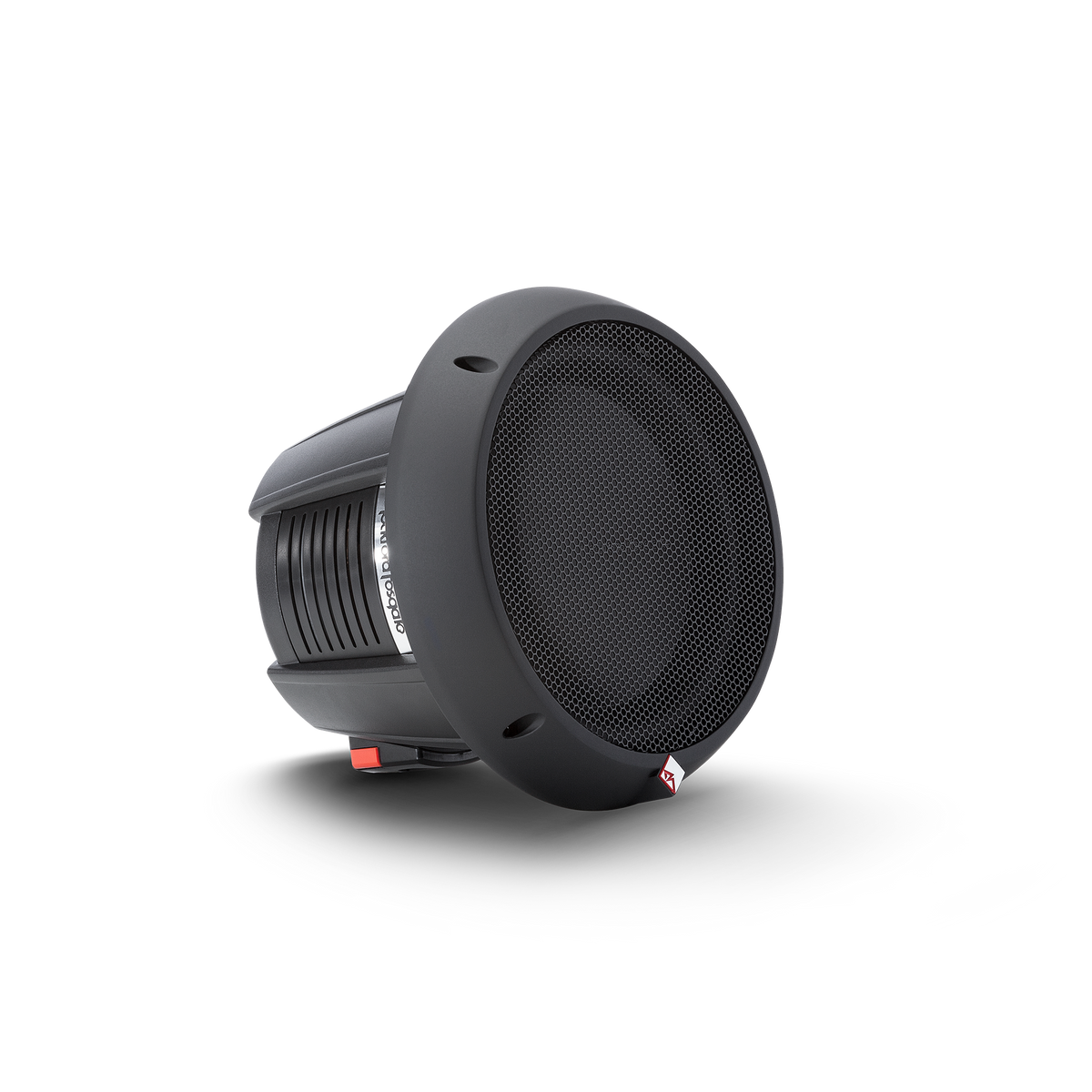

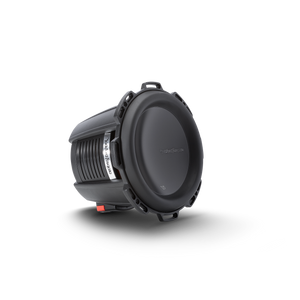

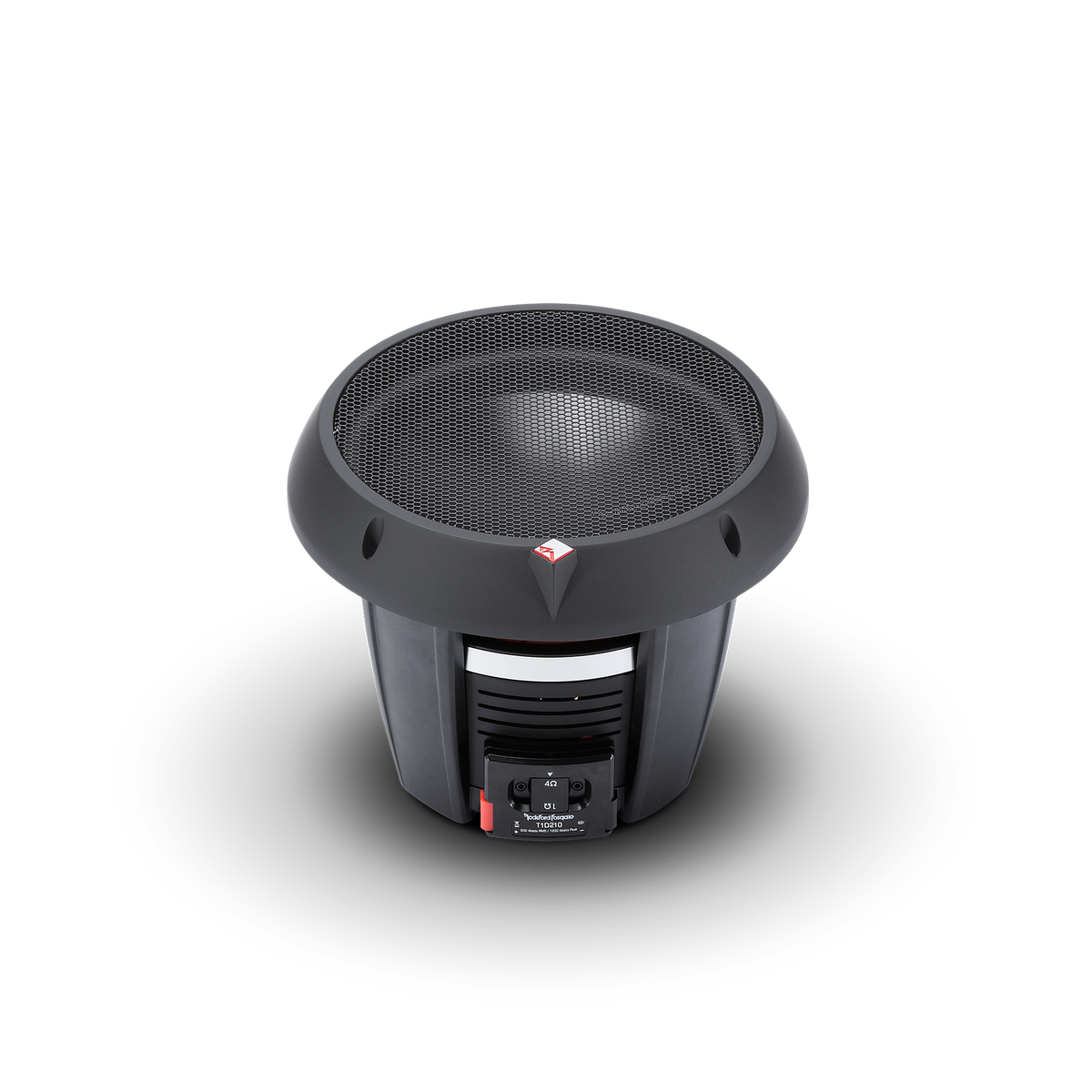

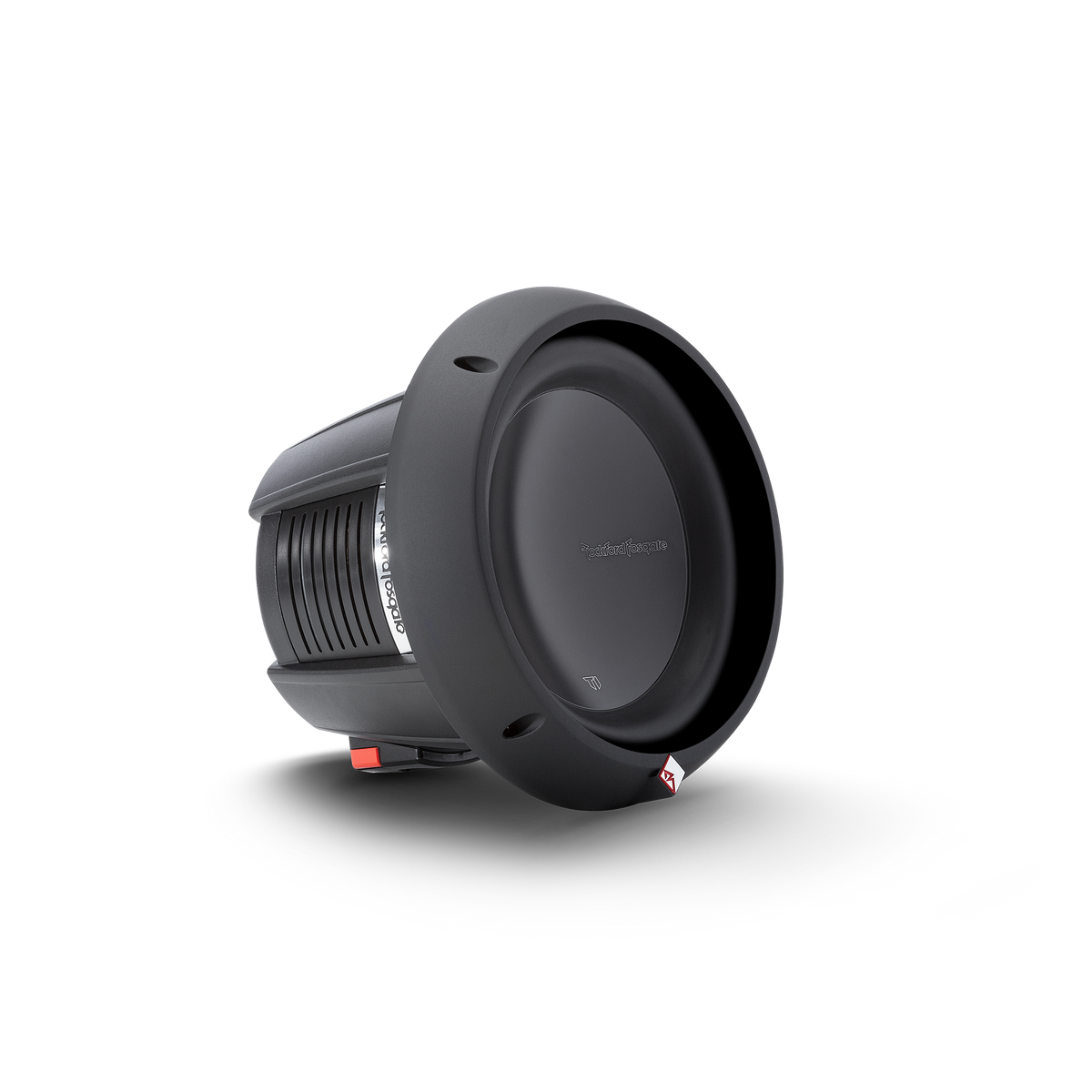

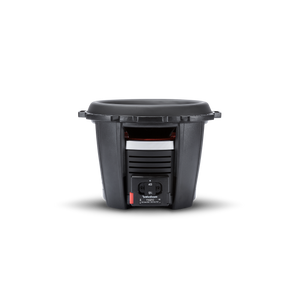

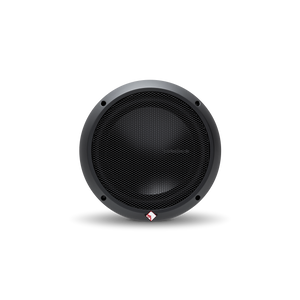

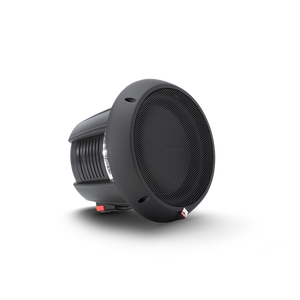

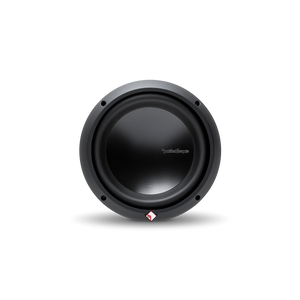

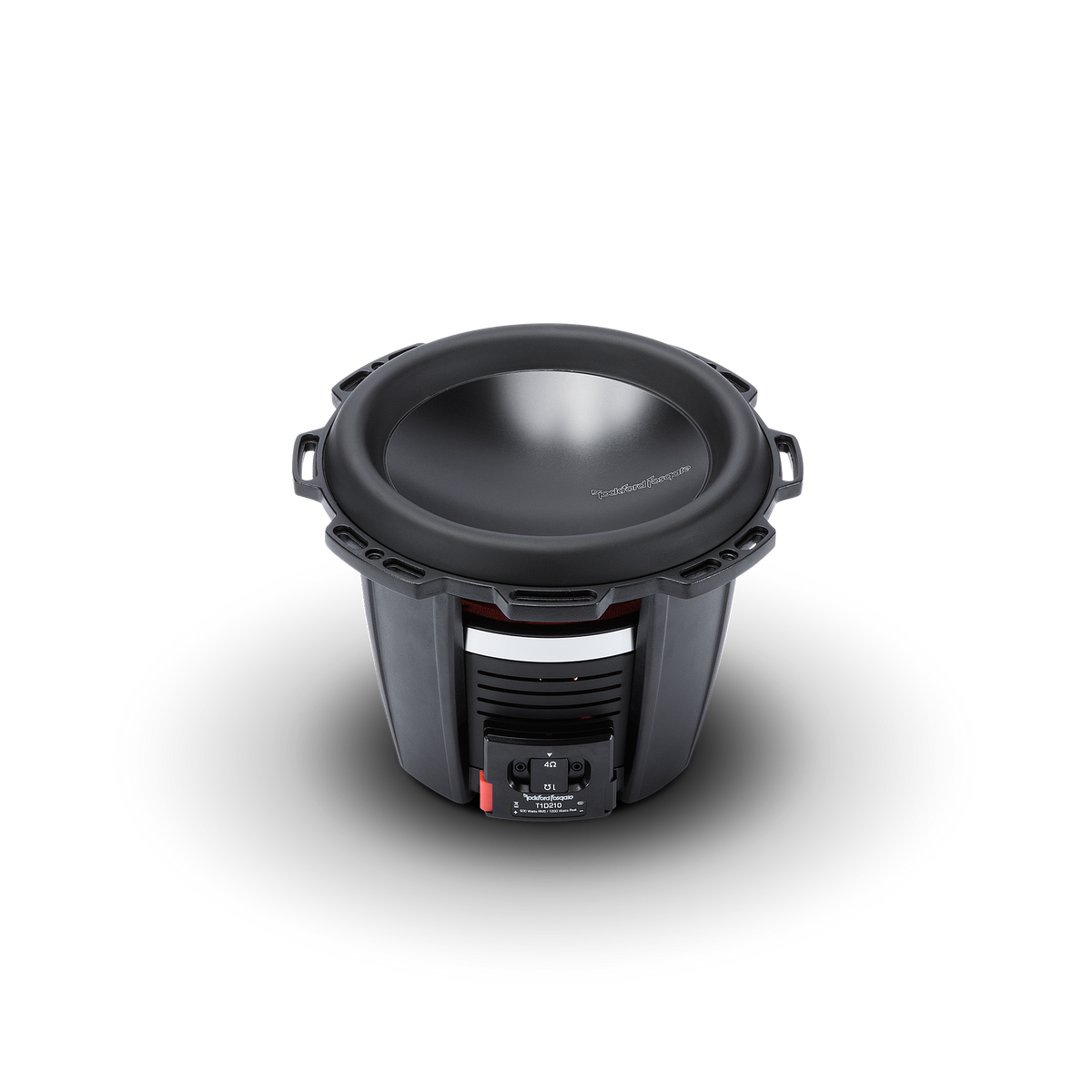

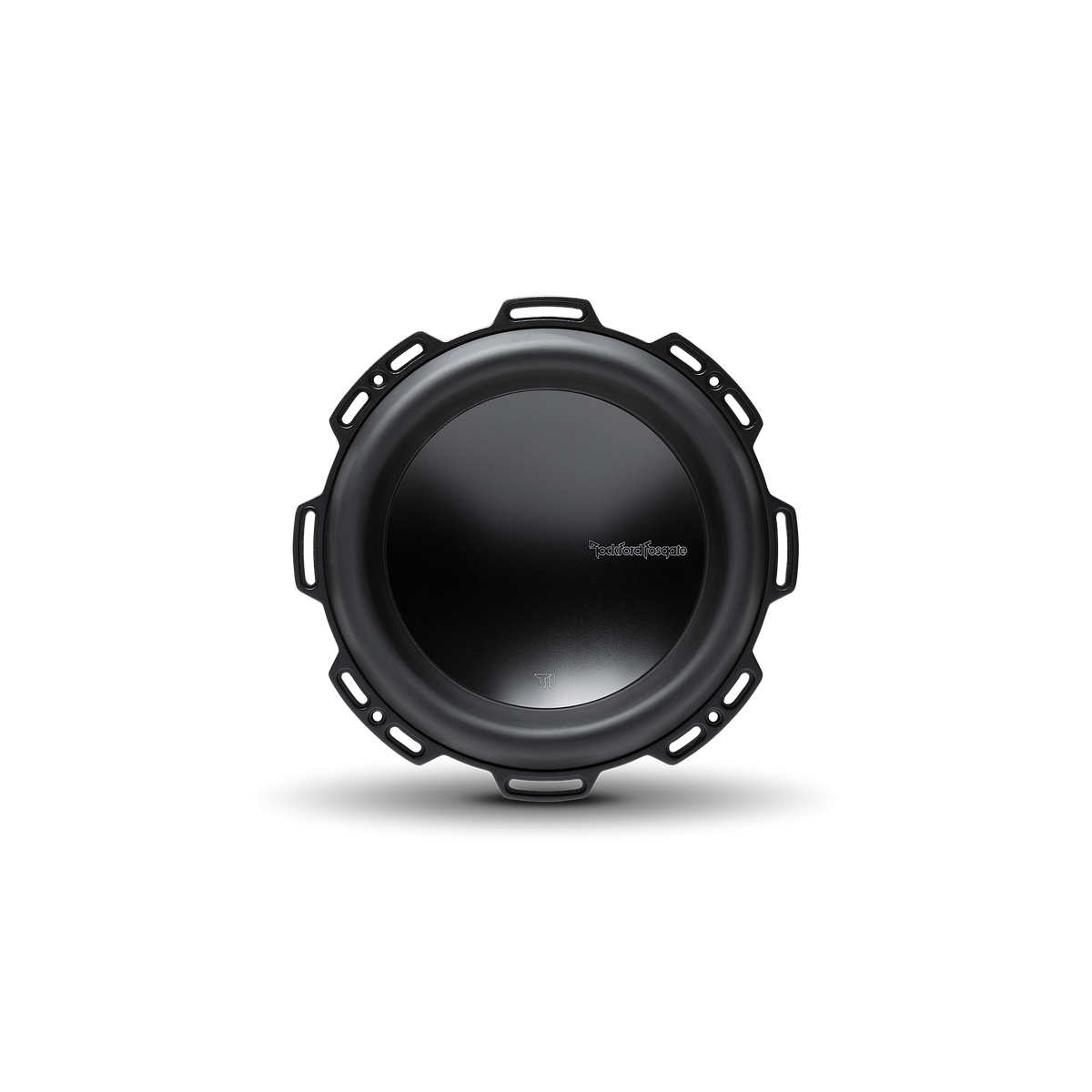

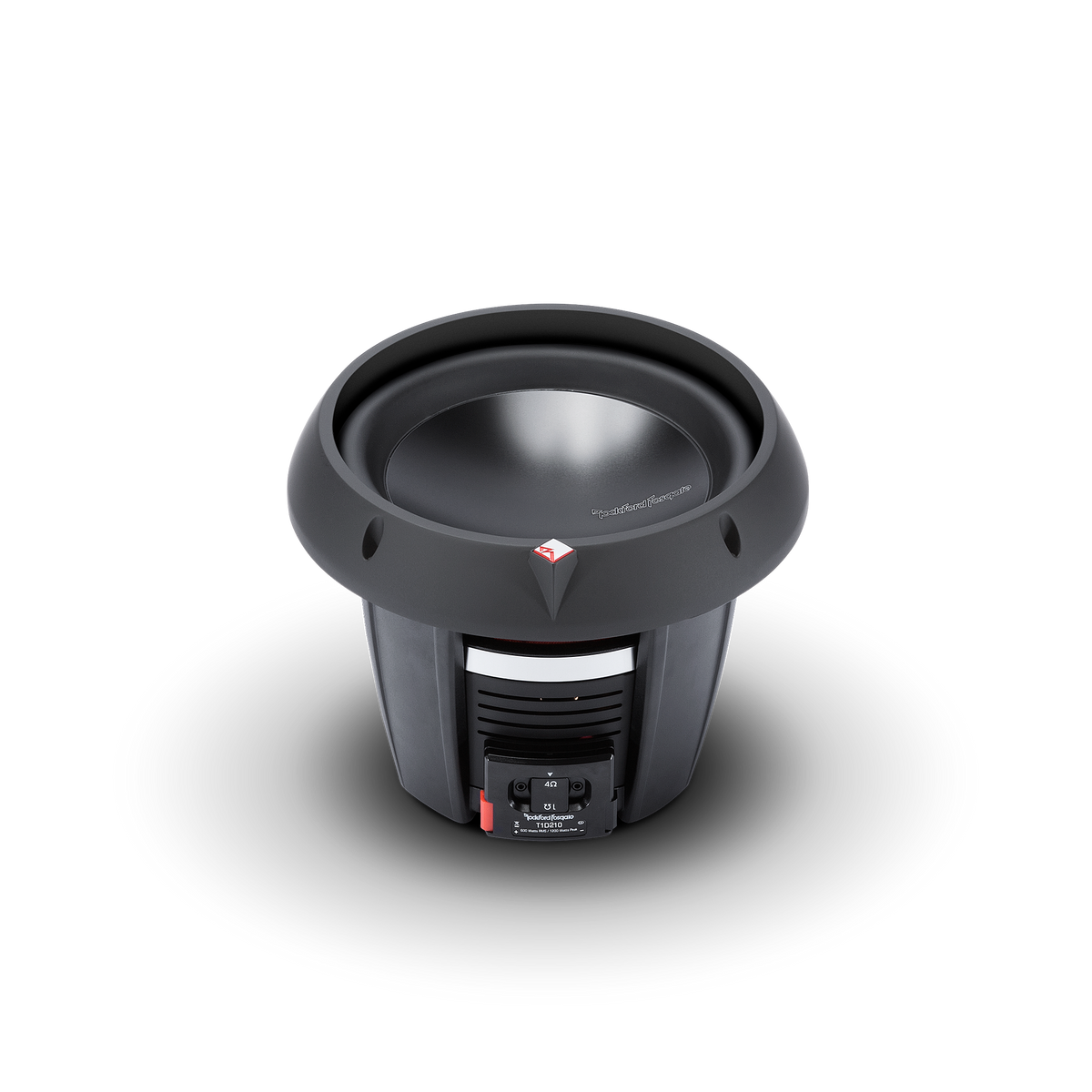

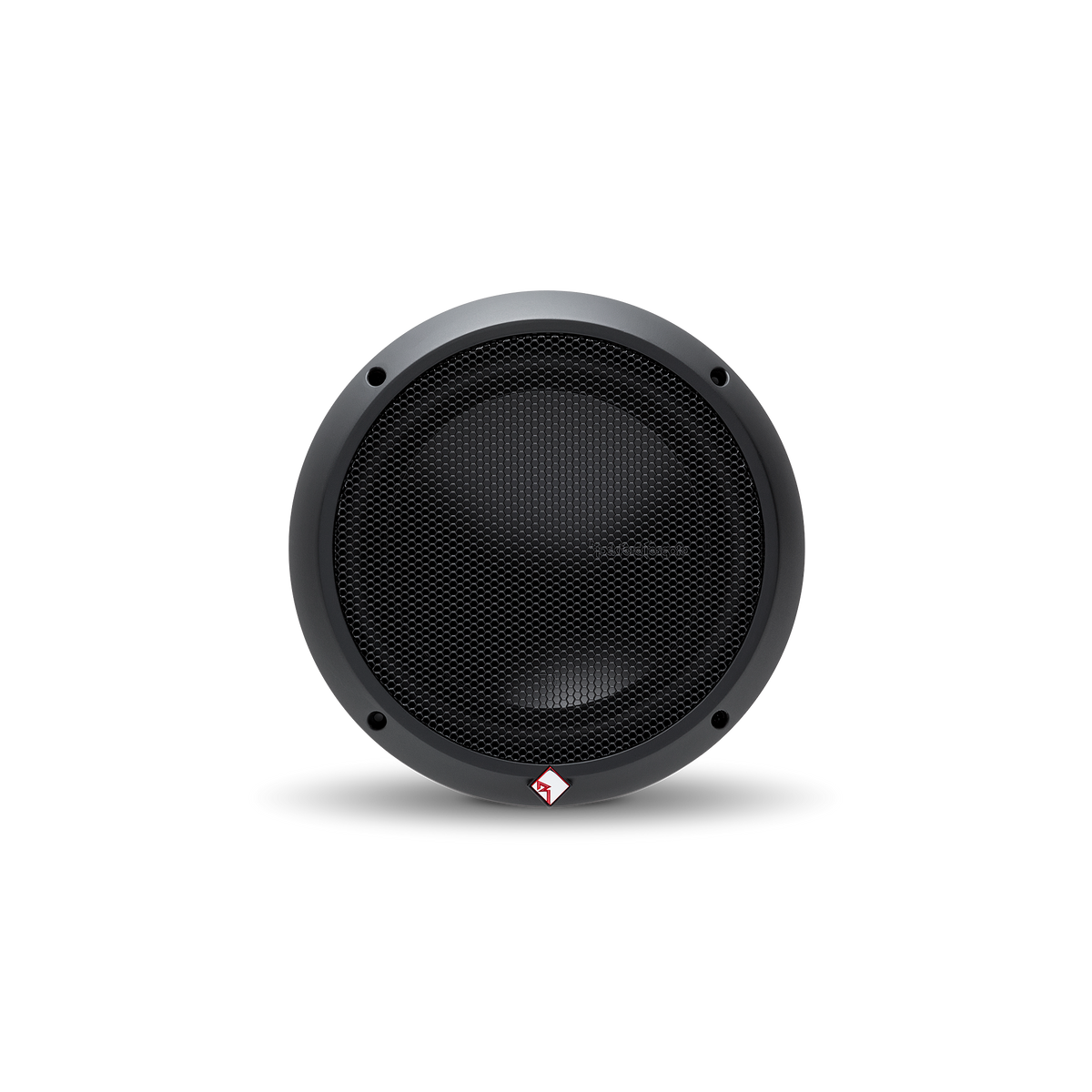

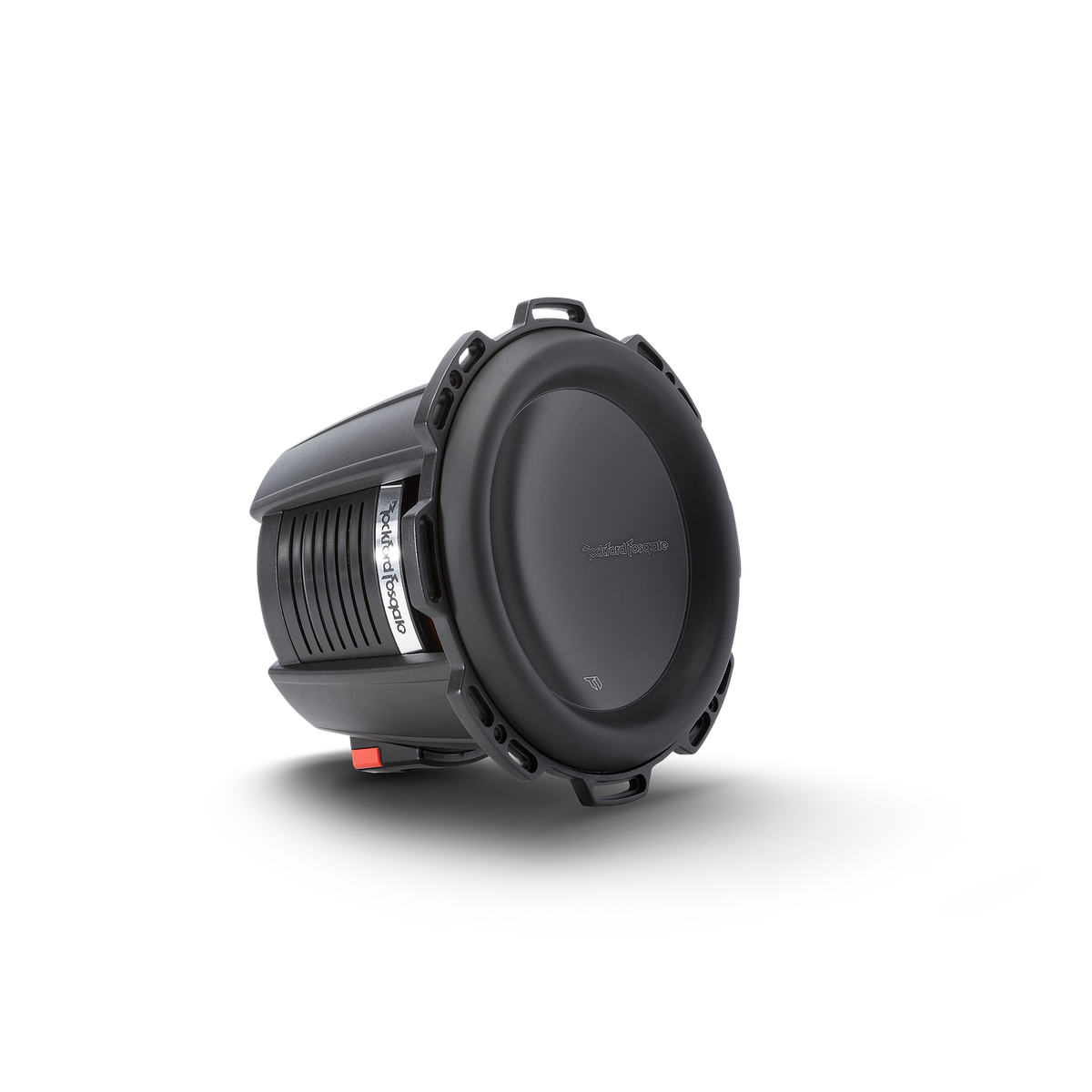

T1D210

Overview

Innovative technologies allow the T1D210 subwoofer to perform like a larger woofer. The T1 10" features dual 2-Ohm voice coils, & 600 Watts RMS power handling.

Features

• Anodized aluminum heat sinking dust cap
• Optimized and matched magnetic and complicance geometry
• Proprietary 8 AWG insulated allmetal input spring terminal connection
• Symmetrical dual progressive roll tear resistant poly-cotton spiders
• Anodized aluminum voice coil former / copper clad aluminum wire
• High-temp voice coil with spun-laced Nomex re-inforcement collar
• Kevlar fiber reinforced paper cone
• Periodic-stitched fatigue resistant tinsel lead wire
• Rigid die-cast aluminum basket
• 1 Year Warranty
• Optimized pole piece and spider venting

Specifications

• Power Handling (Watts RMS): 600 Watts RMS; 1200 Watts Max
• Size: 10"
• Nominal Impedance: Dual 2-Ohm
• Vas (Liters): 15.4
• Mounting Depth: 6.375 in. (161.9 mm)
• Shipping Weight: 25.7 Lbs. (11.65 Kg.)
• Voice Coil Diameter: 3" (75.5 mm)
• Speaker Connector: Compression Terminal
• SPL (dB @ 1w/1m): 83
• Re (Ohms): 3.25
• Le (mH): 1.8
• Fs (Hz): 34.5
• Magnet Weight (oz): 100 oz. (2.84 kg)
• Qts: 0.54
• Qes: 0.59
• Qms: 6
• Xmax (mm): 16
• Cutout Diameter: 9.0625 in. (230 mm)
• Woofer Displacement: 0.078 cu. ft. (2.2 Liters)
• Sd (cm2): 345
• Subwoofer Type: Standard
• Voice Coil Type: Dual Voice Coil
• Sealed Box Volume (Vb): 0.75 cu. ft. (21.2 Liters)
• Vented Box Volume (Vb): 1.5 cu. ft. (42.4 Liters)
