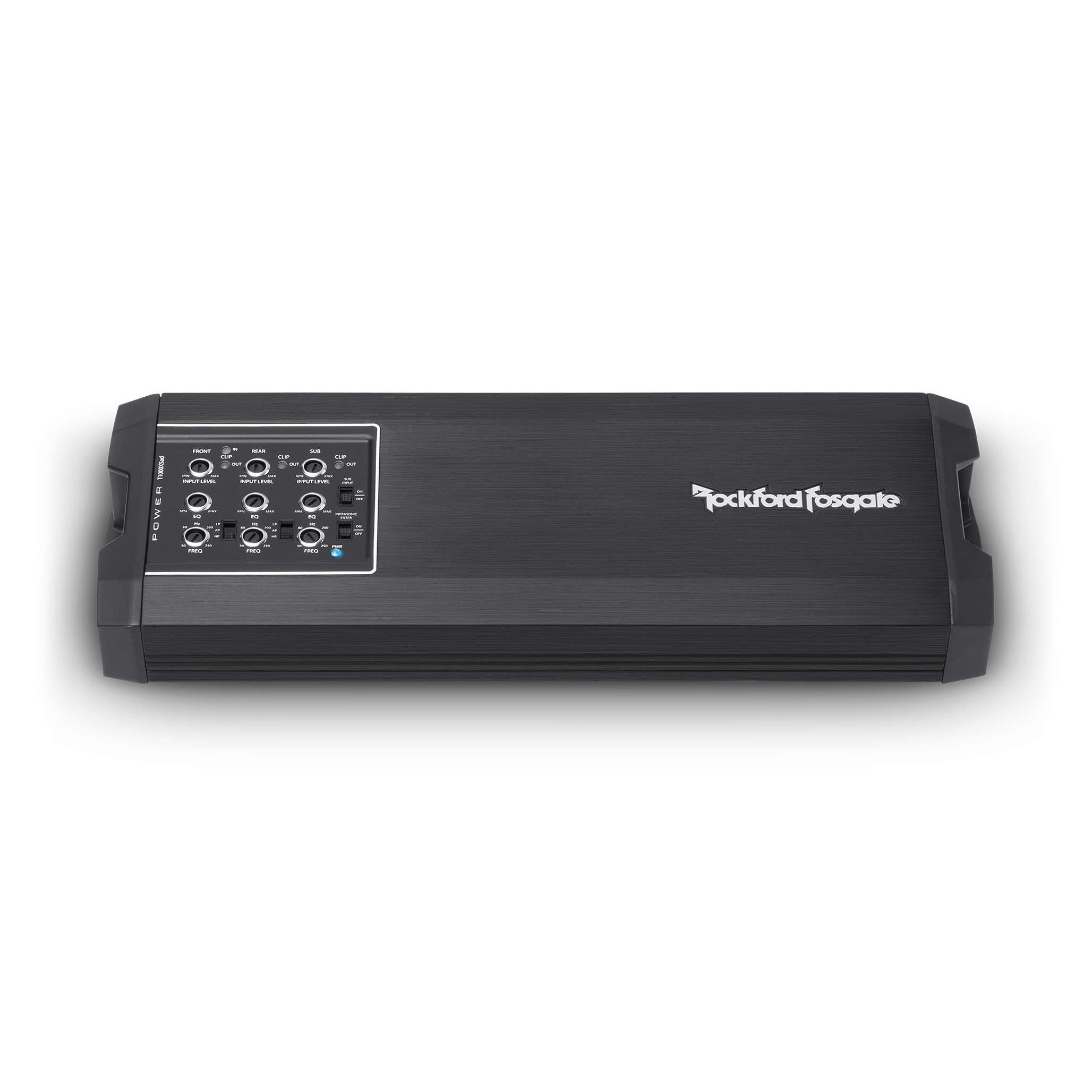

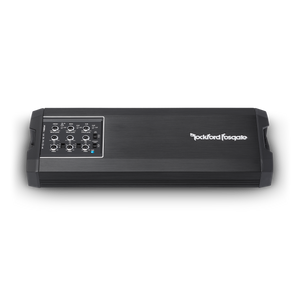

Power 1,000 Watt Class-ad 5-Channel Amplifier

Overview

Rockford Fosgate's Power T1000x5ad is a compact, Class ad 1000-watt multi-channel amplifier. Perfect for small cars, sedans, trucks, and SUVs.

Features

• Class-BD
• 4/2 Ohm muti-impedance Constant Power
• Rockford Fosgate proprietary Class AD technology
• 2013 PLC2 remote ready
• Real time thermal sensing with Rollback technology
• Remote-Out feature when using high level inputs
• Differential inputs with high level auto turn-on feature
• C.L.E.A.N. input/output clip detection and indicator LEDs
• Dual fan cooled
• 2-Year Warranty
• Discrete surface mount technology
• CEA-2006 and CE compliant
• All other normal Rockford protection schemes

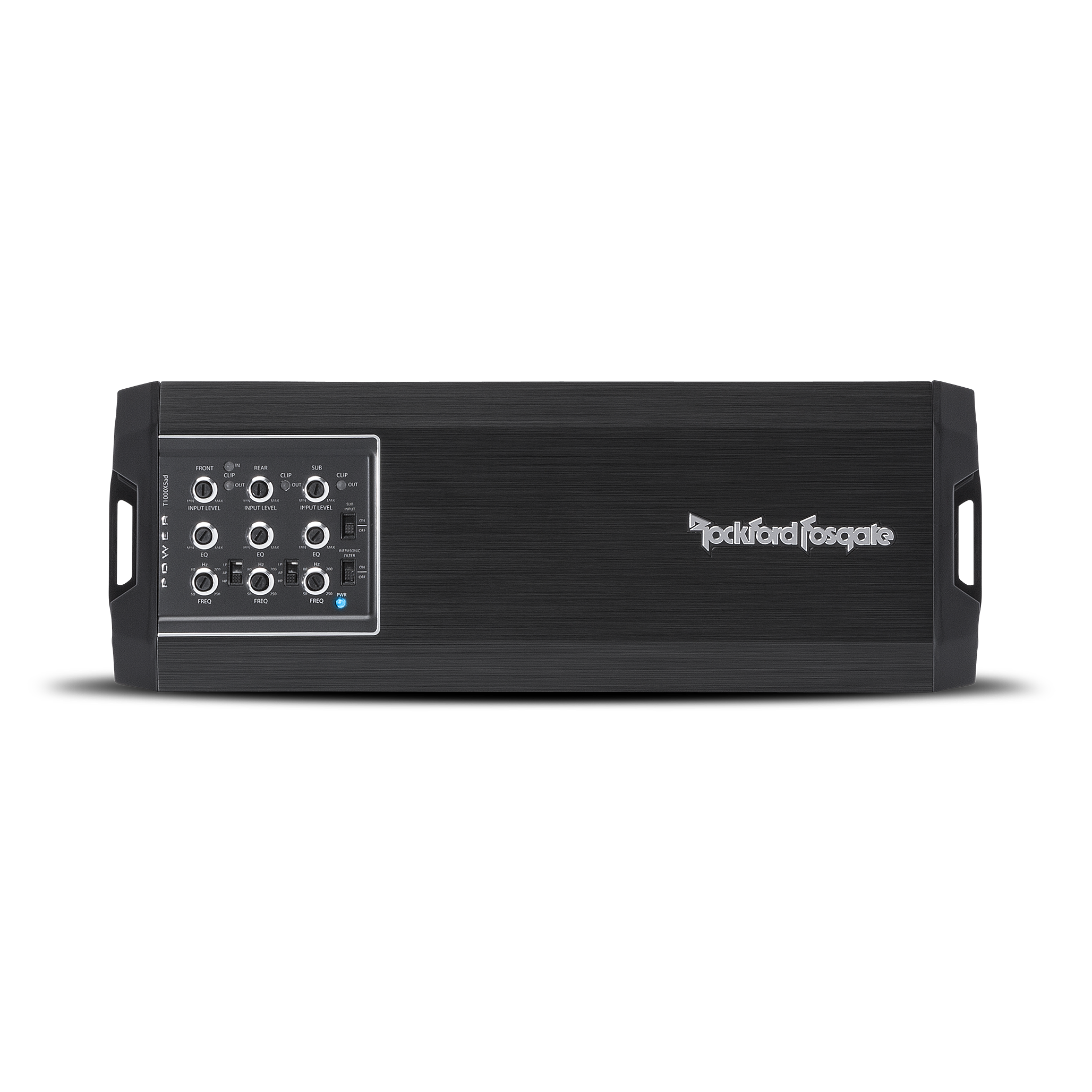

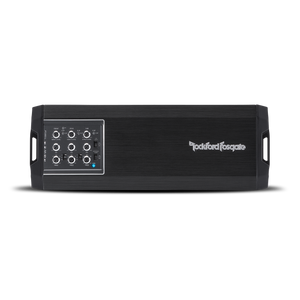

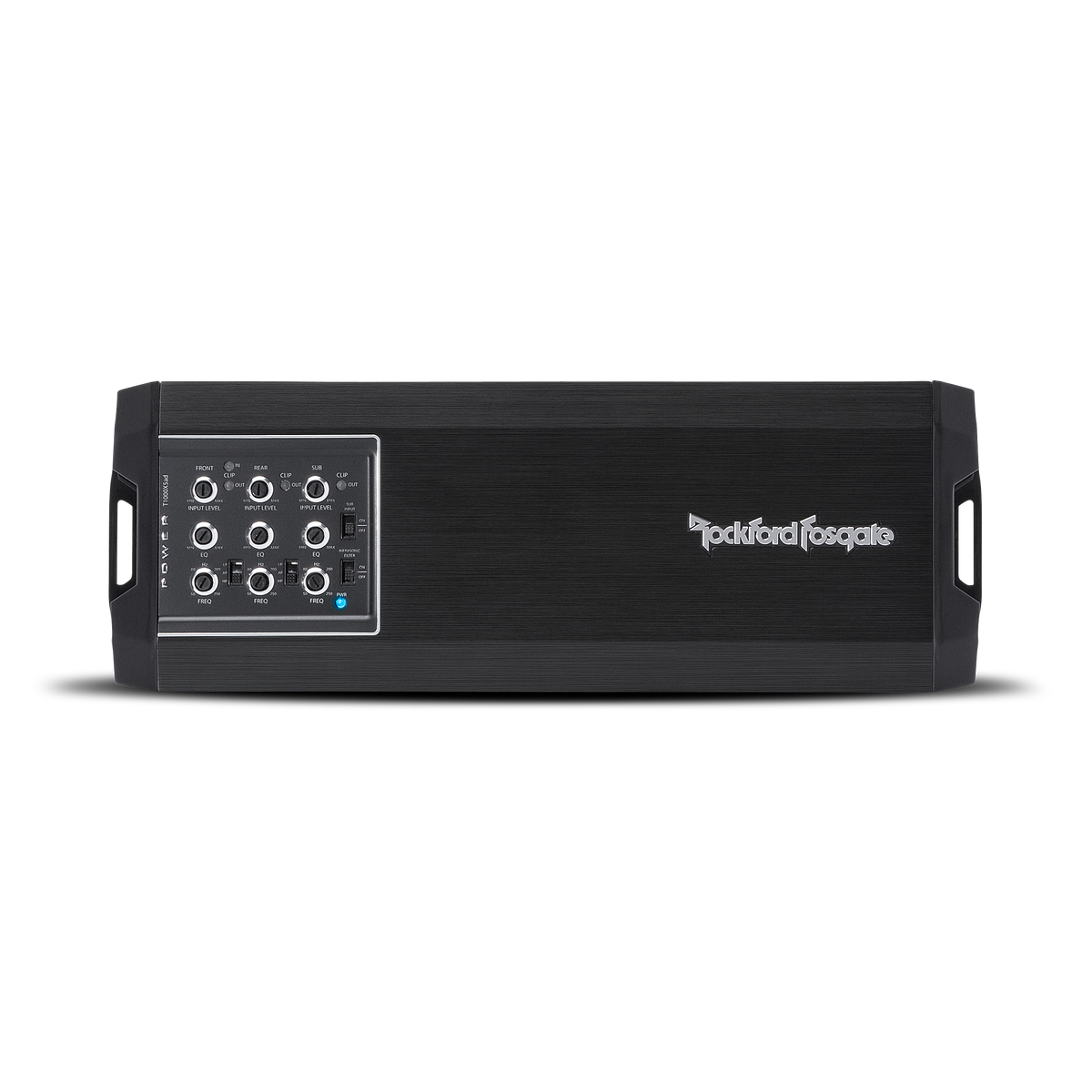

• Top mounted controls

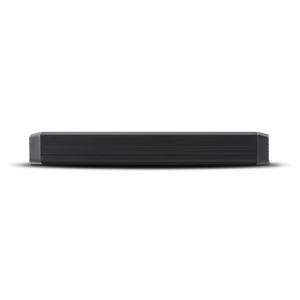

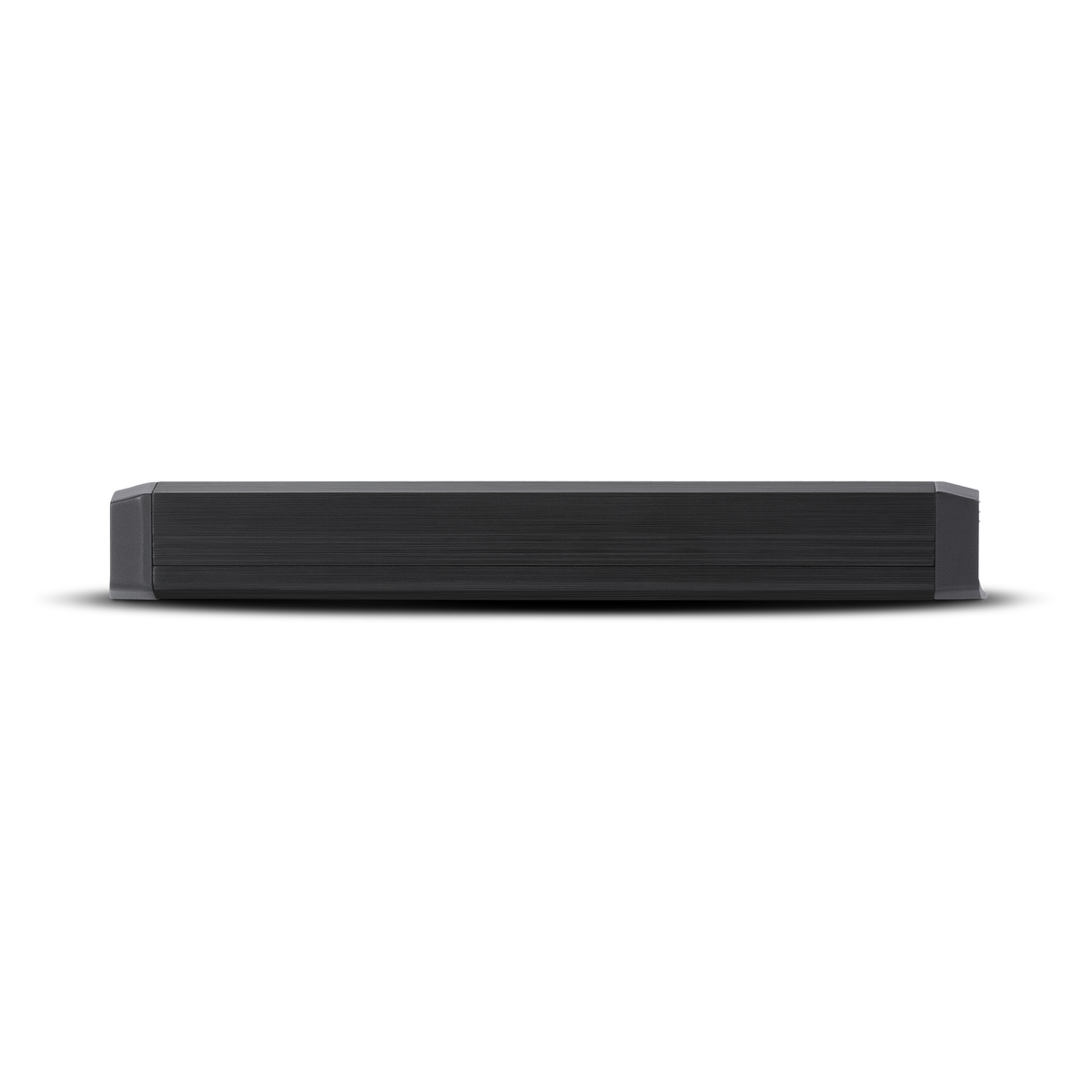

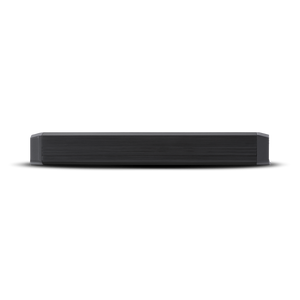

• Dual extruded heat sinks

Technologies

• C.L.E.A.N. Technology: C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
• Class-AD: This technology allows the amplifier to produce more power with less current draw from the vehicle's charging system.
• CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
• DSM: DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
• Engineered In The USA: These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
• CE Compliant: This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
• 3-Stage Airflow: 3-stage airflow method effectively exhausts heat and ensures your amplifier runs cooler for optimum performance.
• Constant Power: Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.
• Differential Inputs: Differential inputs eliminate noise picked up by signal cables resulting in clean signal transfer.

Specifications

Input Sensitivity	150 mV to 12 V
CEA-2006 Compliant	CEA-2006 Power Rating 100W x 4 + 400W x 1 @ 4Ω ≤1.0% THD+N
Dynamic Power (PVC/PowerCube®)	138 Watts x 4 + 487 Watts x 1 @ 4Ω 118 Watts x 4 + 748 Watts x 1 @ 2Ω N/A Watts x 4 + 663 Watts x 1 @ 1Ω 225 Watts x 2 + N/A Watts x 1 @ 4Ω Bridged
Rated Power (RMS Continuous Power)	100 Watts x 4 + 400 Watts x 1 @ 4Ω 100 Watts x 4 + 600 Watts x 1 @ 2Ω N/A Watts x 4 + 600 Watts x 1 @ 1Ω 200 Watts x 2 + N/A Watts x 1 @ 4Ω Bridged
Total Power (Sum of Rated Power)	1000 Watts
Bridgeable	Yes Front Terminals: Left (+) Right (-) Rear Terminals: Left (+) Right (-)
Number of Channels	5
Tone Controls	Front/Rear Treble: 0 to +14dB @ 12.5kHz (HP mode) Front/Rear: 0 to +18 dB @ 45Hz (LP mode) Sub: 0 to +18 dB @ 45 Hz
Signal Output	—

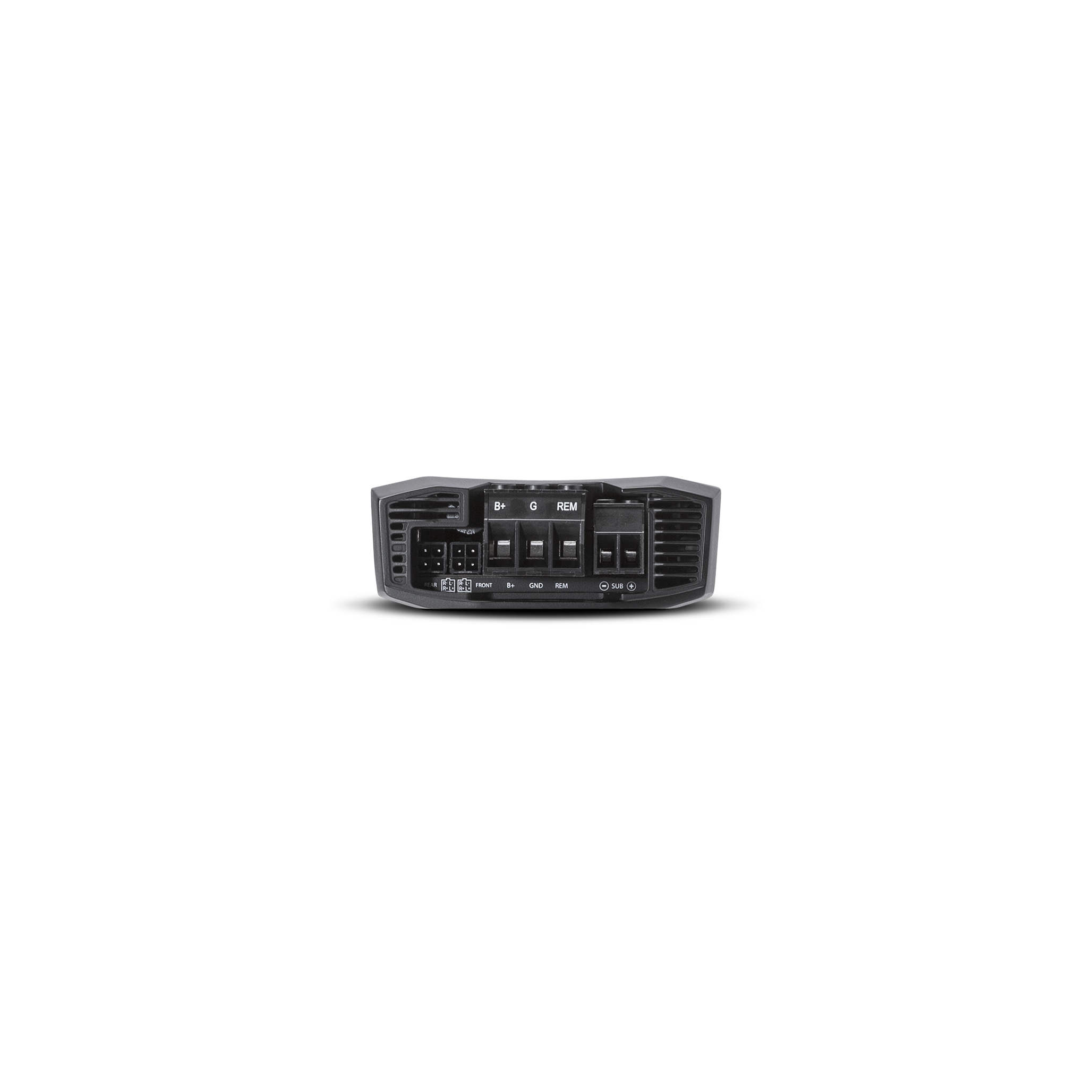

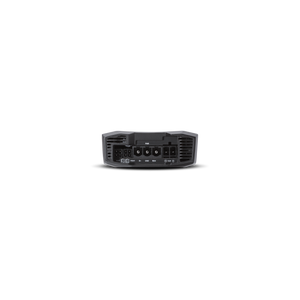

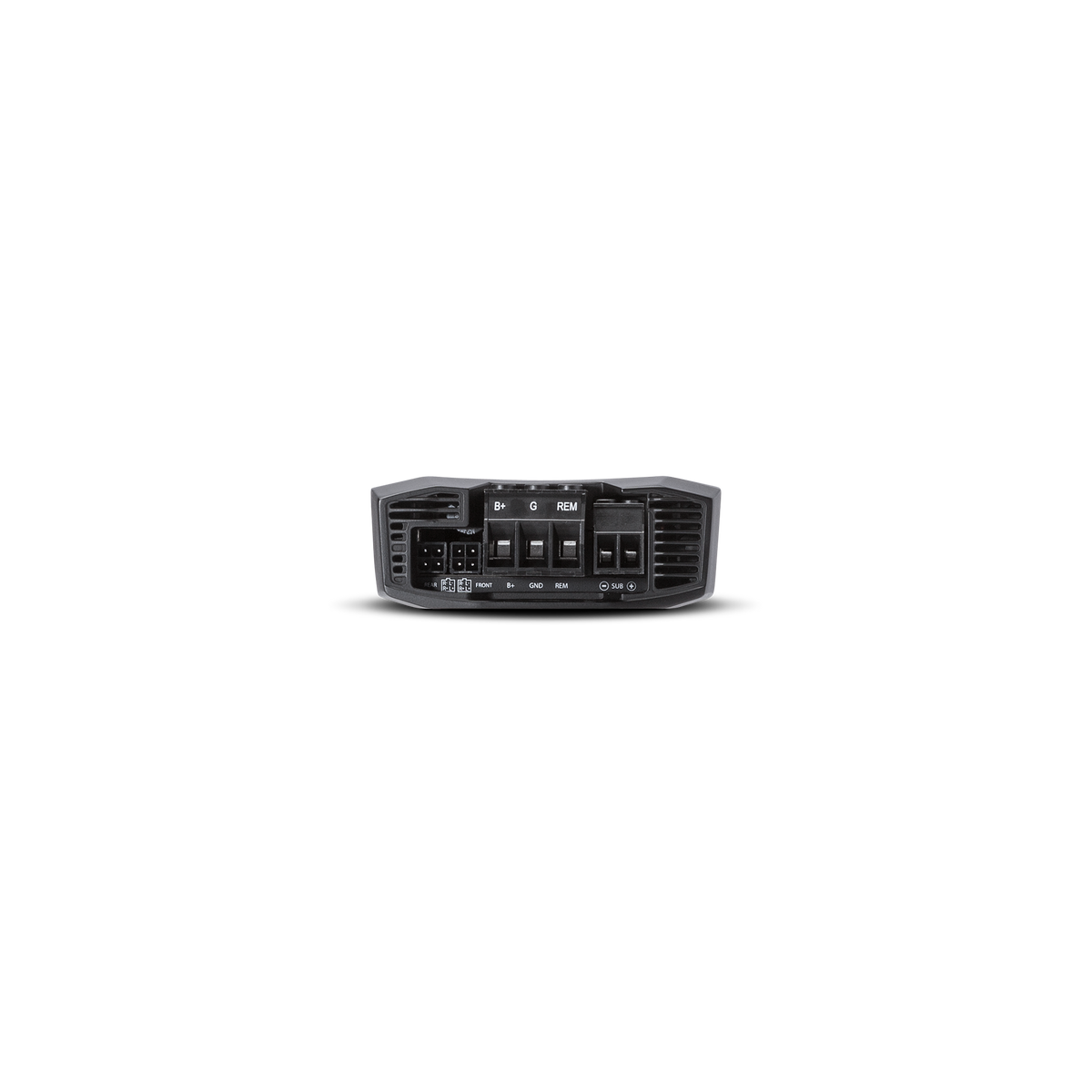

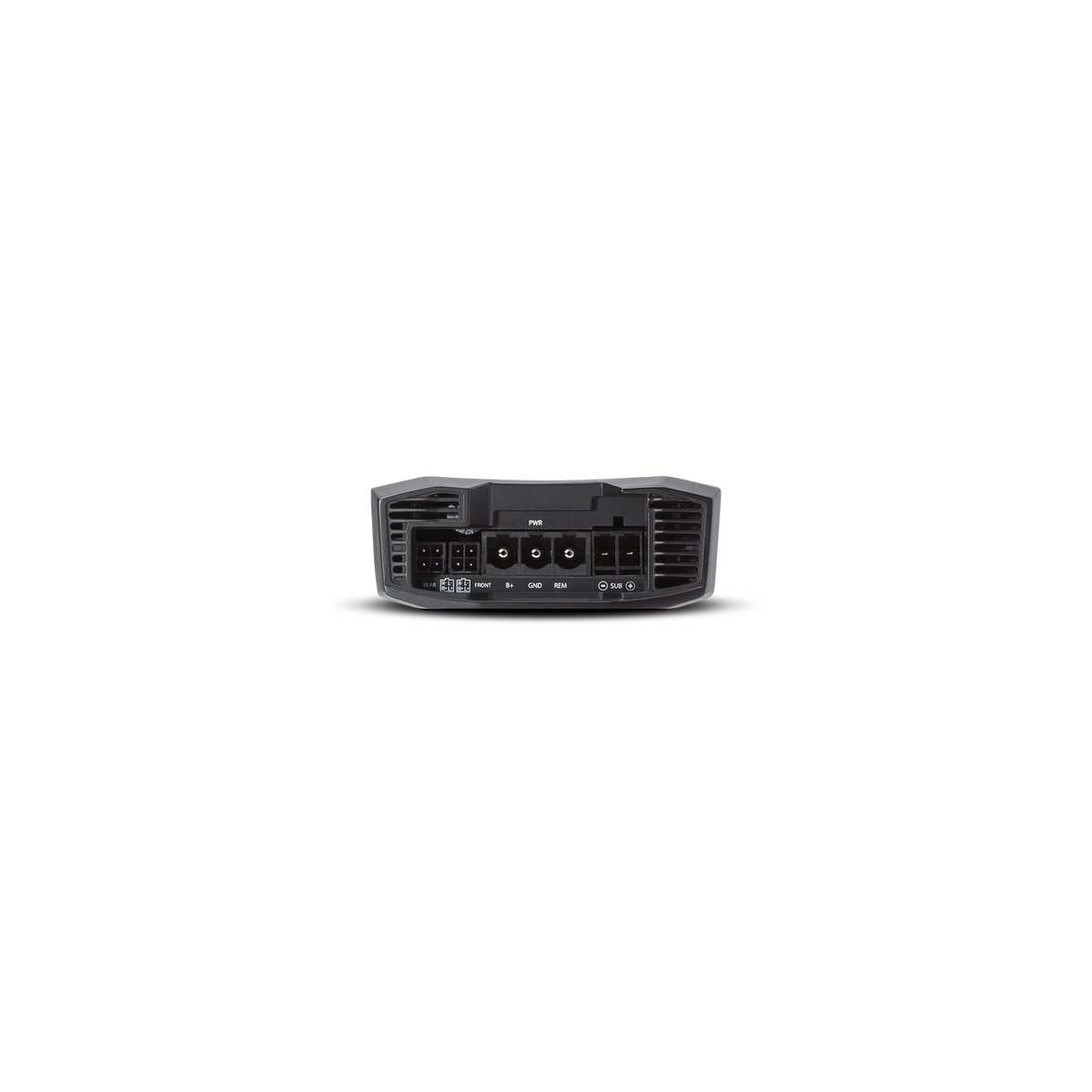

Power Input Connector	Detachable Compression Terminal
Remote Controls	Optional PLC2 provides Punch Level Control
Speaker Output Connector	Front: 4-Pin Harness Rear: 4-Pin Harness Sub: Detachable Compression Terminal
Cooling	Dual Fan Cooled
Frequency Response	20Hz - 20kHz
Efficiency (average)	>85%
Crossover Controls	High-Pass: 50Hz - 250Hz @ 12dB/Octave Low-Pass: 50Hz - 250Hz @ 12dB/Octave Subwoofer: 50Hz - 250Hz @ 12dB/Octave Infrasonic: 28Hz @ 12dB/Octave Butterworth Alignment on all filters

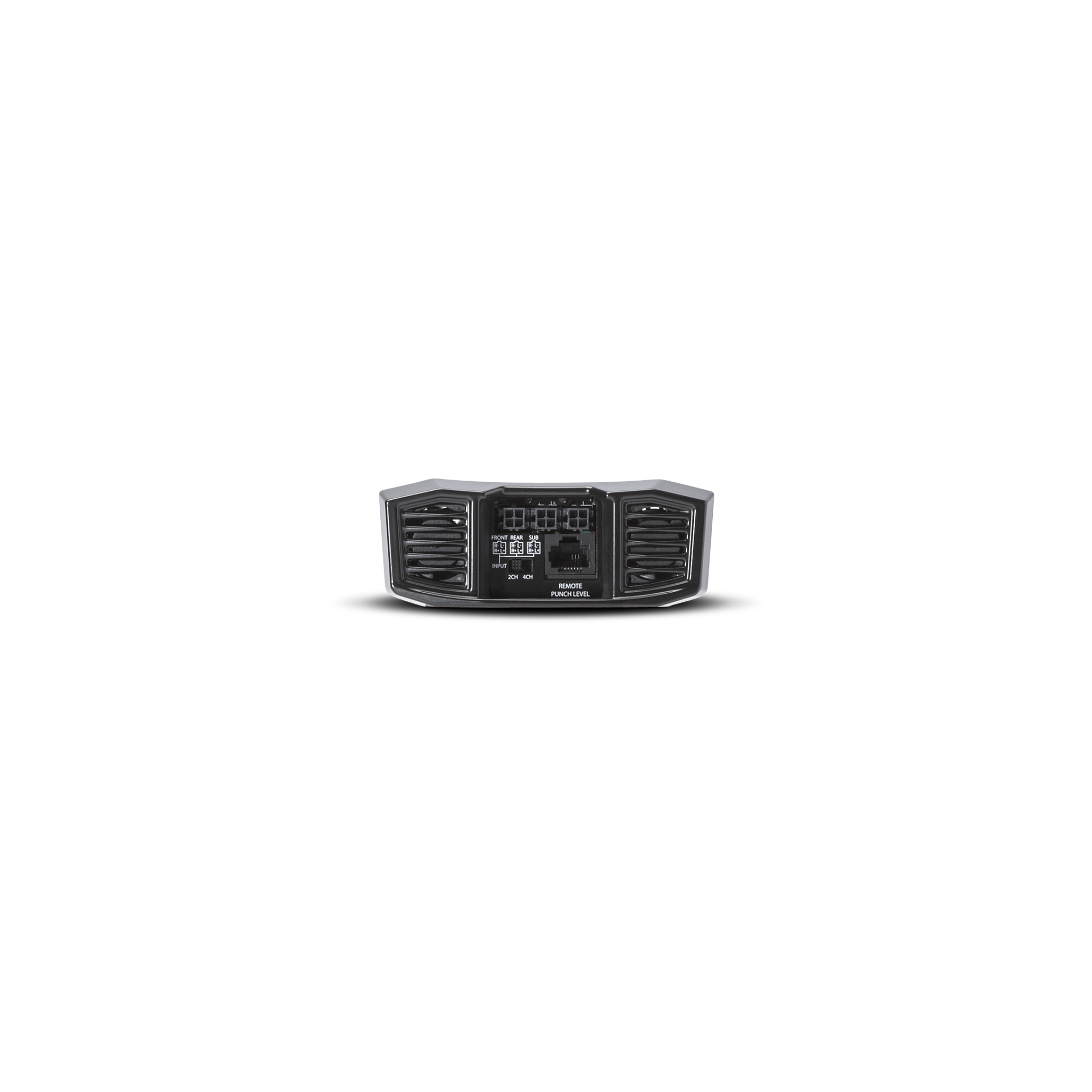

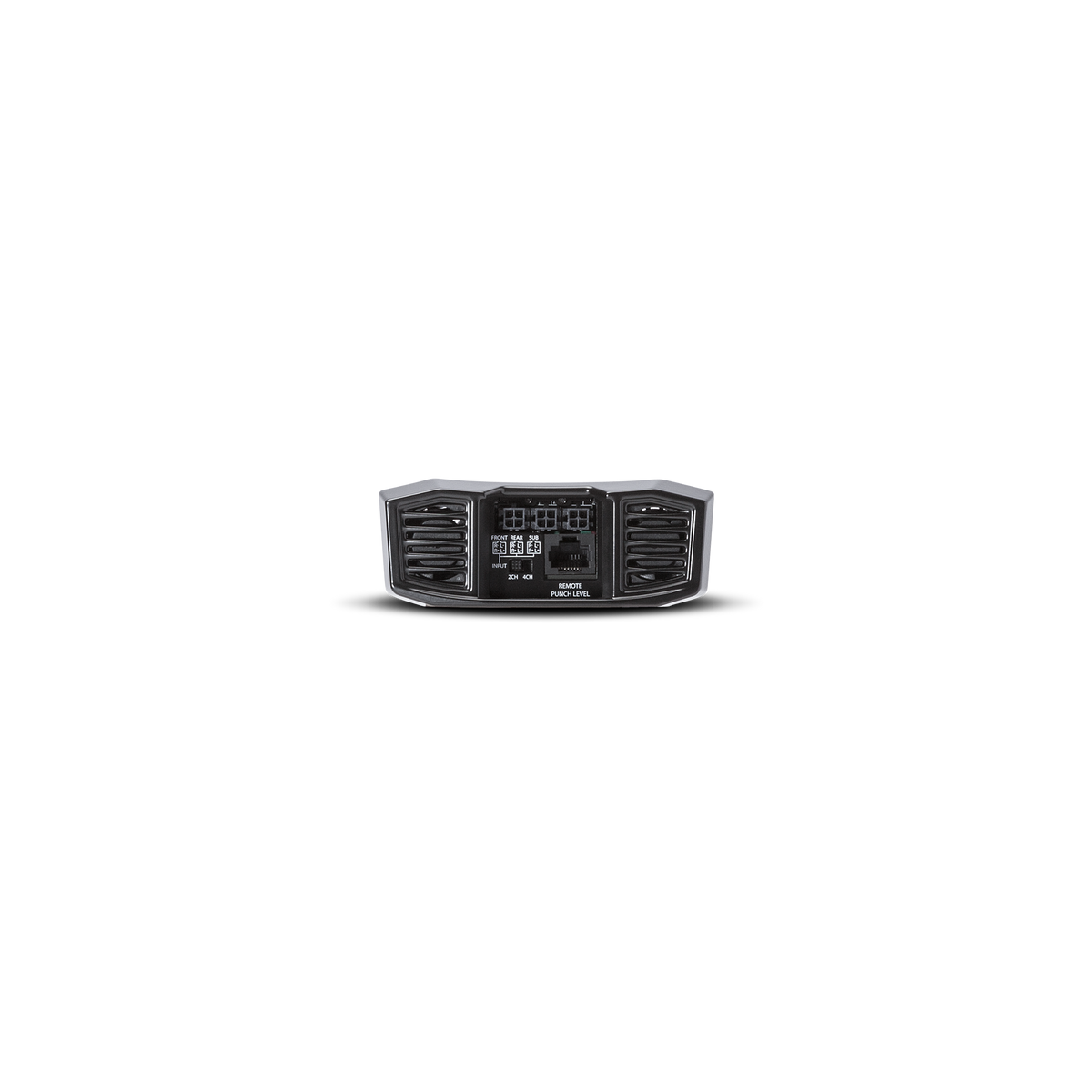

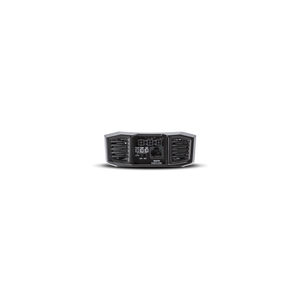

Signal Input	Front High/Low Input: 4-Pin harness Rear High/Low Input: 4-Pin harness Sub High/Low Input: 4-Pin harness Input Switch: 2CH/4CH (2CH: sub signal derived from Front Left input)
Total Harmonic Distortion (THD+Noise)	4 Ch 4-Ohm: <1.0% 4 Ch 2-Ohm: <1.0% Sub 4-Ohm <1.0% Sub 2-Ohm <1.0% Sub 1-Ohm <1.0%
Power Wire Gauge	4 AWG
Speaker Wire Gauge	Front/Rear: 16 AWG Sub: 10 AWG
Heatsink	Extruded Aluminum
Visual Indicators	Power: Blue LED Protect: Red LED Input Clip: Red LED3 Output Clip: Blue/Violet/Red LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD
Circuit Topology Class	Class AD + Class BD (Sub)
Damping Factor	—
Signal-to-Noise (CEA)	>80 dB Sub: >75 dB
Common Mode Rejection	>55 dB
Channel Separation	>50 dB
Recommended Fuse (not included)	100 A
Dimensions (H x W x D)	1.6 x 4.3 x 12 (in.) 4.1 x 10.8 x 30.5 (cm)
Max. Current Draw (13.8V Sinewave)	108 A
