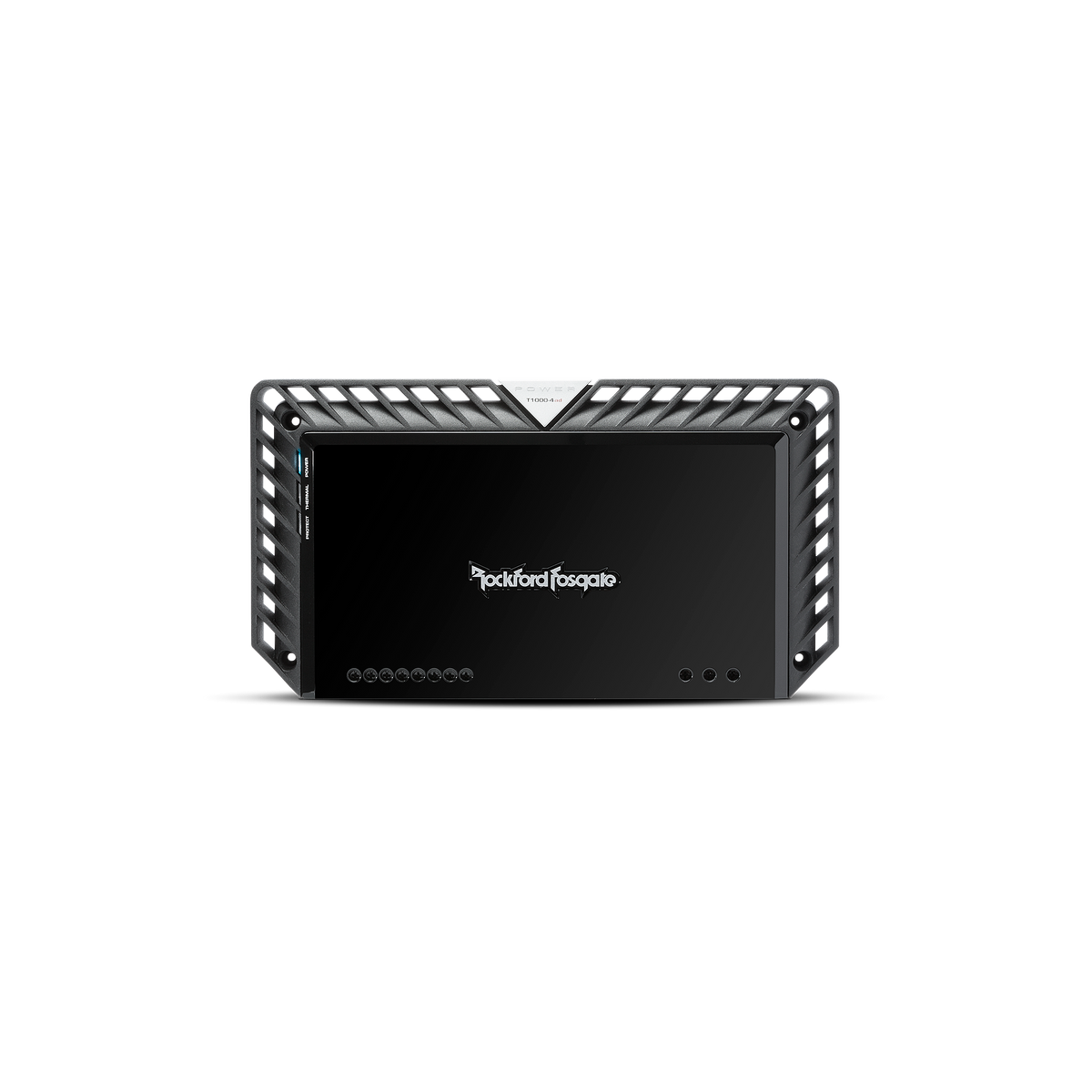

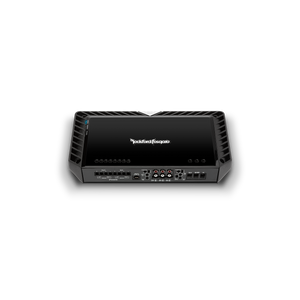

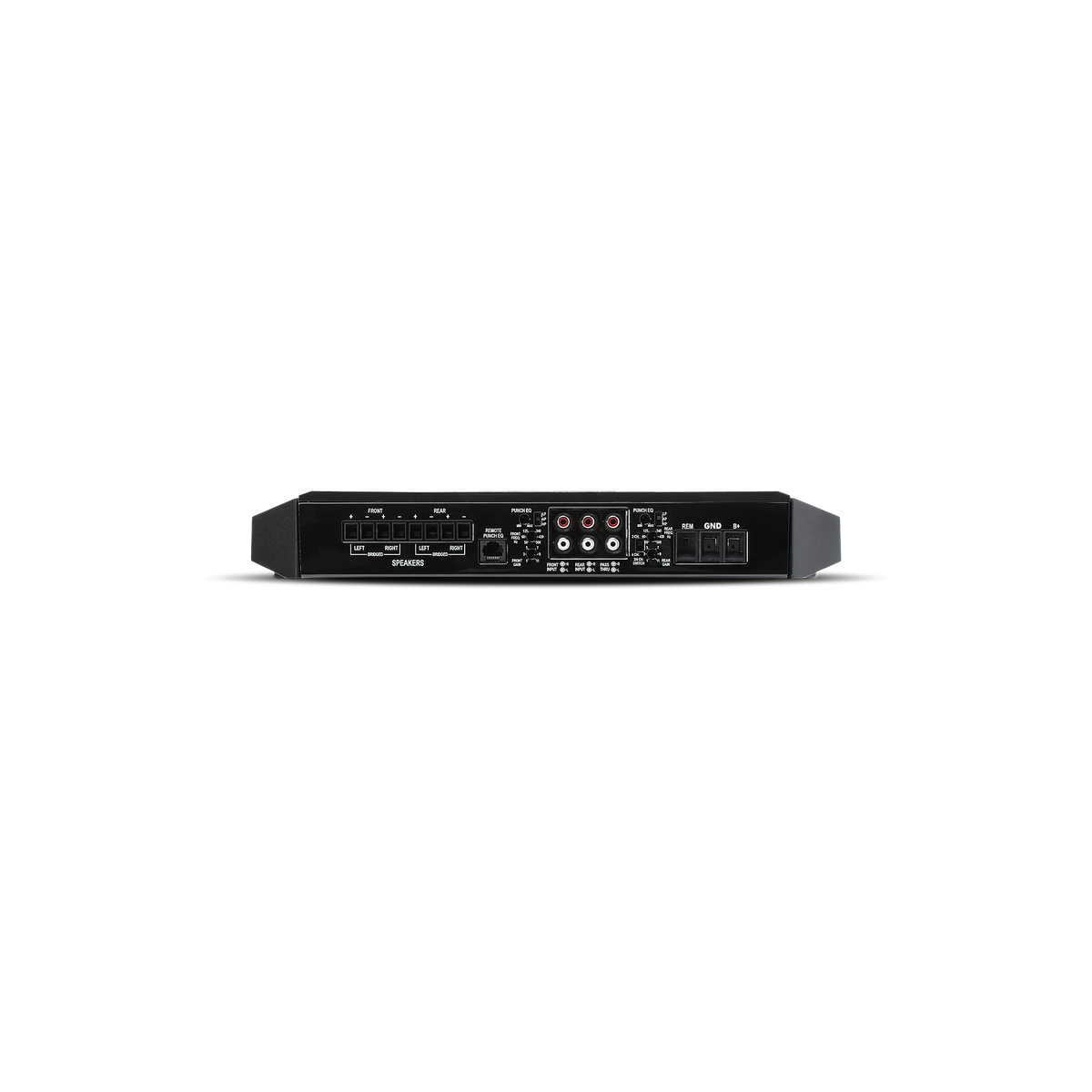

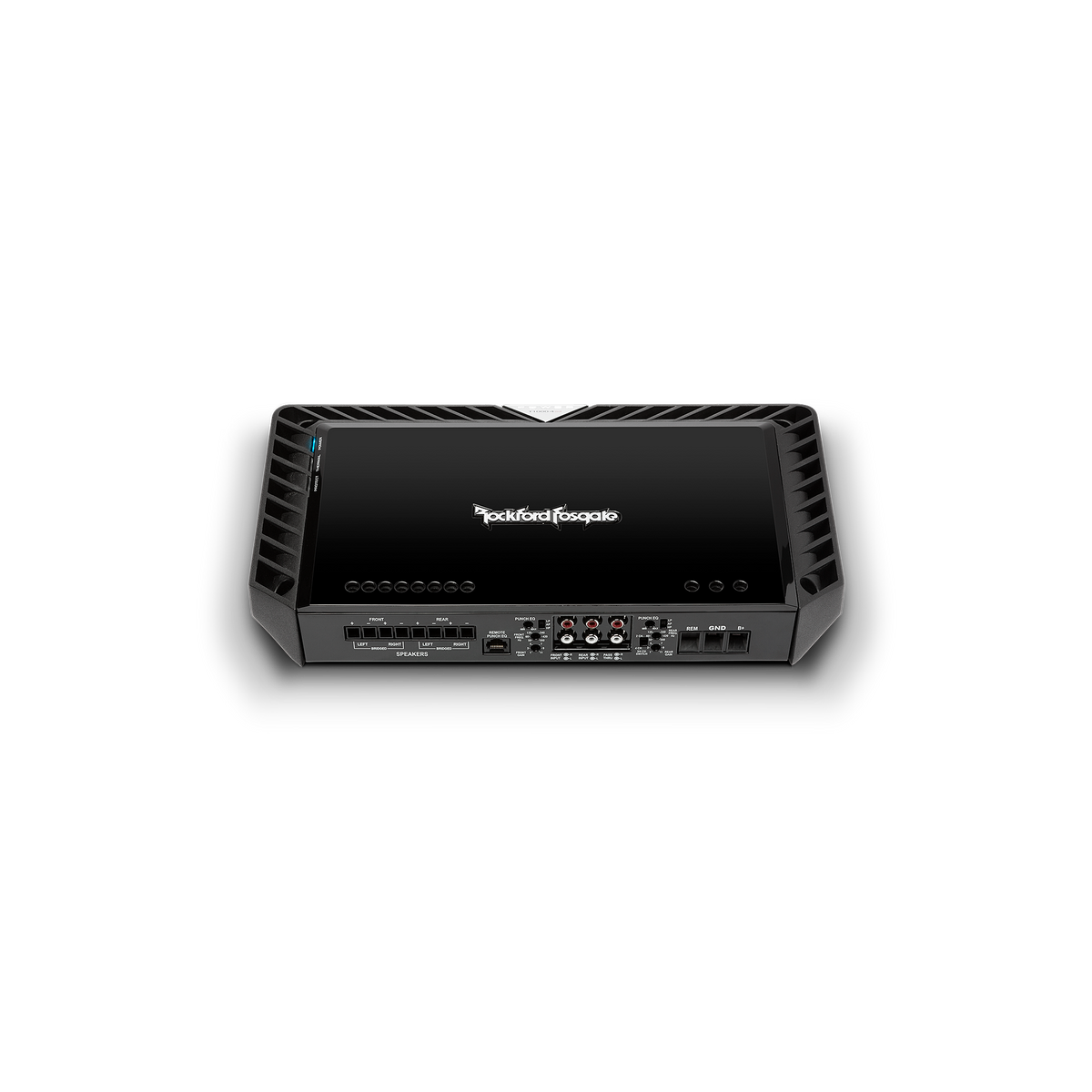

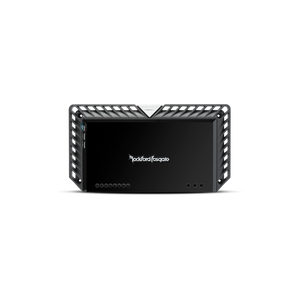

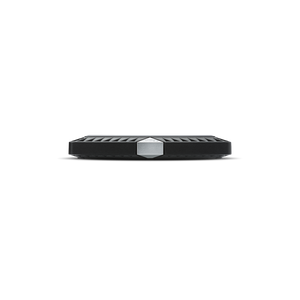

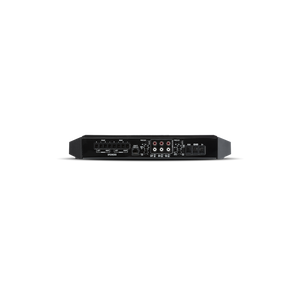

Power 1,000 Watt Class-ad Full-Range 4-Channel Amplifier

Overview

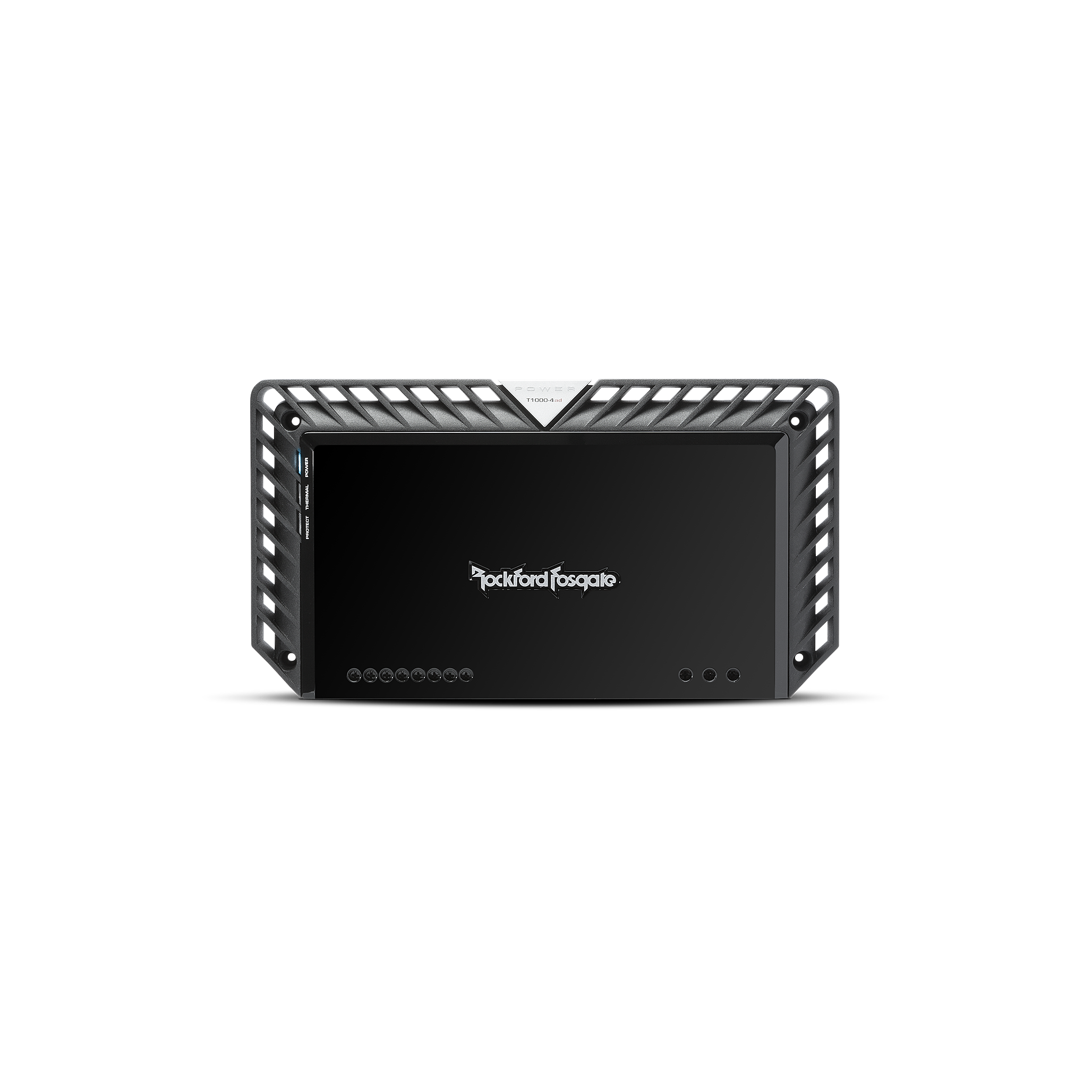

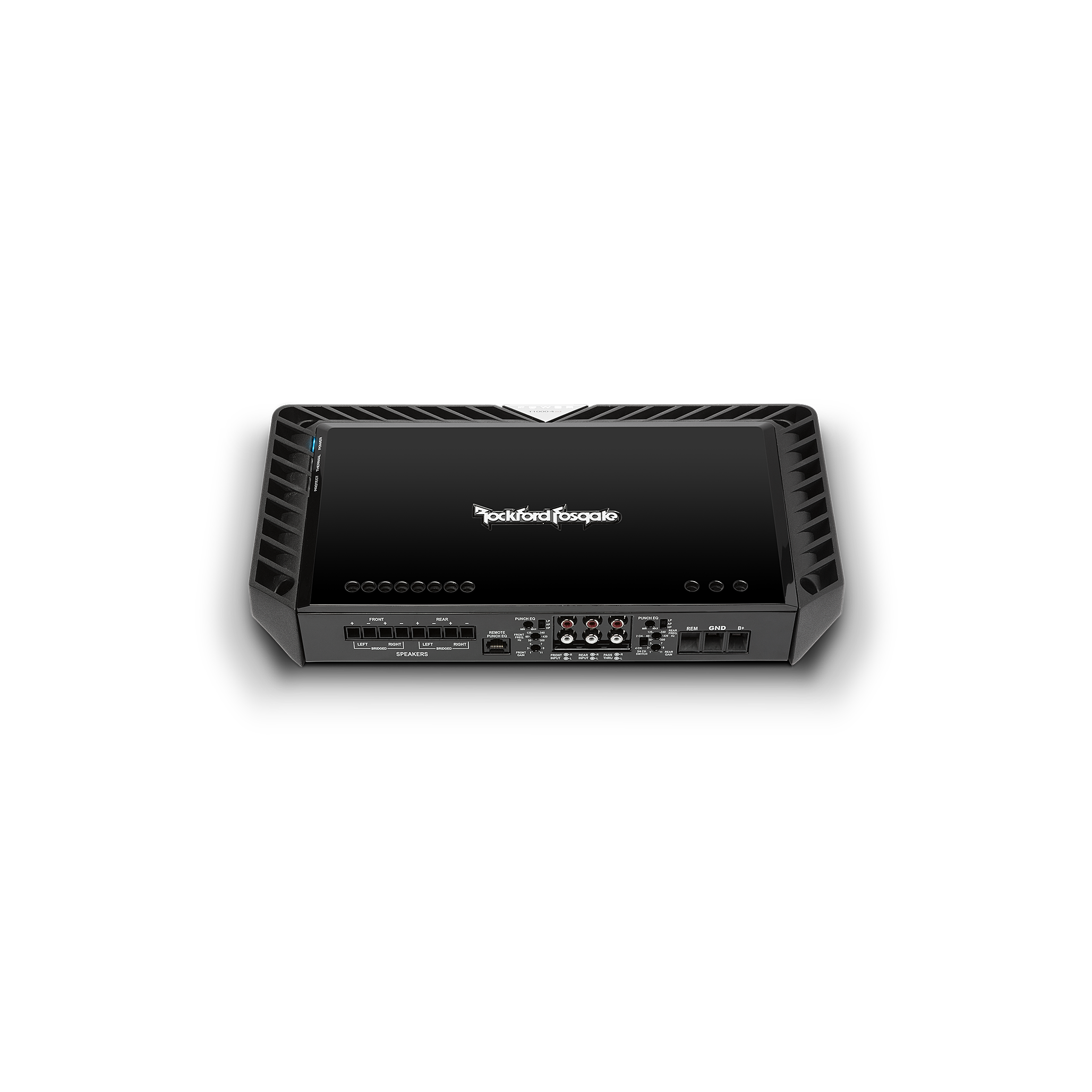

The Power T1000-4ad is a full-size chassis, 1000-Watt 4-channel amplifier, built on our Class-AD platform offering high fidelity in a full-range configuration.

Features

• 2-Year Warranty
• 2/4 channel input switch
• 24dB/octave crossover
• 4 Gauge power/ground connectors
• Audiophile grade speaker connections
• MOSFET output stage
• MOSFET power supply
• RCA pass-thru outputs

Technologies

• 4Ω/2Ω/1Ω Capable: Allows the amplifier to produce the same power into either a 4-ohm, 2-ohm or 1-ohm speaker load. Works with Constant Power to optimize power output at varying impedances.
• Punch EQ2: Onboard equalizer with up to +18dB @ 45Hz and/or up to +12dB boost at 12kHz.
• MEHSA³: MEHSA³ reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
• Differential Inputs: Differential inputs eliminate noise picked up by signal cables resulting in clean signal transfer.
• NOMAD: NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
• CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
• DSM: DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
• Engineered In The USA: These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
• Constant Power: Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.
• Class-AD: This technology allows the amplifier to produce more power with less current draw from the vehicle's charging system.

Specifications

Recommended Fuse (not included)	150 A
Channel Separation	65 dB
Common Mode Rejection	63 dB
Damping Factor	>200
Signal-to-Noise (CEA)	85 dB
Dimensions (H x W x D)	2.14 x 8.14 x 14.91 (in) 5.42 x 20.68 x 37.86 (cm)
Bridgeable	Yes
Visual Indicators	Power (Blue LED) Thermal (Red LED) Protect (Yellow LED)
Cooling	Convection
Power Wire Gauge	4 AWG
Power Input Connector	Block
Dynamic Power (PVC/PowerCube®)	270 Watts x 4 @ 4-Ohm 0° Res 327 Watts x 4 @ 2-Ohm 0° Res 365 Watts x 4 @ 1-Ohm 0° Res 619 Watts x 2 @ 4-Ohm Bridged 654 Watts x 2 @ 2-Ohm Bridged
Efficiency (average)	84.1% @ 4-Ohm 81.6% @ 2-Ohm 81% @ 1-Ohm
Total Harmonic Distortion (THD+Noise)	4-Ohm:<1.0% 2-Ohm:<1.0%
Tone Controls	Front Channels: Treble: 0dB to +12dB @ 12kHz Bass: 0dB to +18dB @ 45Hz Rear Channels: Treble: 0dB to +12dB @ 12kHz Bass: 0dB to +18dB @ 45Hz Function depends upon crossover setting (LP/AP/HP)
CEA-2006 Compliant	CEA-2006 Power Rating 250W x 4 @ 4Ω ≤1.0% THD+N
Operating Voltage	9 - 16 VDC
Suggested Alternator	75 A
Total Power (Sum of Rated Power)	1000 Watts RMS

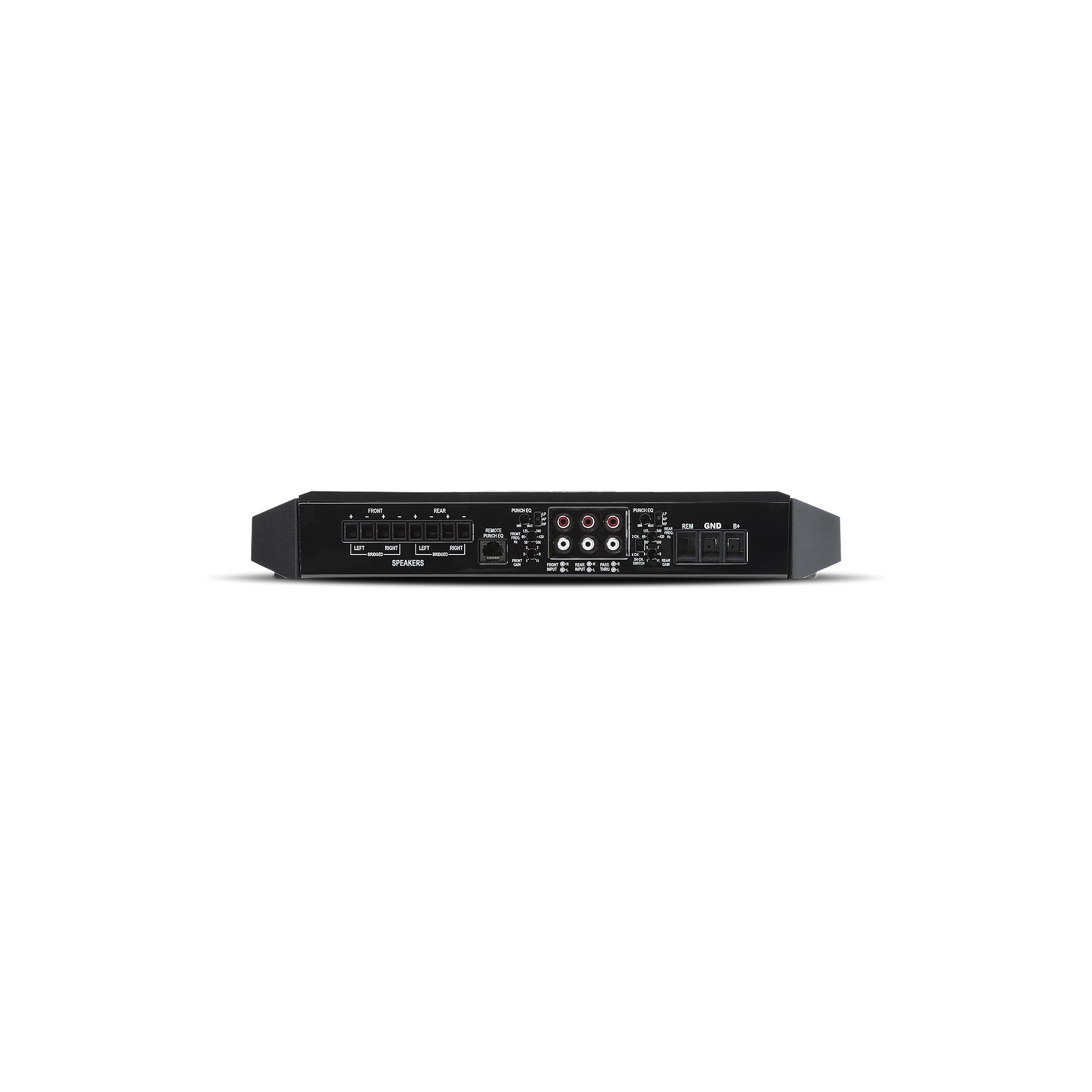

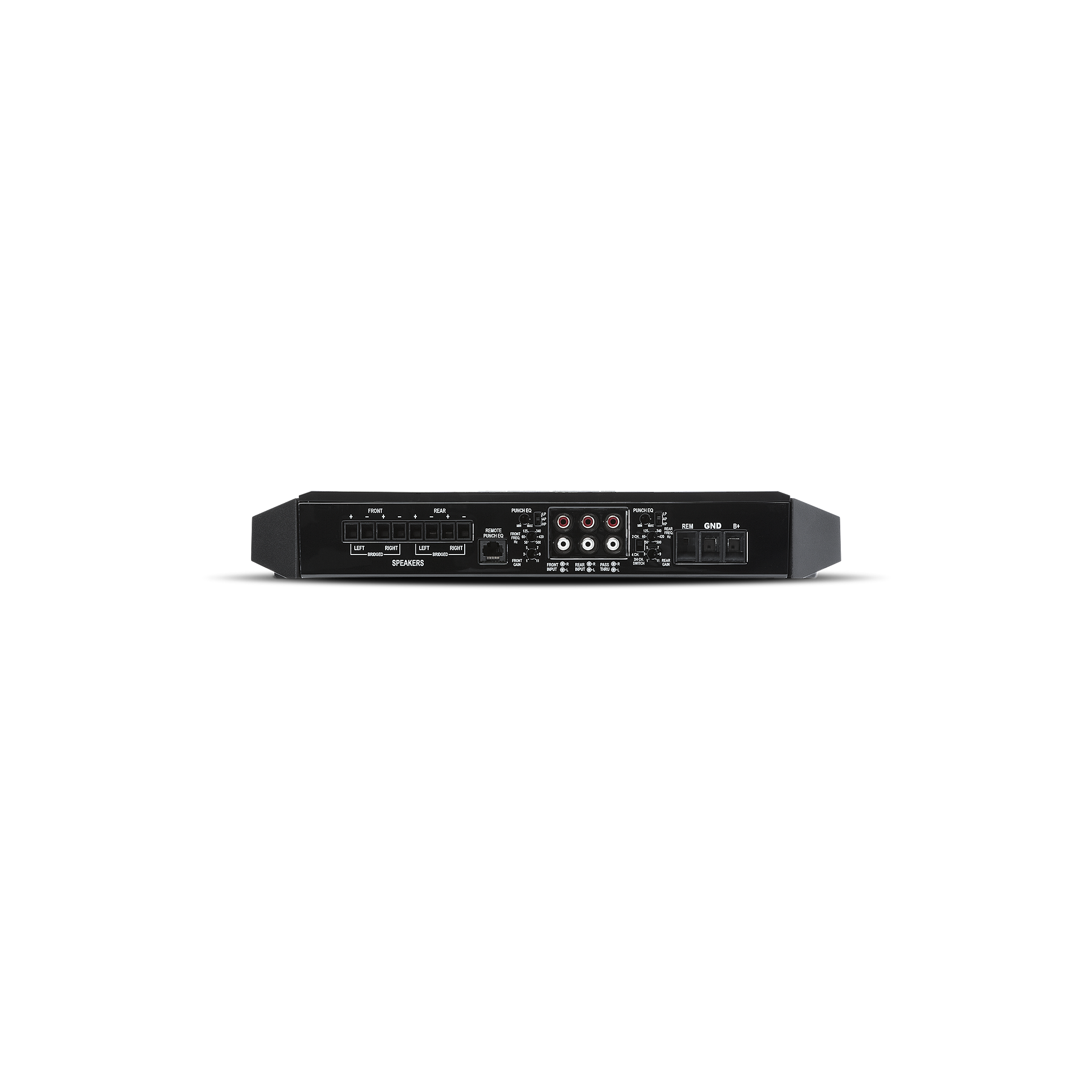

Signal Input	Front Channels: 1 RCA pair Rear Channels: 1 RCA pair Input Switch: 2CH / 4CH
Speaker Wire Gauge	8 AWG to 16 AWG
Number of Channels	4
Crossover Controls	Front Channels: High-Pass (HP): 50Hz-500Hz @ 24dB/octave Butterworth Low-Pass (LP): 50Hz-500Hz @ 24dB/octave Butterworth Rear Channels: High-Pass (HP): 50Hz-500Hz @ 24dB/octave Butterworth Low-Pass (LP): 50Hz-500Hz @ 24dB/octave Butterworth
Speaker Output Connector	Block
Signal Output	1 RCA pair
Heat Sink Type	Cast aluminum
Remote Controls	Optional Remote PEQ (overrides rear channel built-in Punch EQ)
Frequency Response	20Hz to 20kHz +/-1dB
Shipping Weight	14.45 lb. (6.55 Kg.)
Average Current Draw (13.8V Music)	60 A
Max. Current Draw (13.8V Sinewave)	120 A
Input Sensitivity	150 mV to 5 V
Rated Power (RMS Continuous Power)	250 Watts x 4 @ 4-Ohm 250 Watts x 4 @ 2-Ohm 250 Watts x 4 @ 1-Ohm 500 Watts x 2 @ 4-Ohm Bridged 500 Watts x 2 @ 2-Ohm Bridged
Circuit Topology Class	Class AD
