RNGR18-ROOF2M2

Overview

Elevate your off-road experience with RNGR18-ROOF2M2. Enjoy exceptional audio performance and durability. Upgrade your adventure now!

Features

• BluetoothTM connectivity with A2DP wireless audio streaming
• Plug-and-Play design for easy installation

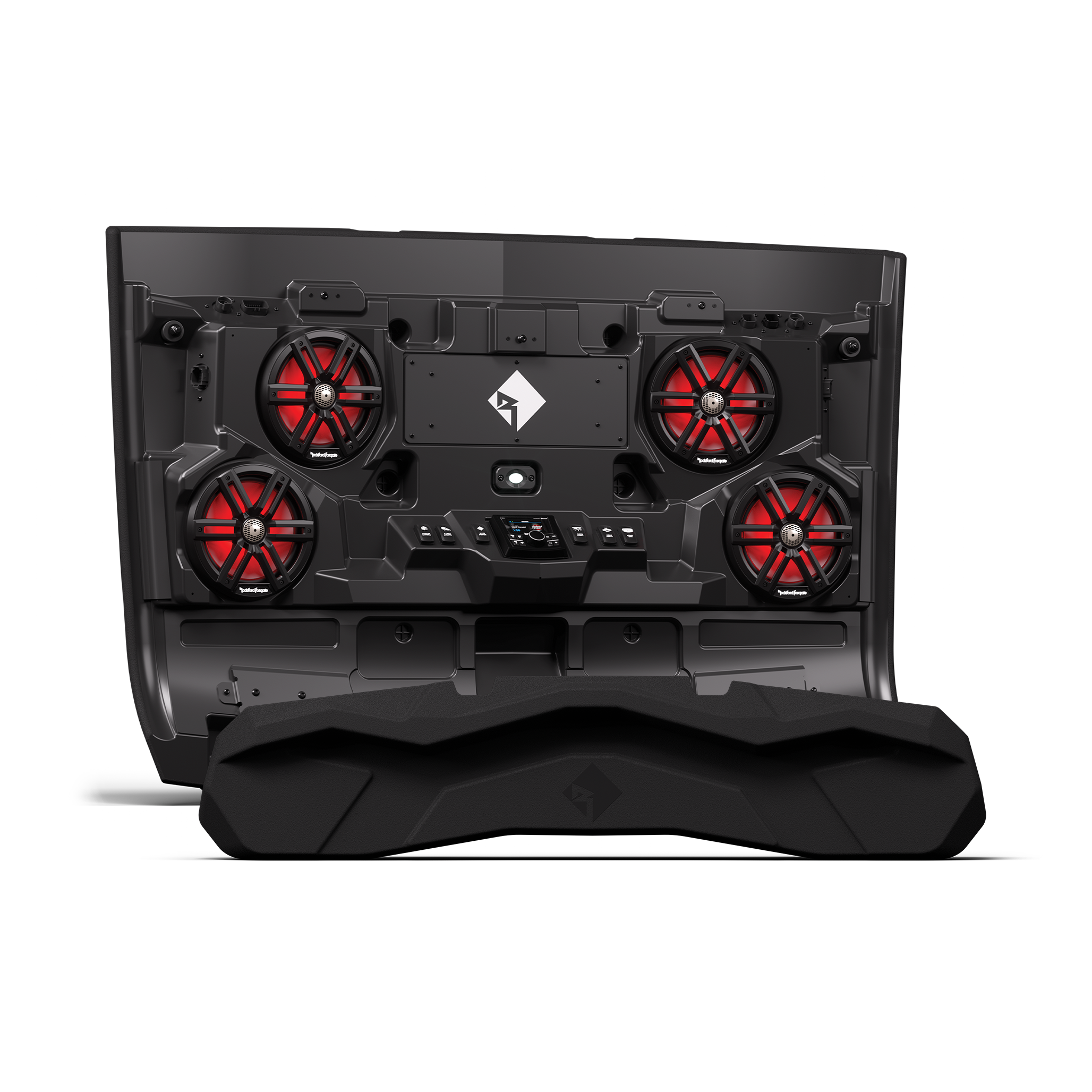

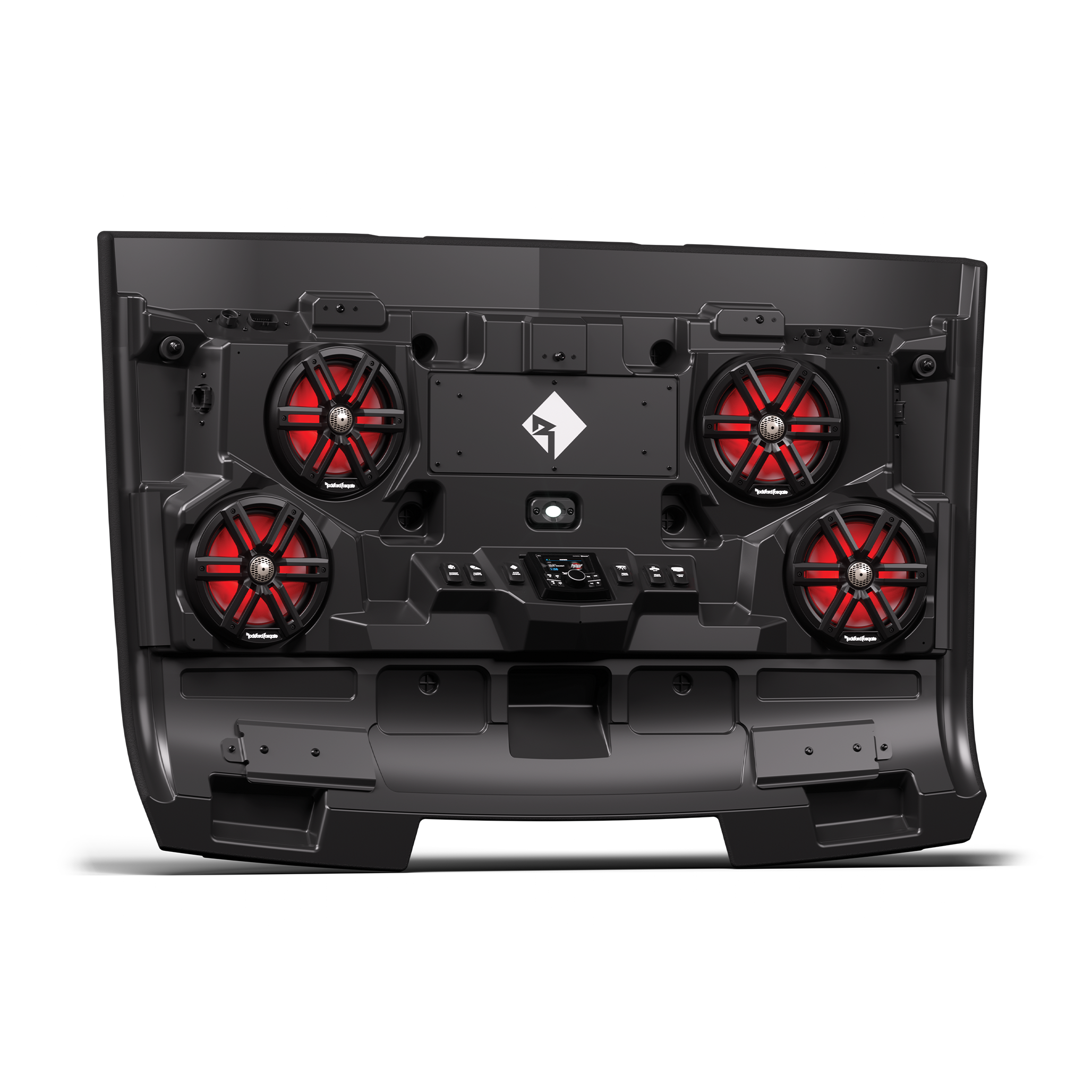

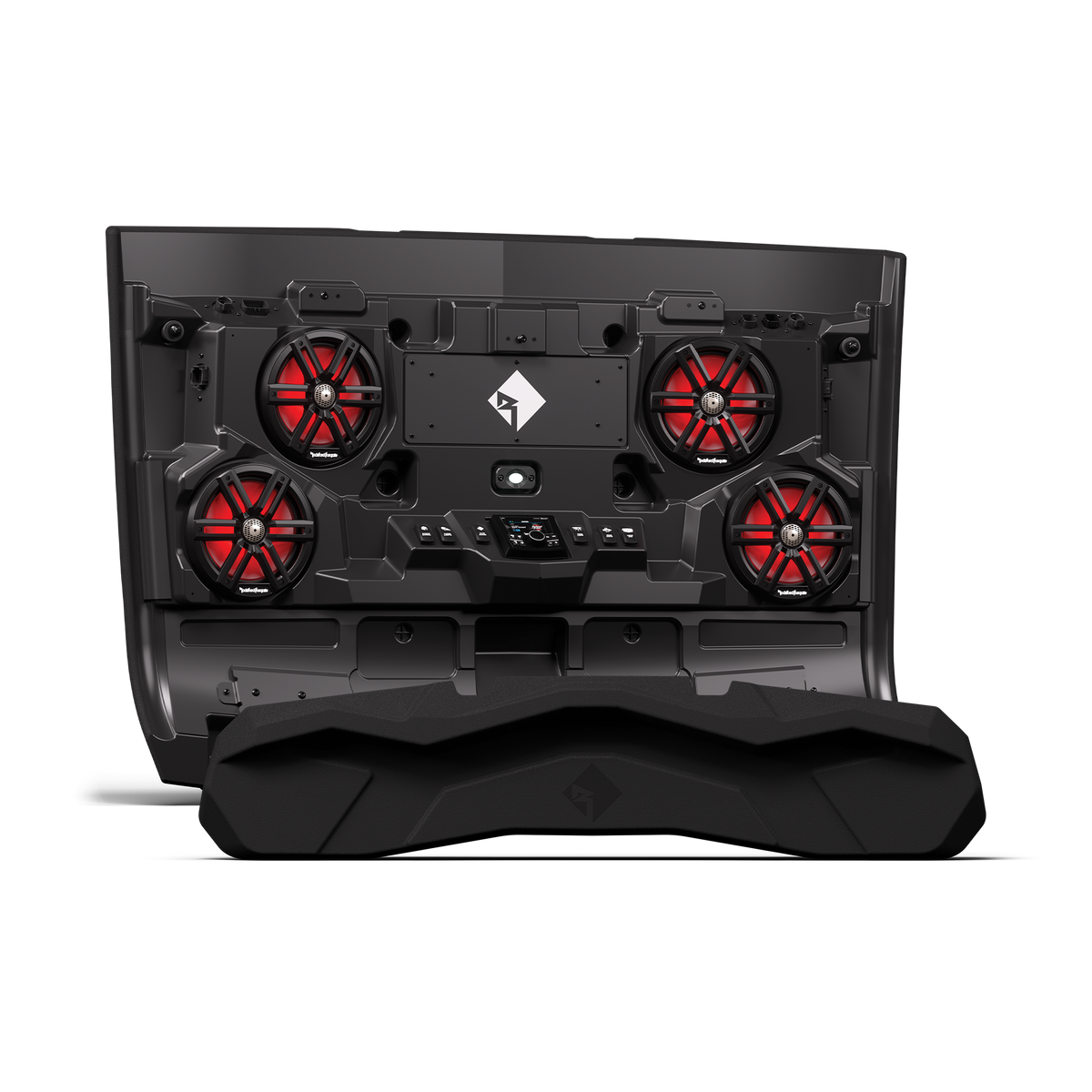

• Complete all-in-one roof audio solution

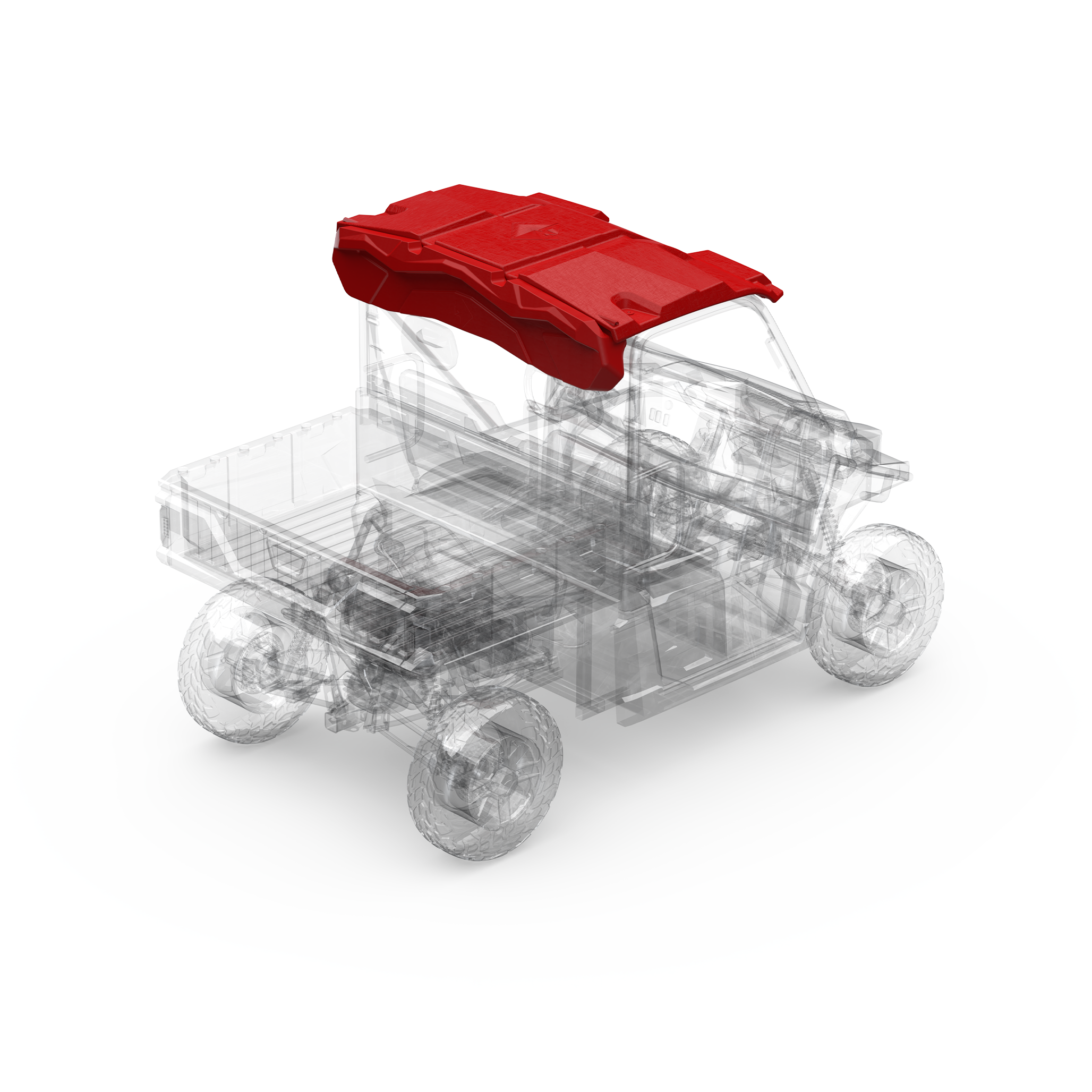

• Direct bolt into vehicle using OEM mounting holes

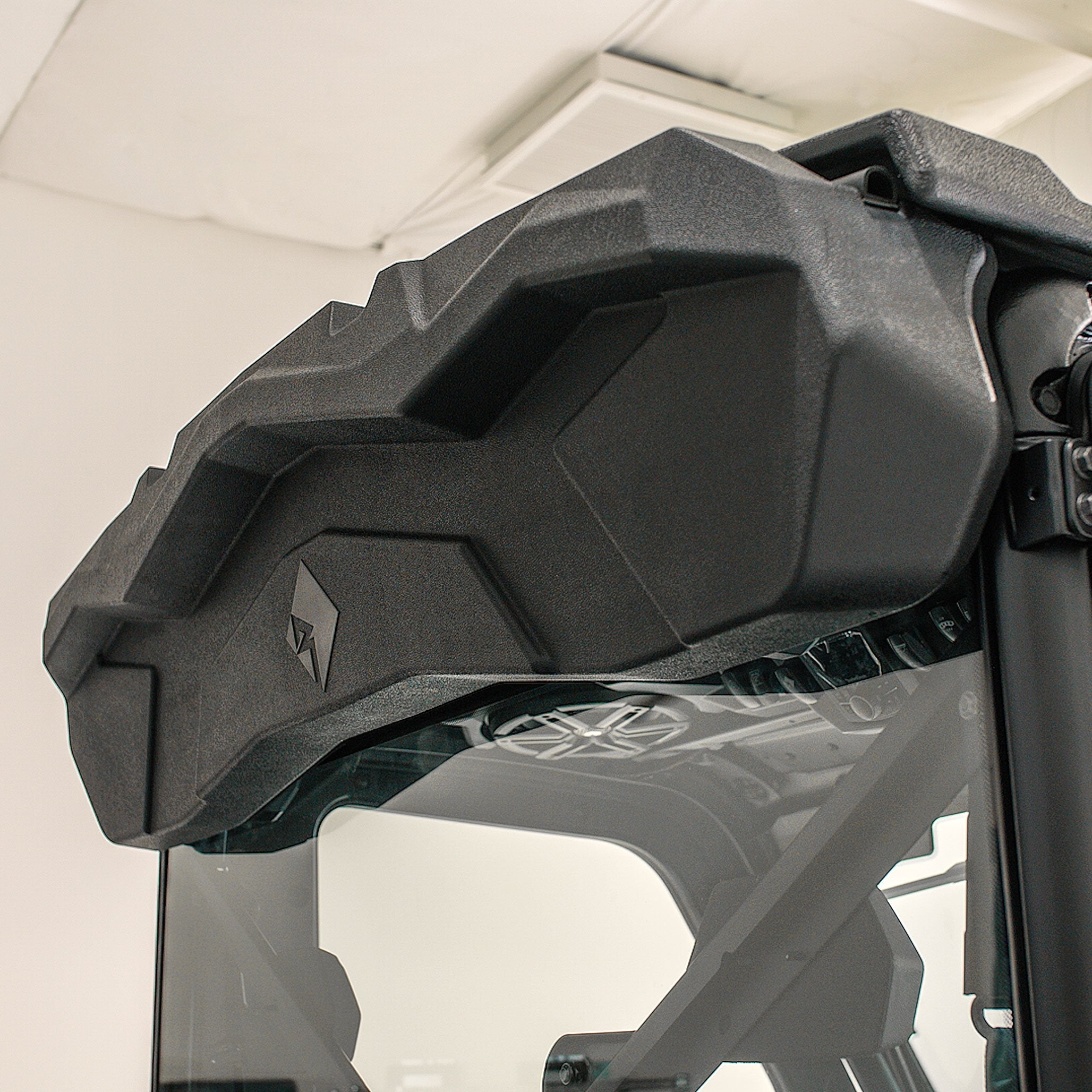

• Includes unloaded rear cap for structural support
• M2D2-10IB: 10" Color Optix TM subwoofers - Black
• Integrated driver/passenger LED dome light
• M2-8B: M2 8" Color Optix TM marine grade 2-way speakers - Black
• Compatible with Northstar power windows
• Prewired for LED light bar (30" min - 40" max)
• Requires minimal disassembly and drilling for installation
• PMX-3: Compact AM/FM/WB SiriusXM ReadyTM 2.7" Digital Media Receiver

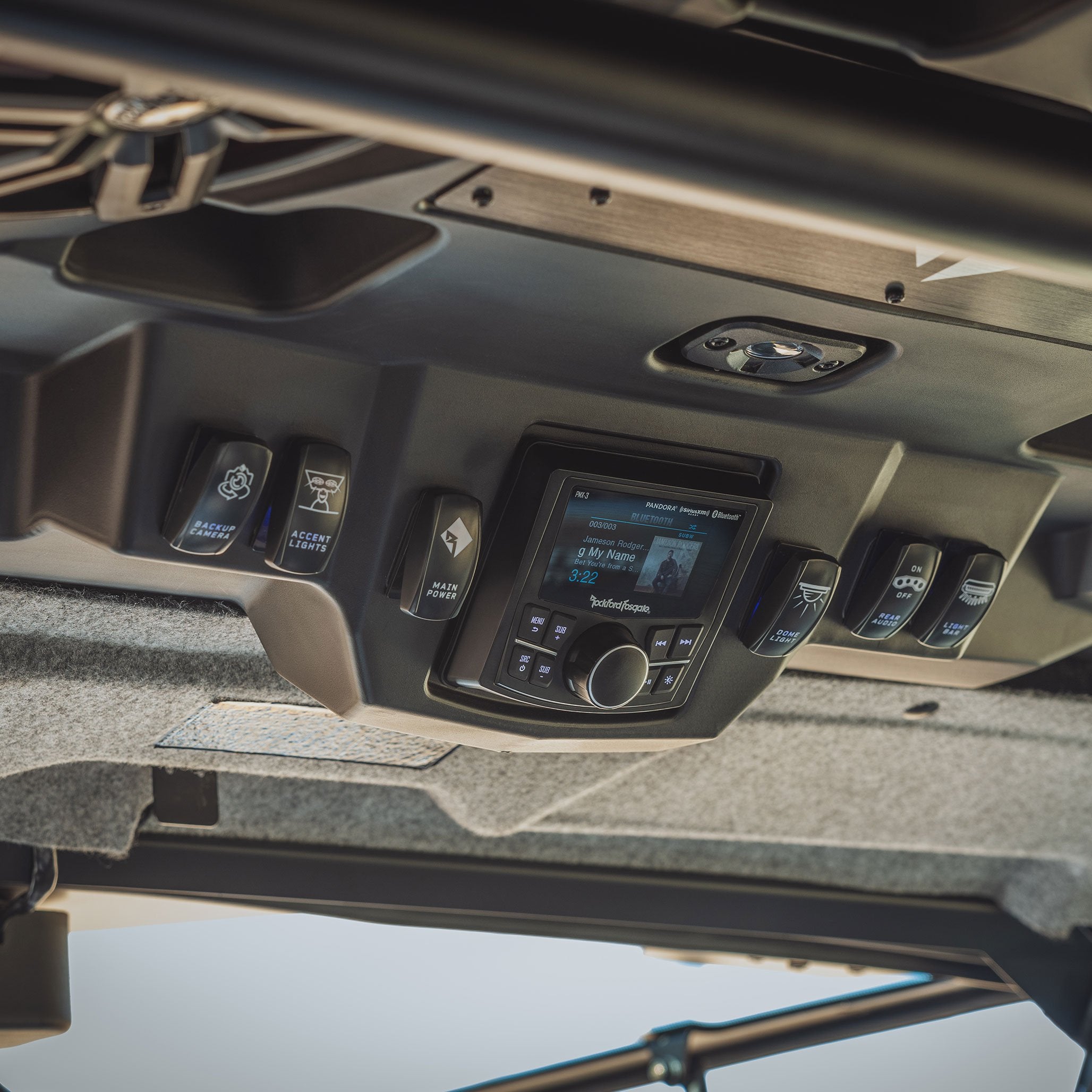

• Rocker switches: main power, backup camera, cargo lights, dome light, rear audio, light bar
• Sport grilles featured on all speakers
• M5-1500X5: 1,500 Watt 5-Channel IPX6 Element Ready TM Amplifier
• Upgradeable with RNGR18-CAPM2 loaded rear cap for rear firing audio
• Upgradeable with RNGR18-FWE Color Optix 10" subwoofer/enclosure
• 2-Year Warranty
• Durable HDPE (High Density Poly Ethylene) material
• Element Ready TM to withstand the harsh outdoor environment like dust, water, and UV rays

Specifications

• Speaker Model: M2-8B
• Amplifier Model: M5-1500X5
• Source Unit: PMX-3
• Speaker Qty: 4
• Amplifier Type: Internal
• Mounting Hardware: Yes
• Total Power: 1,500 Watts
• Grille/Trim Ring Included: Yes

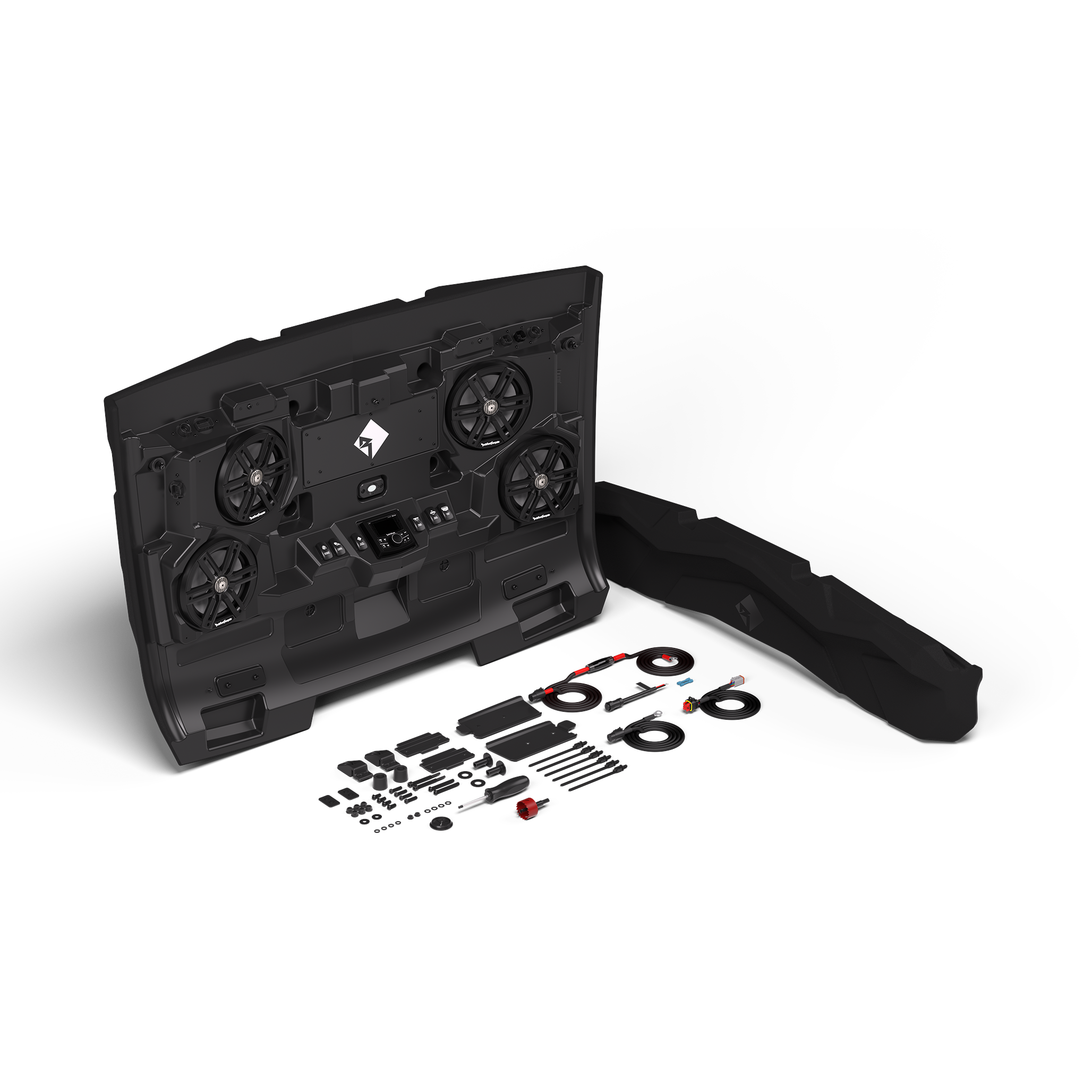

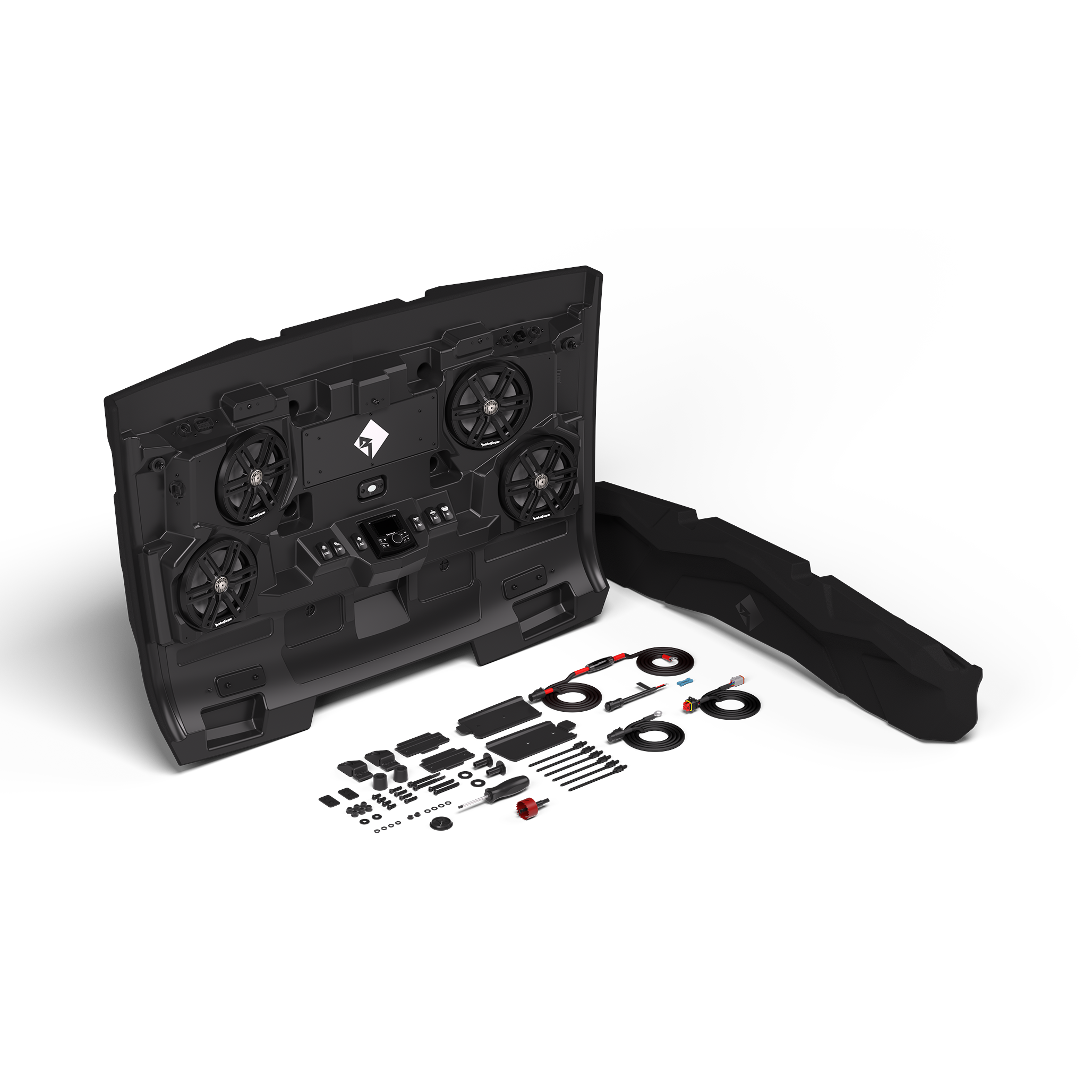

• Included In The Box: (1) Front roof assembly; (1) Blank rear cap; (1) 1130-77294-01 AP pack:; -(1) Harn. 4AWG GND; -(1) Harn. 4AWG B+; -(1) Harn. sub; -(1) Harn. LED bar; -(2) Bracket roof to ROPS; -(1) Padded bracket RH; -(1) Padded bracket LH; -(2) Padded bracket rear cap; -(2) Padded clamp; -(1) Ball-end Allen; -(1) Holesaw 45mm OD x 85mm; -(1) Grommet 44.5 OD x 40 ID; -(2) Gasket 35mm OD, 16.6mm ID; -(2) Nut lock M6x1, 14.2 OD; -(6) Ziptie tree 7.3 x 162; -(4) Split washer M8 2.1mm; -(4) T40 Torx screw, M8x1.25, 18mm; -(6) Hex nut lock M8x1.25; -(2) Standoff; -(4) Washer 14.75mm OD, 8.5mm ID; -(4) Hex screw M8x1.25,28mm; -(2) Spacer top hat 40.8mm; -(2) T40 Torx screw M8x1.25, 68mm; -(2) Bolt M8x1.25, 83mm; -(2) Washer 23mm OD, 8.60 ID
• Light Bar Fuse:: 15A

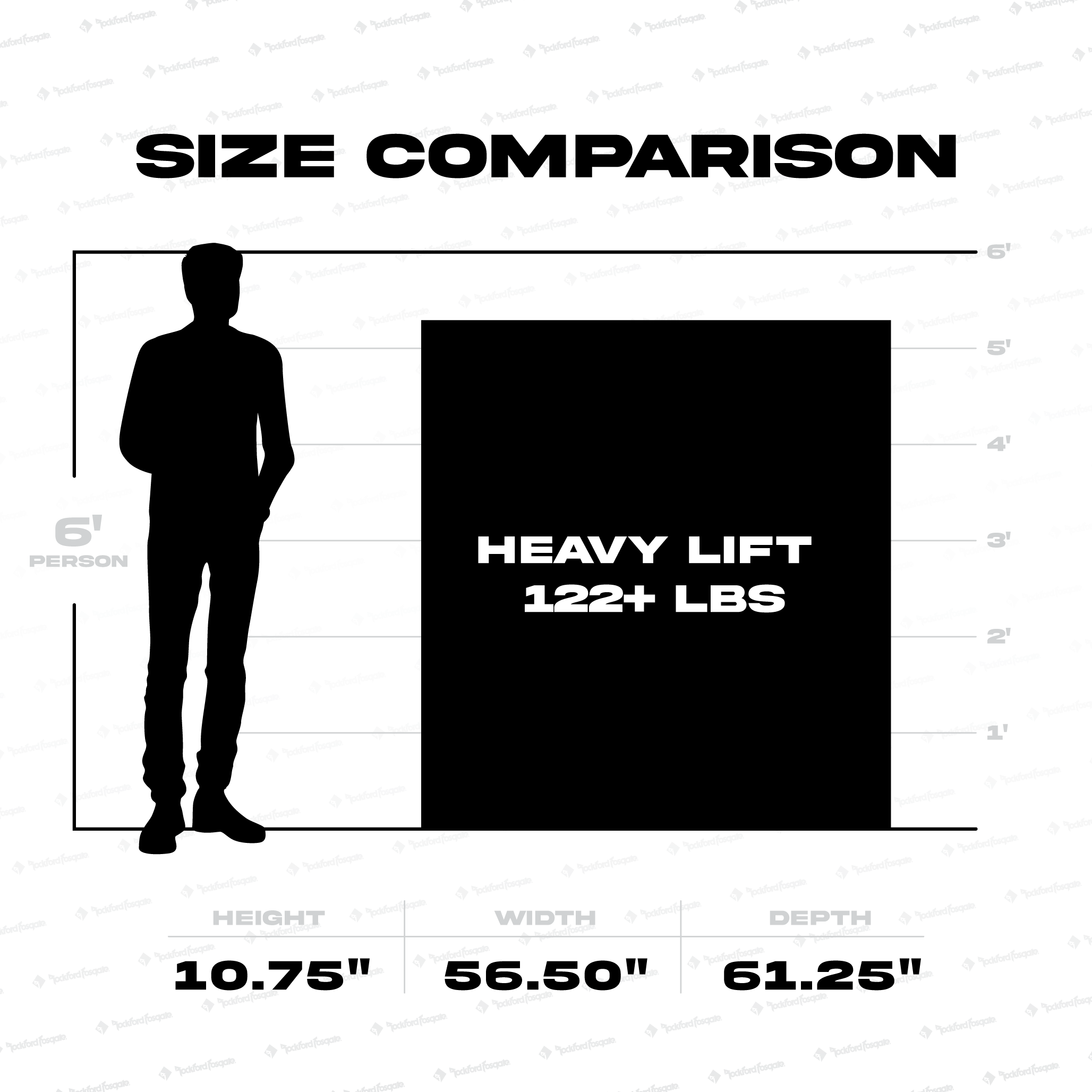

• Shipping Dimensions:: 10.75" x 56.50" x 61.25"; 27.3 cm x 143.5 cm x 155.6 cm
• Shipping Weight:: 122 Lbs. (55.3 Kg)
