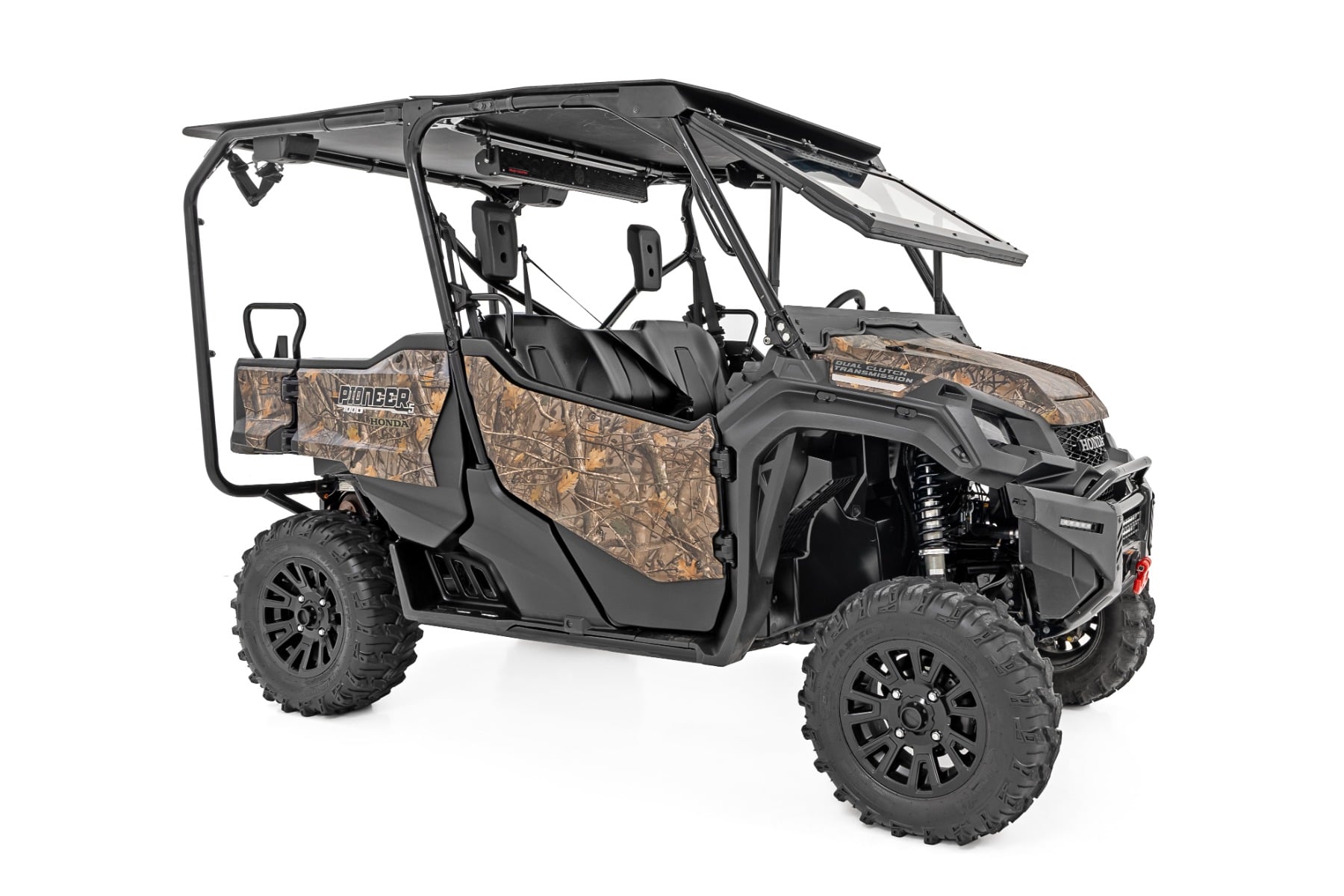

Electric Tilt Windshield | Glass | Honda Pioneer 1000

Maximum Durability and Visibility: Say hello to a whole new view with Rough Country's Auto-Tilt Glass Windshield for the Honda Pioneer 1000/1000-5. With its DOT-approved glass and sturdy construction, this windshield is less likely to crack or break, even when driving through rough terrain. The Auto-Tilt Glass Windshield for Honda Pioneer is the perfect accessory for your off-road vehicle, giving you unobstructed visibility. Our windshield is built to make your ride safer, so you can focus on the trail ahead. Heavy-Duty Reliability: The Auto-Tilt Windshield is installed in a heavy-duty metal frame with UV and scratch-resistant powder coating that can withstand all weather conditions. And with weather seal protection, the glass will stay in excellent condition for years to come. It features an easy-to-use rocker switch, so you can open the windshield slightly for minimum airflow or fully open it for maximum airflow. The push-button control with dual linear actuators is so easy to use that you can even adjust mid-ride. The glass is built for long-lasting reliability because the rugged design of your Pioneer deserves a windshield that is just as tough. Installation: Our new Auto-Tilt Glass Windshield can be installed on Honda Pioneer models for a clear view and added protection. The windshield comes with the hardware needed for an easy install that includes some minor drilling. Warranty: Rough Country's Auto-tilt Glass Windshield is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty, give yourself peace of mind when using Rough Country's products!

Features

Precision Fitment: Overall frame dimensions measure 50.75 inches wide and 29.5 inches tall for a clean, factory style install on Honda Pioneer models.
Full Glass Viewing Area: Glass panel measures 44.66 inches wide and 21.75 inches tall for excellent forward visibility.

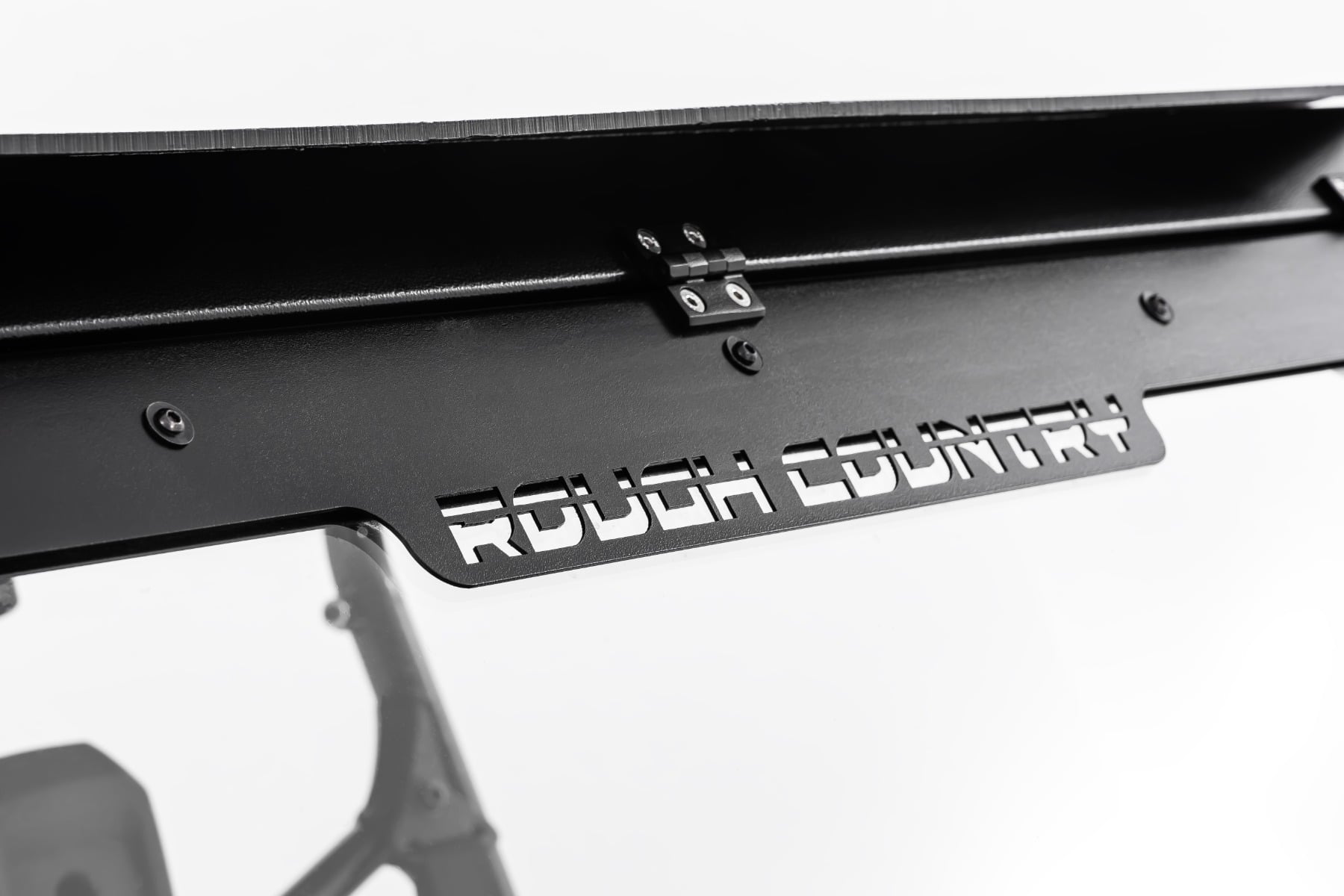

Heavy Duty Metal Frame: Built from durable steel and finished with a UV and scratch resistant powder coat for long lasting protection.
DOT Approved Safety Glass: Scratch and impact resistant glass provides confidence on the trail and around the property.

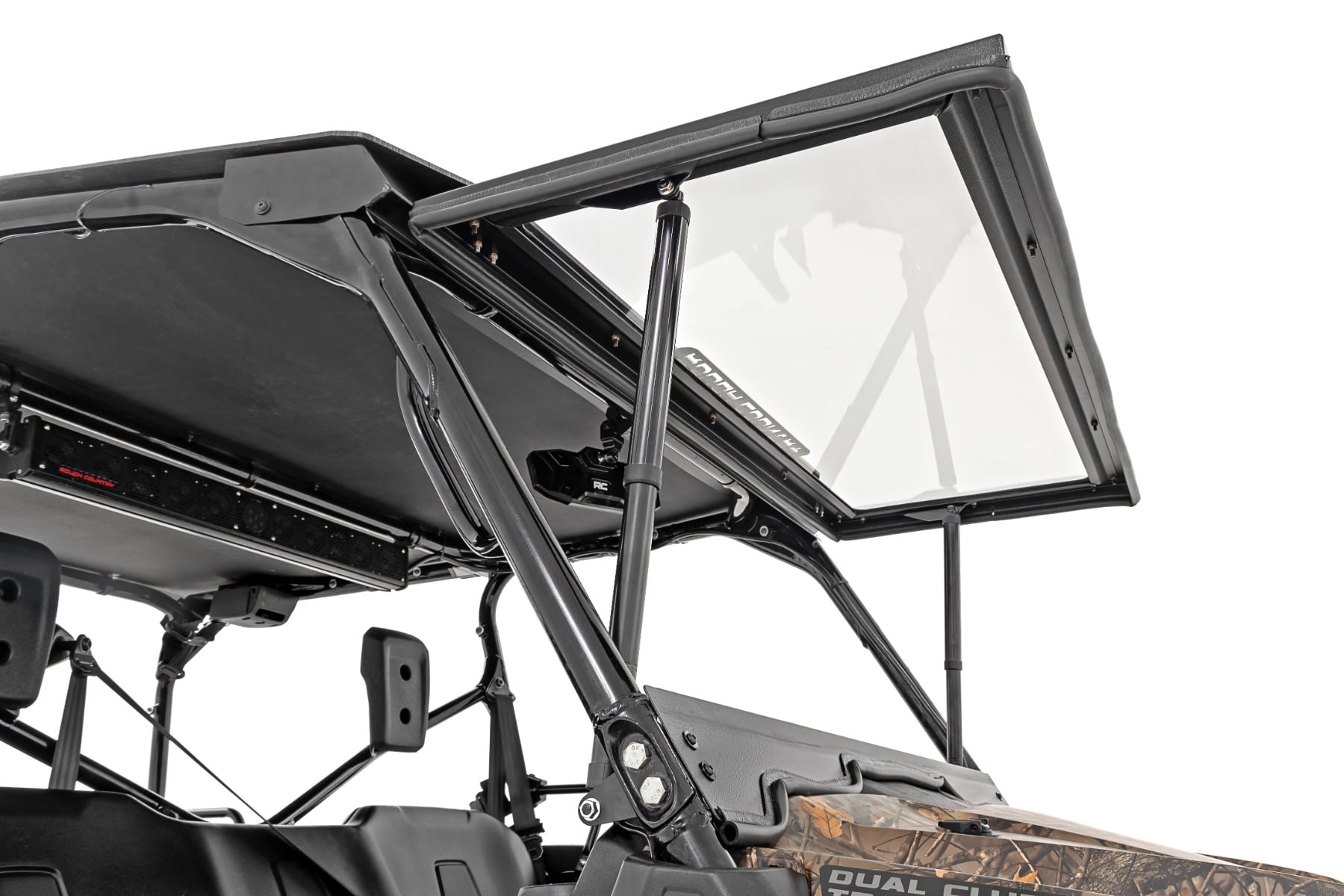

Electric Tilt Function: Electrically actuated windshield allows precise position control for light airflow or fully open ventilation.
Push Button Operation: Open and close the windshield effortlessly with the touch of a button.
Weather Sealing Edge Trim: Integrated edge seal presses against the vehicle frame to block out most dust, wind, and water.

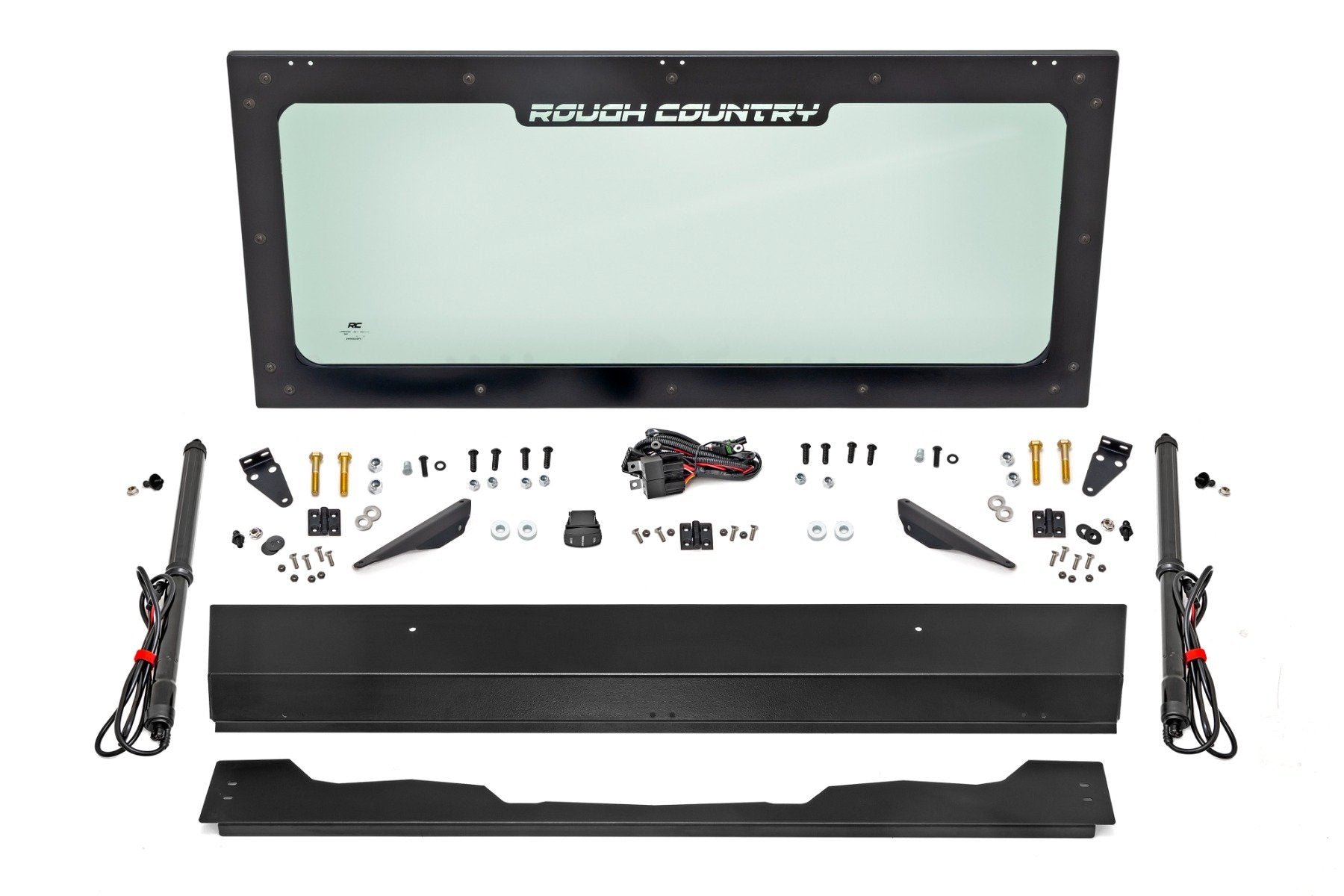

Simple Installation: Designed for an easy install with minimal tools required.

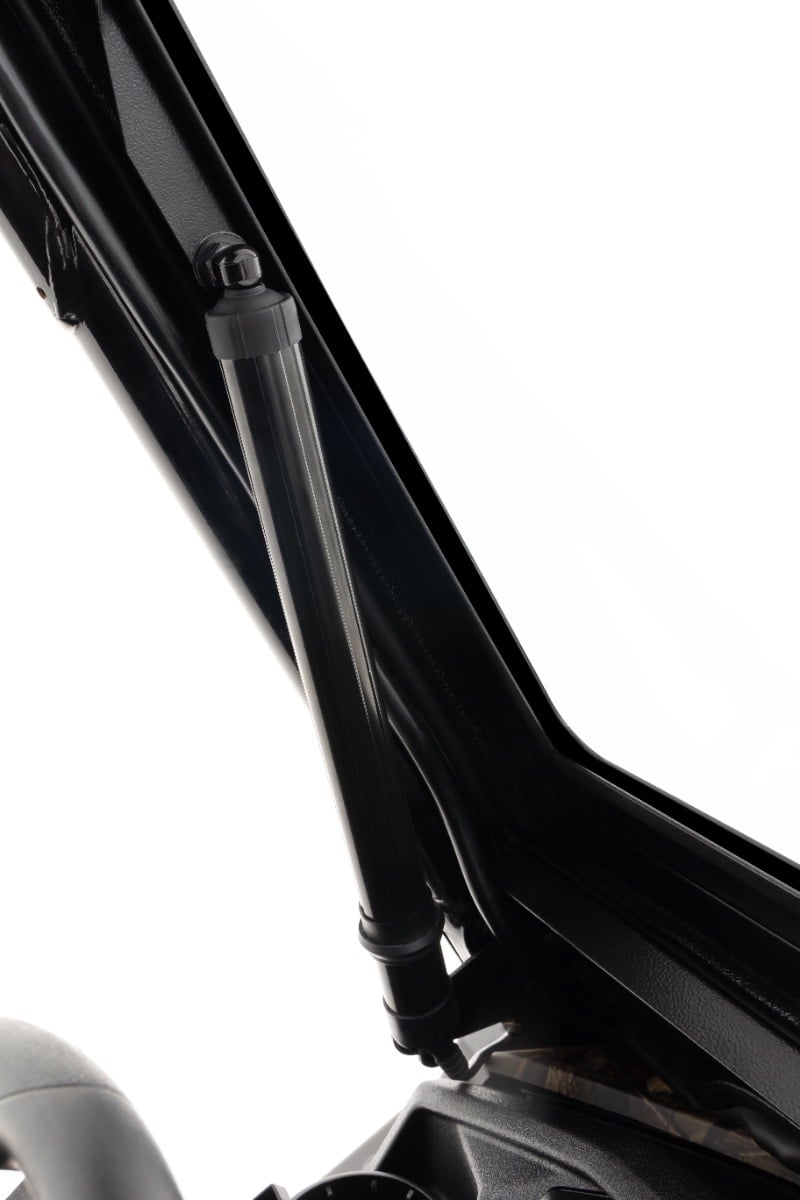

Cylinder Specifications:

Operating Voltage: 12V system compatible with Honda Pioneer electrical systems.\_x000D_
Stroke Range: Adjustable stroke length from approximately 382 mm to 586 mm.\_x000D_
Lifting Force: Rated at 410N with maximum support capacity up to 45 kg.\_x000D_
Operating Speed: Moves at 10 mm per second under no load.\_x000D_
Weather Resistance: IP65 rated for reliable performance in wet and dusty environments.\_x000D_
Operating Temperature Range: Designed to operate in temperatures from 23 to 122 degrees Fahrenheit.\_x000D_
Current Draw: 5 amps at full load.

Notes

Fits with most factory roofs but in some cases requires the roof to be trimmed to 3/8" along the front edge to clear windshield movement. Does NOT fit factory roofs with plastic leaver snap clamps. For ease of installation a nutsert tool is recommended 10583. For tips on how to install a nutsert please watch this video here!

Instructions

View Instructions

The Kaos Run Down

Make: Honda

Model: SXS1000M5 Pioneer 1000-5 Deluxe

Submodel: Base

Drive: U/K

Install Time: 1-2 hours
