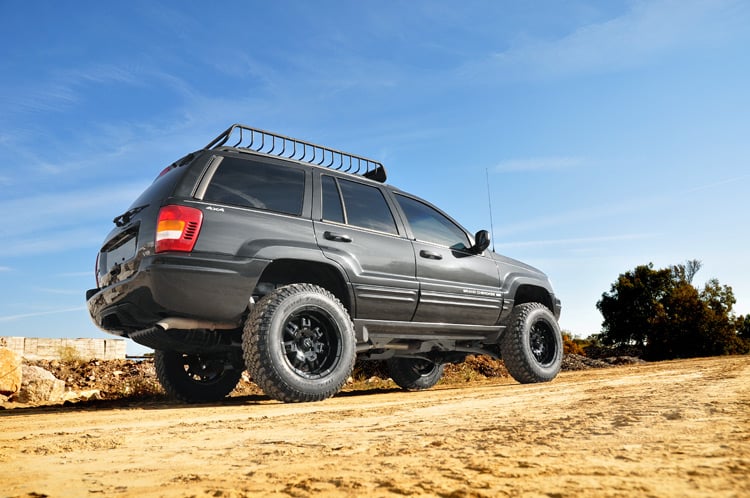

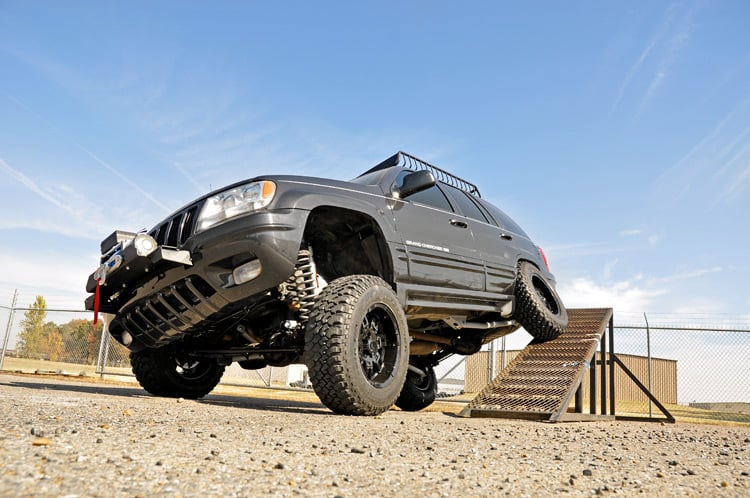

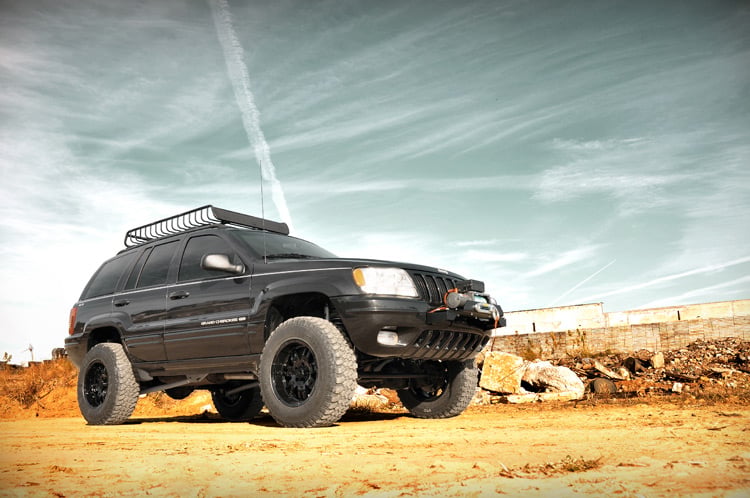

4 Inch Lift Kit | Long Arm | Jeep Grand Cherokee WJ 4WD (1999-2004)

The long awaited WJ 4-inch Longarm Kit is a comprehensive package including everything needed for a great suspension lift while maintaining the vehicle's crucial center of gravity. Upgrade your WJ and gain aggressive looks, extreme flex, and enough ride height to run up to 31-inch tires. The kit includes adjustable high-clearance X-Flex upper and lower control arms with durable rubber bushings, featuringX-Flex joints. The kit also includes front and rear coil springs, a front adjustable track bar with drop bracket, 1/4-inch thick steel crossmember, skid plate and sway bar disconnects. Outfitted with Rough Country's N3 shocks, this Longarm Lift Kit is a total solution comprised of top-notch components designed for the avid off-roader who wants the most out of their WJ.\_x000D_
This top of the line kit focuses on improving off-road handling and articulation while preventing binding and rear steer. This lift kit features high-clearance components with a front 4-link and rear y-link control arm design. This promotes extreme flex while keeping pinion angles optimized. Utilizing adjustable components, this kit can also accommodate future modifications.

Features

Aggressive appearance
Increased ground clearance
HD 0.25" thick crossmember
Lower control arms feature high clearance design
Extreme travel long arms keep optimum alignment and give optimum articulation.
X-Flex control arm features:

durable OEM style rubber bushings.
Flex joints feature a massive 2.5" diameter body and 1.25" thread.
Fully greasable.
Upper joints pivot up to 20 degrees.
Lower joints pivot up to 35 degrees.

Notes

Does NOT fit V8 models. Does NOT fit models with Quadra-Trac I, Quadra-Trac II, or Quadra-Drive. Does NOT fit models equipped with a rzeppa joint front driveshaft. Models equipped with a CV style front driveshaft may result in driveshaft vibration. If this occurs, replacing the driveshaft, axle yoke and / or transfer case yoke will need to be performed to rid the vehicle of driveline vibration.

Instructions

View Instructions

The Kaos Run Down

Fitment Year: 1999 2000 2001 2002 2003 2004

Make: Jeep

Model: Grand Cherokee

Submodel: Laredo

Drive: AWD

Install Time: 8-9 hours

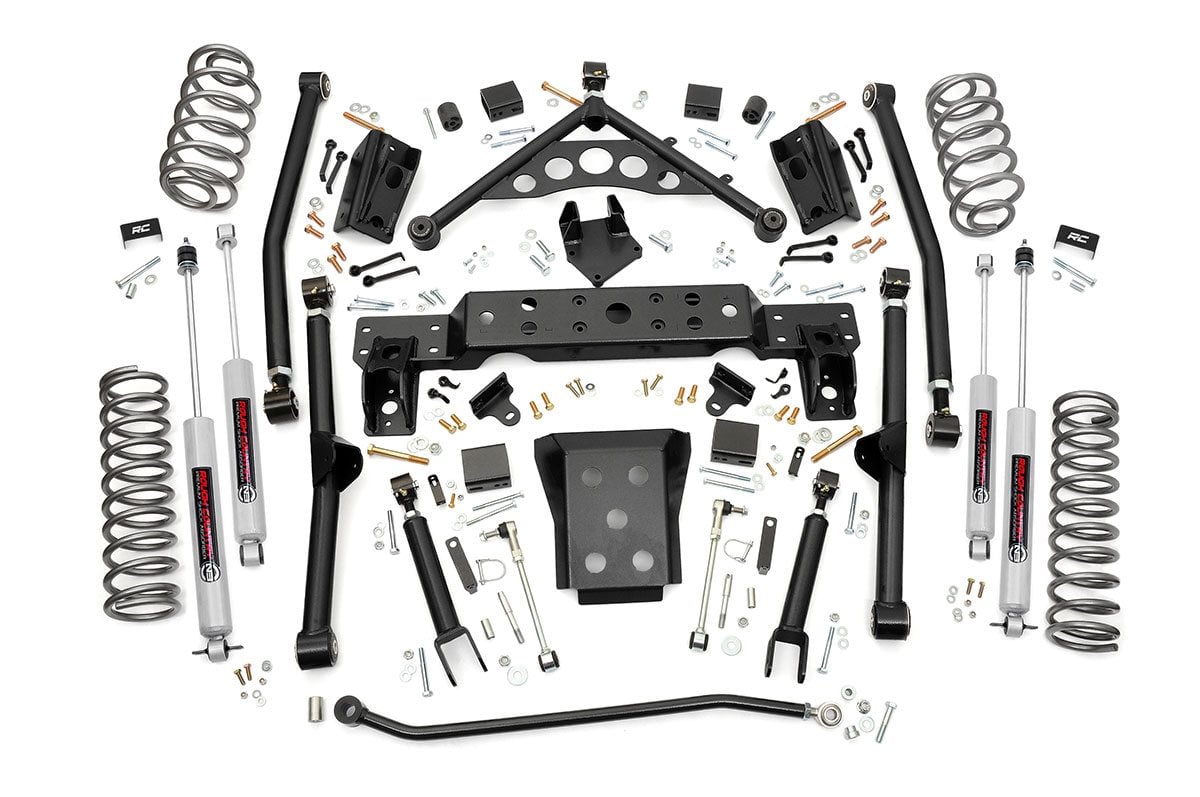

Front Components: Lifted coil springs Adjustable upper control arms Adjustable lower control arms Crossmember Transfer case skid plate Adjustable track bar Track bar bracket Sway-bar quick disconnects Bumpstop brackets Brake line brackets Hardware

Rear Components: Lifted coil springs Adjustable y-link upper control arm Adjustable lower control arms Long arm frame brackets Long arm axle mount Sway-bar brackets Lower shock brackets Hardware
