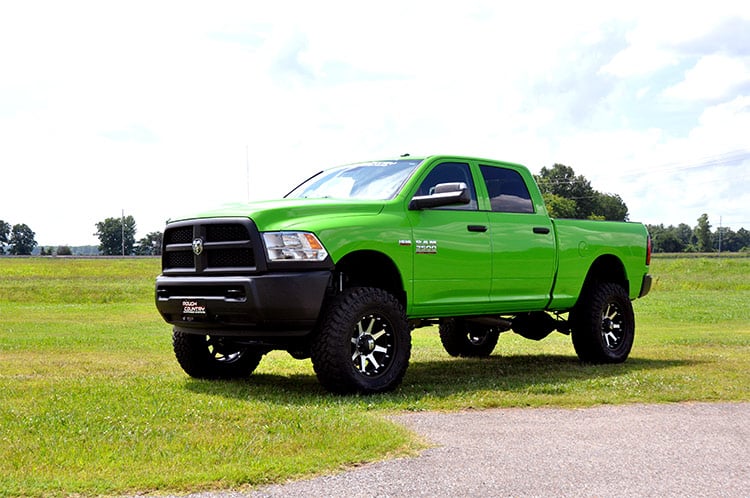

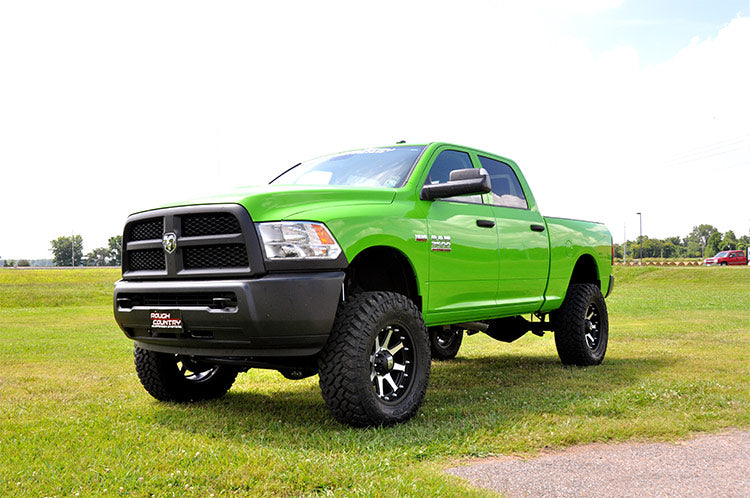

5 Inch Lift Kit | Non-Dually | Ram 3500 4WD (2013-2015)

Compliment your RAM 3500's aggressive, good looks with Rough Country's new 5-inch Lift Kit. New model RAM Trucks come with a wealth of impressive features right from the factory. Rough Country's new 5-inch kit was engineered to retain these impressive factory specs while bumping up performance and durability where it's needed most. The result is an aggressive, lifted beast with an mean profile and lush ride-quality that'll make other RAM owners wonder where you got yours from!\_x000D_
When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's new 5-inch Suspension kit features a set of ultra-durable Radius Arms, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. These beefy, upgraded Radius Arms also feature a durable, durable rubber bushings for maximum vibration absorption. In a further effort to preserve the truck's factory ride, this kit retains the factory progressive rate coil spring -- designed by Dodge specifically for the weight and ride quality of these new model trucks.\_x000D_
Get the look you really want for your truck with an easy-to-install kit, at an incredible price!

Features

Increased ground clearance
Maintains factory progressive rate coil springs
Track bar bracket keeps the front axle properly centered.
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

Notes

Requires minor drilling and cutting. Does NOT fit Dually models. Does NOT fit "Power Wagon" models. Does NOT fit models with rear air suspension. Models equipped with factory rear overload springs will need to remove the overload spring On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing.

Instructions

View Instructions

The Kaos Run Down

Fitment Year: 2013 2014 2015

Make: Ram

Model: 3500

Submodel: Big Horn

Drive: 4WD

Install Time: 4-6 hours

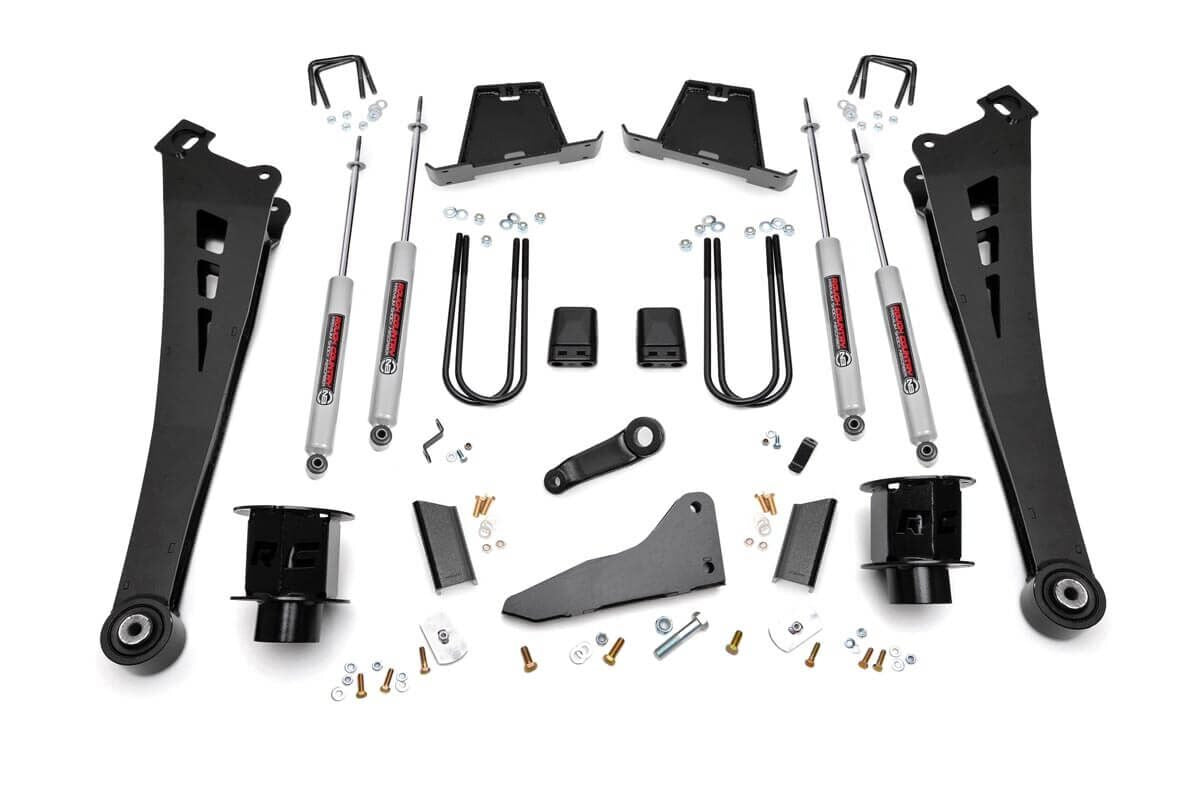

Front Components: Coil spring spacers Radius arms Track bar bracket Sway-bar brackets Pitman arm Hardware

Rear Components: 4in fabricated lift blocks U-bolts Hardware
