Overview

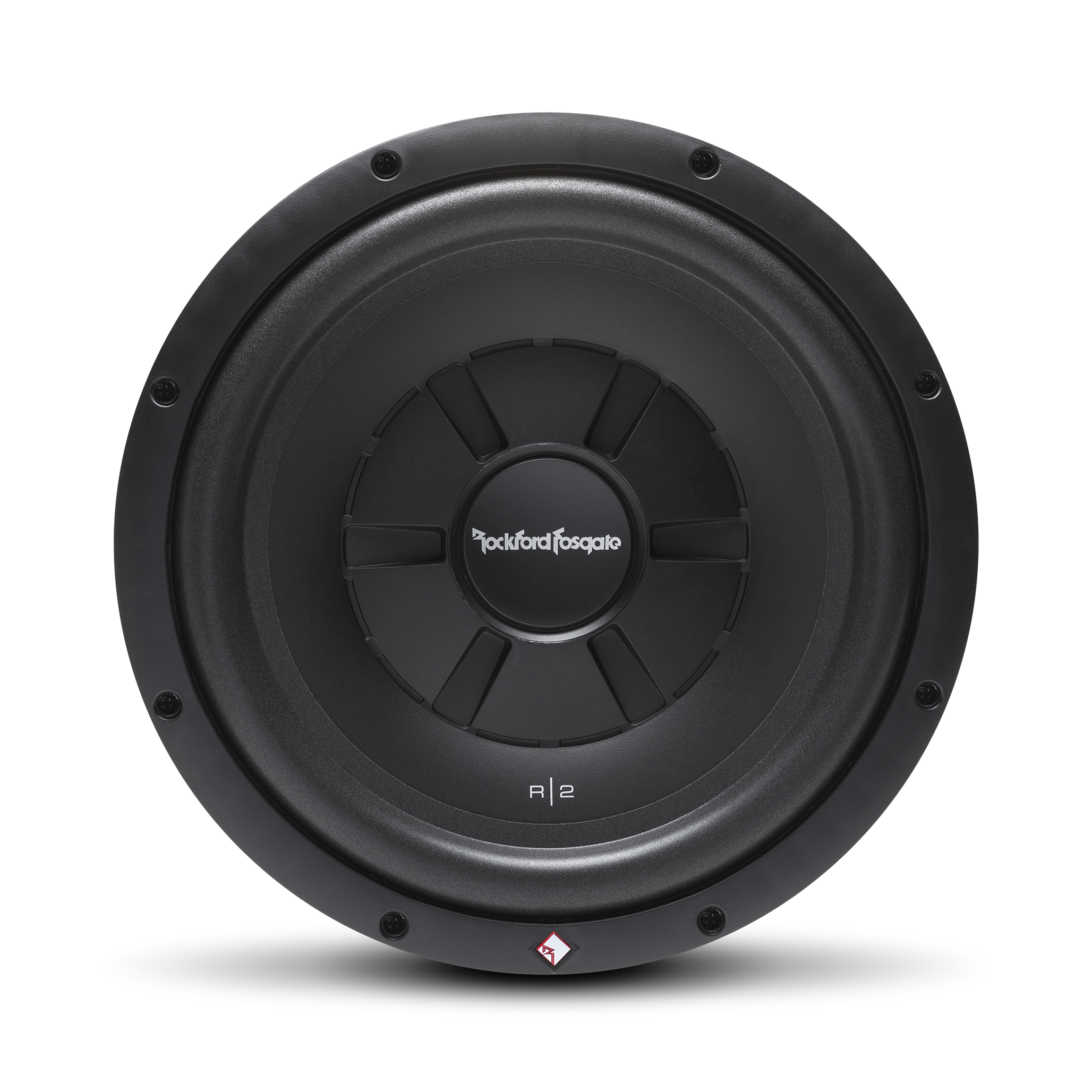

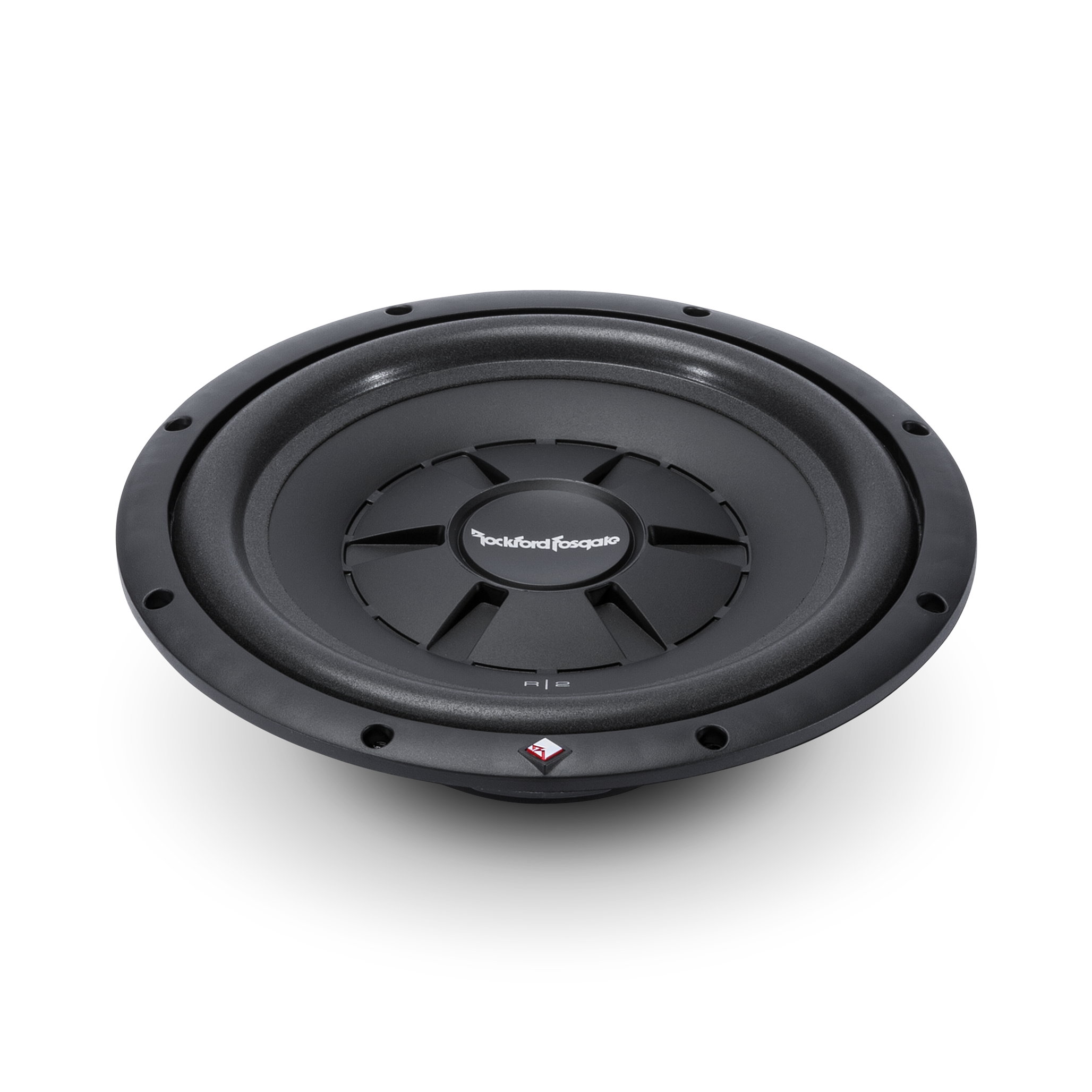

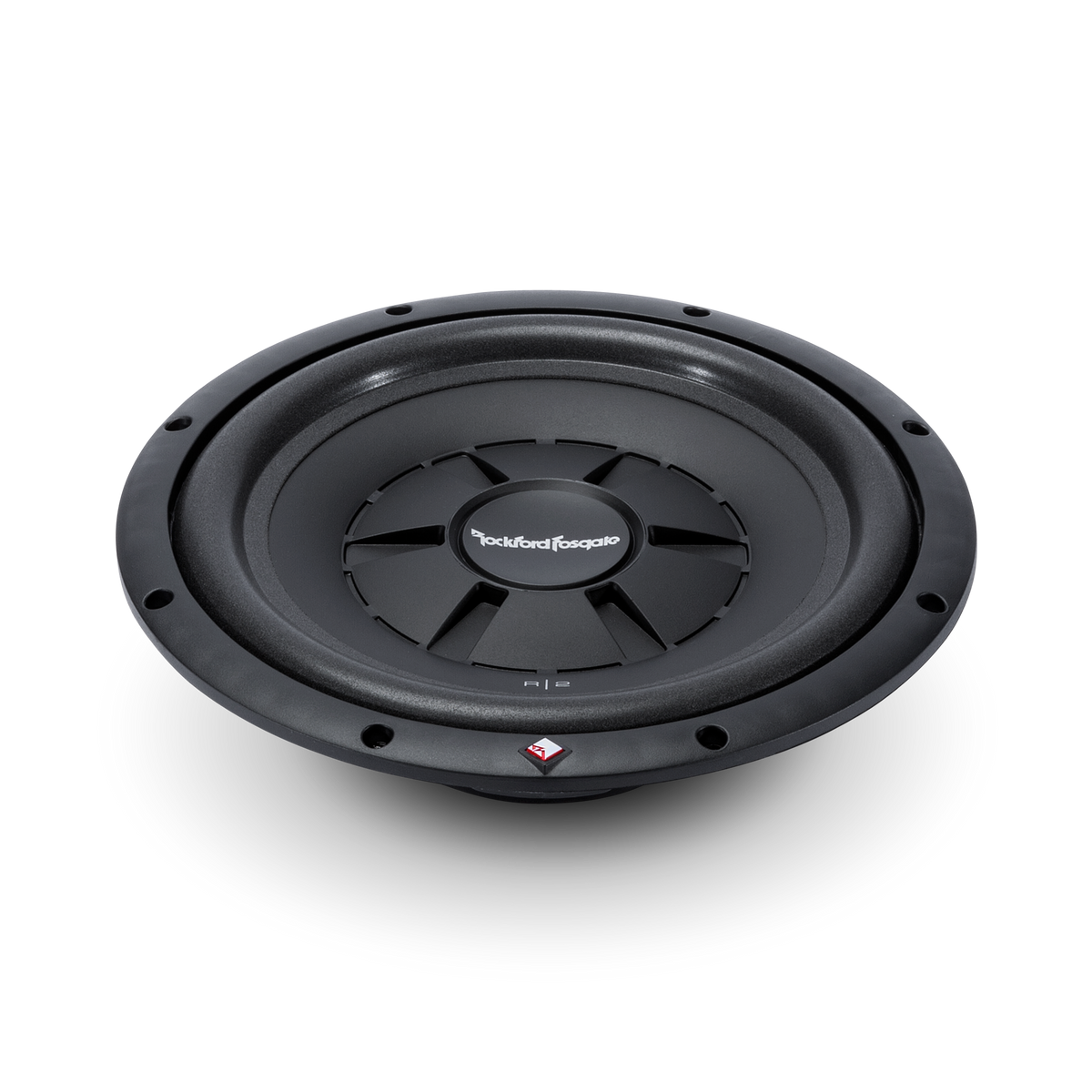

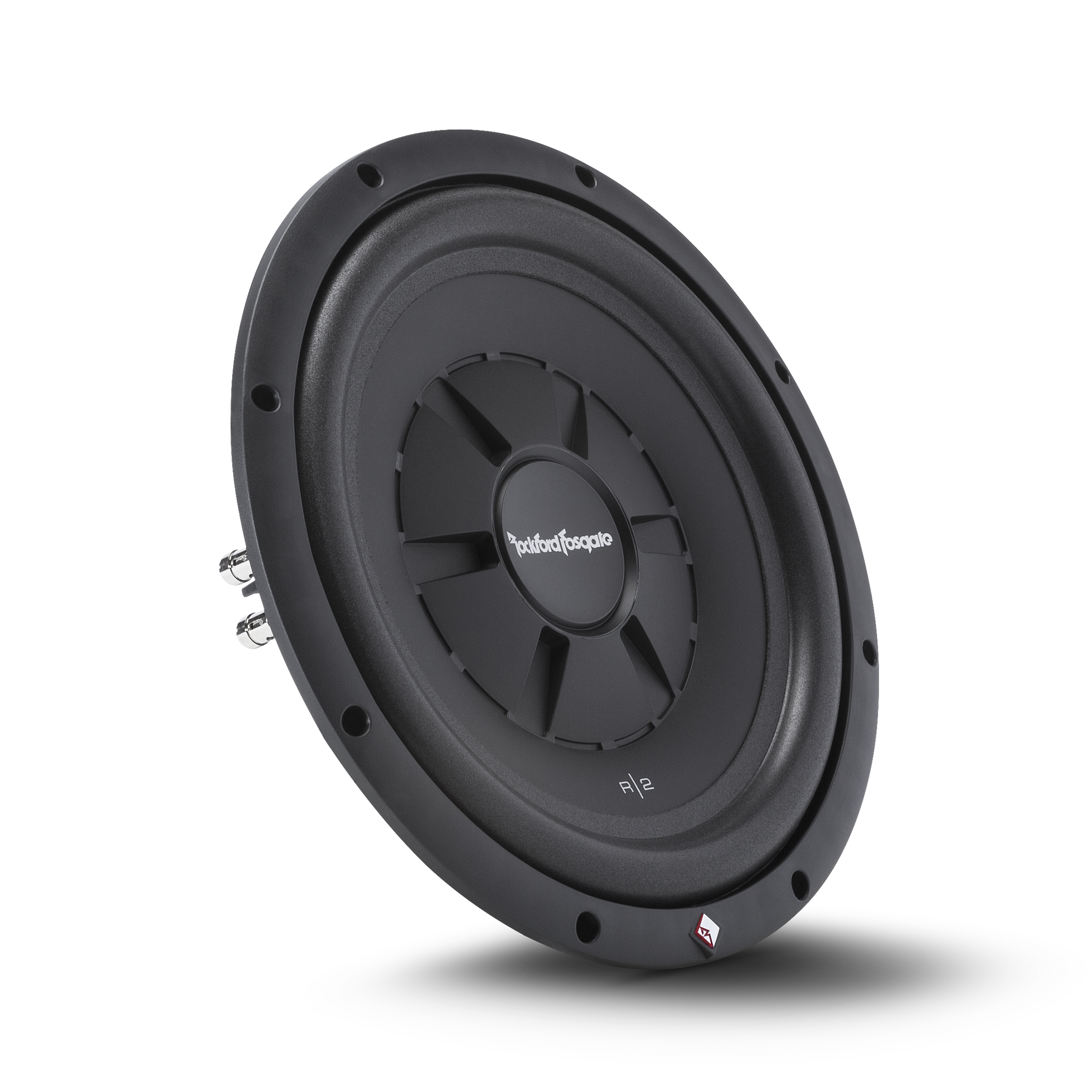

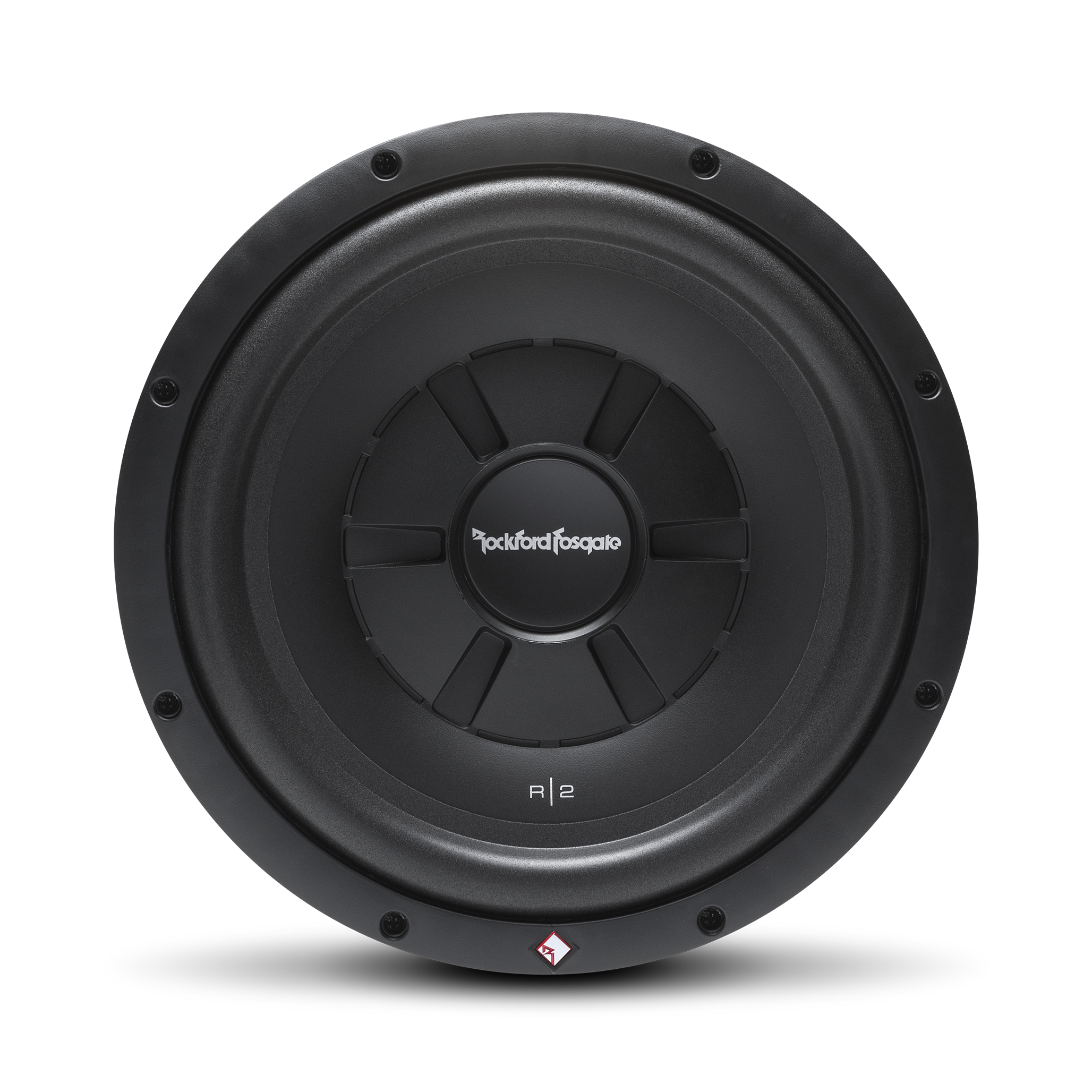

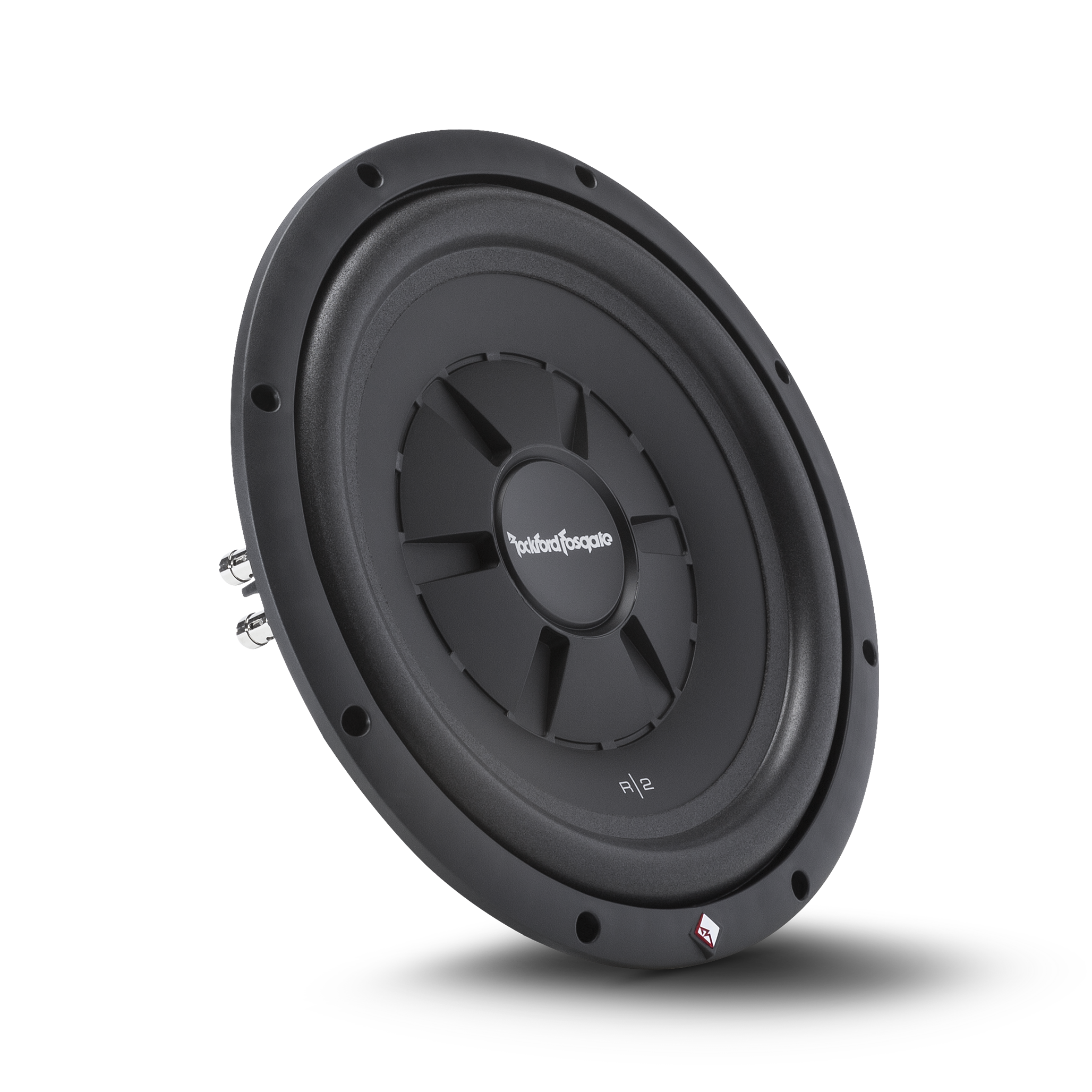

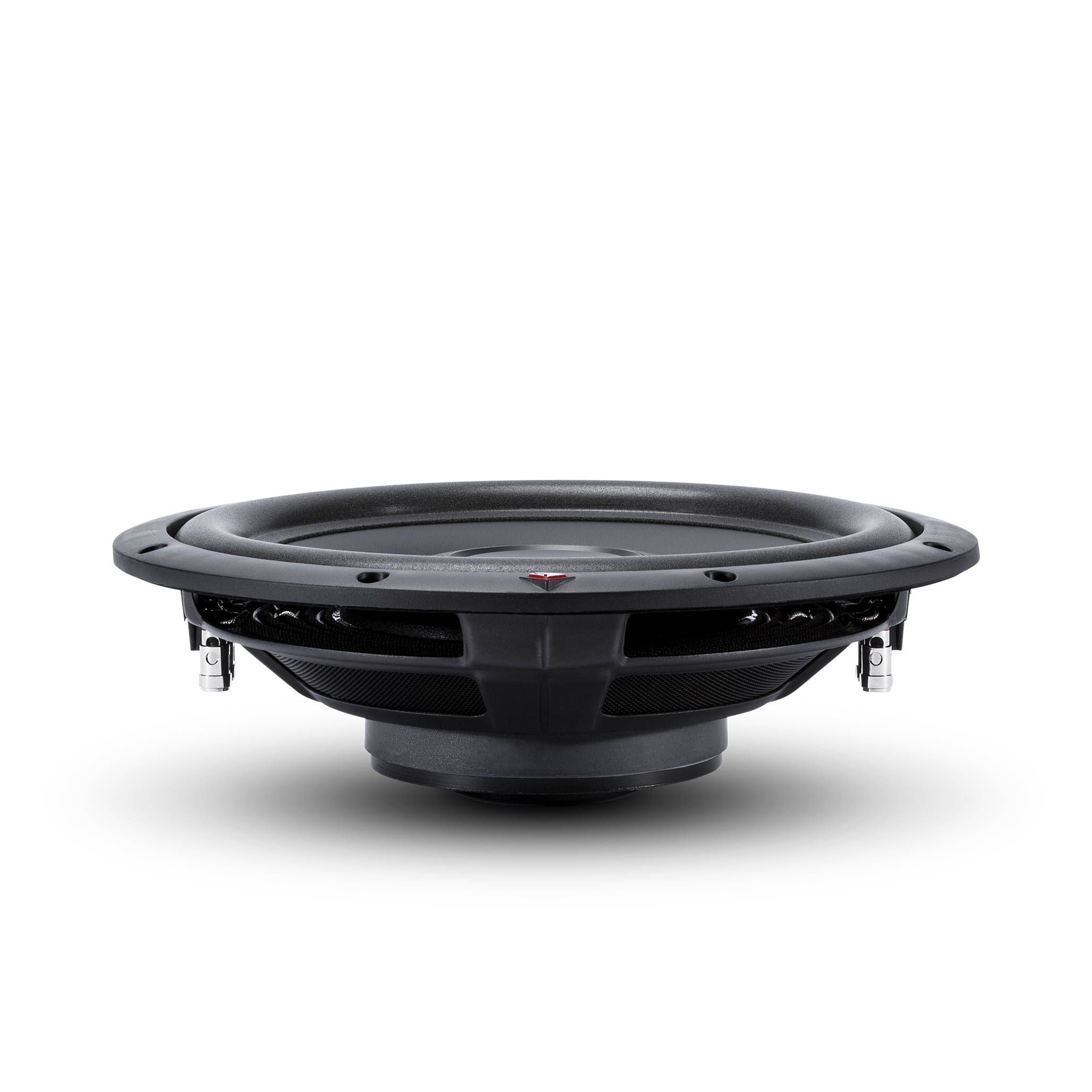

When you have no space for bass, our Prime R2SD4-12 shallow subwoofer will satisfy your need. This 12" subwoofer handles 250 Watts RMS and the 4-Ohm Dual Voice Coil design lets you to wire them in various configurations.
Features
- 1 Year Warranty
- 12 AWG compression terminals
- Anodized aluminum voice coil former
- Integrated PVC trim ring
- Linear spider with embedded 16 AWG tinsel leads
- Mica injected polypropylene cone
- Optimized for sealed enclosures

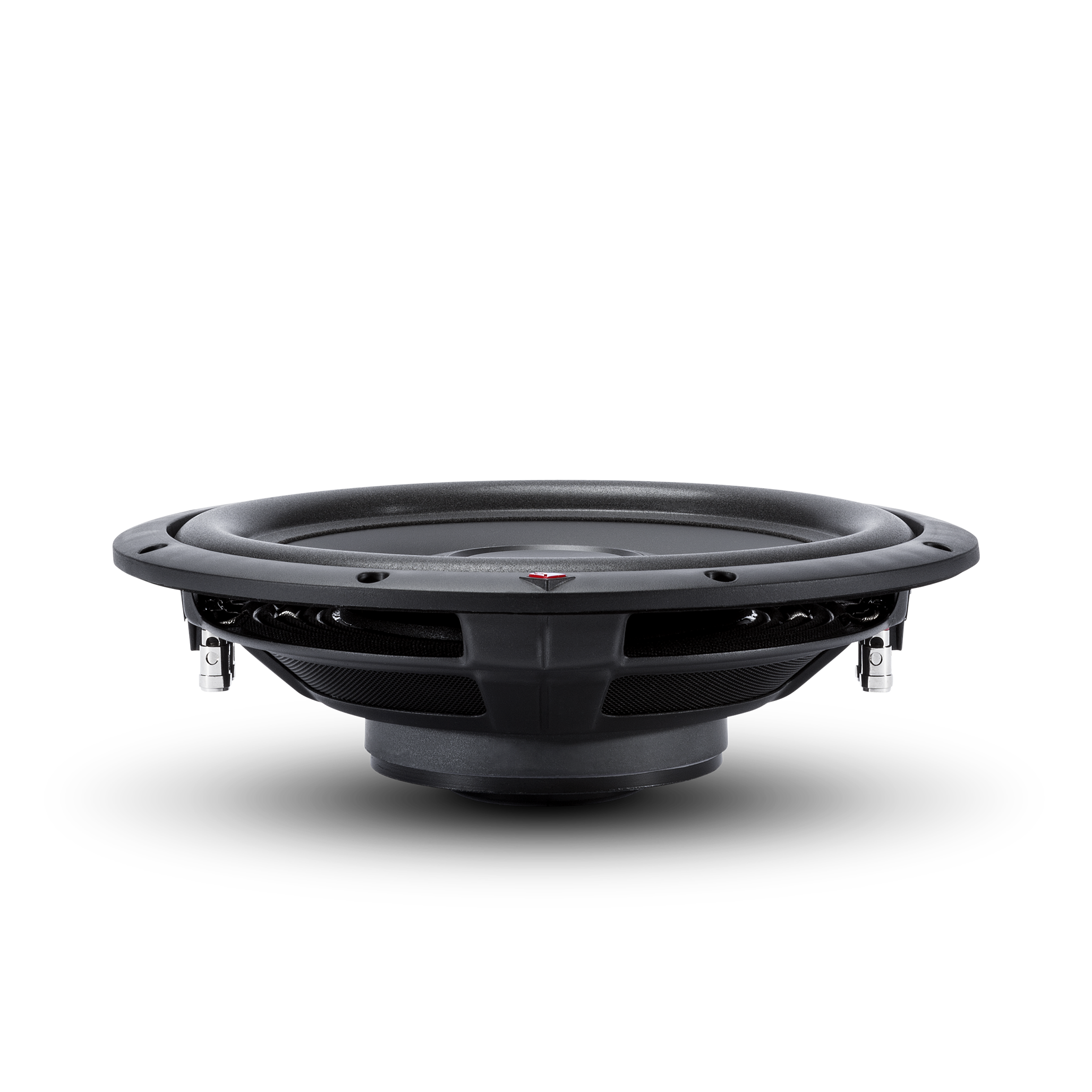

- Shallow Motor Assembly

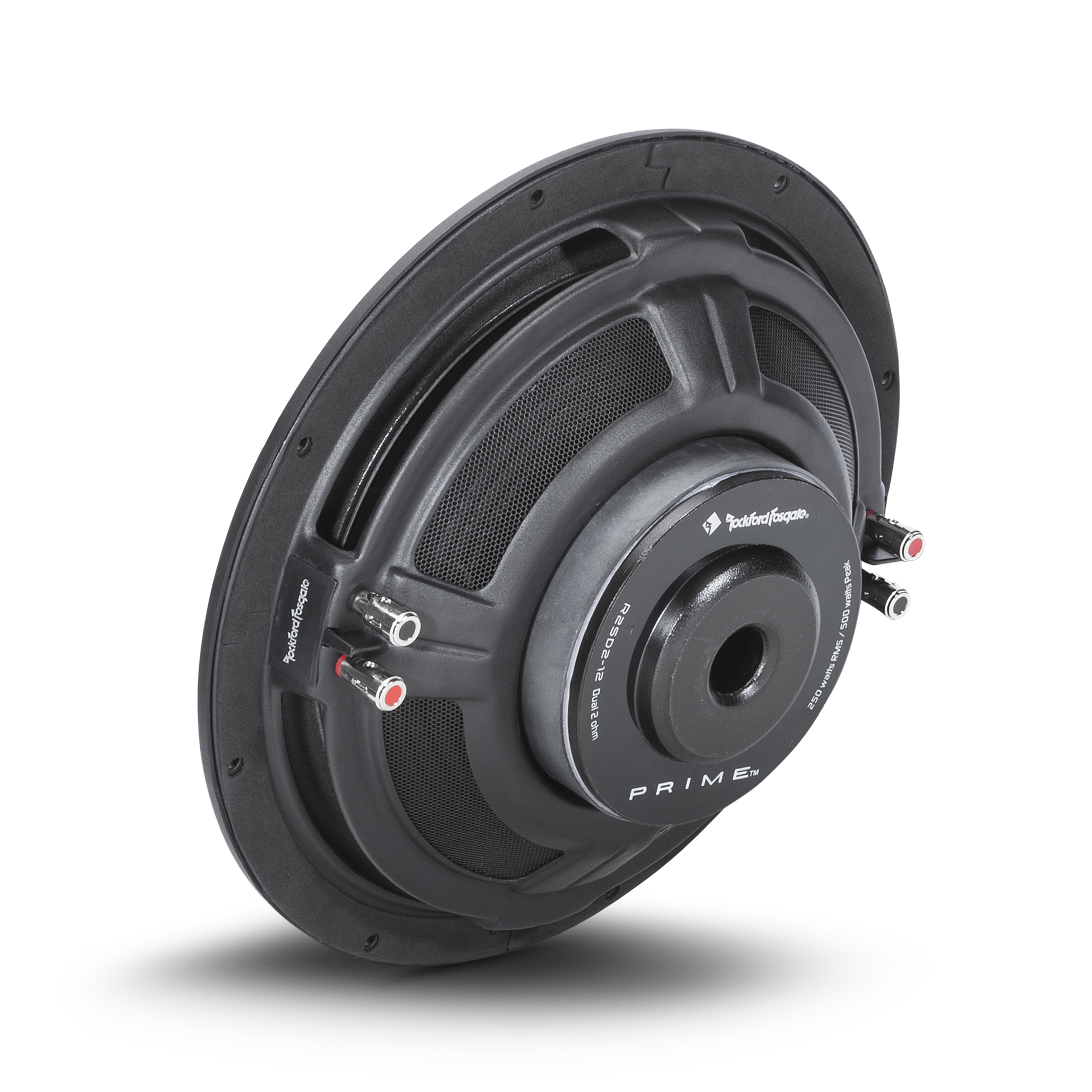

- StampCast basket with integrated spider venting
Specifications
- Cutout Diameter: 11.25 in. (285 mm)
- Fs (Hz): 30.3
- Mounting Depth: 3.602 in. (91 mm)
- Nominal Impedance: Dual 4-Ohm
- Power Handling (Watts RMS): 250 Watts RMS; 500 Watts Max
- SPL (dB @ 1w/1m): 85
- Sd (cm2): 534.8
- Shipping Weight: 12.013 Lbs. (5.44 kg.)
- Size: 12"
- Speaker Connector: Dual 12 AWG compression
- Voice Coil Diameter: 2" (50 mm)
- Xmax (mm): 10
- Qts: 0.65
- Qes: 0.72
- Qms: 7
- Le (mH): 4.2
- Magnet Weight (oz): 51 oz. (1.45 kg.)
- Re (Ohms): 6.8
- Woofer Displacement: 0.039 cu. ft. (1.1 Liters)
- Subwoofer Type: Shallow
- Vas (Liters): 65.4
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 0.9 cu. ft. (25.4 Liters)
- Vented Box Volume (Vb): 1.79 cu. ft. (50.6 Liters)
