R2SD2-10

Overview

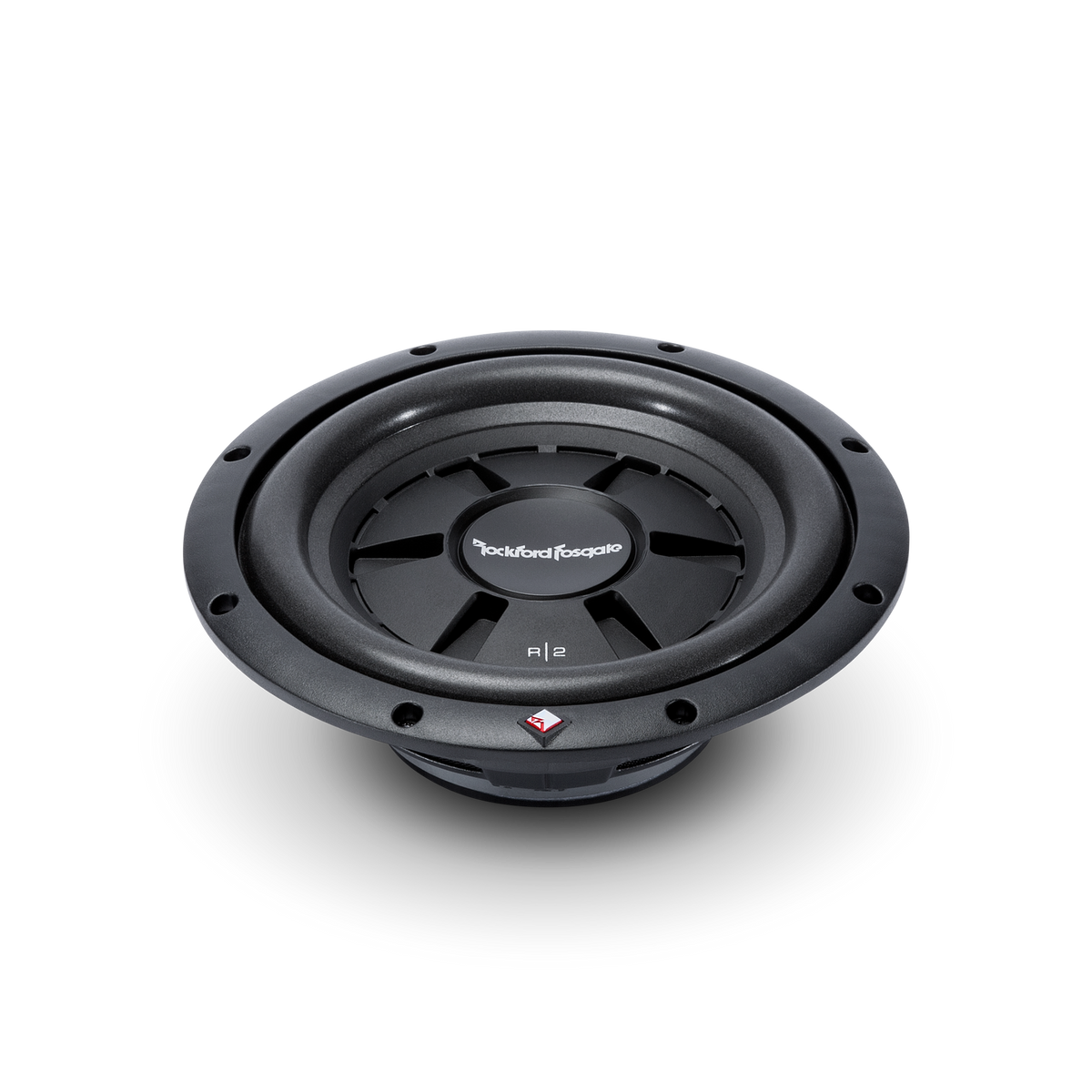

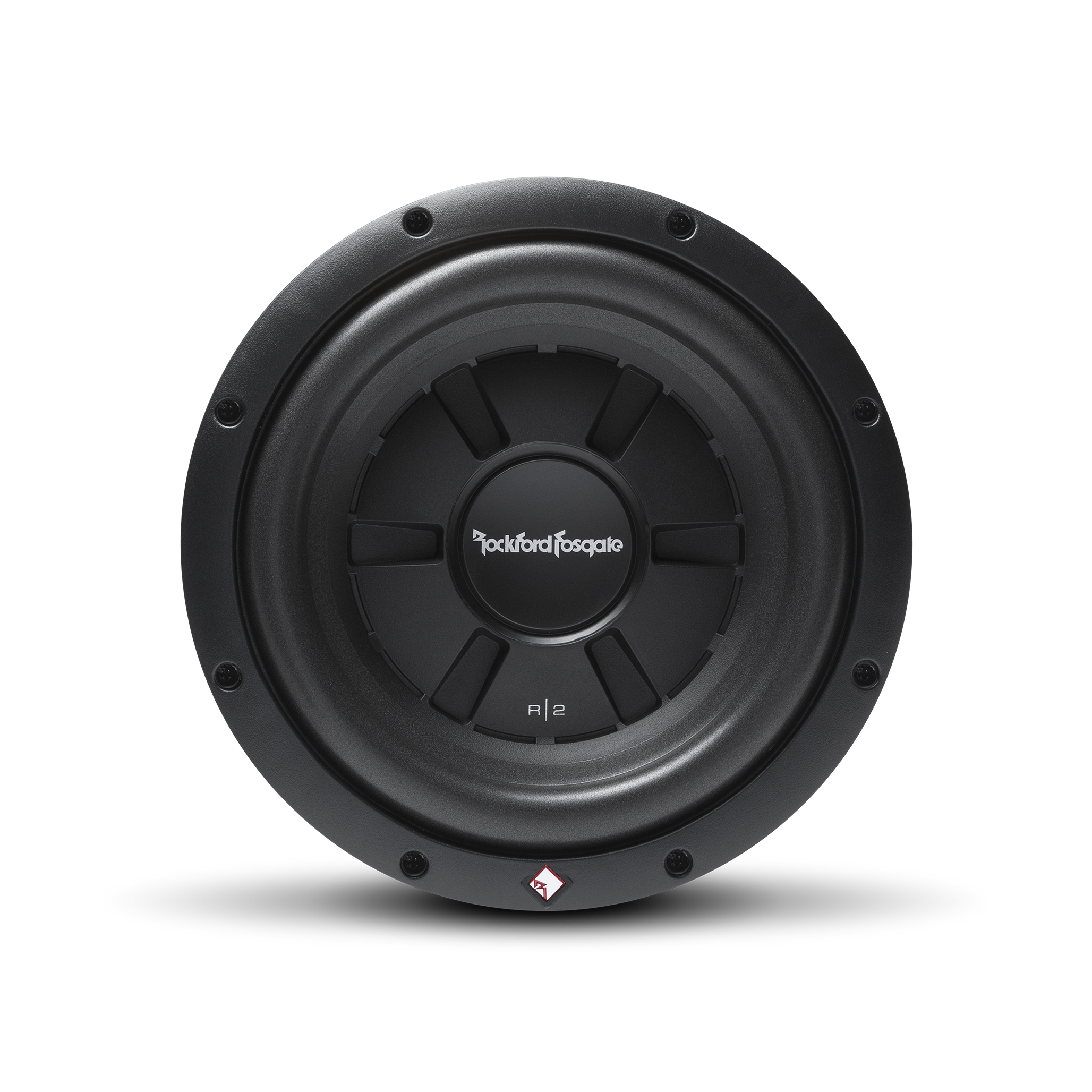

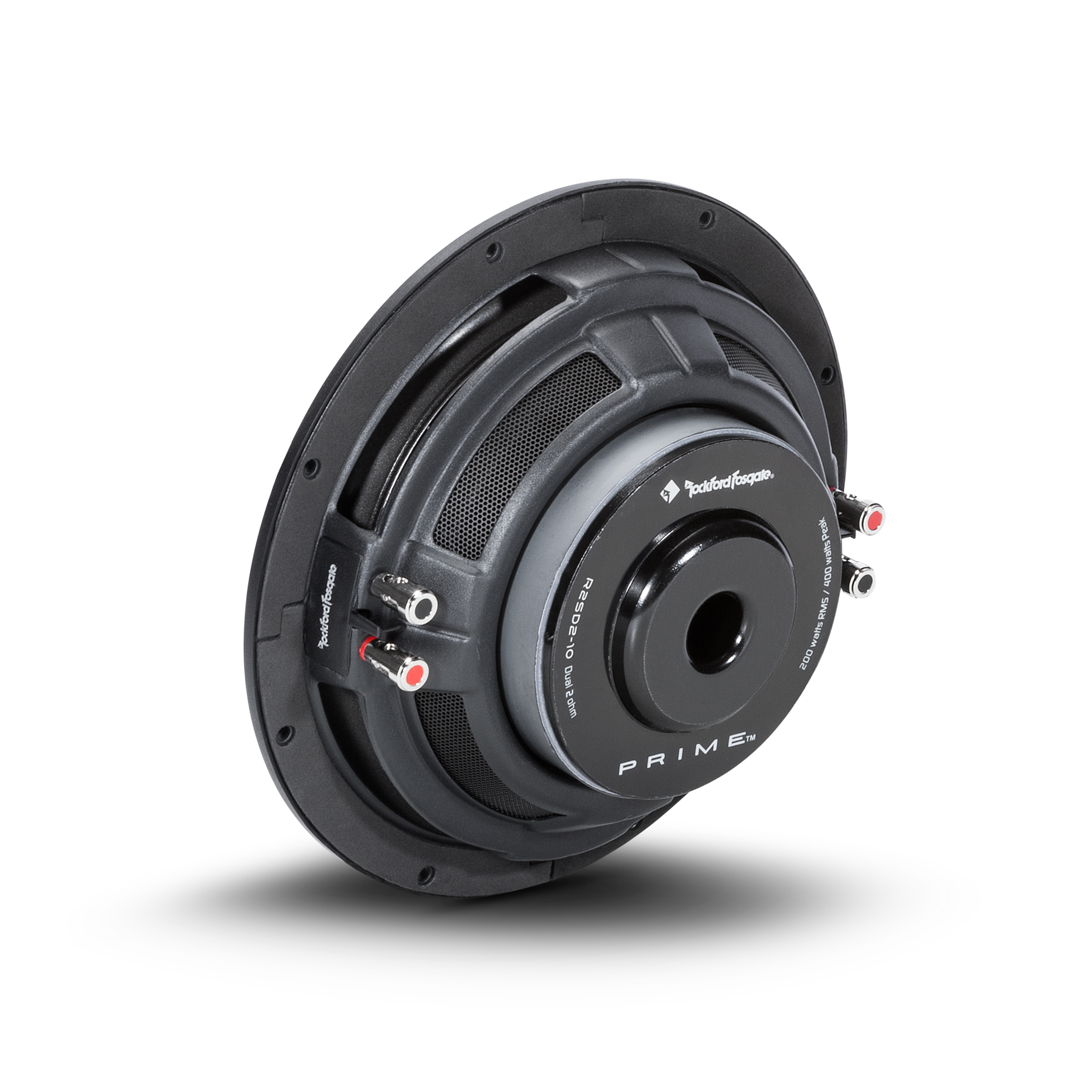

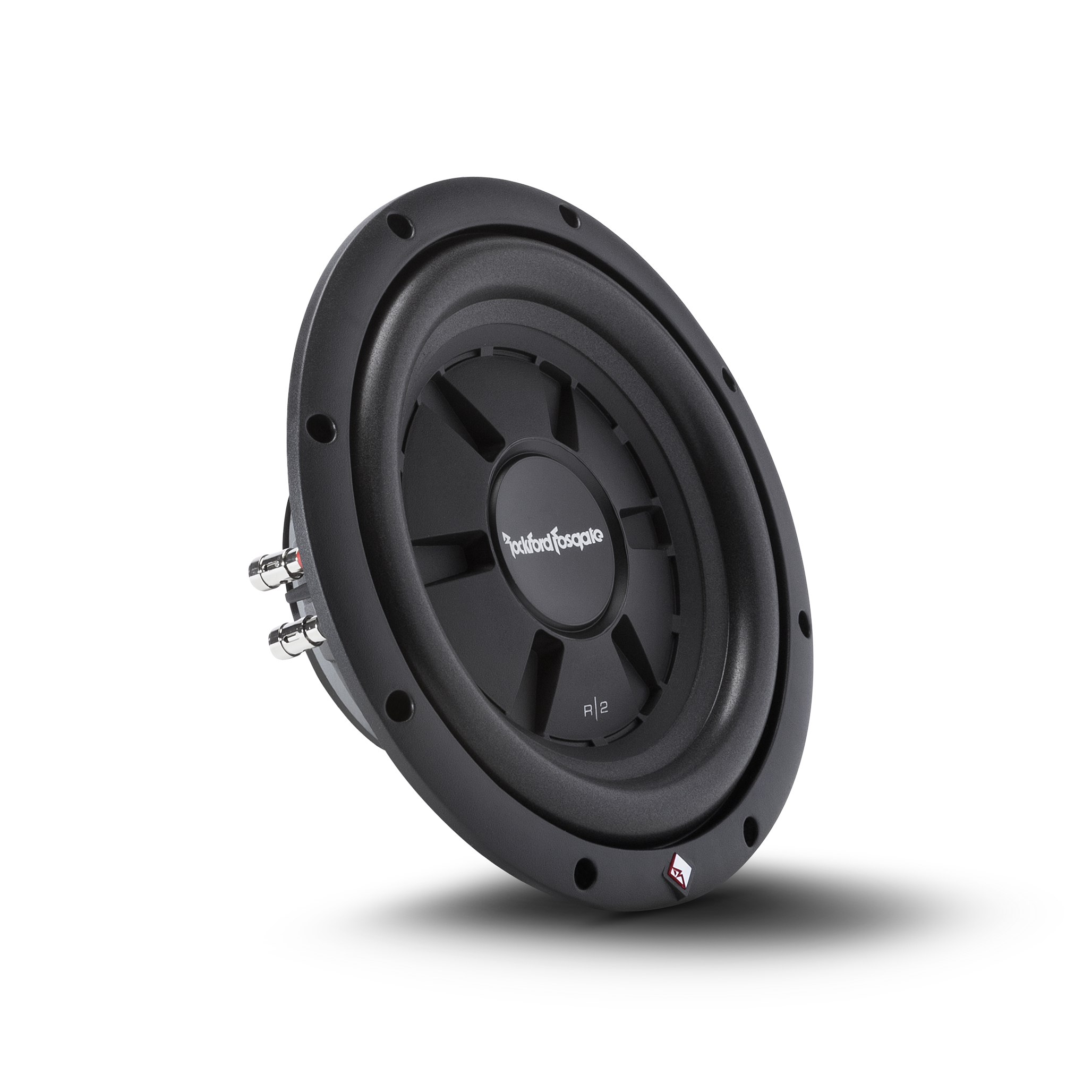

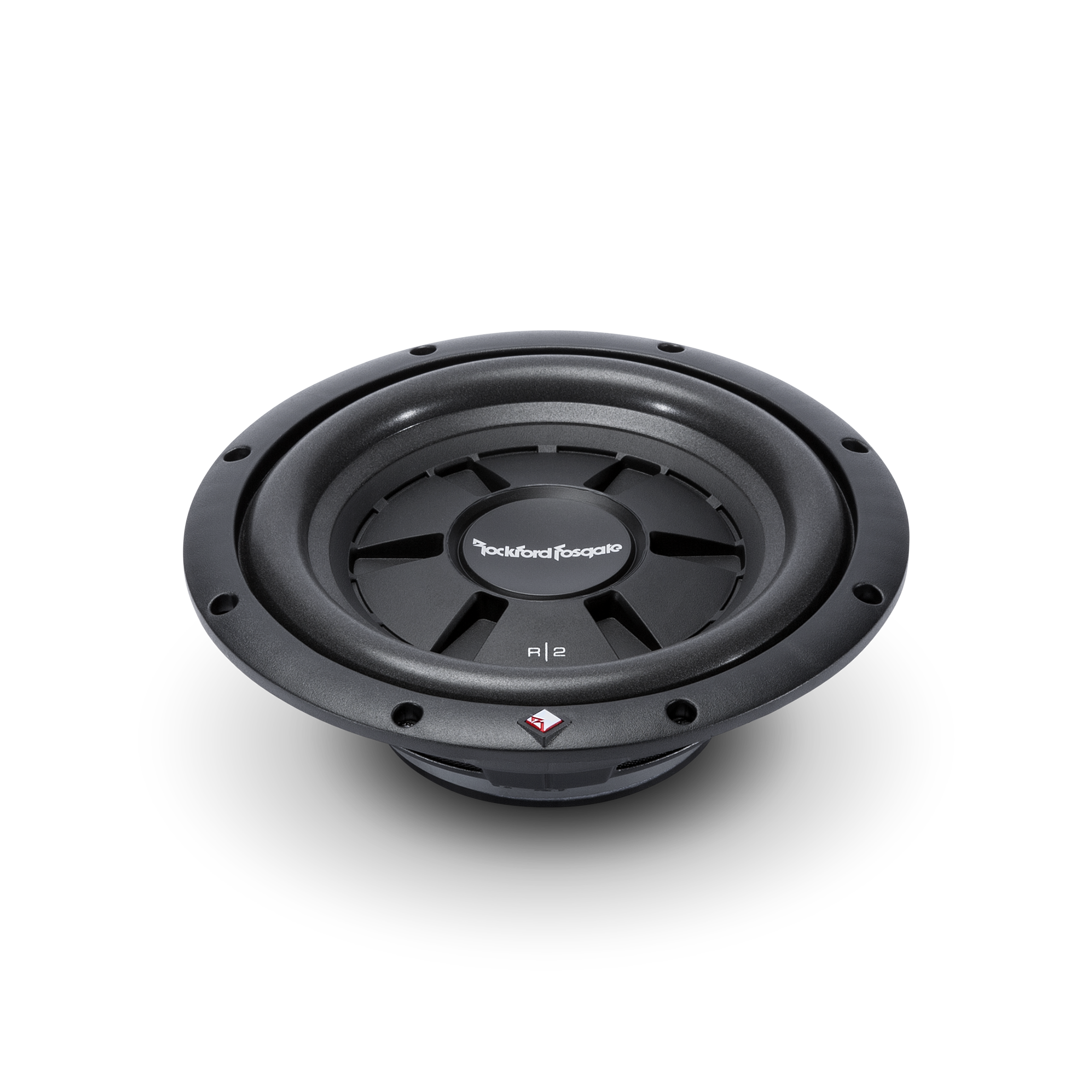

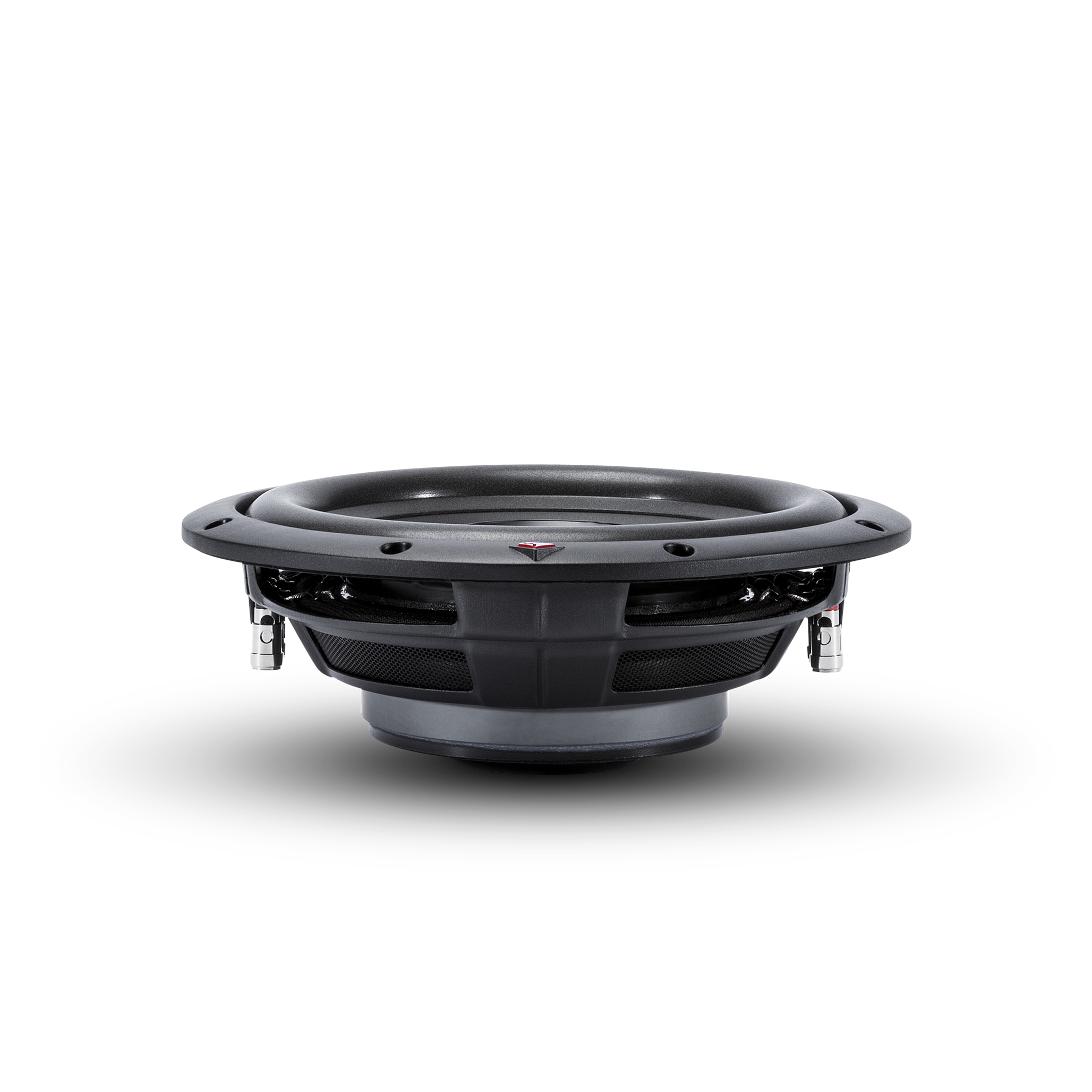

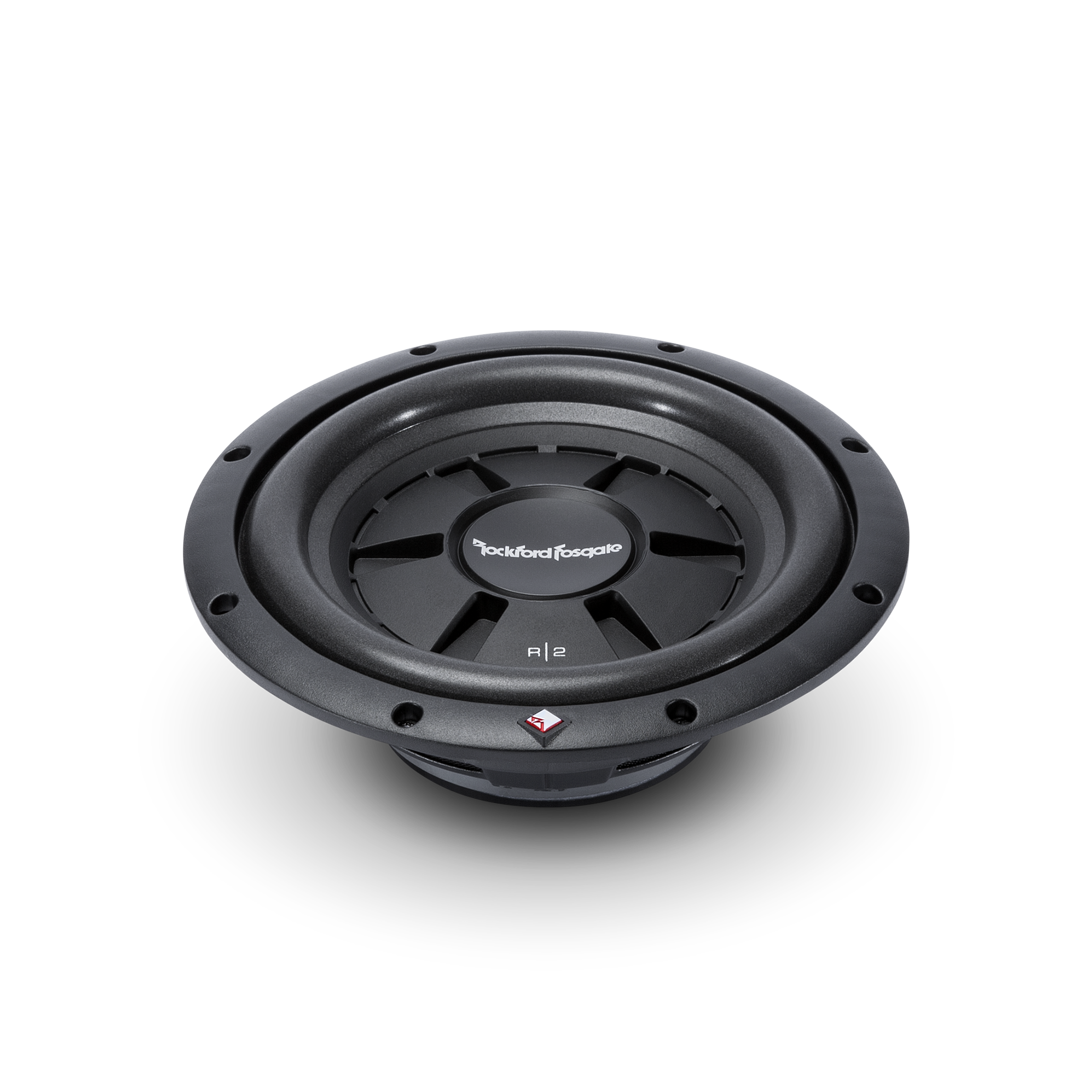

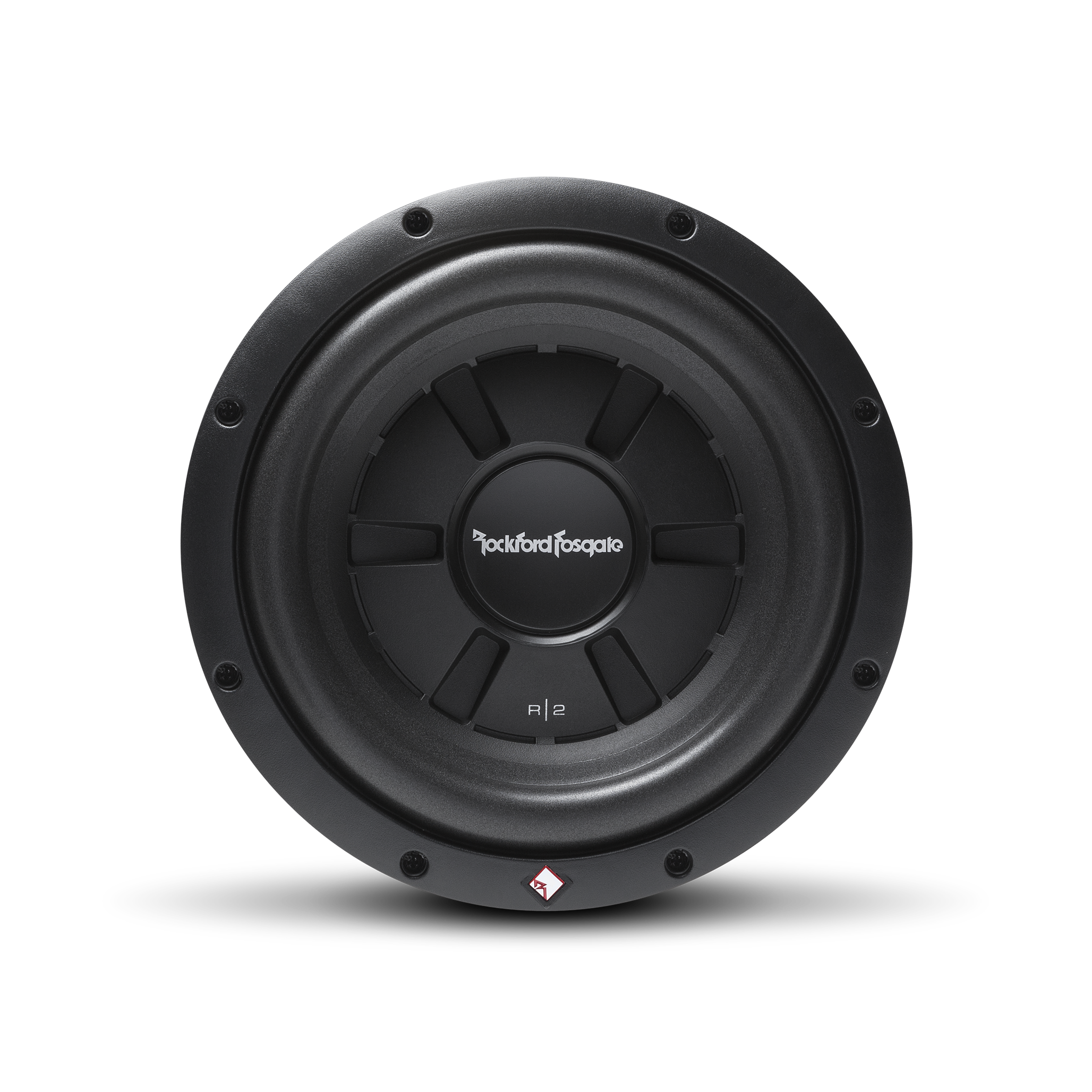

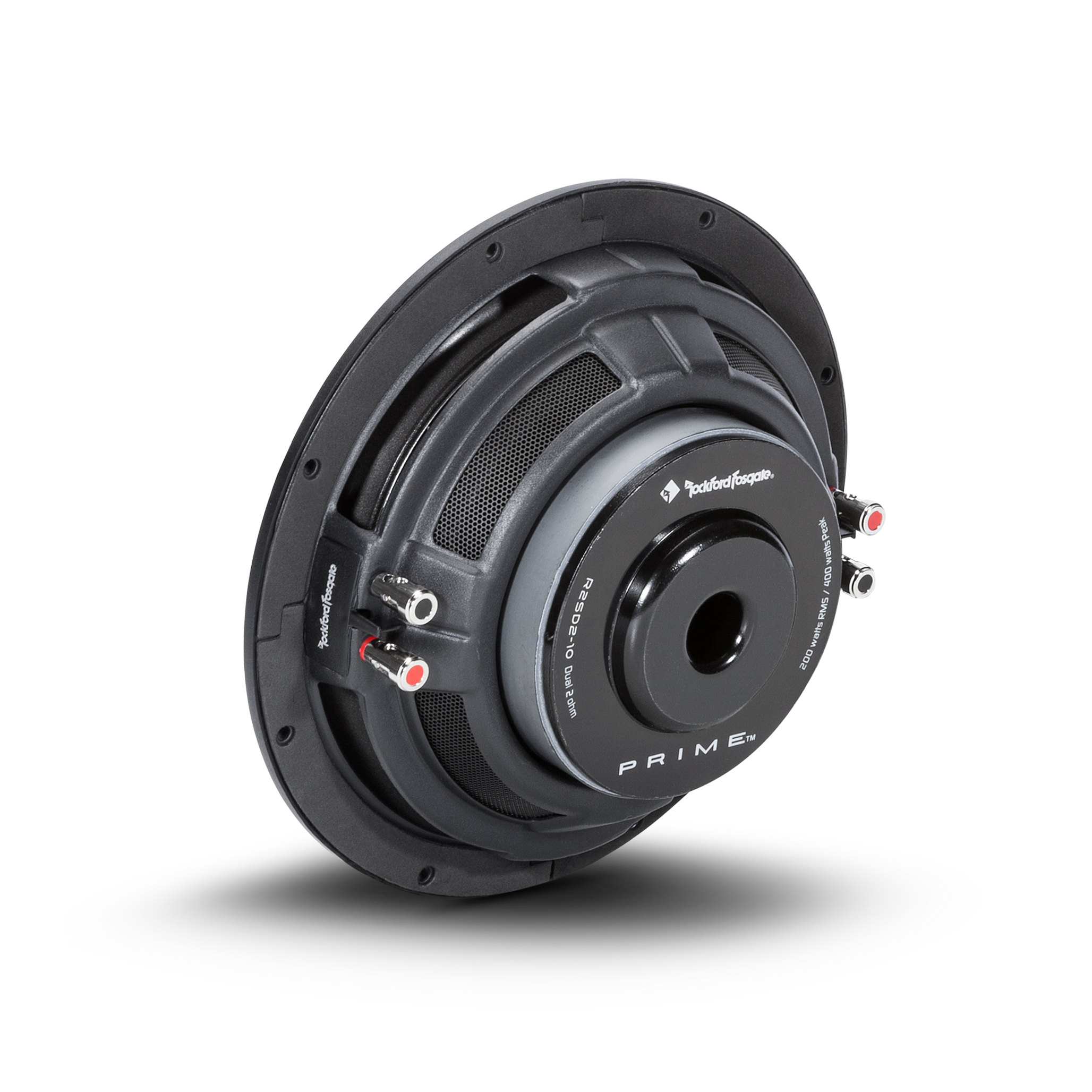

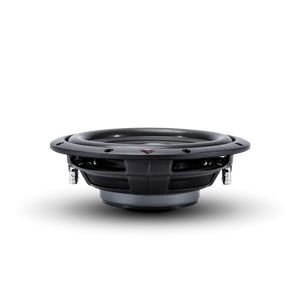

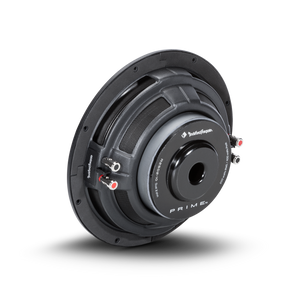

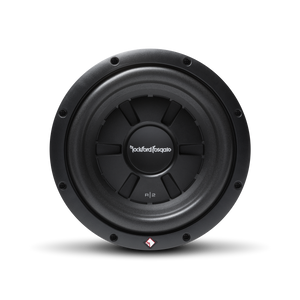

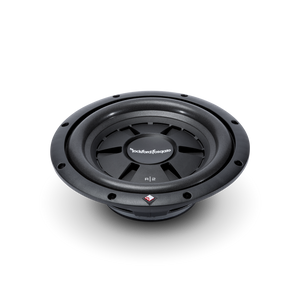

The Prime R2SD2-10 is a 10" subwoofer that handles 200 Watts RMS and has a 2-Ohm Dual Voice Coil design that lets you wire them in various configurations.

Features

• 1 Year Warranty
• 12 AWG compression terminals
• Anodized aluminum voice coil former
• Integrated PVC trim ring
• Linear spider with embedded 16 AWG tinsel leads
• Mica injected polypropylene cone
• Optimized for sealed enclosures
• Shallow Motor Assembly
• StampCast basket with integrated spider venting

Specifications

• Power Handling (Watts RMS): 200 Watts RMS; 400 Watts Max
• Mounting Depth: 3.417 in. (86 mm)
• Sd (cm2): 333
• Magnet Weight (oz): 45 oz. 1.28 kg.
• Nominal Impedance: Dual 2-Ohm
• Size: 10"
• Shipping Weight: 10.588 Lbs. (4.80 kg.)
• Speaker Connector: Dual 12 AWG compression
• Voice Coil Diameter: 2" (50 mm)
• Fs (Hz): 38.1
• Cutout Diameter: 9.125 in. (232 mm)
• Qts: 0.68
• SPL (dB @ 1w/1m): 83
• Woofer Displacement: 0.037 cu. ft. (1.05 Liters)
• Qms: 8
• Le (mH): 4.2
• Qes: 0.74
• Re (Ohms): 3.8
• Vas (Liters): 20.4
• Xmax (mm): 8
• Subwoofer Type: Shallow
• Sealed Box Volume (Vb): 0.7 cu. ft. (19.8 Liters)
• Voice Coil Type: Dual Voice Coil
• Vented Box Volume (Vb): 1.4 cu. ft. (39.6 Liters)
