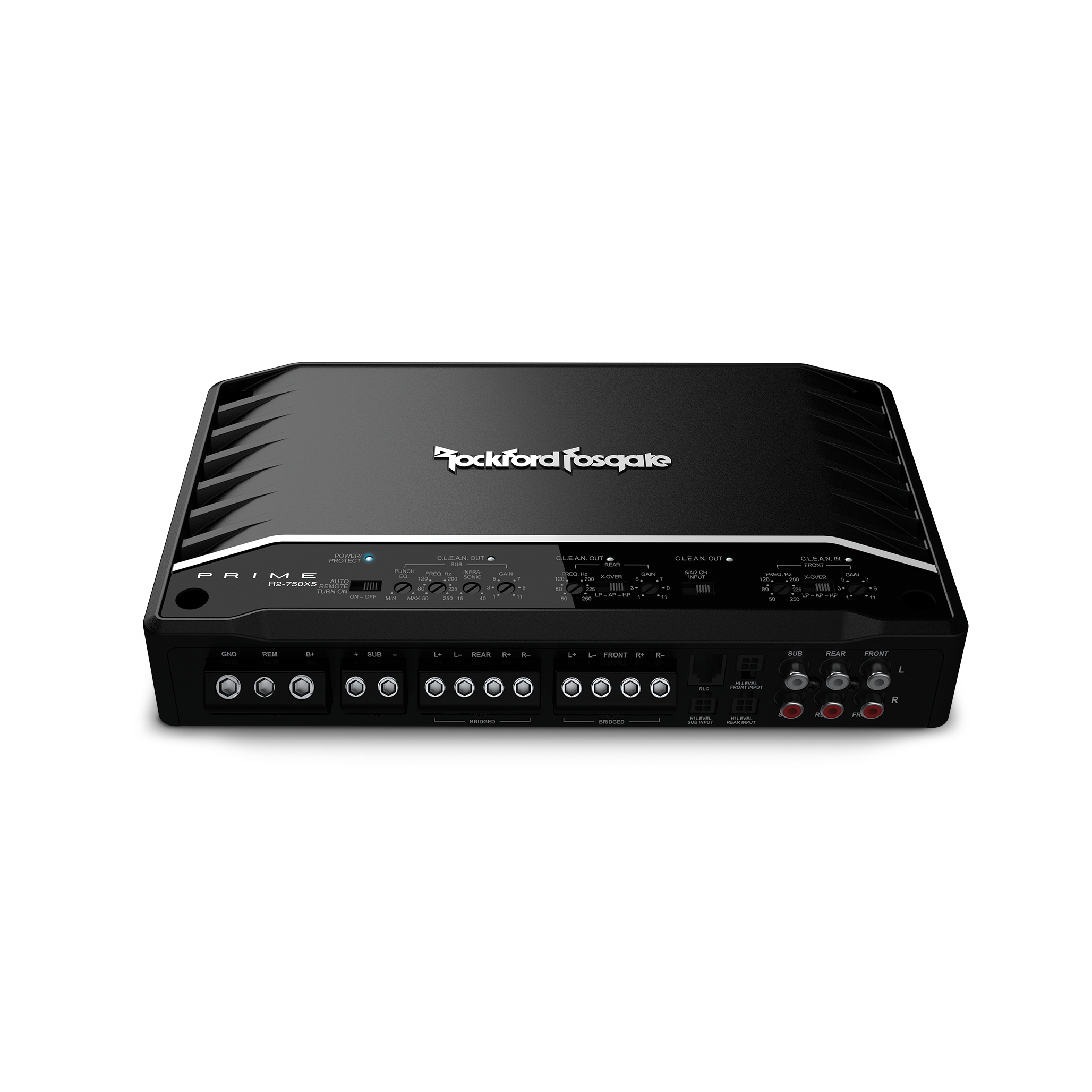

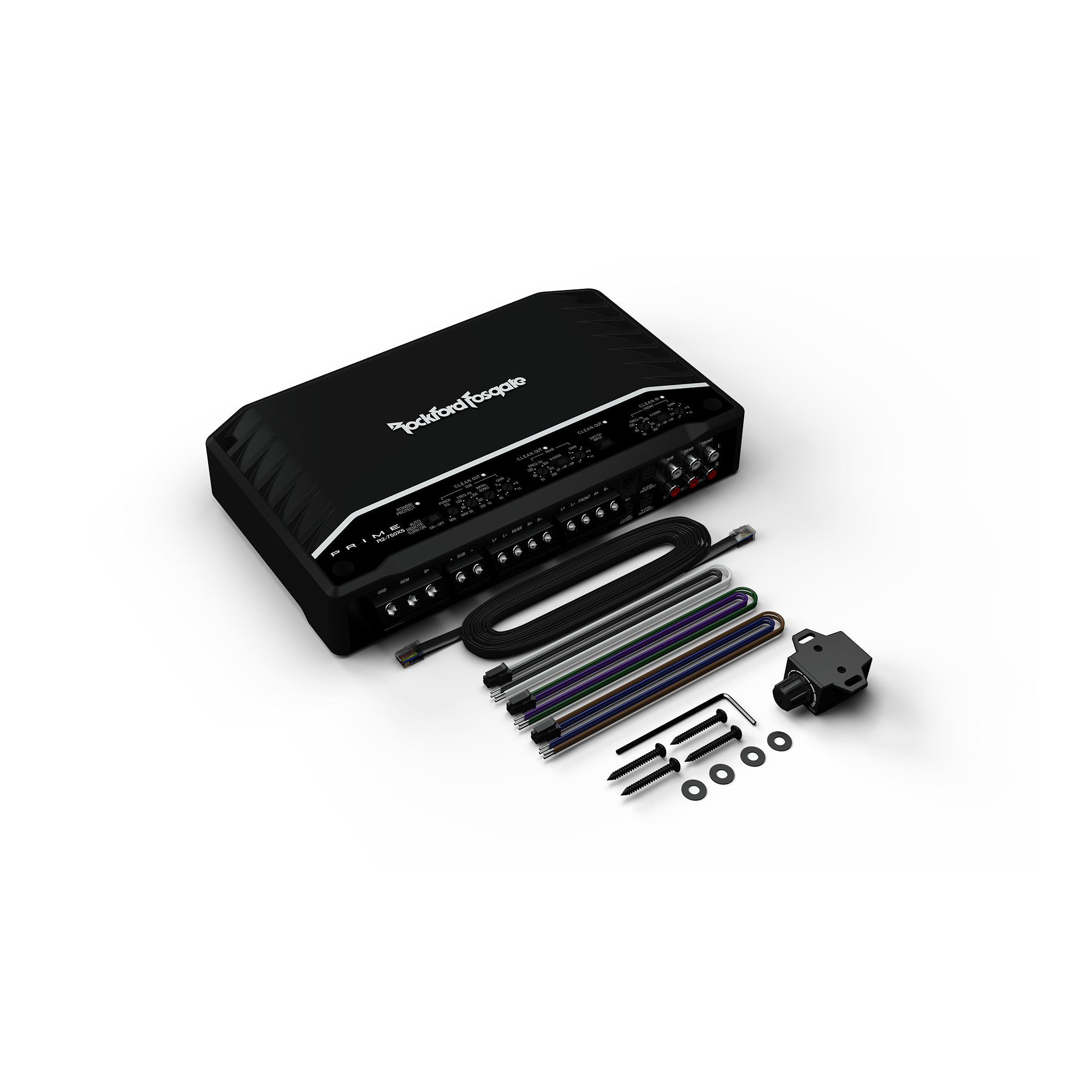

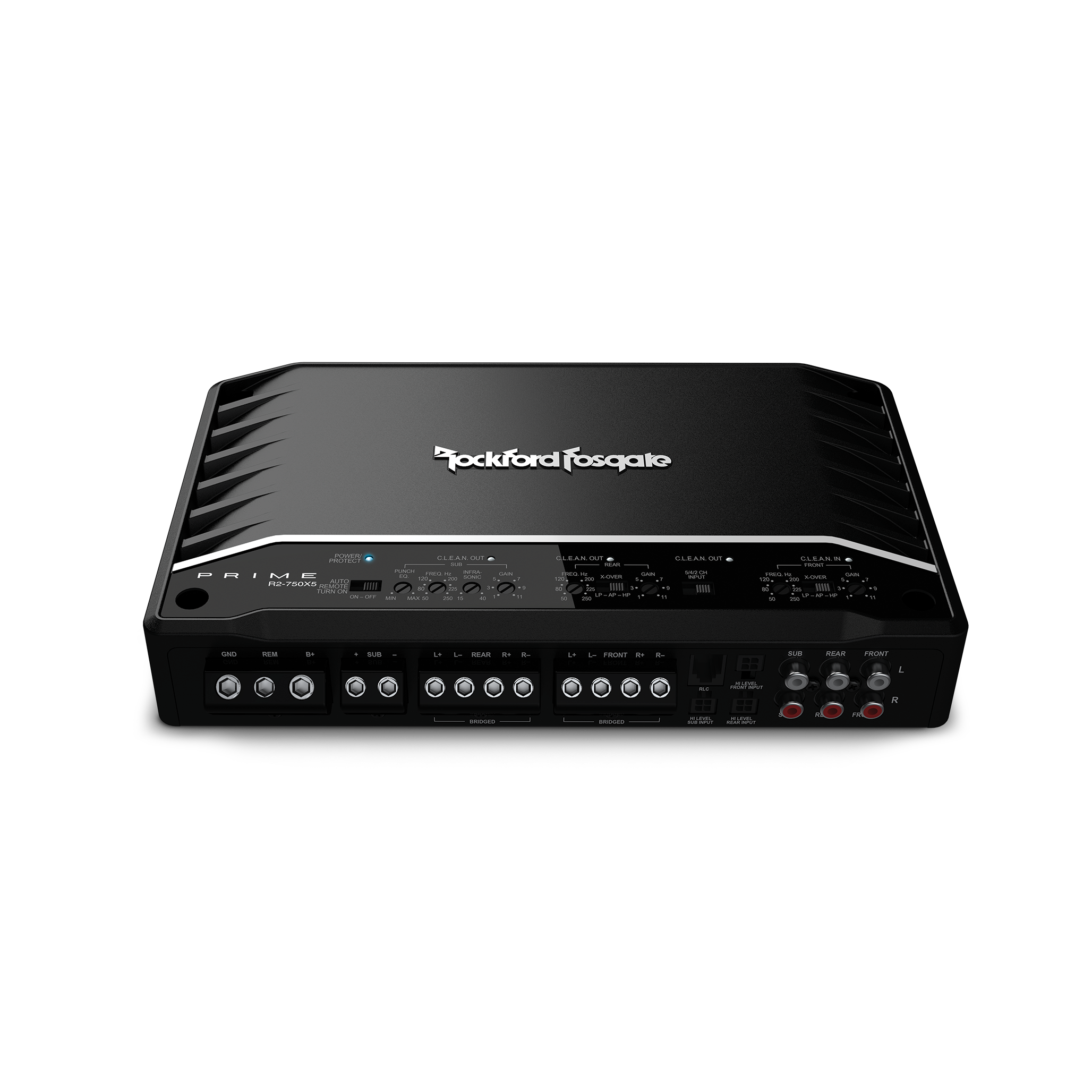

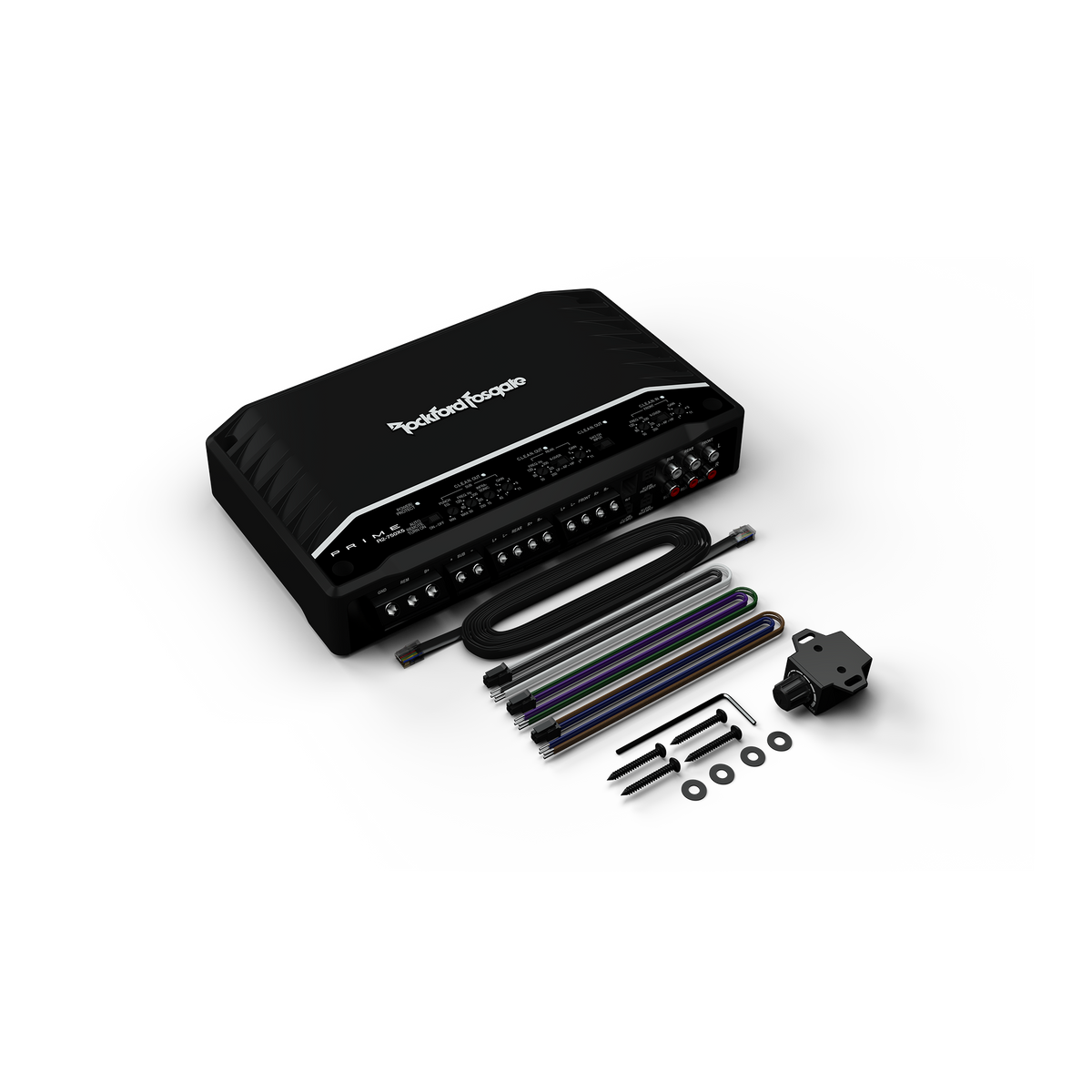

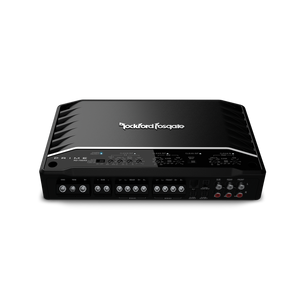

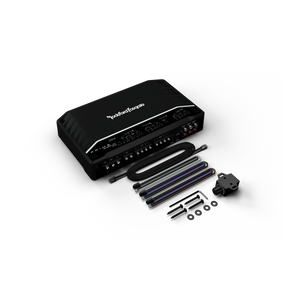

Prime 750 Watt 5-Channel Amplifier

Overview

Primed for Performance, the R2-750X5 is a 750 watt rated, full-range class-D amplifier capable of operating at 4Ohm or 2Ohm stereo with a mono subwoofer channel that can be run at 4Ohm or 2Ohm. The front/rear stereo channels can also be run at a 4Ohm bridged/mono load. This amplifier is extremely efficient because of its Class-D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. supply that generates more dynamic power as voltage increases, and an integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass.

Features

• Balanced Differential Inputs with RCA Pass Through Outputs
• Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
• 2/4/5 Channel Input Selection Switch
• High Level Input Capable
• Features C.L.E.A.N. Set-up
• Short Circuit & Over Current Protection

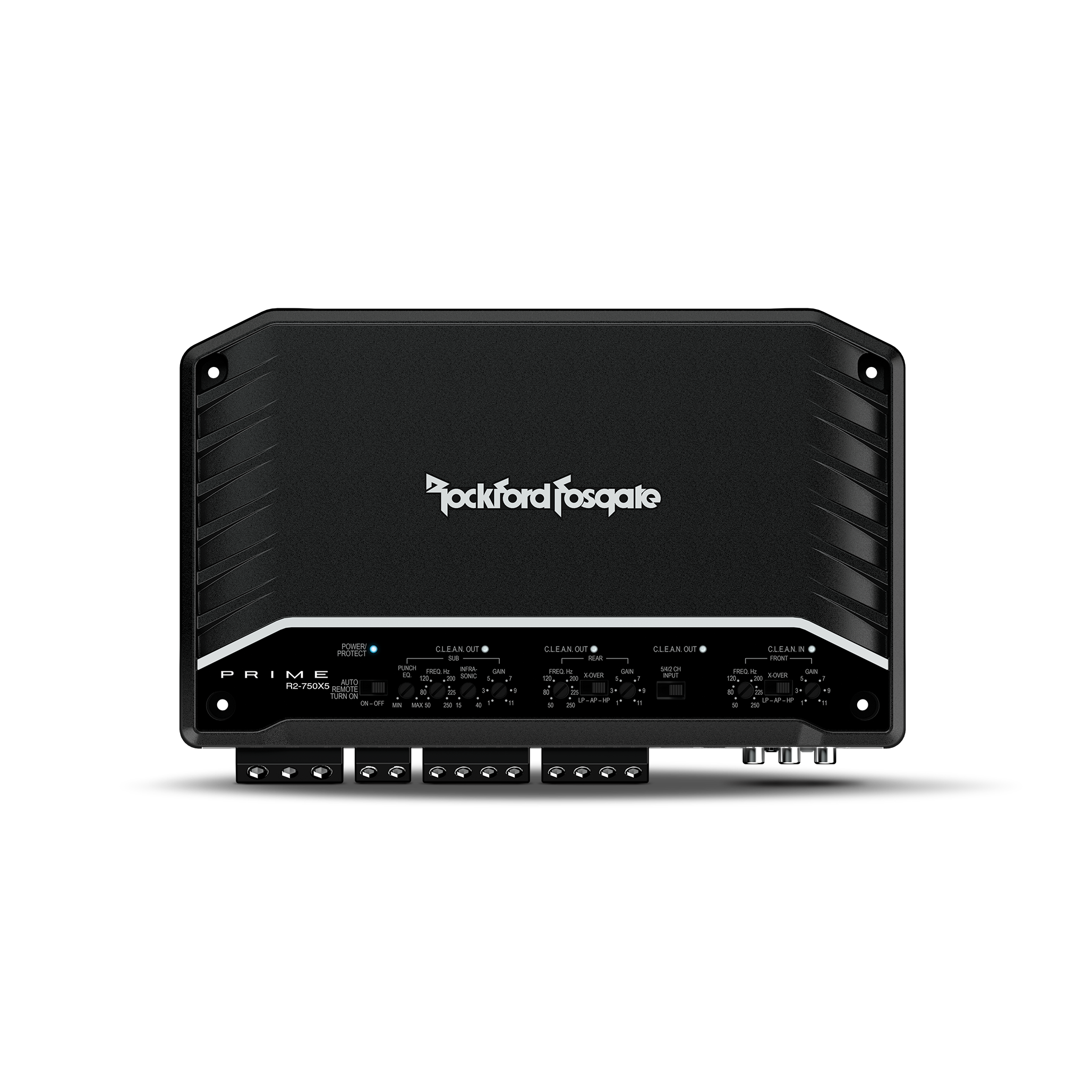

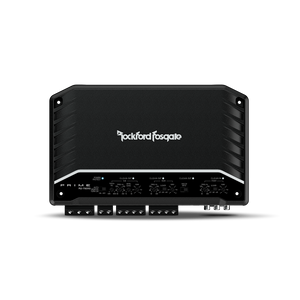

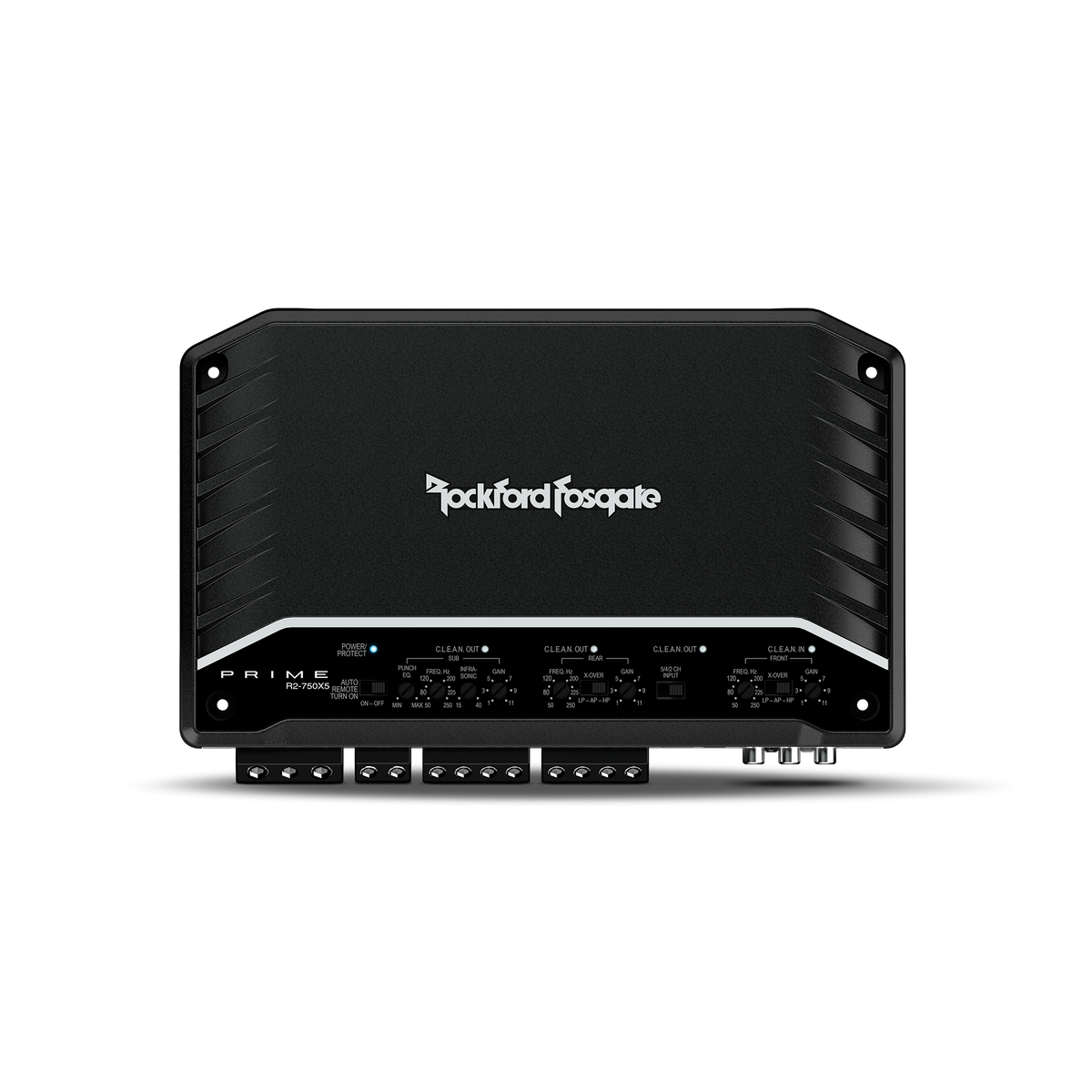

• Top Mounted Control Panel
• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
• Rollback Protection

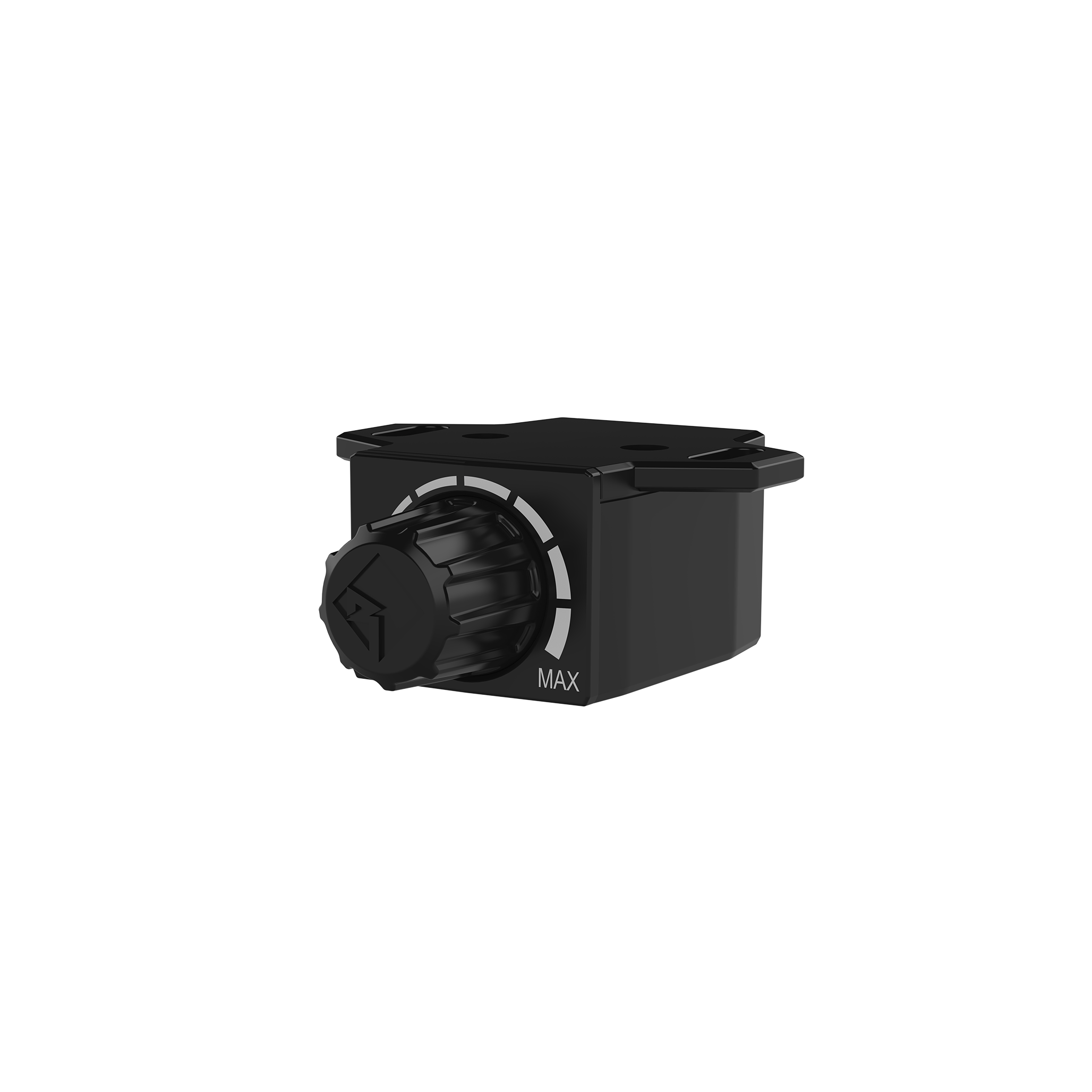

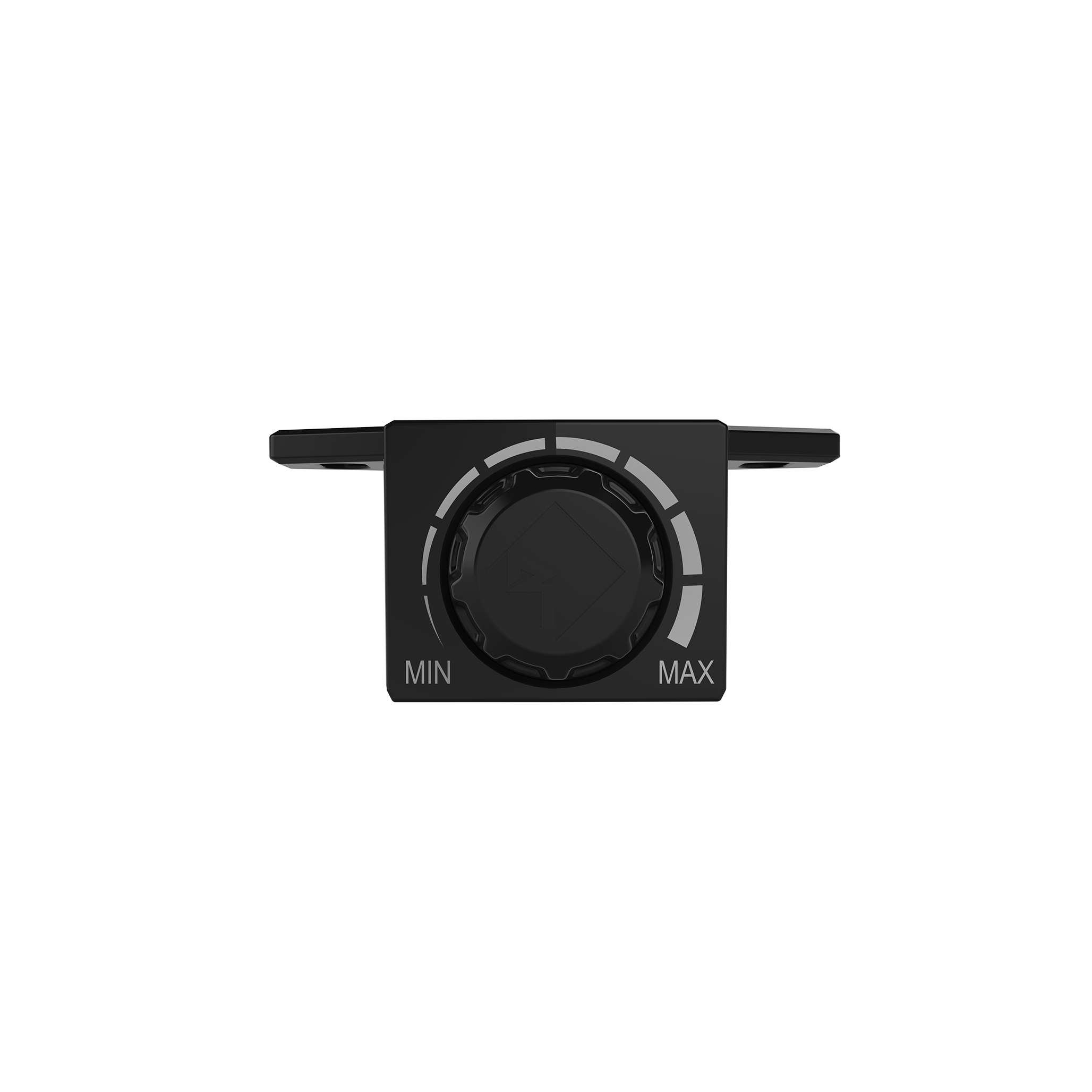

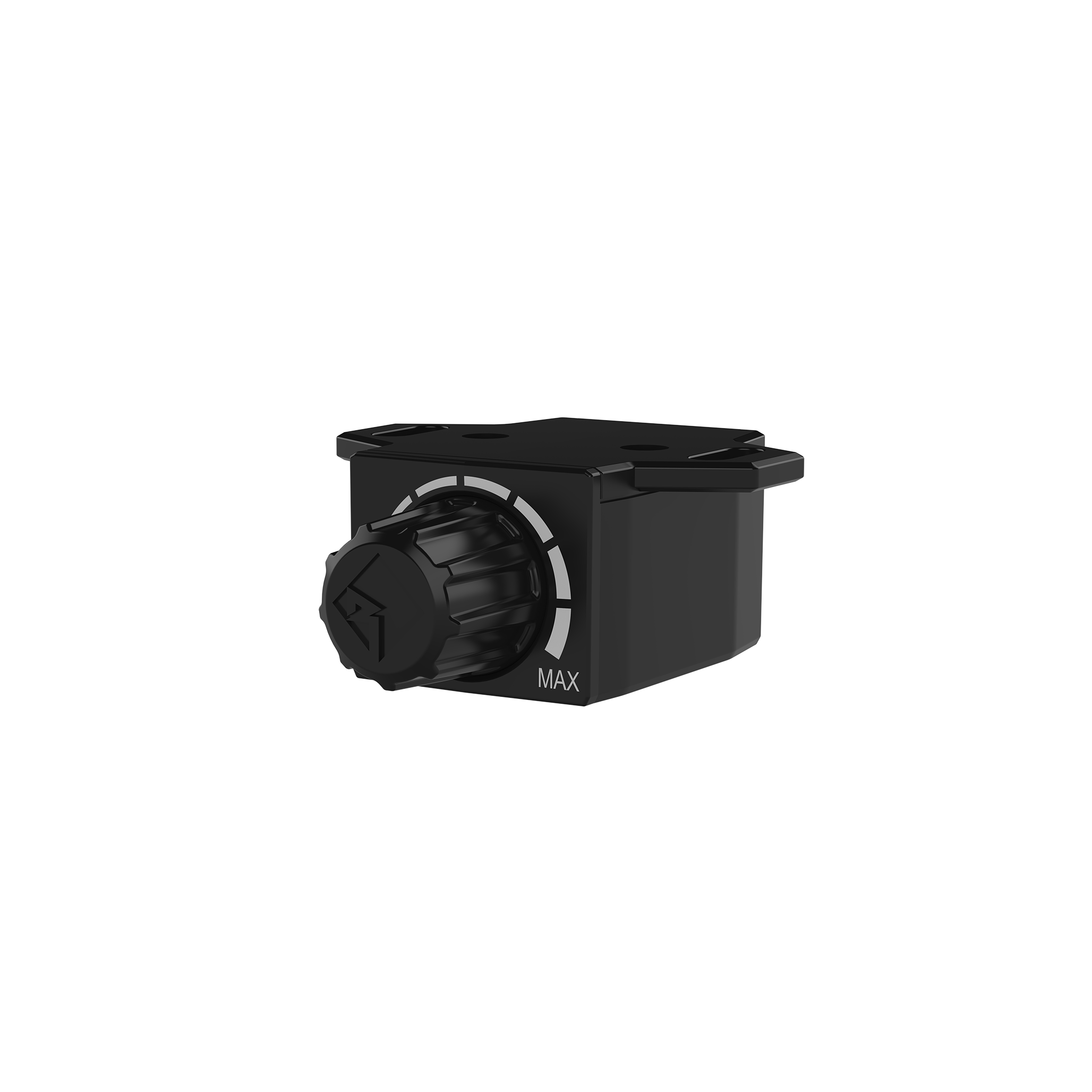

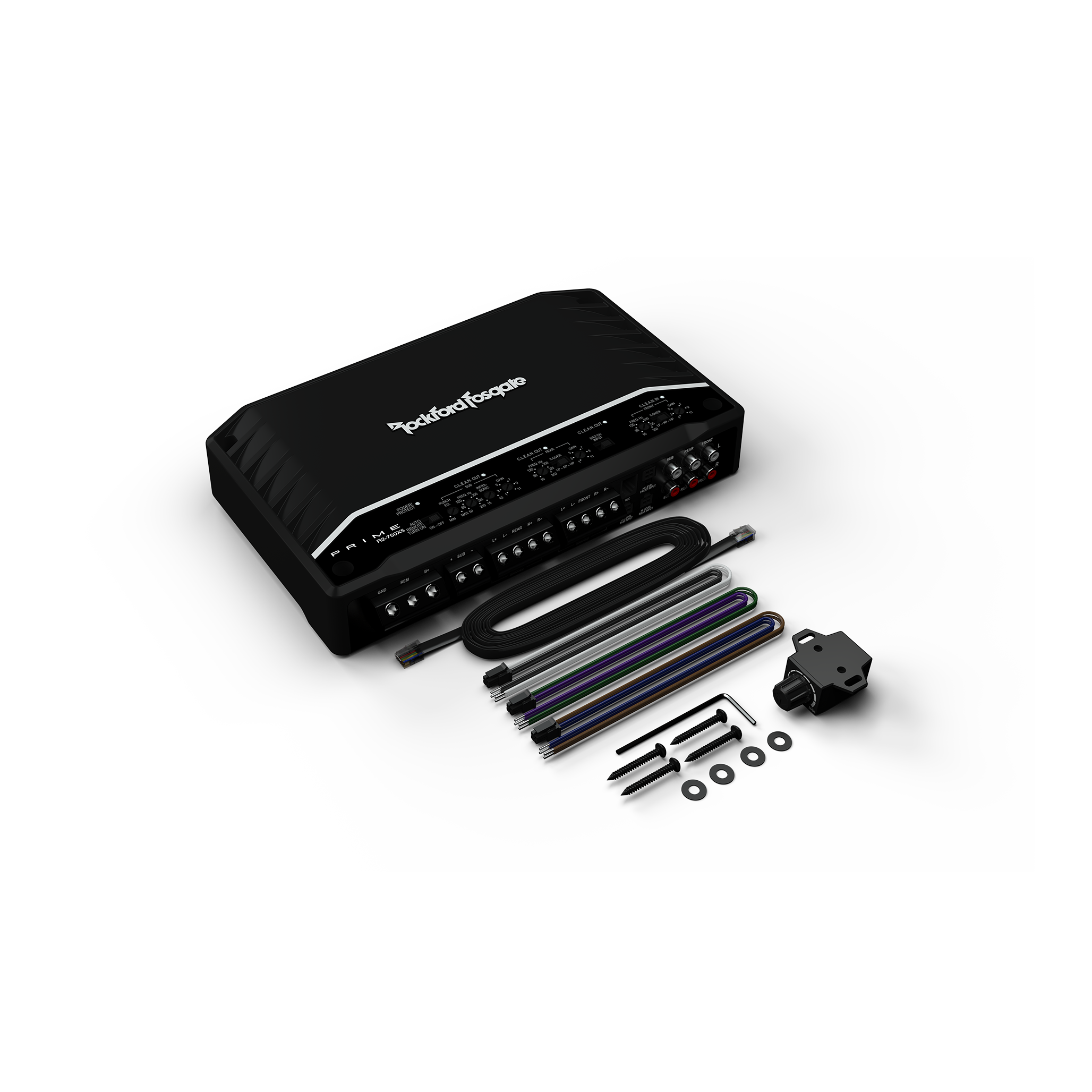

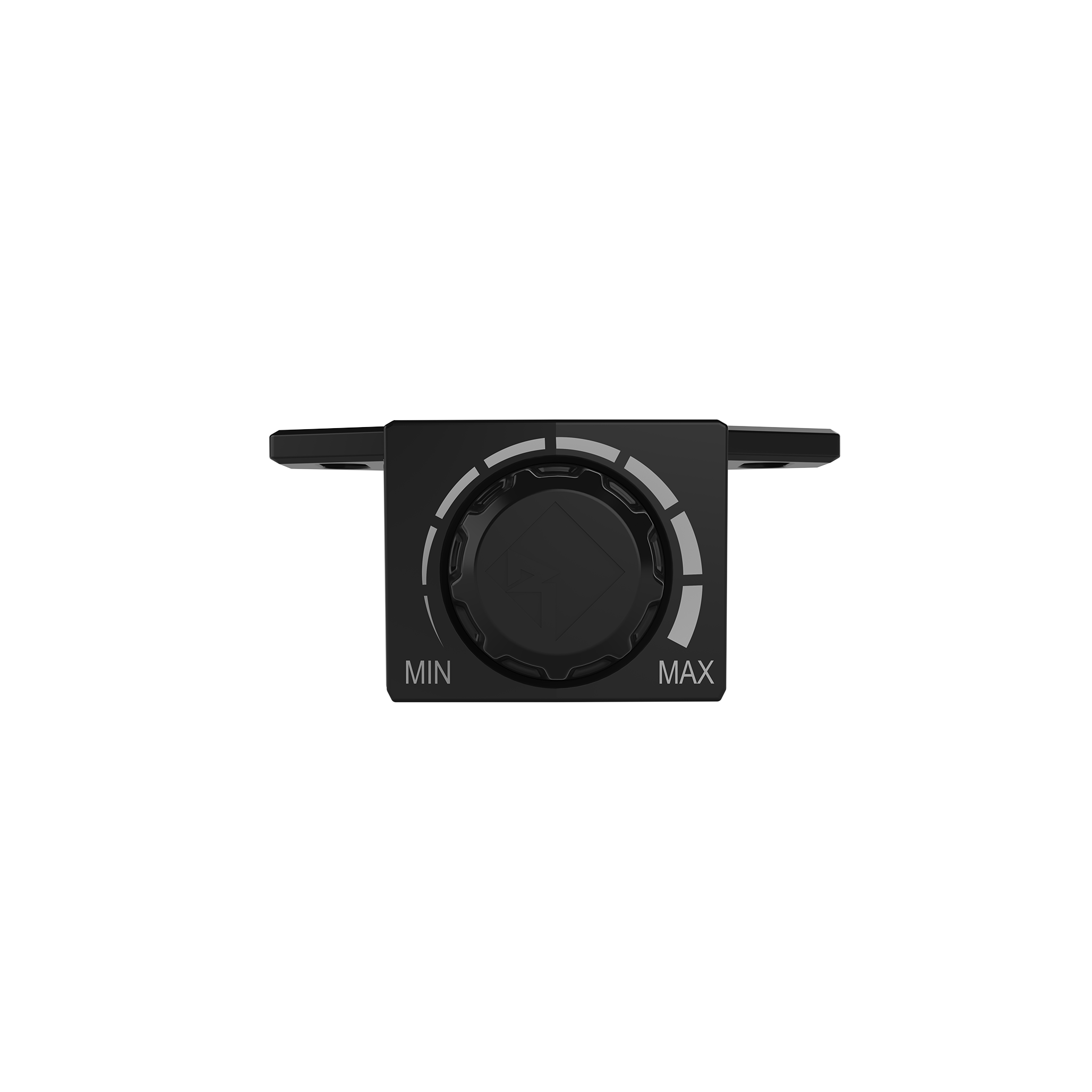

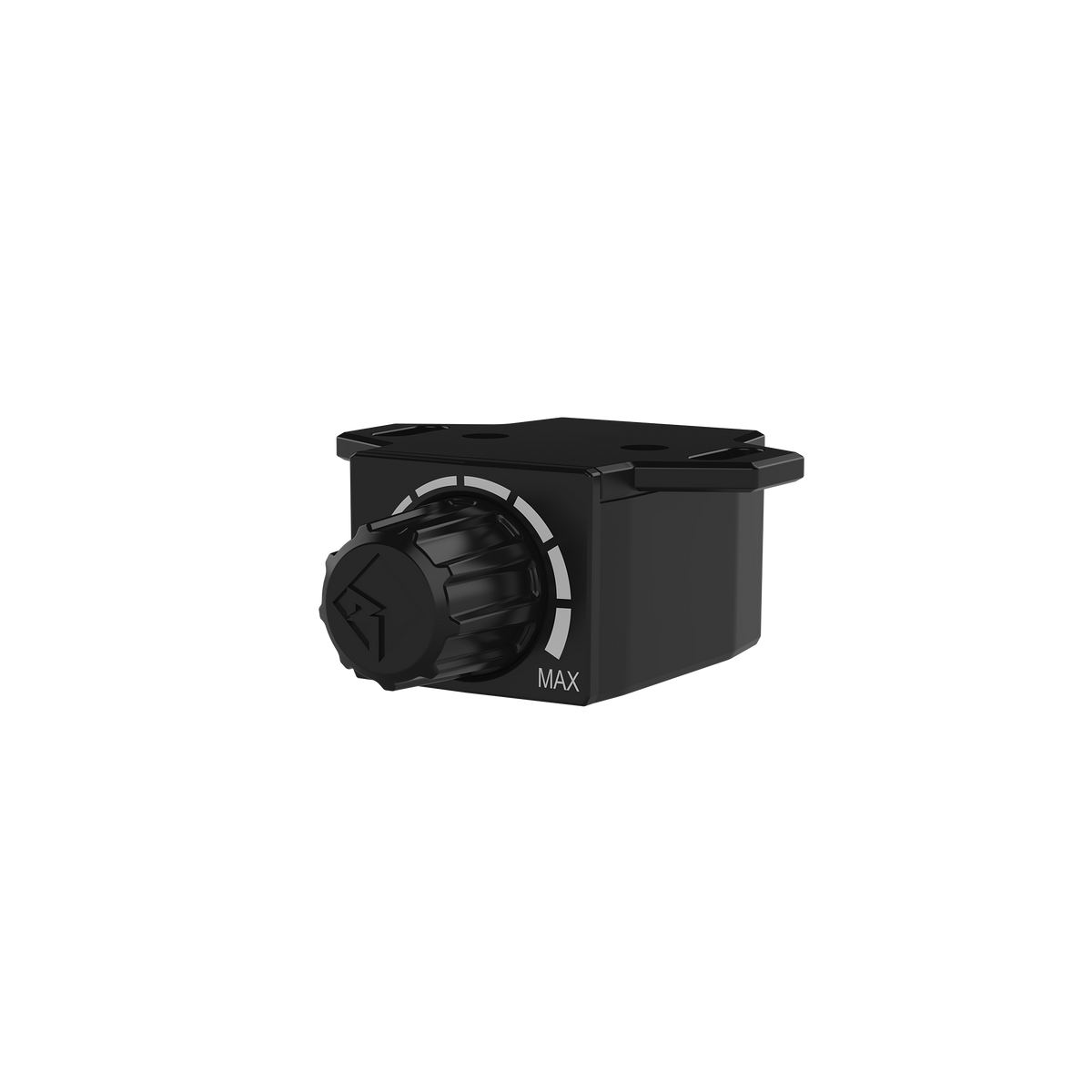

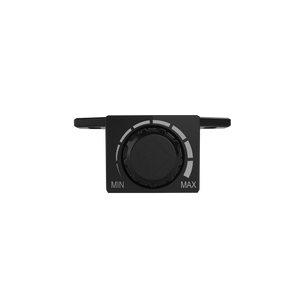

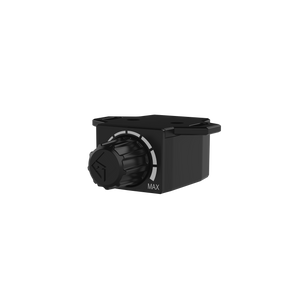

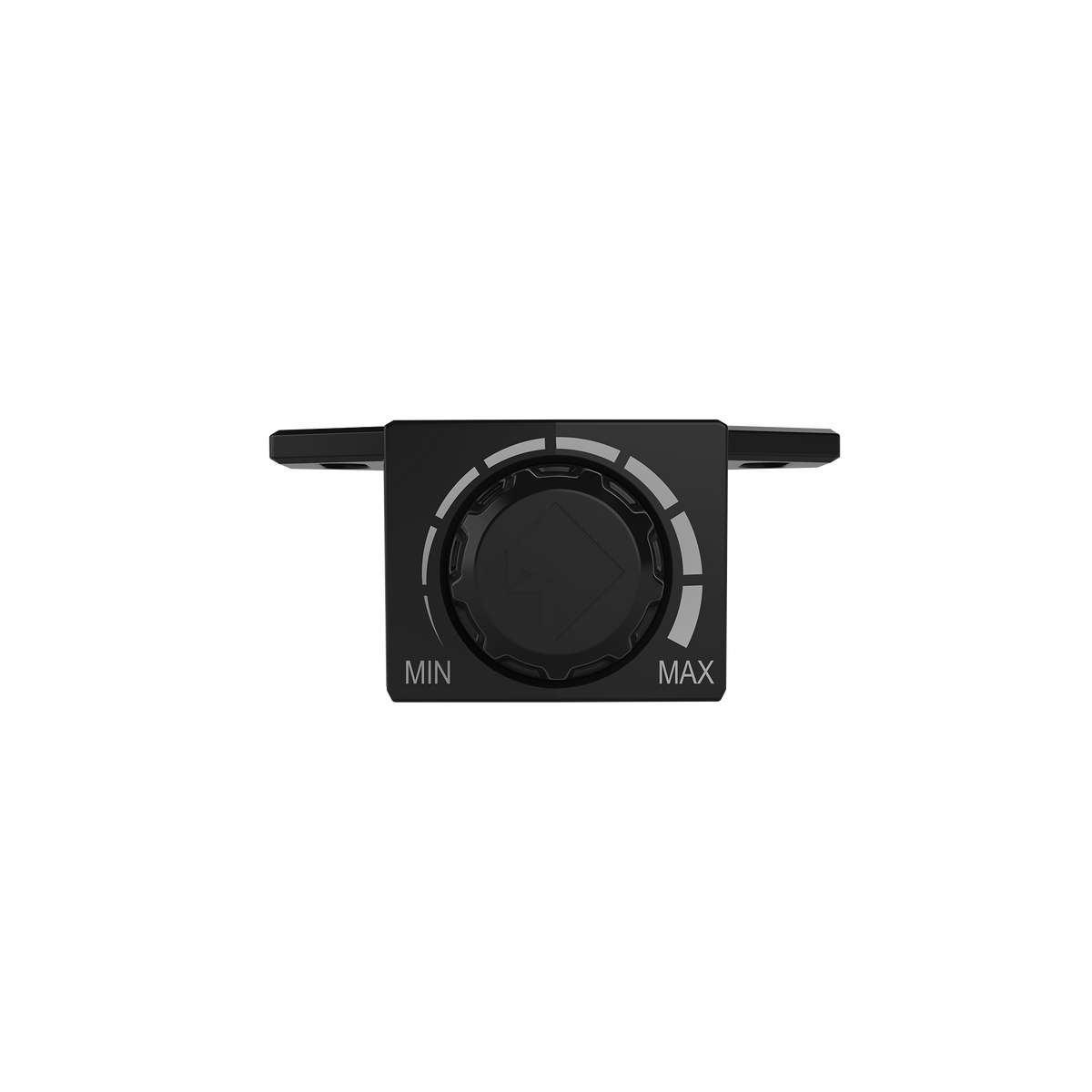

• Includes RLC Remote Level Control
• Variable Infrasonic Filter
• Cast aluminum heat sink
• Continuously Variable On Board Punch EQ
• CEA-2006 Compliant & CE Compliant
• Front, Rear and Sub Variable Input Gain adjustment level
• 1 Year Warranty
• Full Range Class-D

Specifications

• CEA-2006 Compliant: CEA-2006 Power Rating; 50W x 4 + 200W x 1 @ 4Ohm; <=1.0% THD+N
• Number of Channels: 5
• Rated Power; (RMS Continuous Power): 50 Watts x 4 + 200 Watts x 1 @ 4Ohm; 100 Watts x 4 + 350 Watts x 1 @ 2Ohm; 200 Watts x 2 + N/A @ 4Ohm Bridged/Mono
• Total Power; (Sum of Rated Power): 750 Watts
• Dynamic Power; (PVC/PowerCube): 70 Watts x 4 + 241 Watts x 1 @ 4Ohm; 114 Watts x 4 + 426 Watts x 1 @ 2Ohm; 234 Watts x 2 + N/A @ 4Ohm Bridged/Mono
• Bridgeable: Yes
• Frequency Response: 20 Hz - 20 kHz
• Input Sensitivity: Low-Level: 150 mV - 4 V; High-Level: 450 mV - 12 V
• Circuit Topology Class: Class-D
• Total Harmonic Distortion (THD+Noise): Front/Rear 4Ohm: <1.0%; Front/Rear 2Ohm: <1.0%; Sub 4Ohm: <1.0%; Sub 2Ohm: <1.0%
• Signal-to-Noise (CEA): Front/Rear CEA-2006: >80 dB; Sub CEA-2006: >75 dB; Front/Rear Rated-Power: >100 dB; Sub Rated-Power: >100 dB
• Channel Separation: >50 dB
• Common Mode Rejection Ratio: >55 dB
• Accepts RCA Input: Yes

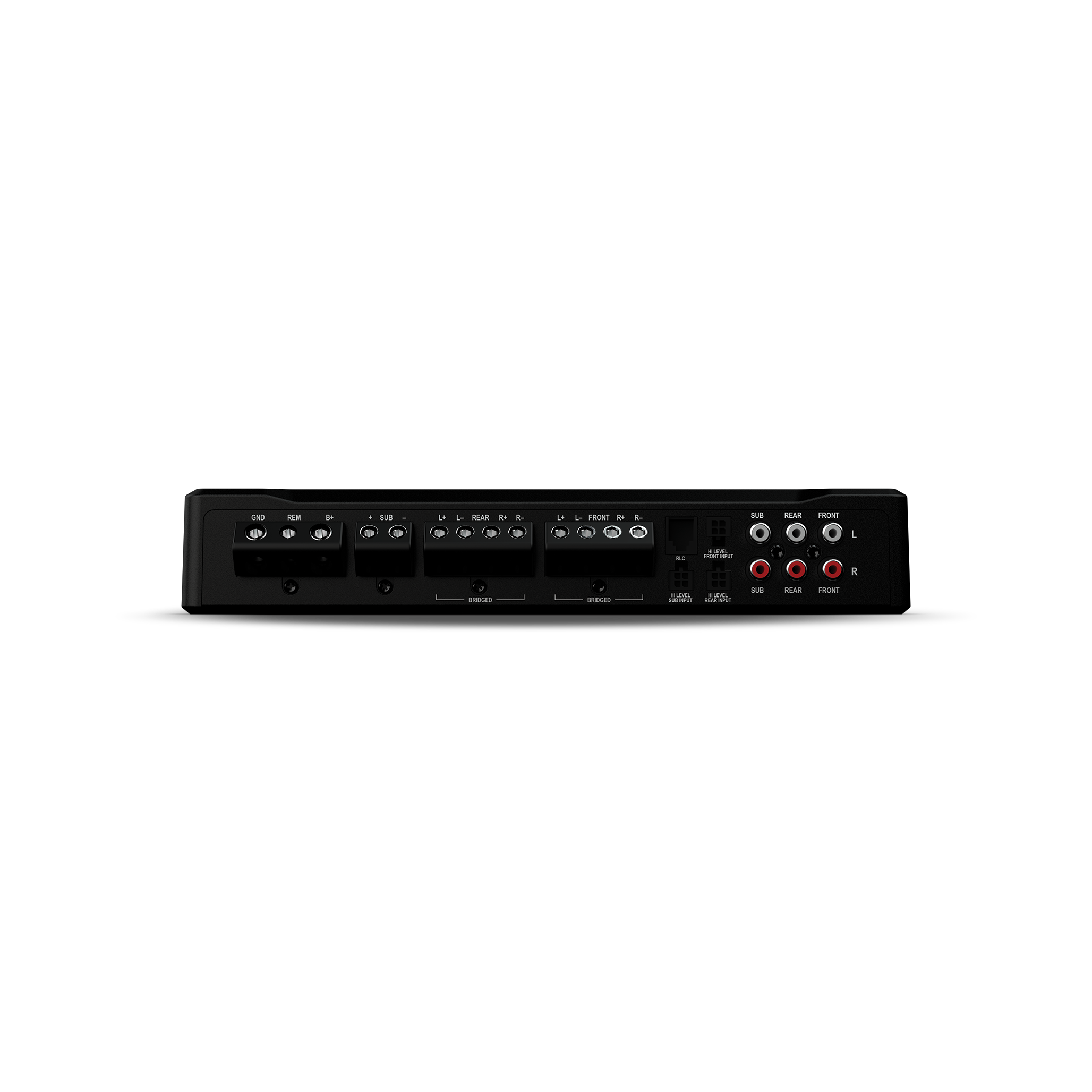

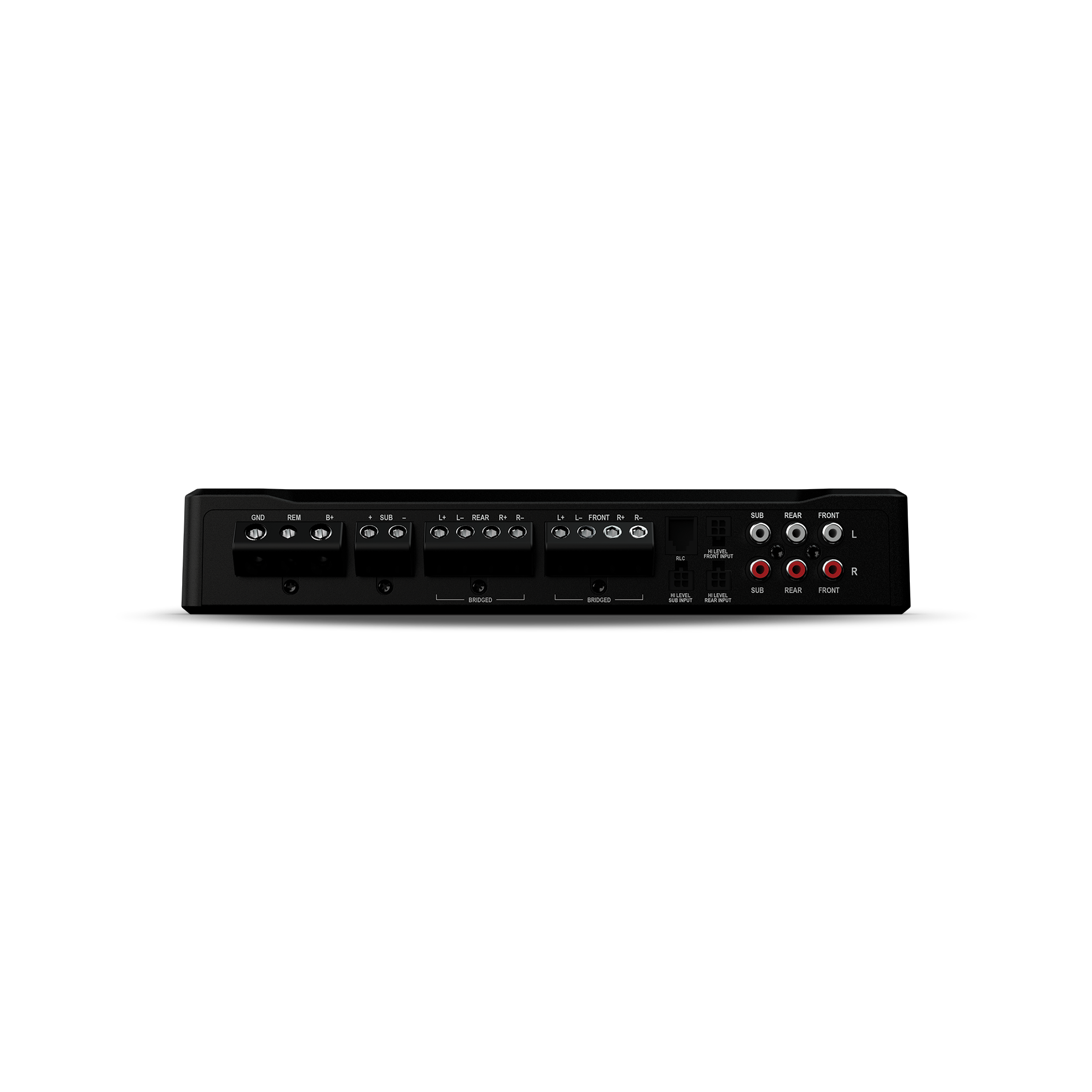

• Signal Input: Front Low-Level: 2 RCA; Front High-Level: 4-Pin Molex; Rear Low-Level: 2 RCA; Rear High-Level: 4-Pin Molex; Sub Low-Level: 2 RCA; Sub High-Level: 4-Pin Molex; Input Switch: 2/4/5 Input; (works for RCA/Hi-Level inputs)
• Pass Thru Output: No
• Tone Controls: 0 to +18 dB @ 45 Hz
• Adjustable Crossovers: Yes
• Crossover Controls: Front High-Pass:; 50 Hz - 250 Hz @ 12dB/Octave Butterworth; Front Low-Pass:; 50 Hz - 250 Hz @ 12dB/Octave Butterworth; Rear High-Pass:; 50 Hz - 250 Hz @ 12dB/Octave Butterworth; Rear Low-Pass:; 50 Hz - 250 Hz @ 12dB/Octave Butterworth; Sub Low-Pass:; 50 Hz - 250 Hz @ 12dB/Octave Butterworth; Sub Infrasonic:; 15 Hz - 40 Hz @ 12dB/Octave Butterworth
• Remote Controls: Yes
• Visual Indicators: POWER (Blue) / PROTECT (Red); C.L.E.A.N. IN (Red); C.L.E.A.N. OUT Front (Blue/Red); C.L.E.A.N. OUT Rear (Blue/Red); C.L.E.A.N. OUT Sub (Blue/Red)
• Power Wire Gauge: 4 AWG
• Power Input Connector: Compression Terminal Block
• Speaker Wire Gauge: 8 AWG
• Speaker Output Connector: Compression Terminal Block
• Cooling: Convection
• Heatsink Type: Die Cast Aluminum
• Operating Voltage: 9 - 16 VDC
• Recommended Fuse; (not included): 120 A
• Max. Current Draw (13.8V Sinewave): 71 A
• Dimensions (H x W x D): 1.9" x 6.8" x 11.2"; (4.9 cm x 17.3 cm x 28.5 cm)
