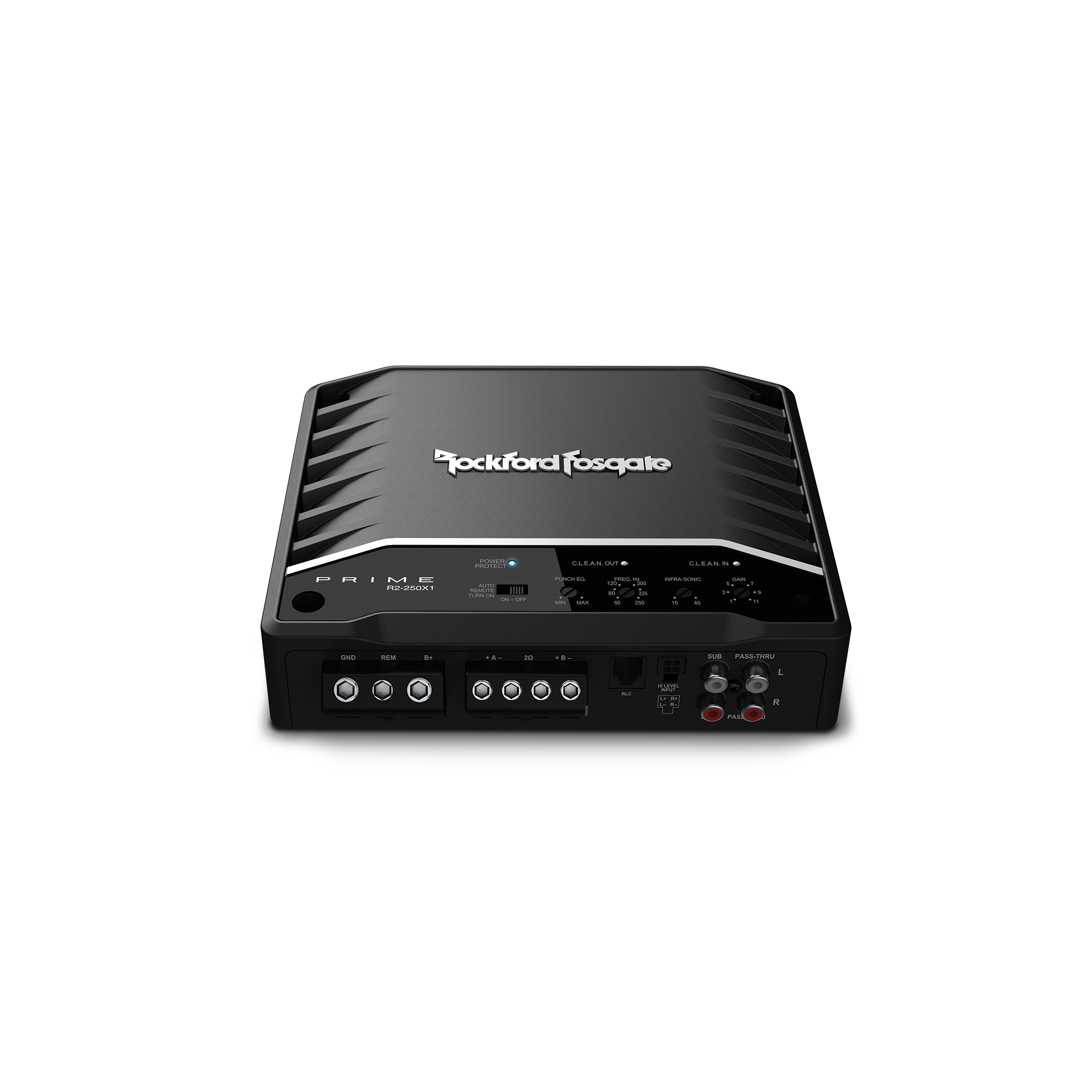

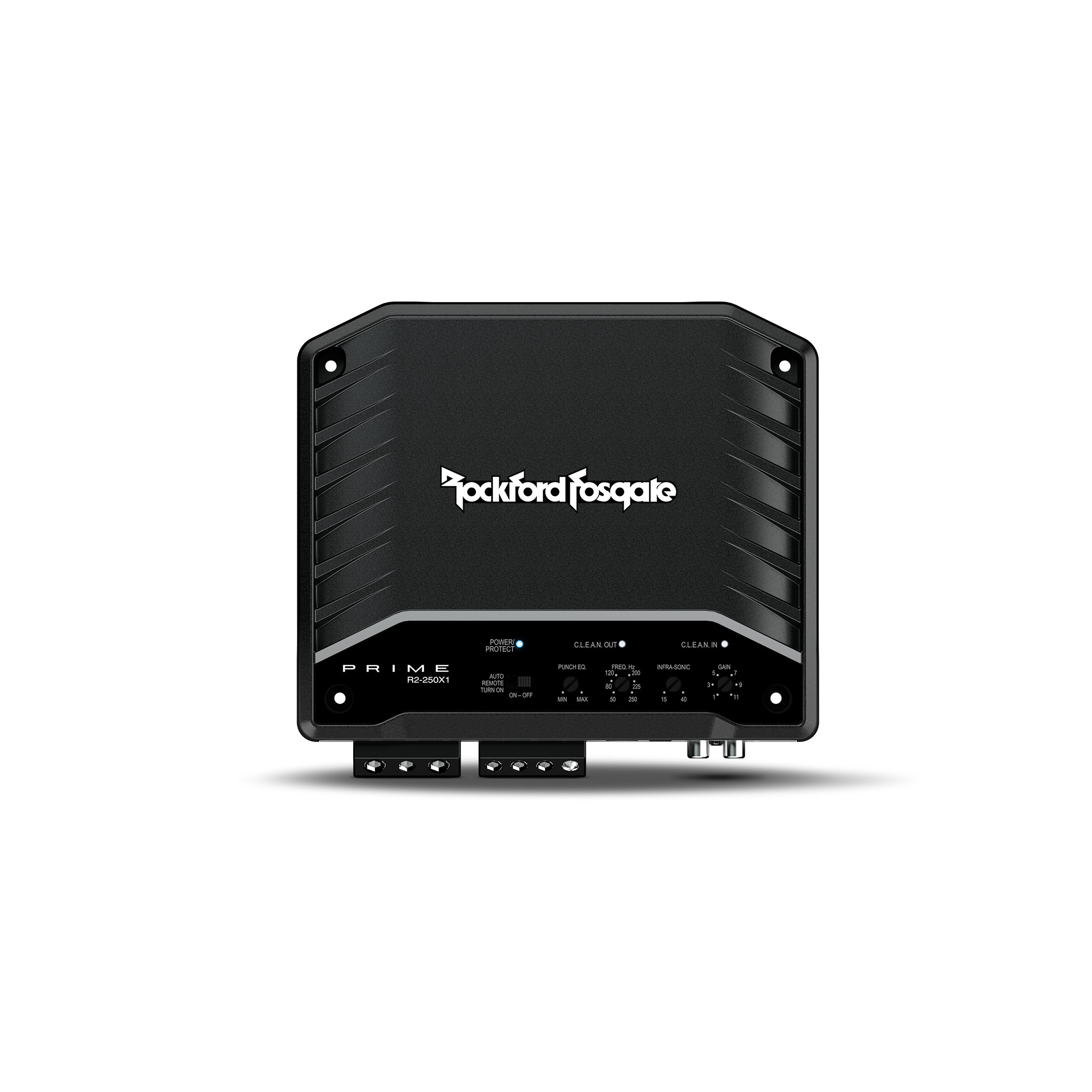

Prime 250 Watt Mono Amplifier

Overview

Rockford Fosgate's R2-250X1 is a 250W, Class-D subwoofer amplifier with C.L.E.A.N. circuitry, P.O.W.E.R. supply, and Punch EQ for efficient, powerful bass.

Features

• Variable Input Gain adjustment level
• Balanced Differential Inputs with RCA Pass Through Outputs
• Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
• Short Circuit & Over Current Protection
• Features C.L.E.A.N. Set-up
• High Level Input Capable

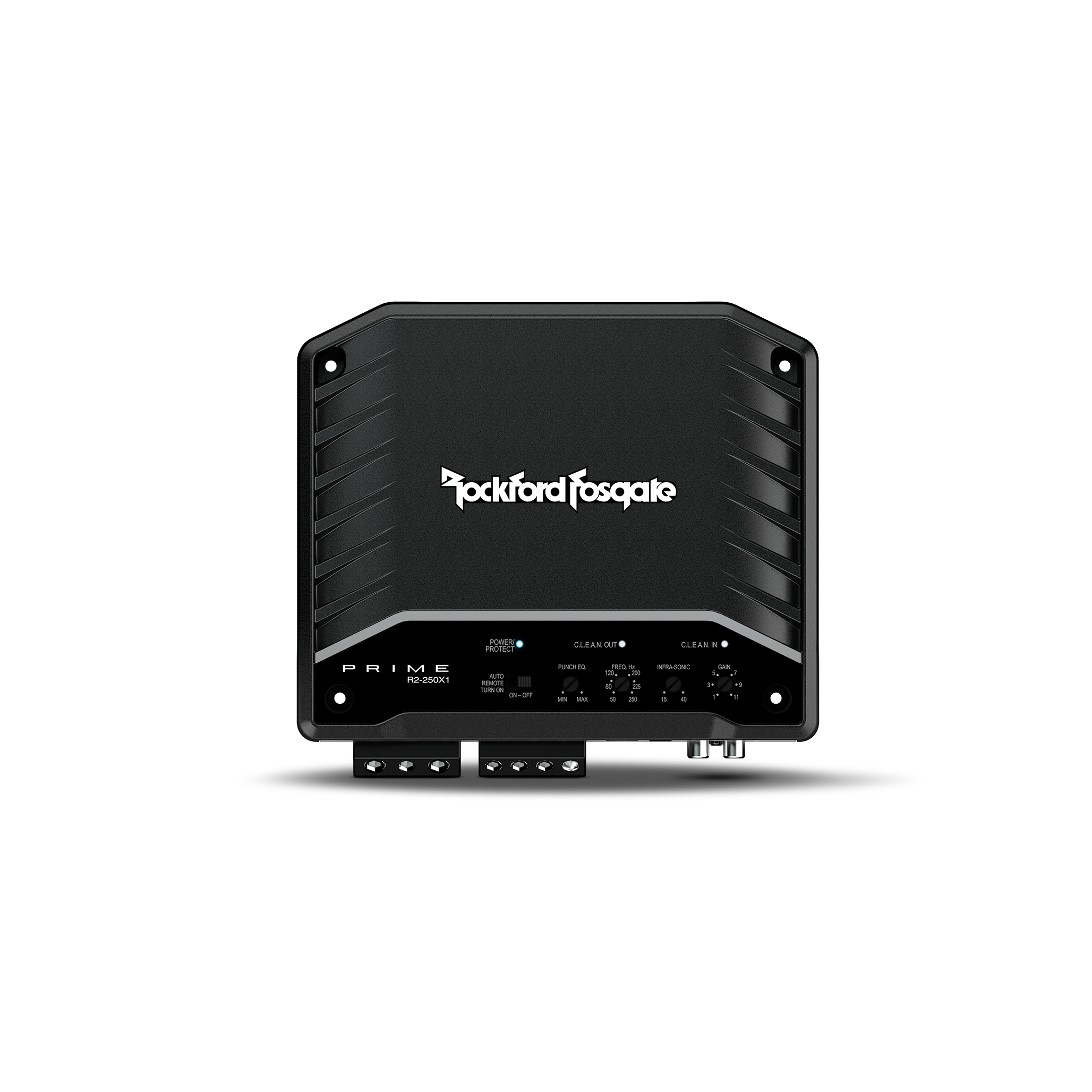

• Top Mounted Control Panel
• Rollback Protection
• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
• Continuously Variable On Board Punch EQ

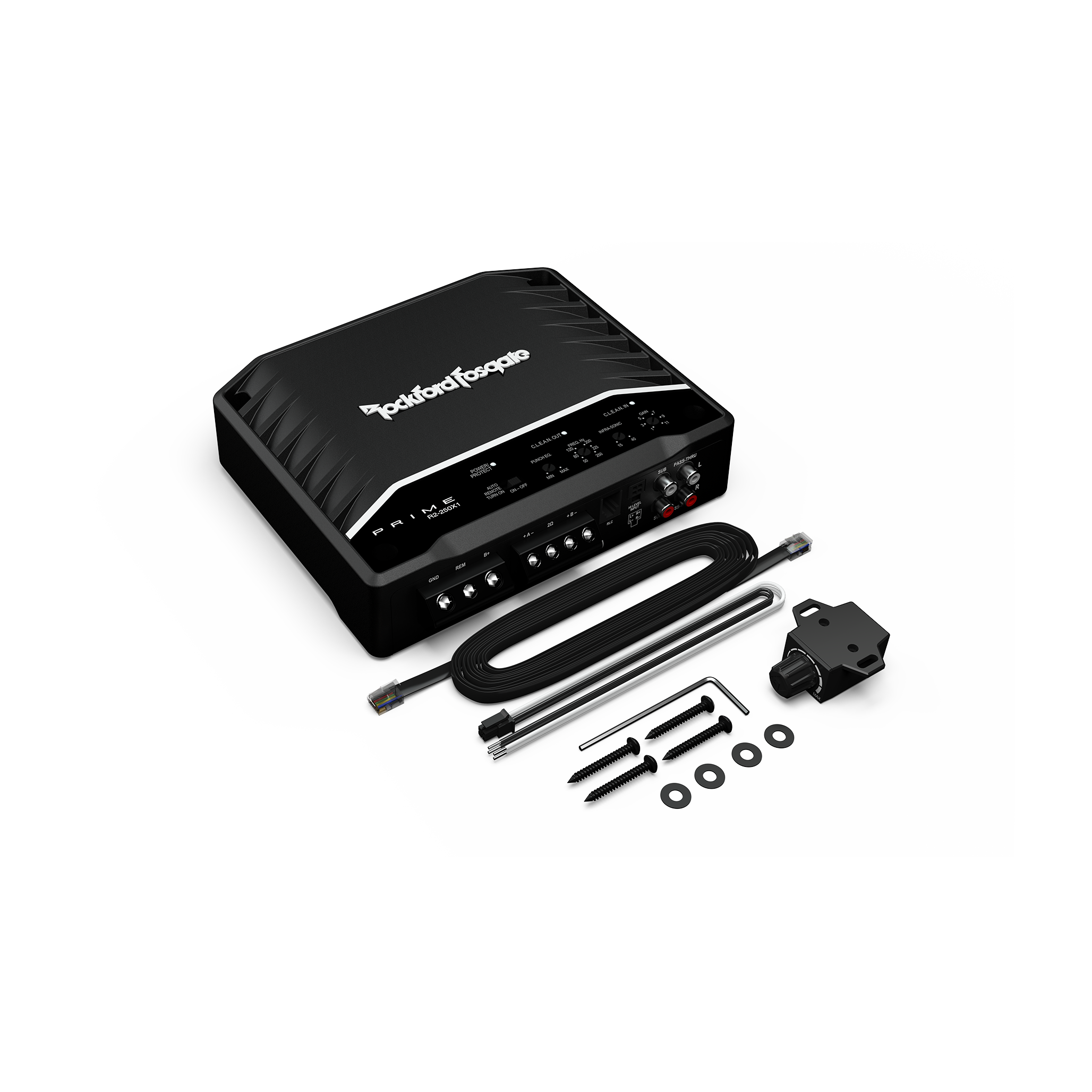

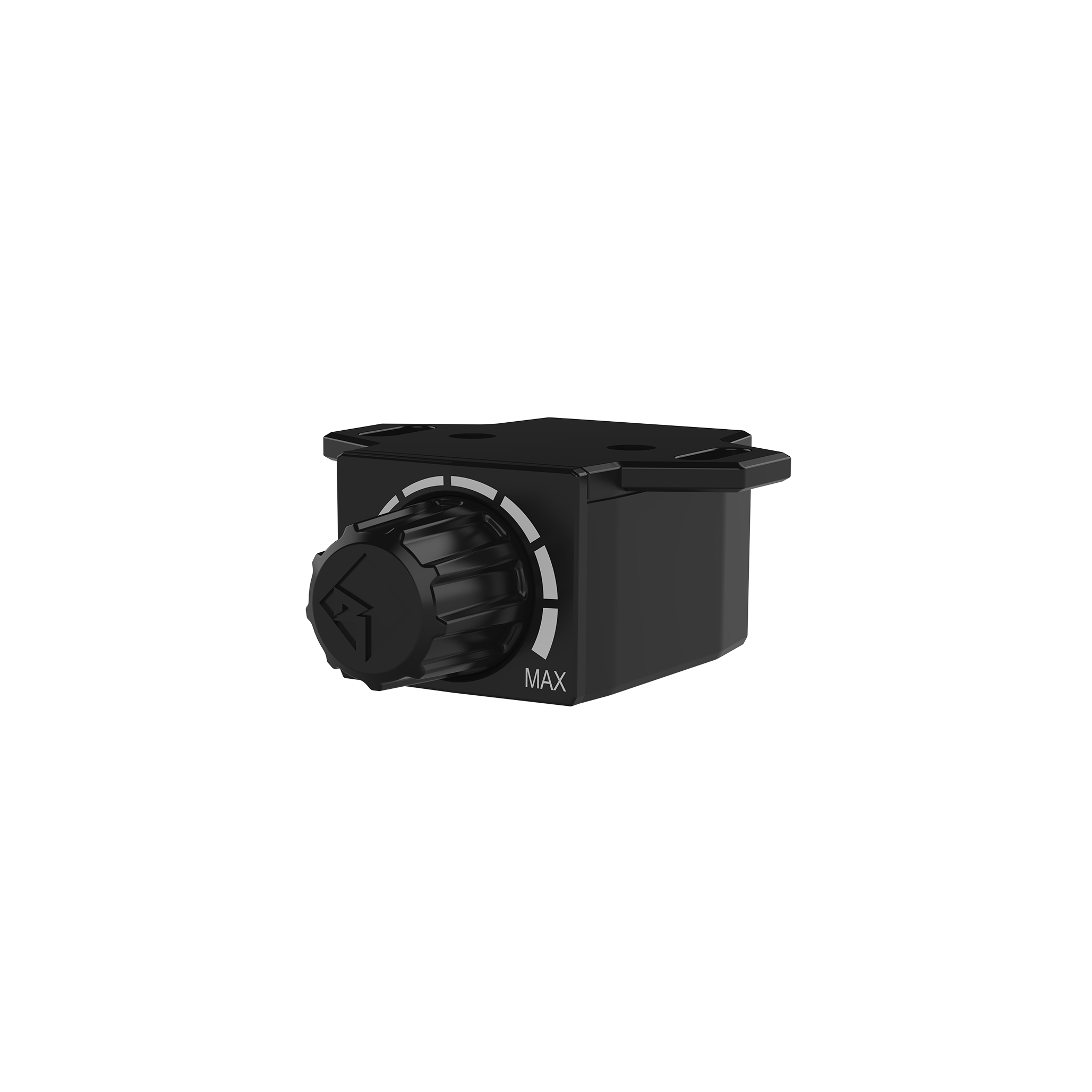

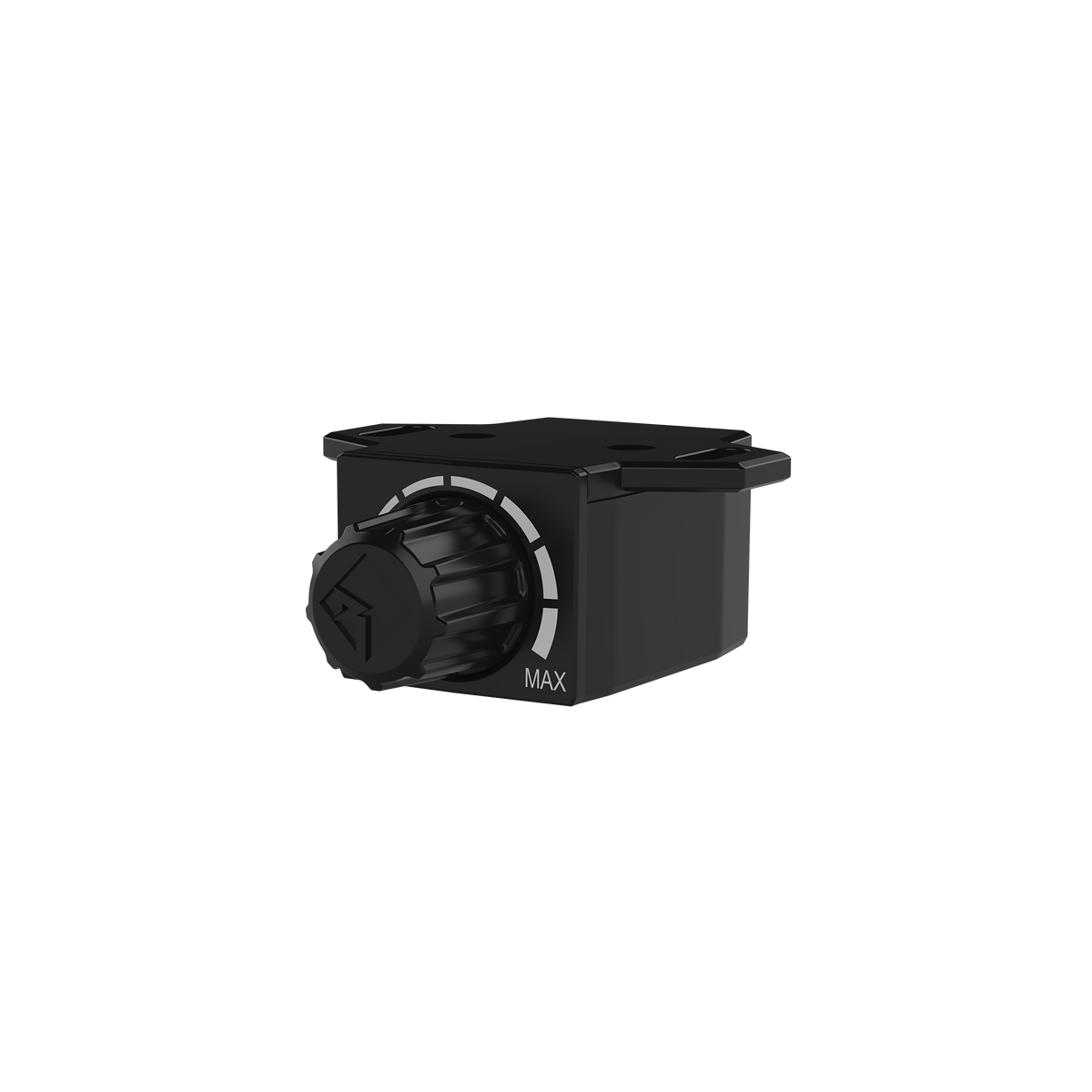

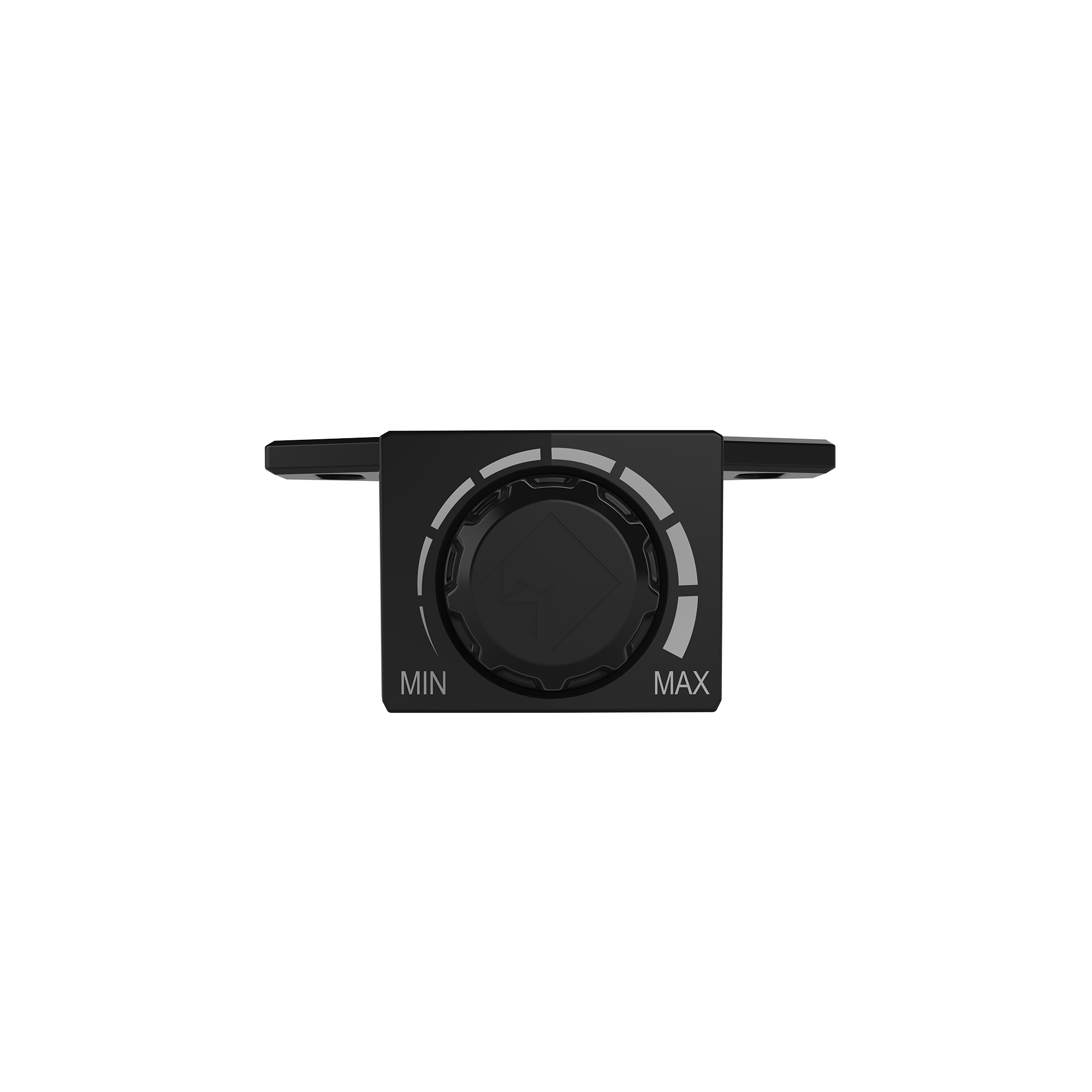

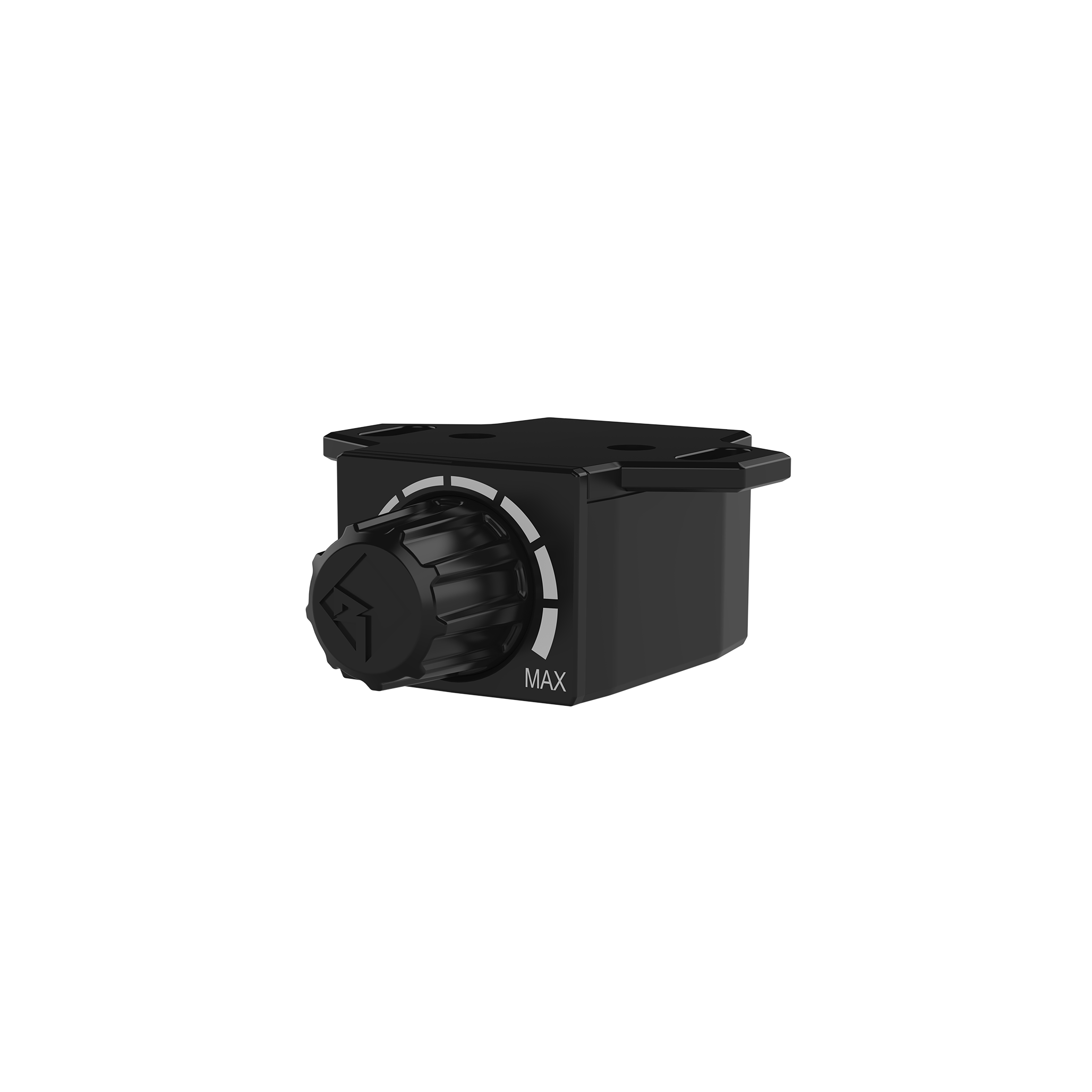

• Includes RLC Remote Level Control
• Class-D Topology
• Cast aluminum heat sink
• 1 Year Warranty
• Variable Infrasonic Filter
• CEA-2006 Compliant & CE Compliant

Technologies

• P.O.W.E.R.: Power supply circuit design that allows the amplifier to increase output power as voltage increases.
• CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
• Class-D: High efficiency amplifier design that reduces current consumption from the charging system.
• C.L.E.A.N. Technology: C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
• MEHSA 4 (Maximum Efficiency Heat Sink Application): MEHSA⁴ reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
• Balanced Differential Inputs: Differential inputs eliminate noise picked up by signal cables.
• NOMAD: NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
• Rollback Protection: During demanding musical conditions, the amplifier can dynamically reduce demand to prevent stress on the output devices.
• CE Compliant: This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).

Specifications

CEA-2006 Compliant	CEA-2006 Power Rating 160W x 1 @ 4Ω ≤1.0% THD+N
Number of Channels	1
Rated Power (RMS Continuous Power)	150 Watts x 1 @ 4Ω 250 Watts x 1 @ 2Ω
Total Power (Sum of Rated Power)	250 Watts
Dynamic Power (PVC/PowerCube®)	209 Watts x 1 @ 4Ω 328 Watts x 1 @ 2Ω
Bridgeable	No
Frequency Response	20 Hz - 250 Hz
Input Sensitivity	Low-Level: 150 mV - 4 V High-Level: 450 mV - 12 V
Circuit Topology Class	Class-D
Efficiency (average)
Total Harmonic Distortion (THD+Noise)	4Ω: <1.0% 2Ω: <1.0%
Signal-to-Noise (CEA)	CEA-2006: >80 dB Rated-Power: >100 dB
Channel Separation
Common Mode Rejection Ratio	>55 dB
Damping Factor
Accepts RCA Input	Yes

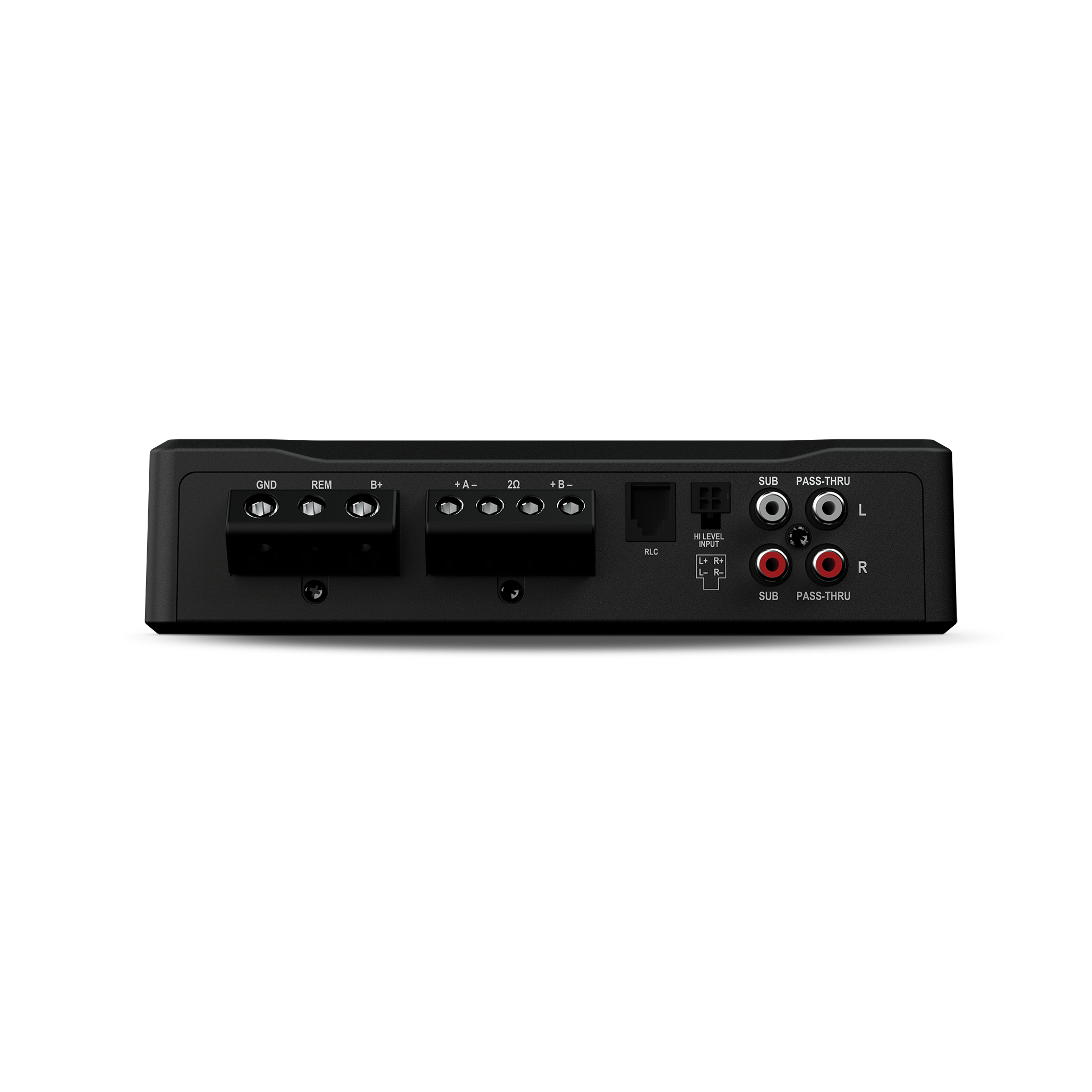

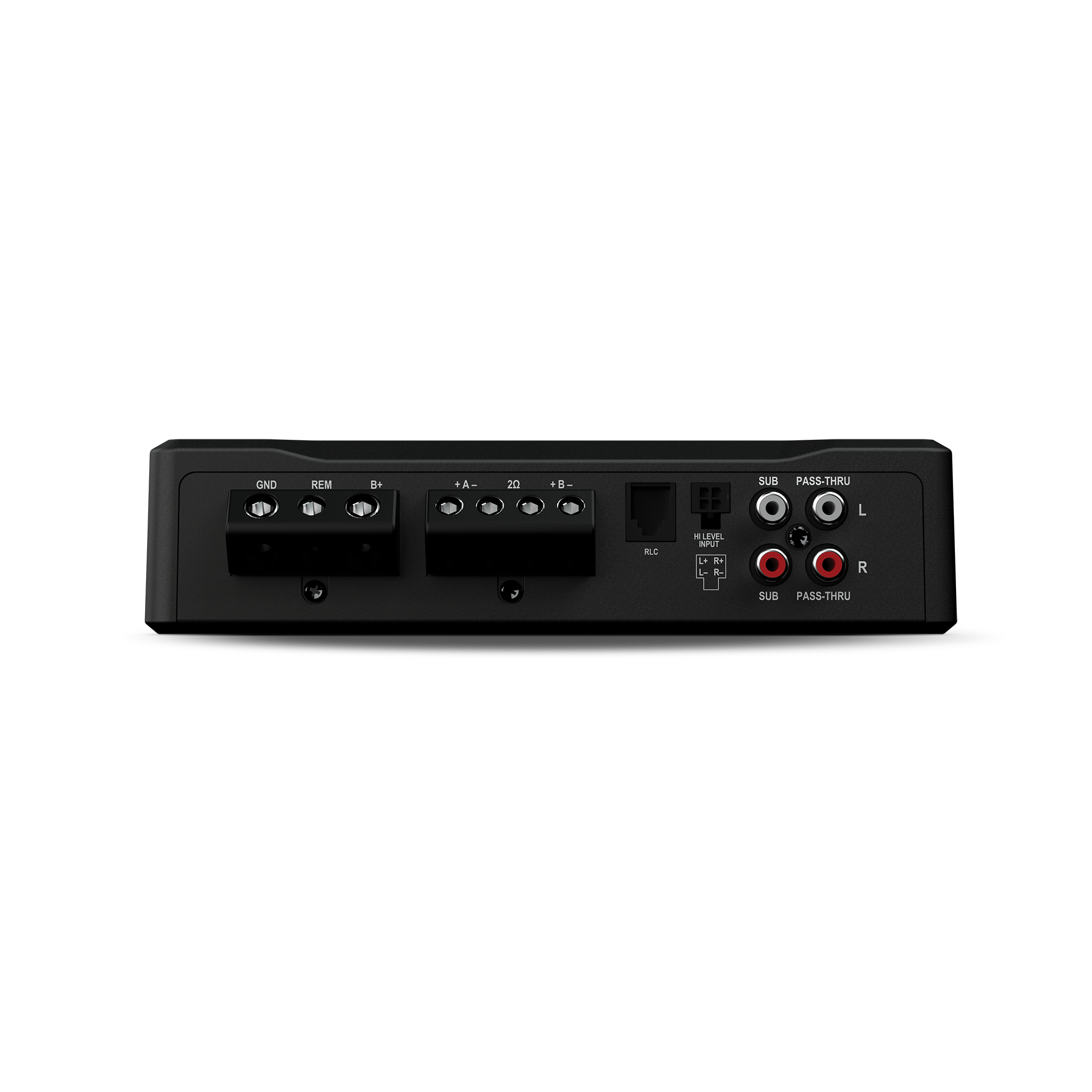

Signal Input	Low-Level: 2 RCA High-Level: 4-Pin Molex
Signal Output	Low-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input)
Pass Thru Output	Yes
Tone Controls	0 to +18 dB @ 45 Hz
Adjustable Crossovers	Yes
Crossover Controls	Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Infrasonic: 15 Hz - 40 Hz @ 12dB/Octave Butterworth
Remote Controls	Yes
Visual Indicators	POWER (Blue) / PROTECT (Red) C.L.E.A.N. IN (Red) C.L.E.A.N. OUT (Blue/Red)
Power Wire Gauge	4 AWG
Power Input Connector	Compression Terminal Block
Speaker Wire Gauge	8 AWG
Speaker Output Connector	Compression Terminal Block
Cooling	Convection
Heatsink Type	Die Cast Aluminum
Operating Voltage	9 - 16 VDC
Recommended Fuse (not included)	50 A
Average Current Draw (13.8V Music)
Max. Current Draw (13.8V Sinewave)	30 V
Suggested Alternator
Dimensions (H x W x D)	1.9" x 6.8" x 8.1" (4.9 cm x 17.3 cm x 20.5 cm)
Shipping Weight
