Product Overview

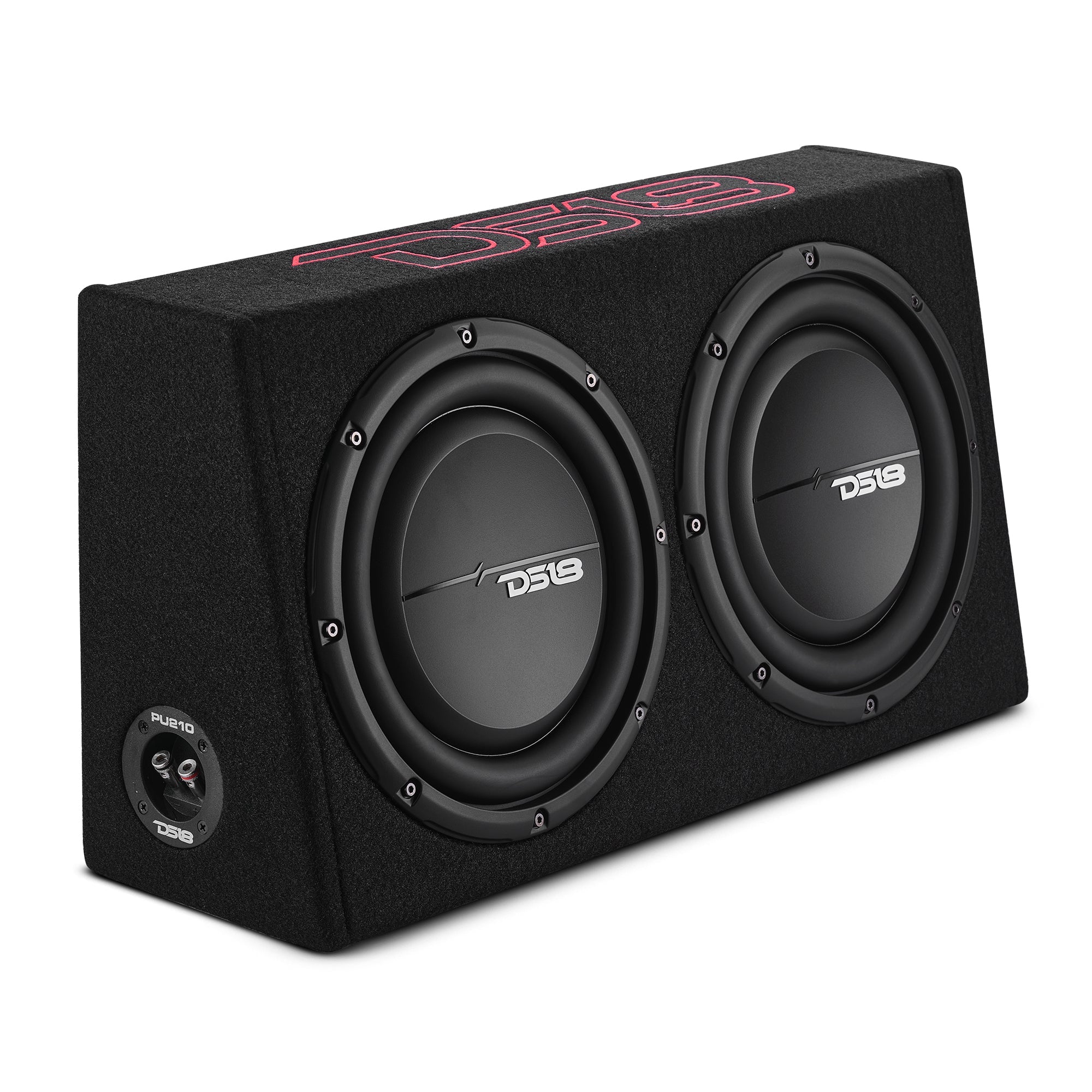

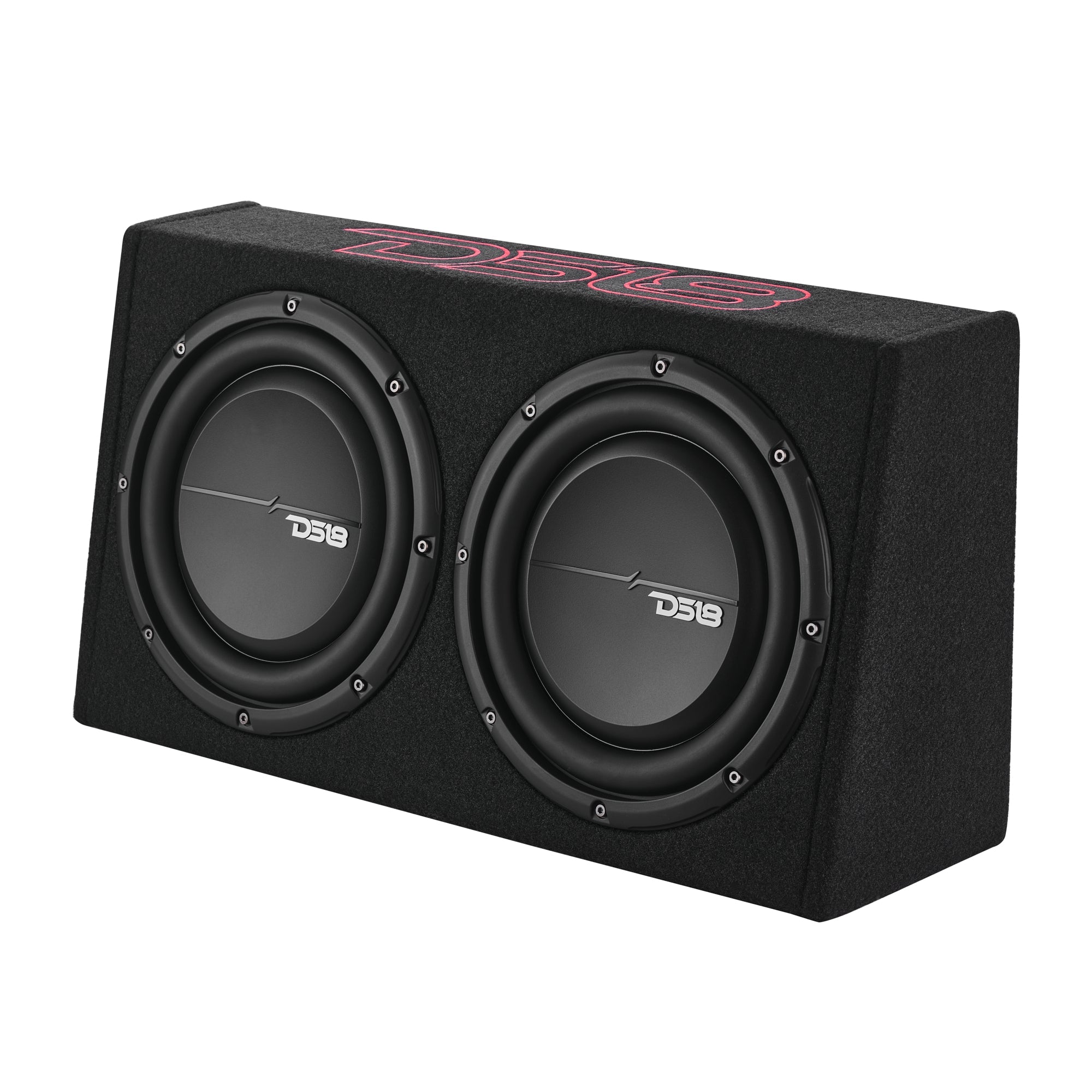

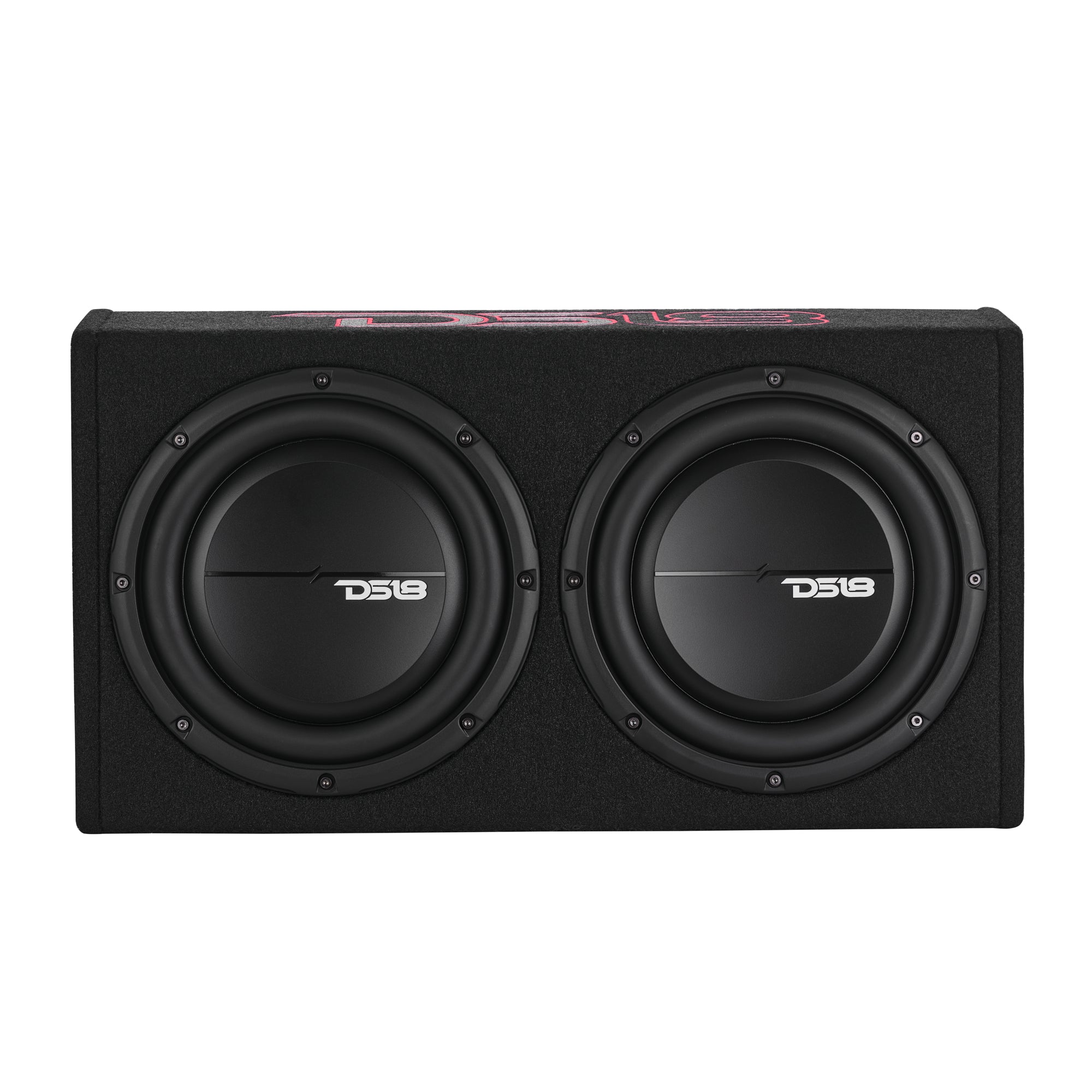

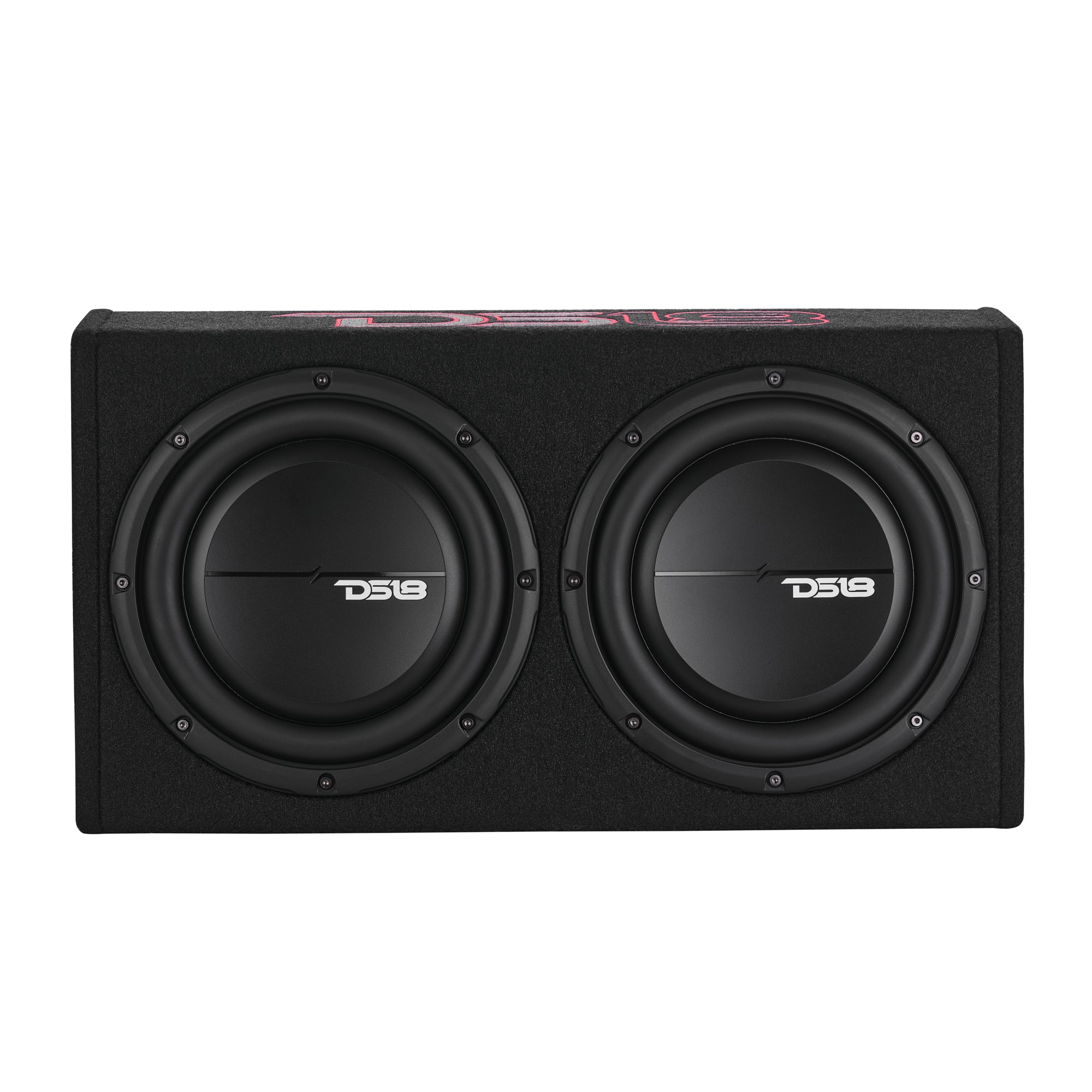

DS18 PU210
Loaded 10” Subwoofer + Passive Radiator Enclosure for Pickup Trucks
The PU210 is DS18’s ultra-efficient 10” subwoofer enclosure paired with a matching 10” passive radiator to extend low-end response—all in a compact sealed design perfect for truck applications.
Bass Expansion with Passive Radiator Tech
The PU210 delivers more output than a traditional sealed sub box thanks to the built-in 10” passive radiator, which increases excursion and low-end energy without needing a port. Rated at 350W RMS / 700W MAX, it brings a full, booming response to any ride without the need for a ported box or increased volume.
Tight Fit, Big Sound

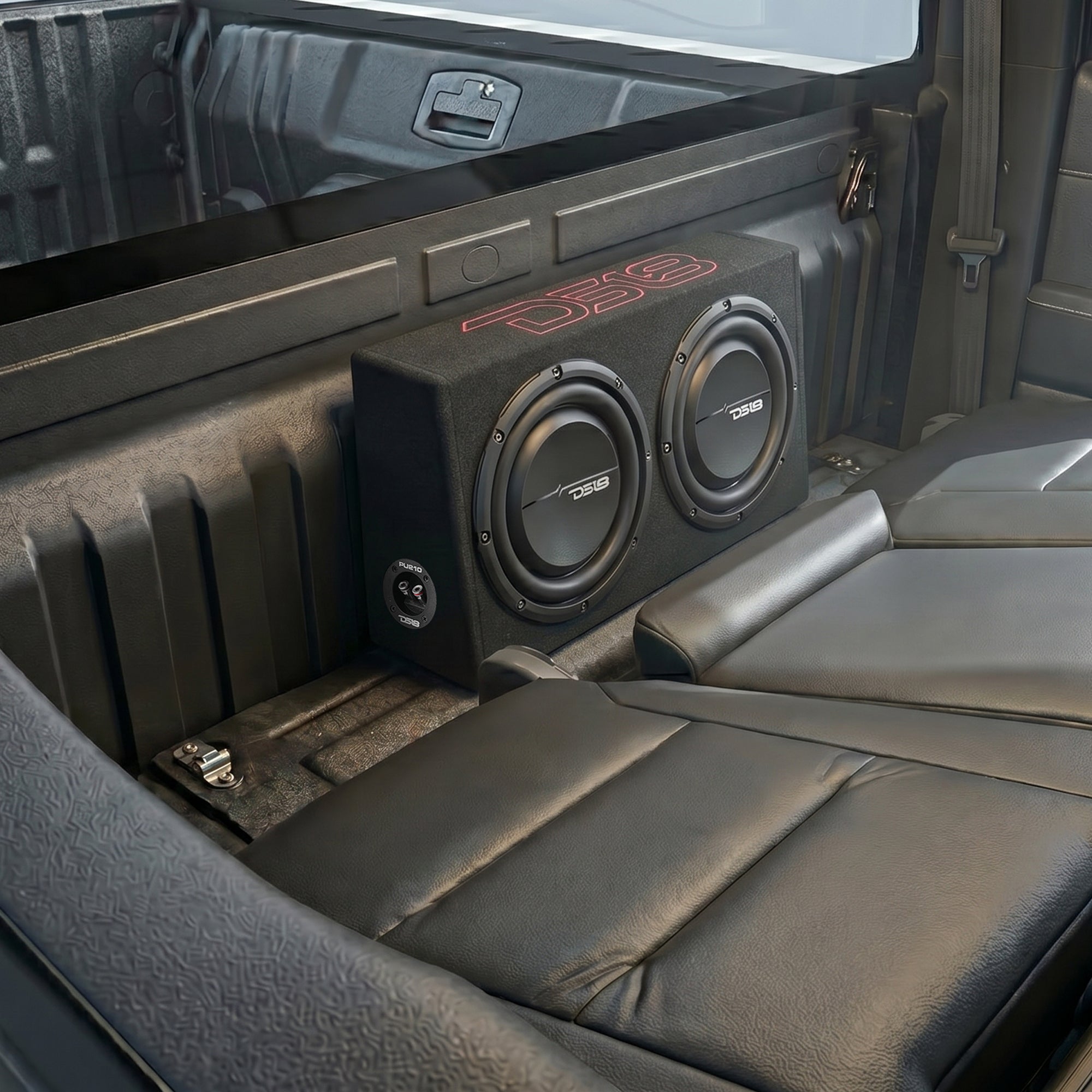

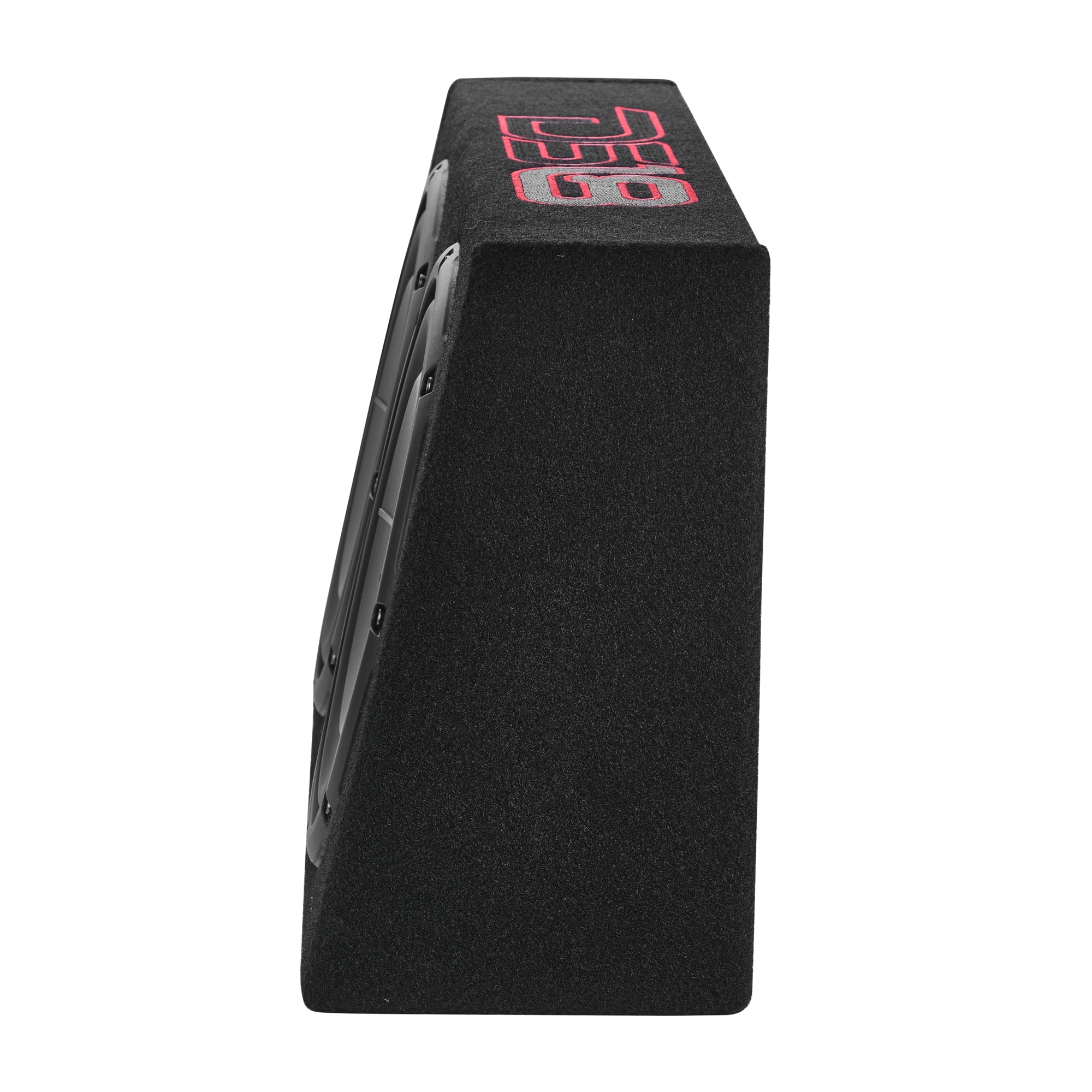

At just 12” tall and 4.25–7” deep, the PU210 fits under or behind most truck seats while still offering 0.56 ft³ of internal volume. This makes it an excellent choice for clean, impactful bass in builds where every inch matters.
Purpose-Built for Trucks
Designed with a final 2-ohm impedance, this enclosure is easy to pair with most monoblock amps. Made from 5/8” MDF and wrapped in durable black carpet, it offers a factory-style finish while delivering aftermarket performance.
Key Features
- 10” Subwoofer Paired with 10” Passive Radiator
- 350W RMS / 700W MAX Power Handling
- Impedance 2-Ohm
- Compact Sealed Box: 0.56ft³ Internal Volume
- Frequency Response: 30–250Hz, -3dB Drop at 45Hz
- Built with 5/8” MDF and Black Carpet Finish
Specifications
| Speaker Type / Size | 10" Active + 10" Passive (261+261mm) |
|---|---|
| RMS Power Handling (14.4V) | 350W |
| MAX Power Handling (14.4V) | 700W |
| Sensitivity (1w/1m) | 87dB |
| Frequency Response | 30-250Hz |
| Nominal Impedance | 2 Ohms |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | IPP |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 40 Oz |
| Internal Volume | 16L / 0.56ft3 |
| Load Configuration | Single 2-Ohms |
| Box Type | Sealed Box |
| Box Material | 5/8" / 15mm MDF |
| Finish Material | Black Carpet |
| -3Db Dropping Point | 45Hz |

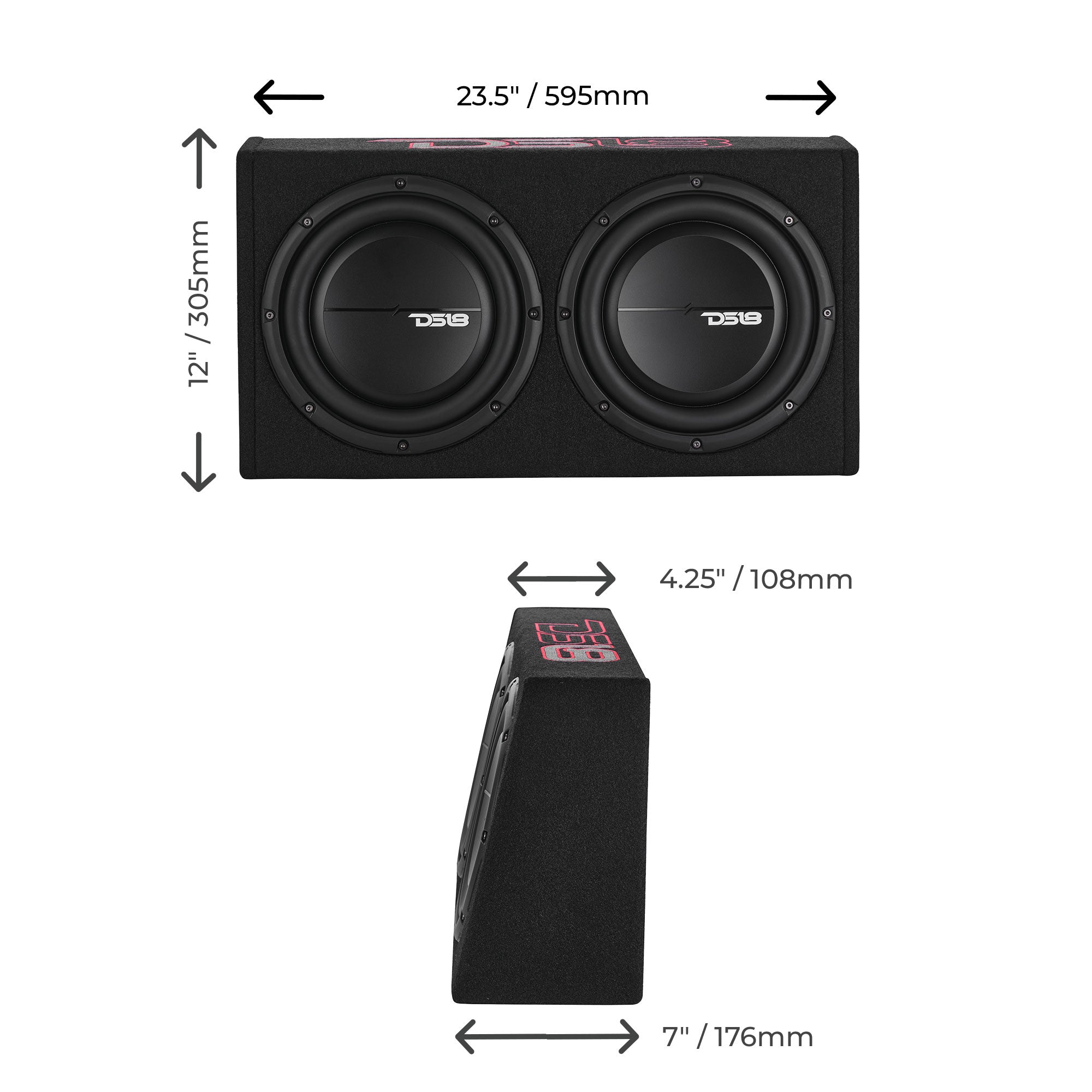

| Height | 12" / 305mm |
| Width | 23.5" / 595mm |
| Depth 1 (Top) | 4.25" / 108mm |
| Depth 2 (Bottom) | 7" / 176 mm |
