Product Overview

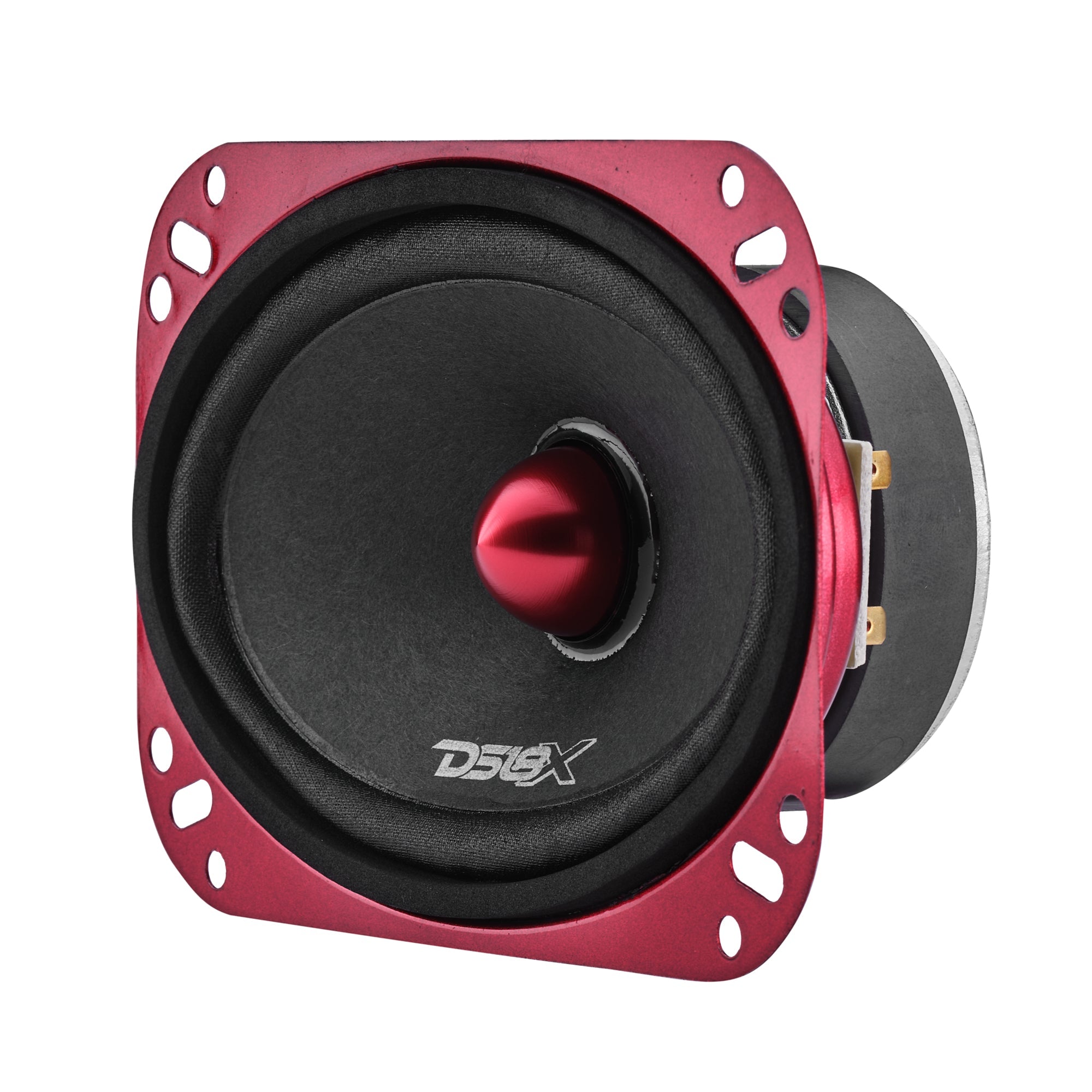

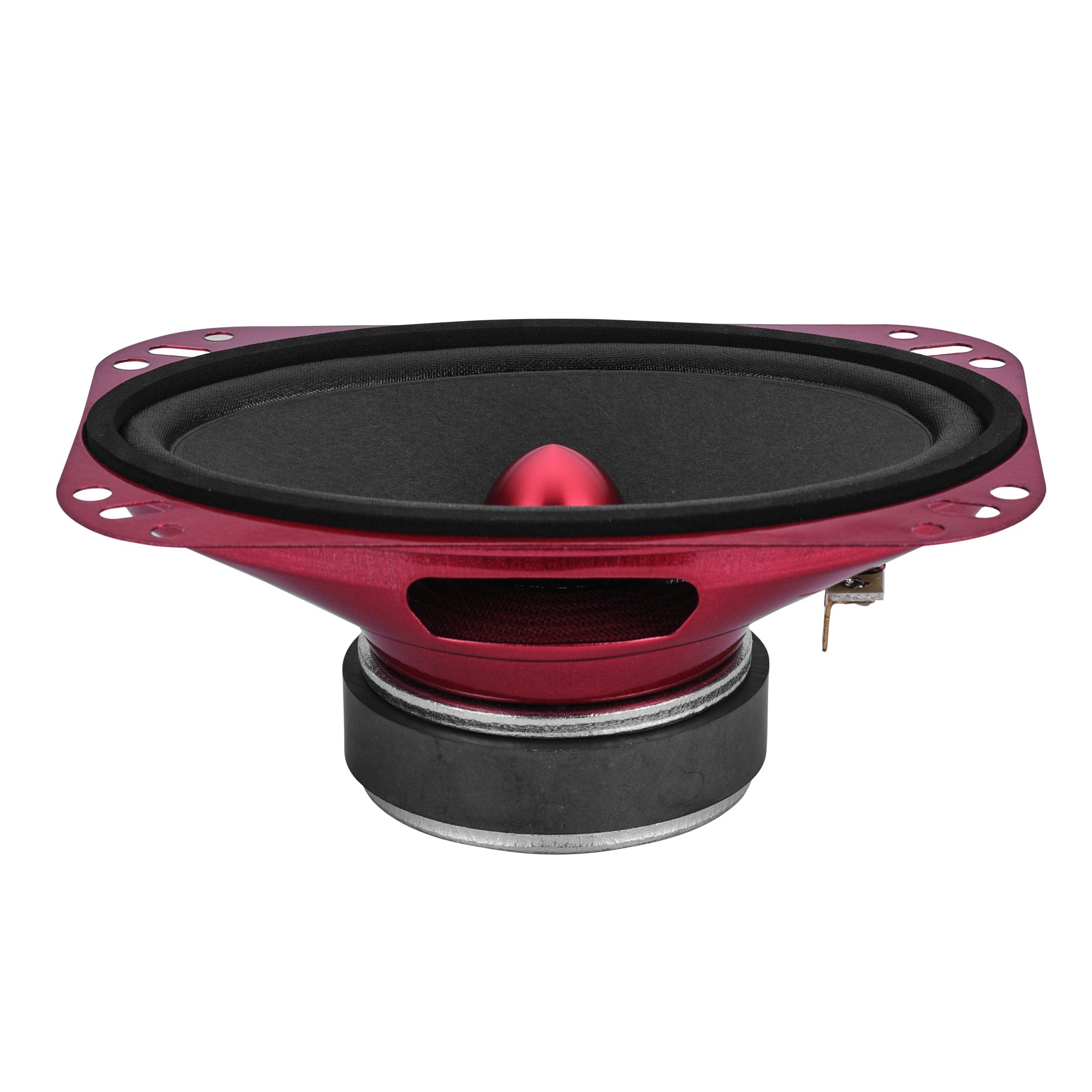

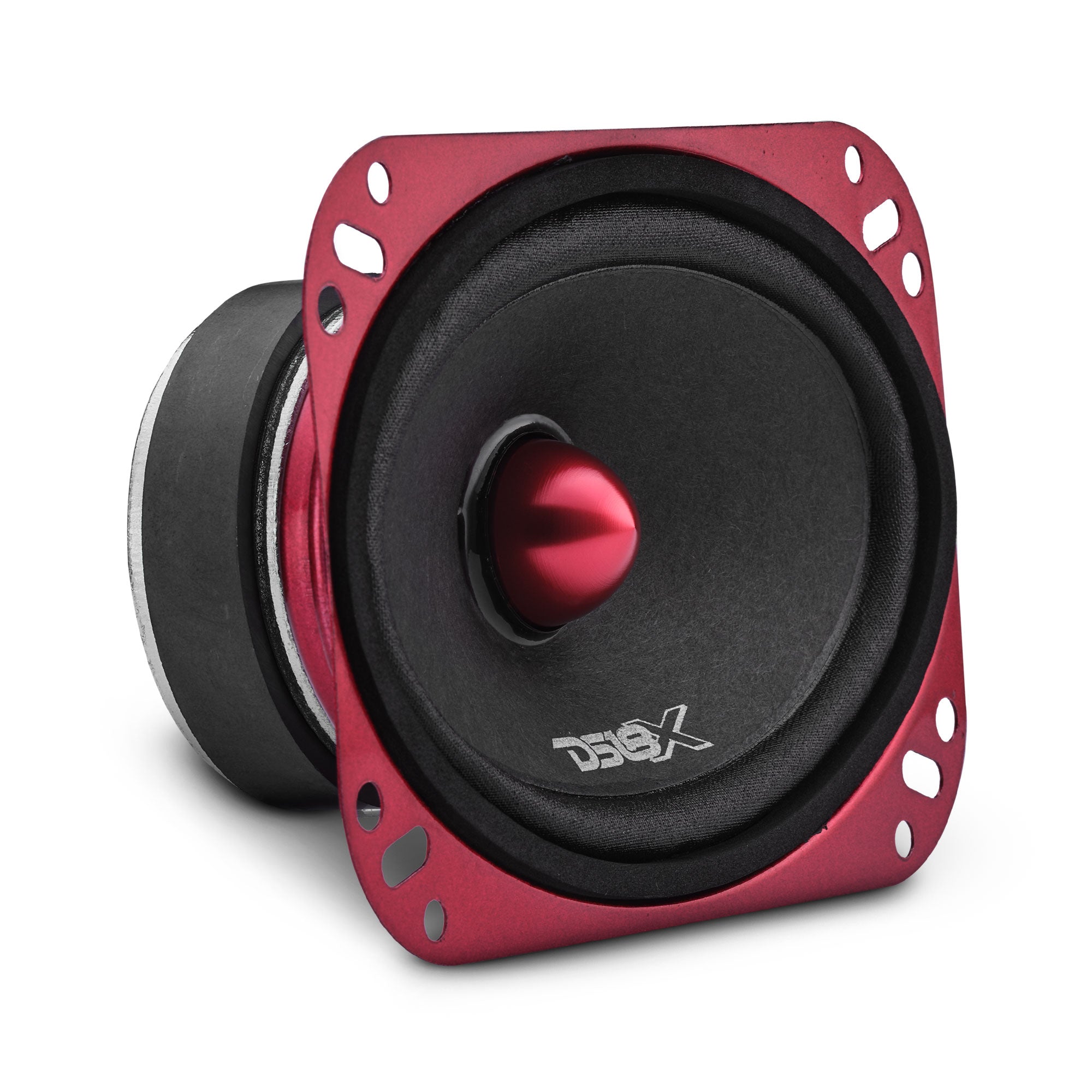

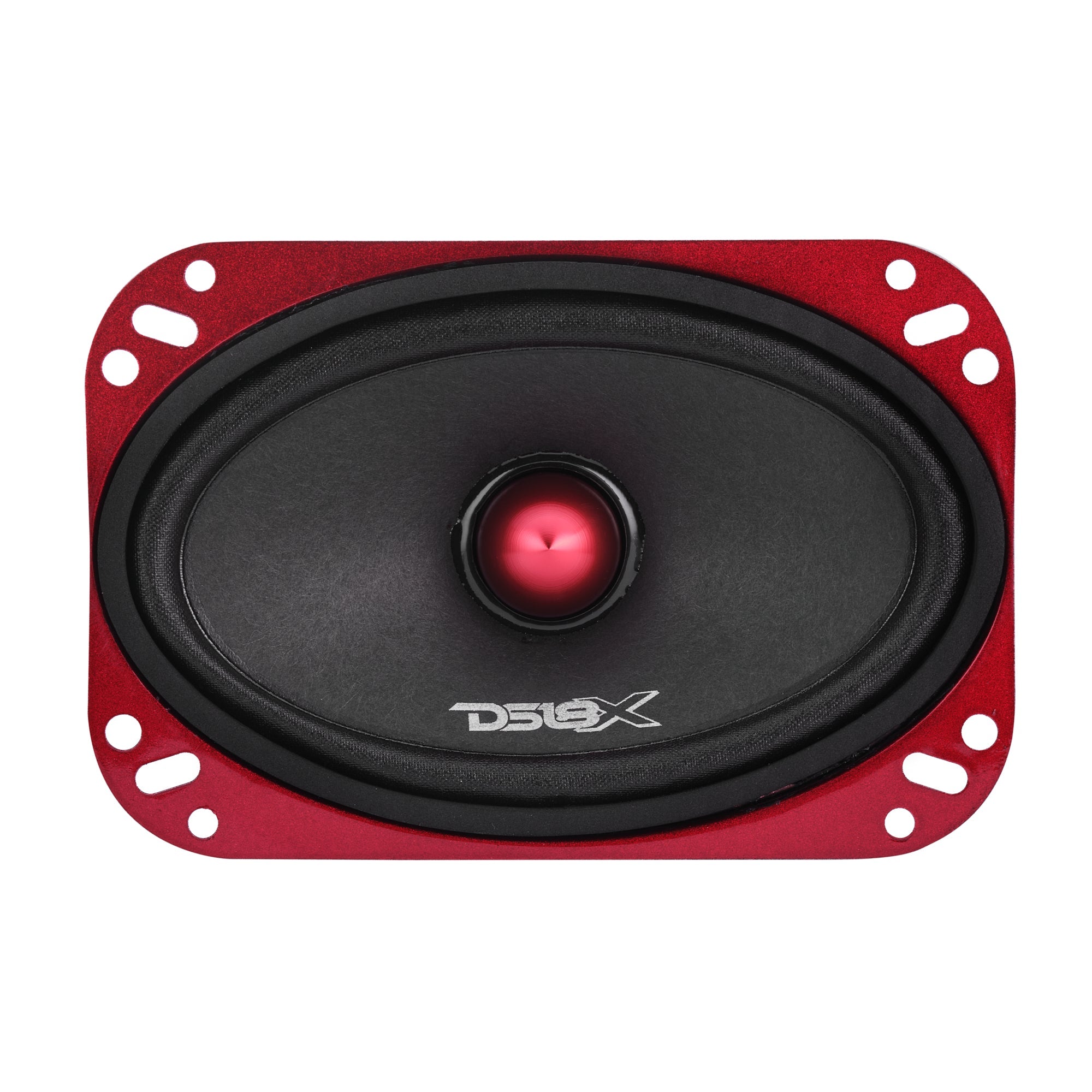

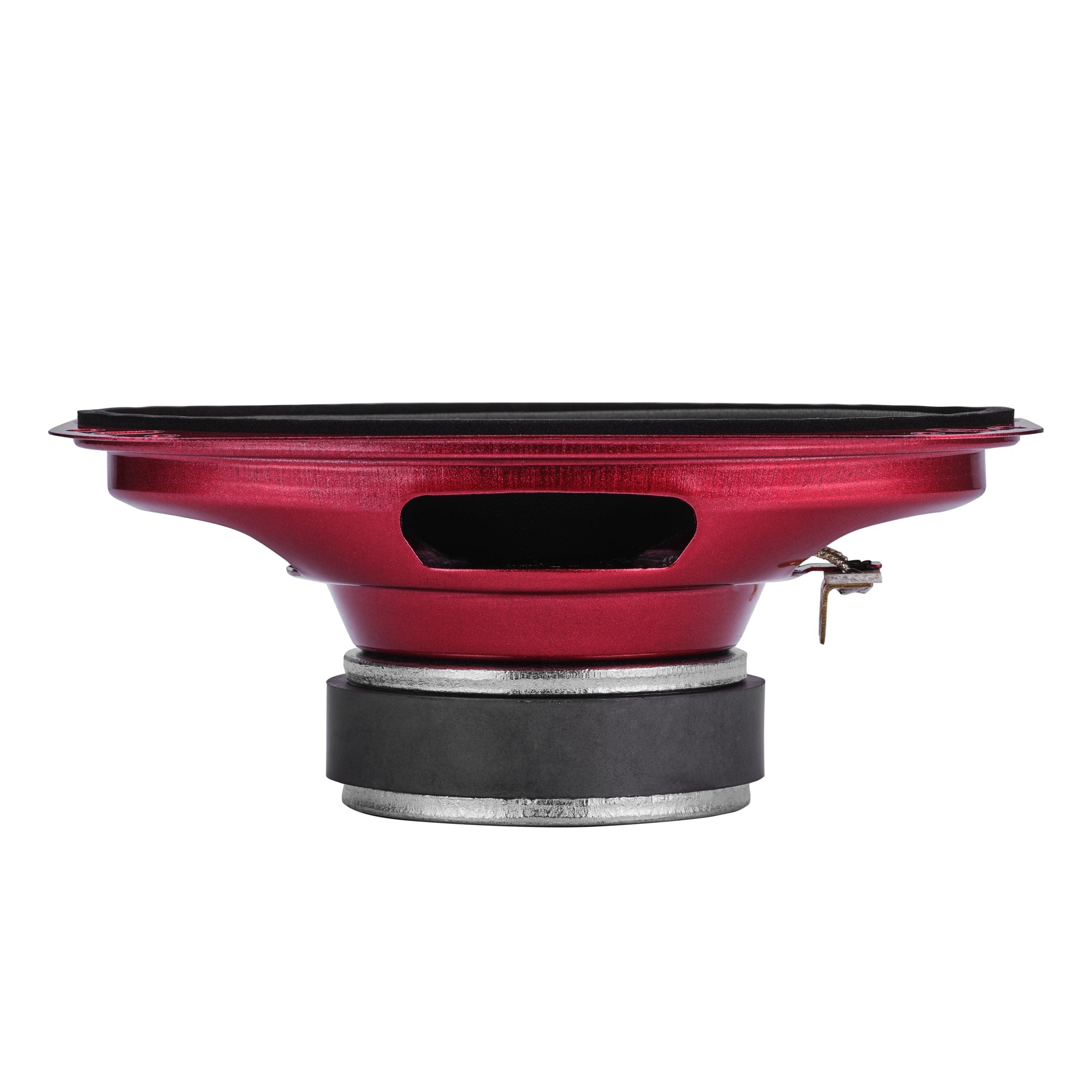

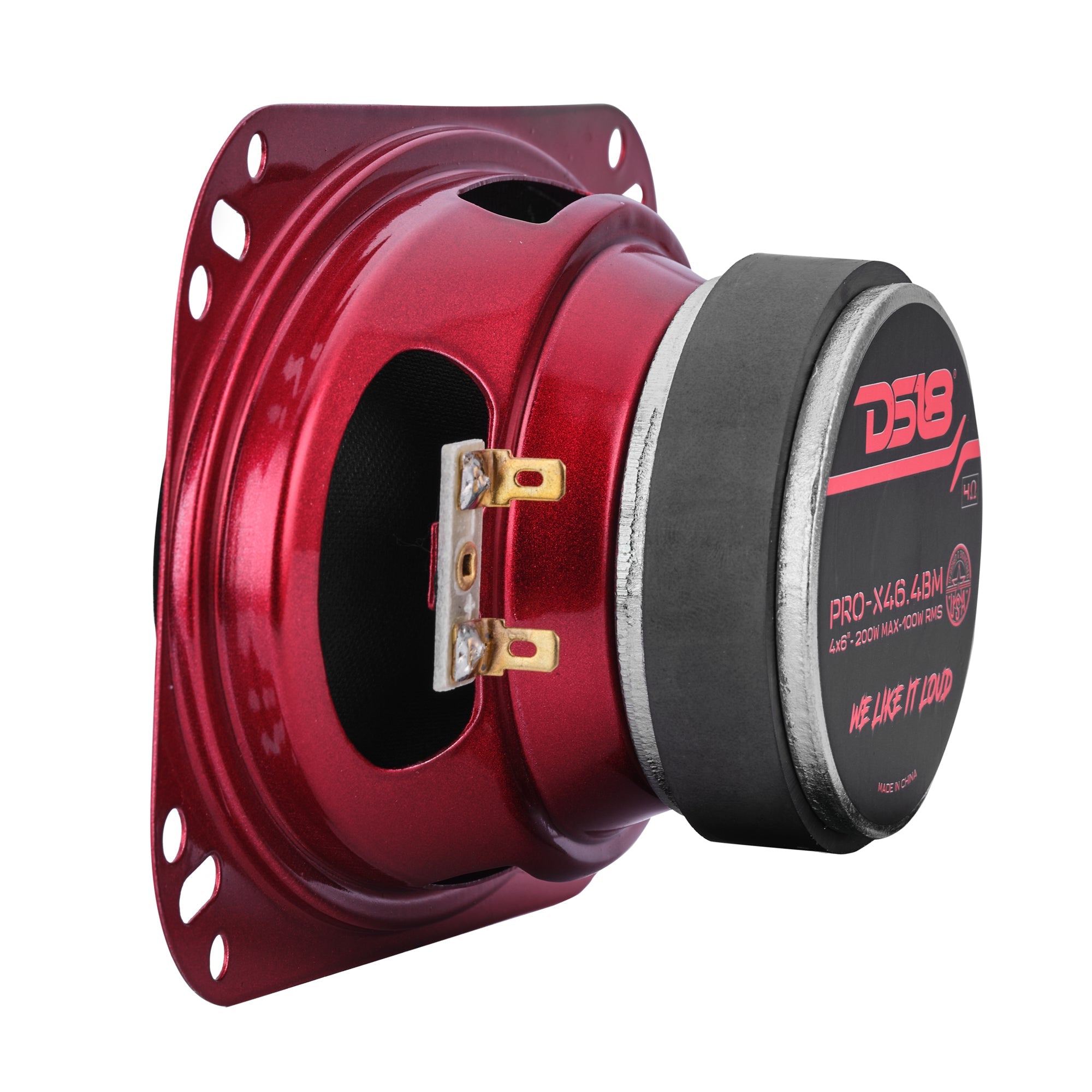

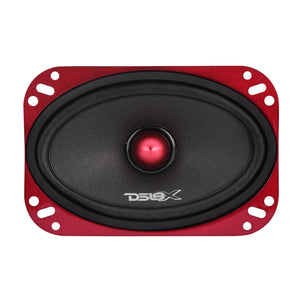

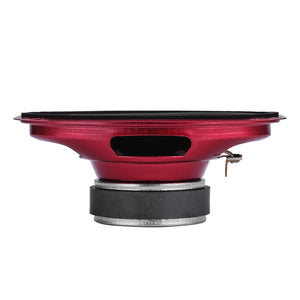

4x6” Mid-Range Loudspeaker with Bullet
DS18’s PRO-X46.4BM is a high-output 4x6” mid-range loudspeaker with a bullet bringing impressive clarity that cuts through all noise. Pushing 100W RMS and 200W MAX at 4 ohms, with 90dB sensitivity the PRO-X’s deliver blistering mids that won’t get lost in any mix!
Pro-Level Build
The built-in gloss red aluminum bullet directs audio right to your soundstage, projecting sound further and more precisely, even in open-air rides. The CCAW voice coil is wound on a Kapton former for high-heat resistance and long-lasting performance, while the ferrite magnet powers fast, punchy response.
Upgrade to the PRO-X46.4BM and let your system do the talking!
Key Features
- 4x6" Mid-Range w/Bullet
- MAX Power: 200 Watts
- RMS Power: 100 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 90dB
Specifications
| Nominal Diameter | 4x6" / 102x152mm |
|---|---|
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 100w |
| MAX Power Handling | 200w |
| Sensitivity (1w/1m) | 90dB |
| Frequency Response | 100Hz-12.5kHz |
| Recommended HI Pass Crossover | 125Hz |
| Sold in Pair or Single | Single |
| Grill Included | No |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Bullet Material | Aluminum |
| Bullet Color/Finish | Red Gloss |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Red Gloss |
| Magnet Material | Ferrite |
| Magnet Weight | 10 Oz |
| Displacement Volume | 0.14L / 0.0049ft3 |
| Equivalent Volume | 2.44L / 0.086ft3 |
| Excursion (one way) | 1.3mm |
| Free Air Resonance | 158Hz |
| Mechanical Factor | 7.012 |
| Electrical Factor | 0.533 |
| Total Factor | 0.495 |
| Mechanical Mass | 3.772g |
| Mechanical Compliance | 0.0273mm/N |
| BL Factor | 4.87 |
| Voice Coil Inductance | 0.134 mH |
| Cone Area | 84.95Cm2 |
| DC Resistance | 3.3 Ohms |

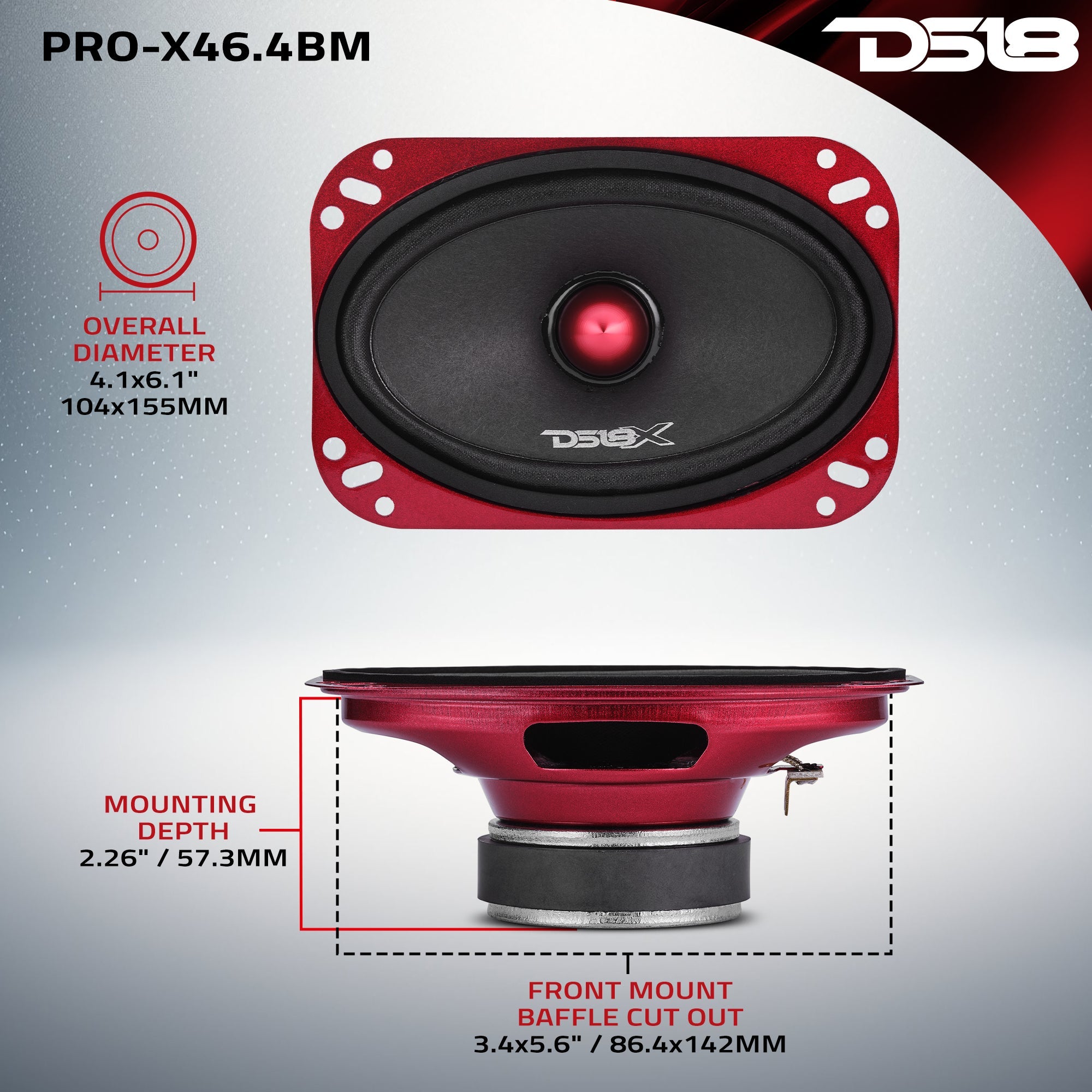

| Overall Diameter | 4.1x6.1" / 104x155mm |
| Overall Depth | 2.45" / 62.2mm |
| Front Mount Baffle Cutout | 3.4x5.6" / 86.4x142mm |
| Mounting Depth | 2.26" / 57.3mm |
| Motor Diameter | 2.76" / 70mm |
