Product Overview
6x9” Mid-Range Loudspeaker With Bullet
DS18’s PRO-X698BM brings unparalleled clarity to your car audio experience. These speakers set the gold standard for 6x9 car speaker upgrades.
DS18’s PRO-X698BM has been engineered to deliver loud and powerful music without distortion. Its superior specs allow you to feel the intensity of a live concert from the comfort of your driver's seat. With an astounding 200W RMS power handling and a peak of 400W, you can push the limits of LOUD without sacrificing your quality.

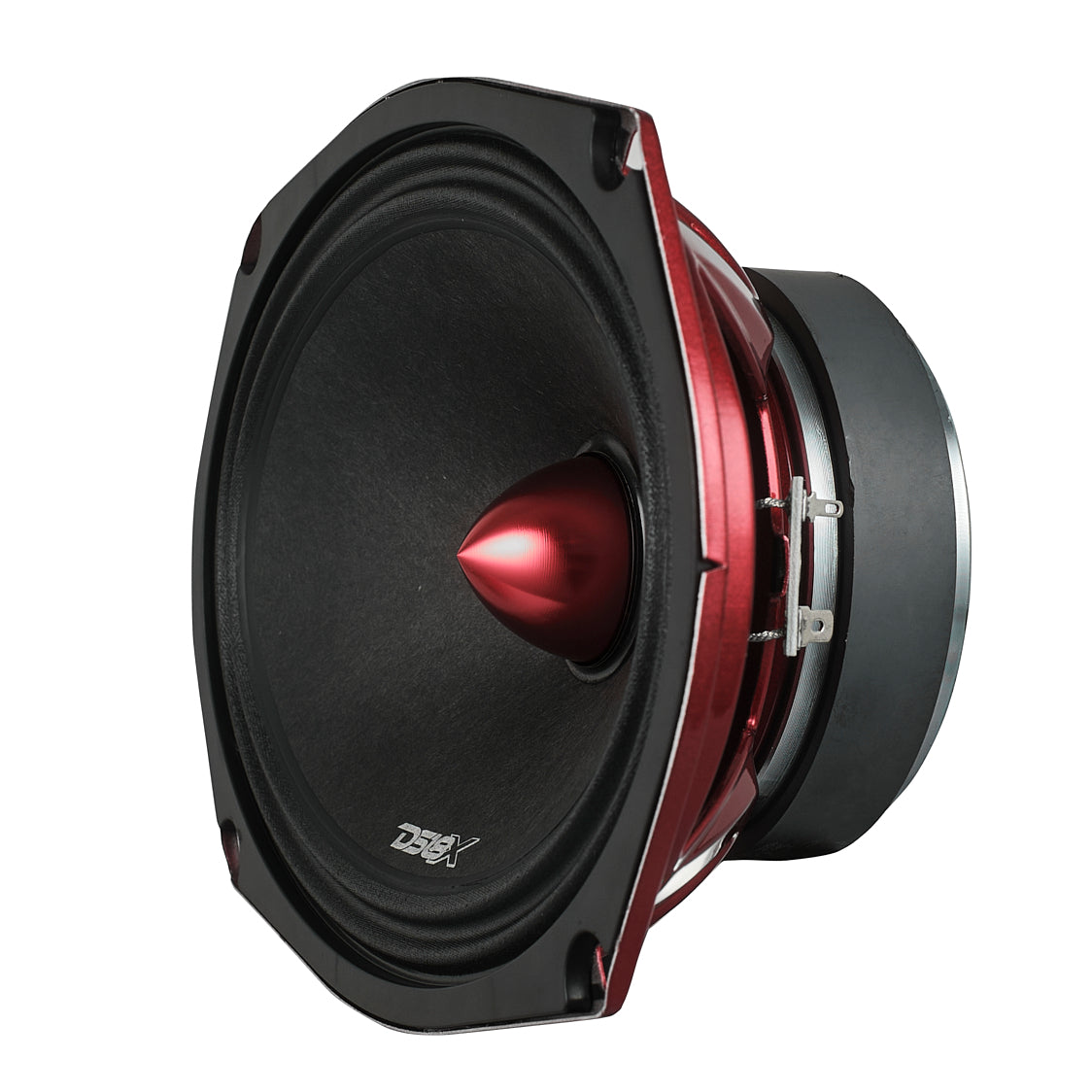

The attention to detail in construction speaks volumes; non-pressed paper cones paired with cloth surrounds are carefully housed in a steel basket, finished with a glossy red that makes a statement before the sound even hits. The included grille not only adds protection but also matches the overall design perfectly. The design features a 1.5” / 38.6mm 8 ohm voice coil made from Kapton, capable of withstanding high temperatures, guaranteeing longevity and consistent performance during the longest sessions. With a mounting depth of 3.27”, this speaker is ready to drop in on a wide range of applications.
The PRO-X698BM features a high sensitivity of 96dB, allowing it to operate efficiently by converting power into clear, audible sound without a hint of distortion—even at extreme volume levels. With a frequency response spanning from 100Hz to 12.5KHz, every note is delivered with depth.
By choosing the PRO-X698BM, you're investing in years of distortion-free audio that makes every drive unforgettable.

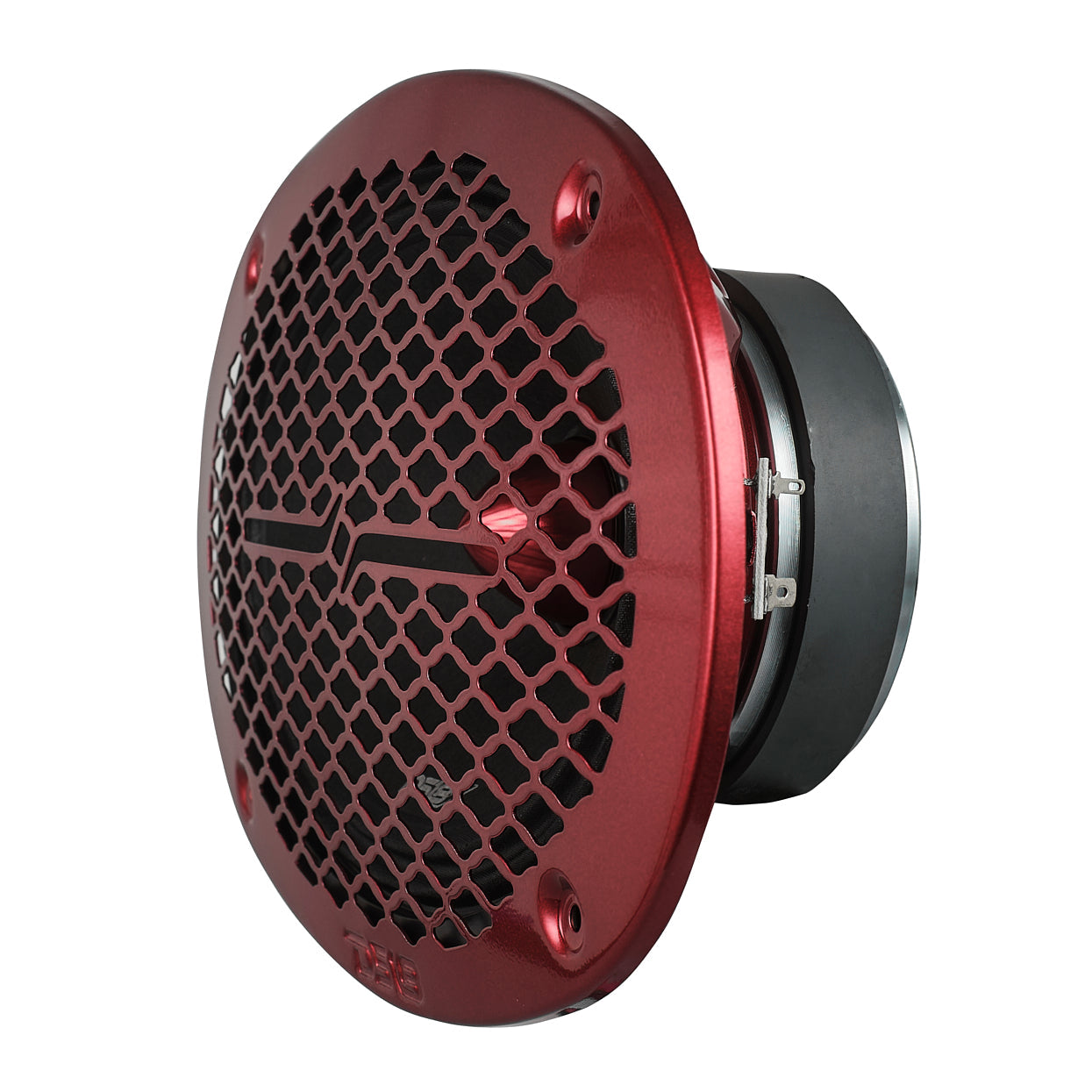

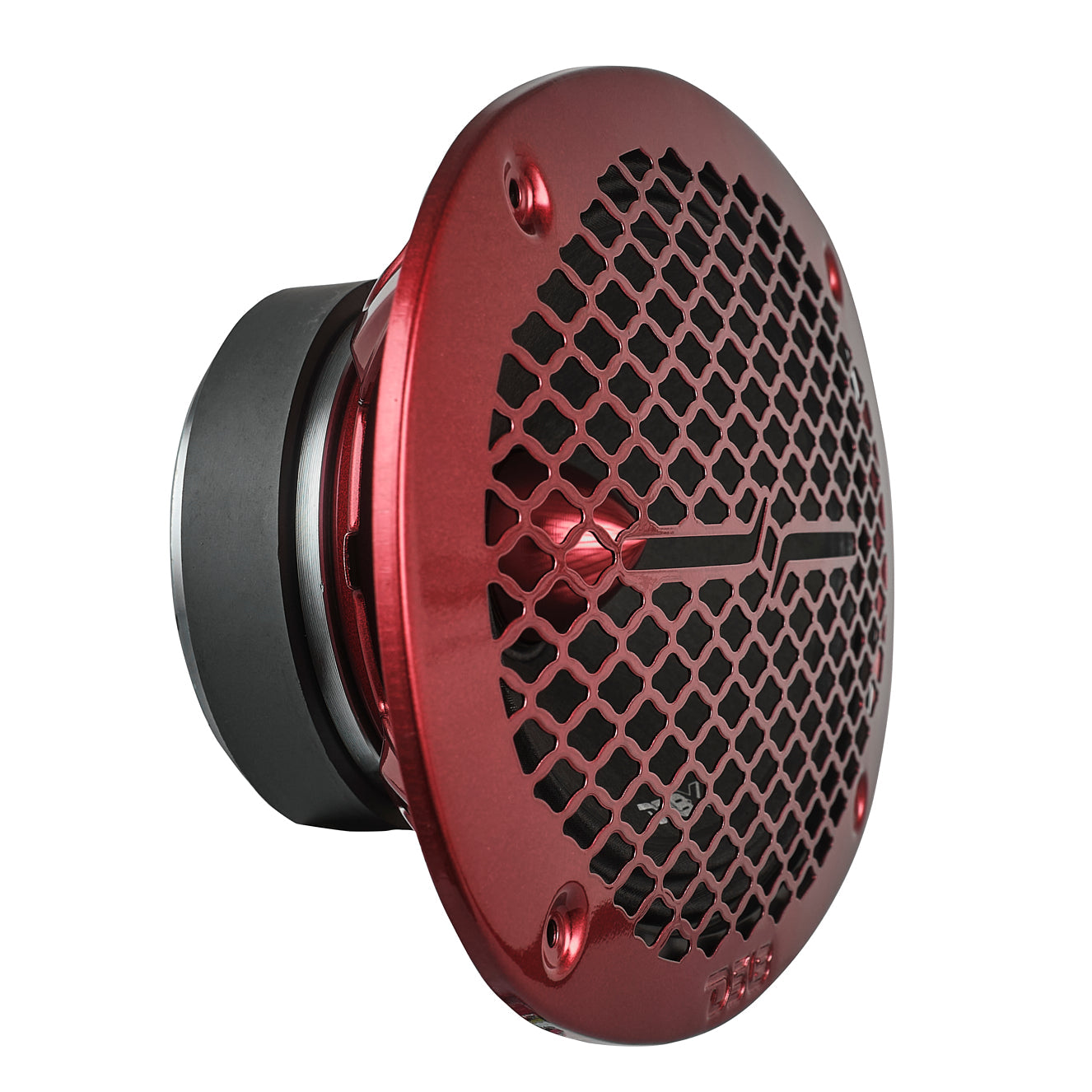

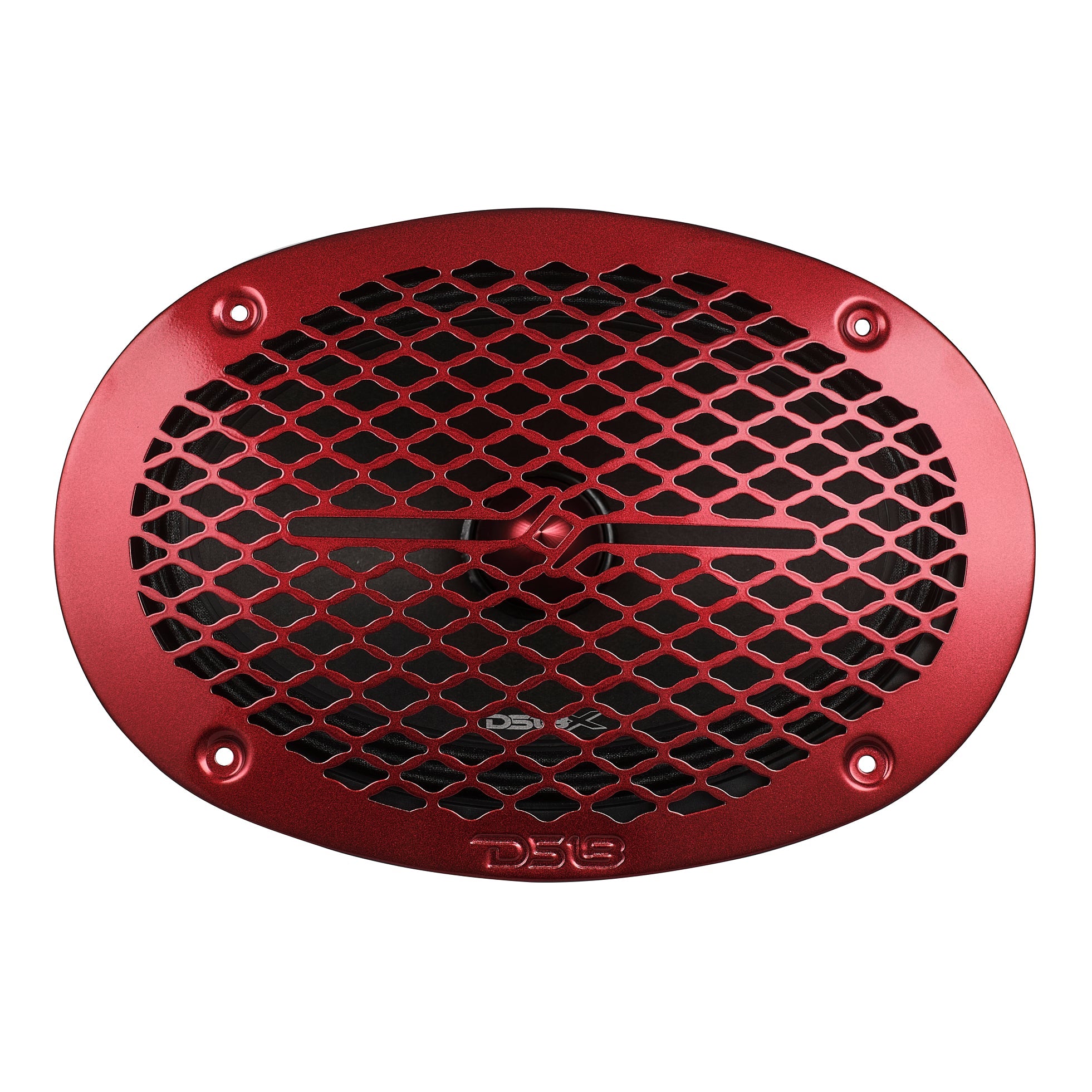

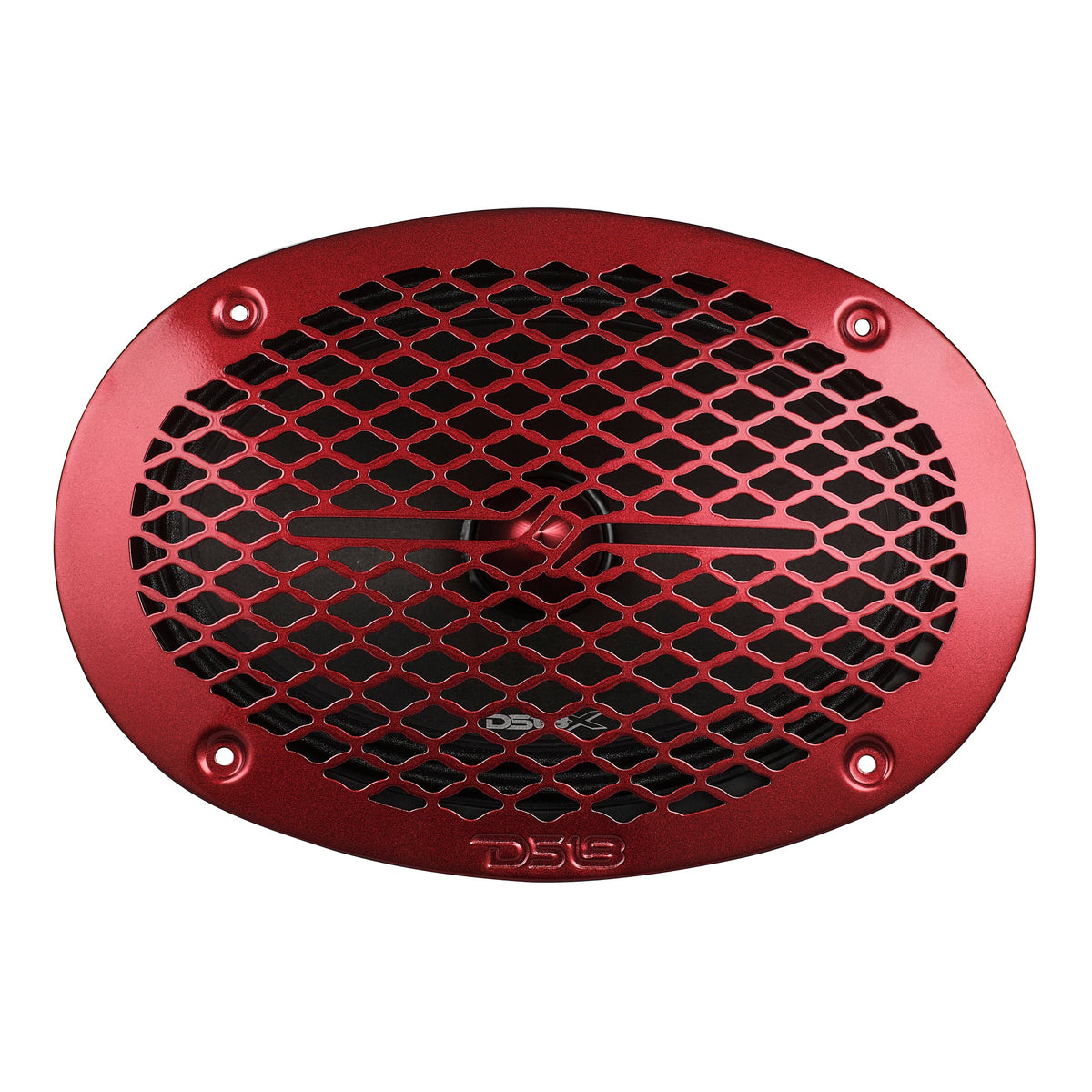

Grille Included.
Key Features
- 6x9" Mid-Range W/Bullet
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 96dB ~ w/Grill
Specifications
| SKU | PRO-X698BM |
|---|---|
| Nominal Diameter | 6 x 9" / 152 x 228mm |
| Nominal Impedance | 8 Ohm |
| RMS Power Handling | 200W |
| MAX Power Handling | 400W |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 100Hz-12.5KHz |
| Recommended HI Pass Crossover | 120HZ |
| Sold in Pair or Single | Single |
| Grill Included | Yes |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Bullet Material | Aluminum |
| Bullet Color/Finish | Glossy Red |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 27 Oz |
| Displacement Volume | 0.32L / 0.011ft3 |
| Equivalent Volume | 27.34L / 0.965ft3 |
| Excursion (one way) | 7.7mm |
| Free Air Resonance | 120Hz |
| Mechanical Factor | 5.342 |
| Electrical Factor | 0.768 |
| Total Factor | 0.687 |
| Mechanical Mass | 8.21g |
| Mechanical Compliance | 0.234mm/N |
| BL Factor | 6.84 |
| Voice Coil Inductance | 4.11mH |
| Cone Area | 207.34cm2 |
| DC Resistance | 5.2 ohms |

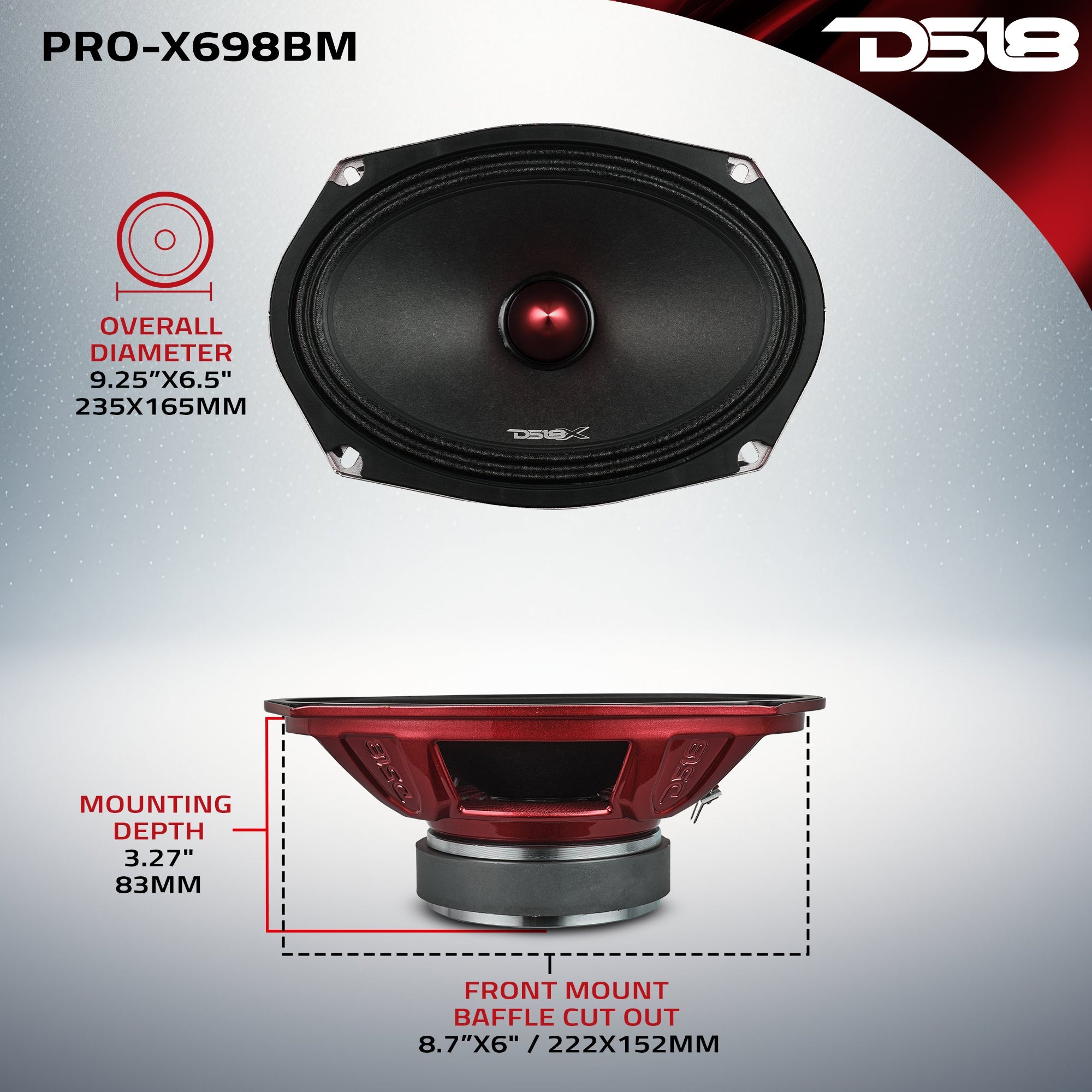

| Overall Diameter | 9.25 x 6.5" / 235 x 165mm |
| Overall Diameter With Grill | 10.2 x 7.08" / 260 x 180mm |
| Overall Depth | 3.5" / 88.85mm |
| Overall Depth With Grill | 3.9" / 100mm |
| Front Mount Baffle Cutout | 8.7 x 6" / 222 x 152mm |
| Mounting Depth | 3.27" / 83mm |
| Motor Diameter | 4.3" / 110mm |
