Product Overview

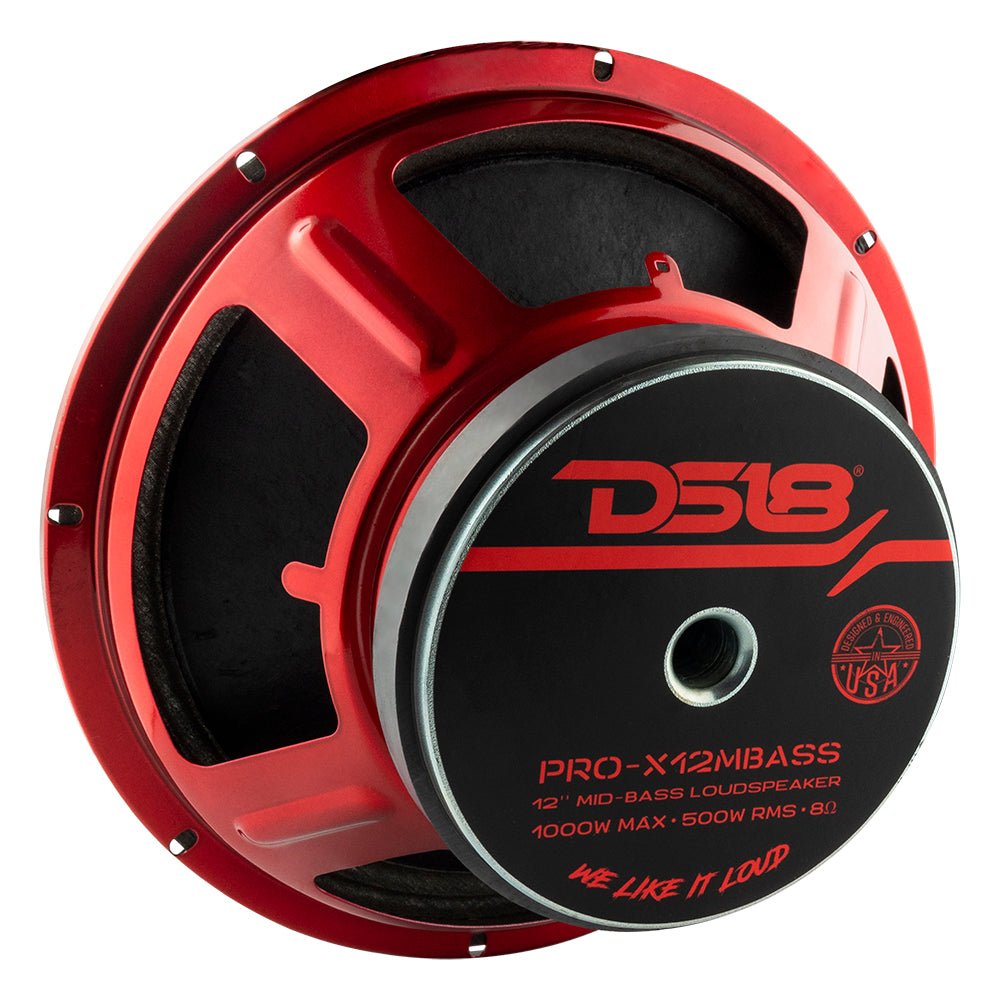

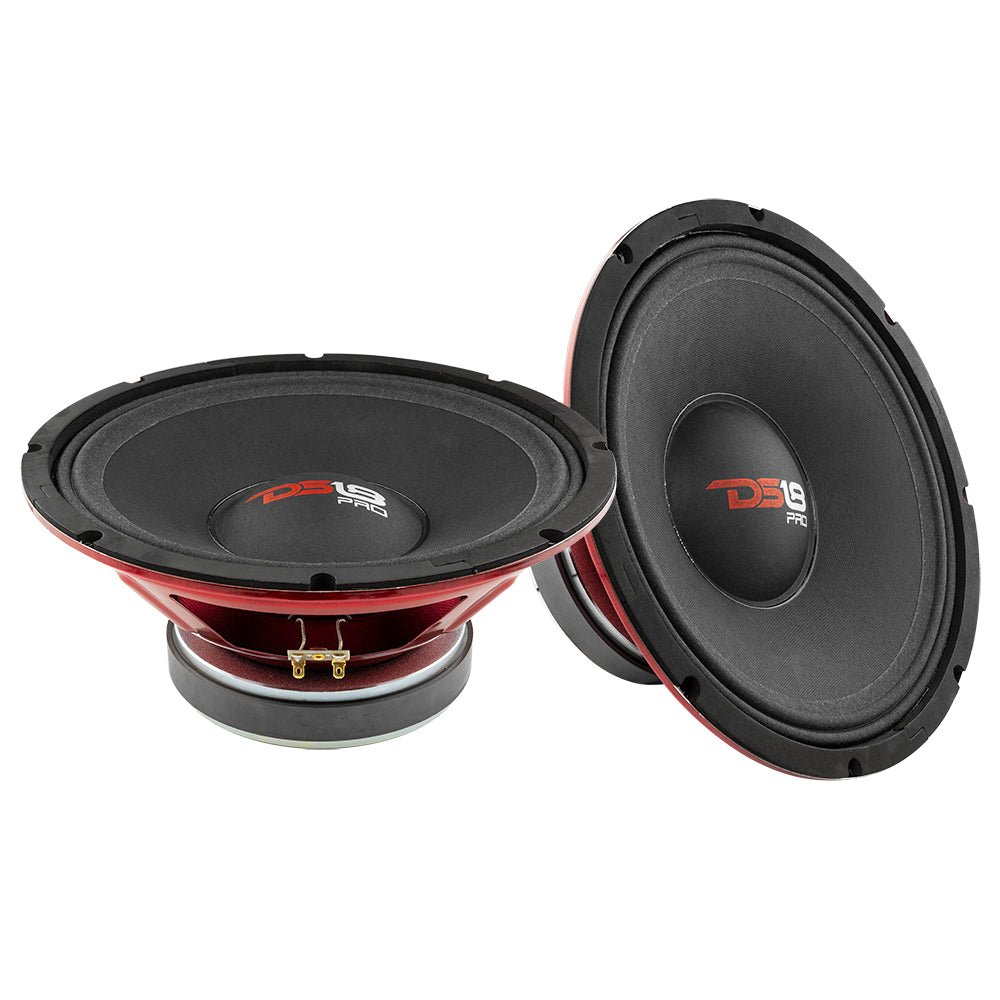

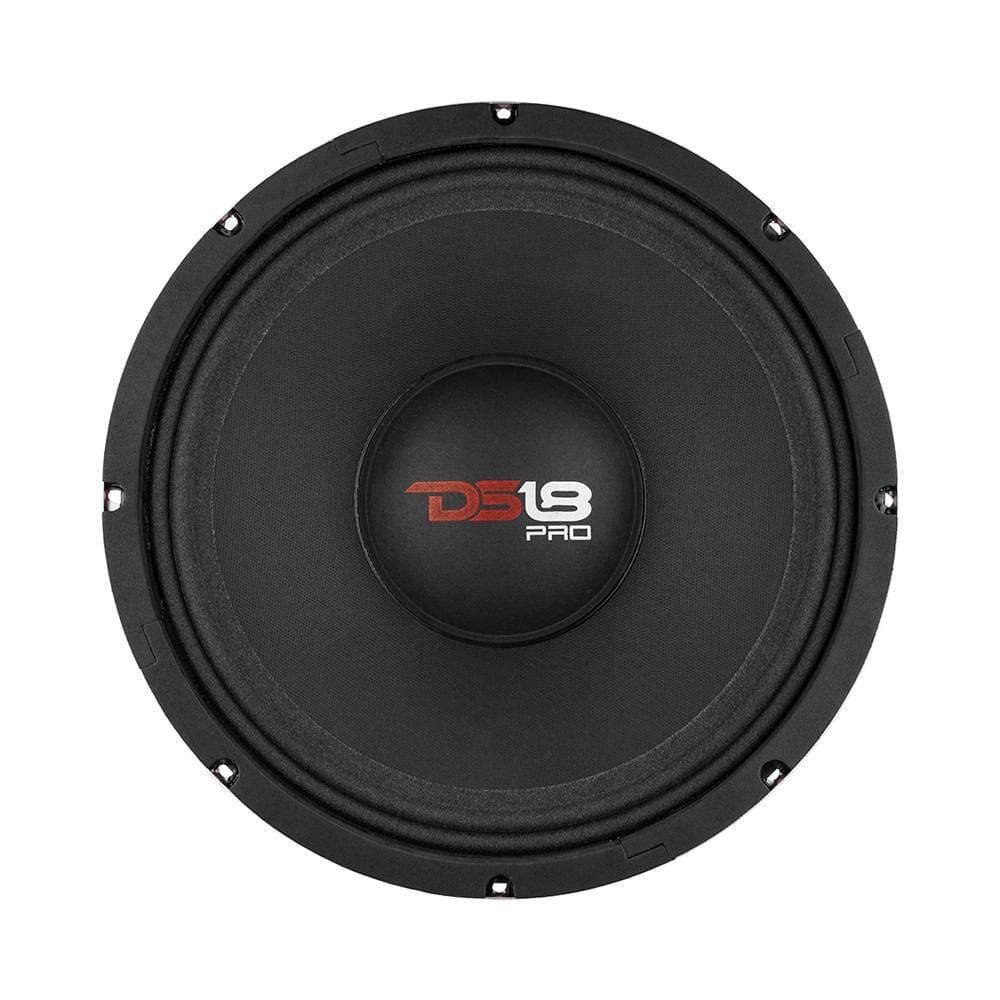

DS18 PRO-X12MBASS 12" Mid-Bass Loudspeaker 1000 Watts 8-Ohm

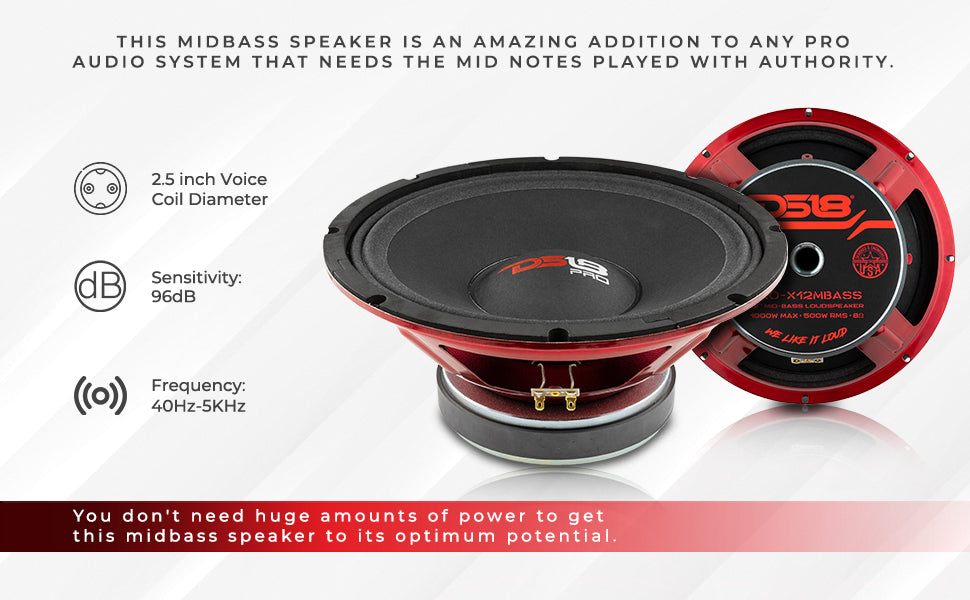

If you are needing a pro audio speaker that absolutely slays the mid-bass range then the look no further than the PRO-X12MBASS mid-bass speaker. This massive 12 not only looks amazing but powers out thumping mid-bass notes at demand. This mid-bass speaker is an amazing addition to any pro audio system that needs the mid notes played with authority.
Highlights
- Massive 12 inch design will bring out maximum punchy mid-bass.
- Large 2.5" voice coil that handles 500w RMS and 1000w peak power for sharp mid-bass.
- A 40hz-5khz frequency range gives multiple tuning options for this huge mid-bass speaker to fit your systems needs.
- With a 96db sensitivity rating, you don't need huge amounts of power to get this mid-bass speaker to its optimum potential.
Technical Details
| Nominal Diameter | 12" |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 500W |
| MAX Power Handling | 1000W |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 40Hz-5KHz |
| Recommended Hi Pass Crossover | 60 Hz |
| Pair or Single | Single |
| Grill Included | No |
| MOTOR | |
| Voice Coil Diameter | 2.5 |
| Voice Coil Former Material | KSV |
| Winding Material | SV |
| Cone Material | Paper |
| Dustcap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 65oz |
| Displacement Volume | 0.55L |
| MEASUREMENTS | |
| Overall Diameter | 12.12 |
| Overall Depth | 5.19 |
| Front Mount Baffle Cutout | 10.9 |
| Mounting Depth | 4.88 |
| Motor Diameter | 6.69" |
Key Features
- 12" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 96dB
Specifications
| SKU | PRO-X12MBASS |
|---|---|
| Nominal Diameter | 12" / 304.8mm |
| Nominal Impedance | 8 ohms |
| RMS Power Handing | 500 Watts |
| Maximum Power Handing | 1000 Watts |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 40Hz - 5KHz |
| Recommended Hi Pass Crossover | 60 Hz |
| Voice Coil Diameter | 2.5" / 63.5mm |
| Voice Coil Former Material | KAPTON |
| Winding Material | CCA + SV |
| Basket Material | Steel |
| Magnet Weight | 65 Oz |
| Vas | 70.5L / 2.49ft3 |
| Xmax | 12.3mm |
| Fs | 54Hz |
| Qms | 10.01 |
| Qes | 0.474 |
| Qts | 0.453 |
| Re | 5.2 ohms |

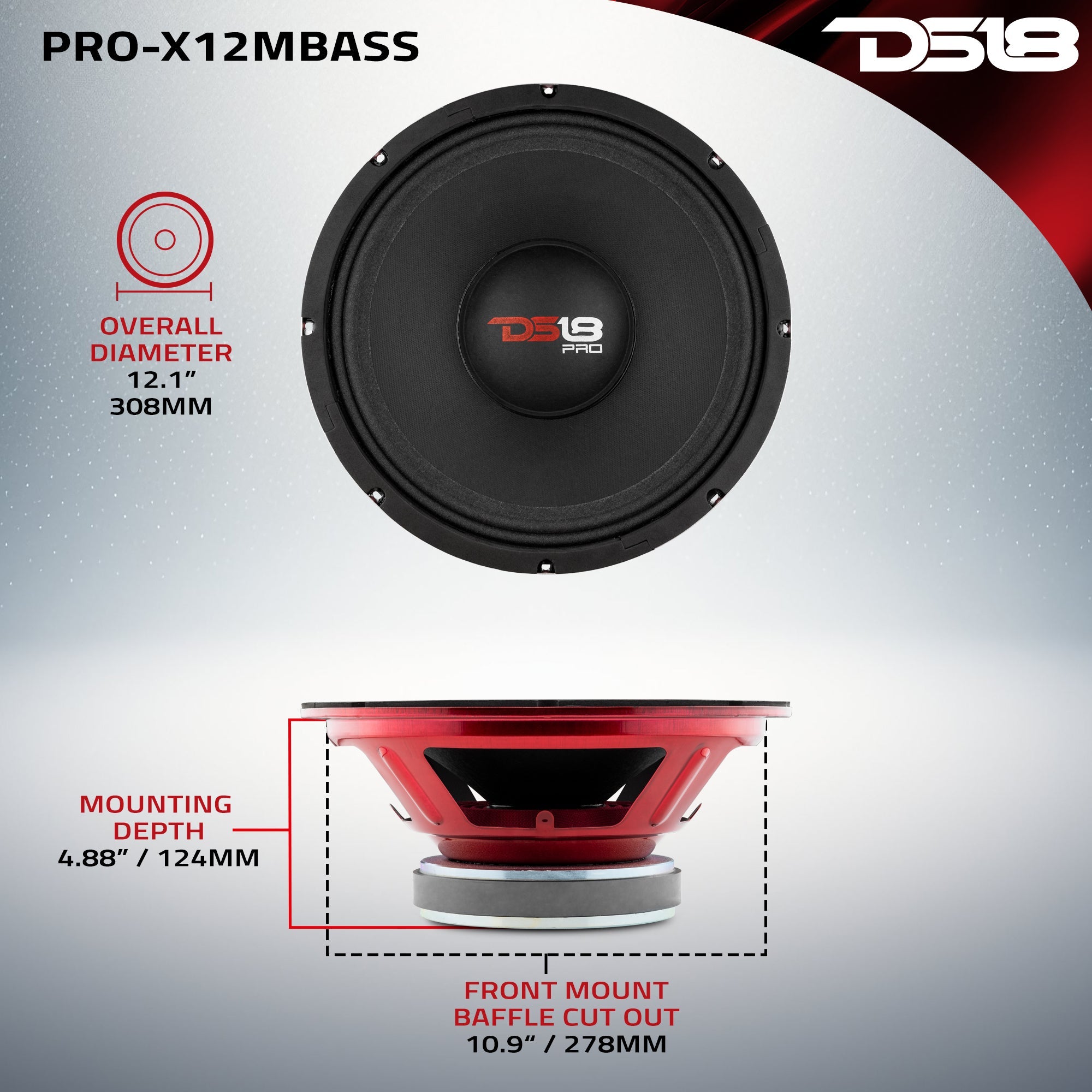

| Overall Diameter | 12.1" / 308mm |
| Front Mount Baffle Cutout | 10.9" / 278mm |
| Mounting Depth | 4.88" / 124mm |
| Overall Depth | 5.19" / 132mm |
| Product Weight | 13 lbs |
| Product Dimensions | 13.25 x 13.25 x 6.25 |
| M/C Weight | 28 lbs |
| M/C Dimensions | 14 x 14 x 13.25 |
| M/C QTY | 2 |
| Sold In | Single |
