2.3" Neodymium Super Bullet Tweeter with 1" Aluminum Voice Coil & Digital LED Lights
Product Overview DS18 PRO-TW7LD2.3" Neodymium Super Bullet Tweeter with 1" Aluminum Voice Coil & Digital LED Lighting...
- $99.95
- $99.95
- Unit price
- per
Subtotal:
$99.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 PRO-TW7LD
2.3" Neodymium Super Bullet Tweeter with 1" Aluminum Voice Coil & Digital LED Lighting
DS18’s PRO-TW7LD is the pinnacle of audio performance: this 2.3" neodymium super bullet tweeter is engineered for pitch perfect high-frequency clarity.
Crystal-Clear Highs
The PRO-TW7LD delivers distortion-free highs thanks to its robust 1-inch aluminum voice coil tuned at 4-ohms. With a high sensitivity of 102dB, this tweeter cuts through noise effortlessly, for crisp, powerful sound that stands out in any venue.
High-Performance Neodymium Magnet
Powered by a premium neodymium magnet, the PRO-TW7LD maximizes efficiency while maintaining lightweight durability. With handling up to 50W AES power, 100W RMS power, and 200W peak power: this tweeter delivers relentless performance without compromise.
Dynamic Digital LED Lighting
Illuminate your audio setup with integrated digital RGB LED lighting, adding a customizable visual flair to match your style. The transparent polycarbonate bullet design not only enhances durability but also creates a striking visual effect, making your system both sound and look outstanding. Pair with the optional LC-DRM module (sold separately) to curate a lighting setup that matches your vibe.
Compact & Versatile
Designed for seamless integration, the PRO-TW7LD features a compact mounting depth and pre-wired LED input, making installation quick and hassle-free across multiple setups. Upgrade your car, motorcycle, or custom build with this high SPL tweeter for guaranteed power and precision.
Take your sound system to the next level with the DS18 PRO-TW7LD.
Key Features
- 2.3" Super Bullet Tweeter
- MAX Power: 200 Watts
- RMS Power: 100 Watts
- Impedance: 4 Ohm - 102dB
- High-Performance Neodymium Magnet ~ Single
- Digital LED Lights with Transparent Polycarbonate Body
Specifications
| SKU | PRO-TW7LD |
|---|---|
| Nominal Diameter | 2.3" / 58.4mm |
| Nominal Impedance | 4 ohm |
| AES Power Handling | 50W |
| Program Power Handling | 100W |
| Peak Power Handling | 200W |
| Sensitivity (1w/1m) | 102 dB |
| Frequency Response | 4K - 20KHz |
| Recommended Hi Pass Crossover | 4Khz |
| Pair or Single | Single |
| Body Material | Transparent Polycarbonate |
| Body Color / Finish | Translucid LED Illuminated |
| Bullet Material | Transparent Polycarbonate |
| Digital LED Integrated | YES with 3.2ft input Wire |
| Digital LED Chip Type | 1815S |
| Digital LED Connection Type | Addressable 12VDC |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCA |
| Diaphragm Material | Aluminum |
| Magnet Material | Neodymium |

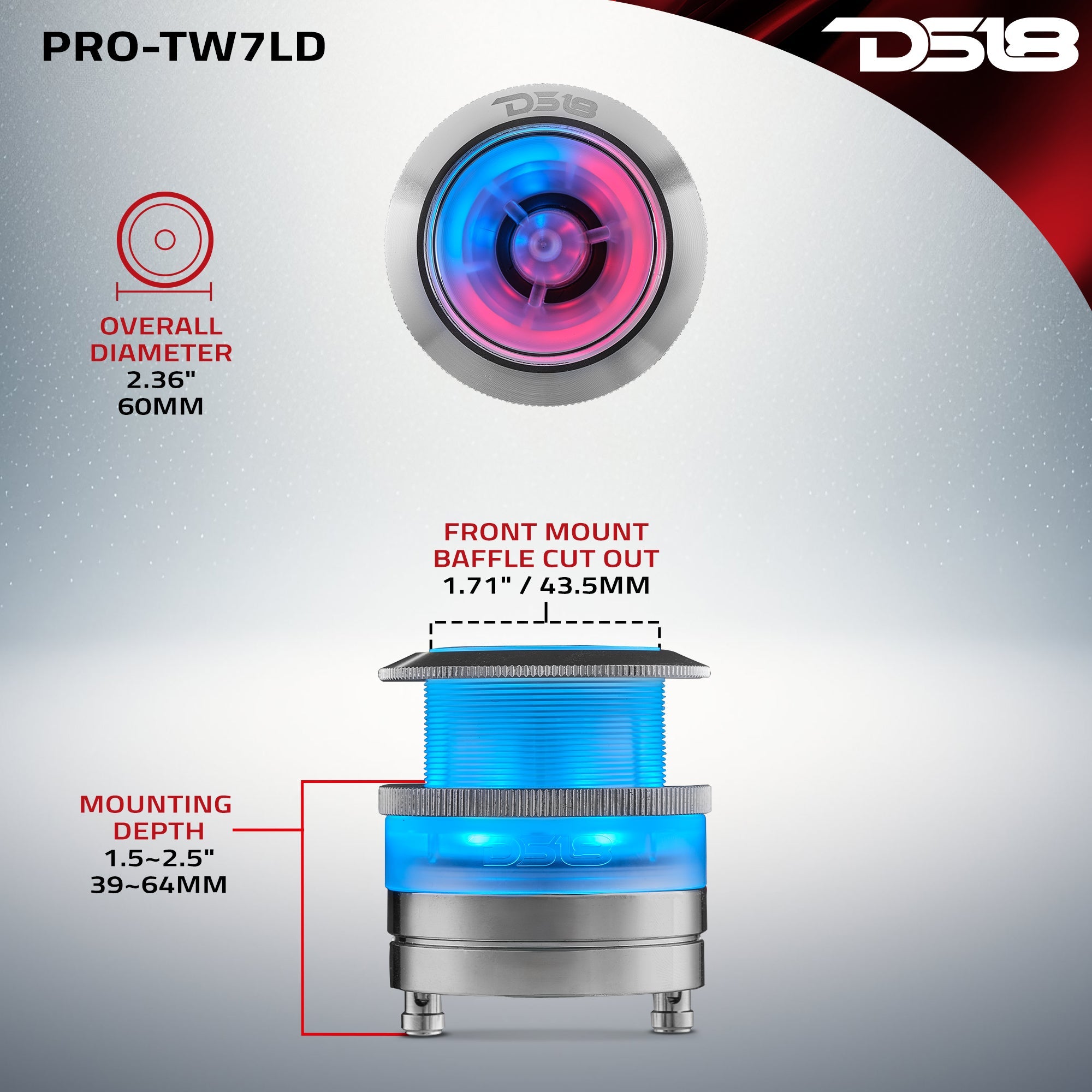

| Overall Diameter | 2.36" / 60mm |
| Overall Depth | 2.72" / 69.2mm |
| Front Mount Baffle Cutout | 1.71" / 43.5mm |
| Mounting Depth | 1.5~2.5" / 39~64mm |
| Magnet Diameter | 2.28" / 58mm |
