3.8” Super Bullet Tweeter with 1” Aluminum Voice Coil & Digital LED Lights
3.8” Super Bullet Tweeter with 1” Aluminum Voice Coil & Digital LED Lights
Product Overview
DS18 PRO-TW1LD
3.8” Super Bullet Tweeter with 1” Aluminum Voice Coil & Digital LED Lighting
DS18’s PRO-TW1LD is the custom audio upgrade your setup has been waiting for: this 3.8-inch super bullet tweeter combines high SPL performance with digital style. Engineered for crisp, distortion-free highs, the PRO-TW1LD is perfect for any vehicle.
Perfect Performance
At the heart of this high-frequency tweeter is a 1-inch aluminum voice coil tuned at 4-ohms. With a sensitivity of 103dB, it delivers insanely sharp sound, even at high volumes. The ferrite magnet tweeter uses Y30 material to maintain strong, stable performance, during intense audio sessions.
Built for Power & Durability
Built to handle high SPL applications with ease, this durable yet lightweight tweeter features a transparent polycarbonate bullet design and can manage up to 60W AES, 120W RMS, and 240W peak power. The Kapton voice coil former enhances heat resistance and durability, ensuring long-lasting performance.
Show-Stopping Digital LED Lighting
What sets DS18’s PRO-TW1LD apart is its integrated Digital LED lighting. With customizable lighting that makes your setup sound and look incredible.
Perfect for Any Vehicle
Ideal for car audio systems, motorcycles, and powersports vehicles, DS18’s PRO-TW1LD is a statement to quality and style. Easy installation is guaranteed thanks to its compact size and pre-wired LED input, allowing you to easily integrate this high-frequency beast into any custom build.
Upgrade today and experience superior sound with DS18’s PRO-TW1LD!
Key Features
- 3.8" Super Bullet Tweeter
- MAX Power: 240 Watts
- RMS Power: 120 Watts
- Impedance: 4 Ohm - 103dB
- Ferrite Magnet ~ Pair
- Digital LED Lights with Transparent Polycarbonate Body
Specifications
| SKU | PRO-TW1LD |
|---|---|
| Nominal Diameter | 3.8" / 96.5mm |
| Nominal Impedance | 4 ohm |
| AES Power Handling | 60W |
| Program Power Handling | 120W |
| Peak Power Handling | 240W |
| Sensitivity (1w/1m) | 103 dB |
| Frequency Response | 3.5K - 20KHz |
| Recommended Hi Pass Crossover | 4KHz |
| Sold in | Pairs |
| Body Material | Transparent Polycarbonate |
| Body Color / Finish | Translucid LED Illuminated |
| Bullet Material | Transparent Polycarbonate |
| Digital LED Integrated | YES with 3.2ft input Wire |
| Digital LED Chip Type | 1815S |
| Digital LED Connection Type | Addressable 12VDC |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCA |
| Diaphragm Material | Aluminum |
| Magnet Material | Ferrite Y30 |
| Magnet Weight | 8 Oz |

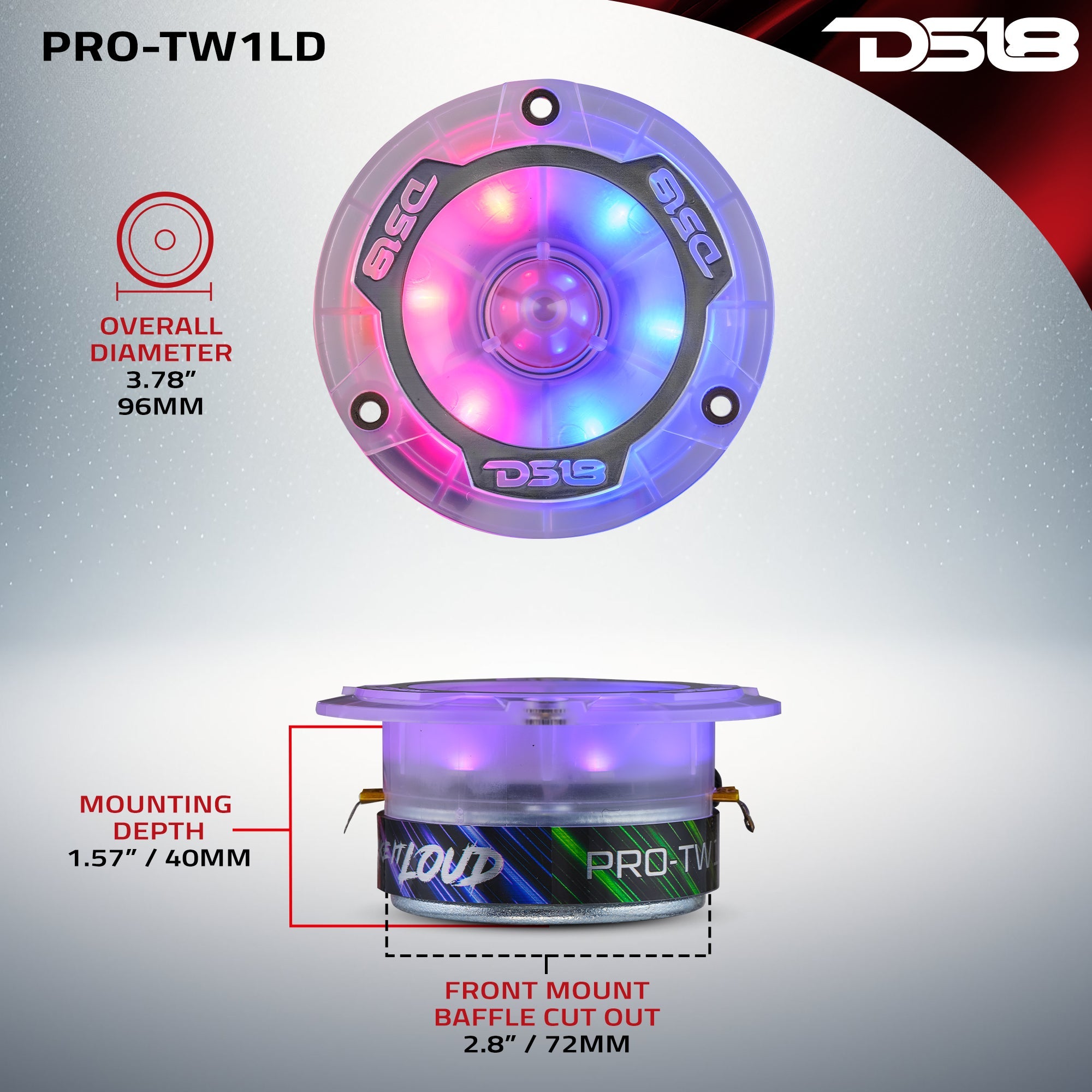

| Overall Diameter | 3.78" / 96mm |
| Overall Depth | 1.78" / 45mm |
| Front Mount Baffle Cutout | 2.8" / 72mm |
| Mounting Depth | 1.57" / 40mm |
| Magnet Diameter | 2.76" / 70mm |
