PRO 6.5" Slim Mid-Range Loudspeaker with Water-Resistant Cone | 200W RMS 4-Ohm
PRO 6.5" Slim Mid-Range Loudspeaker with Water-Resistant Cone | 200W RMS 4-Ohm
Product Overview
DS18 PRO-SM6.4
6.5" Shallow Water-Resistant Midrange Loudspeaker | 400W MAX | 4Ω
Our PRO-SM6.4 cuts through all noise in motorcycle, side-by-side, or outdoor applications! This shallow-mount 6.5” speaker can handle any ride and sound amazing doing it.
Own The Streets
Rated at 200W RMS / 400W MAX and tuned for 80Hz–14KHz, the PRO-SM6.4 balances punch and clarity insanely well. A sensitivity rating of 95dB ensures high output on any rides. Its 4-ohm single voice coil gives you flexible setup options across stock and custom installs.
Weather-Resistant Performance
The PRO-SM6.4’s water-resistant paper cone and coated dust cap ensure reliable operation when riding in harsh environments. Its coated cloth surround improves accuracy and durability over time, while the gloss red steel basket keeps it secured and stylish.
Easy Install

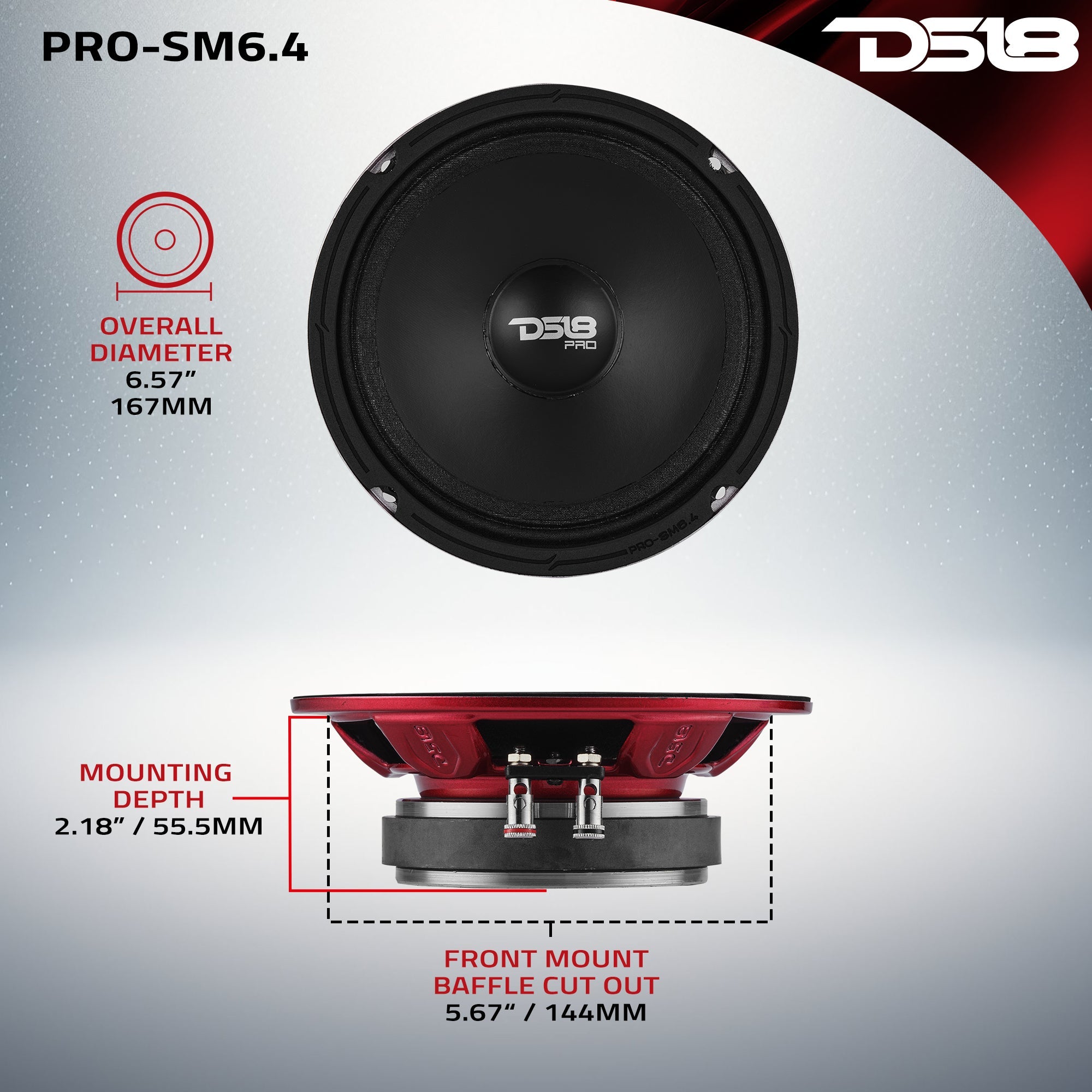

With a compact 2.18” mounting depth and 5.67” cutout diameter, this speaker is the ideal drop-in for riders looking to upgrade without complicated modifications.
Upgrade to the PRO-SM6.4 and experience what outdoor audio should sound like!
Key Features
- 6.5” Shallow Midrange Speaker (400W MAX / 200W RMS)
- Water-Resistant Cone & Dust Cap
- 4-Ohm Impedance
- 95dB Sensitivity
- Slim 2.18” Mounting Depth
- 1.5” Kapton Voice Coil with 20oz Ferrite Magnet
Specifications
| SKU | PRO-SM6.4 |
|---|---|
| Nominal Diameter | 6.5” / 165.1mm |
| Nominal Impedance | 4-Ohm |
| RMS Power Handling | 200 Watts |
| MAX Power Handling | 400 Watts |
| Sensitivity (1w/1m) | 95 dB |
| Frequency Response | 80Hz-14KHz |
| Recommended Hi Pass Crossover | 180 Hz |
| Voice Coil Diameter | 1.5” / 38.1 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Water Resistant Paper |
| Dust Cap Material | Water Resistant |
| Surround Material | Coated Cloth |
| Basket Material | Steel |
| Basket Color | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 20 Oz |
| Equivalent Volume | 3.9L / 0.137ft3 |
| Excursion (one way) | 8 mm |
| Free Air Resonance | 190 Hz |
| Mechanical Factor | 9.745 |
| Electrical Factor | 1.586 |
| Total Factor | 1.321 |
| Mechanical Mass | 6.080g |
| Mechanical Compliance | 0.134mm/N |
| BL Factor | 3.02 |
| Voice Coil Inductance | 0.36mH |
| Cone Area | 140.95cm2 |
| DC Resistance | 3.2 Ohms |
| Overall Diameter | 6.5” / 165mm |
| Overall Depth | 2.32” / 59 mm |
| Front Mount Baffle Cutout | 5.67“ / 144 mm |
| Mounting Depth | 2.12” / 54 mm |
| Motor Diameter | 4.33" / 110 mm |
