PRO-X 6.5" Mid-Range Loudspeaker with Bullet | 250W RMS 4-Ohm

Mids that cut through road noise. The DS18 PRO-X6.4BM is a 6.5" pro audio midrange with a bullet, built to play loud and clear in cars, trucks, bikes and competition builds.

For anyone stepping up from coaxials to a loud, high-efficiency front stage. The 1.5" Kapton voice coil handles heat over long sessions, and the steel basket with a 30 oz magnet is built to last. Run it on an amp with a high pass around 140Hz and pair it with tweeters and subs. Sold per piece.

Key Specs

• Size: 6.5" / 165mm midrange with bullet
• Power: 250W RMS / 500W max
• Impedance: 4 ohms; Re 3.3 ohms
• Sensitivity: 95dB 1w/1m on the spec sheet (DS18 feature list says 96dB)
• Frequency response: 100Hz - 10KHz; recommended HPF: 140Hz
• Voice coil: 1.5" / 38.6mm Kapton, CCAW winding
• Steel basket; ferrite magnet, 30 oz
• T/S: Vas 2.64 L / 0.093 ft3, Xmax 8.2mm, Fs 180Hz, Qms 7.82, Qes 0.65, Qts 0.6

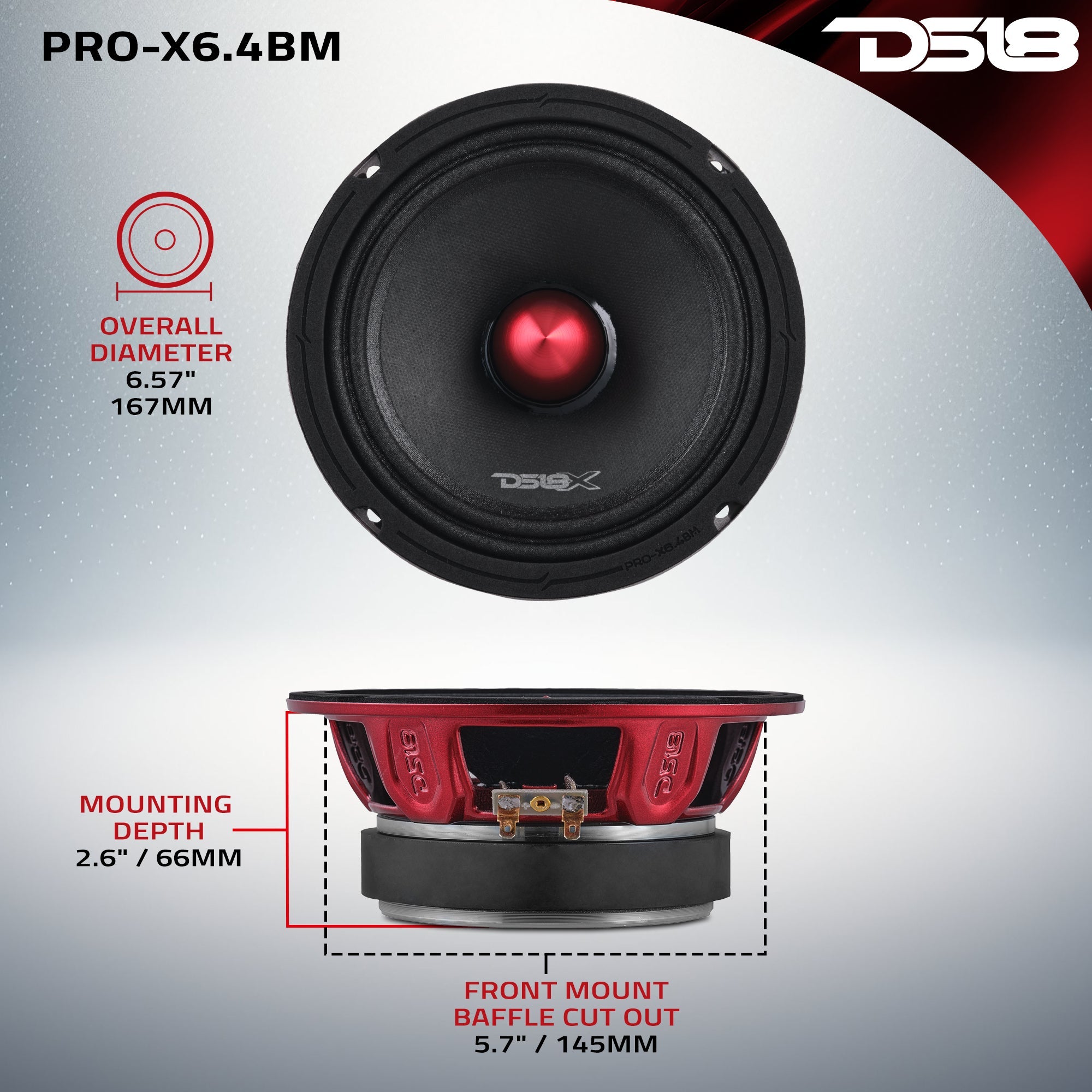

• Overall diameter 6.57" / 167mm; cutout 5.7" / 145mm; mounting depth 2.58" / 65.5mm; overall depth 2.8" / 71.3mm
• Product weight 5.14 lbs; dimensions 7.25 x 7.25 x 3.25

Download the DS18 product manual (PDF)

Want it installed? Our Haslet, TX shop does professional installs and custom enclosures for DFW, Fort Worth, Keller and Denton.
