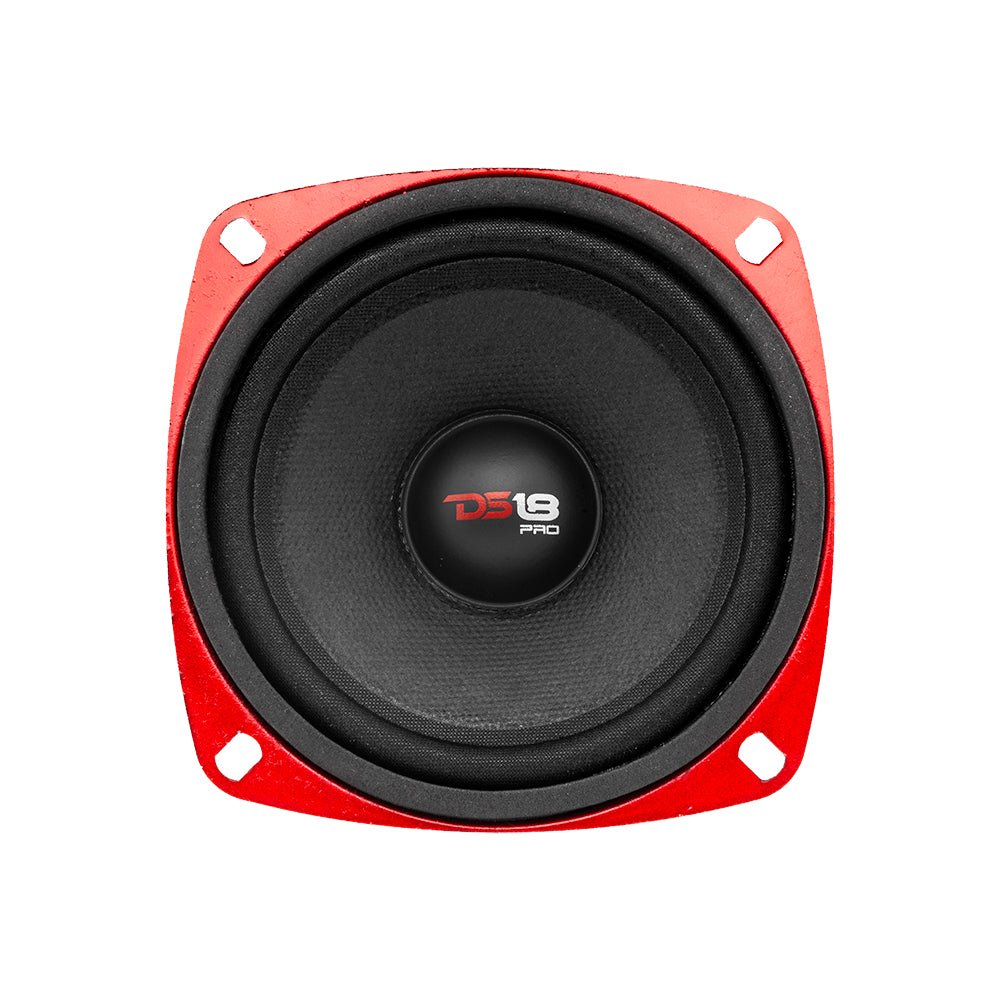

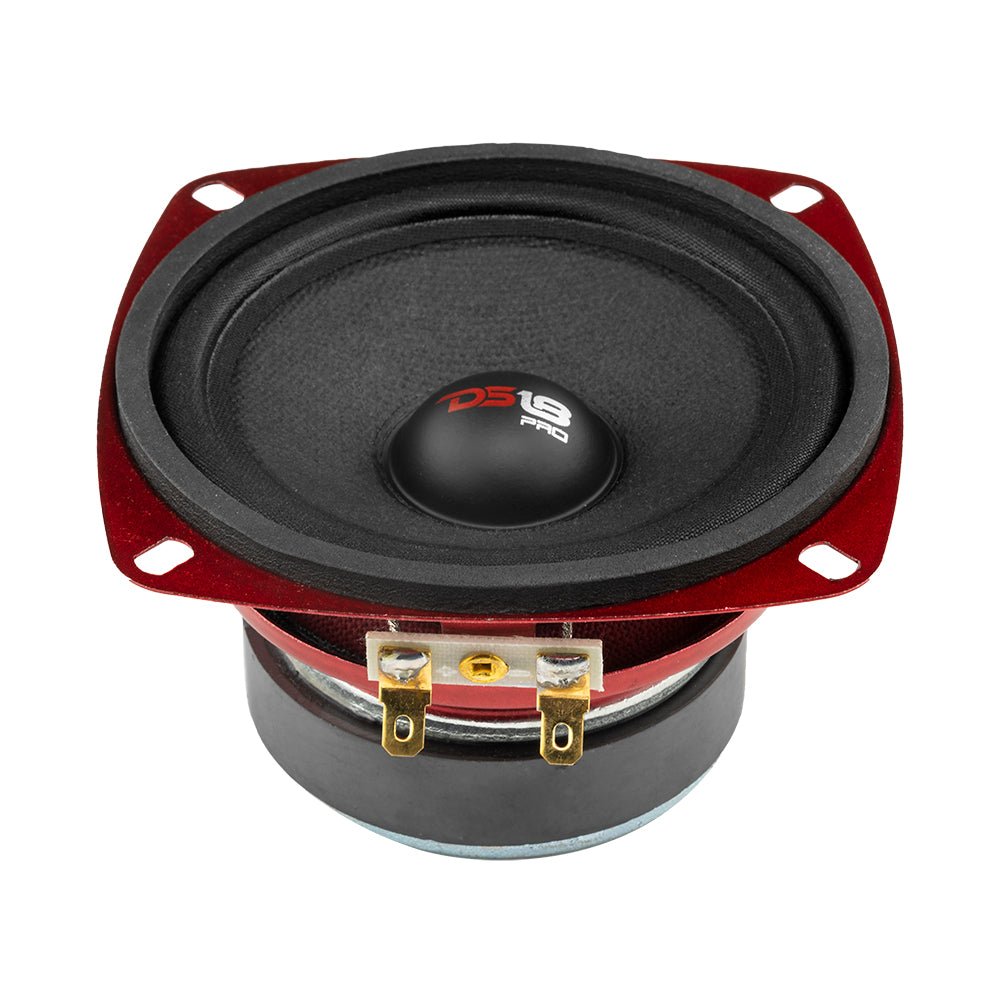

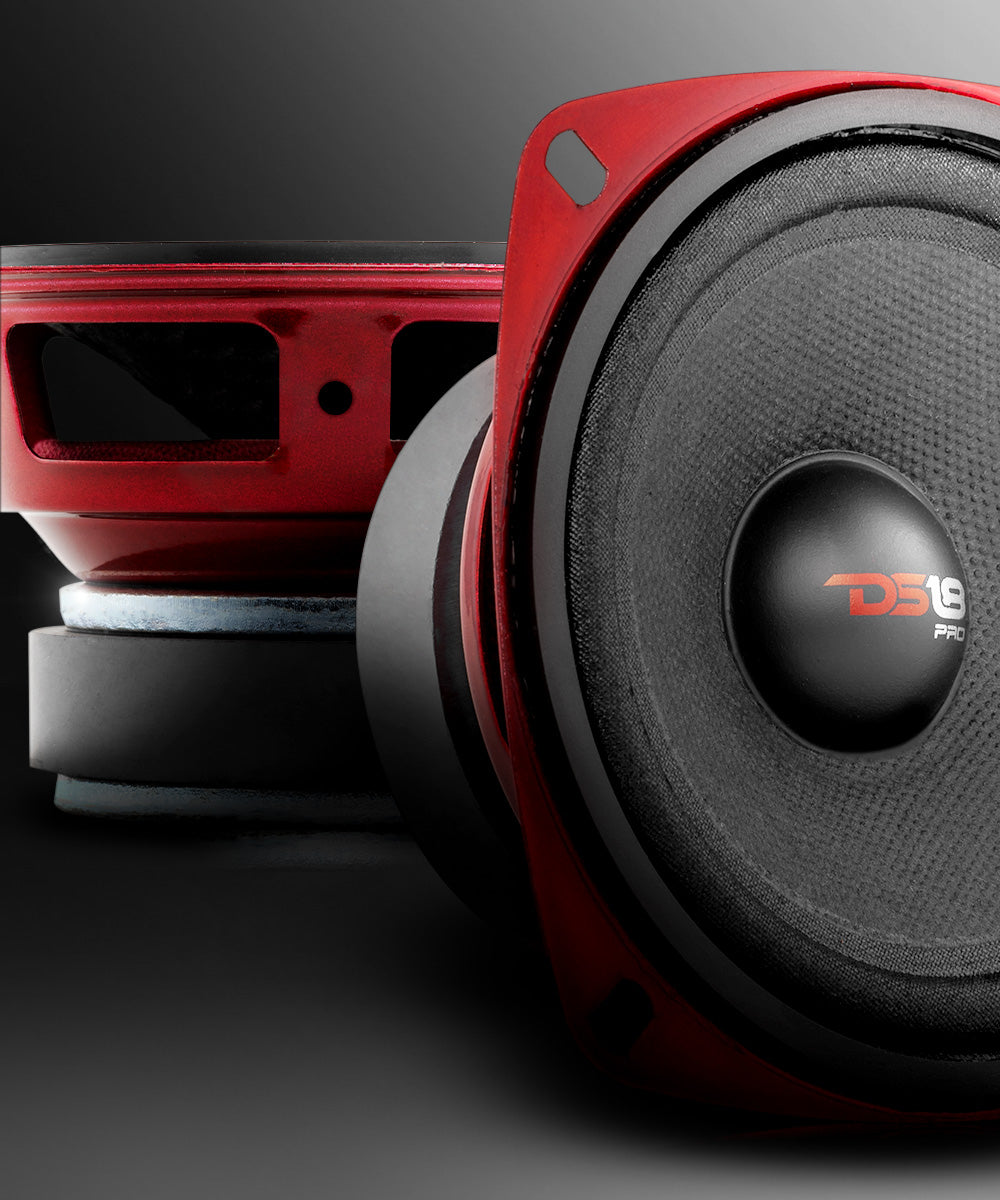

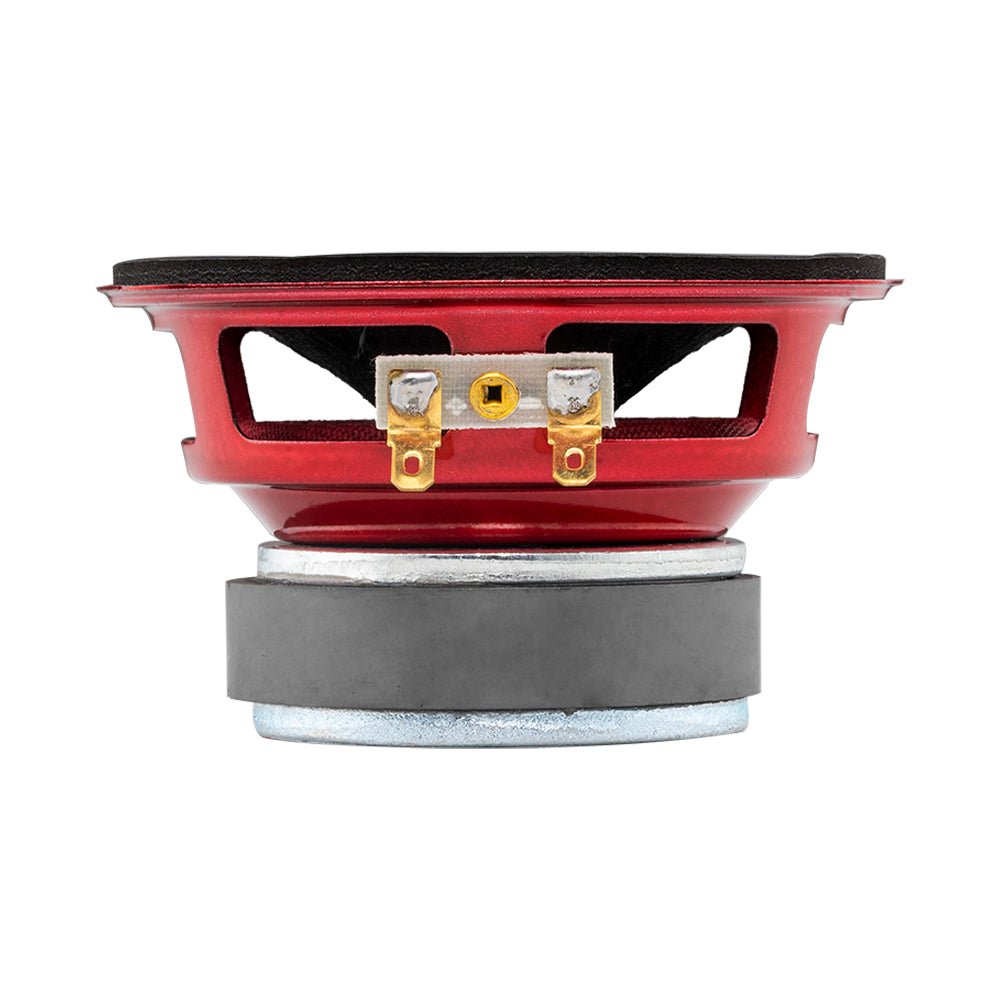

PRO-X 4" Mid-Range Loudspeaker 100 Watts Rms 8-Ohm
Product Overview DS18 PRO-X4M – 4” Mid-Range Loudspeaker – 100 Watts 8-Ohms Loud & Powerful Music, Without Distortion With...
- $37.95
- $37.95
- Unit price
- per
Subtotal:
$37.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

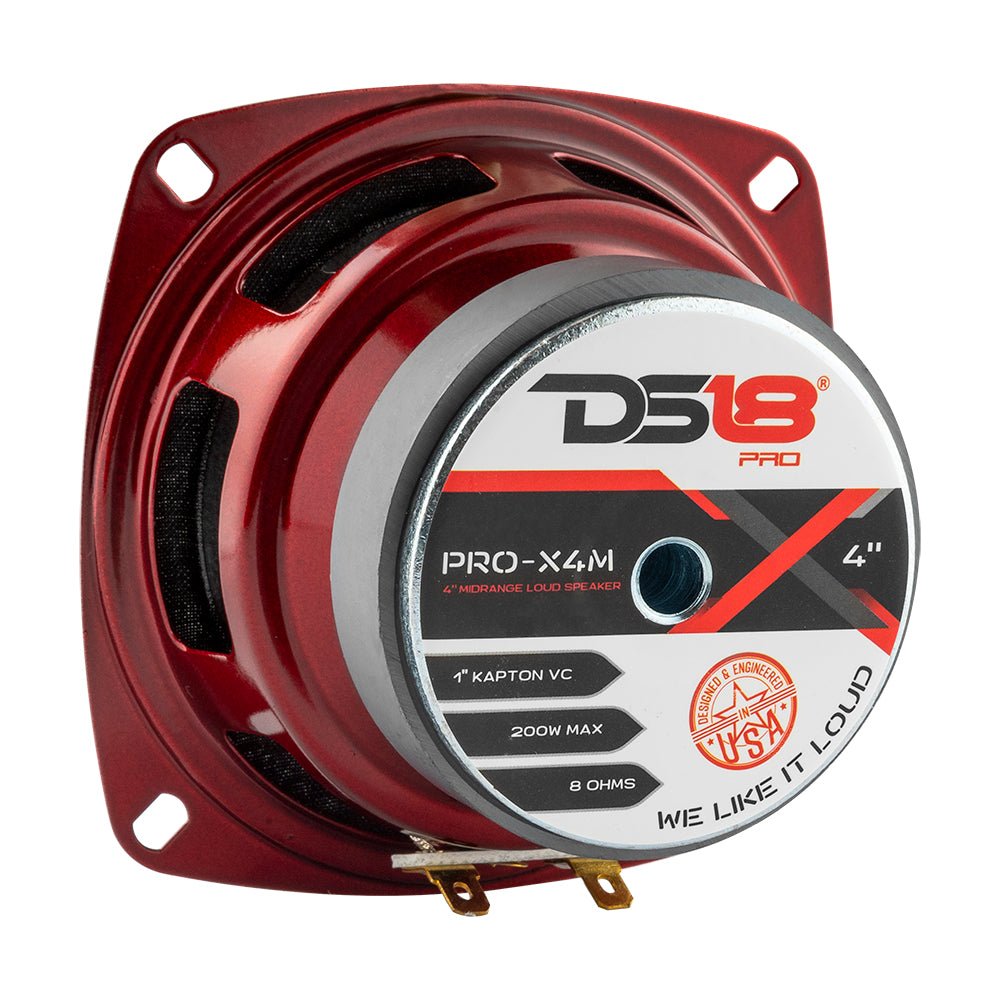

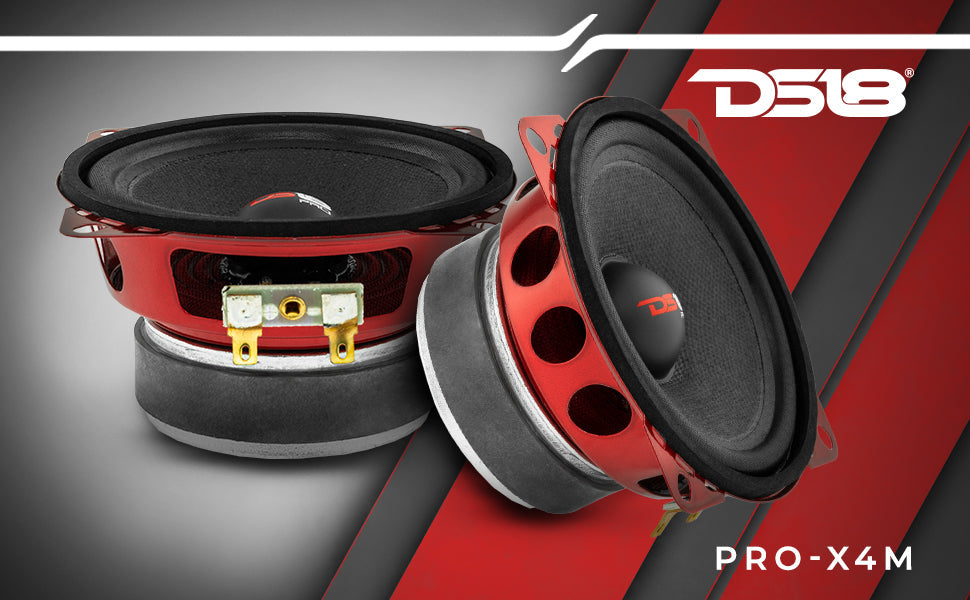

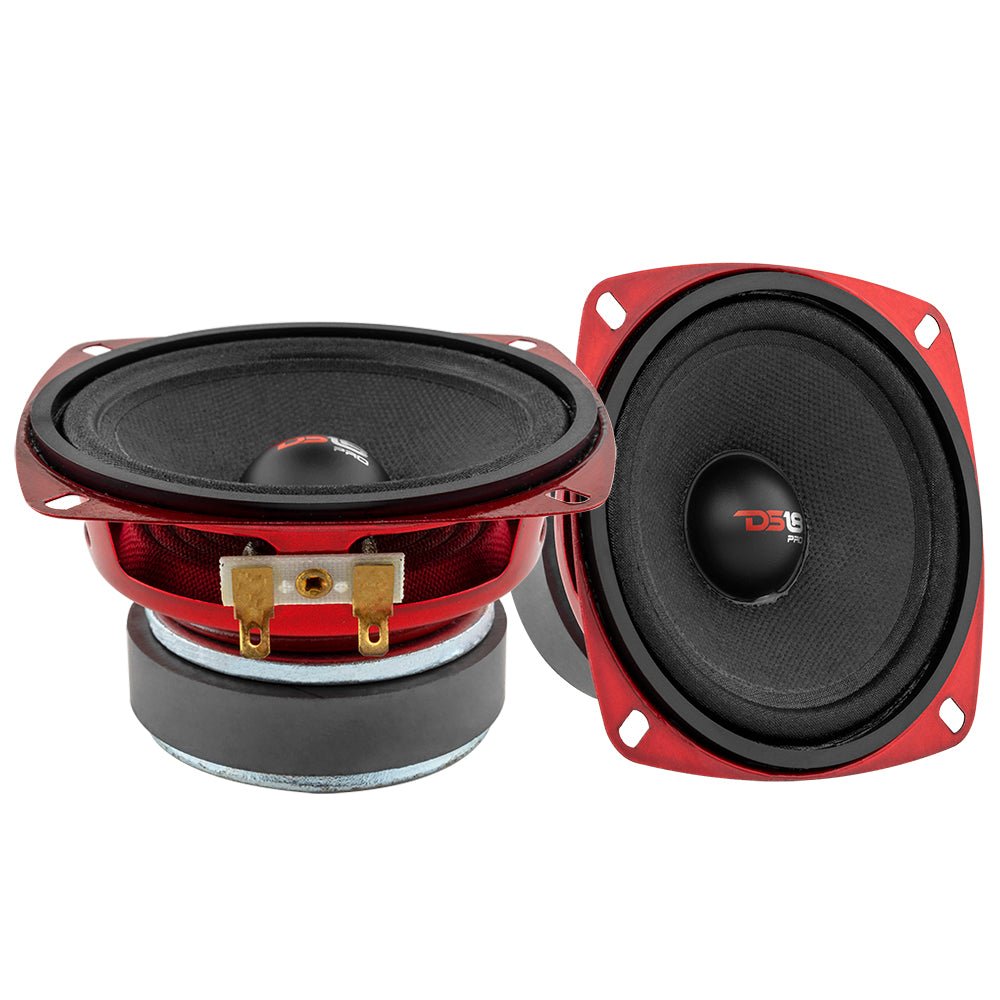

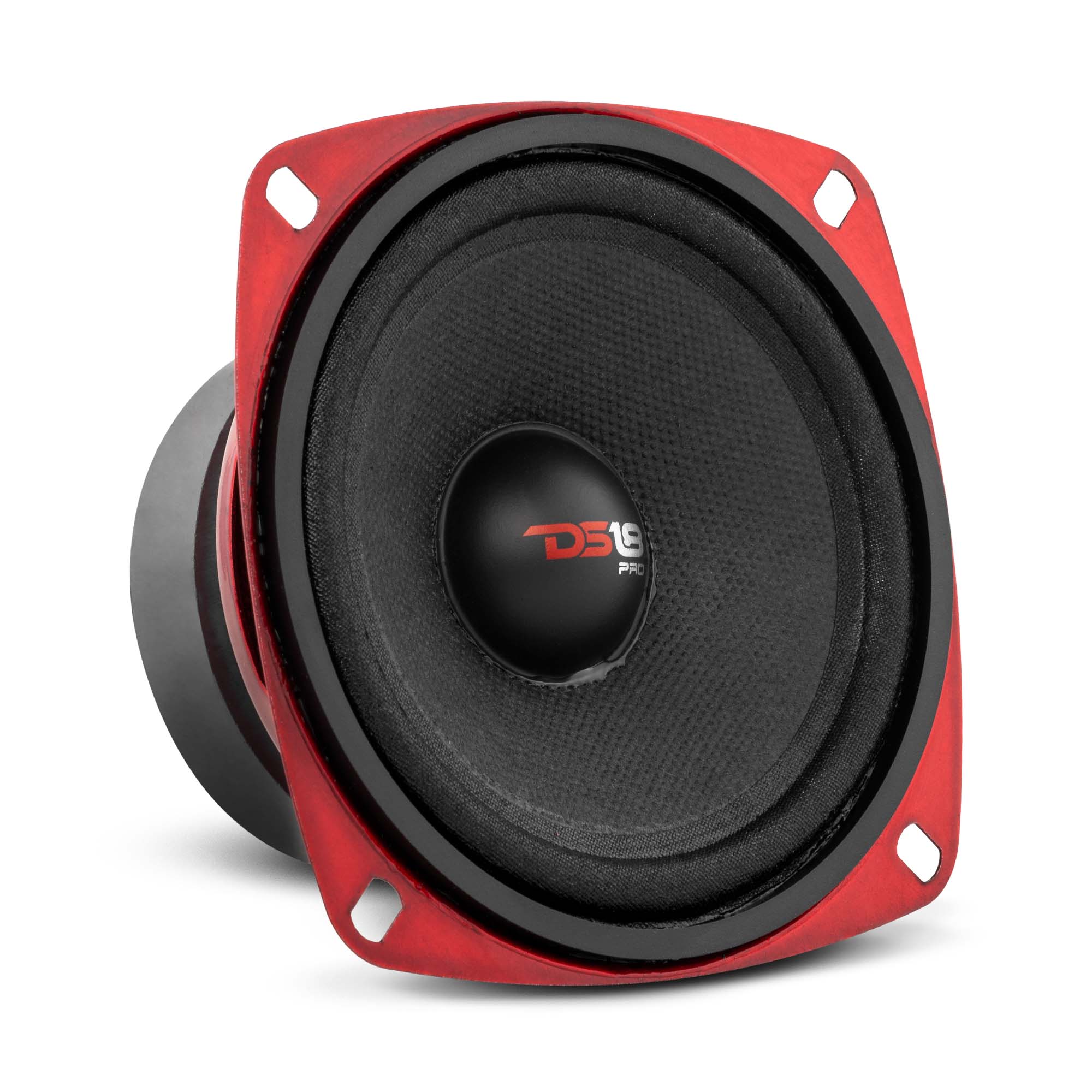

DS18 PRO-X4M – 4” Mid-Range Loudspeaker – 100 Watts 8-Ohms
Loud & Powerful Music, Without Distortion
With strong midrange and clear high frequencies, these speakers deliver a concert-like audio experience without any distortion. Even better, the 1.0” 8-ohms voice coil handles high heat temperatures without breaking a sweat so you can blast your favorite music on a regular basis for extended periods of time.
Order the DS18 PRO-X4M today to own powerful midrange speakers that will last for years and give an amazing audio experience every time!
Blast Concert-Like Music for Years to Come!

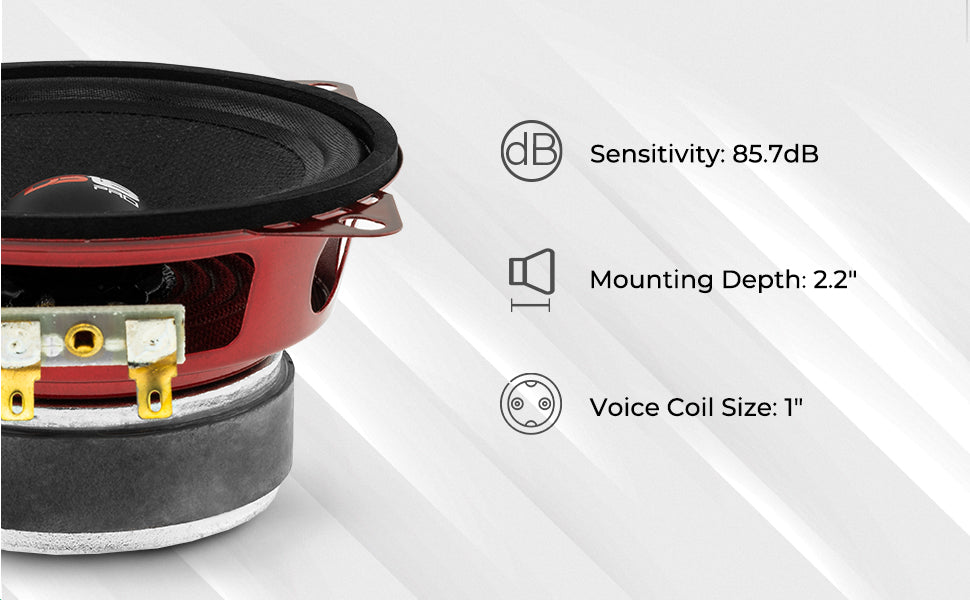

The high 85.7dB sensitivity of the PRO-X4M lets you crank up the volume without any sound distortion, while the 298Hz to 14.2KHz frequency provides richer and more accurate tones that any audiophile will immediately notice. These loudspeakers can also handle up to 100 Watts RMS, making it capable of handling consistent and heavy usage. Put this baby on max volume and enjoy extreme volume levels with crystal clarity!
Product Highlights
- 4 Inch Midrange Loudspeaker
- MAX Power Handling: 200 Watts
- RMS Power Handling: 100 Watts
- Frequency Response: 298Hz-14.2Khz
- Voice Coil Diameter: 1.0”
- Voice Coil Material: Kapton
- Impedance: 8-Ohms
- Sensitivity (1W/1M): 85.7dB
- Magnet Weight: 9 Oz
- Magnet Material: Ferrite
- Mounting Depth: 2.2”
Technical Details
| Model: | PRO-X4M |
| Type: | Midrange Loudspeaker |
| Size: | 4" |
| RMS Power: | 100W |
| MAX Power: | 200W |
| Frequency Response: | 298-14.2KHz |
| Impedance: | 8 ohm |
| Sensitivity: | 85.7dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Steel Basket |
| Cone: | Non-Pressed Paper Cone |
| Magnet: | Ferrite |
| Voice Coil Wire: | KCCAW |
| Diameters | |
| Voice Coil Size: | 1" |
| Magnet Size: | 9 oz. |
| Mounting Depth: | 2.2" (56mm) |
| Cut-Out Dimension: | 3.66" (95mm) |

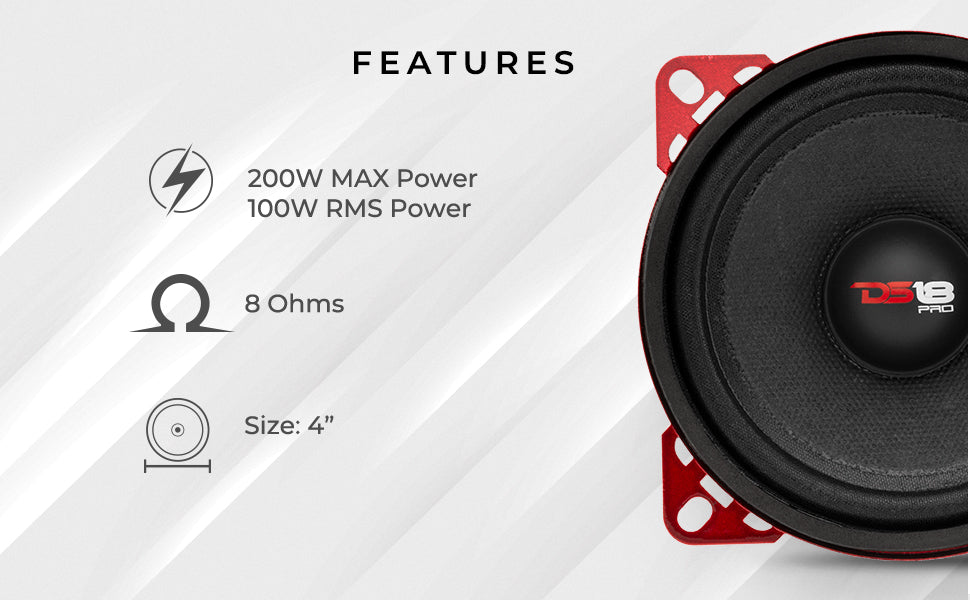

Key Features
- 4" Mid-Range
- MAX Power: 200 Watts
- RMS Power: 100 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 90dB
Specifications
| SKU | PRO-X4M |
|---|---|
| Nominal Diameter | 4” / 101.6mm |
| Nominal Impedance | 8 ohms |
| Max Power Handing | 200 WATTS |
| RMS Power Handing | 100 WATTS |
| Sensitivity | 90dB |

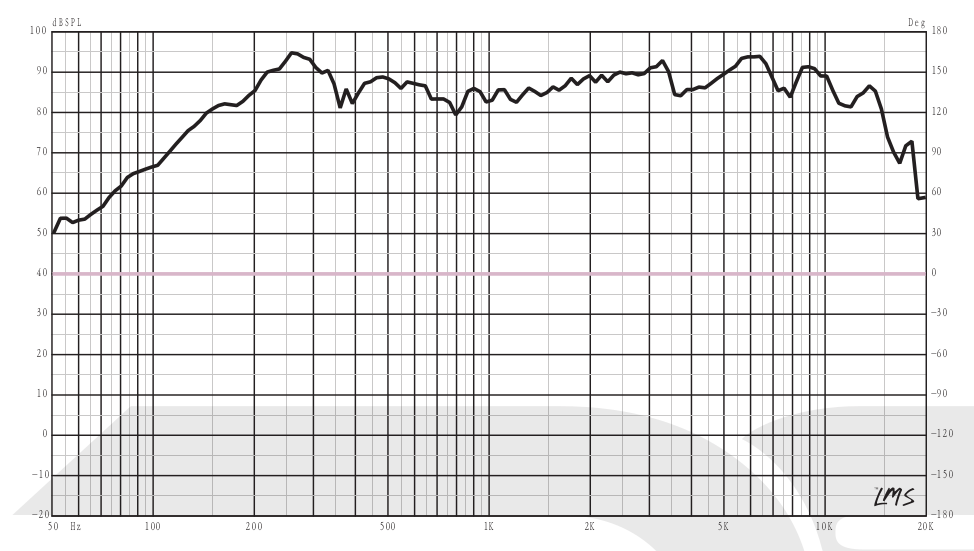

| Frequency Response | 250Hz - 16KHz |
| Recommended Hi Pass | 280Hz |
| Voice Coil Diameter | 1” / 25.9mm |
| Voice Coil Former Material | Kapton |
| Winding Material | KCCAW |
| Cone Material | Non-pressed Paper |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 10 oz |
| Vas | 0.71L / 0.025ft3 |
| Xmax | 6.3 mm (0.25 inch) |
| Fs | 320Hz |
| Qms | 6.263 |
| Qes | 4.288 |
| Qts | 2.545 |
| Re | 5.02 ohms |

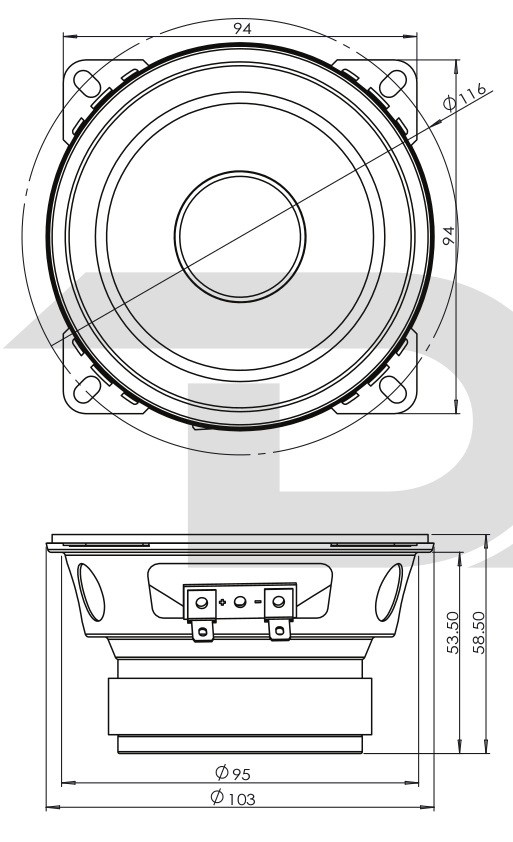

| Overall Diameter | 4.1" / 104mm |
| Front Mount Baffle Cutout | 3.66" / 93mm |
| Mounting Depth | 2.2" / 56mm |
| Overall Depth | 2.4" / 61mm |
| Product Weight | 1.5 lbs |
| Product Dimensions | 4.8 x 4.8 x 2.75 |
| M/C Weight | 26.5 lbs |
| M/C Dimensions | 14.5 x 10 x 9.25 |
| M/C QTY | 18 |
