Product Overview

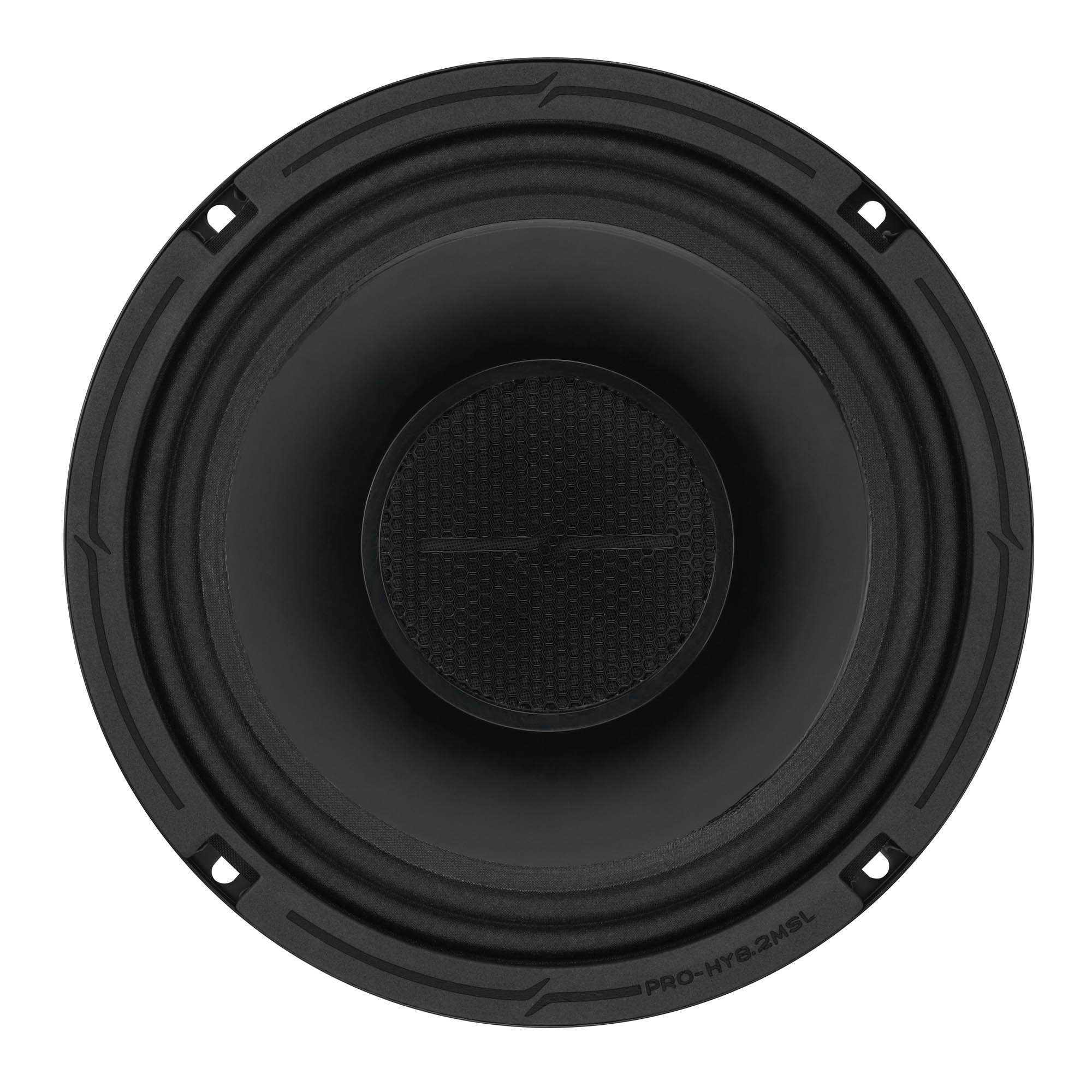

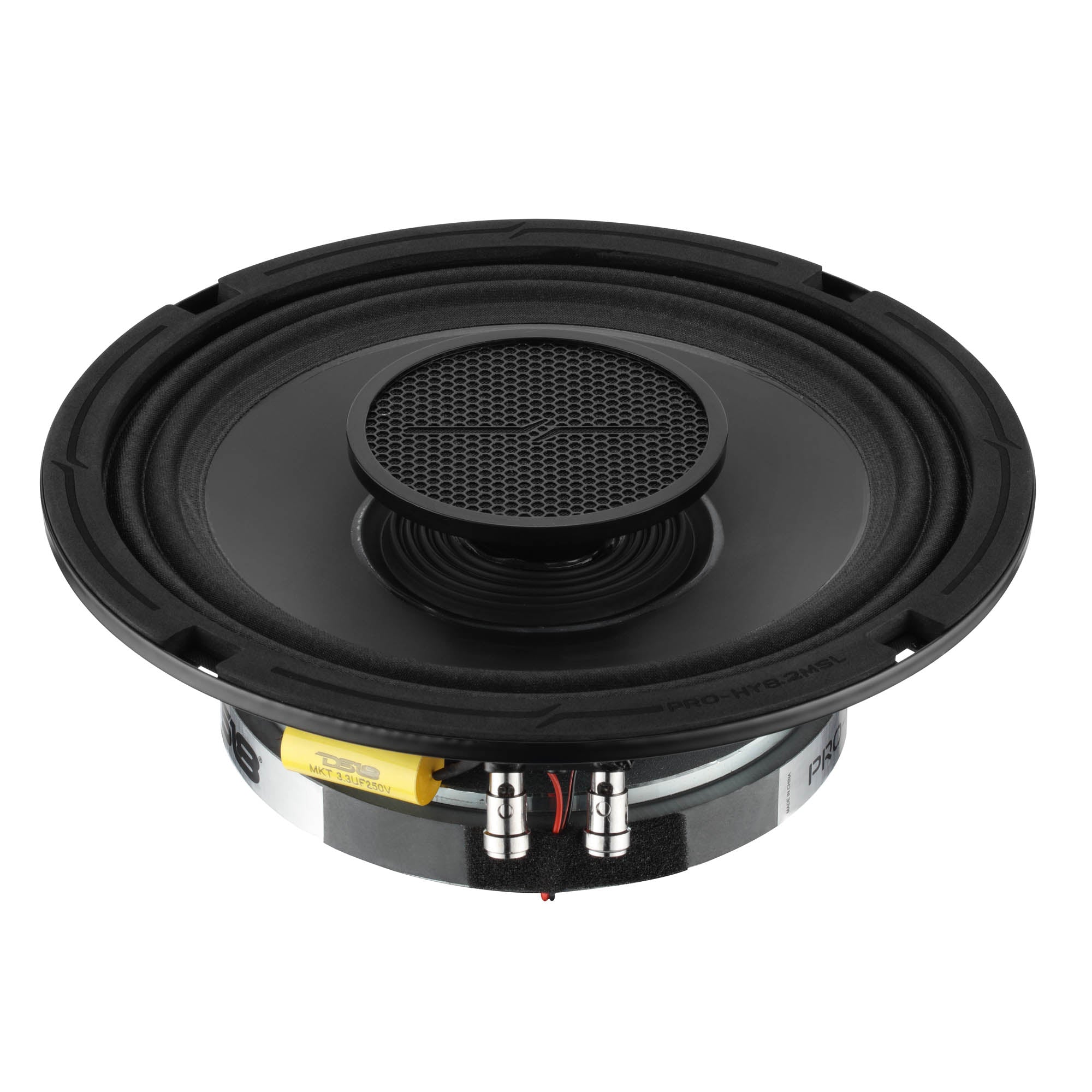

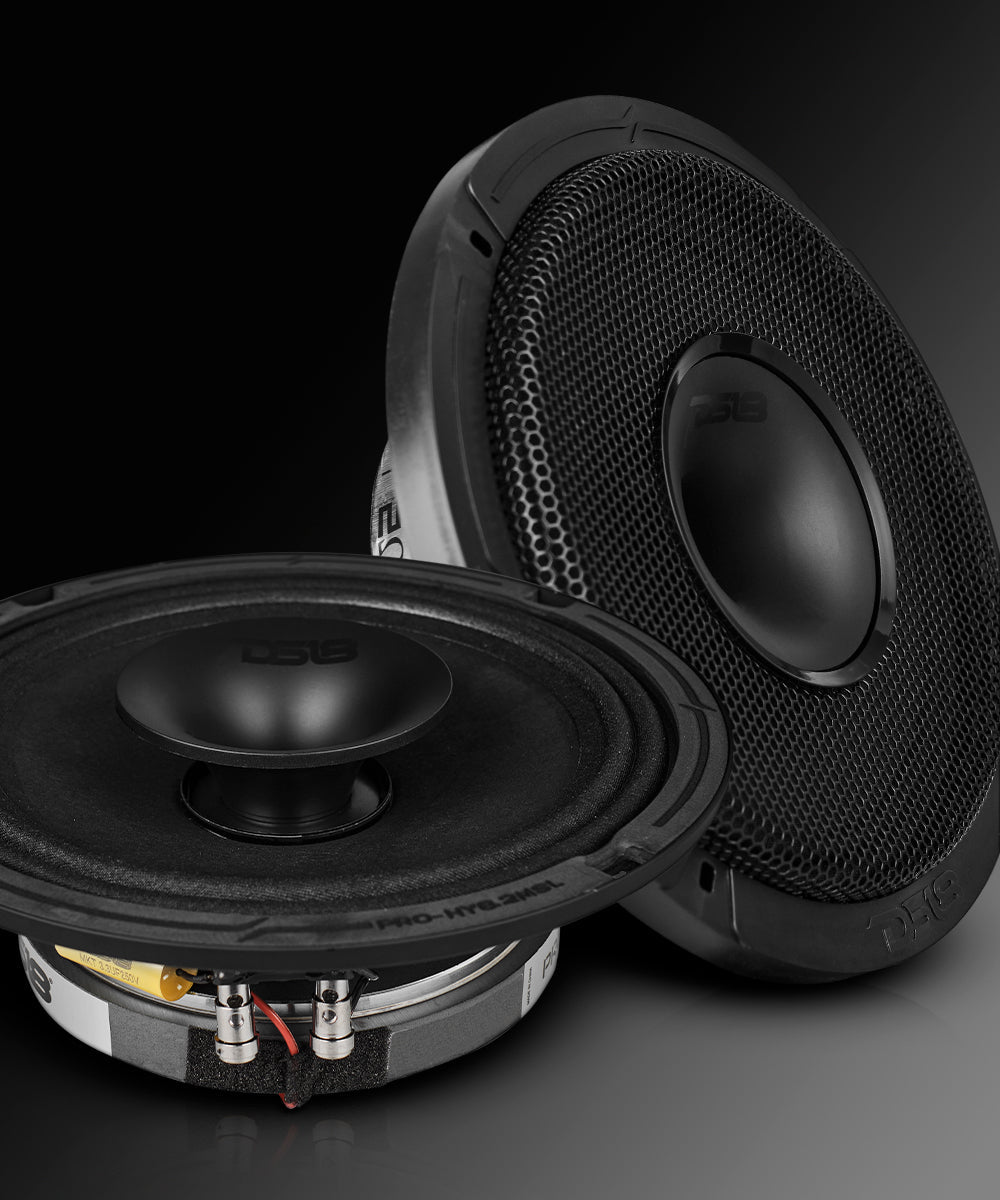

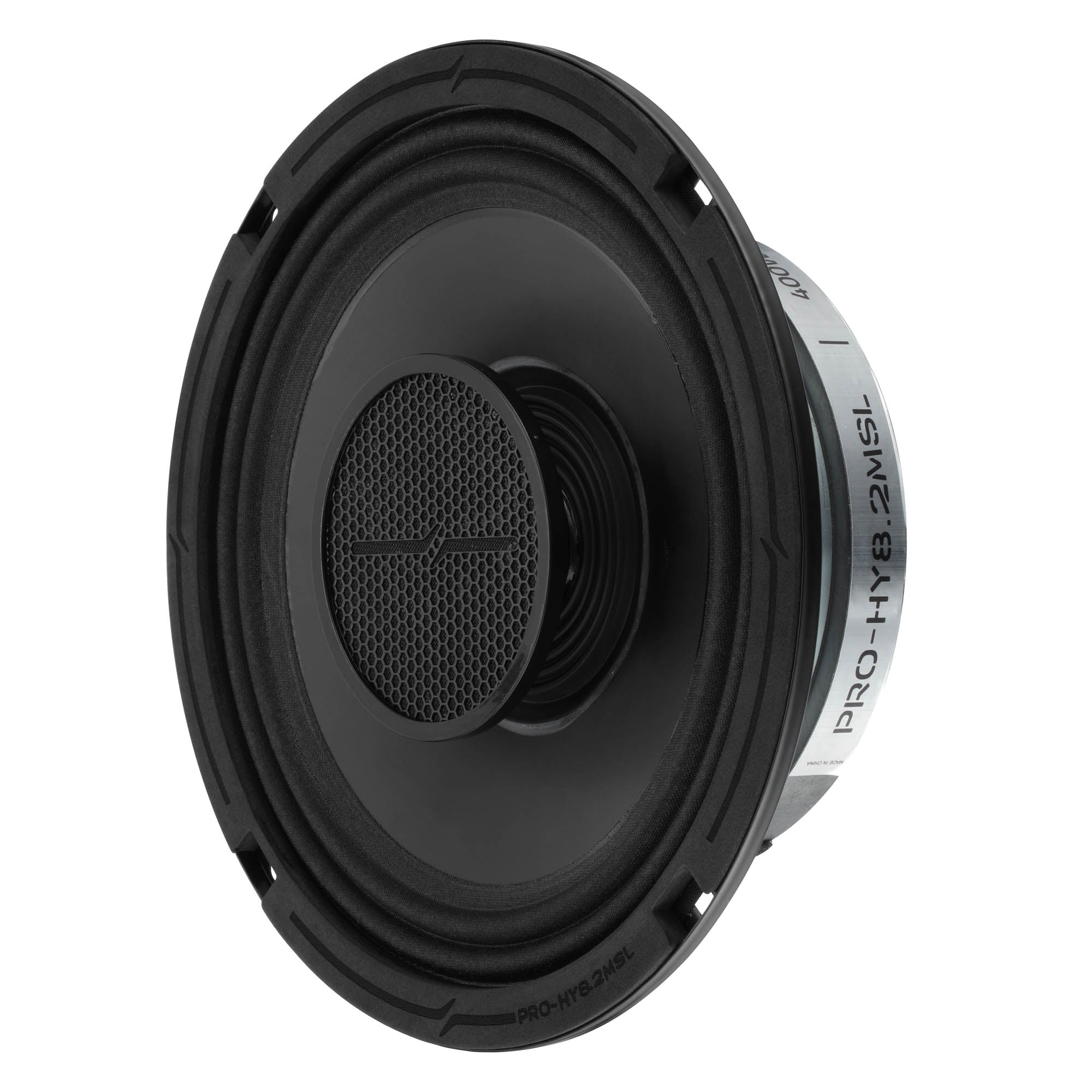

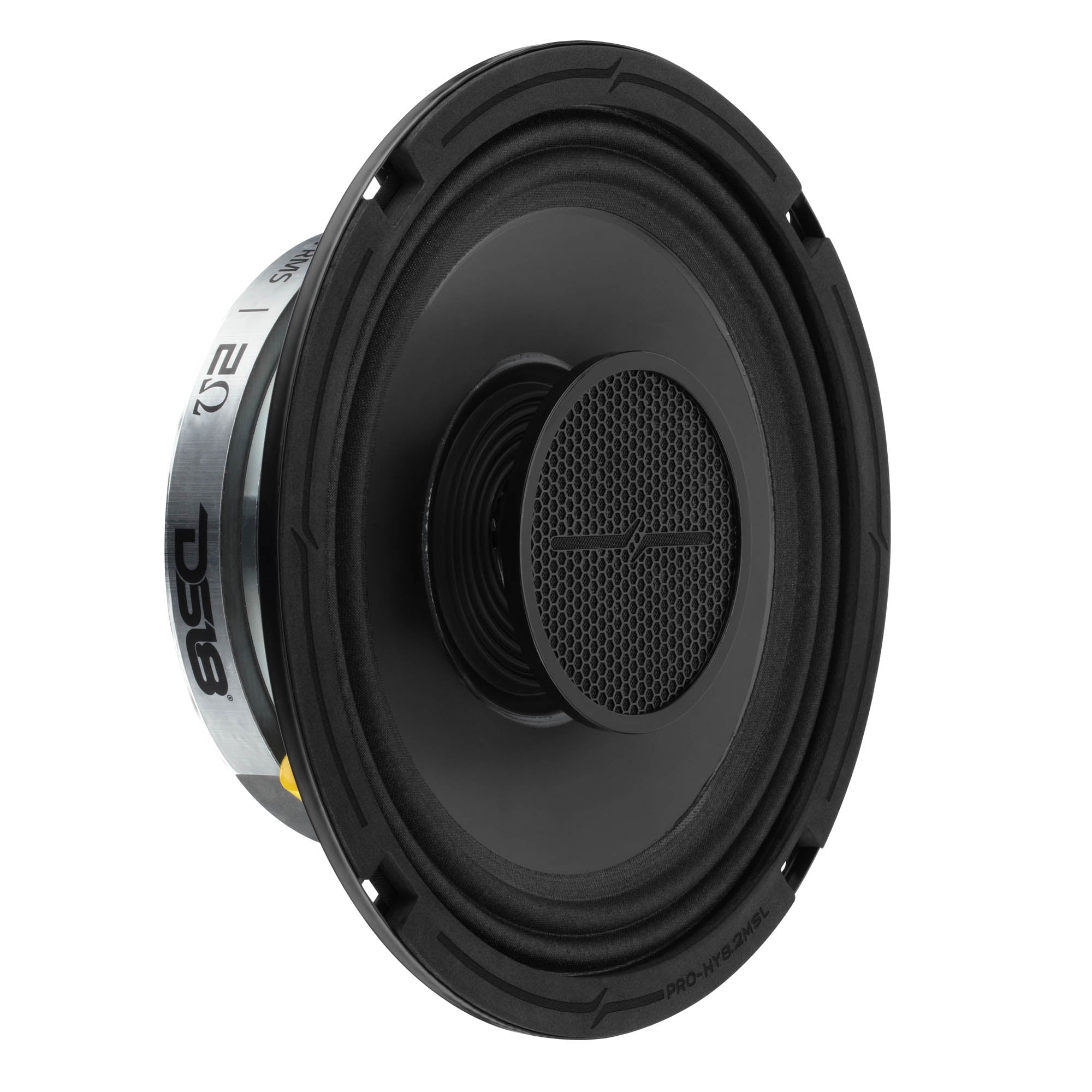

8" Hybrid Slim Loudspeaker with a 1" Compression Driver Horn
Get the best of both worlds with DS18’s PRO-HY8.2MSL. Made for motorcycles, ATVs, UTVs, and Jeeps, this compact loudspeaker brings exceptional audio quality any environment.
Focused on bringing volume to open air applications, this 8-inch hybrid loudspeaker features a remarkably high sensitivity rating of 98dB. It features a 2-way system combining a 2-inch woofer using advanced KSV and CCAW materials with a driver made from a titanium diaphragm and neodymium magnet for powerful performance. With a frequency range spanning from 100Hz to 20kHz and a recommended crossover of 120Hz high pass, the PRO-HY8.2MSL captures every subtlety of your favorite tracks.

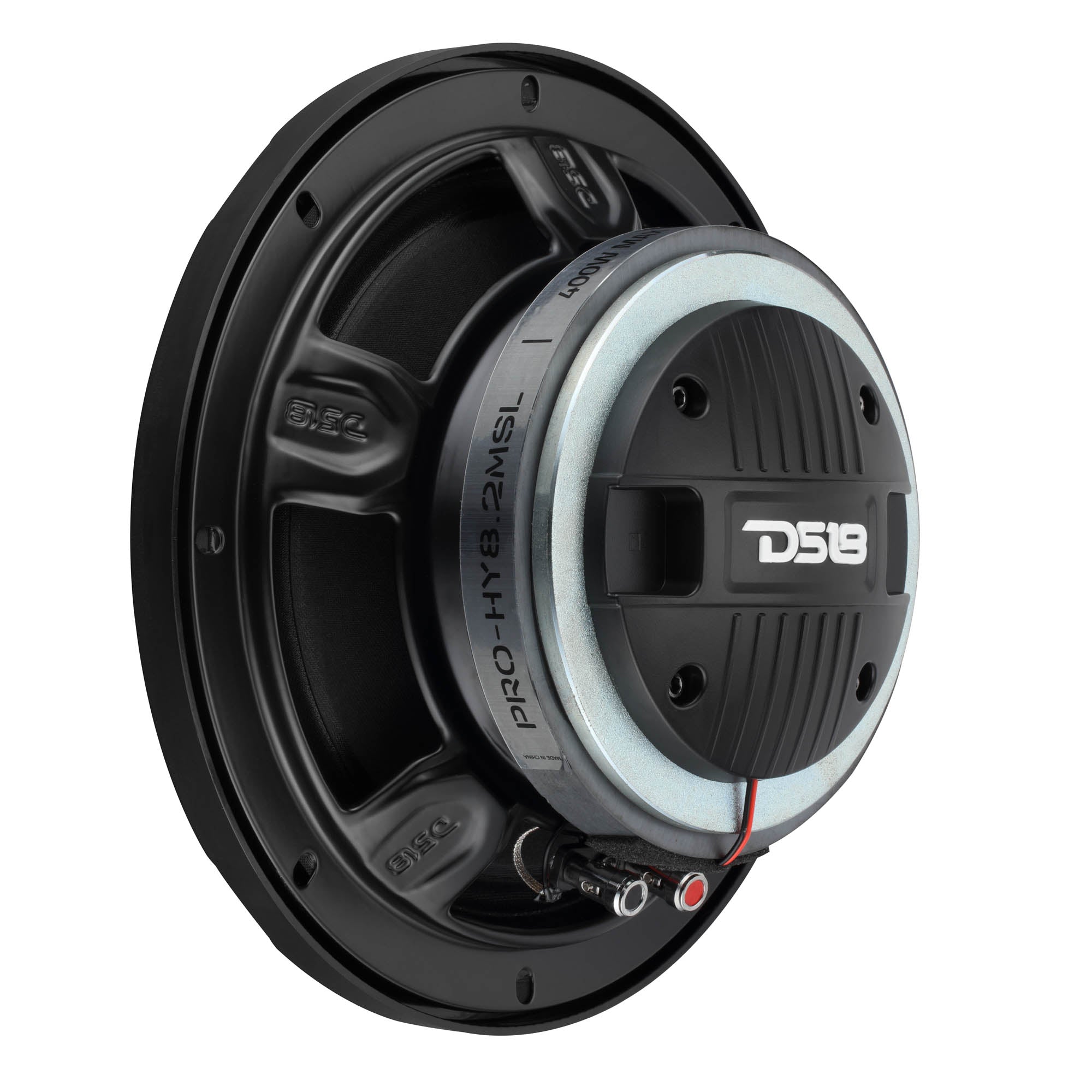

DS18’s PRO-HY8.2MSL stands out thanks to its slim yet durable design, featuring a black steel basket and ferrite magnet that promise longevity even in the most rugged conditions. The neodymium magnet within the 3-inch horn further enhances its performance, making it an ideal choice for outdoor enthusiasts who refuse to compromise on sound quality.

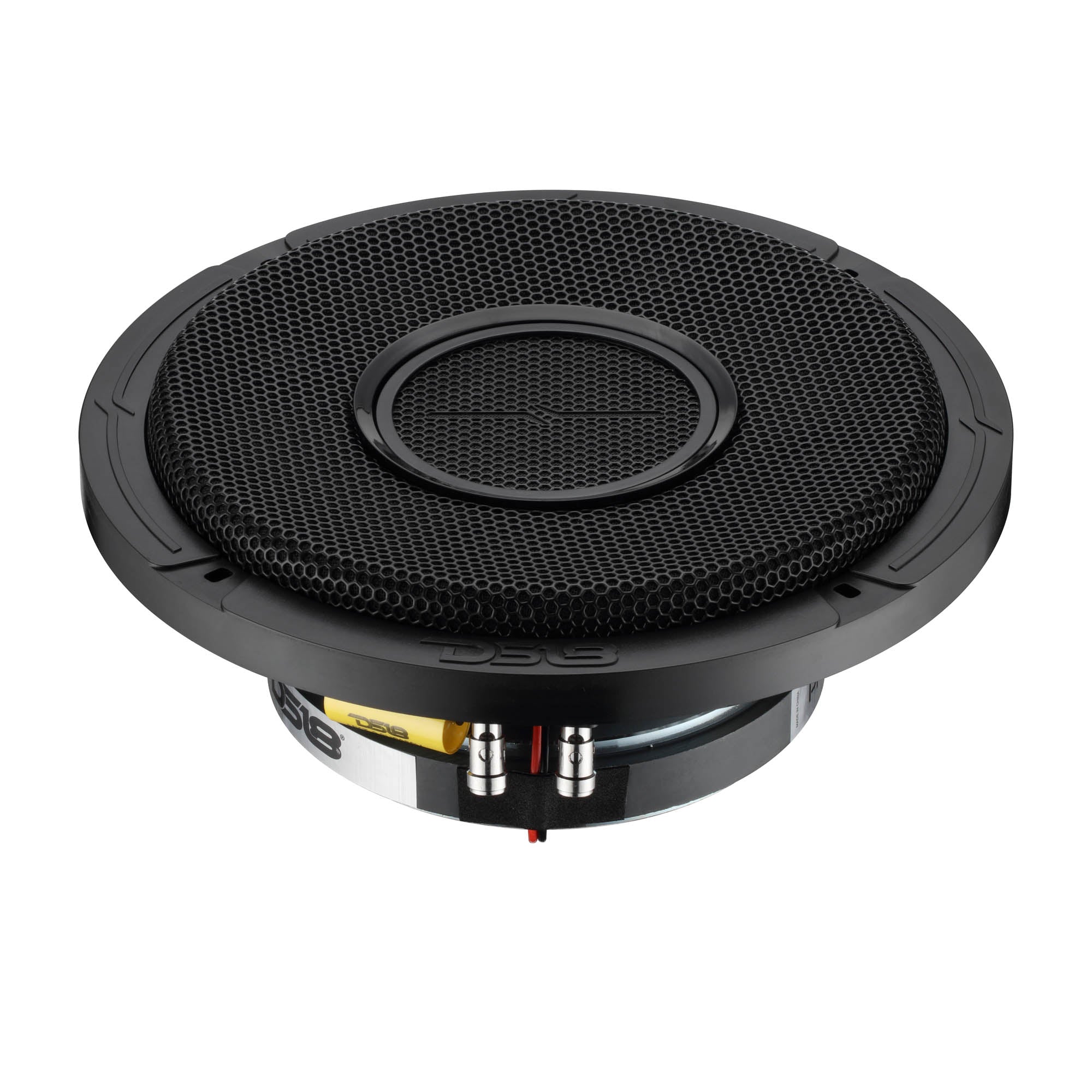

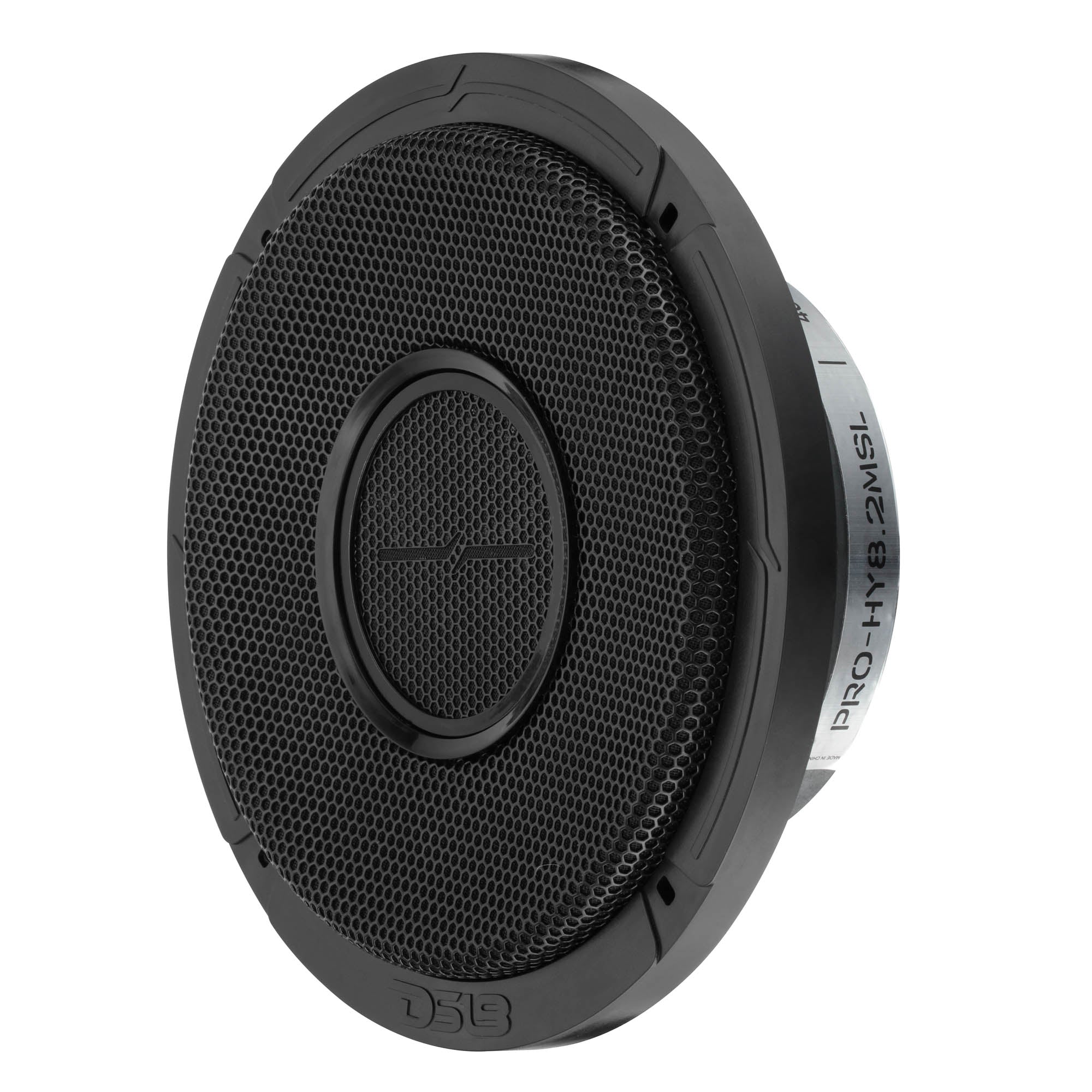

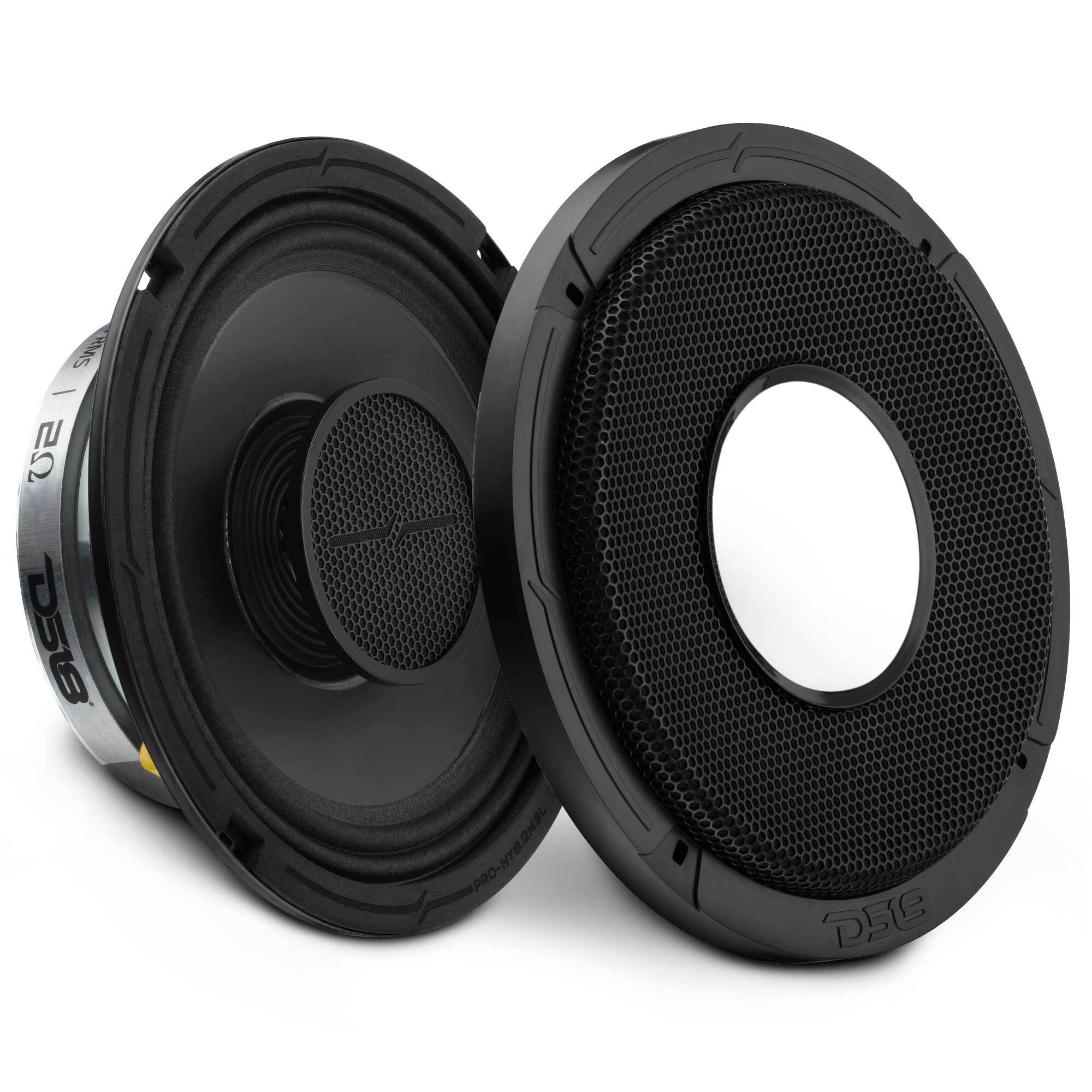

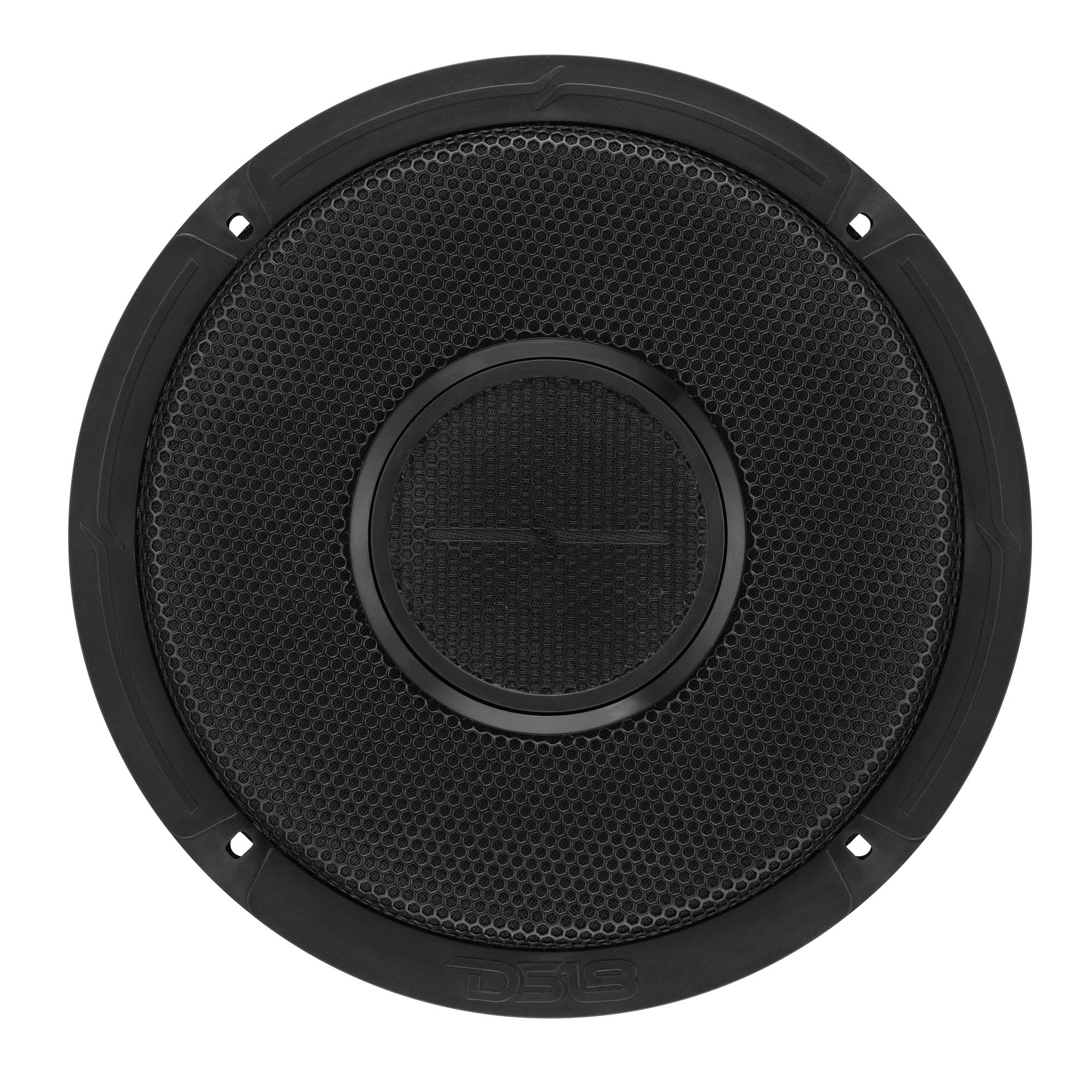

Whether mounted on your motorcycle or embedded in your ATV, its compact dimensions (8.2 inches in diameter and 3.4 inches in depth without grill) ensure an easy fit into tight spaces while providing full impact. The included grill offers added protection without sacrificing aesthetic appeal.
Transform your off-road audio system with DS18’s PRO-HY8.2MSL!
Key Features
- 8" Shallow Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 2 Ohm ~ 97dB
- Ferrite & Neodymium Magnets

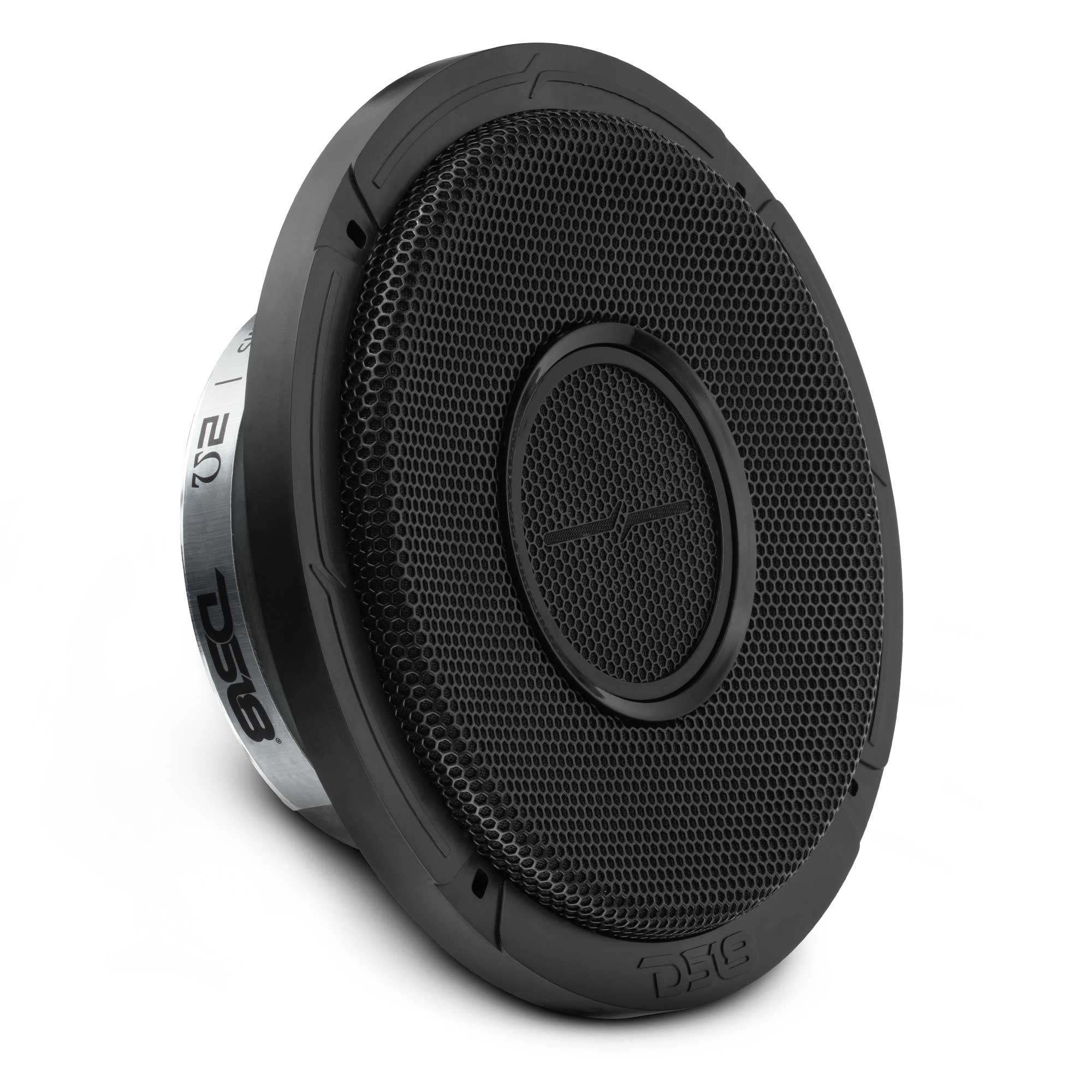

- With Grill
- Easily Repaired With The PRO-HY/VC
Specifications
| SKU | PRO-HY8.2MSL |
|---|---|
| Nominal Diameter | 8" / 203.2mm |
| Nominal Impedance | 2 Ohms |
| RMS Power Handling | 200W |
| MAX Power Handling | 400W |
| Sensitivity (1w/1m) | 98dB |
| Frequency Response | 100Hz - 20Khz |
| Recommended HI Pass Crossover | 120Hz |
| Number of Ways | 2 ways |
| Pair or Single | Single |
| Grill Included | Yes |
| Voice Coil Diameter | 2" / 50.8mm / 1" / 25.4mm |
| Voice Coil Former Material | KSV / Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Black |
| Magnet Material | Ferrite / Neodymium |
| Magnet Weight | 29.5 Oz |
| Equivalent Volume Vas | 9.58L / 0.33ft3 |
| Excursion (one way) Xmax | 2mm |
| Free Air Resonance Fs | 106Hz |
| Mechanical Factor Qms | 8.083 |
| Electrical Factor Qes | 0.729 |
| Total Factor Qts | 0.669 |
| Mechanical Mass Mms | 13.886g |
| Mechanical Compliance Cms | 0.147 mm/N |
| BL Factor BL | 4.74 |
| Voice Coil Inductance Le | 48.9mH |
| Cone Area Sd | 216.424 Cm2 |
| DC Resistance Re | 1.8 ohm |
| Mechanical Mass w/o air Mmd | 12.088g |
| Diaphragm Material | Titanium |
| Horn Diameter | 3" / 76.2mm |

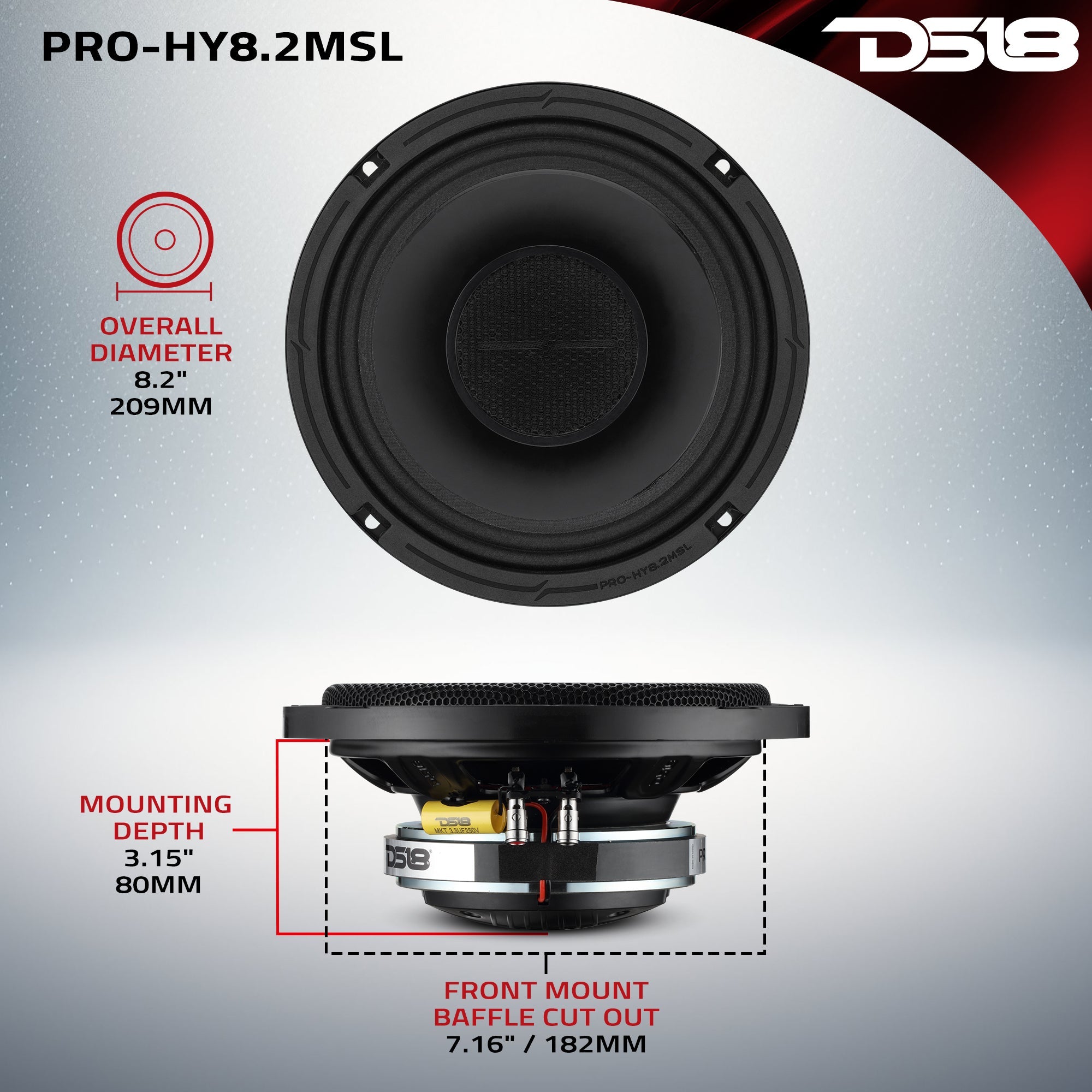

| Overall Diameter (Without Grill) | 8.2" / 209mm |
| Overall Diameter (With Grill) | 8.6" / 219mm |
| Overall Depth (Without Grill) | 3.4" / 86mm |
| Overall Depth (With Grill) | 4" / 104mm |
| Front Mount Baffle Cutout | 7.16" / 182mm |
| Mounting Depth | 3.15" / 80mm |
| Motor Diameter | 5.27" / 134mm |
