PRO 6x9” Hybrid Slim Loudspeaker with Water-Resistant Cone and Compression Driver Horn | 175W RMS 8-Ohm
Product Overview DS18 PRO-HY69MSL6x9” Hybrid Slim Loudspeaker With Water-Resistant Cone and Compression Driver Horn The PRO-HY69MSL is...
Vendor:
DS18
Manufacturer SKU
PRO-HY69MSL
Availability:
In Stock
Product Type:
Compression Drivers & Horns
- $119.95
- $119.95
- Unit price
- per
Subtotal:
$119.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

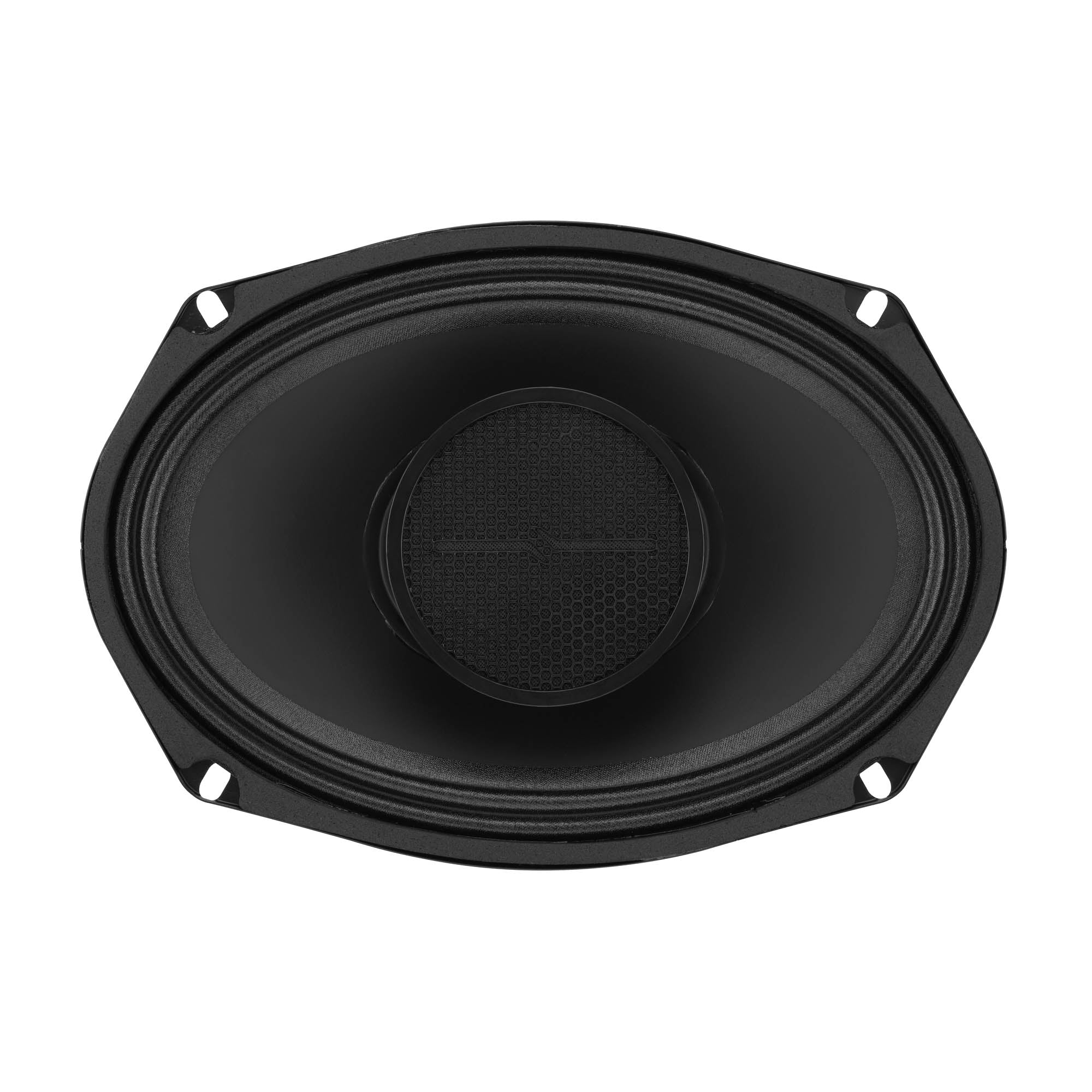

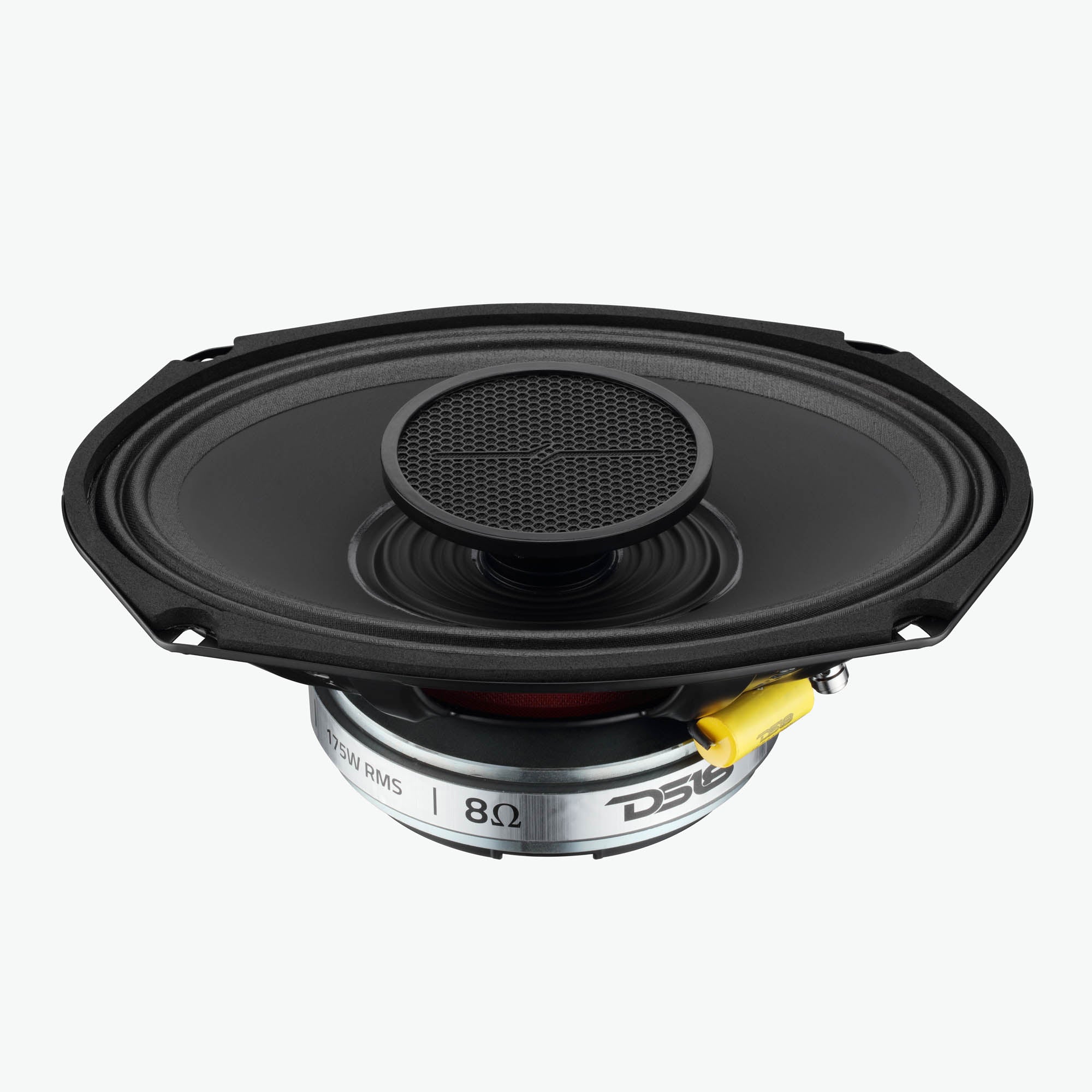

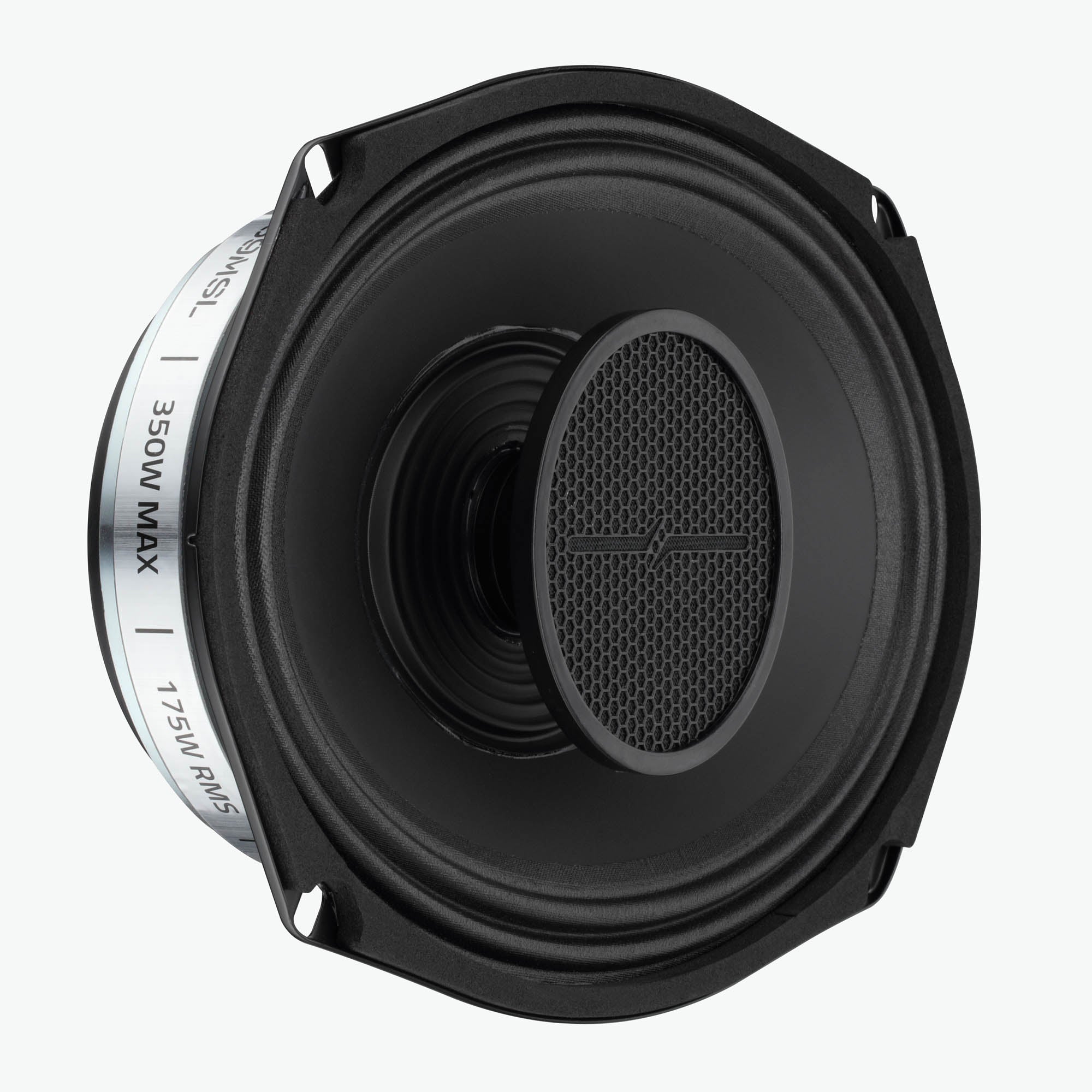

DS18 PRO-HY69MSL
6x9” Hybrid Slim Loudspeaker With Water-Resistant Cone and Compression Driver Horn
The PRO-HY69MSL is a slim hybrid 6x9” speaker made to give riders the best of both worlds: big volume that fits and is extremely durable.
2-Way Hybrid = Full-Range Output
We’ve combined a water-resistant woofer with a 1” titanium compression driver—all in one slim speaker. This combination delivers wide-bandwidth sound from 60Hz to 20kHz with 97dB sensitivity.
Easy Fit
At just 3.4” mounting depth, the PRO-HY69MSL installs cleanly in fairings, pods, or panels—especially in motorcycles, UTVs, Slingshots, and Jeeps where space is tight.
IP65-Rated Water Resistance

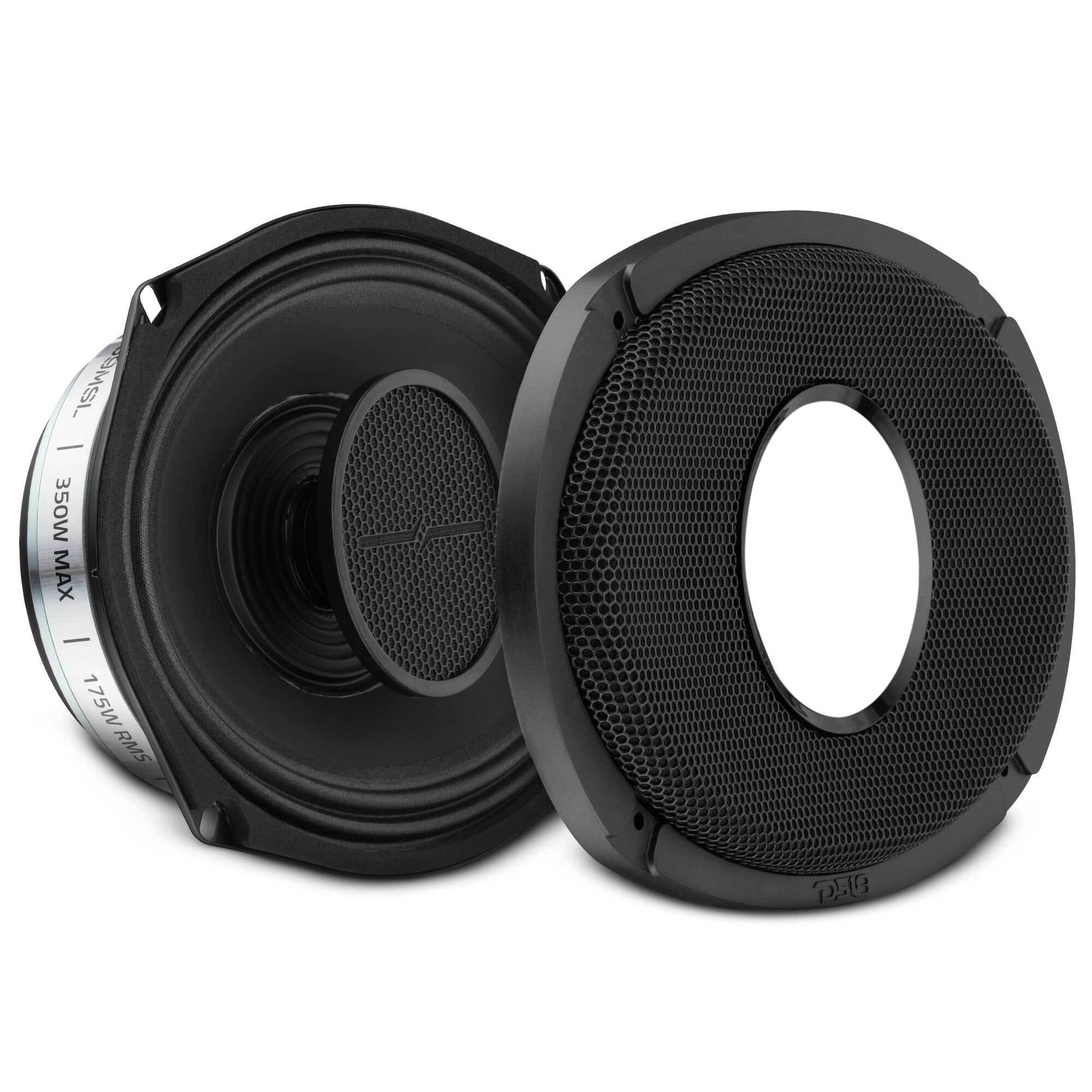

Rain, washdowns, and trail spray are no threat. The water-resistant paper cone and cloth surround hold up against the elements, while the grille’s built-in sun/water protection cloth keeps your internals safe.
Ferrite + Neodymium = Lightweight Power
A 25.5 oz ferrite magnet drives the woofer, while a neodymium motor powers the compression driver. This combo gives you the output of a full-size system in a lighter, tighter form.
Ready for Real Builds
With a 8Ω impedance, it's easy to pair with most aftermarket amps and factory systems. Build out your custom audio setup with a driver that drops in and turns heads easy.
The PRO-HY69MSL is a hybrid speaker made to play LOUD, stay tough, and fit where others can’t: order yours today and get the best of both worlds!
Key Features
- 6x9” Slim Hybrid Loudspeaker
- 175W RMS / 350W MAX
- 1” Titanium Compression Driver
- IP65 Rated + Grille w/ Water/Sun Protection Cloth
- Neodymium Driver Magnet / Ferrite Woofer Magnet
- Mounting Depth: 3.4”
Specifications
| Nominal Diameter | 6x9" / 152x228mm |
|---|---|
| Nominal Impedance | 8 Ohms |
| RMS Power Handling | 175W |
| MAX Power Handling | 350W |
| Sensitivity (1w/1m) | 97dB |
| Frequency Response | 60Hz - 20kHz |
| Recommended High-Pass Crossover | 80Hz |
| Number of Ways | 2 ways |
| Water-Resistant Rating | IP65 |
| Pair or Single | Single |
| Grille Included | Yes, With Water and Sun Protection Cloth |
| Voice Coil Diameter | 1.5" / 38.6mm / 1" / 25.4mm |
| Voice Coil Former Material | KSV / Kapton |
| Winding Material | CCAW |
| Cone Material | Water-Resistant Paper |
| Surround Material | Treated Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Black |
| Magnet Material | Ferrite / Neodymium |
| Magnet Weight | 25.5 Oz |
| Equivalent Volume | 5.68L / 0.2ft3 |
| Excursion (one way) | 2mm |
| Free Air Resonance | 117Hz |
| Mechanical Factor | 7.821 |
| Electrical Factor | 0.979 |
| Total Factor | 0.87 |
| Mechanical Mass | 15.242g |
| Mechanical Compliance | 0.103 mm/N |
| BL Factor | 5.312 |
| Voice Coil Inductance | 0.59mH |
| Cone Area | 156.2 cm2 |
| DC Resistance | 3.2 Ohms |
| Mechanical Mass w/o air | 12.3g |
| Diaphragm Material | Titanium |
| Horn Diameter | 3.15" / 80mm |

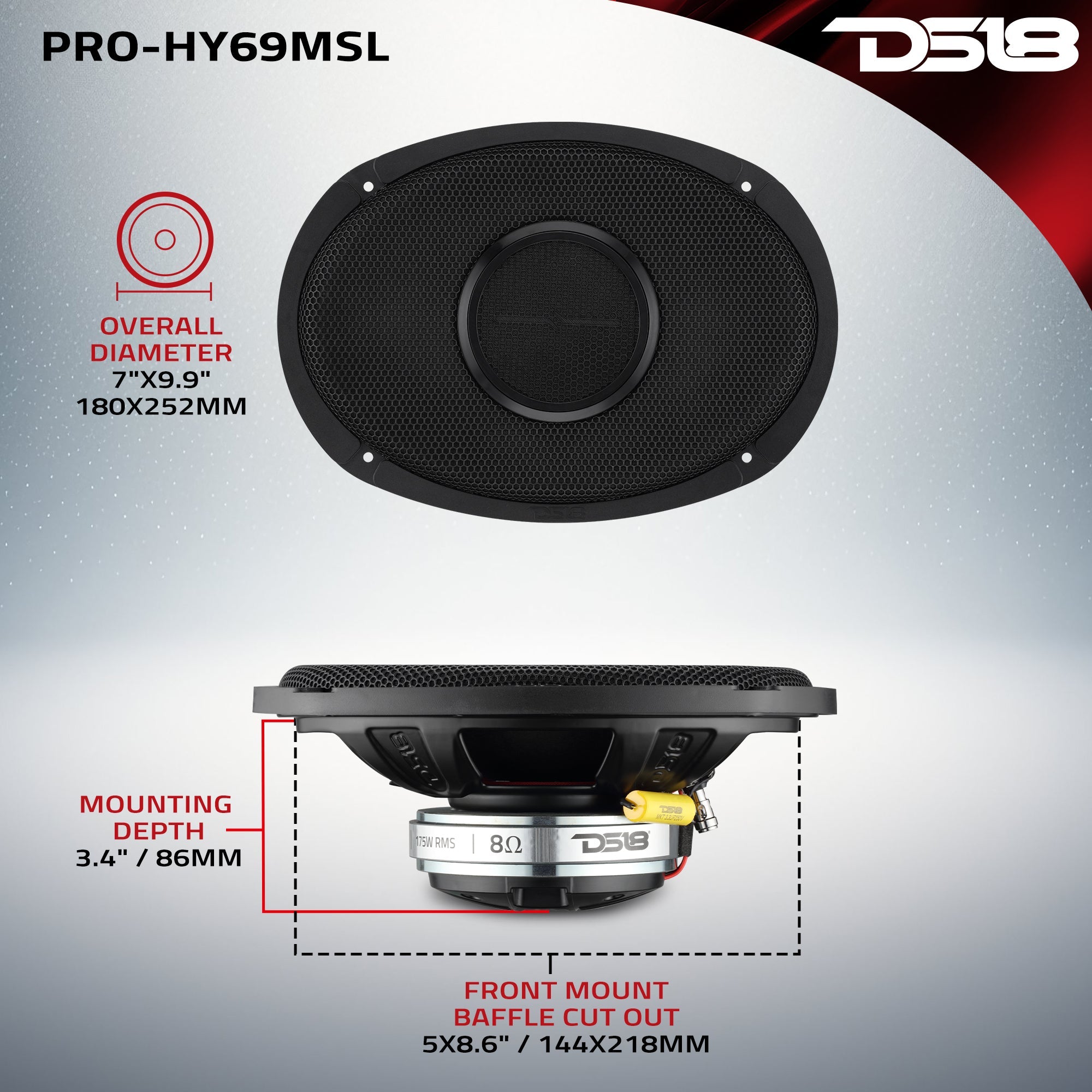

| Overall Diameter (Without Grill) | 6.4"x9.2" / 164x234mm |
| Overall Diameter (With Grill) | 7"x9.9" / 180x252mm |
| Overall Depth (Without Grill) | 3.9" / 100mm |
| Overall Depth (With Grill) | 4.2" / 107mm |
| Front Mount Baffle Cutout | 5.7"x8.6" / 144x218mm |
| Mounting Depth | 3.4" / 86mm |
| Motor Diameter | 4.7" / 120mm |
