Product Overview

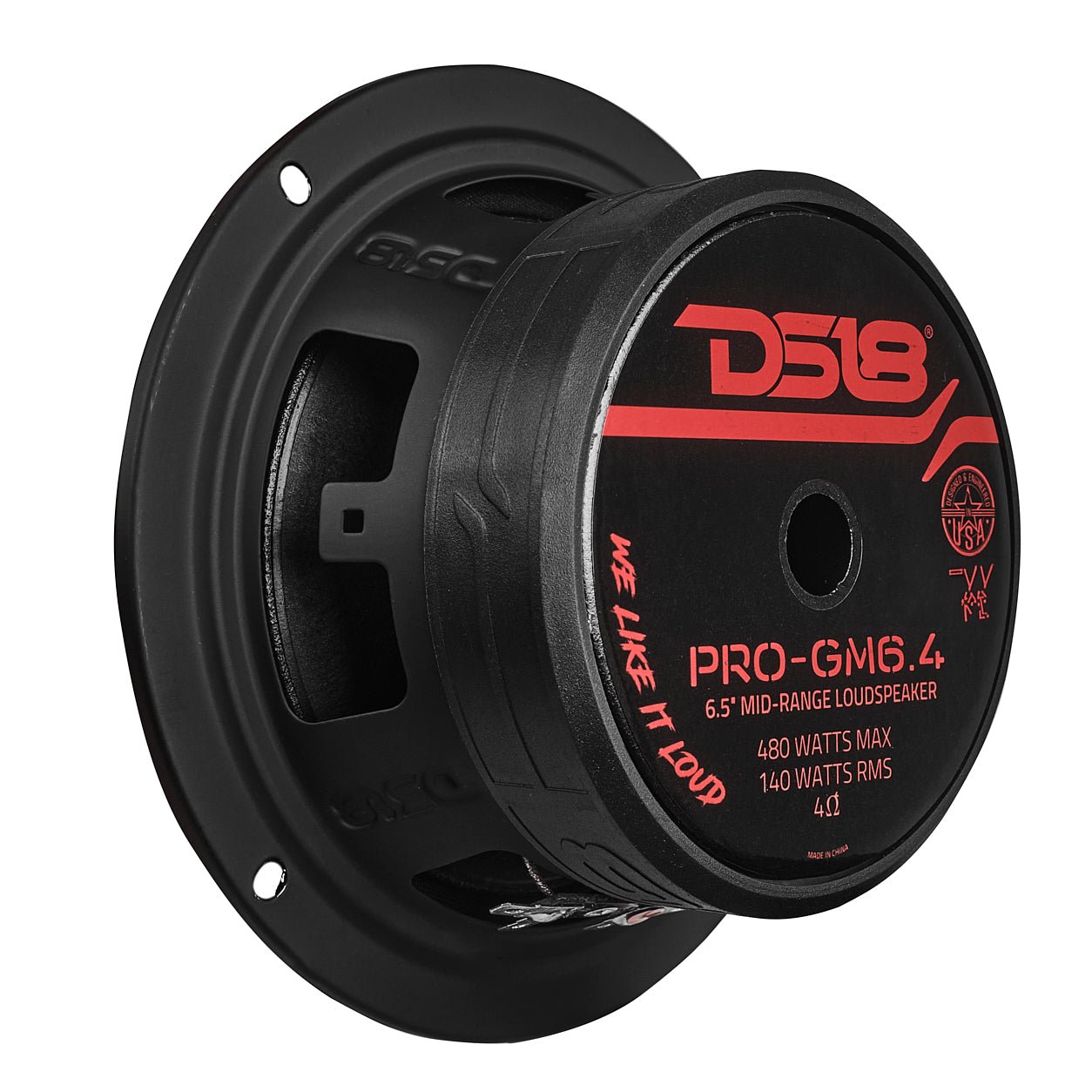

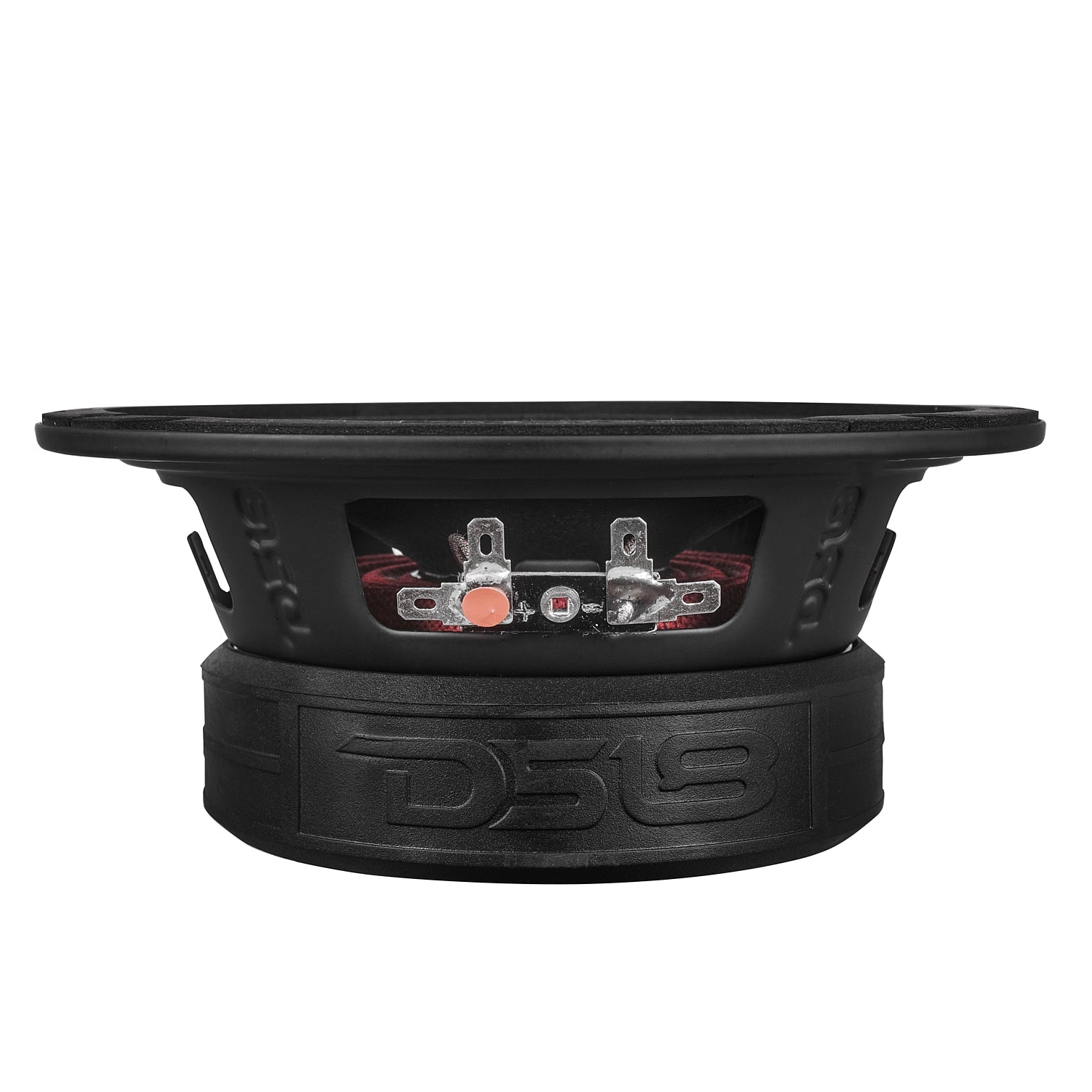

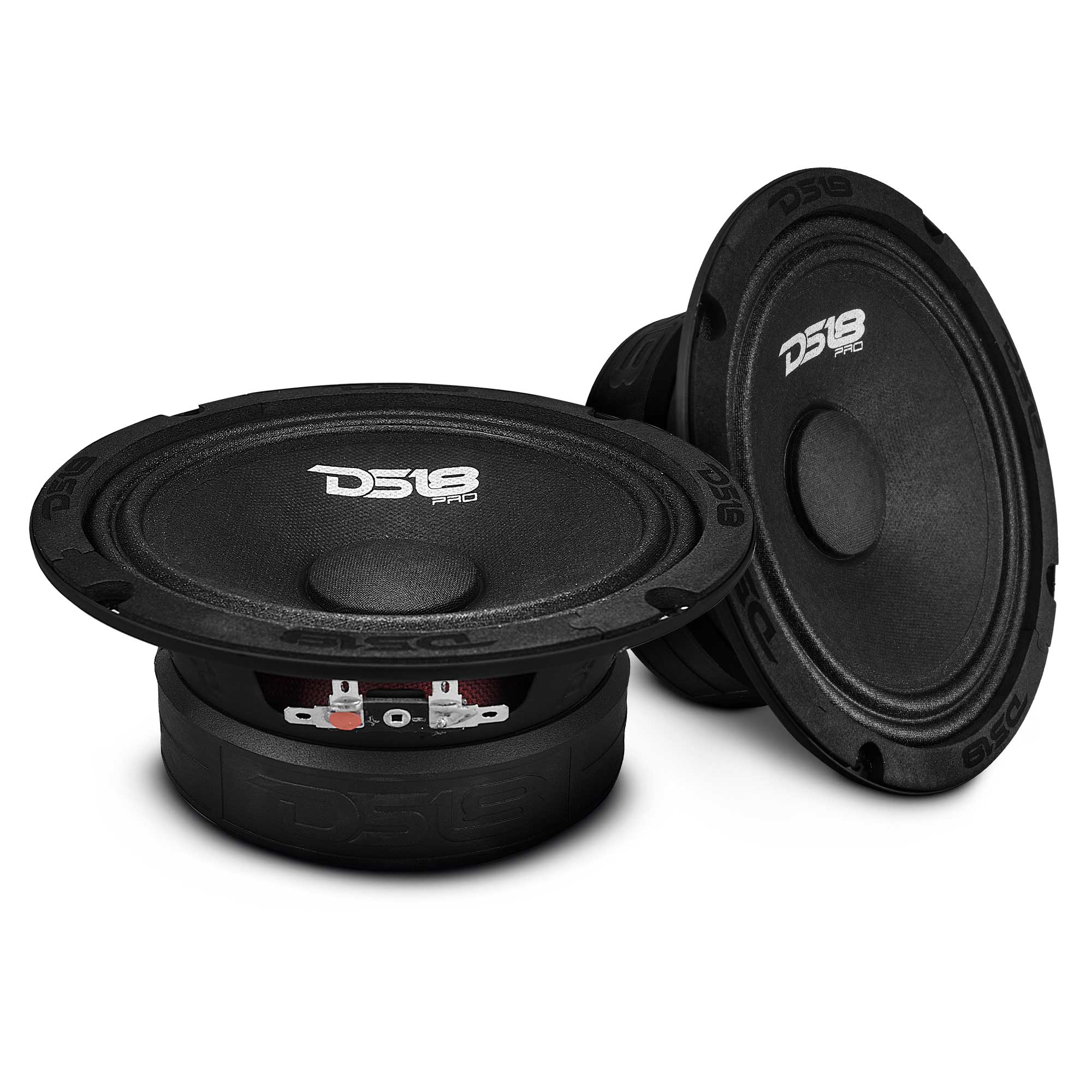

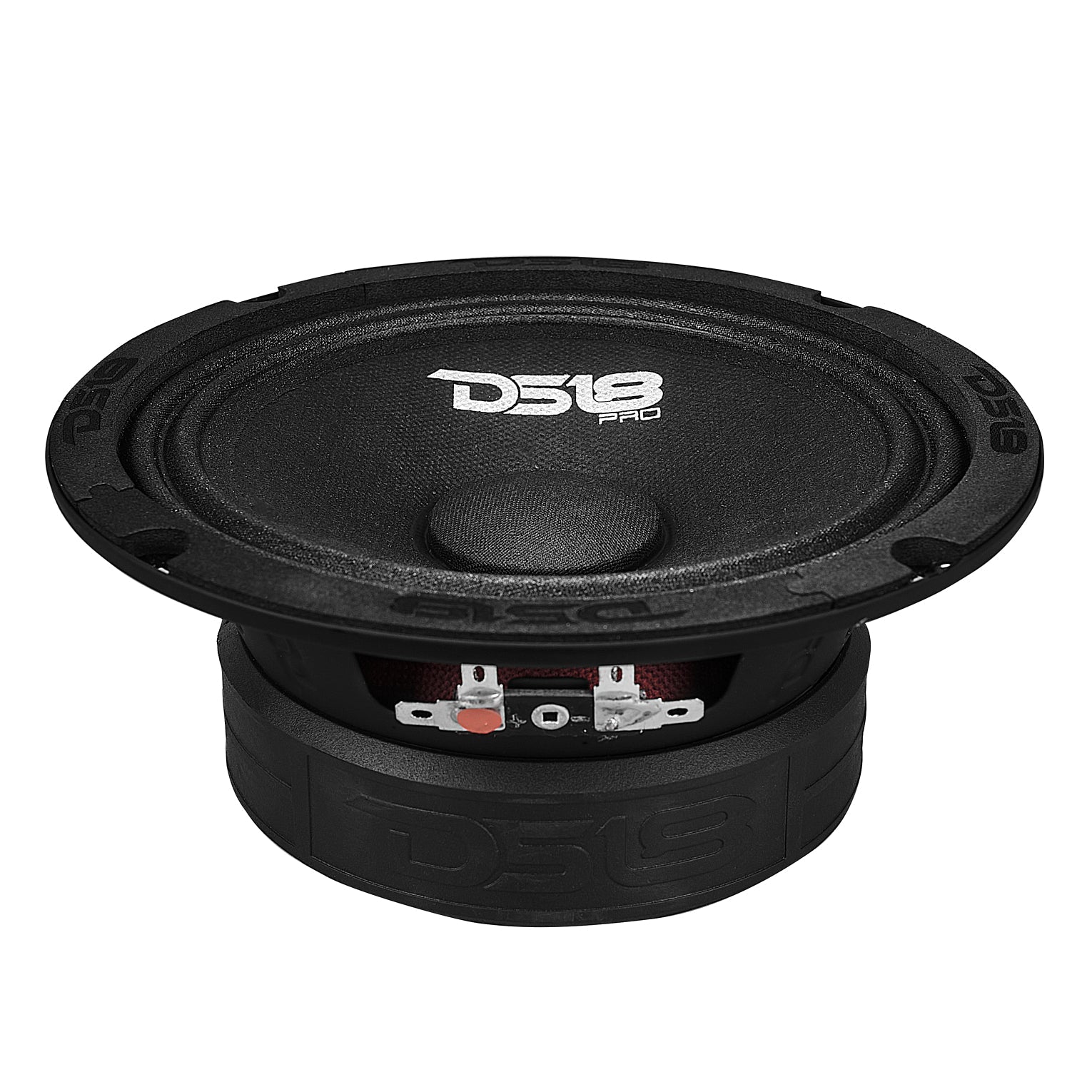

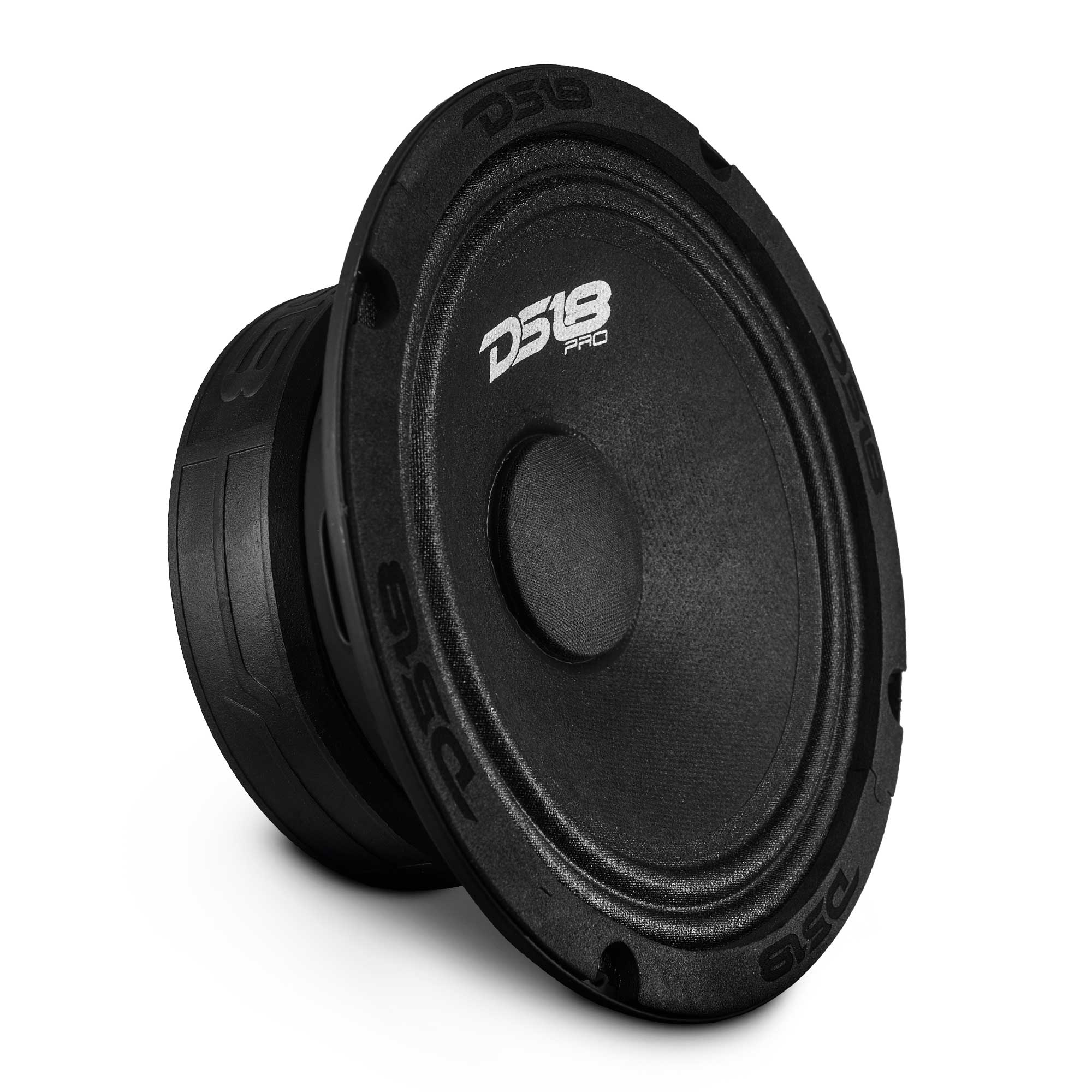

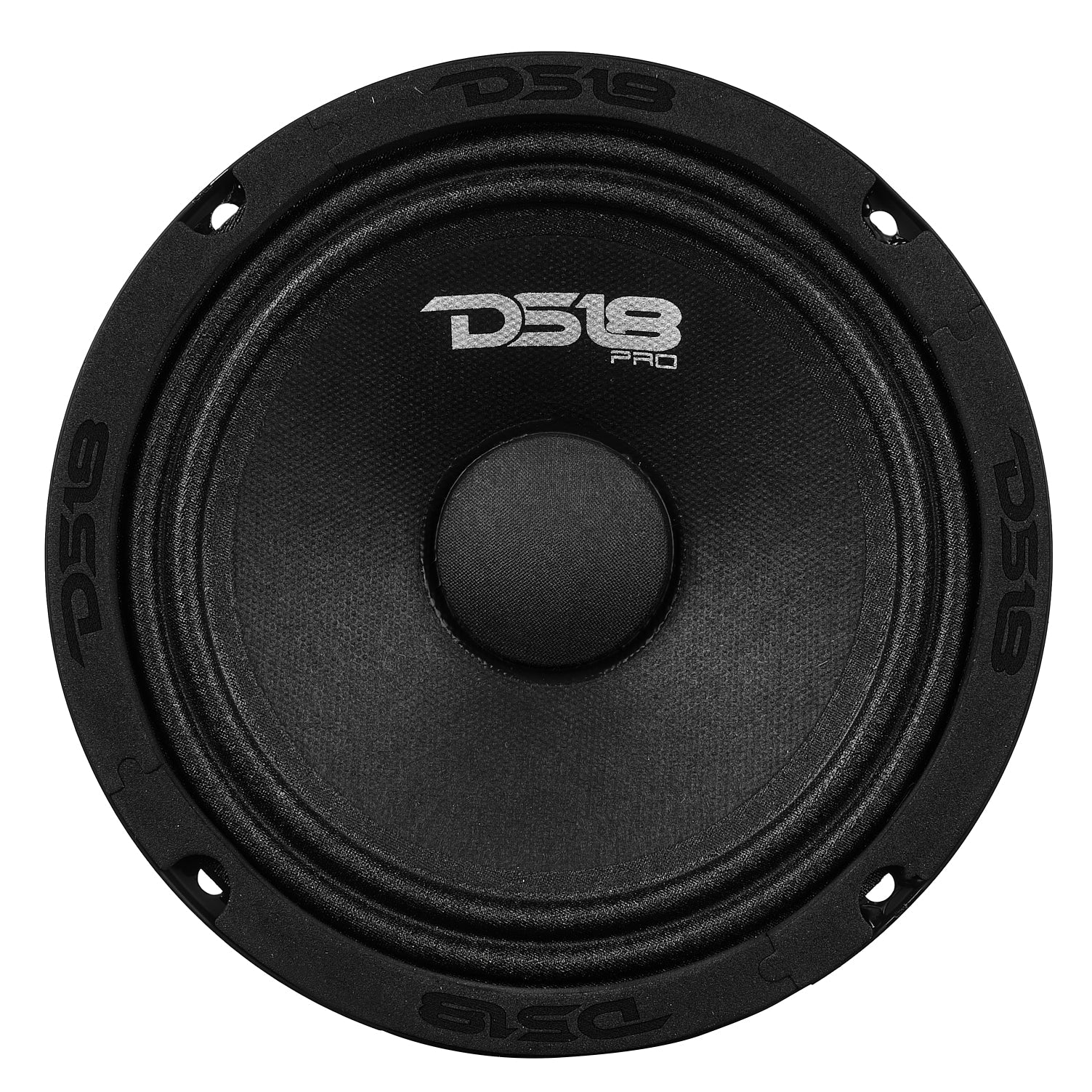

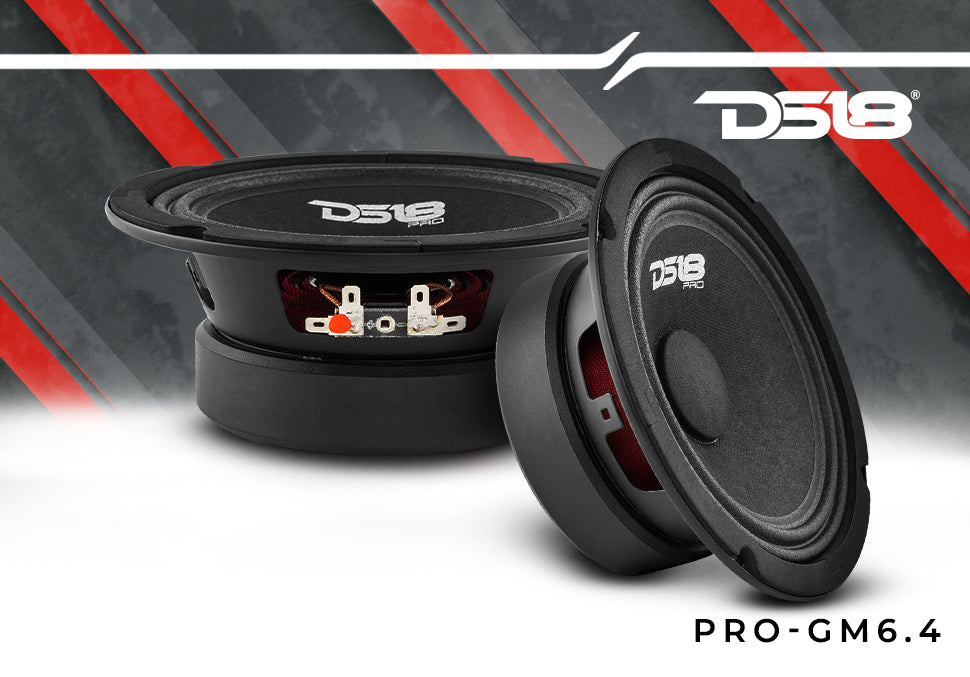

DS18 PRO-GM6.4 6.5" Mid-Range Loudspeaker 480 Watts 4-Ohm
Our newest PRO-GM rendition is an identical counterpart to our very popular PRO-GM6 except now we offer it in 4 ohms instead of 8 ohms the name PRO-GM6.4. This monster midrange handles up to 140w RMS and 480w maximum power. A frequency range of 90hz to 10khz will ensure you get the most out of your frequency range, so you hit all your desired notes with ease. These speakers are a very good selection for someone who wants a little mid bass and very precise voice through their 6-inch speakers. These give amazing crescendos and very solid rock bottom notes. They come with non-pressed paper cones and steel pressed frames that hold a 30oz ferrite magnet. These are very solid speakers that will make even the most advanced audiophile smile.
Highlights
- Sealed back design which allows you to put these in boxes that have high turbulence or pressure so you don't damage cones.
- Perfect for walls or cuchero boxes that have mid-bass or bass speakers in the enclosure.
- High sensitivity and power ratings to make sure your midrange frequencies pierce through the bass and midrange for an amazing full sound.
Technical Details
| Model: | PRO-GM6.4 |
| Type: | Midrange Loudspeaker |
| Size: | 6.5" |
| RMS Power: | 140W |
| MAX Power: | 480W |

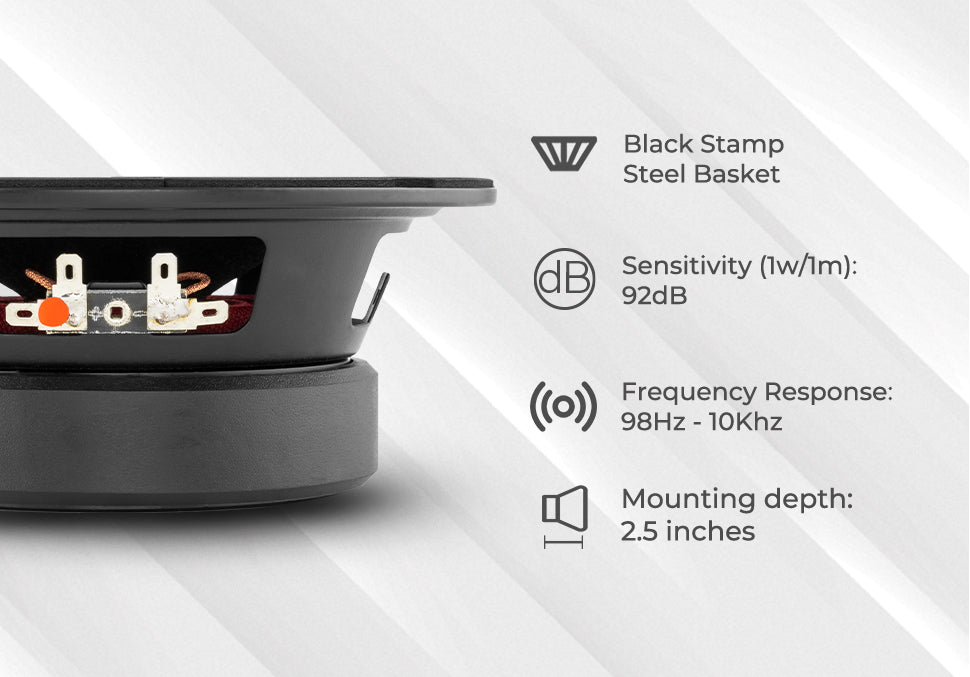

| Frequency Response: | 98Hz - 10KHz |
| Impedance: | 4 Ohm |
| Sensitivity: | 92dB |
| Materials | |
| Surround: | Cloth Surround |
| Frame: | Steel |
| Cone: | Black Paper Woofer Cone |
| Magnet: | Ferrite |
| Voice Coil Wire: | Kapton |
| Diameters | |

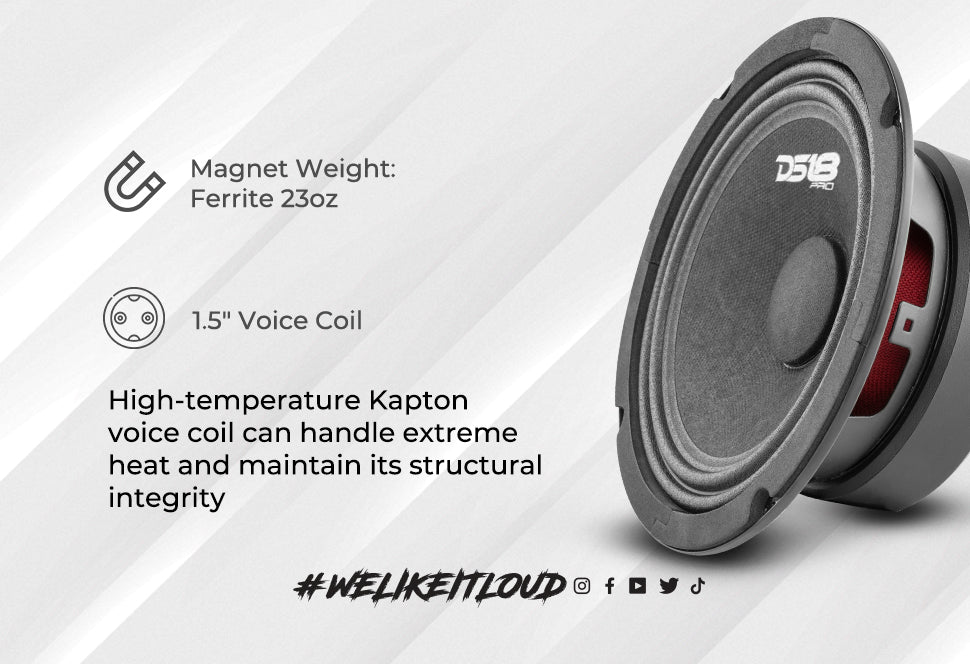

| Voice Coil Size: | 1.5" |
| Magnet Size: | 23 oz. |
| Mounting Depth: | 2.5" (64mm) |
| Cut-Out Dimensions: | 5.70" (145mm) |
Key Features
- 6.5" Mid-Range
- MAX Power: 480 Watts
- RMS Power: 140 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
Specifications
| SKU | PRO-GM6.4 |
|---|---|
| Nominal Diameter | 6.5" / 165.1mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 140W |
| MAX Power Handling | 480W |
| Sensitivity (1w/1m) | 92dB |

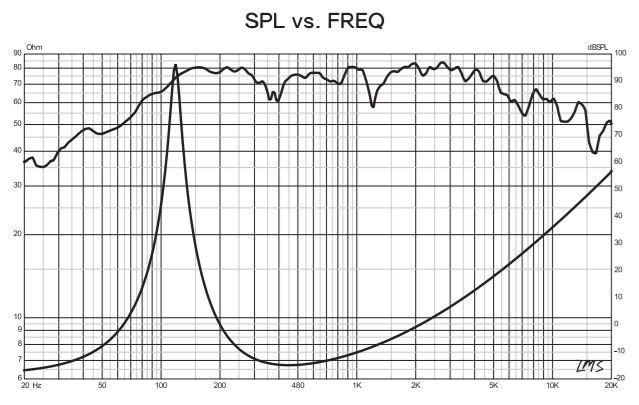

| Frequency Response | 100Hz-10KHz |
| Recommended HI Pass Crossover | 120Hz |
| Pair or Single | Single |
| Grill Included | No |
| Voice Coil Diameter | 1.5" / 38.1mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Bullet Material / Color | N/A |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Matte Black |
| Magnet Material | Ferrite |
| Magnet Weight | 23 oz |
| Equivalent Volume (Vas) | 7.15L / 0.252ft3 |
| Excursion (one way) (Xmax) | N/A |
| Free Air Resonance (Fs) | 102Hz |
| Mechanical Factor (Qms) | 11 |
| Electrical Factor (Qes) | 0.729 |
| Total Factor (Qts) | 0.684 |
| Mechanical Mass (Mms) | 8.384g |
| Mechanical Compliance (Cms) | 0.289mm/N |
| BL Factor | 4.95 |
| Voice Coil Inductance (Le) | 0.411mH |
| Cone Area (Sd) | 132.73cm2 |
| DC Resistance (Re) | 3.3 ohm |
| Overall Diameter | 6.57" / 167mm |
| Overall Depth | 2.7" / 69mm |
| Front Mount Baffle Cutout | 5.7" / 145 mm |
| Mounting Depth | 2.5" / 64mm |
| Motor Diameter | 4.33" / 110mm |
| Gross Single Unit Weight (lb) | 4 |
| Single Unit Box Dimensions W x L x H (Inches) | 7.3 x 7.3 x 3.25 |
| Quantity of Units in Master Carton | 8 |
| Gross Master Carton Weight (lb) | 32 |
| Master Carton Dimensions W x L x H (Inches) | 15.25 x 15.25 x 7.5 |
