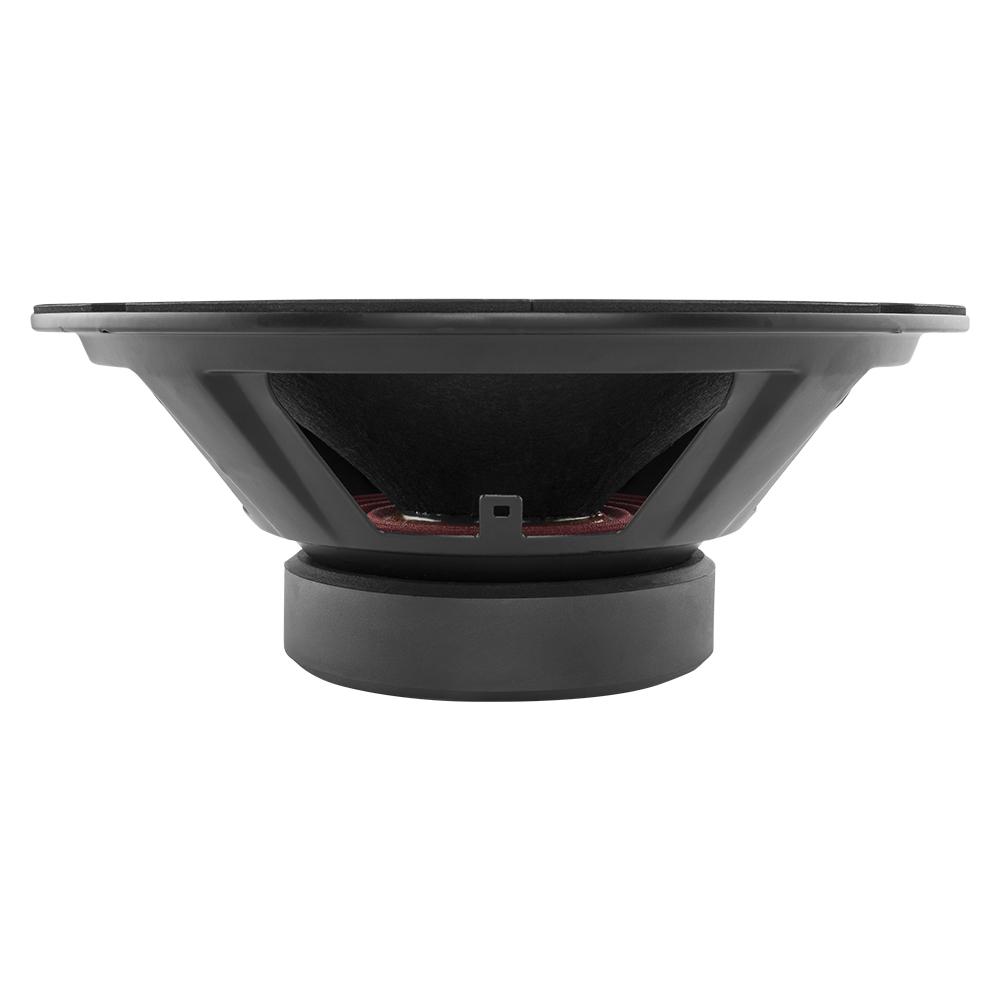

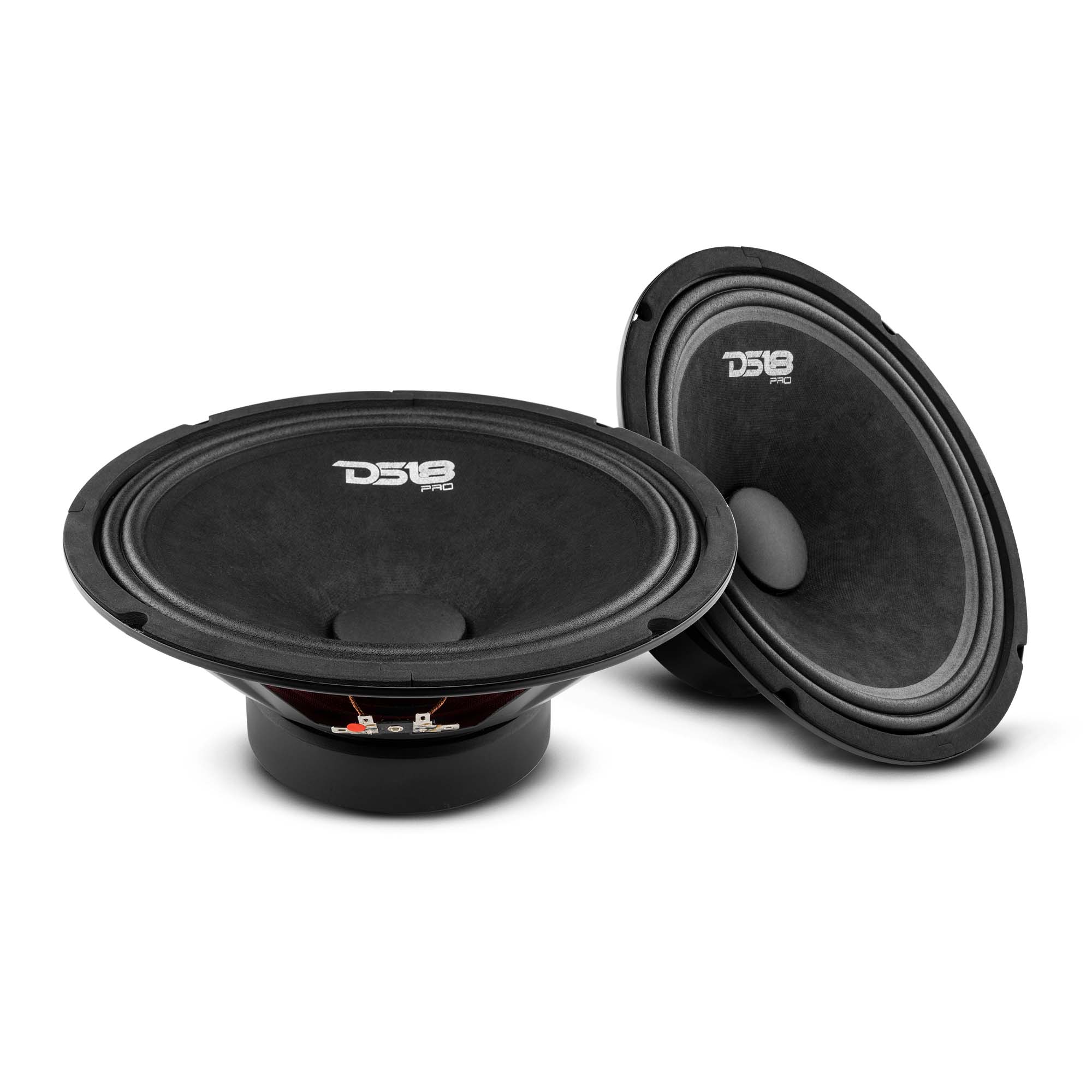

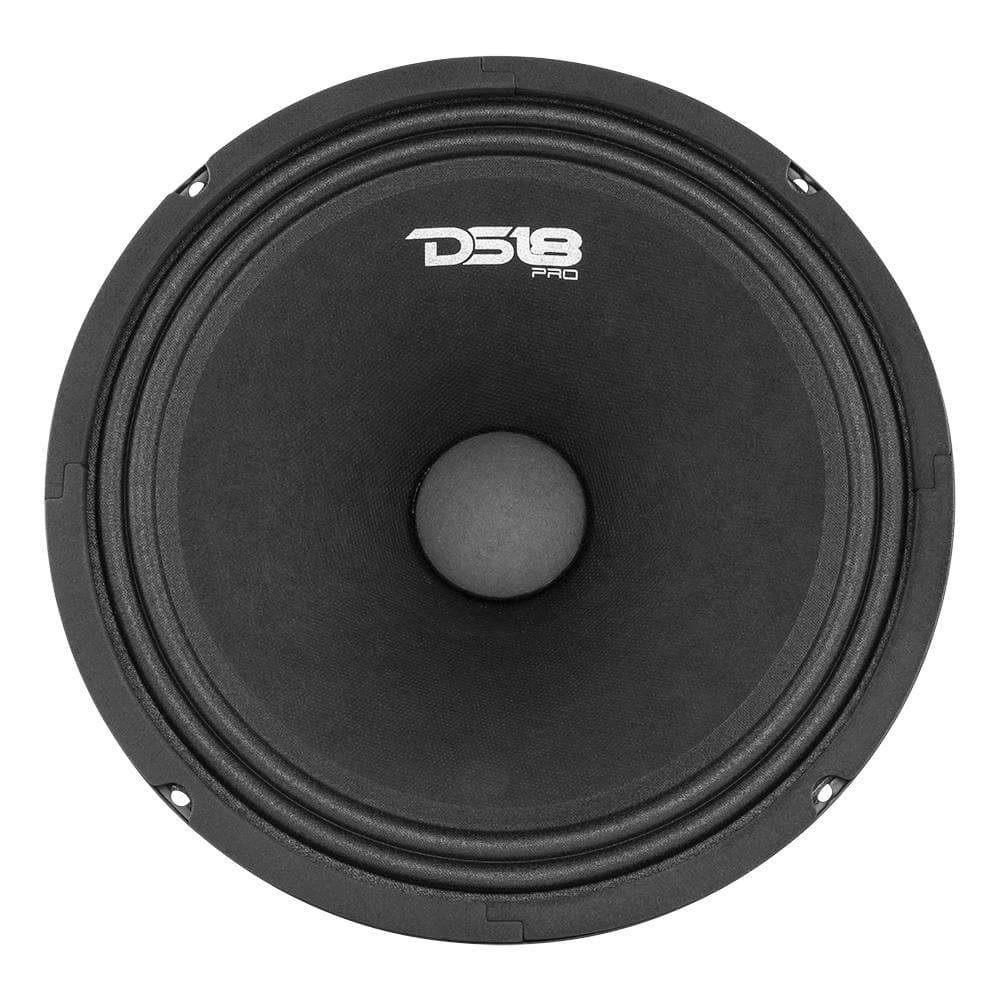

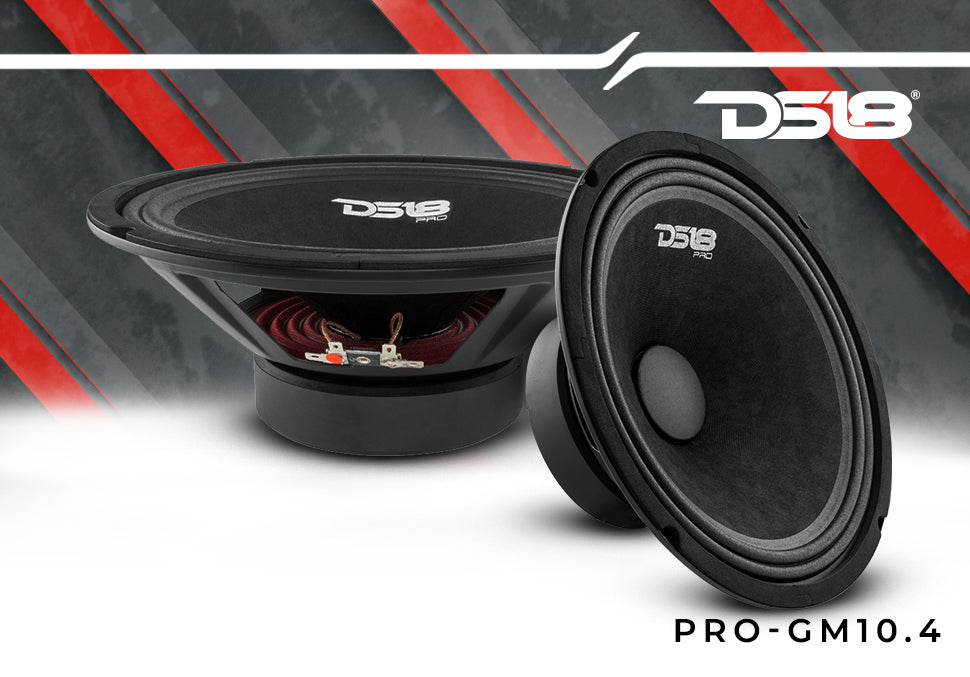

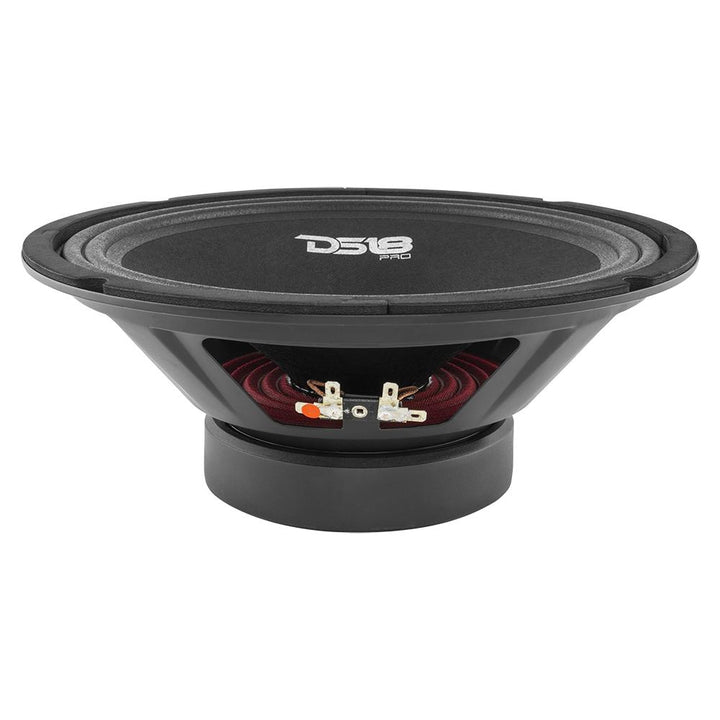

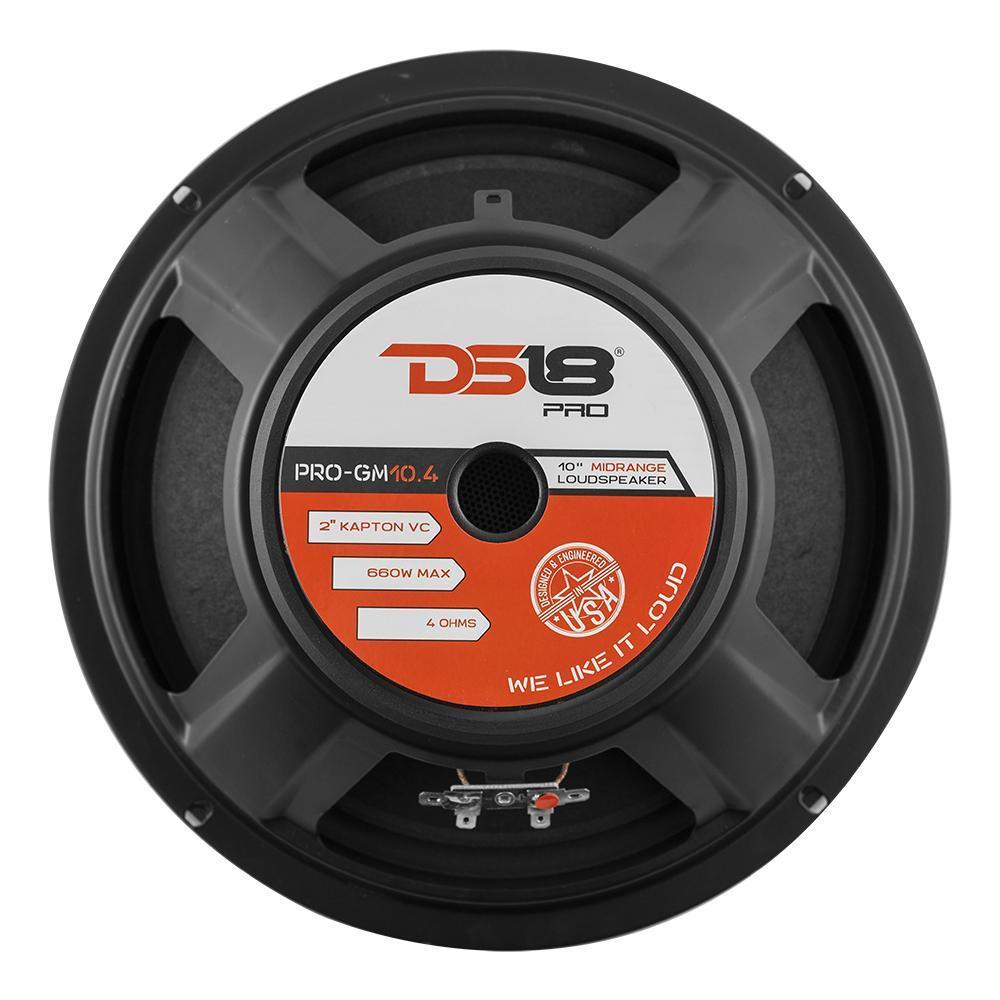

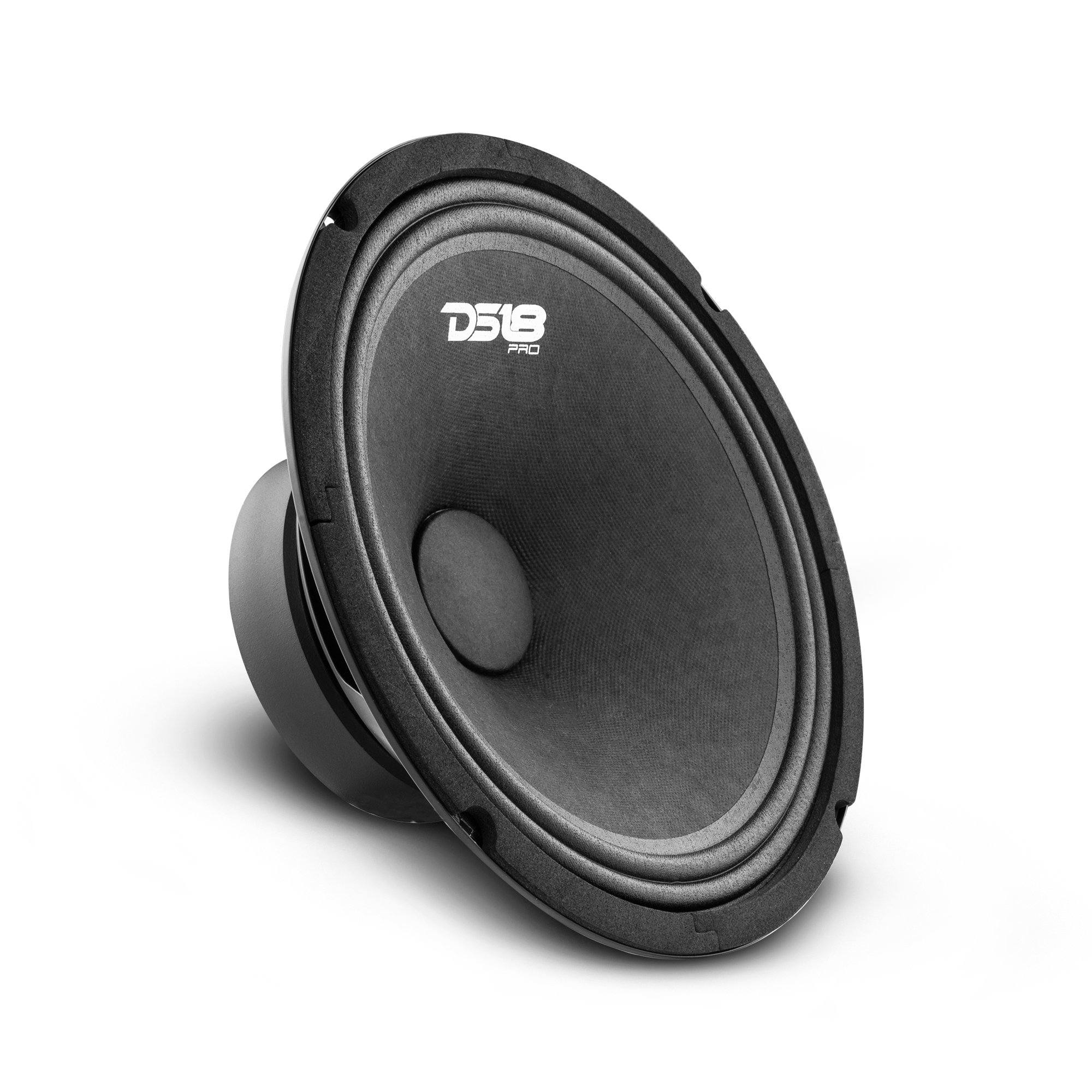

DS18 PRO-GM10.4 10" Mid-Range Loudspeaker 660 Watts 4-Ohm
Product Overview DS18 PRO-GM10.4 10" Mid-Range Loudspeaker 660 Watts 4-Ohm Everyone's favorite is now available in 4-Ohms...
Vendor:
DS18
Manufacturer SKU
PRO-GM10.4
Availability:
Out Of Stock
Product Type:
Midrange Loudspeakers
- $59.95
- $59.95
- Unit price
- per
Subtotal:
$59.95
Couldn't load pickup availability
Instructions:
View Instructions
Out of stock
Product Overview
DS18 PRO-GM10.4 10" Mid-Range Loudspeaker 660 Watts 4-Ohm
Everyone's favorite is now available in 4-Ohms During the focused R&D period of perfecting the PRO-EXL line, DS18 identified the opportunity to spawn off another line since there was a division amongst competition audiophiles and concert/"voceteo" audiophiles. Therefore, DS18 created the PRO-GM audio line, which features a wide variety of midranges the produce concert-like sounds that will knock the wind out of you.
A midrange driver is called upon to handle the most significant part of the audible sound spectrum, the region where the most fundamentals emitted by musical instruments and, most importantly, the human voice, lie. This region contains sounds which are the most familiar to the human ear, and where discrepancies from faithful reproduction are most easily observed. It is therefore paramount that a mid-range driver of good quality be capable of low-distortion reproduction.

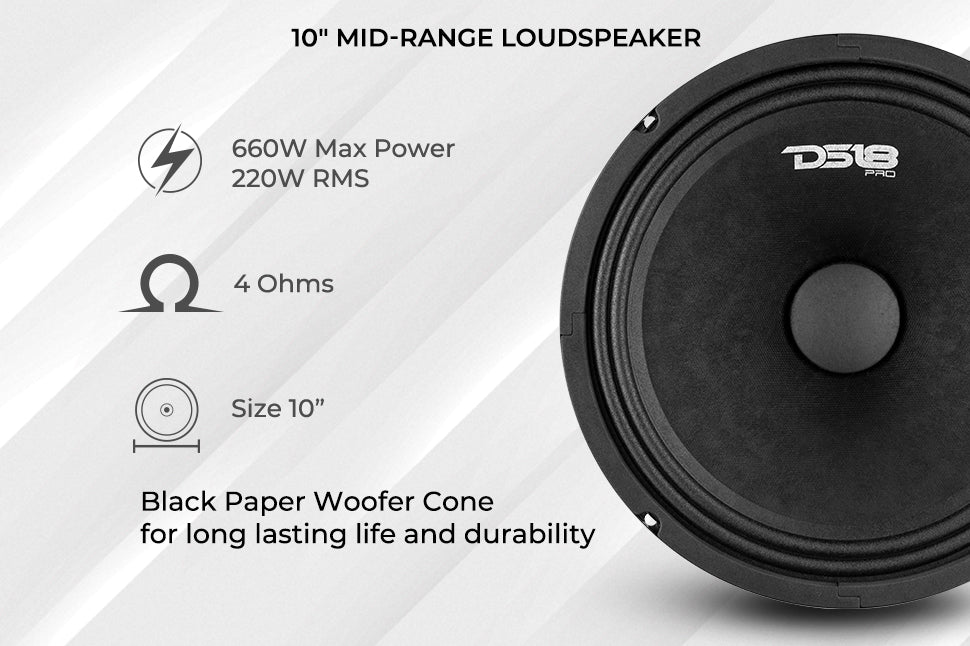

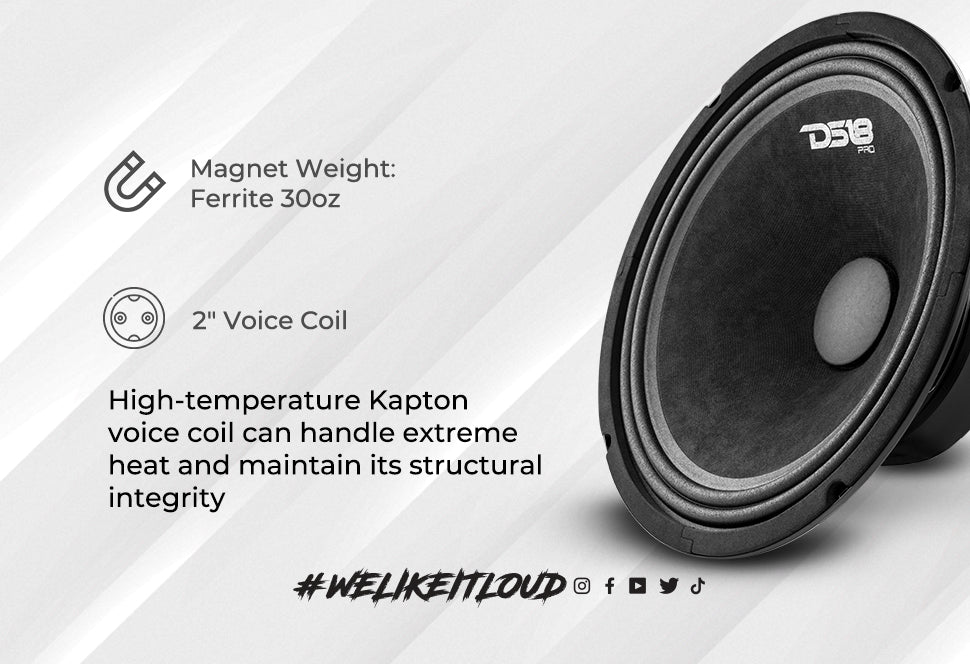

Highlights
- DS18's highly popular series of High Powered pro audio.
- Great DS18 design of high durability parts including strong ferrite magnet, pressed paper cone, and CCA voice coils to get you maximum loudness with great sound quality.
- These mids come with a solid cone design and are pure midrange speakers and will be greatly complemented with a not included tweeter.
Technical Details
| Model: | PRO-GM10.4 |
| Type: | Midrange Loudspeaker |
| Size: | 10" |
| RMS Power: | 220W |
| MAX Power: | 660W |

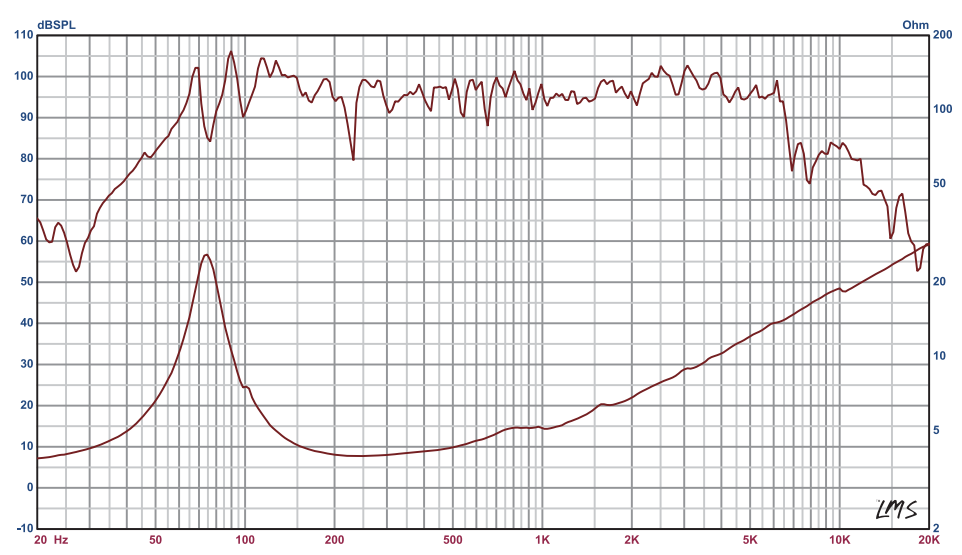

| Frequency Response: | 40Hz-6.3KHz |
| Impedance: | 4 Ohms |
| Sensitivity: | 95dB |
| Materials | |
| Surround: | Cloth Surround |

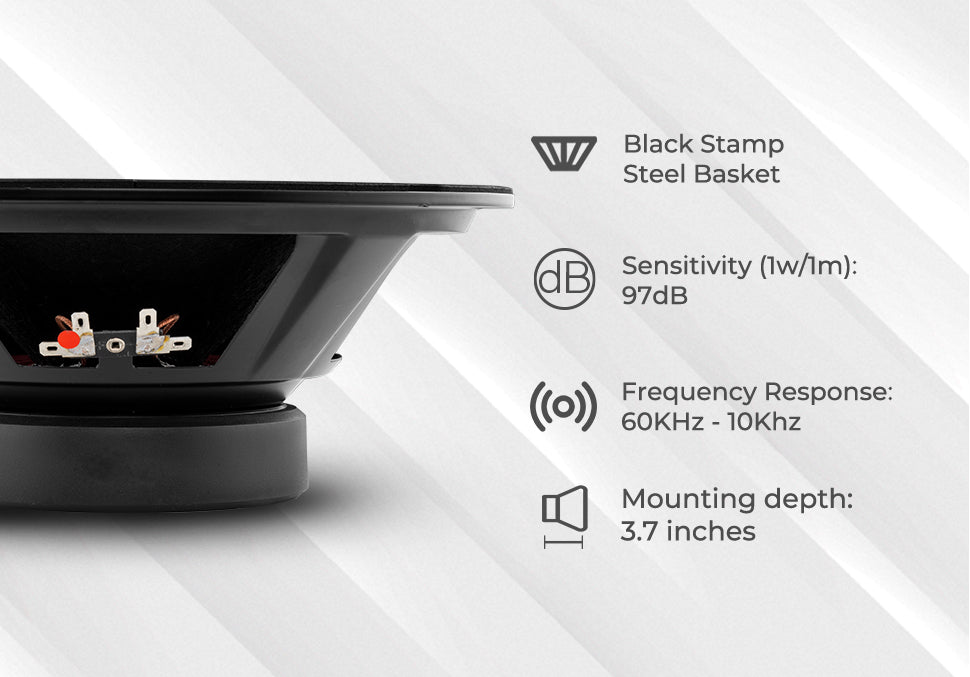

| Frame: | Black Stamp Steel Basket |
| Cone: | Black Paper Woofer Cone |
| Magnet: | Ferrite |
| Voice Coil Wire: | Kapton |
| Diameters | |
| Voice coil size: | 2" |
| Magnet Weight: | 30 oz. |
| Mounting Depth: | 3.7" (96mm) |
| Cut-Out Dimension: | 9.05" (182mm) |
| Fs | 59 Hz |
| Re | 3.4 Ohm |
| Qes | 0.808 |
| QMS | 14.565 |
| Qts | 0.765 |
| Vas | 79.3L / 2.8ft3 |
Key Features
- 10" Mid-Range
- MAX Power: 660 Watts
- RMS Power: 220 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
Specifications
| SKU | PRO-GM10.4 |
|---|---|
| Nominal Diameter | 10" / 254mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 220W |
| MAX Power Handling | 660W |
| Sensitivity (1w/1m) | 95dB |
| Frequency Response | 40Hz-6.3KHz |
| Recommended HI Pass Crossover | 90Hz |
| Pair or Single | Single |
| Grill Included | No |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Bullet Material / Color | N/A |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Matte Black |
| Magnet Material | Ferrite |
| Magnet Weight | 30 oz |
| Equivalent Volume (Vas) | 79.3L / 2.8ft3 |
| Excursion (one way) (Xmax) | N/A |
| Free Air Resonance (Fs) | 59Hz |
| Mechanical Factor (Qms) | 14.565 |
| Electrical Factor (Qes) | 0.808 |
| Total Factor (Qts) | 0.765 |
| Mechanical Mass (Mms) | 15.6g |
| Mechanical Compliance (Cms) | 0.462mm/H |
| BL Factor (BL) | 4.98 |
| Voice Coil Inductance (Le) | 0.599mH |
| Cone Area (Sd) | 349.67cm2 |
| DC Resistance (Re) | 3.4 ohm |

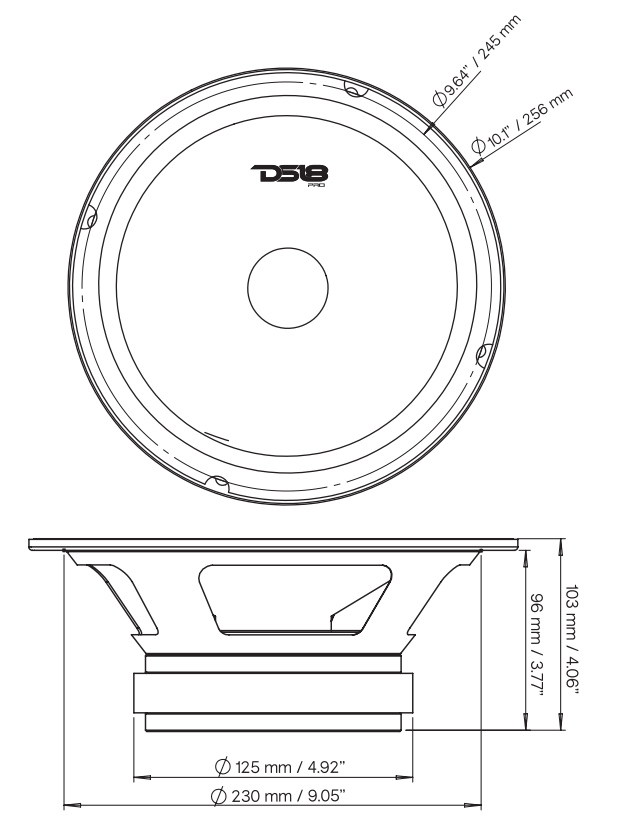

| Overall Diameter | 10.1"/ 256 mm |
| Overall Depth | 4"/103 mm |
| Front Mount Baffle Cutout | 9"/230 mm |
| Mounting Depth | 3.7"/ 96mm |
| Motor Diameter | 4.72" / 120mm |
| Gross Single Unit Weight (lb) | 5.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 10.5 x 10.5 x 4.5 |
| Quantity of Units in Master Carton | 4 |
| Gross Master Carton Weight (lb) | 23 |
| Master Carton Dimensions W x L x H (Inches) | 21.5 x 11.25 x 10 |
