Product Overview

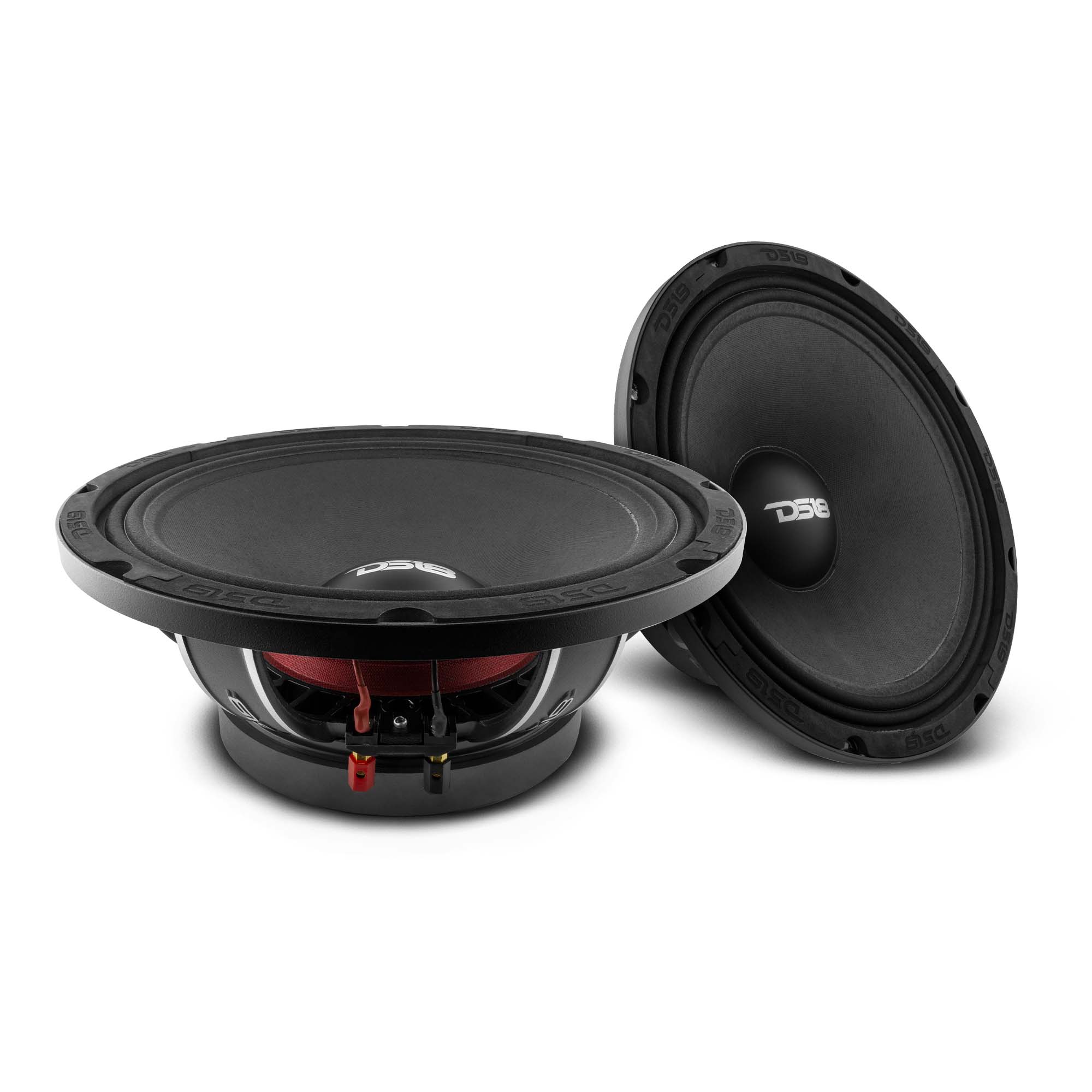

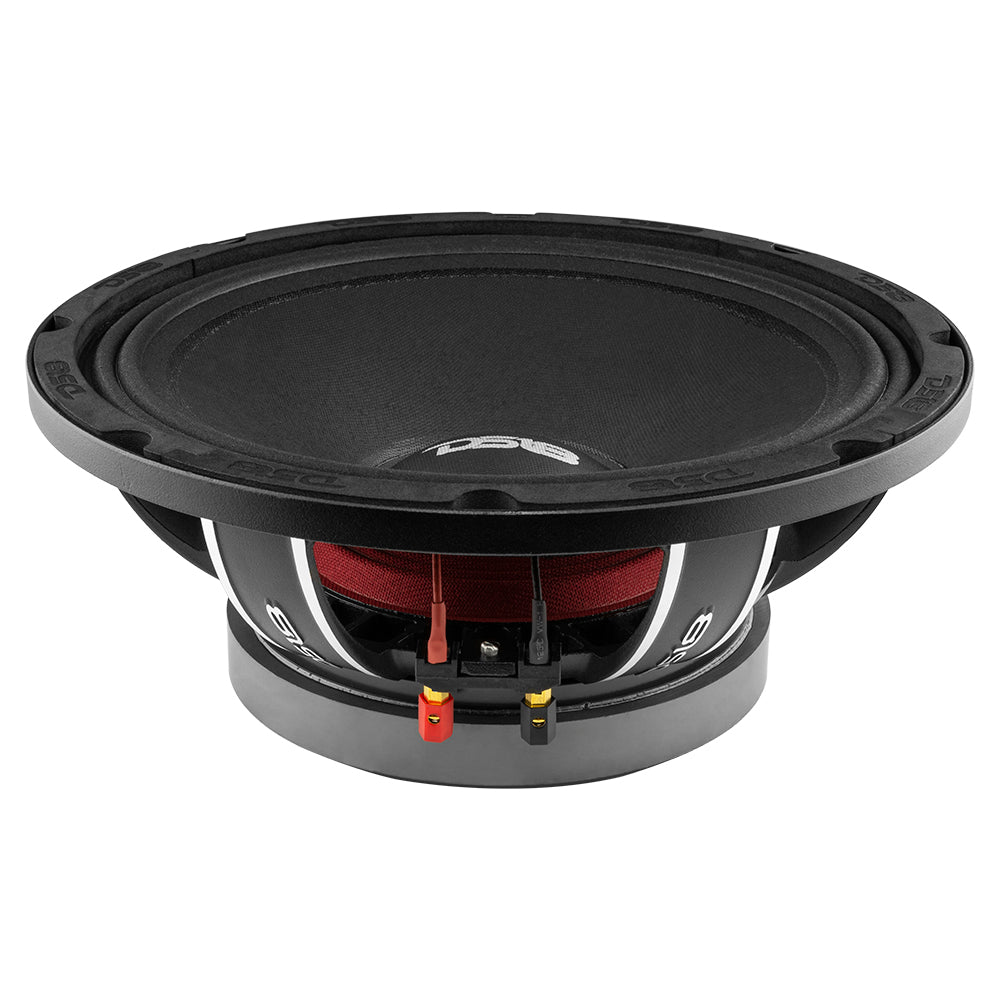

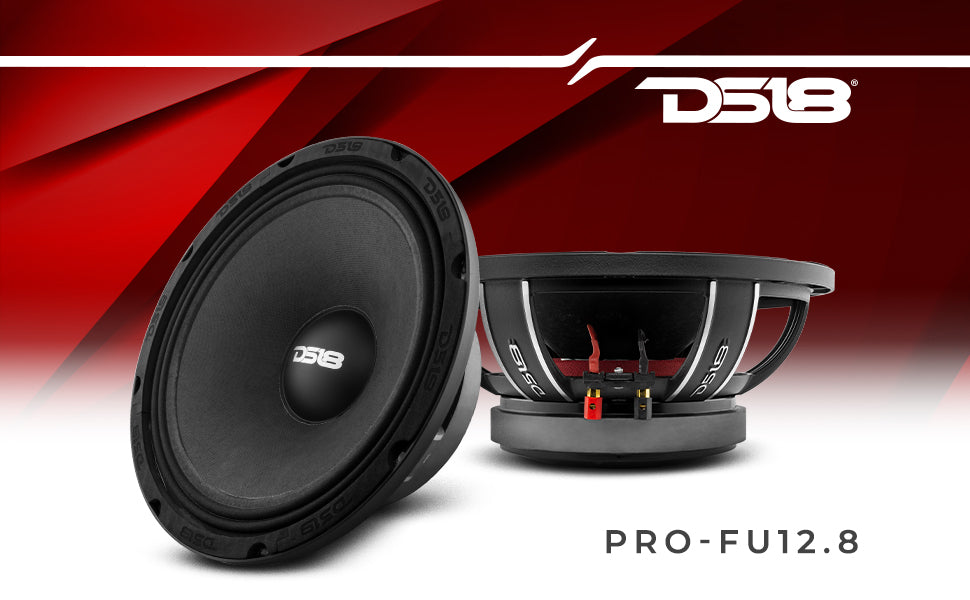

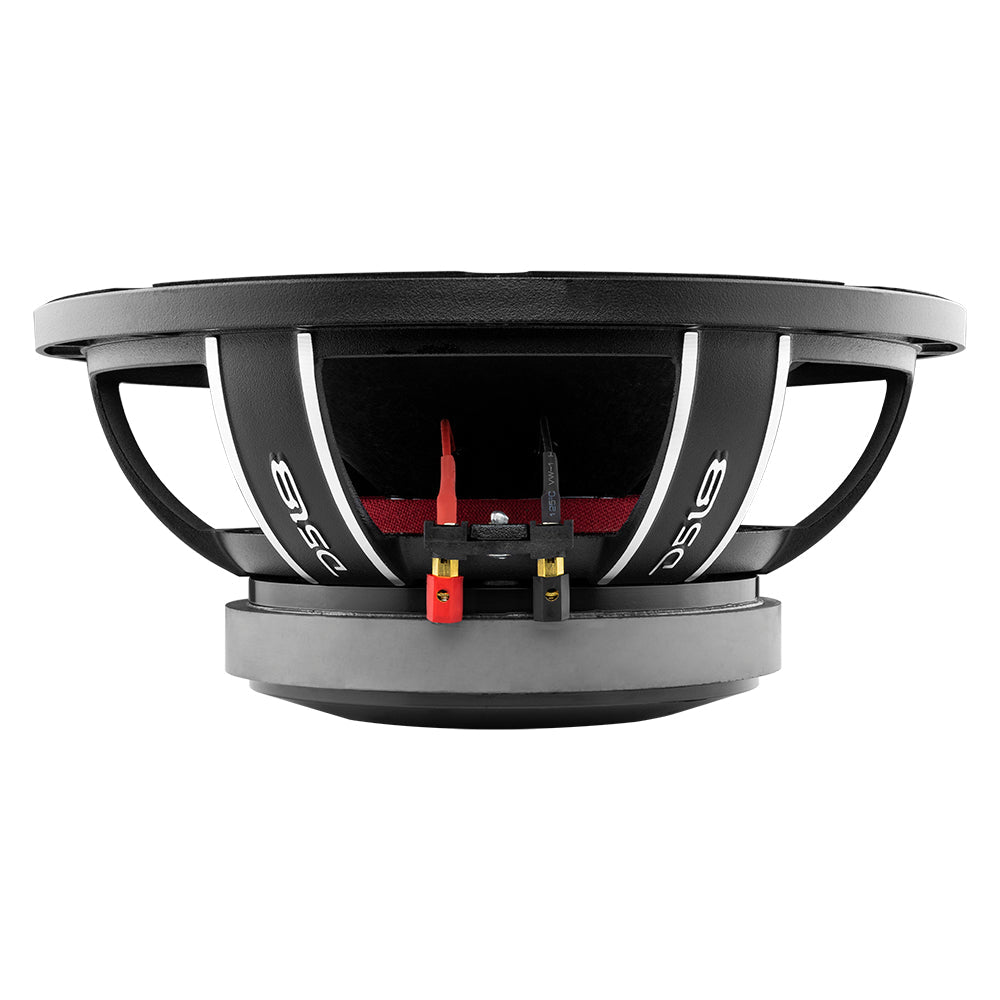

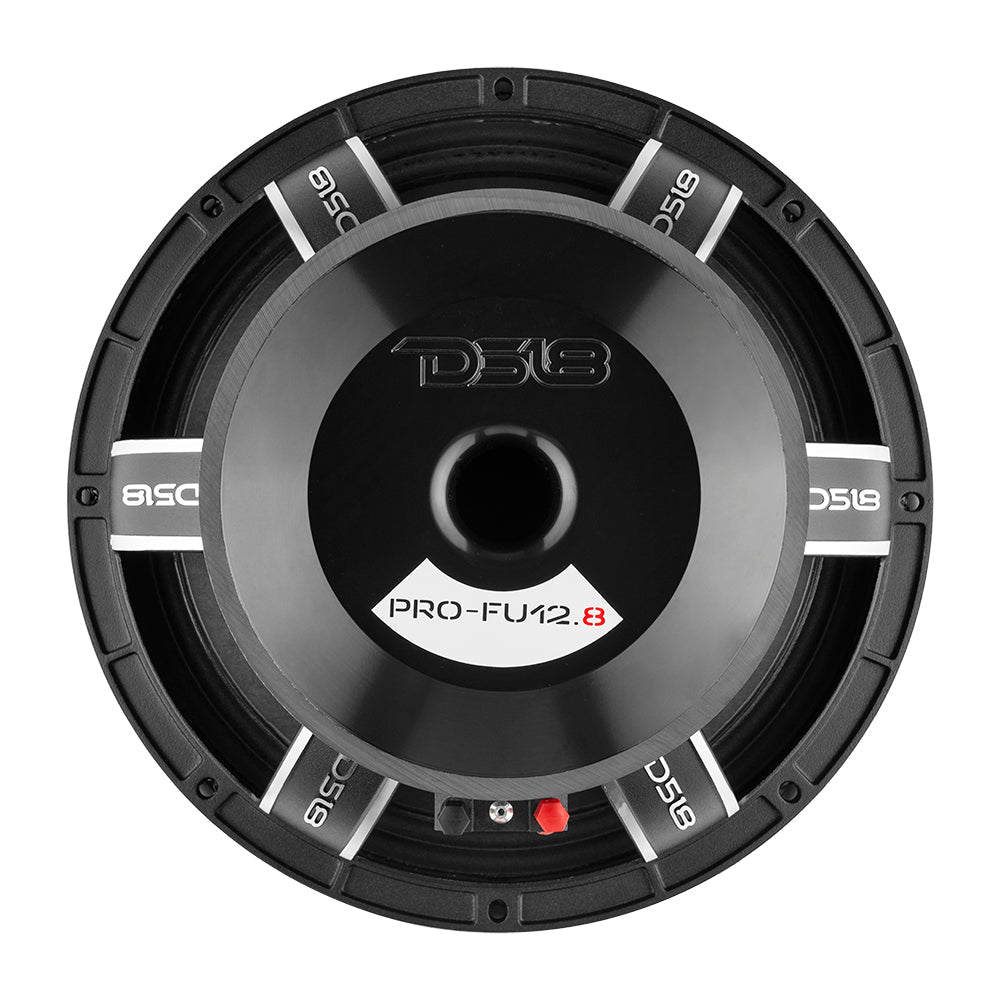

DS18 PRO-FU12.8 12" Mid-Range Loudspeaker 1200 Watts 8-Ohm

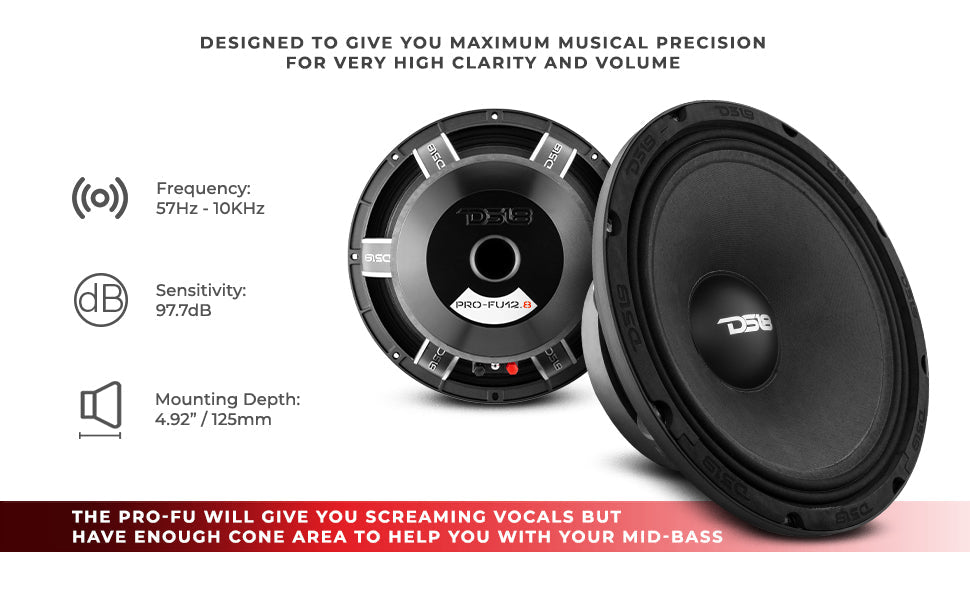

A fresh new DS18 Mid-Range speaker has landed on the pro audio scene! The PRO-FU12.8 sports a 3 inch voice coil, high quality parts, and are a great choice for your pro audio needs. These were designed to give you maximum musical precision for very high clarity and volume. The 3 inch voice coil will take 600 watts RMS and 1200 watts Max with extreme efficiency and reliability. The PRO-FU will give you screaming vocals but have enough cone area to help with you with your mid-bass.
Highlights
- Amazing pro audio construction that emphasizes loudness and needs to be accompanied by components.

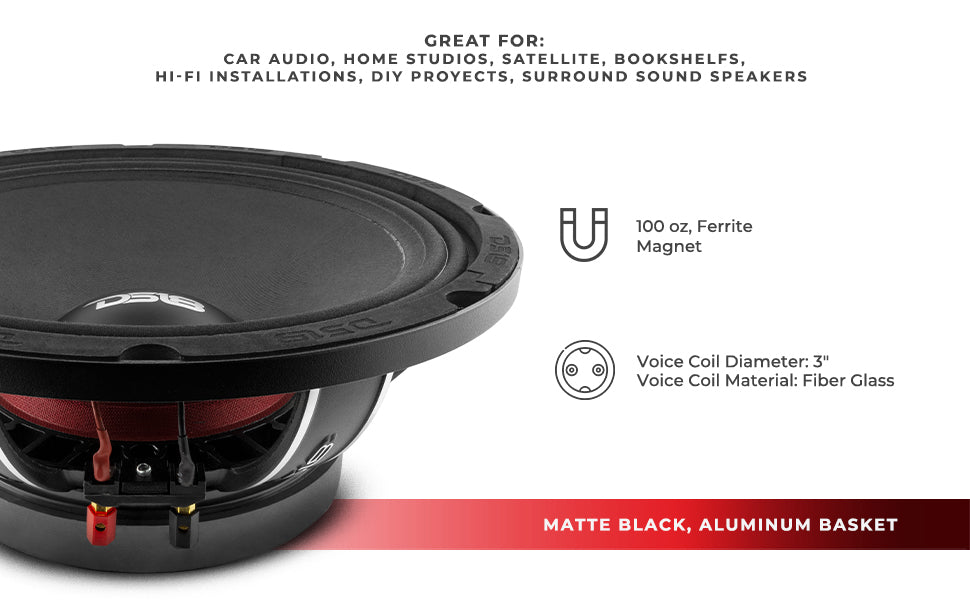

- DS18 Tooled black stealth basket maintaining great looks with the highest integrity in mind.
- High powered pro audio voice coils housed in massive ferrite motors for the greatest efficiency to power ratio possible.
Technical Details
| Model | PRO-FU12.8 |
| Nominal Diameter | 12" |
| Nominal Impedance | 8 Ohms |
| MAX Power Handling | 1200W |
| RMS Power Handling | 600W |
| Sensitivity (1w/1m) | 97.7 dB |

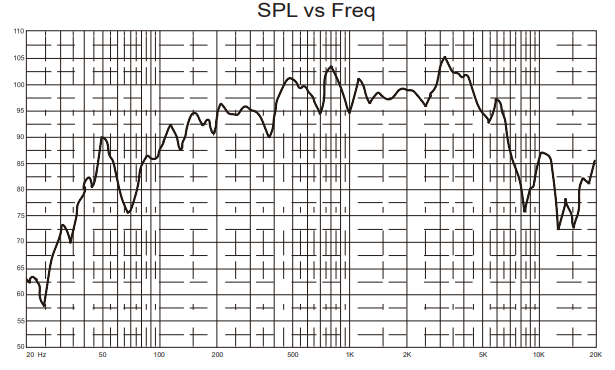

| Frequency Response | 57Hz - 10KHz |
| Recommended HI Pass Crossover | 80Hz |
| Motor | |
| Voice Coil Diameter | 3" |
| Voice Coil former Material | Fiber Glass |
| Winding Material | CCAW |
| Cone Material | Non-pressed Paper |
| Dust Cap | Paper |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 100 oz. |
| Measurements | |
| Overall Diameter | 12.4" |
| Front Mount Baffle Cutout | 5.39" |
| Mounting Depth | 11.2" |
| Overall Depth | 4.92" |
| Motor Diameter | 7.4" |

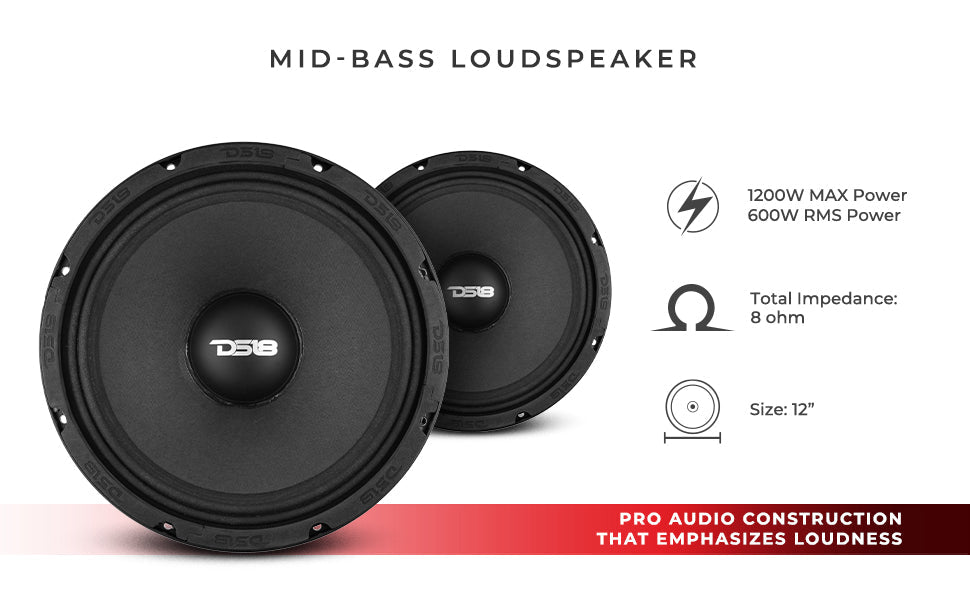

Key Features
- 12" Mid-Range
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- Aluminum Basket
Specifications
| SKU | PRO-FU12.8 |
|---|---|
| Nominal Diameter | 12" |
| Nominal Impedance | 8 Ohms |
| RMS Power Handing | 600W |
| Maximum Power Handing | 1200W |
| Sensitivity (1w/1m) | 97.7dB |
| Frequency Response | 57Hz-10KHz |
| Recommended Hi Pass Crossover | 80Hz |
| Voice Coil Diameter | 3" / 76.2mm |
| Voice Coil Former Material | . Fiber Glass |
| Winding Material | CCA |
| Basket Material | Aluminum |
| Magnet Weight | 100 oz |
| Vas | 68.29L |
| Xmax | 20 mm |
| Fs | 57.6Hz |
| Qms | 3.906 |
| Qes | 0.42 |
| Qts | 0.379 |
| Re | 5.6 ohm |
| Overall Diameter | 12.4" / 316mm |
| Front Mount Baffle Cutout | 11.2" / 285mm |
| Mounting Depth | 4.92" / 125mm |
| Overall Depth | 5.39" / 137mm |
| Product Weight | 20 lbs |
| Product Dimensions | 13.25 x 13.25 x 6.5 |
| M/C Weight | 41 lbs |
| M/C Dimensions | 14 x 14 x 13.5 |
| M/C QTY | 2 |
| Sold In | Piece |
