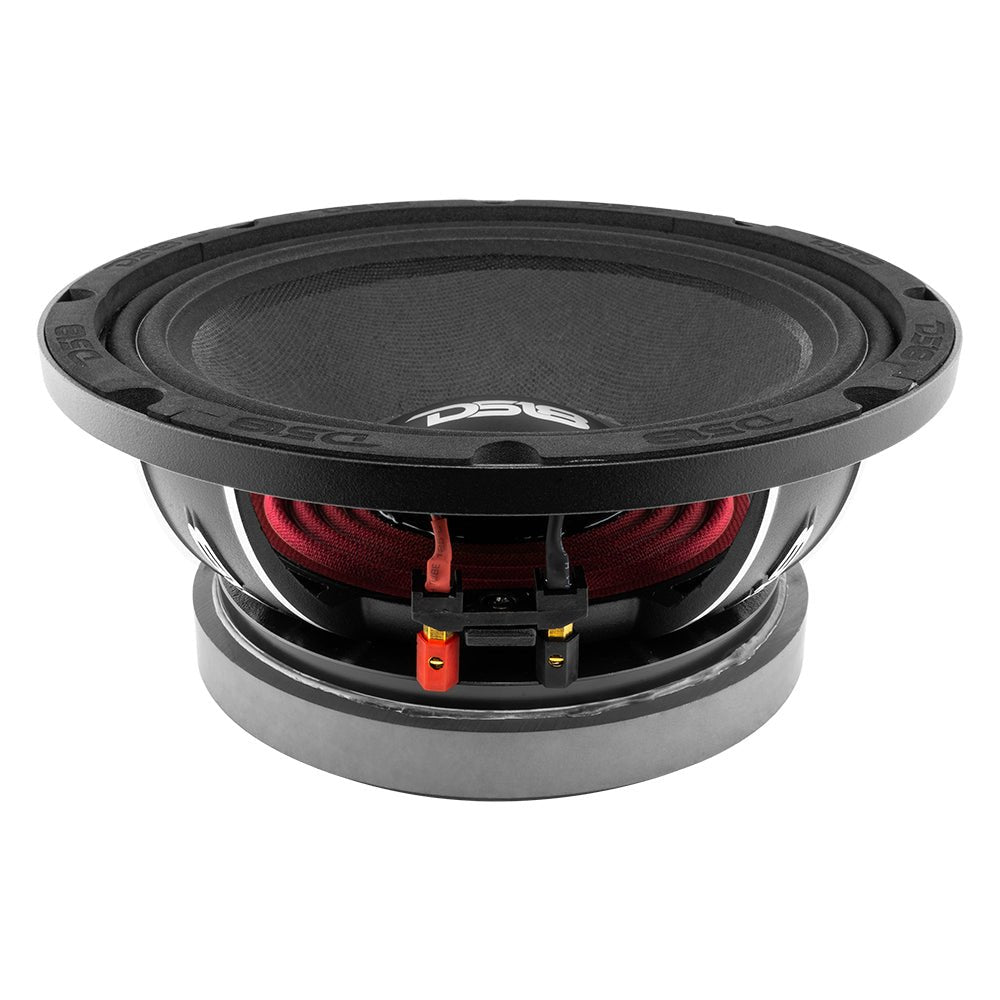

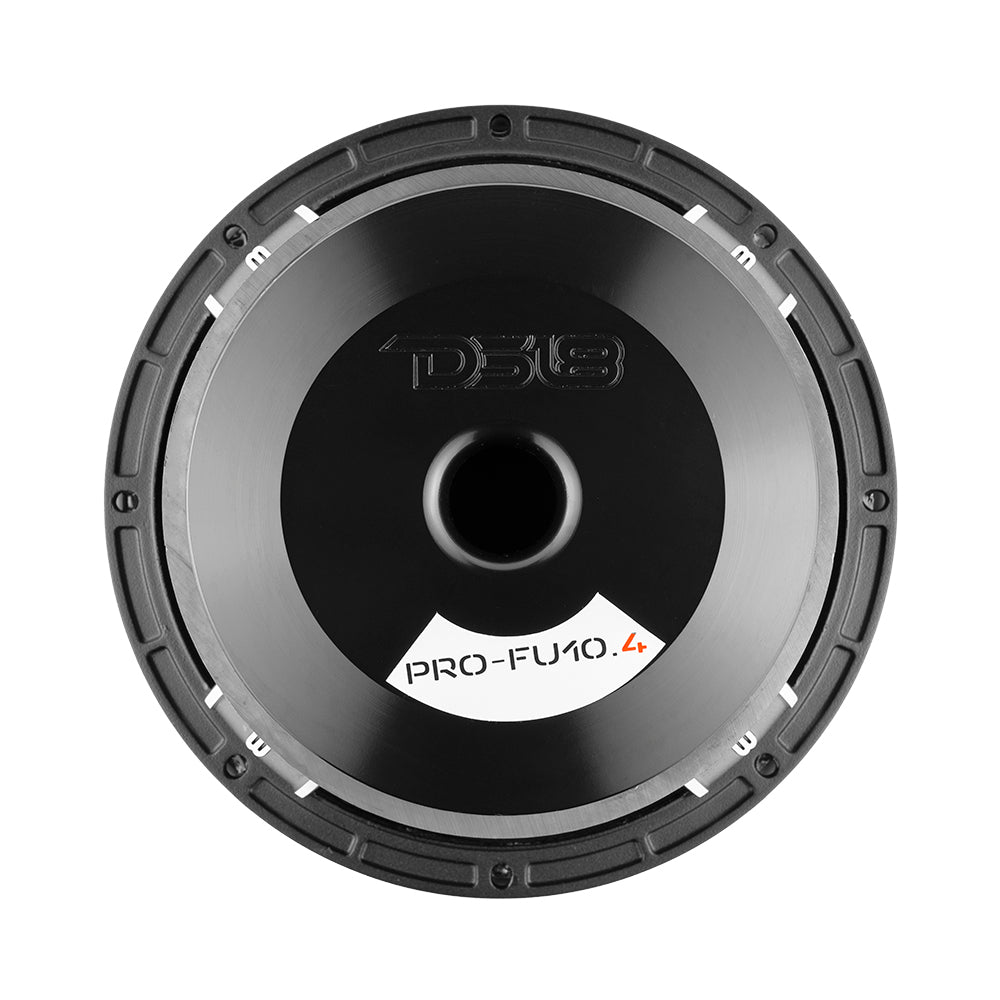

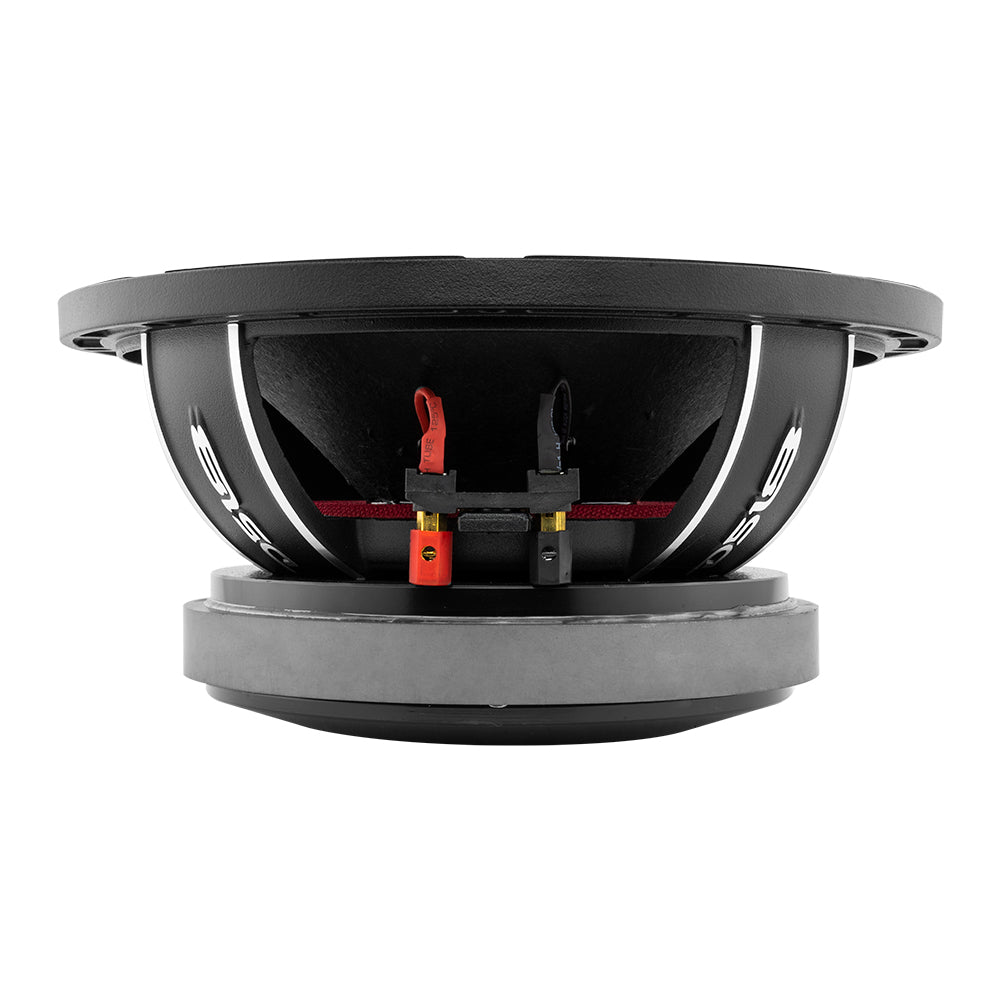

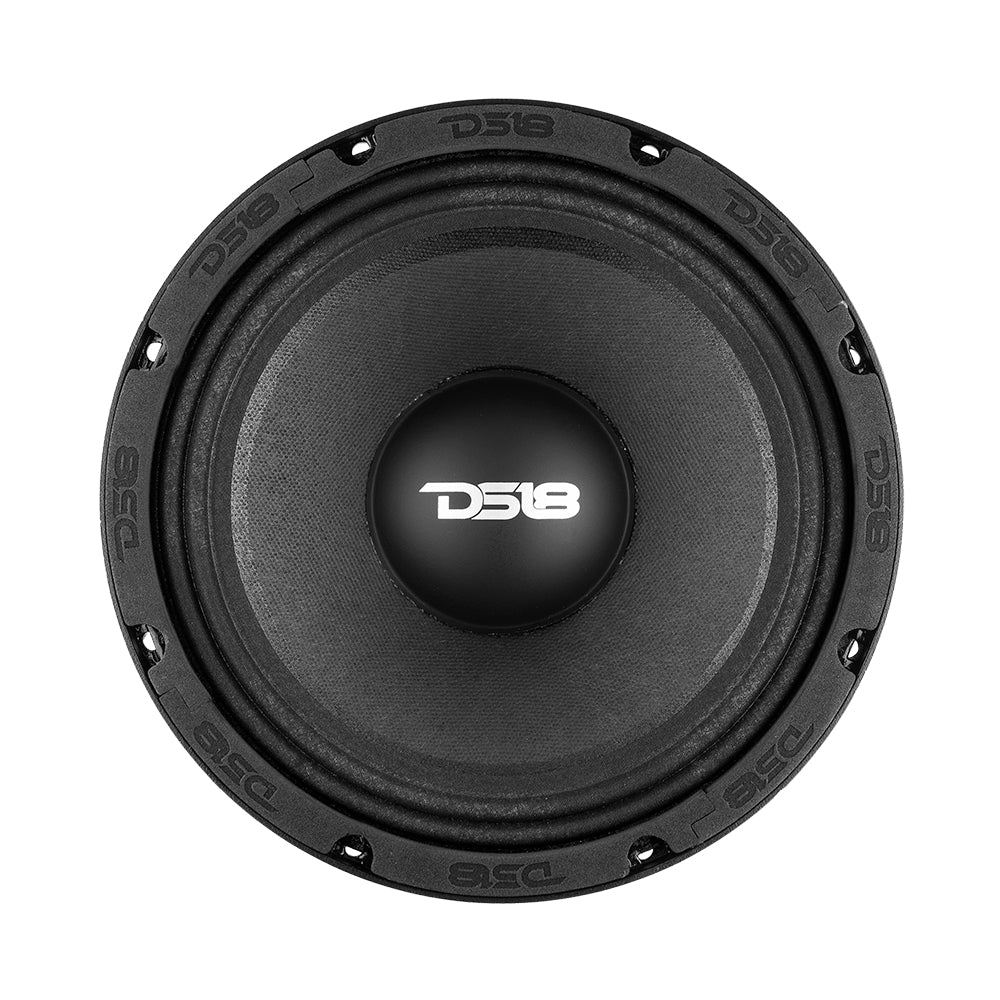

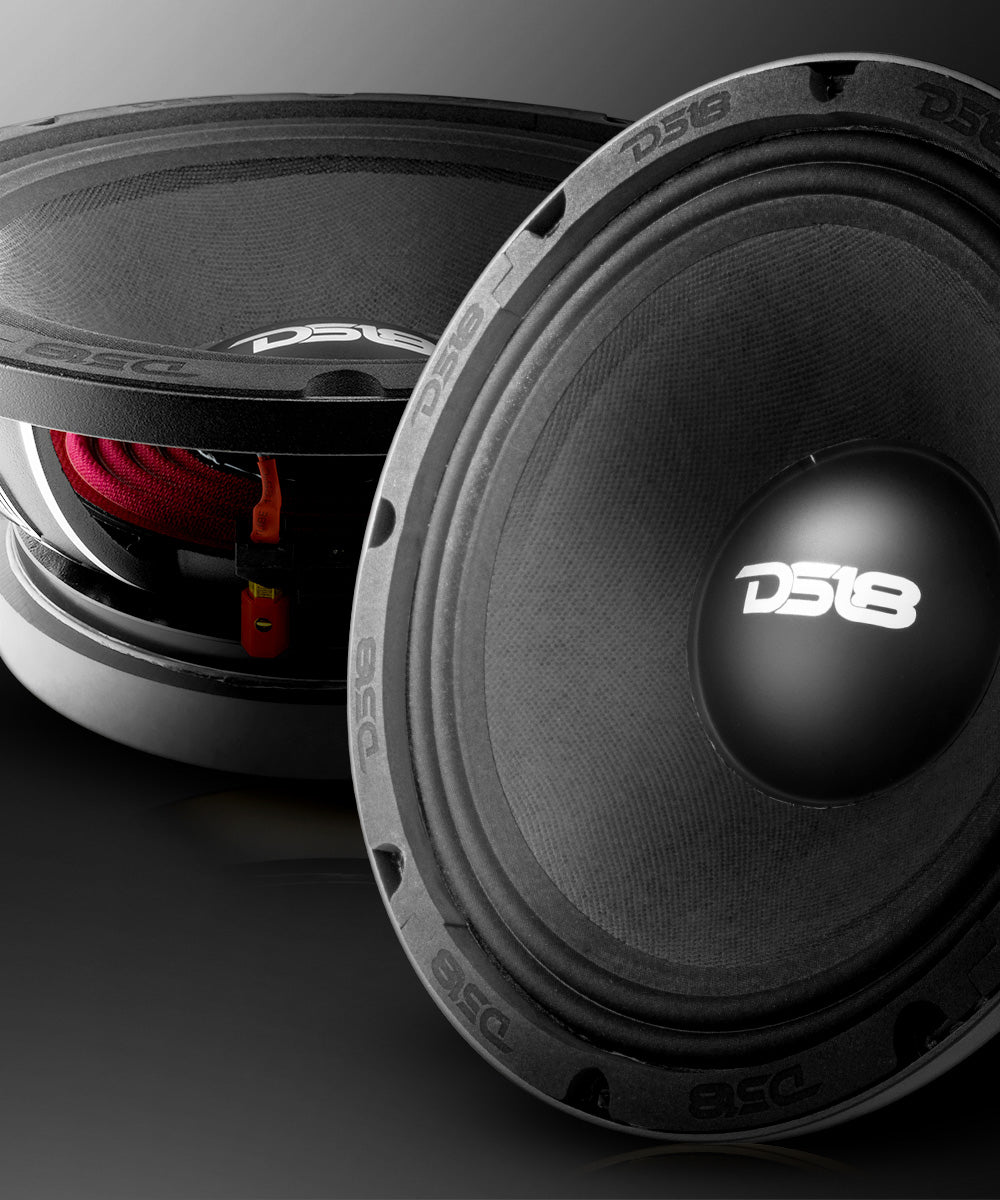

PRO-FU 10" Mid-Range Loudspeaker 400 Watts Rms 4-Ohm

Availability: Out of stock SKU: PRO-FU10.4
Regular price $155.95 Sale price $124.76

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

Product Overview

DS18 PRO-FU10.4 10" Mid-Range Loudspeaker 800 Watts 4-Ohm

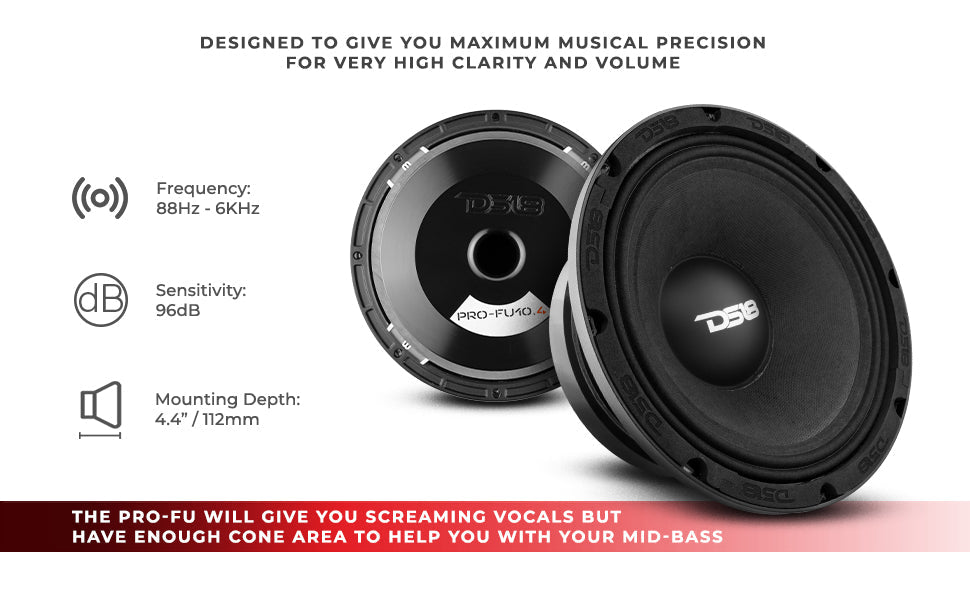

A fresh new DS18 Mid-Range speaker has landed on the pro audio scene! The PRO FU10.4 sports a 3 inch voice coil, high quality parts, and are a great choice for your pro audio needs. These were designed to give you maximum musical precision for very high clarity and volume. The 3 inch voice coil will take 400 watts RMS and 800 watts max with extreme efficiency and reliability. The PRO FU will give you screaming vocals but have enough cone area to help with you with your mid-range.

Highlights

  • Amazing pro audio construction that emphasizes loudness and needs to be accompanied by components.
  • DS18 Tooled black stealth basket maintaining great looks with the highest integrity in mind.
  • High powered pro audio voice coils housed in massive ferrite motors for the greatest efficiency to power ratio possible.

Technical Details
                                                   PRO-FU10.4 Product Manual

Model PRO-FU10.4
Nominal Diameter 10"
Nominal Impedance 4 Ohms
MAX Power Handling 800W
RMS Power Handling 400W
Sensitivity (1w/1m) 96 dB

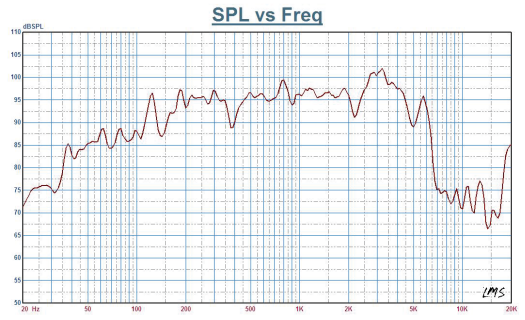

Frequency Response 88Hz-6KHz
Recommended HI Pass Crossover 120Hz
Motor

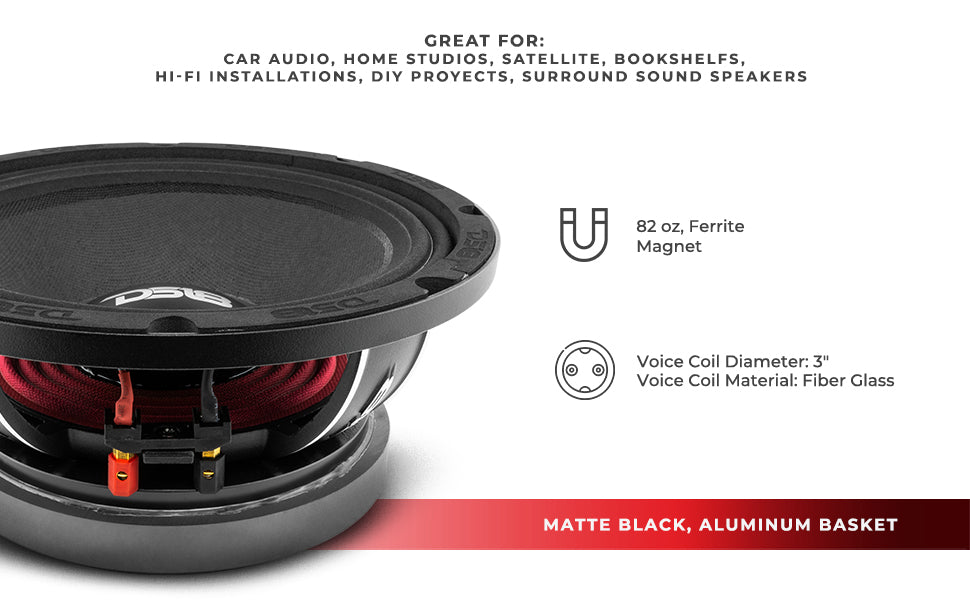

Voice Coil Diameter 3"
Voice Coil former Material Fiber Glass
Winding Material CCAW
Cone Material Non-pressed Paper
Dust Cap Paper
Surround Material Cloth
Basket Material Aluminum
Magnet Material Ferrite
Magnet Weight 82 oz
Measurements
Overall Diameter 10.35"
Front Mount Baffle Cutout 4.92"
Mounting Depth 9.05"
Overall Depth 4.4"
Motor Diameter 7.4"

Key Features

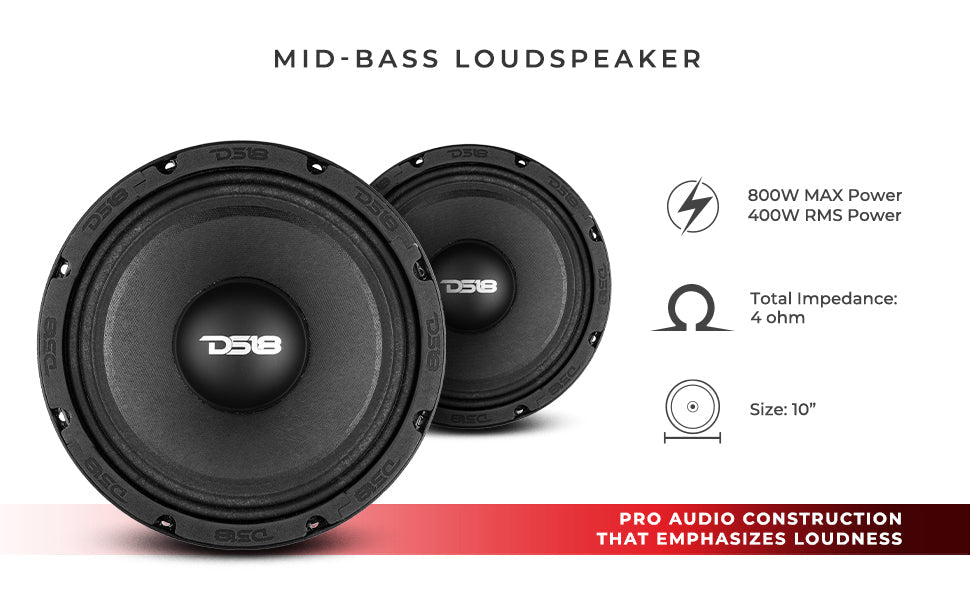

  • 10" Mid-Range
  • MAX Power: 800 Watts
  • RMS Power: 400 Watts
  • Impedance: 4-ohm
  • Ferrite Magnet
  • Aluminum Basket

Specifications

SKU PRO-FU10.4
Nominal Diameter 10"
Nominal Impedance 4 Ohms
RMS Power Handing 400W
Maximum Power Handing 800W
Sensitivity (1w/1m) 96dB
Frequency Response 88Hz-6KHz
Recommended Hi Pass Crossover 120Hz
Voice Coil Diameter 3" / 76.2mm
Voice Coil Former Material Fiber Glass
Winding Material CCA
Basket Material Aluminum
Magnet Weight 82 oz
Vas 21.936L
Xmax 5 mm
Fs 82.954Hz
Qms 3.21
Qes 0.473
Qts 0.412
Re 2.8 ohm

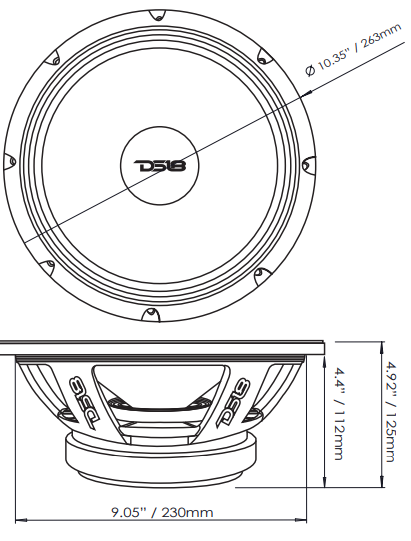

Overall Diameter 10.35" / 263mm
Front Mount Baffle Cutout 9.05" / 230mm
Mounting Depth 4.4" / 112mm
Overall Depth 4.92" / 125mm
Product Weight 1 lbs
Product Dimensions 11.5 x 11.5 x 4
M/C Weight 1 lbs
M/C Dimensions 11.5 x 11.5 x 4
M/C QTY 1
Sold In Piece
