PRO-EXL 8" Mid-Range Loudspeaker 400 Watts Rms 8-Ohm
Product Overview

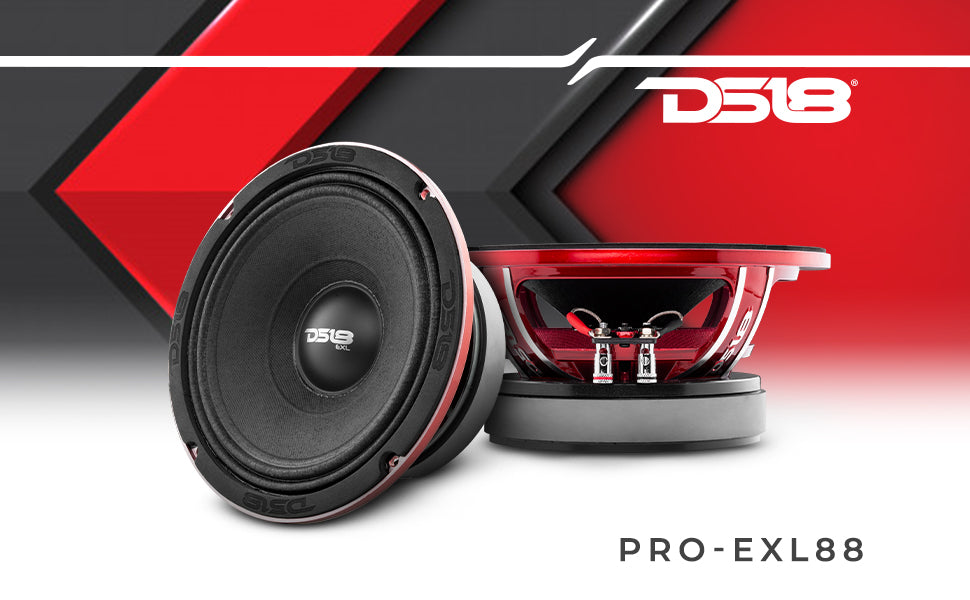

DS18 PRO-EXL88 8" Mid-Range Loudspeaker 800 Watts @ 8-Ohm

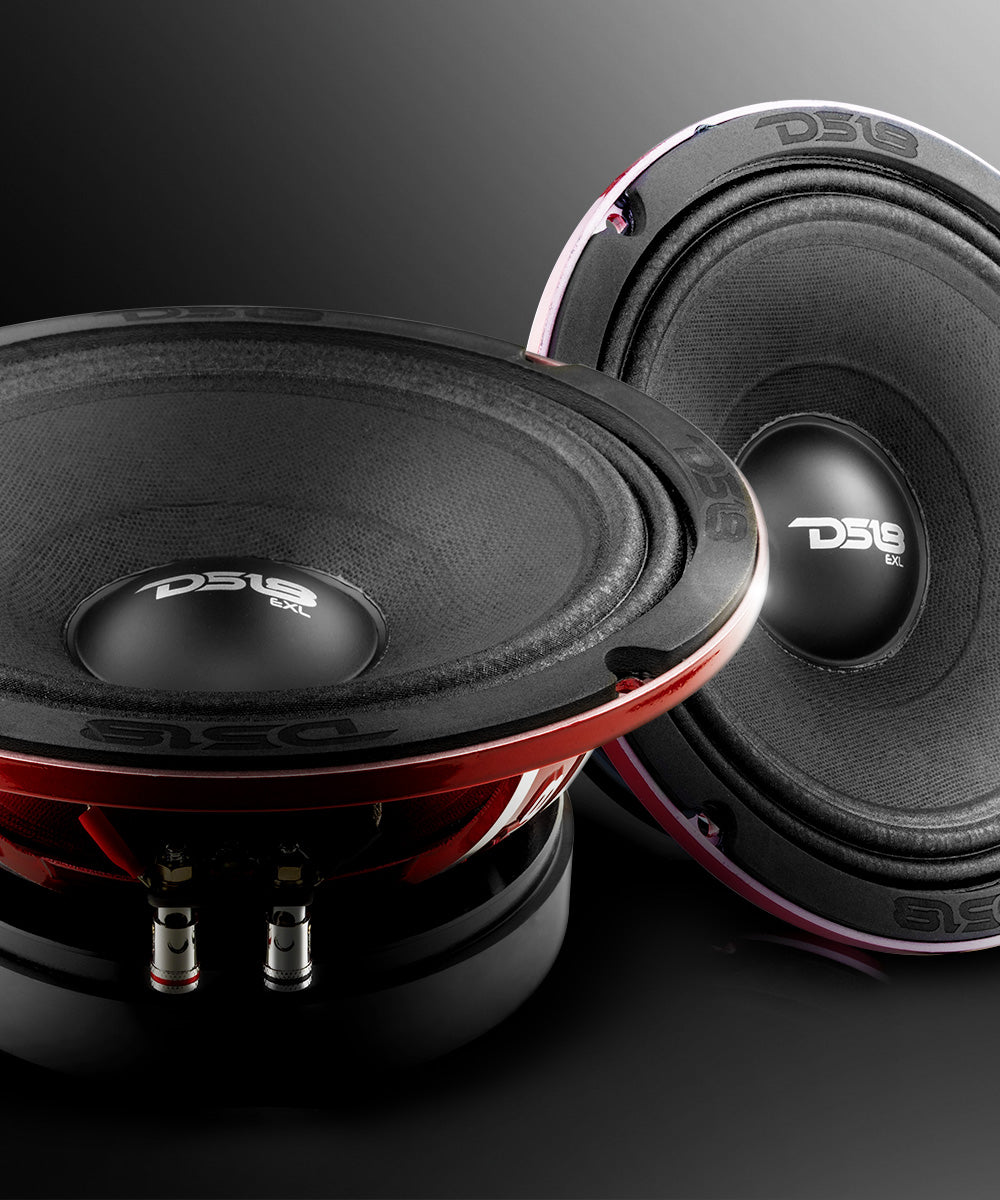

The people who live and breathe car audio demanded a higher-performing, extremely effective, and dynamic product series. After several months, and money allocated to R&D, DS18 is proud to launch the PRO-EXL Extremely Loud midrange series. They are the epitome of competition-quality midranges. Red aluminum baskets, cloth-edges, non-pressed paper cone, and the option for 8 ohms or 4 ohms impedance; these are only the basic components, the rest is pure DS18 technology.
Highlights
- Flagship DS18 series producing more midrange, more mid-bass, and more vocals for the serious pro audio enthusiasts.

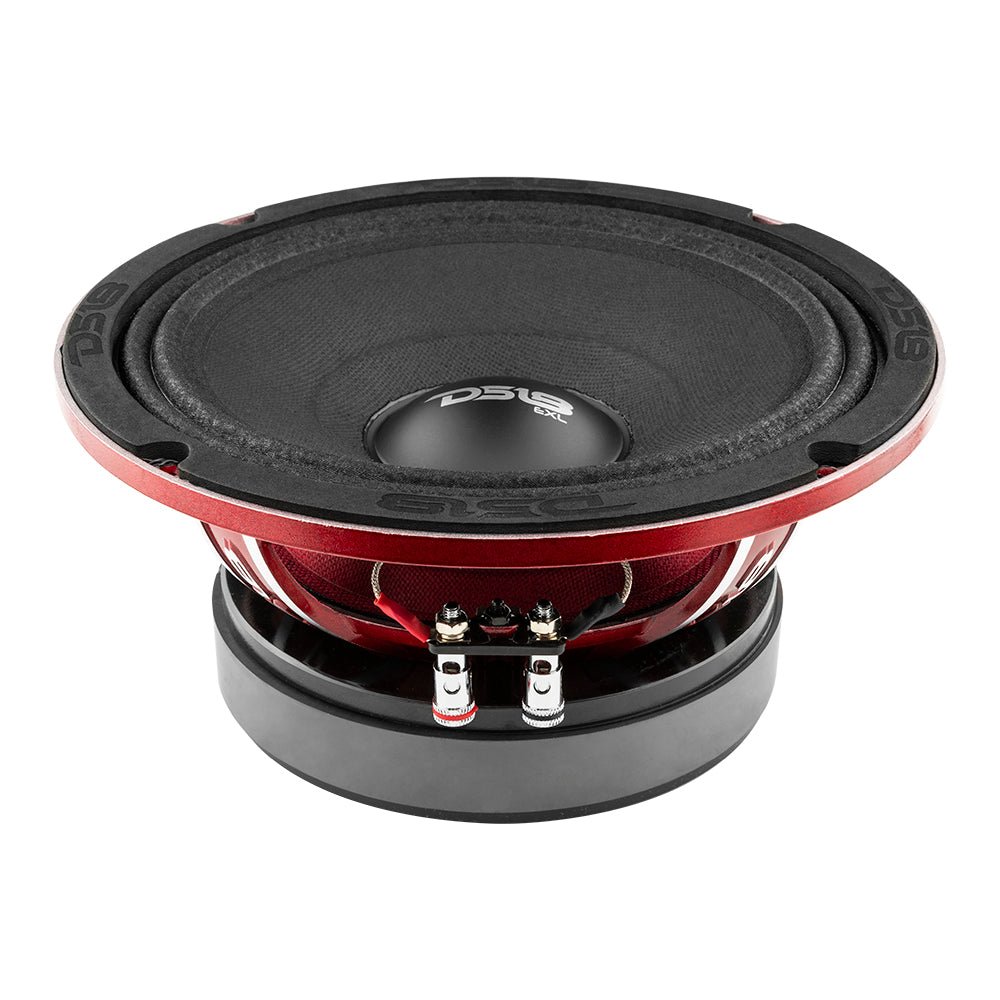

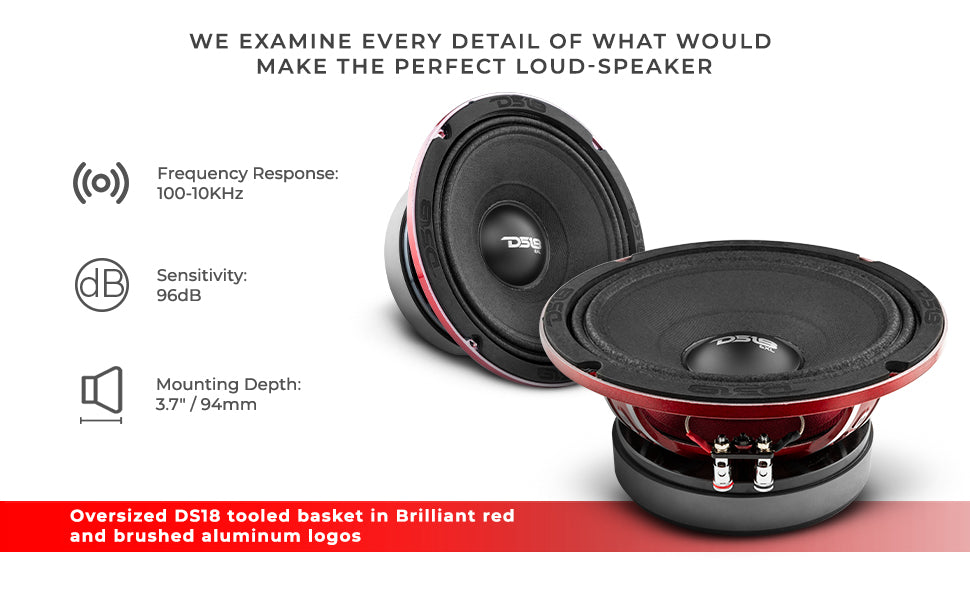

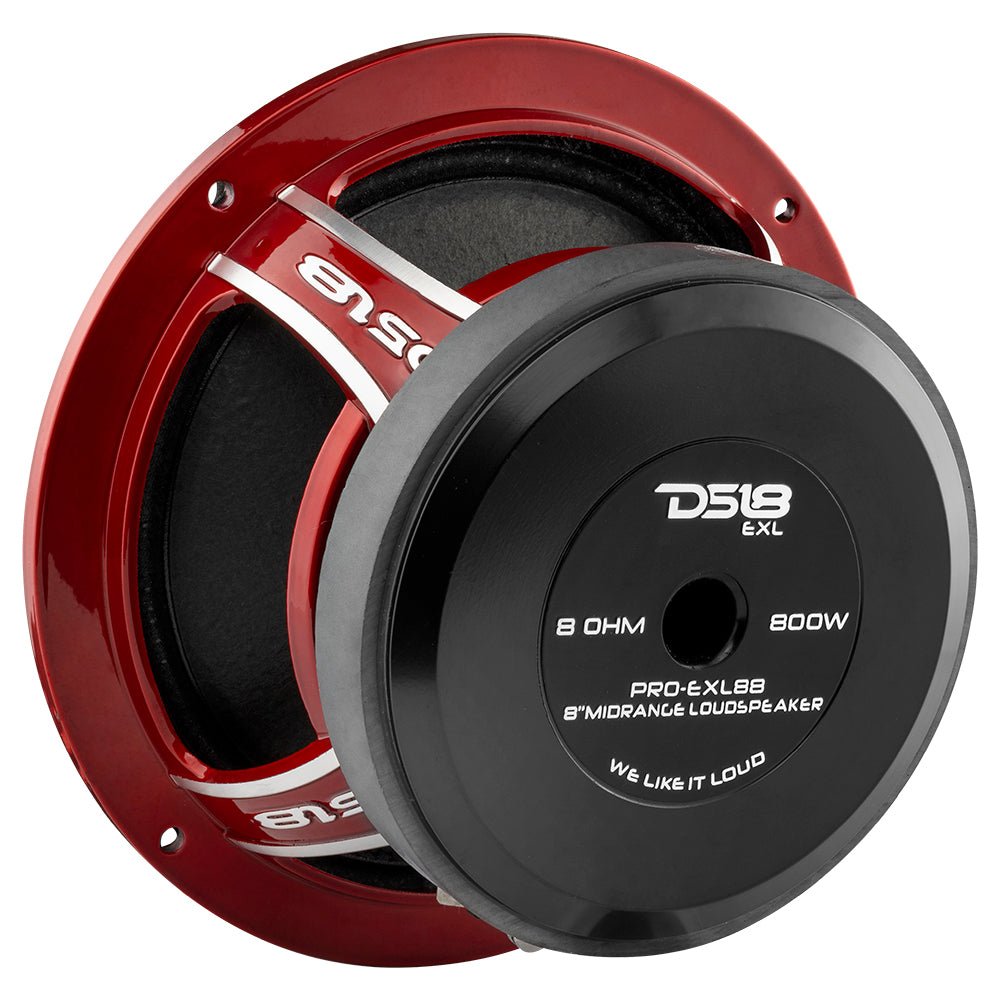

- Oversized DS18 tooled basket in Brilliant red and brushed aluminum logos.

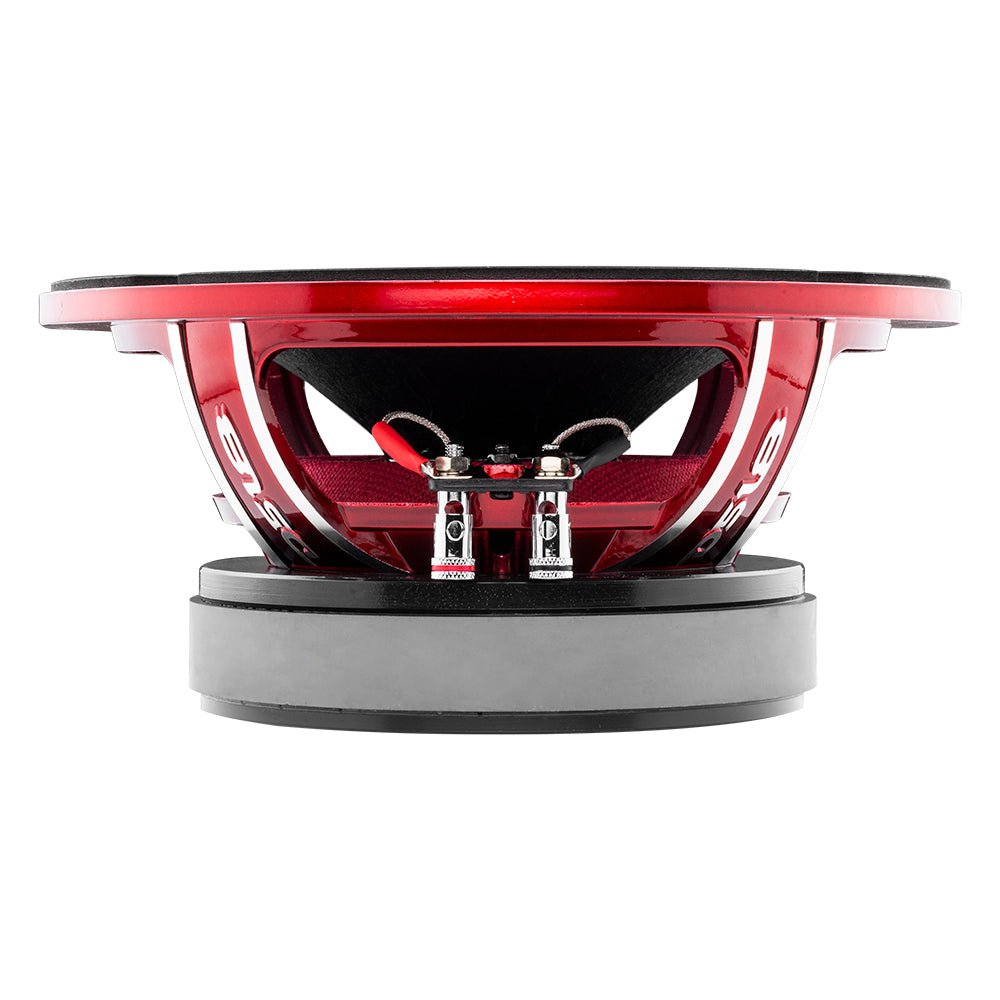

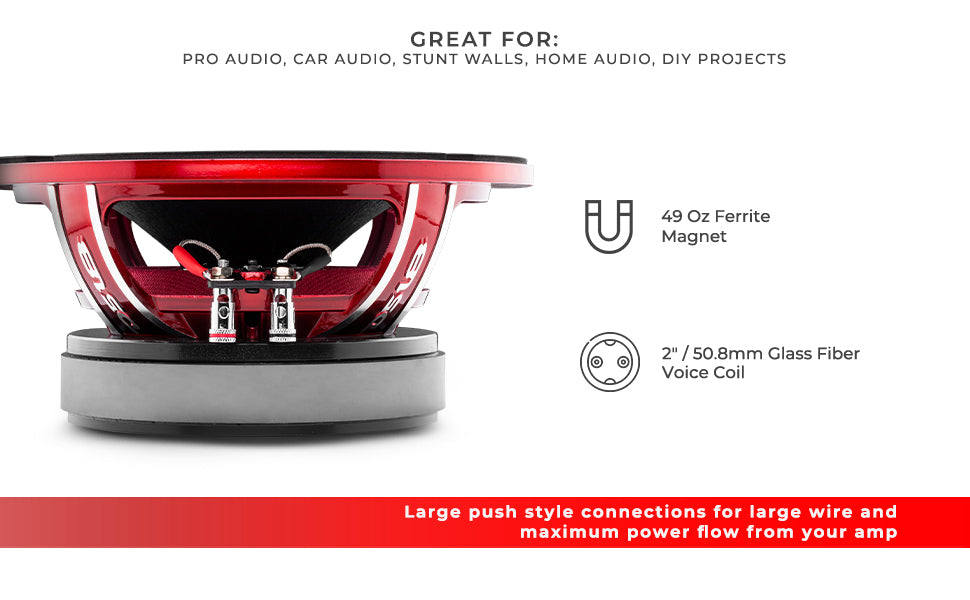

- Large push style connections for large wire and maximum power flow from your amp.





Technical Details
| Model: | PRO-EXL88 |
| Type: | Midrange Loudspeaker |
| Size: | 8" |
| RMS Power: | 400W |
| MAX Power: | 800W |
| Frequency Response: | 100Hz-10KHz |
| Impedance: | 8 Ohms |
| Sensitivity: | 96dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Aluminum Basket |
| Cone: | Paper Cone |
| Magnet: | Ferrite |
| Voice coil wire | CCAW |
| Diameters | |
| Voice coil size | 2" |
| Magnet Size | 49 oz. |
| Mounting depth | 3.70" (94mm) |
| Cut-out dimension | 7.16" (182mm) |
| Net Weight: | 3.8 kg |


Key Features

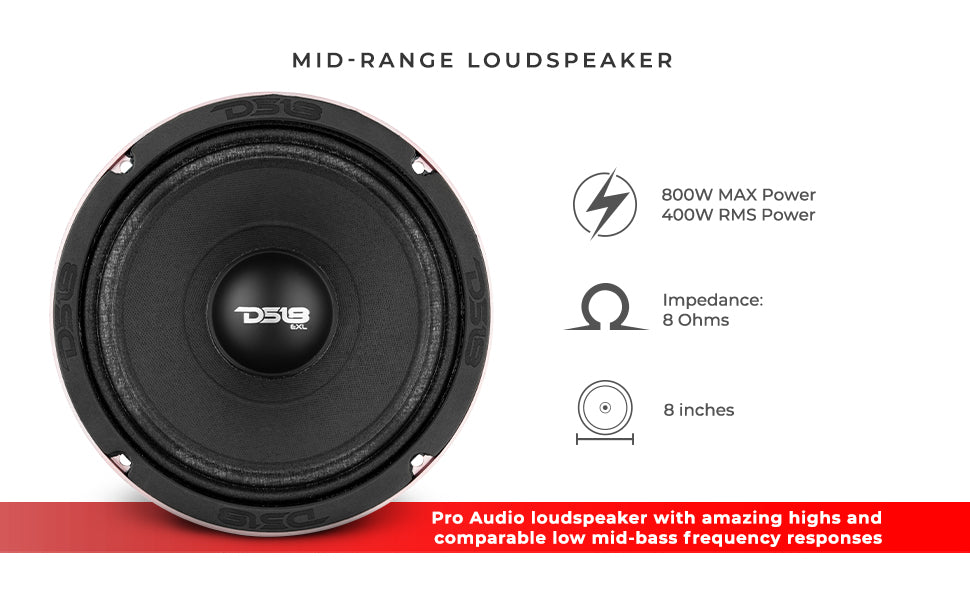

- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 96dB
Specifications
| SKU | PRO-EXL88 |
|---|---|
| Nominal Diameter | 8" |
| Nominal Impedance | 4 ohms |
| RMS Power Handing | 400W |
| Maximum Power Handing | 800W |
| Sensitivity (1w/1m) | 96dB |

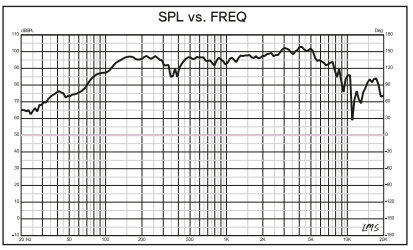

| Frequency Response | 100Hz - 10K |
| Recommended Hi Pass Crossover | Hz |
| Voice Coil Diameter | 2" /50.8 mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | 49oz |
| Vas | 4.1330L |
| Xmax | 9.2 mm |
| Fs | 94 Hz |
| Qms | 1.024 |
| Qes | 0.575 |
| Qts | 0.368 |
| Re | 5.2 ohms |

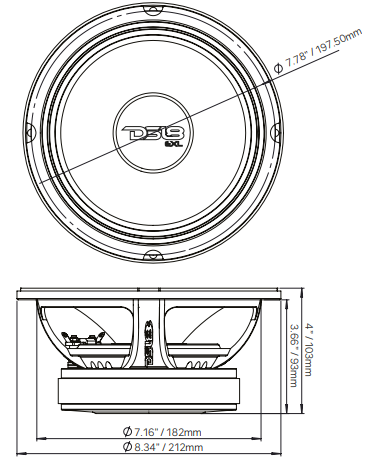

| Overall Diameter | 8.34" /212 mm |
| Front Mount Baffle Cutout | 7.16" /182 mm |
| Mounting Depth | 3.66" /93 mm |
| Overall Depth | 4" /103 mm |
| Product Weight | 9 lbs |
| Product Dimensions | 8.75 x 8.75 x 4.5 |
| M/C Weight | 37.5 lbs |
| M/C Dimensions | 18 x 9.75 x 10 |
| M/C QTY | 4 |
| Sold In | Piece |
