PRO-EXL 8" Mid-Range Loudspeaker 400 Watts Rms 4-Ohm

Availability: Out of stock SKU: PRO-EXL84
Regular price $167.95 Sale price $134.36

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

Product Overview


DS18 PRO-EXL84 8" Mid-Range Loudspeaker 800 Watts @ 4-Ohm

The people who live and breathe car audio demanded a higher performing, extremely effective, and dynamic product series. After several months, and money allocated to R&D, DS18 is proud to launch the PRO-EXL Extremely Loud midrange series. They are the epitome of competition-quality midranges. Red aluminum baskets, cloth-edges, paper cone, and the option for 8 ohm or 4 ohm impedance; these are only the basic components, the rest is pure DS18 technology.

Highlights

  • Flagship DS18 series producing more midrange, more mid-bass, and more vocals for the serious pro audio enthusiasts.

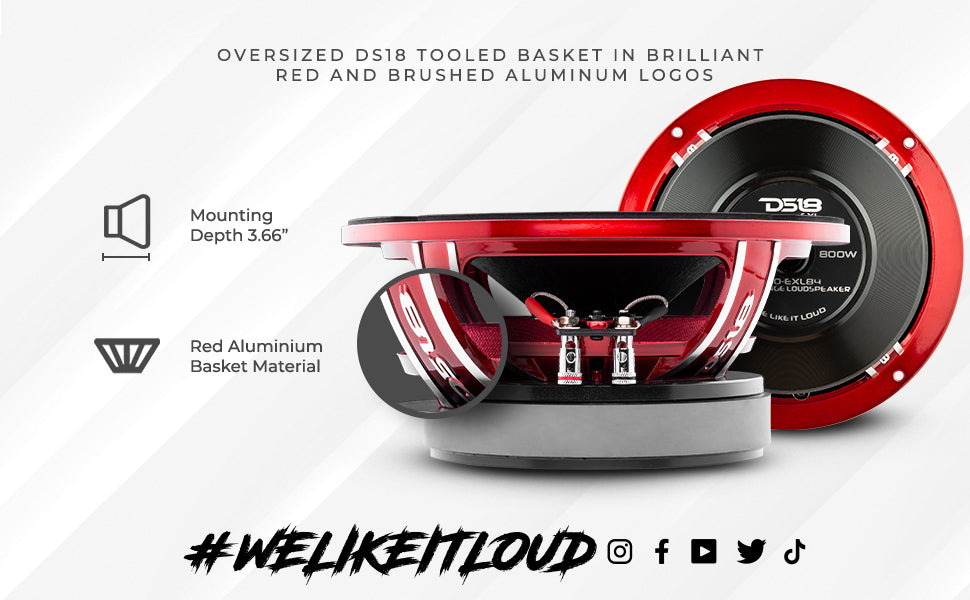

  • Oversized DS18 tooled basket in Brilliant red and brushed aluminum logos.

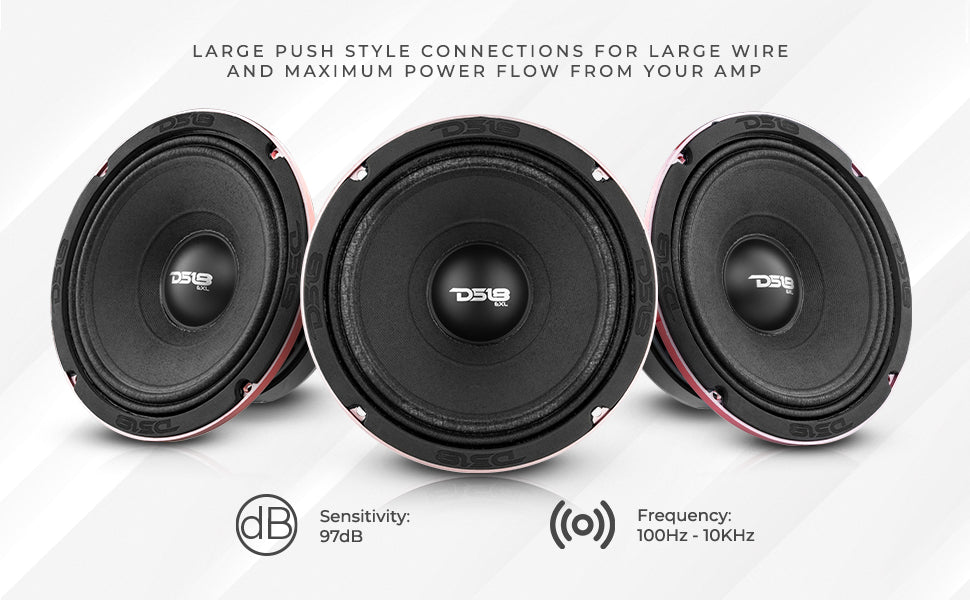

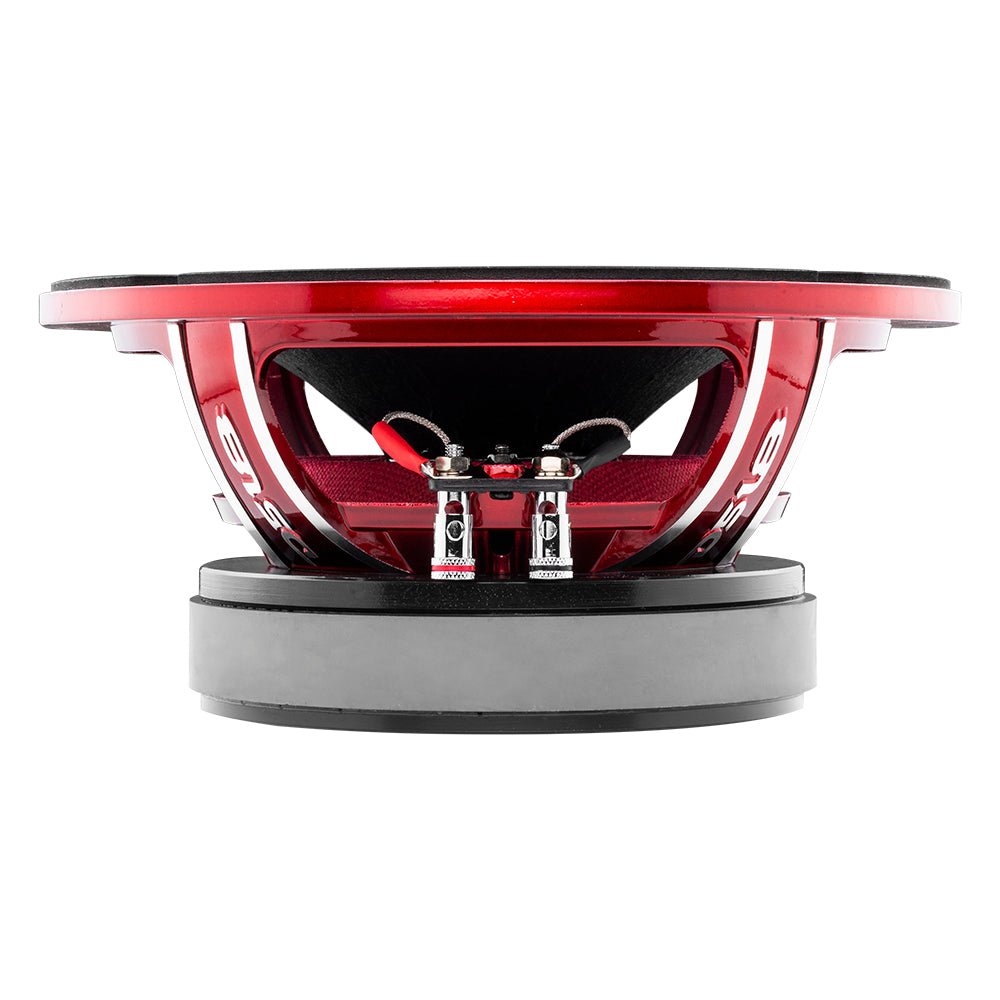

  • Large push style connections for large wire and maximum power flow from your amp.

    Technical Details

    Model: PRO-EXL84
    Type: Midrange Loudspeaker
    Size: 8"
    RMS Power: 400W
    MAX Power: 800W
    Frequency Response: 100Hz - 10KHz
    Impedance: 4 Ohms
    Sensitivity: 97dB

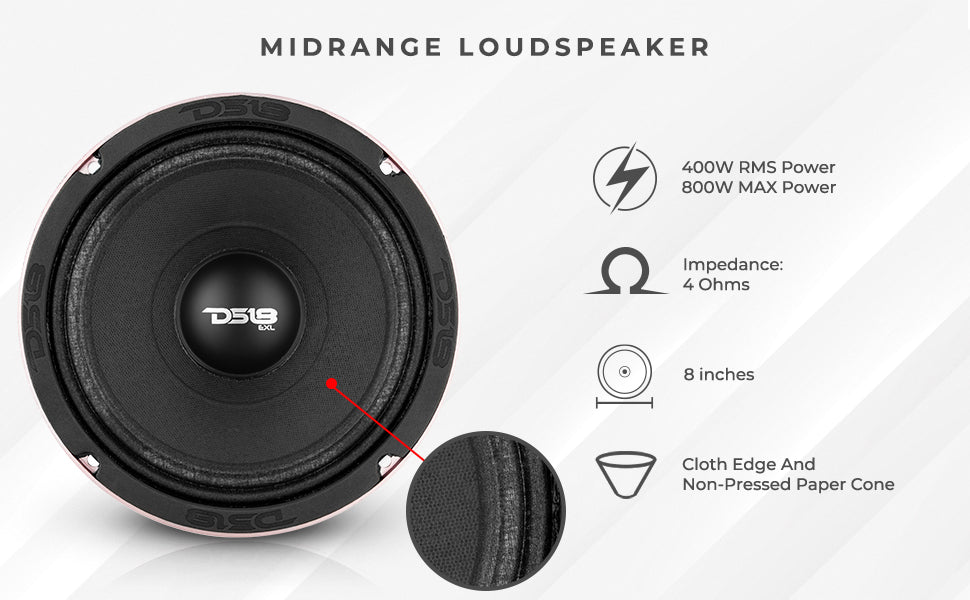

    Materials
    Surround: Cloth Edge
    Frame: Red Aluminum Basket
    Cone: Paper Cone
    Magnet: Ferrite
    Voice Coil Wire: CCAW
    Diameters
    Voice Coil Size: 2"
    Magnet Size: 49 oz
    Mounting Depth: 3.7" (94mm)
    Cut-out Dimension: 7.16" (182mm)
    Net Weight: 3.8kg


    Key Features

    • 8" Mid-Range
    • MAX Power: 800 Watts
    • RMS Power: 400 Watts
    • Impedance: 4-Ohm
    • Ferrite Magnet
    • 97dB

    Specifications

    SKU PRO-EXL84
    Nominal Diameter 8"
    Nominal Impedance 4 ohms
    RMS Power Handing 400W
    Maximum Power Handing 800W
    Sensitivity (1w/1m) 97dB
    Frequency Response 100Hz-10KHz
    Recommended Hi Pass Crossover 130 Hz
    Voice Coil Diameter 2" / 50.8 mm
    Voice Coil Former Material Glass Fiber
    Winding Material CCAW
    Basket Material Aluminum
    Magnet Weight 49oz
    Vas 7.77L
    Xmax 9.2 mm
    Fs 100.8 Hz
    Qms 4.887
    Qes 0.461
    Qts 0.461
    Re 3.2 ohms

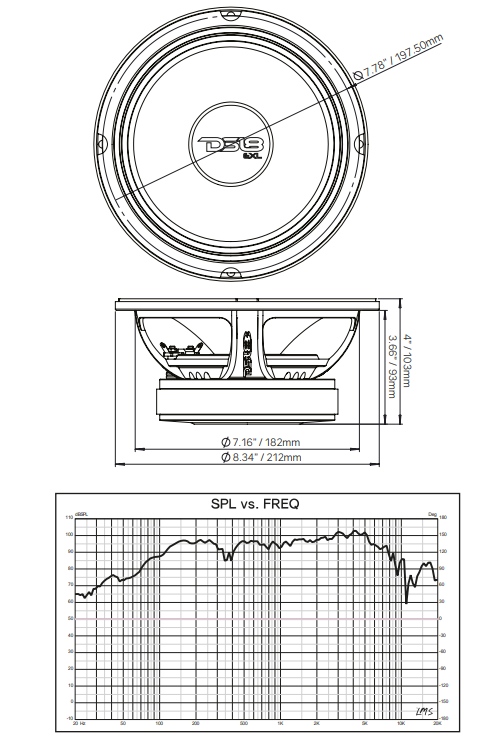

    Overall Diameter 8.34" / 212 mm
    Front Mount Baffle Cutout 7.16" / 182 mm
    Mounting Depth 3.66" / 93 mm
    Overall Depth 4" / 103 mm
    Product Weight 4 lbs
    Product Dimensions 8.75 x 8.75 x 4.25
    M/C Weight 33.5 lbs
    M/C Dimensions 18 x 18 x 9.75
    M/C QTY 8
    Sold In Piece
