PRO-EXL 6.5" Mid-Range Loudspeaker 300 Watts Rms 8-Ohm
Product Overview DS18 PRO-EXL68 6.5" Mid-Range Loudspeaker 600 Watts @ 8-Ohm The people who live and breathe...
- $119.95
- $119.95
- Unit price
- per
Subtotal:
$119.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

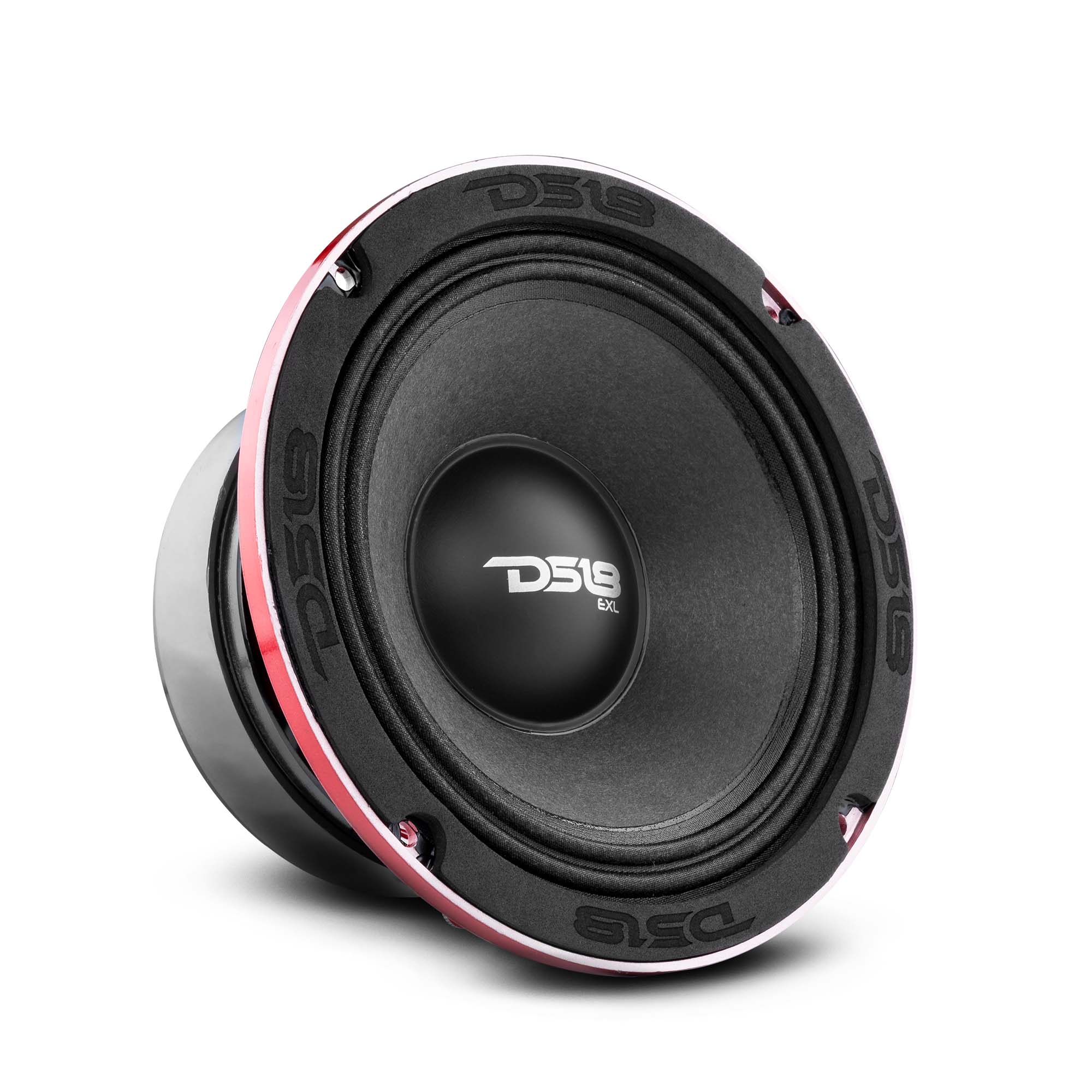

DS18 PRO-EXL68 6.5" Mid-Range Loudspeaker 600 Watts @ 8-Ohm

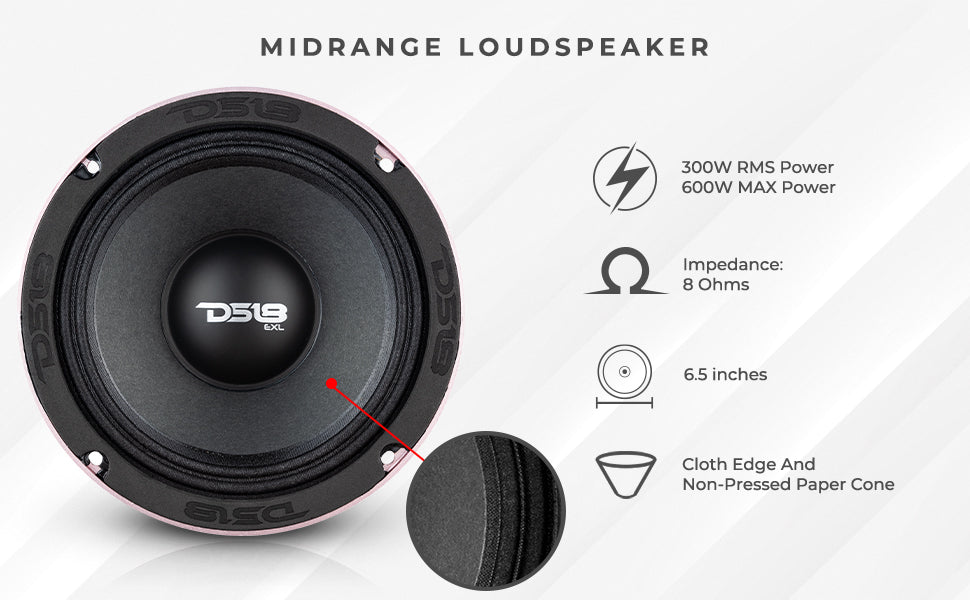

The people who live and breathe car audio demanded a higher performing, extremely effective, and dynamic product series. After several months, and money allocated to R&D, DS18 is proud to launch the PRO-EXL Extremely Loud midrange series. They are the epitome of competition-quality midranges. Red aluminum baskets, cloth-edges, paper cone, and the option for 8 ohms or 4 ohms impedance; these are only the basic components, the rest is pure DS18 technology.
Highlights
- Flagship DS18 series producing more midrange, more mid-bass, and more vocals for the serious pro audio enthusiasts.

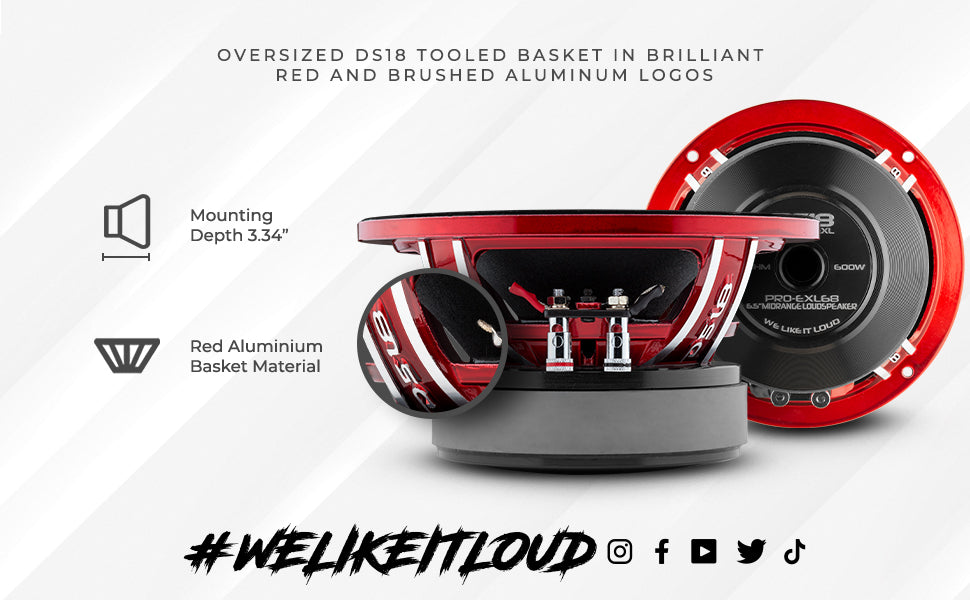

- Oversized DS18 tooled basket in Brilliant red and brushed aluminum logos.

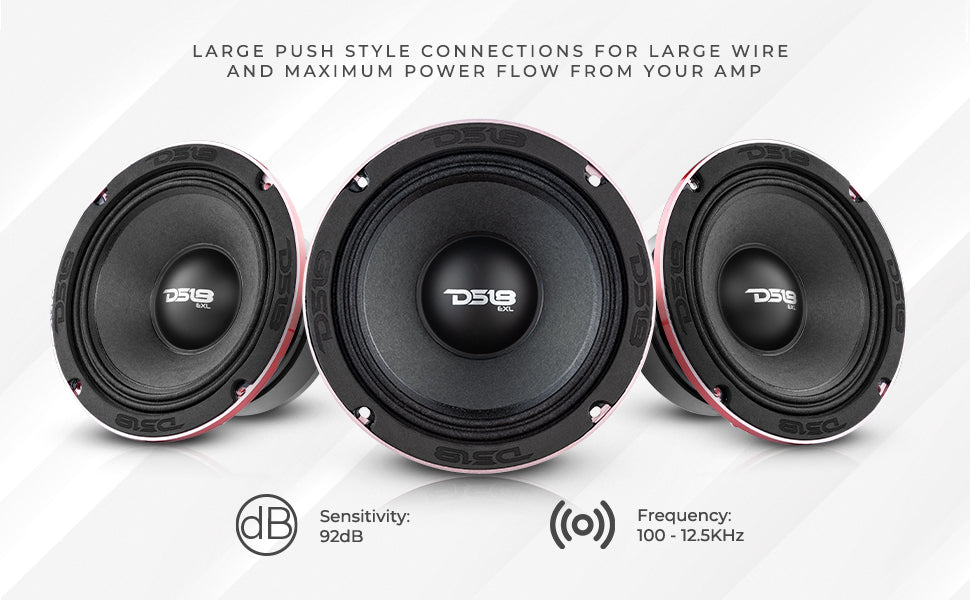

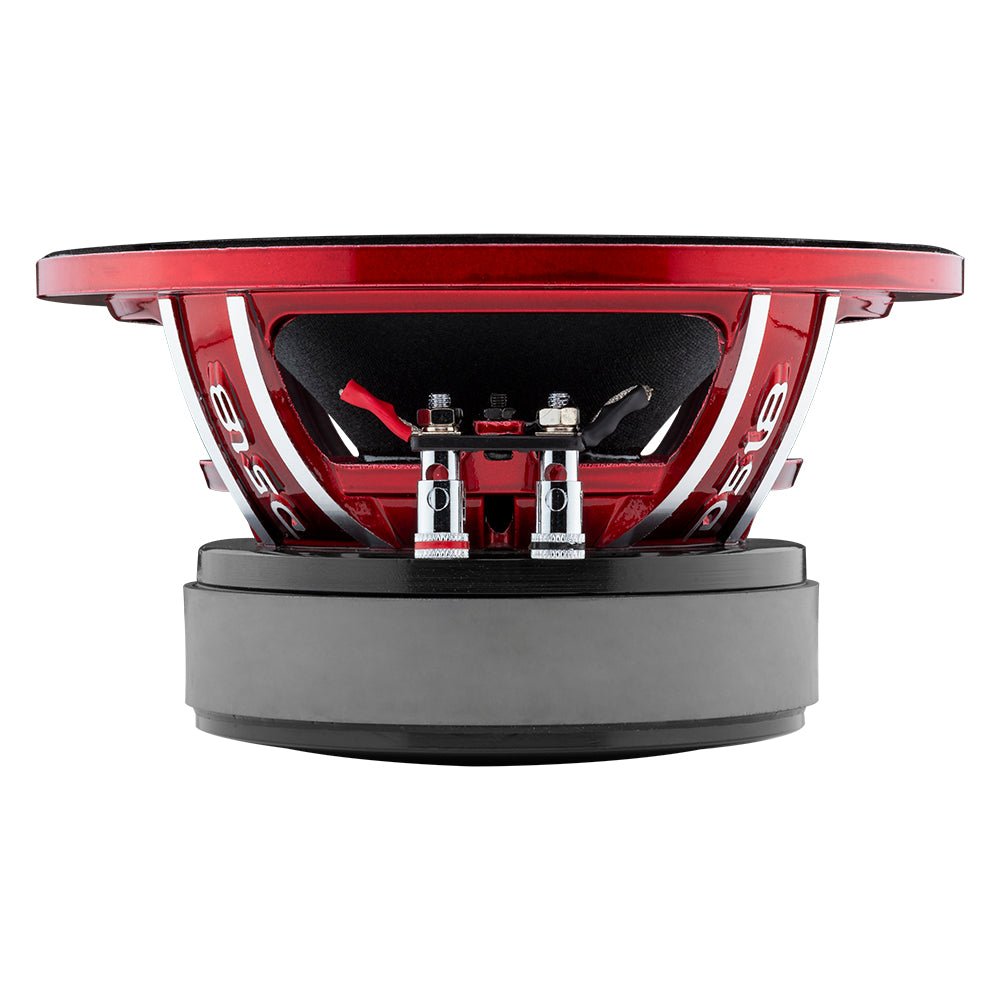

- Large push style connections for large wire and maximum power flow from your amp.
Technical Details
| Model: | PRO-EXL68 |
| Type: | Midrange Loudspeaker |
| Size: | 6.5" |
| RMS Power: | 300W |
| MAX Power: | 600W |
| Frequency response: | 100Hz-12.5KHz |
| Impedance: | 8 Ohms |
| Sensitivity: | 92dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Aluminum Basket |
| Cone: | Paper Cone |
| Magnet: | Ferrite |
| Voice coil wire: | CCAW |
| Diameters | |
| Voice coil size: | 2" |
| Magnet Size: | 34 oz |
| Mounting depth: | 3.44" (87.5mm) |
| Cut-out dimension: | 5.9" (150mm) |
| Net Weight: | 2.7 kg |
Key Features
- 6.5" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 92dB
Specifications
| SKU | PRO-EXL68 |
|---|---|
| Nominal Diameter | 6.5" |
| Nominal Impedance | 8 ohms |
| RMS Power Handing | 300W |
| Maximum Power Handing | 600W |
| Sensitivity (1w/1m) | 92dB |
| Frequency Response | 100-12.5 KHz |
| Recommended Hi Pass Crossover | 180 Hz |
| Voice Coil Diameter | 2" /50.8 mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | 32oz |
| Vas | 1.0125L |
| Xmax | 9.2 mm |
| Fs | 193 Hz |
| Qms | 1.408 |
| Qes | 0.828 |
| Qts | 0.521 |
| Re | 5.2 ohms |

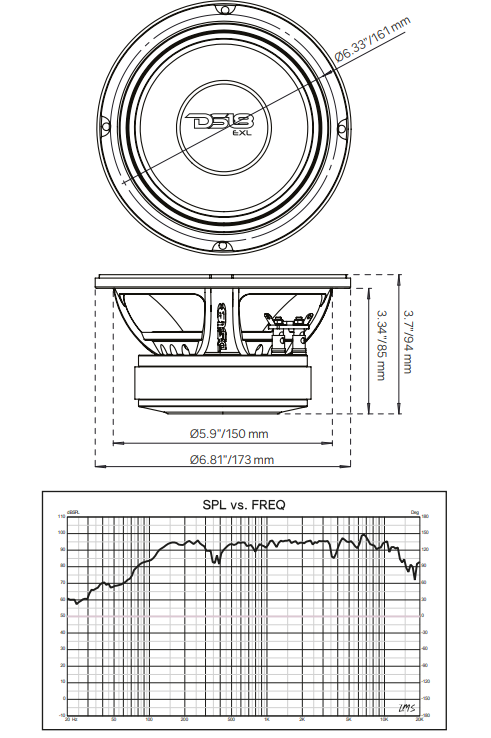

| Overall Diameter | 6.81" /173 mm |
| Front Mount Baffle Cutout | 5.9" /150 mm |
| Mounting Depth | 3.34" /85 mm |
| Overall Depth | 3.7" /94 mm |
| Product Weight | 6.3 |
| Product Dimensions | 7.25 x 7.25 x 4.06 |
| M/C Weight | 26 |
| M/C Dimensions | 15.25 x 8 x 7.75 |
| M/C QTY | 4 |
| Sold In | Piece |
