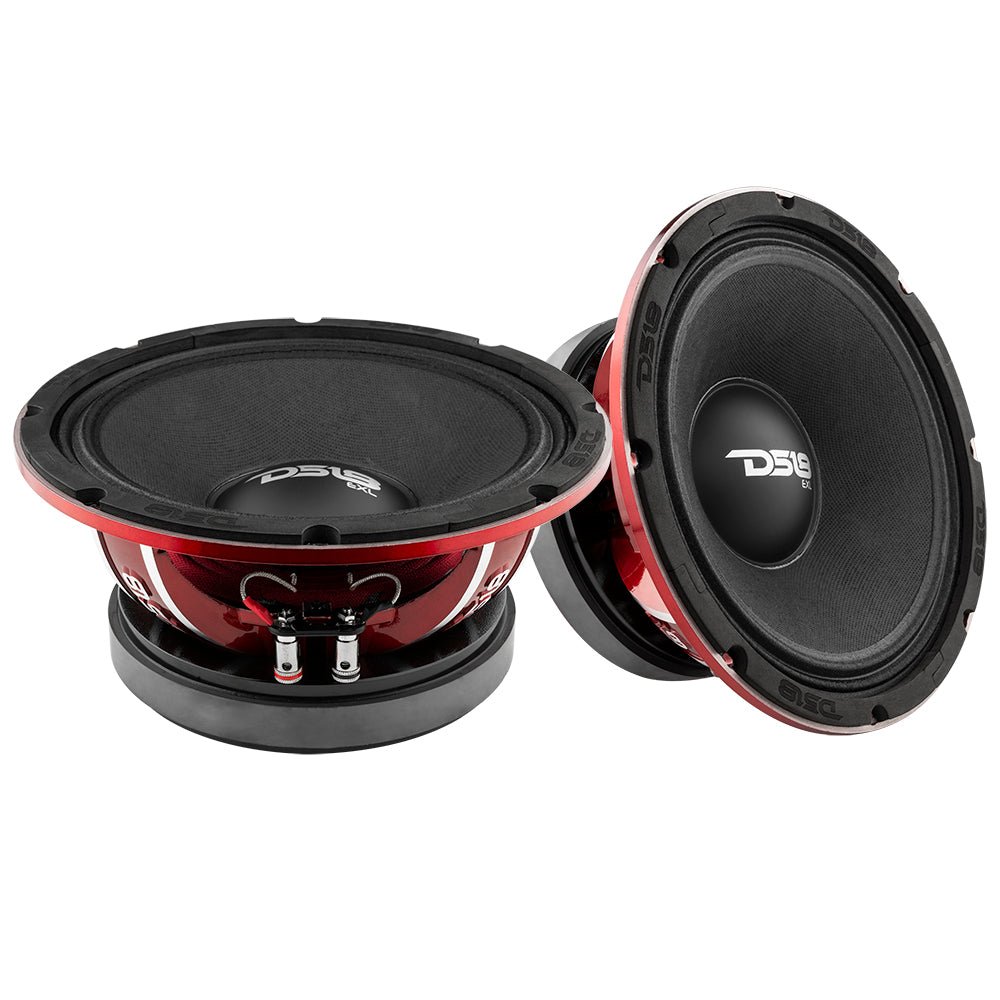

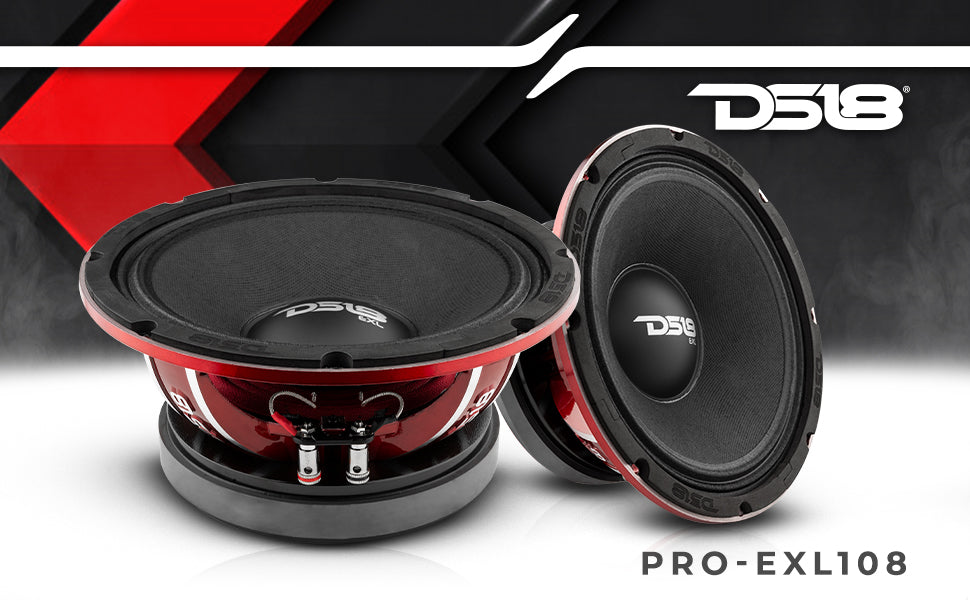

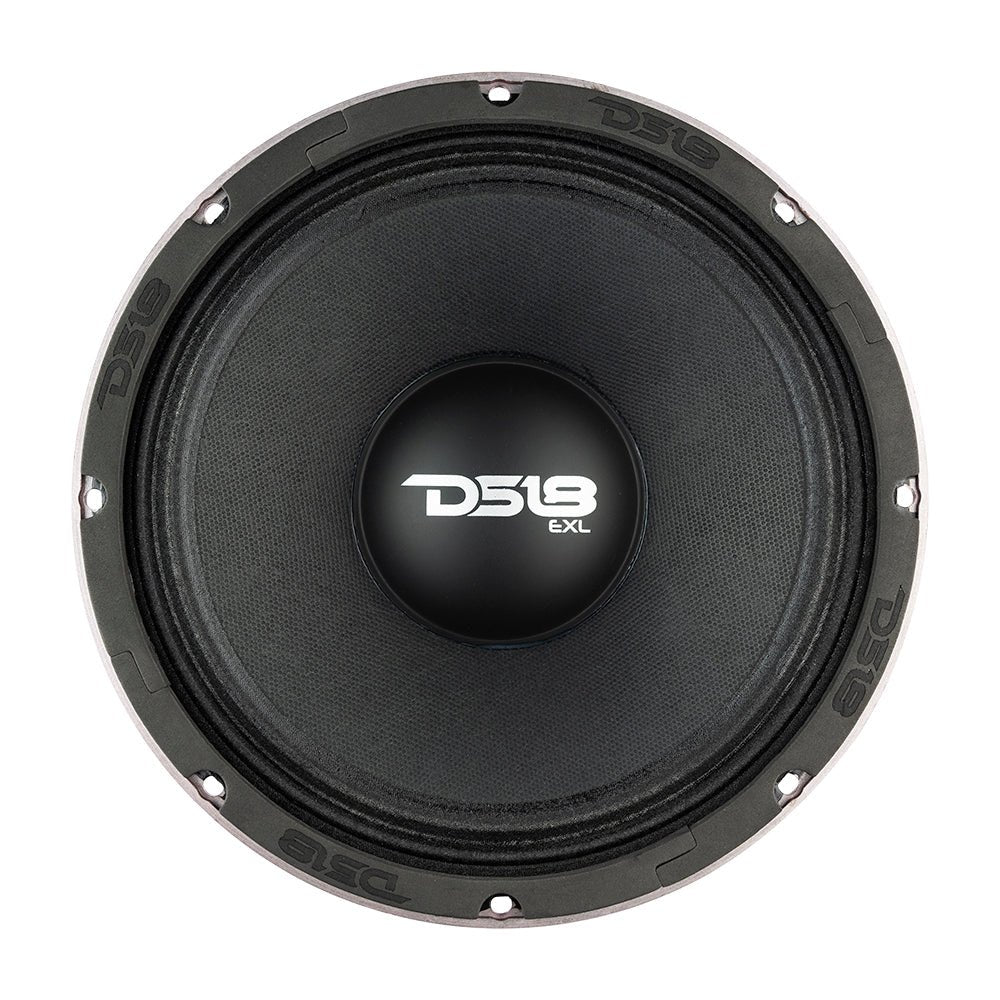

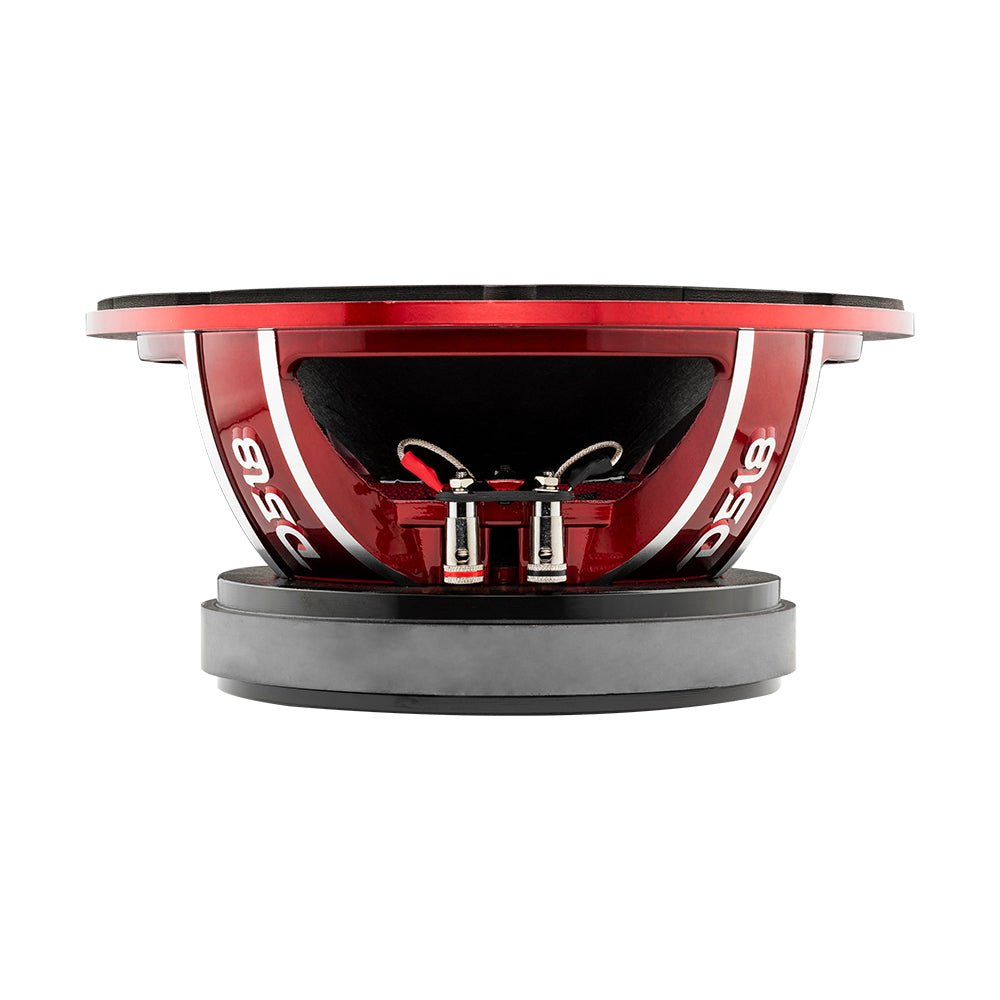

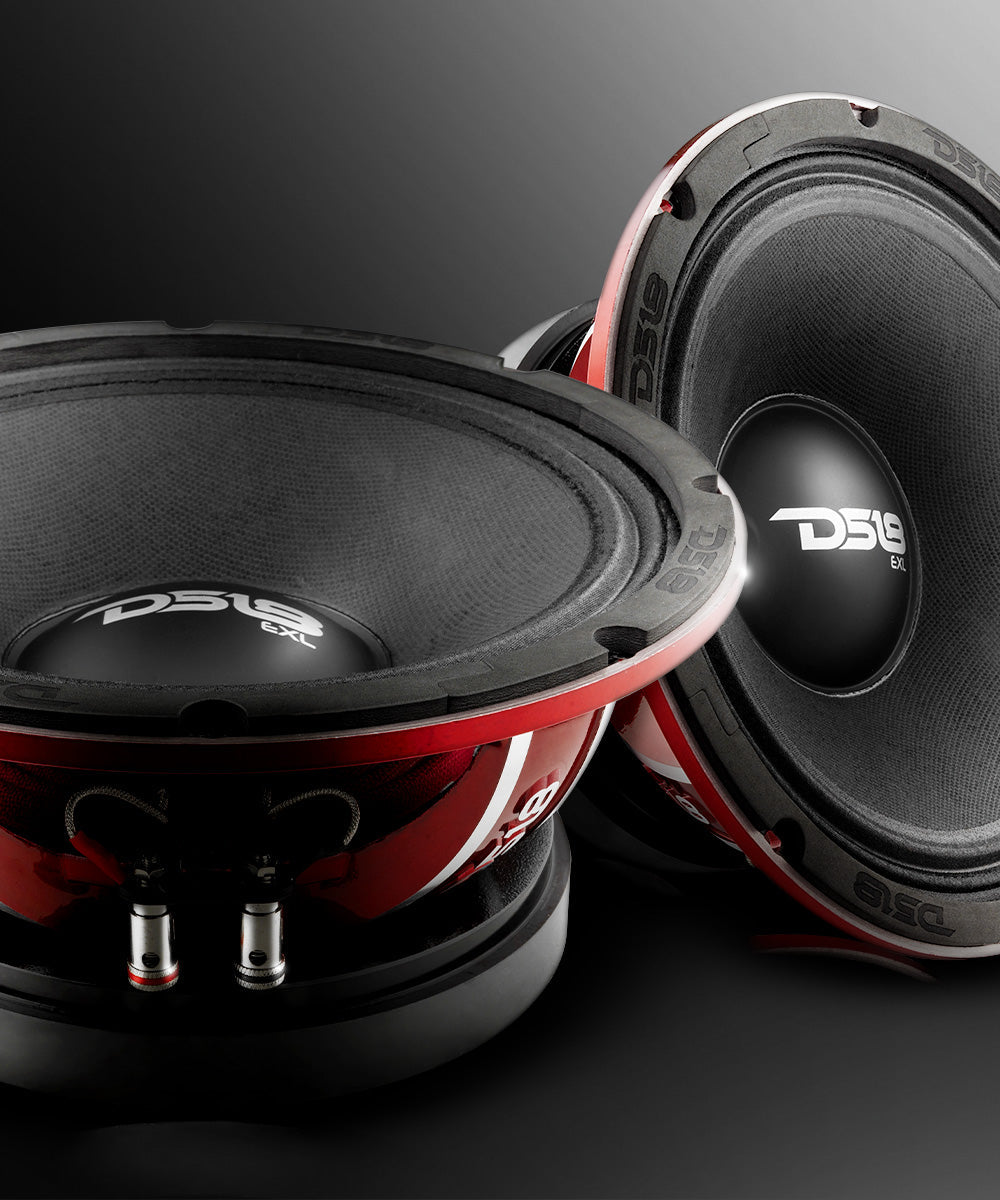

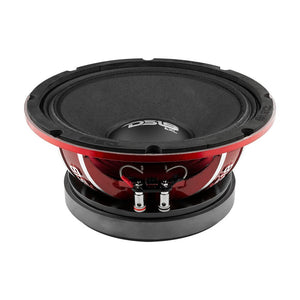

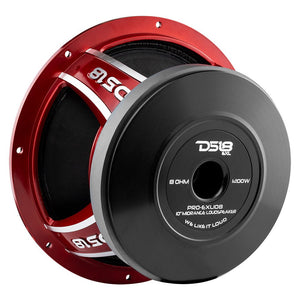

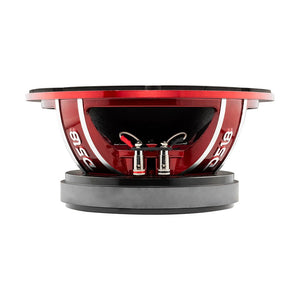

DS18 PRO-EXL108 10" Mid-Range Loudspeaker 1200 Watts 8-Ohm
Product Overview
DS18 PRO-EXL108 10" Mid-Range Loudspeaker 1200 Watts 8-Ohm
|

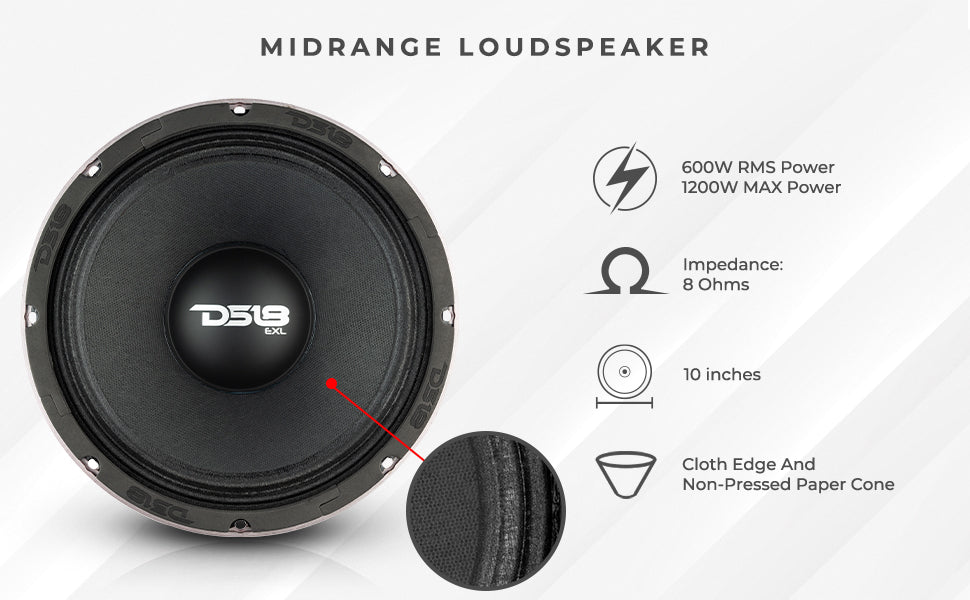

The people who live and breathe car audio demanded a higher-performing, extremely effective, and dynamic product series. After several months, and money allocated to R&D, DS18 is proud to launch the PRO-EXL Extremely Loud midrange series. They are the epitome of competition-quality midranges. Red aluminum baskets, cloth-edges, non-pressed paper cone, and the option for 8 ohms or 4 ohms impedance; these are only the basic components, the rest is pure DS18 technology. Highlights
|




Technical Details
| Model: | PRO-EXL108 |
| Type: | Midrange Loudspeaker |
| Size: | 10" |
| RMS Power: | 600W |
| MAX Power: | 1200W |
| Frequency Response: | 74Hz-12KHz |
| Impedance: | 8 Ohms |
| Sensitivity: | 97dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Aluminum Basket |
| Cone: | Non-Pressed Paper Cone |
| Magnet: | Ferrite |
| Voice Coil Wire: | KCCAW |
| Diameters | |
| Voice Coil Size: | 3" |
| Magnet Size: | 80 oz |
| Mounting Depth: | 4.9" (119mm) |
| Cut-Out Dimension: | 9.13" (232mm) |
| Net Weight: | 6.9 kg |


Key Features
- 10" Mid-Range
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 97dB
Specifications
| SKU | PRO-EXL108 |
|---|---|
| Nominal Diameter | 10 inch |
| Nominal Impedance | 8 ohm |
| RMS Power Handing | 600w |
| Maximum Power Handing | 1200w |

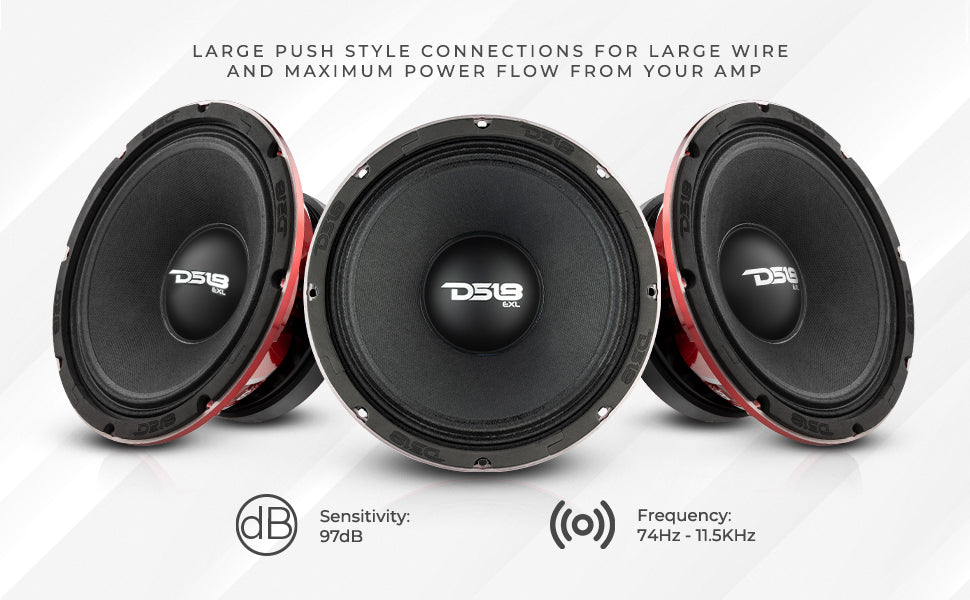

| Sensitivity (1w/1m) | 97dB |

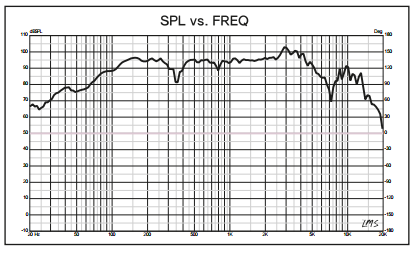

| Frequency Response | 74Hz-11.5KHz |
| Recommended Hi Pass Crossover | 120 Hz |
| Voice Coil Diameter | 76.5mm / 3" |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | 80 Oz |
| Vas | 4.8217L |
| Xmax | 12.5mm |
| Fs | 129.4Hz |
| Qms | 1.347 |
| Qes | 0.578 |
| Qts | 0.405 |
| Re | 5.2 ohms |

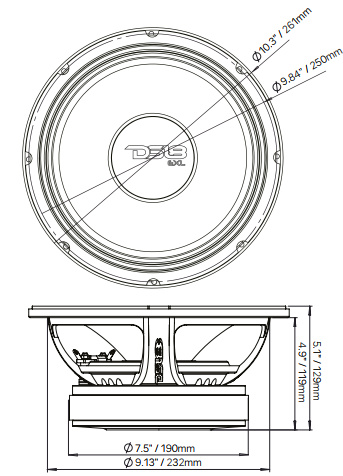

| Overall Diameter | 10.3" / 261mm |
| Front Mount Baffle Cutout | 9.13" / 232mm |

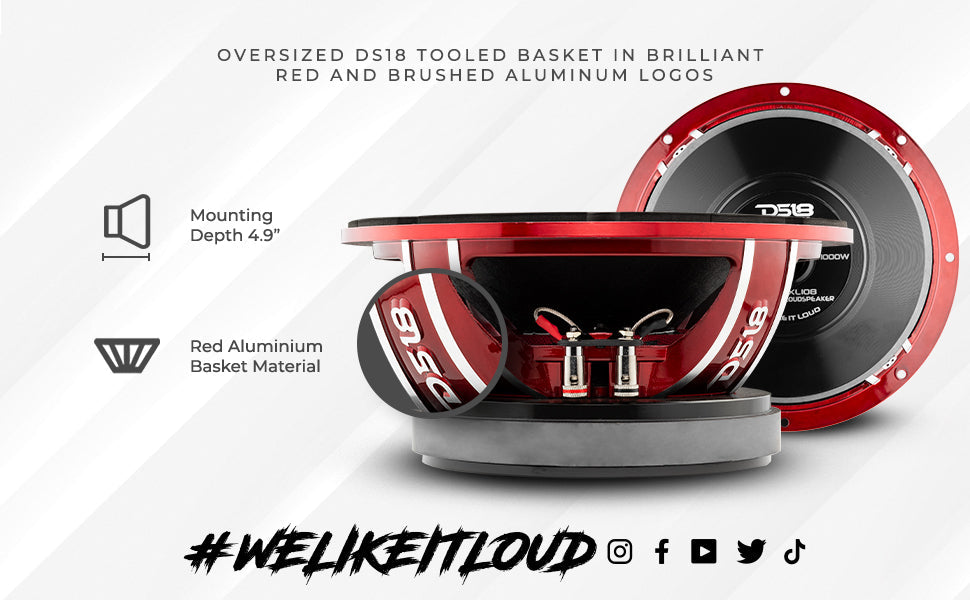

| Mounting Depth | 4.9" / 119mm |
| Overall Depth | 5.1" / 129mm |
| Product Weight | 16 lbs |
| Product Dimensions | 10.75 x 10.75 x 5.5 |
| M/C Weight | 34 lbs |
| M/C Dimensions | 11.5 x 11.5 x 12 |
| M/C QTY | 2 |
| Sold In | Piece |
