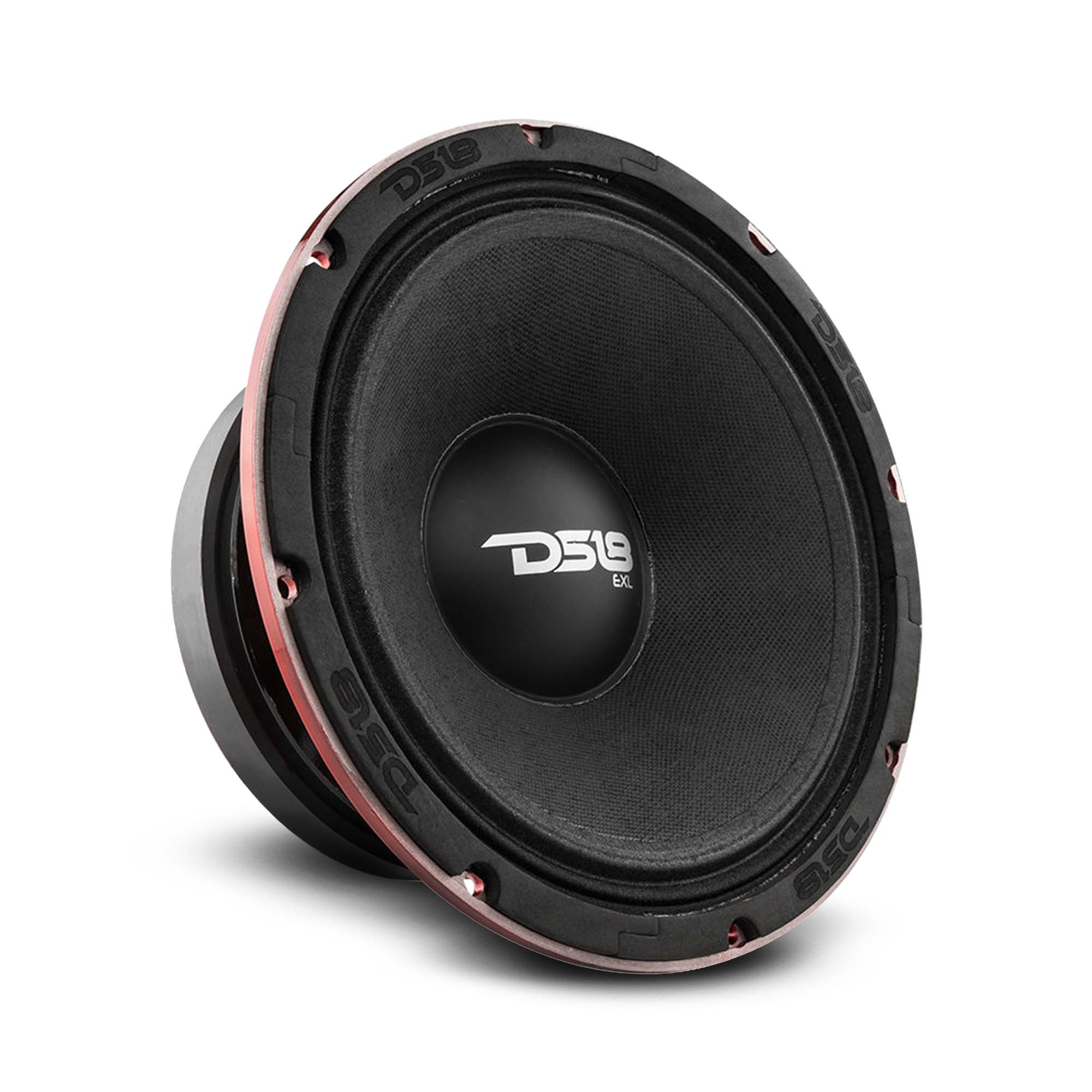

DS18 PRO-EXL104 10" Mid-Range Loudspeaker 1200 Watts 4-Ohm
Product Overview DS18 PRO-EXL104 10" Mid-Range Loudspeaker 1200 Watts 4-Ohm The people who live and breathe car...
Vendor:
DS18
Manufacturer SKU
PRO-EXL104
Availability:
Out Of Stock
Product Type:
Midrange Loudspeakers
- $227.95
- $227.95
- Unit price
- per
Subtotal:
$227.95
Couldn't load pickup availability
Instructions:
View Instructions
Out of stock
Product Overview
DS18 PRO-EXL104 10" Mid-Range Loudspeaker 1200 Watts 4-Ohm
The people who live and breathe car audio demanded a higher-performing, extremely effective, and dynamic product series. After several months, and money allocated to R&D, DS18 is proud to launch the PRO-EXL Extremely Loud midrange series. They are the epitome of competition-quality midranges. Red aluminum baskets, cloth-edges, non-pressed paper cone, and the option for 8 ohm or 4 ohm impedance; these are only the basic components, the rest is pure DS18 technology.
Highlights
- Flagship DS18 series producing more midrange, more mid-bass, and more vocals for the serious pro audio enthusiasts.
- Oversized DS18 tooled basket in Brilliant red and brushed aluminum logos.

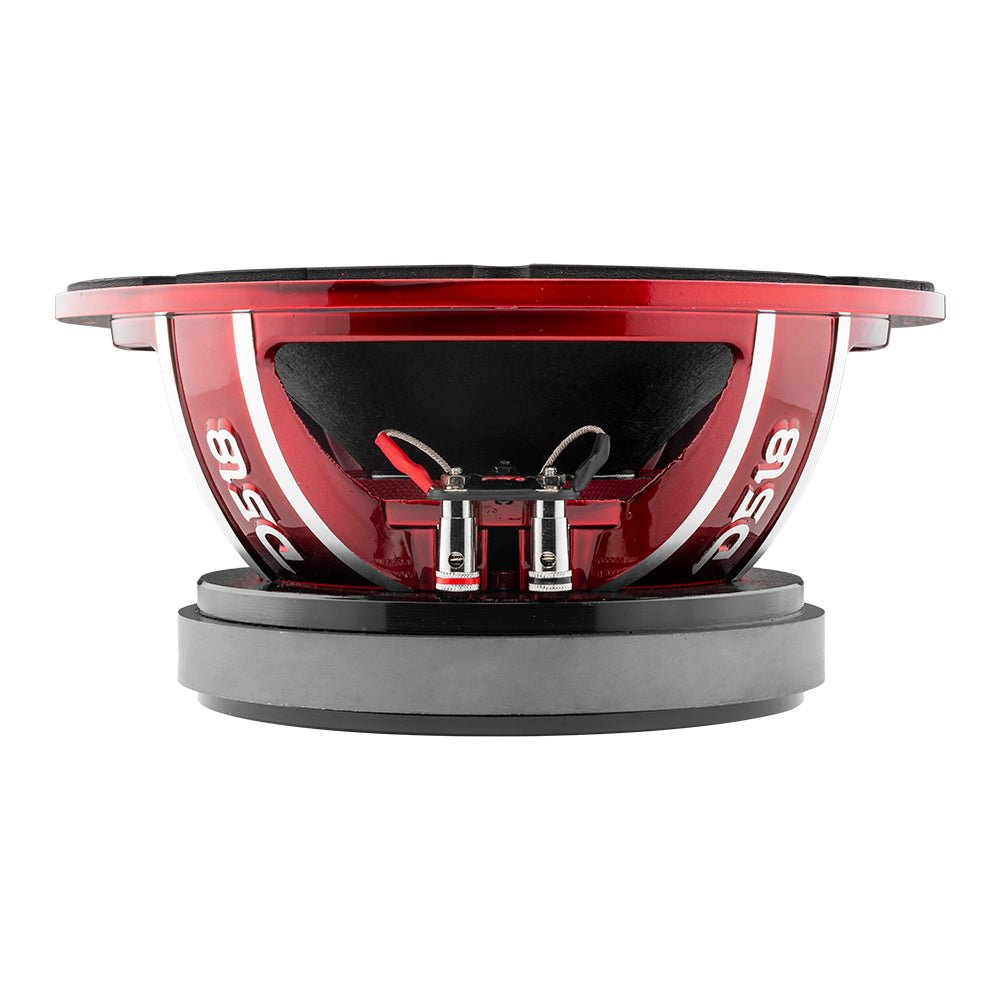

- Large push style connections for large wire and maximum power flow from your amp.
Technical Details
| Model: | PRO-EXL104 |
| Type: | Midrange Loudspeaker |
| Size: | 10" |
| RMS Power: | 600W |
| MAX Power: | 1200W |
| Frequency Response: | 85Hz - 12KHz |
| Impedance: | 4 Ohms |
| Sensitivity: | 96dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Aluminum Basket |
| Cone: | Non-Pressed Paper Cone |
| Magnet: | Ferrite |
| Voice Coil Wire: | CCAW |
| Diameters | |
| Voice Coil Size: | 3" |
| Magnet Size: | 80 oz |
| Mounting Depth: | 4.68" (119mm) |
| Cut-Out Dimension: | 9.21" (234mm) |
Key Features
- 10" Mid-Range
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 96dB
Specifications
| SKU | PRO-EXL104 |
|---|---|
| Nominal Diameter | 10" |
| Nominal Impedance | 4 ohms |
| RMS Power Handing | 600W |
| Maximum Power Handing | 1000W |
| Sensitivity (1w/1m) | 96dB |

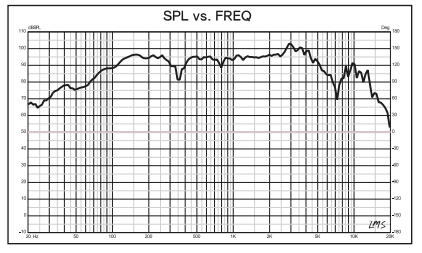

| Frequency Response | 85Hz-12 KHz |
| Recommended Hi Pass Crossover | 100 Hz |
| Voice Coil Diameter | 3" /76.5 mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | 80oz |
| Vas | 7.5L |
| Xmax | 11 mm |
| Fs | 103 Hz |
| Qms | 2.918 |
| Qes | 0.452 |
| Qts | 0.391 |
| Re | 3.2 ohms |

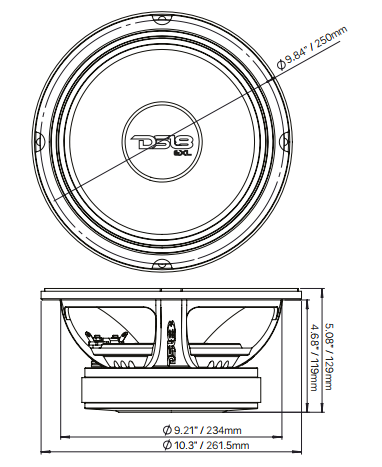

| Overall Diameter | 10.3" /261.5 mm |
| Front Mount Baffle Cutout | 9.21" /234 mm |
| Mounting Depth | 4.68" /119 mm |
| Overall Depth | 5.07" /129 mm |
| Product Weight | 16 lbs |
| Product Dimensions | 10.75 x 10.75 x 5.5 |
| M/C Weight | 34 lbs |
| M/C Dimensions | 11.5 x 11.5 x 12 |
| M/C QTY | 2 |
| Sold In | Piece |
