PRO EXL 10" Mid-Bass Loudspeaker 600 Watts Rms 4-Ohm
Product Overview
DS18 PRO-EXL104MB 10" Mid-Bass Loudspeaker 1200 Watts 4-Ohm
The people who live and breathe car audio demanded a higher-performing, extremely effective, and dynamic product series. After several months, and money allocated to R&D, DS18 is proud to launch the PRO-EXL Extremely Loudmid-bassseries. They are the epitome of competition-quality loudspeakers. Red aluminum baskets, cloth-edges, non-pressed paper cone, and the option for 8 ohms or 4 ohms impedance; these are only the basic components, the rest is pure DS18 technology.
Highlights

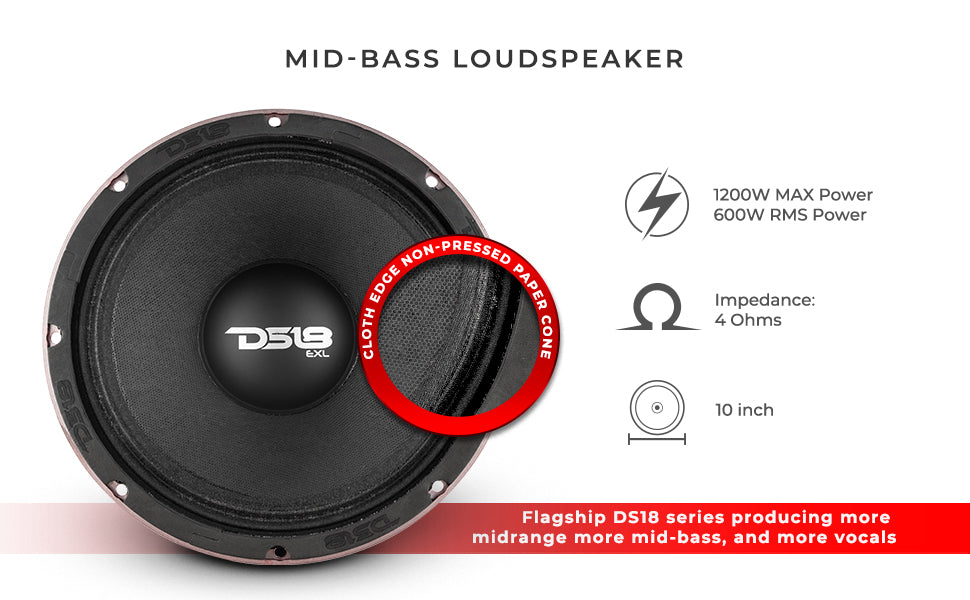

- Flagship DS18 series producing more midrange, more mid-bass, and more vocals for the serious pro audio enthusiasts.

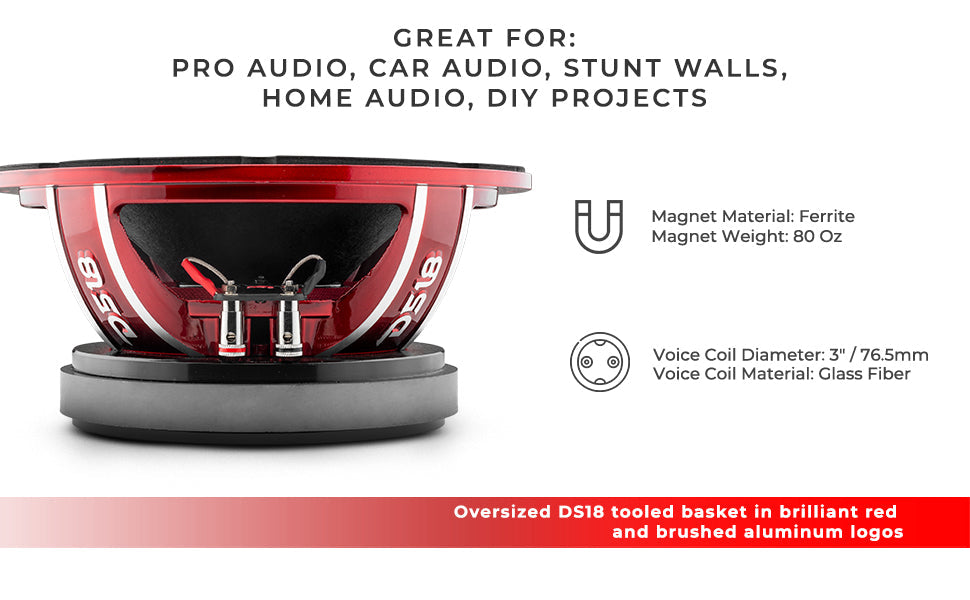

- Oversized DS18 tooled basket in Brilliant red and brushed aluminum logos.

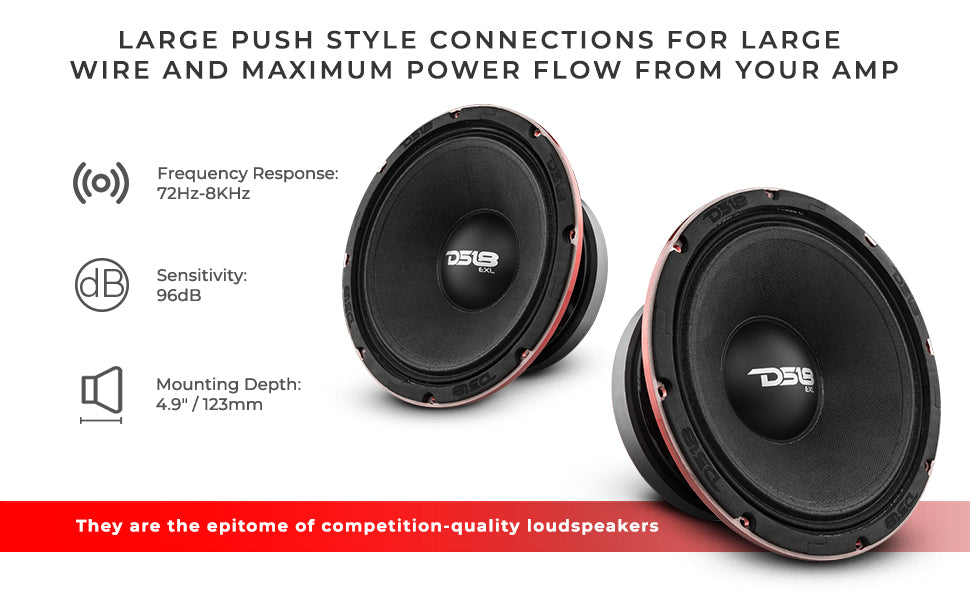

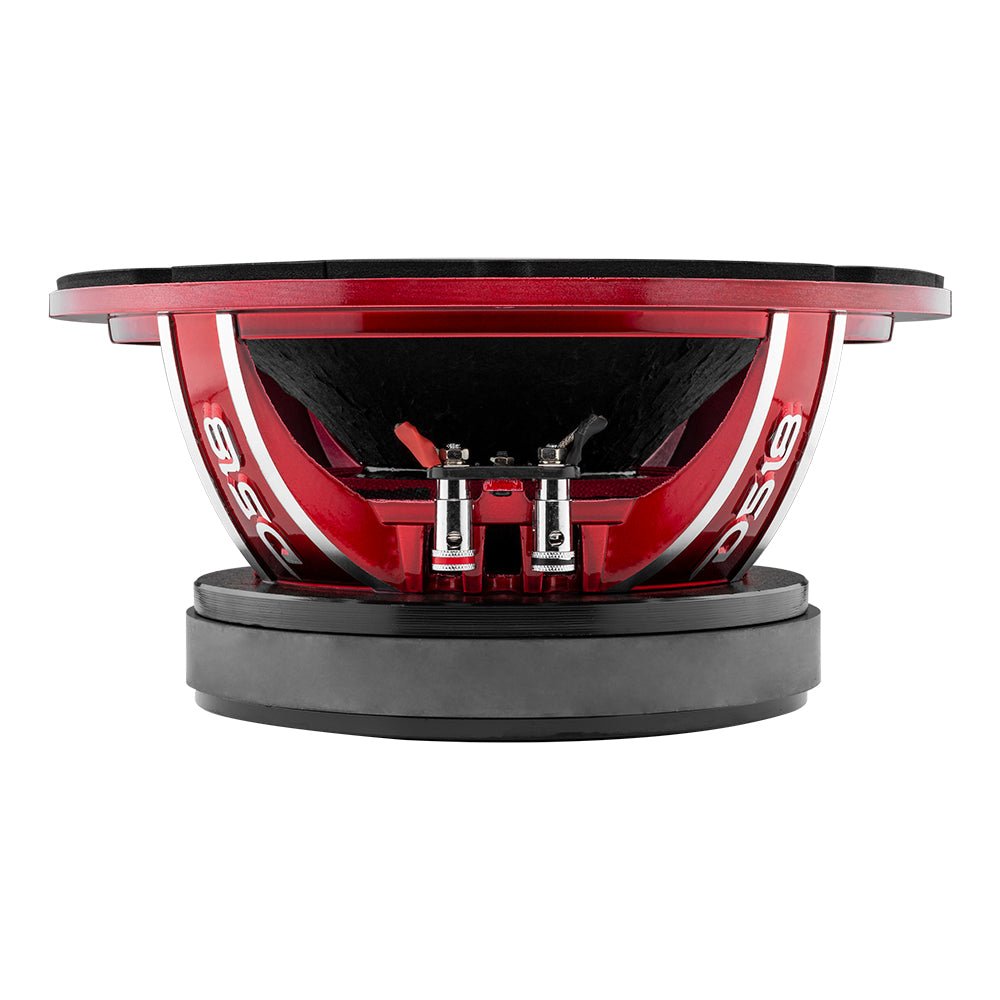

- Large push style connections for large wire and maximum power flow from your amp.
Technical Details
| Model: | PRO-EXL104MB |
| Type: | Mid-bass Loudspeaker |
| Size: | 10" |
| RMS Power: | 600W |
| MAX Power: | 1200W |
| Frequency Response: | 72Hz-8KHz |
| Impedance | 4 Ohms |
| Sensitivity: | 96dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Aluminum Basket |
| Cone: | Non-Pressed Paper Cone |
| Magnet: | Ferrite |
| Voice Coil Wire: | CCAW |
| Measurements | |
| Voice Coil Size: | 3" |
| Magnet Size: | 80 oz |
| Mounting Depth: | 4.9" |
| Cut-Out Dimension: | 9.13" |
| Net Weight: | 6.9 kg |
  |
Key Features
- 10" Mid-Bass
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 96dB
Specifications
| SKU | PRO-EXL108MB |
|---|---|
| Nominal Diameter | 10" |
| Nominal Impedance | 4 ohms |
| RMS Power Handing | 600 Watts |
| Maximum Power Handing | 1200 Watts |
| Sensitivity (1w/1m) | 96dB |

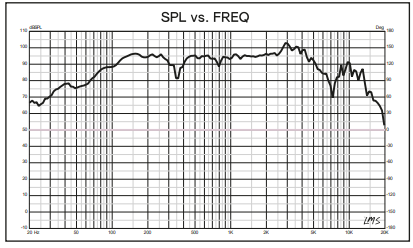

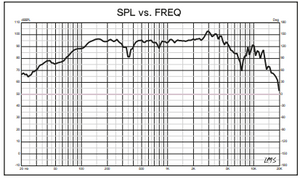

| Frequency Response | 72Hz - 10.5KHz |
| Recommended Hi Pass Crossover | 80 Hz |
| Voice Coil Diameter | 3" / 76.5mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | 80 Oz |
| Vas | 15.507L |
| Xmax | 10 mm |
| Fs | 72.8Hz |
| Qms | 4.5 |
| Qes | 0.412 |
| Qts | 0.377 |
| Re | 3.3 ohms |

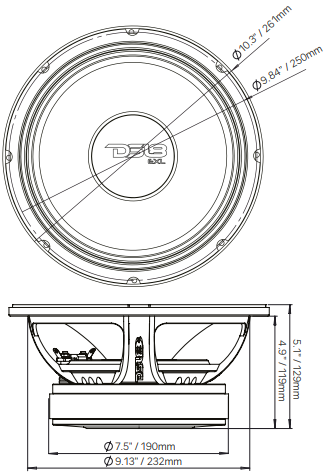

| Overall Diameter | 10.3" / 261mm |
| Front Mount Baffle Cutout | 9.13" / 232mm |
| Mounting Depth | 4.9" / 119mm |
| Overall Depth | 5.1" / 129mm |
| Product Weight | 17.5 lbs |
| Product Dimensions | 11 x 11 x 6 |
| M/C Weight | 36 lbs |
| M/C Dimensions | 11.75 x 11.75 x 13.5 |
| M/C QTY | 2 |
| Sold In | Piece |
