7'' High End Professional Soft Dome Mid Range Loudspeaker with Neodymium Magnet | 400W RMS 4-Ohm
Product Overview DS18 PRO-CUPOLA47” Soft Dome Midrange Loudspeaker | 500W MAX | 4Ω The PRO-CUPOLA4 is DS18’s...
Vendor:
DS18
Manufacturer SKU
PRO-CUPOLA4
Availability:
In Stock
Product Type:
Midrange Loudspeakers
- $349.95
- $349.95
- Unit price
- per
Subtotal:
$349.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

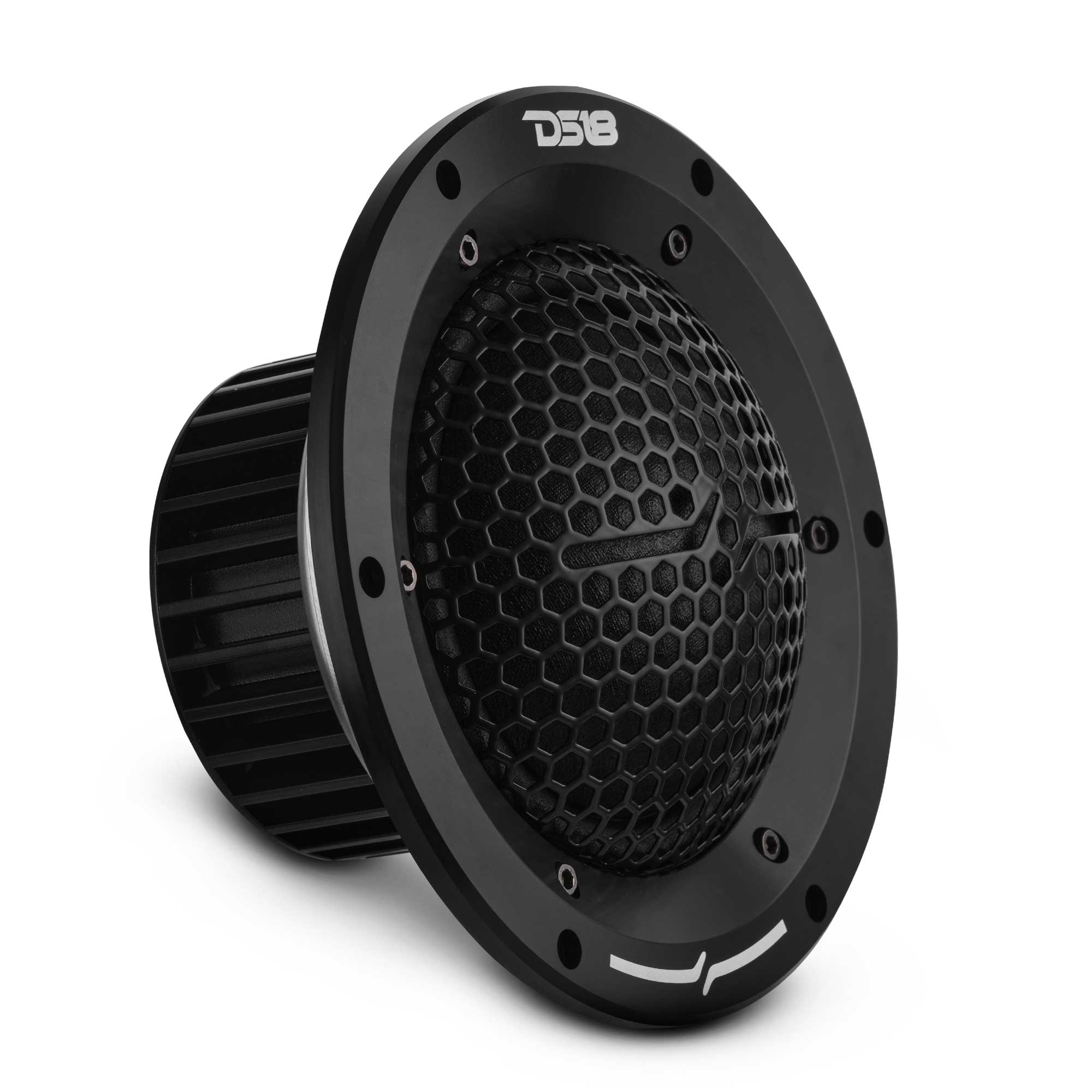

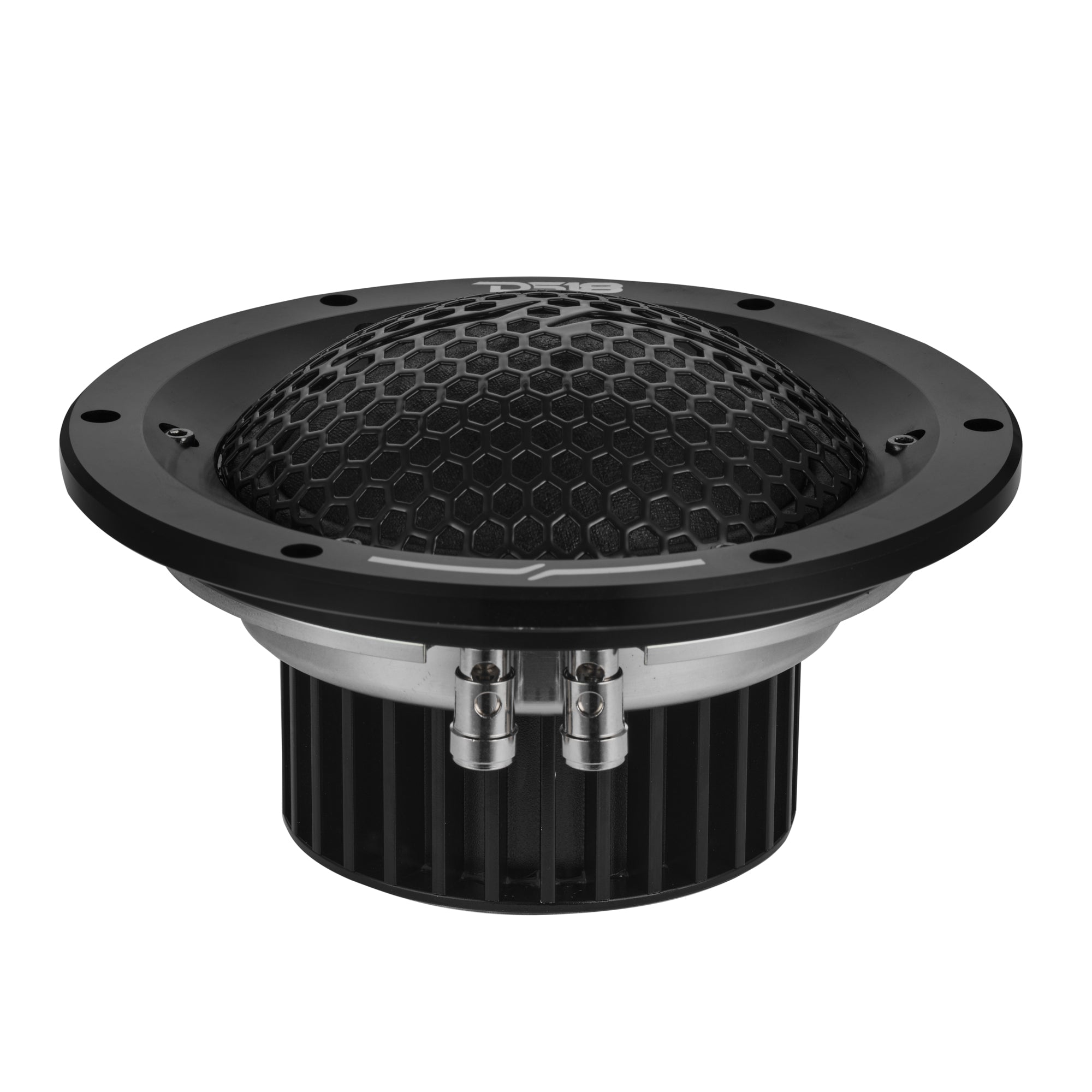

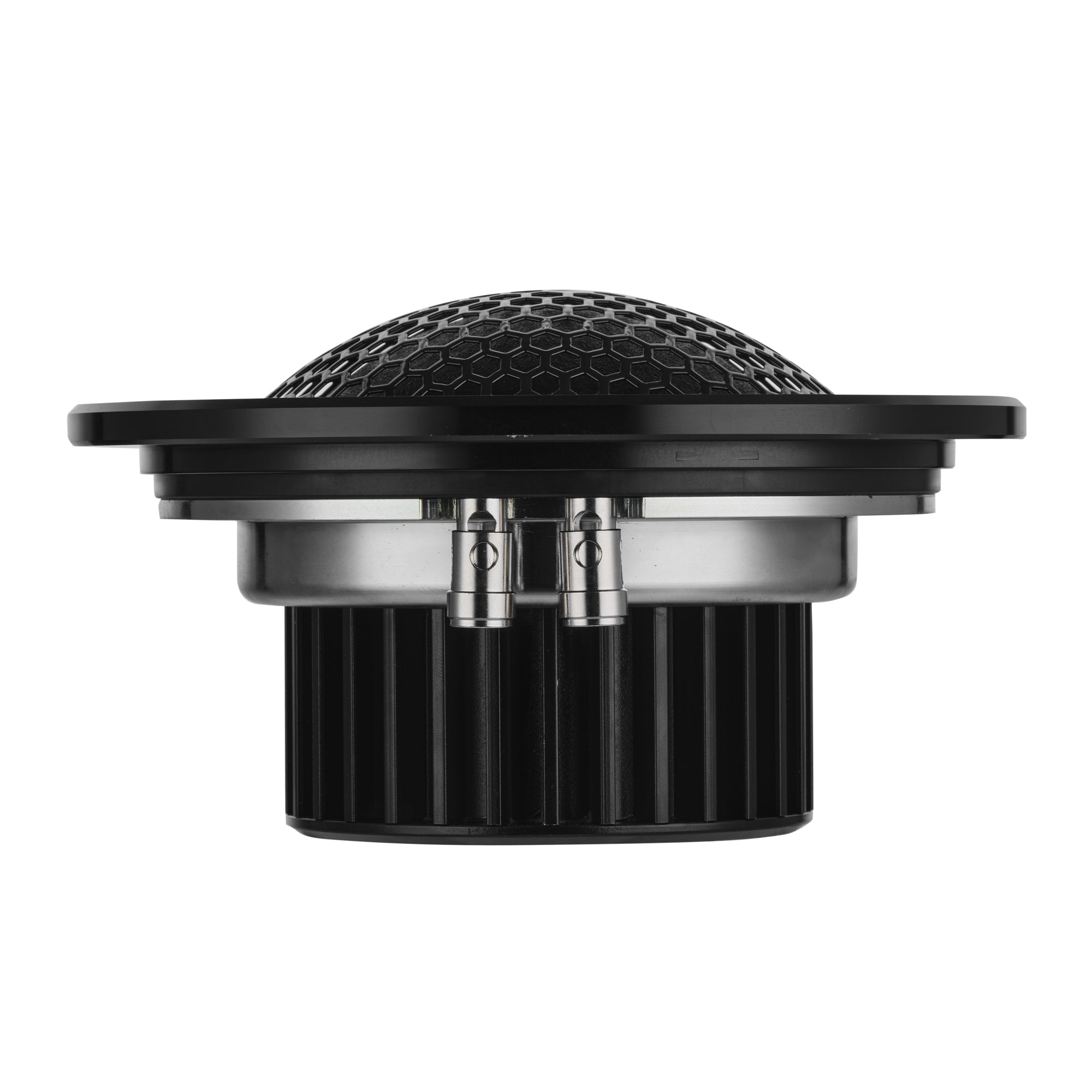

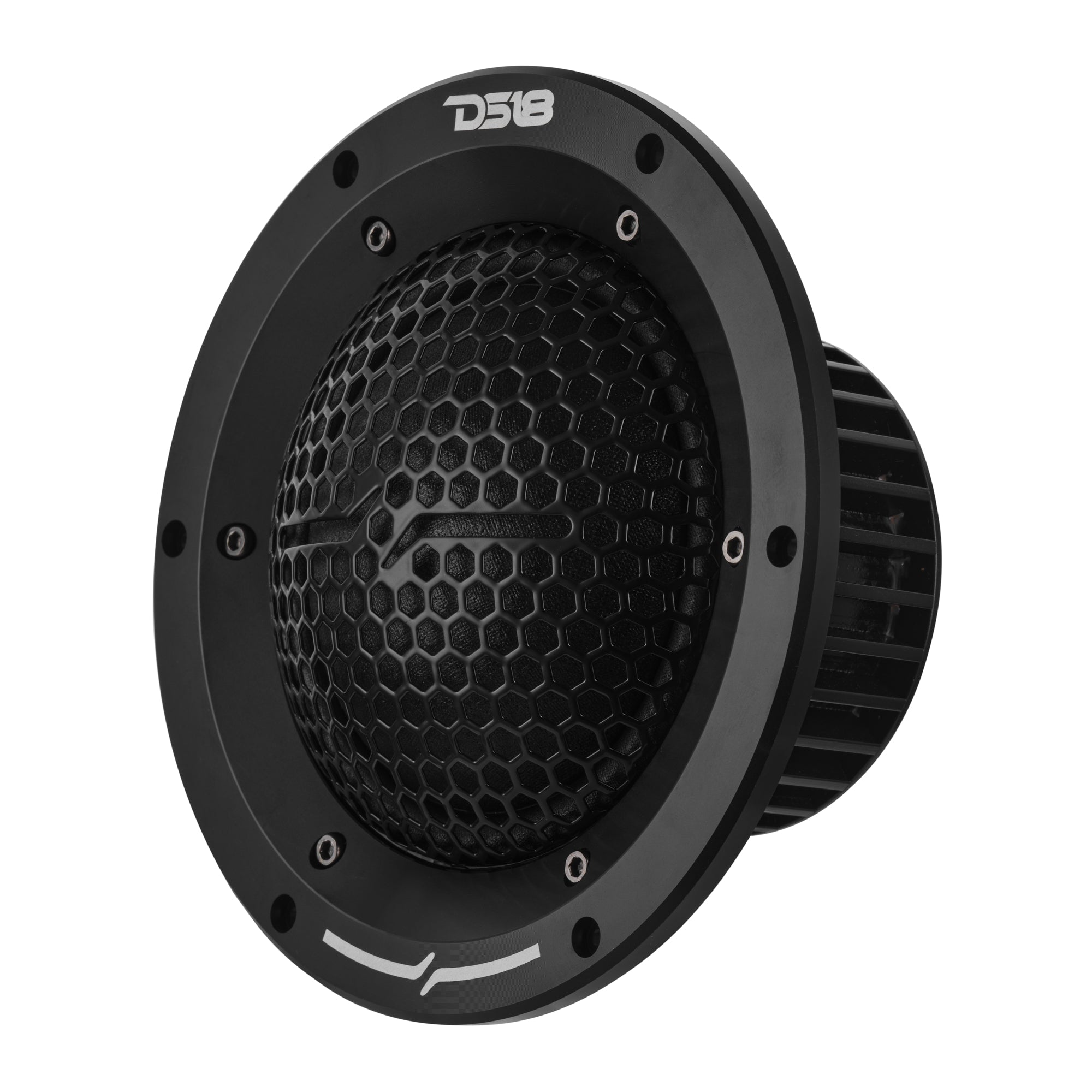

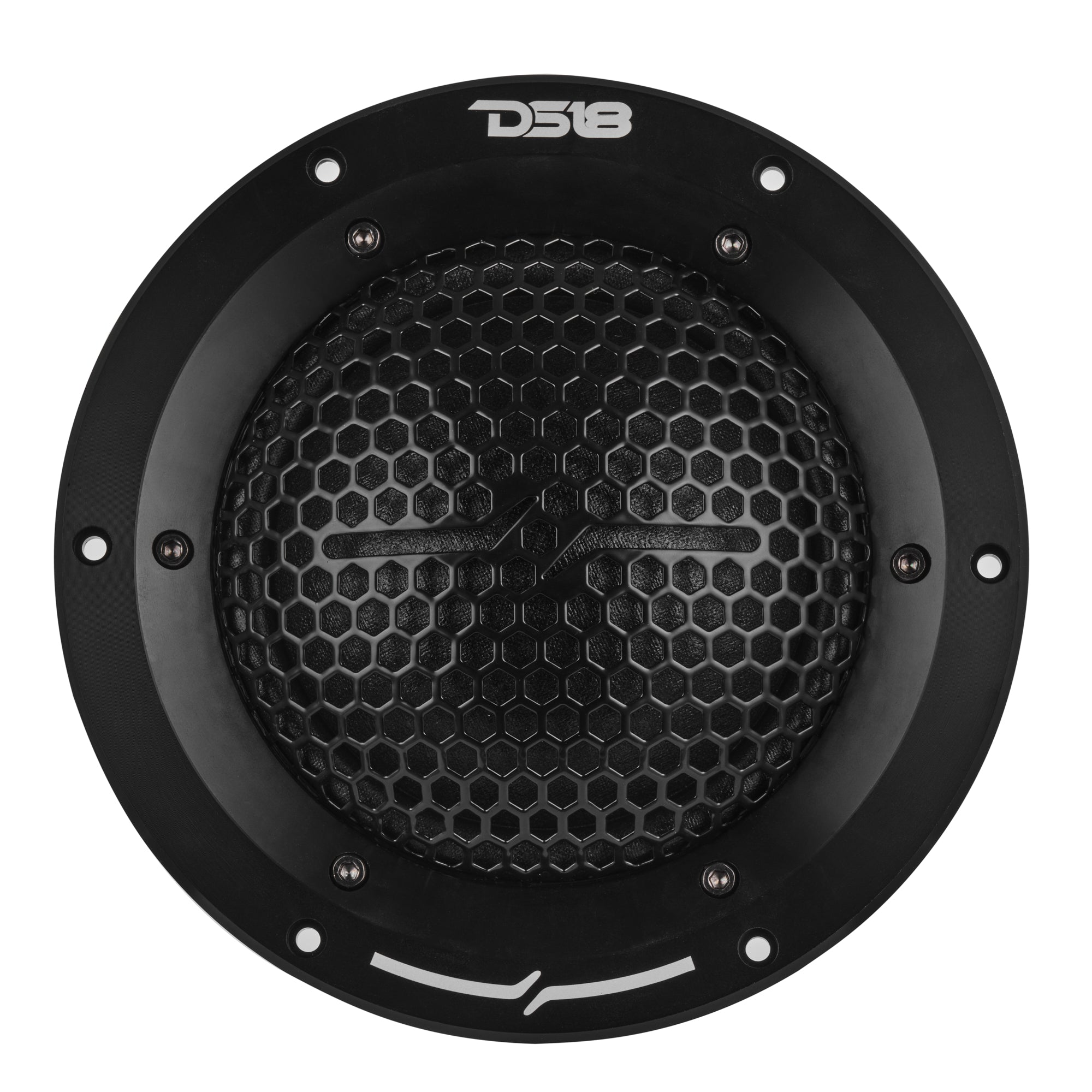

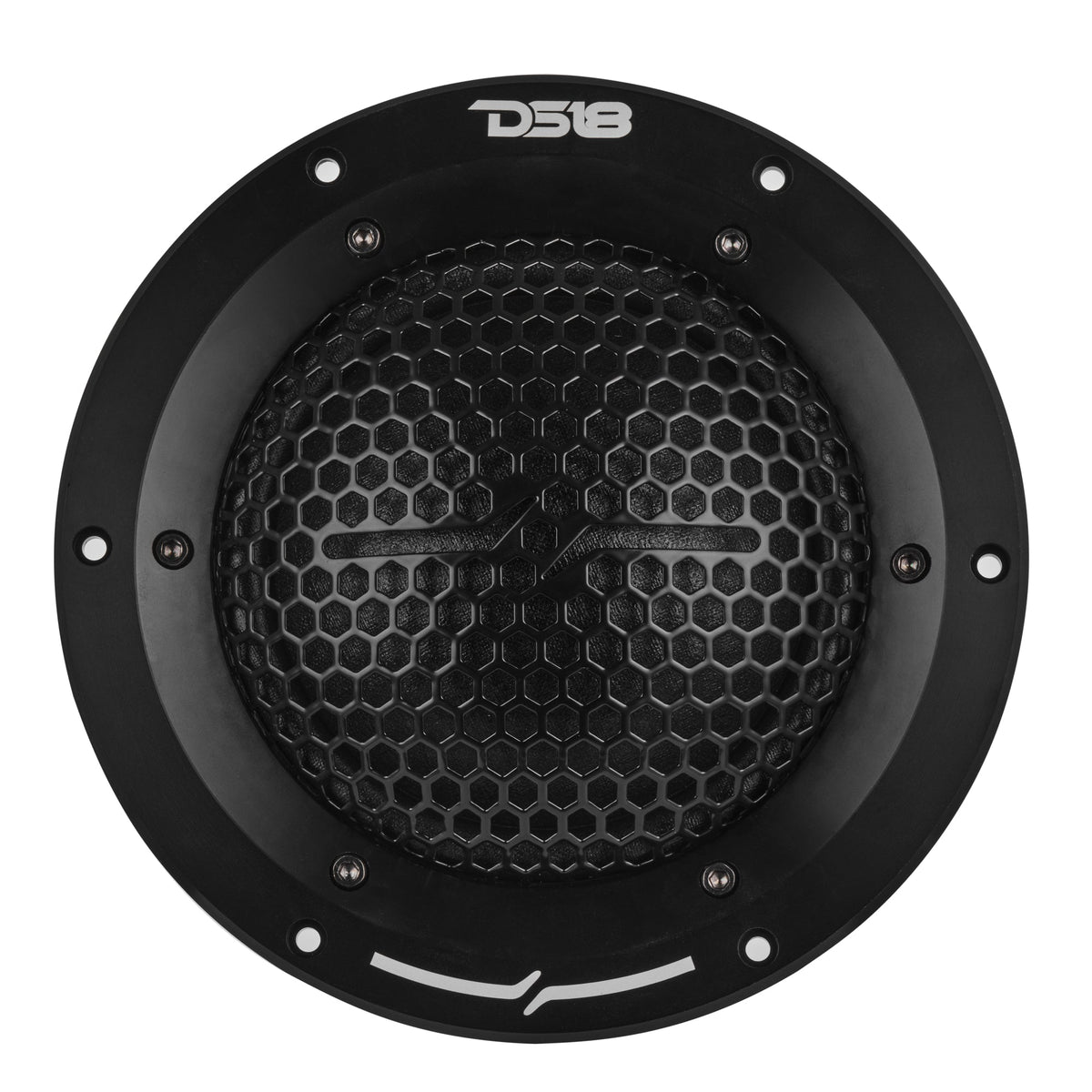

DS18 PRO-CUPOLA4
7” Soft Dome Midrange Loudspeaker | 500W MAX | 4Ω
The PRO-CUPOLA4 is DS18’s elite 7” soft dome midrange loudspeaker designed to deliver expansive, accurate midrange reproduction in high-power pro audio systems.
Larger Cone, Bigger Presence

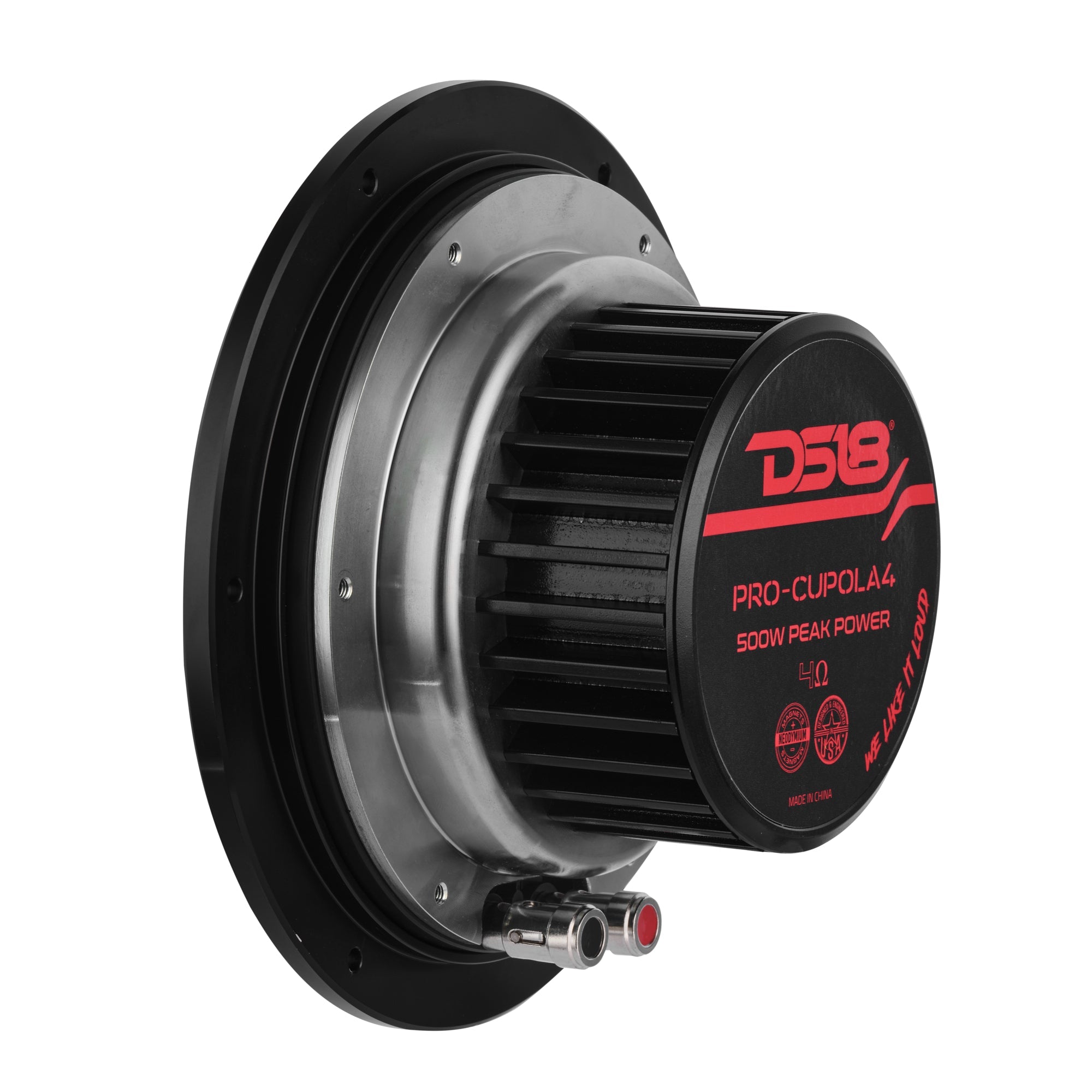

Featuring a massive 4" voice coil, coated cloth dome diaphragm, and powerful 14.33oz neodymium magnet, the PRO-CUPOLA4 handles 200W AES, 400W Program, and 500W MAX. Its 96dB sensitivity and 350Hz–9KHz frequency range allow you to fill larger spaces with smooth, rich mids.
Professional Build Quality

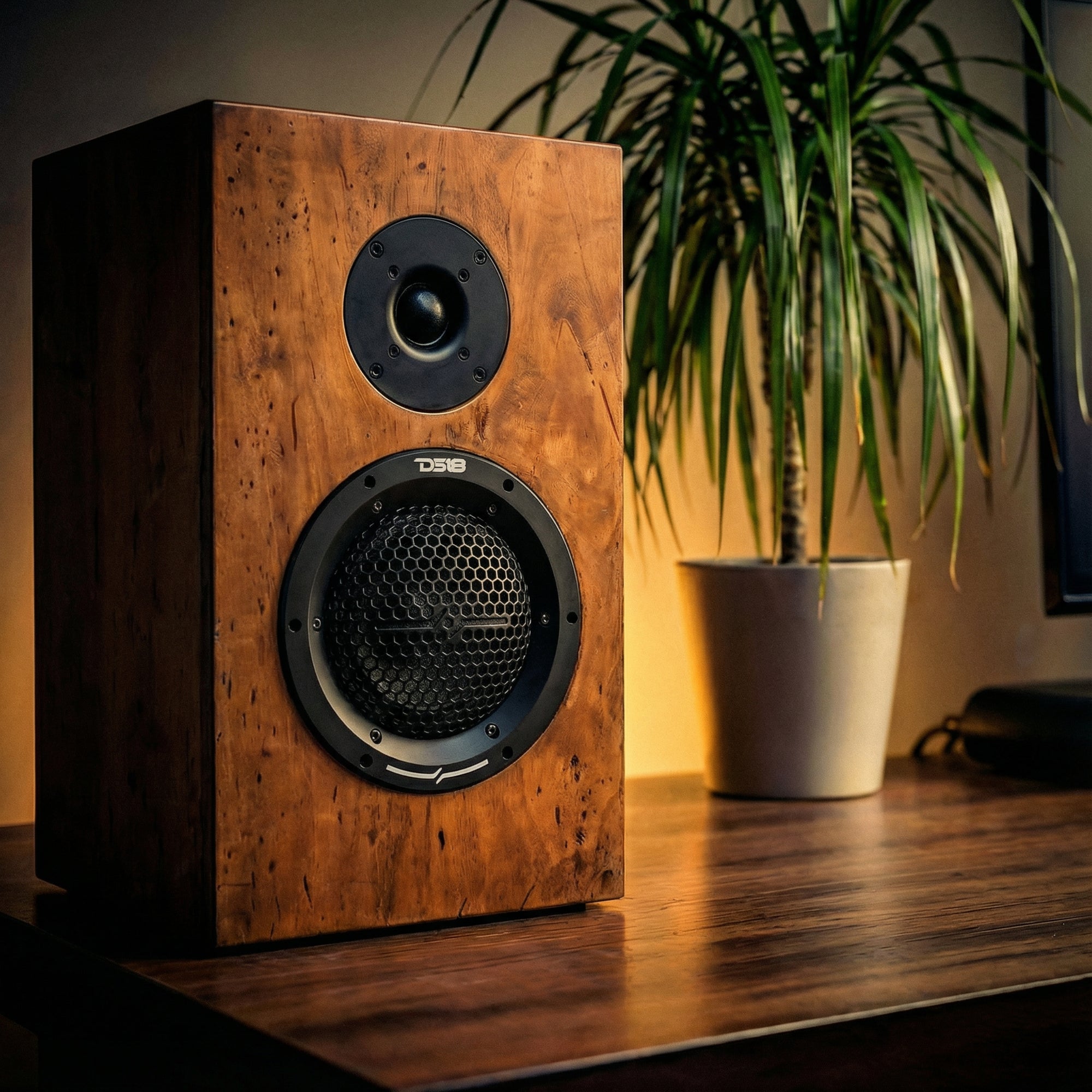

This speaker uses a tuned closed-end chamber with an aluminum body to control resonance and enhance fidelity. With a 2.95" mounting depth and 6.22" cutout diameter, the PRO-CUPOLA4 is perfect for serious studio monitors or premium in-car installations.
Boost your system’s sound with the PRO-CUPOLA4—DS18’s most powerful and precise dome midrange.
Key Features
- 7” Soft Dome Midrange with 4" KSV Voice Coil
- 200W AES / 400W Program / 500W Peak Power
- 96dB Sensitivity and 350Hz–9KHz Frequency Range
- Neodymium Magnet with Aluminum Enclosure
- Large Tuned Rear Chamber for Clean Output
- Perfect for Studio Monitors or High-End Car Audio
Specifications
| SKU | PRO-CUPOLA4 |
|---|---|
| Nominal Diameter | 7" / 178mm |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 200W |
| Program Power Handling | 400W |
| Peak Power Handling | 500W |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 350Hz-9kHz |
| Recommended High Pass Crossover | 370Hz |
| Pair or Single | Single |
| Voice Coil Diameter | 4" / 100mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAW |
| Diaphragm Material | Cloth |
| Body Material | Aluminum |
| Magnet Material | Neodymium |
| Magnet Weight | 14.33 Oz |

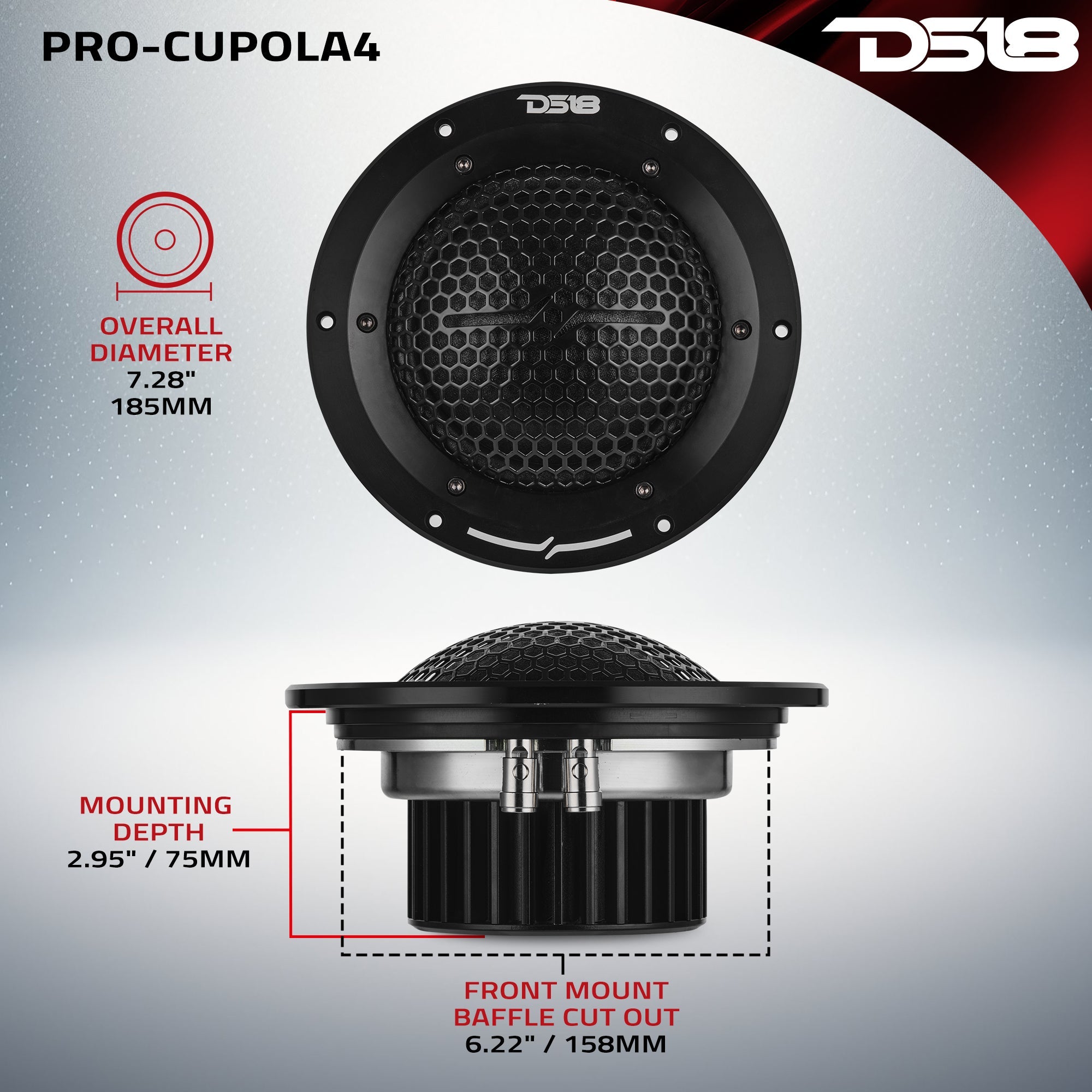

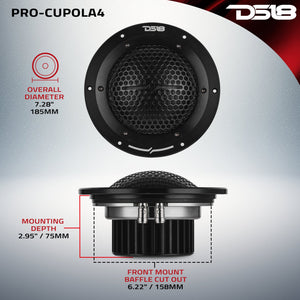

| Overall Diameter | 7.28" / 185mm |
| Overall Depth | 4.17" / 106mm |
| Front Mount Baffle Cutout | 6.22" / 158mm |
| Mounting Depth | 2.95" / 75mm |
