5.25'' High End Professional Soft Dome Mid Range Loudspeaker with Neodymium Magnet | 300W RMS 4-Ohm

Availability: In stock SKU: PRO-CUPOLA3
Regular price $199.95 Sale price $159.96

5.25'' High End Professional Soft Dome Mid Range Loudspeaker with Neodymium Magnet | 300W RMS 4-Ohm - DS18

5.25'' High End Professional Soft Dome Mid Range Loudspeaker with Neodymium Magnet | 300W RMS 4-Ohm

$159.96

Product Overview

DS18 PRO-CUPOLA3
5.25” Soft Dome Midrange Loudspeaker | 400W MAX | 4Ω

The PRO-CUPOLA3 brings studio-grade clarity to your pro audio build: this high-end 5.25” soft dome midrange speaker is engineered for tonal accuracy in high-fidelity audio environment.

Acoustic Perfection
With a 3" KSV voice coil, powerful neodymium magnet, and coated cloth dome diaphragm, the PRO-CUPOLA3 reproduces sound with stunning detail and control. It handles 150W AES, 300W Program, and 400W Peak Power, with an ultra-sensitive 96dB output and tight 400Hz–10KHz frequency range for full midrange performance.

Built for Professional Audio

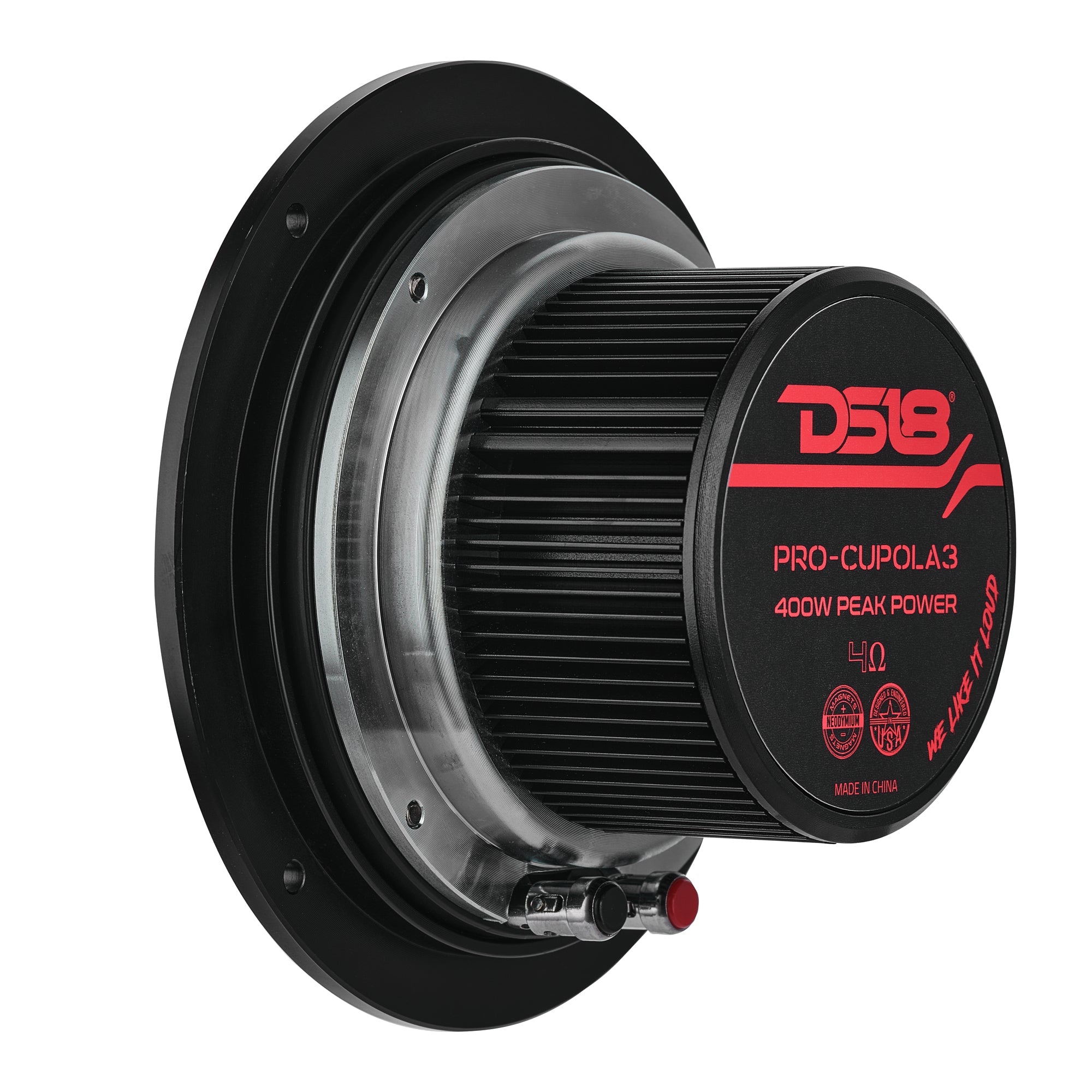

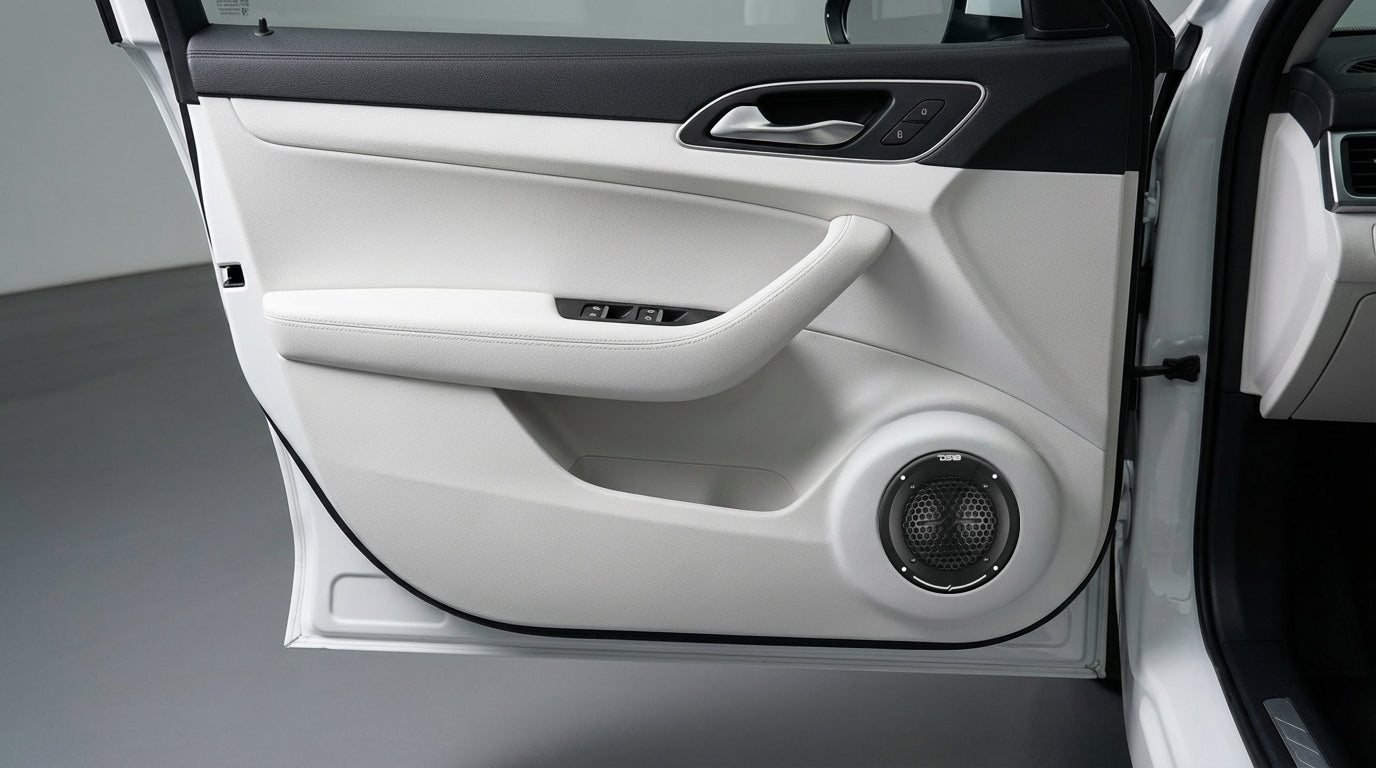

Its tuned rear chamber, aluminum body, and large-damped enclosure make this speaker ideal for high-end car audio installs. It fits into tight spaces easily, with a 2.75" mounting depth and 4.9" cutout.

DS18’s PRO-CUPOLA3 gives you high-efficiency midrange performance with audiophile-grade clarity—upgrade your system with this pro-level powerhouse.

Key Features

  • 5.25” Soft Dome Midrange with 3" KSV Voice Coil
  • 150W AES : 300W Program : 400W MAX
  • Wide Frequency Response: 400Hz–10KHz
  • Neodymium Magnet & Aluminum Body for Superior Output
  • Tuned Rear Chamber for Low Resonance & High Clarity
  • Perfect for Studio Monitors or High-End Car Audio

Specifications

SKU PRO-CUPOLA3
Nominal Diameter 5.25" / 134mm
Nominal Impedance 4 Ohms
AES Power Handling 150W
Program Power Handling 300W
Peak Power Handling 400W
Sensitivity (1w/1m) 96dB
Frequency Response 400Hz-10kHz
Recommended High Pass Crossover 420Hz
Pair or Single Single
Voice Coil Diameter 3" / 76.5mm
Voice Coil Former Material KSV
Winding Material CCAW
Diaphragm Material Cloth
Body Material Aluminum
Magnet Material Neodymium
Magnet Weight 5.7 Oz

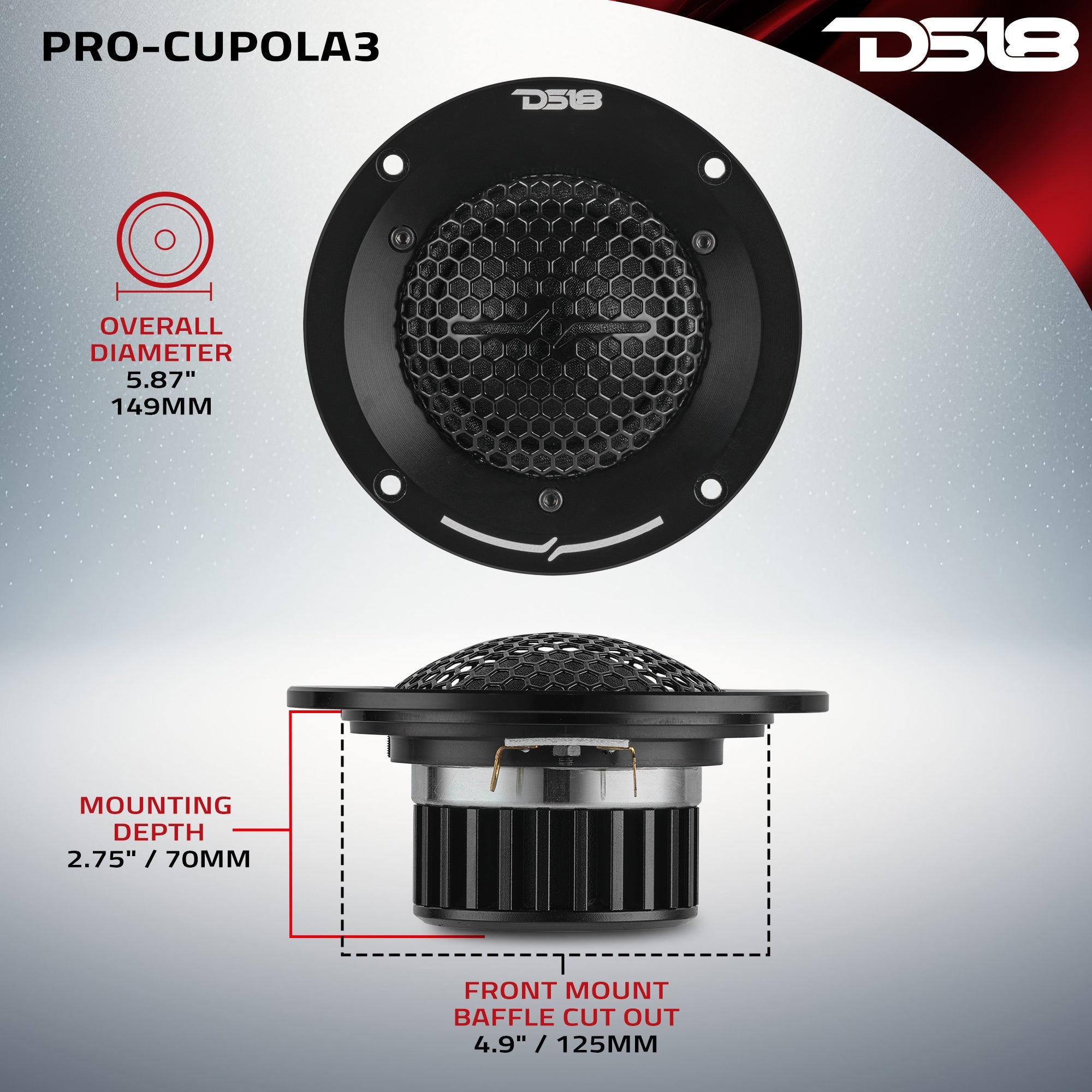

Overall Diameter 5.87" / 149mm
Overall Depth 3.54" / 90mm
Front Mount Baffle Cutout 4.9" / 125mm
Mounting Depth 2.75" / 70mm
