8” Slim Motorcycle & Motorsports Loudspeaker With Neodymium Magnet and Water Resistant Carbon Fiber Cone | 200W RMS 4-Ohm
Product Overview DS18 PRO-CF8.4SLN8" Slim Water-Resistant Midrange Speaker | 400W | 4Ω The PRO-CF8.4SLN brings serious midrange...
Vendor:
DS18
Manufacturer SKU
PRO-CF8.4SLN
Availability:
In Stock
Product Type:
Midrange Loudspeakers
- $199.95
- $199.95
- Unit price
- per
Subtotal:
$199.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 PRO-CF8.4SLN
8" Slim Water-Resistant Midrange Speaker | 400W | 4Ω
The PRO-CF8.4SLN brings serious midrange performance to motorcycle, powersports, and other outdoor installs!
A carbon fiber cone helps the PRO-CF8.4SLN handle everything the road throws at you. Rated at 200W RMS / 400W MAX at 4 ohms with an impressive 95dB sensitivity you get audio that projects over ALL noise easily.
Powerful Output
The 1.5” Kapton voice coil is paired with an ultra-efficient motor structure to produce sharp midrange frequencies from 80Hz to 5KHz for higher range and presence.
Easy Fit
The PRO-CF8.4SLN’s shallow design, lightweight neodymium magnet, and weather-resistant construction make it the ideal speaker for your next offroad or motorcycle build.
Get elite midrange output with DS18’s PRO-CF8.4SLN!
Key Features
- 8" Slim Midrange Speaker 400W MAX / 200W RMS
- 4-Ohm Impedance for Full Amplifier Output
- Carbon Fiber Cone and Dust Cap – Fully Water-Resistant IP65
- Shallow 2.5" Mounting Depth for Tight Spaces
- Lightweight Neodymium Magnet with High 95dB Sensitivity
Specifications
| Nominal Diameter | 8" / 203mm |
|---|---|
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 200W |
| MAX Power Handling | 400W |
| Sensitivity (1w/1m) | 95dB |
| Frequency Response | 80Hz-5kHz |
| Recommended HI Pass Crossover | 100Hz |
| Sold in Pair or Single | Single |
| Grill Included | No |
| Demodulating Rings | Yes |
| Improved Heat Dissipation | Yes |
| Cone Shape | Curvilinear |
| Speaker Terminals | Spade |
| Voice Coil Diameter | 1.5" / 38mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Water-Resistant Carbon Fiber |
| Dust Cap Material | Water-Resistant Carbon Fiber |
| Surround Material | Treated Cloth |
| Leads Connection Type | Crossed Spider |
| Basket Material | Steel |
| Basket Color/Finish | Glossy Black |
| Magnet Material | Neodymium |
| Magnet Weight | 3.8 Oz |
| Equivalent Volume | 6.92L / 0.241ft3 |
| Excursion (one way) | 2.5 mm |
| Free Air Resonance | 102Hz |
| Mechanical Factor (Qms) | 7.03 |
| Electrical Factor (Qes) | 0.7 |
| Total Factor (Qts) | 0.63 |
| Mechanical Mass | 18.679g |
| Mechanical Compliance | 0.12 mm/N |
| BL Factor | 7.63 |
| Voice Coil Inductance | 0.11mH |
| Cone Area | 190cm2 |
| DC Resistance | 3.2 Ohms |
| Mechanical Mass w/o air | 17.12g |

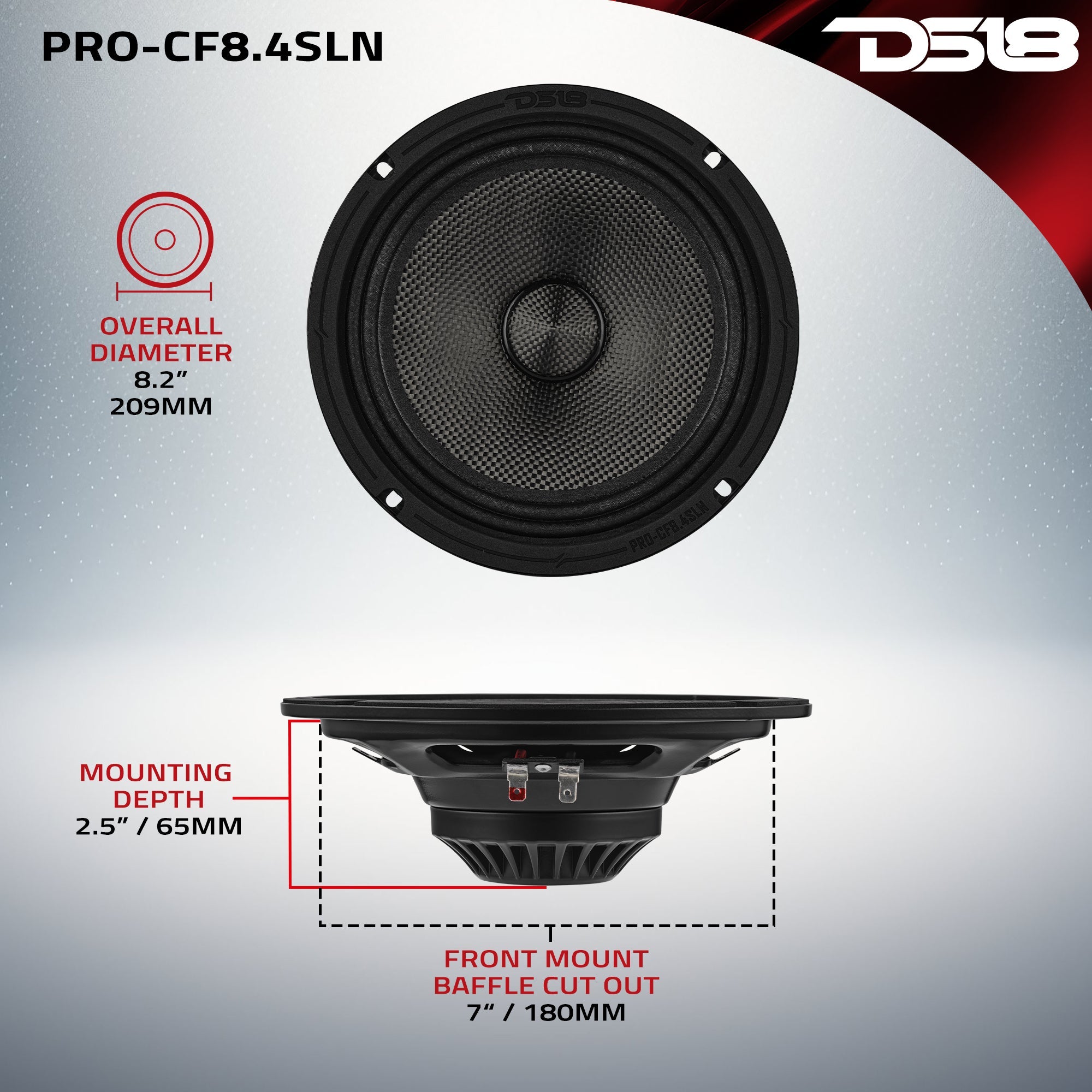

| Overall Diameter | 8.2" /209mm |
| Overall Depth | 2.87" / 73mm |
| Front Mount Baffle Cutout | 7" / 180mm |
| Mounting Depth | 2.5" / 65mm |
| Motor Diameter | 3.6" / 92mm |
