PRO 8" Shallow Neodymium Full-Range Loudspeaker 200 Watts Rms 8-Ohm
Product Overview DS18 PRO-NS8 8" Shallow Neodymium Mid-Range Loudspeaker 400 Watts 8-Ohm DS18's new Neodymium shallow speakers...
- $95.95
- $95.95
- Unit price
- per
Subtotal:
$95.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

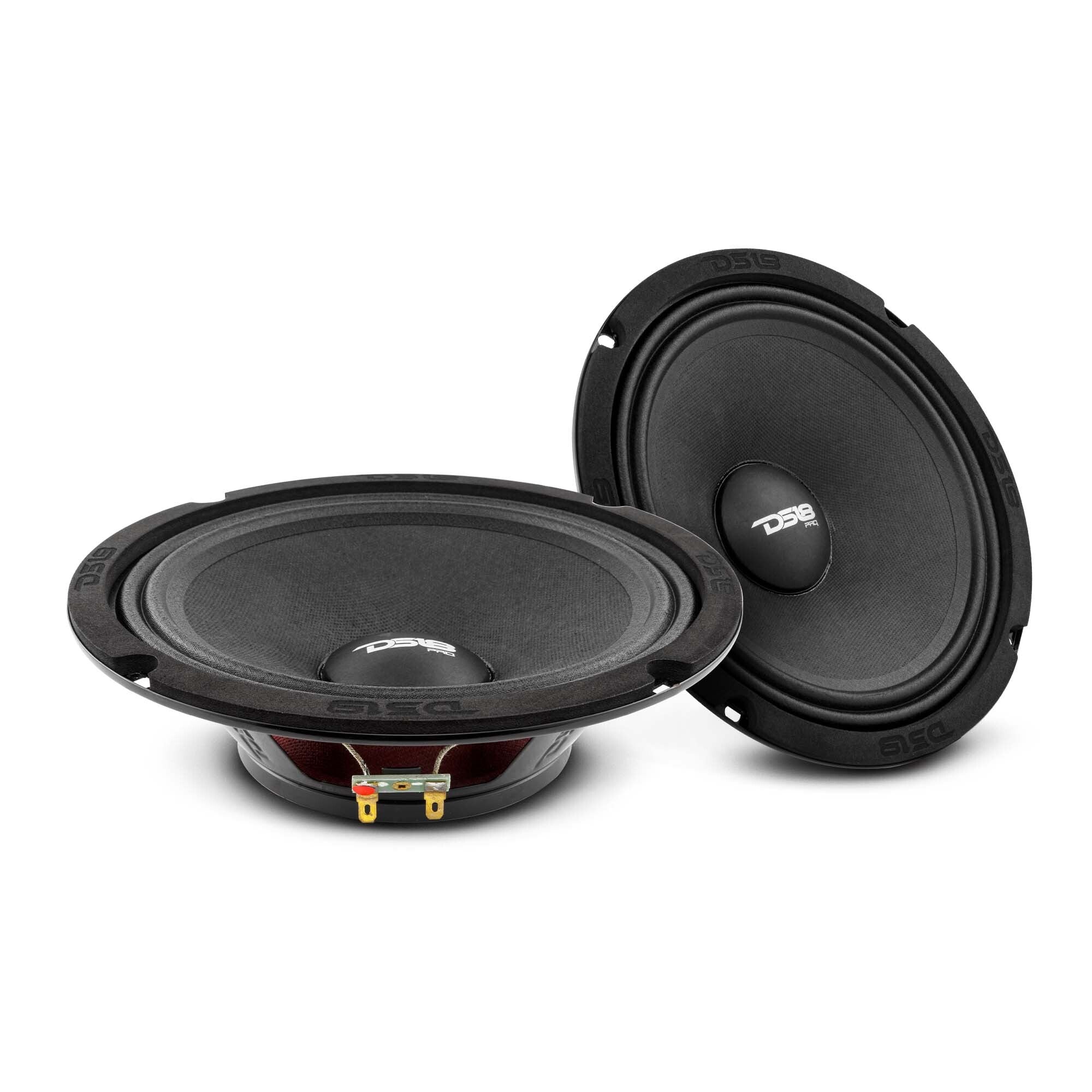

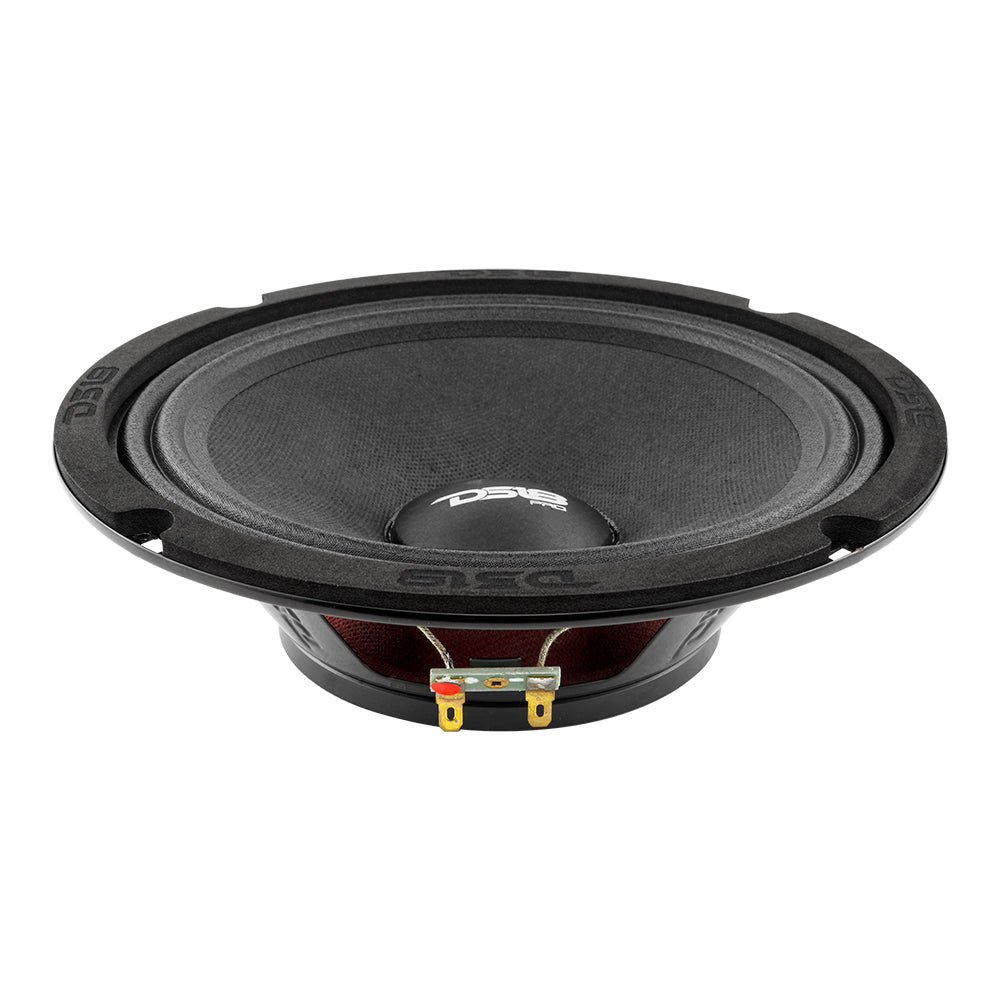

DS18 PRO-NS8 8" Shallow Neodymium Mid-Range Loudspeaker 400 Watts 8-Ohm

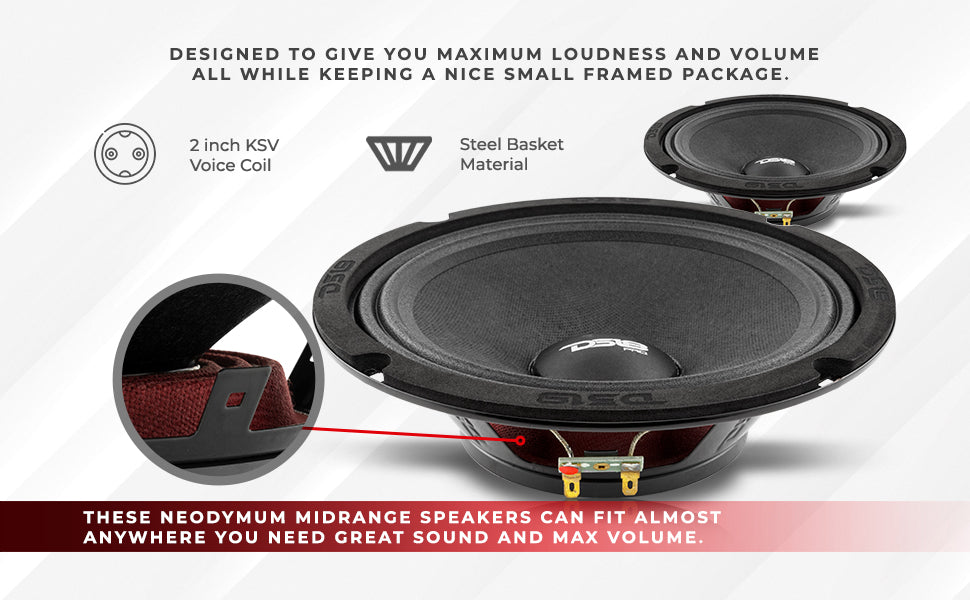

DS18's new Neodymium shallow speakers were designed to give you maximum loudness and volume all while keeping a nice small framed package. Most neo speakers are full size and take up a good amount of mounting depth, with these new Neo slim speakers, you can get that insane neodymium loudness where there is not much room for full size speakers.
This 8" inch neodymium 2" voice coil Midrange speaker takes 200w RMS and 400w Peak power, so you know they will get loud easily. The 96dB sensitivity rating will be sure to give you plenty of volume as well for years and years of enjoyment.

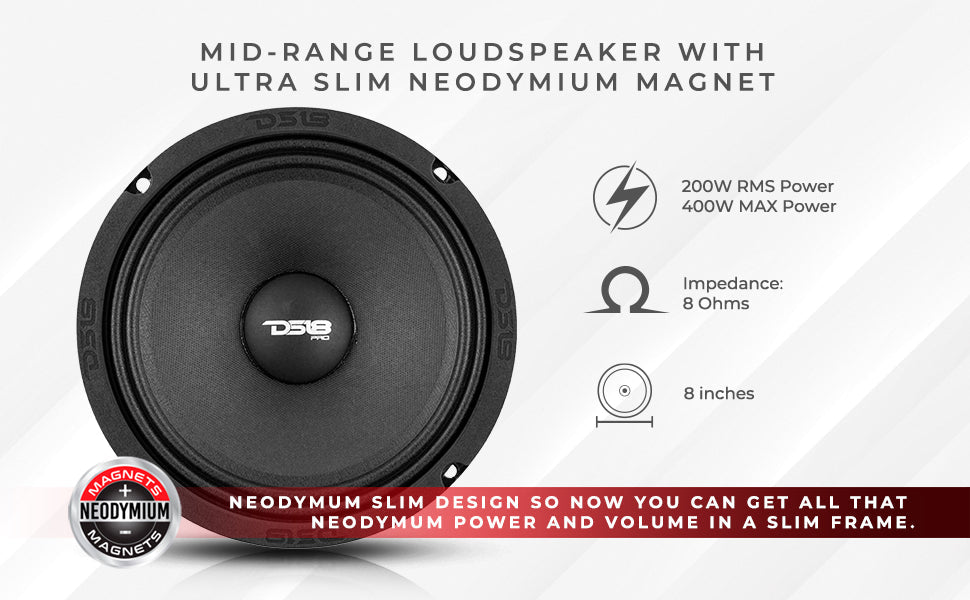

Highlights- Neodymium Slim design so now you can get all that neodymium power and volume in a slim frame.

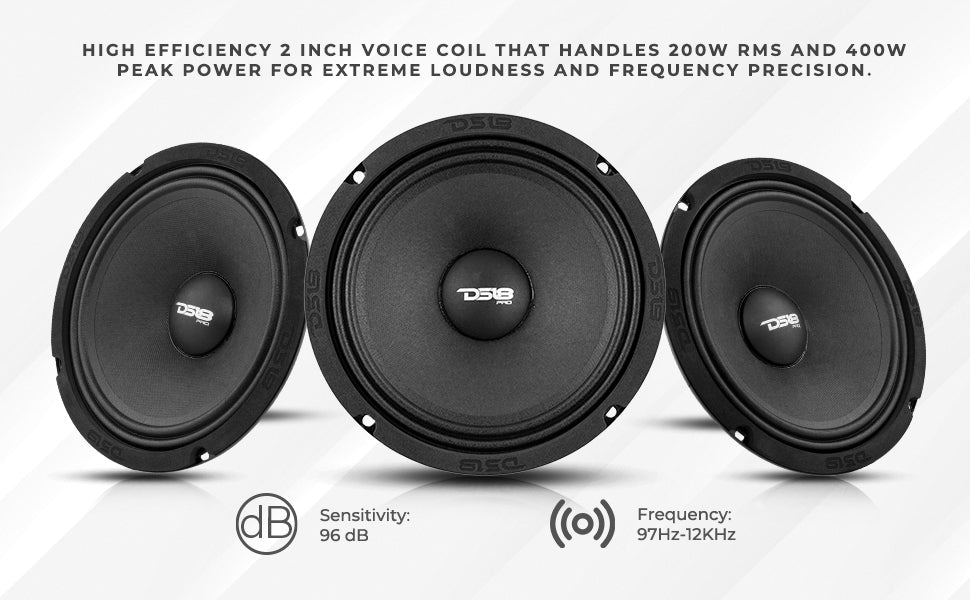

- High efficiency 8 ohm 2 inch voice coil that handles 200w RMS and 400w peak power for extreme loudness and frequency precision.
- Shallow mounting depth of only 2.48 inches, these neodymium midrange speakers can fit almost anywhere you need great sound and max volume.
Technical Details
| Nominal Diameter | 8"/208mm |
| Nominal Impedance | 8 Ohms |
| RMS Power Handling | 200W |
| MAX Power Handling | 400W |
| Sensitivity (1w/1m) | 96 dB |
| Frequency Response | 97Hz - 12KHz |
| Recommended Hi Pass Crossover | 160Hz |
| Pair or Single | Single |
| Voice Coil Diameter | 2"/50.8mm |
| Voice Coil Former Material | KSV |
| Winding Material | Copper |
| Cone Material | Paper |
| Dust Cap Material | paper |
| Surround Materia | Cloth |
| Basket Material | Steel |
| Basket Color | Glossy Red |
| Magnet Material | Neodymium |
| Magnet Weight | 3.32oz |
| THIELE & SMALL PARAMETERS | |
| Equivalent Volume | 5.48l / 0.193ft3 |
| Excursion (one way) | 2 mm |
| Free Air Resonance | 120Hz |
| Mechanical Factor | 3.781 |
| Electrical Factor | 0.952 |
| Total Factor | 0.761 |
| Mechanical Mass | 13.242g |
| Mechanical Compliance | 162m cm/N |
| BL Factor | 6.029 |
| Voice Coil Inductance | 7.011mH |
| Cone Area | 213.825 Cm3 |
| DC Resistance | 6.5 ohms |
| Mechanical Mass w/o air/ | 13.07g |

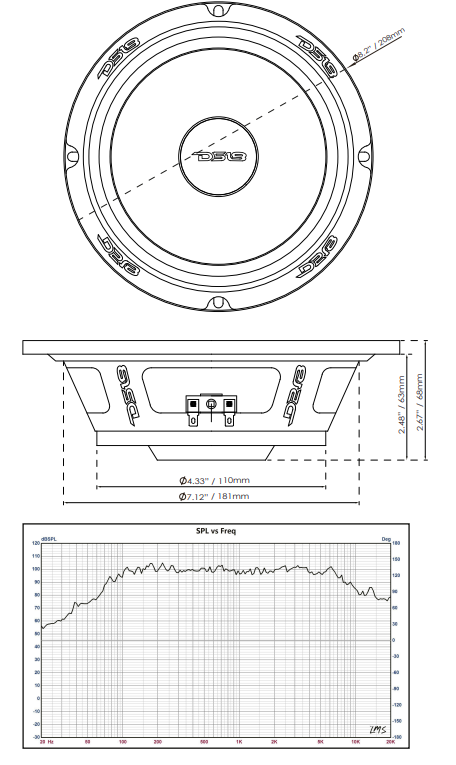

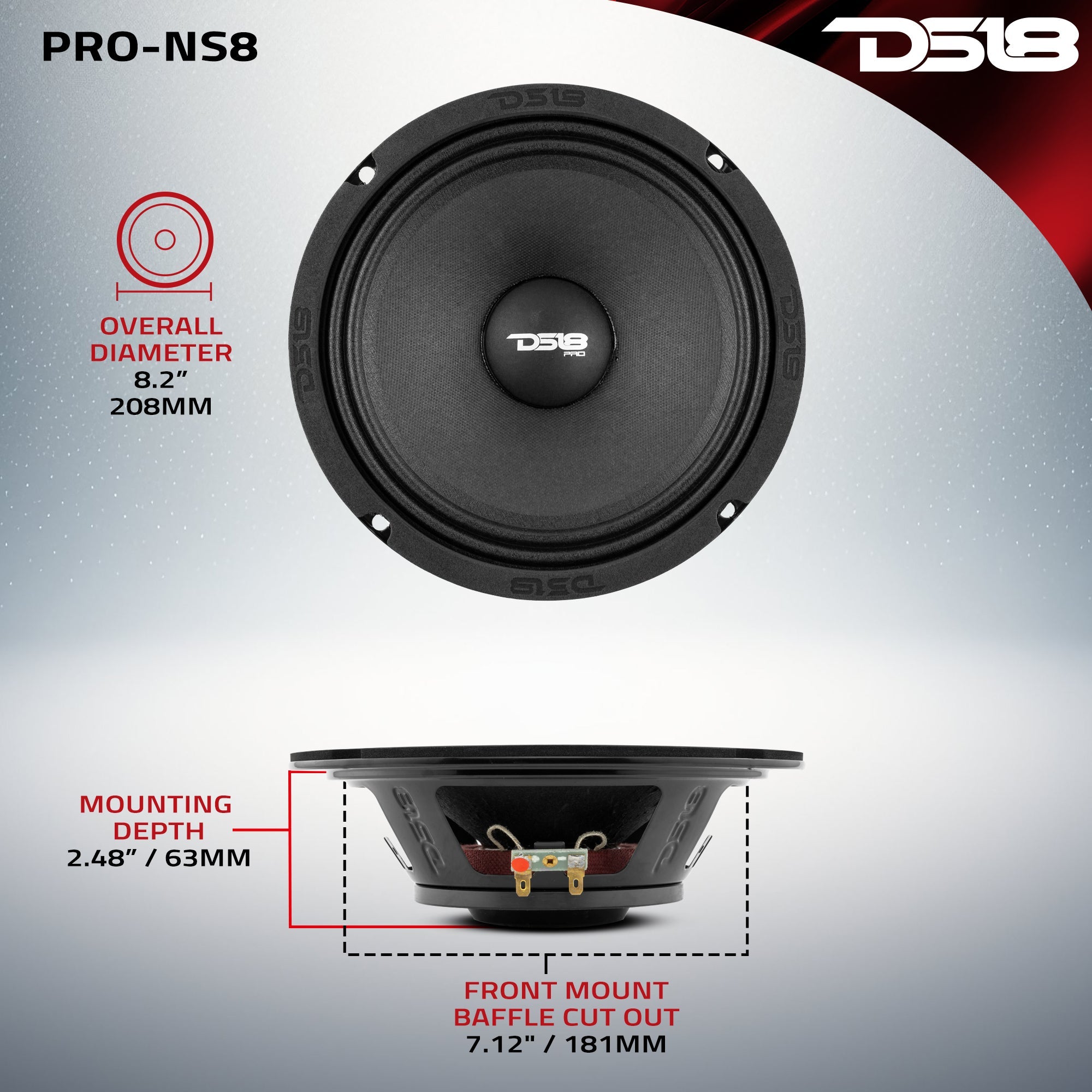

| MEASUREMENTS | |
| Overall Diameter | 8.2" |
| Overall Depth | 2.67" |
| Front Mount Baffle Cutout | 7.12" |
| Mounting Depth | 2.48" |
| Motor Diameter | 4.33" |
Key Features
- 8" Shallow Mid-Range
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 96dB
Specifications
| SKU | PRO-NS8 |
|---|---|
| Nominal Diameter | 8"/ 208mm |
| Nominal Impedance | 8 OHM |
| RMS Power Handling | 200W |
| MAX Power Handling | 400W |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 97Hz - 12Khz |
| Recommended HI Pass Crossover | 160Hz |
| Pair or Single | Single |
| Grill Included | No |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | KSV |
| Winding Material | Copper |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Magnet Material | Neodymium |
| Magnet Weight | 3.32 Oz |
| Equivalent Volume - Vas | 5.48L / 0.193ft3 |
| Excursion (one way) - Xmax | 2mm |
| Free Air Resonance - Fs | 120Hz |
| Mechanical Factor - Qms | 3.781 |
| Electrical Factor - Qes | 0.952 |
| Total Factor - Qts | 0.761 |
| DC Resistance - Re | 6.5 ohm |
| Overall Diameter | 8.2” / 208mm |
| Overall Depth | 2.67" / 68mm |
| Front Mount Baffle Cutout | 7.12" / 181mm |
| Mounting Depth | 2.48" / 63mm |
| Motor Diameter | 4.33" / 110mm |
