PRO 6.5" Neodymium Mid-Range Bullet Loudspeaker 250 Watts Rms 4-Ohm
Product Overview
DS18 PRO-NEO6 6.5" Neodymium Mid-Range Loudspeaker with Bullet 500 Watts 4-Ohm

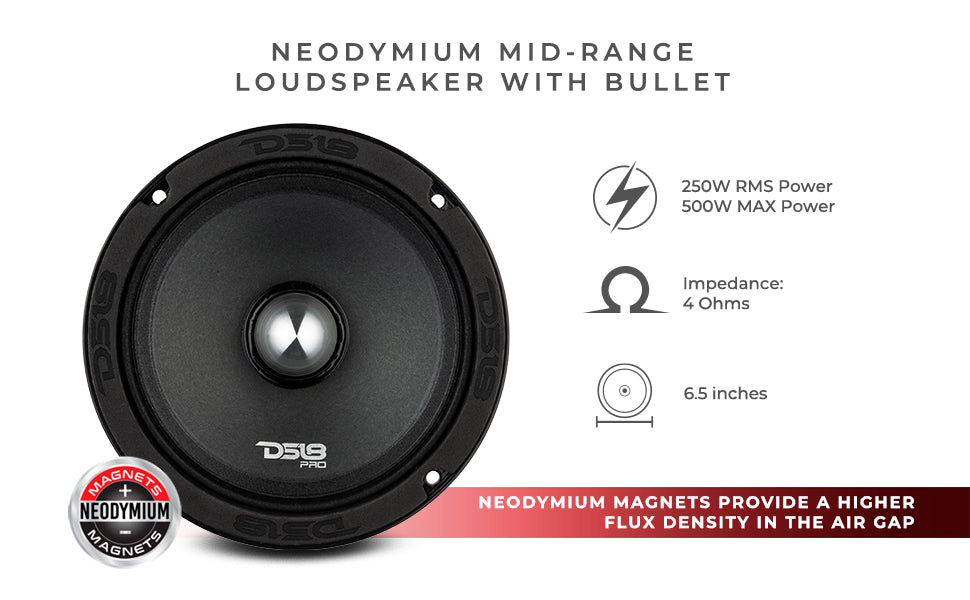

DS18 amassed a wealth of experience in manufacturing the most elegant neodymium midranges for those seeking simple perfection. Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the voice coil. For this reason, Neo magnets have the strongest permanent magnets of all the commercially available speakers. Ranging in sizes, mounting depths, and frequency responses, we have more than 10 different models of Neo midranges to accommodate any build.
Highlights

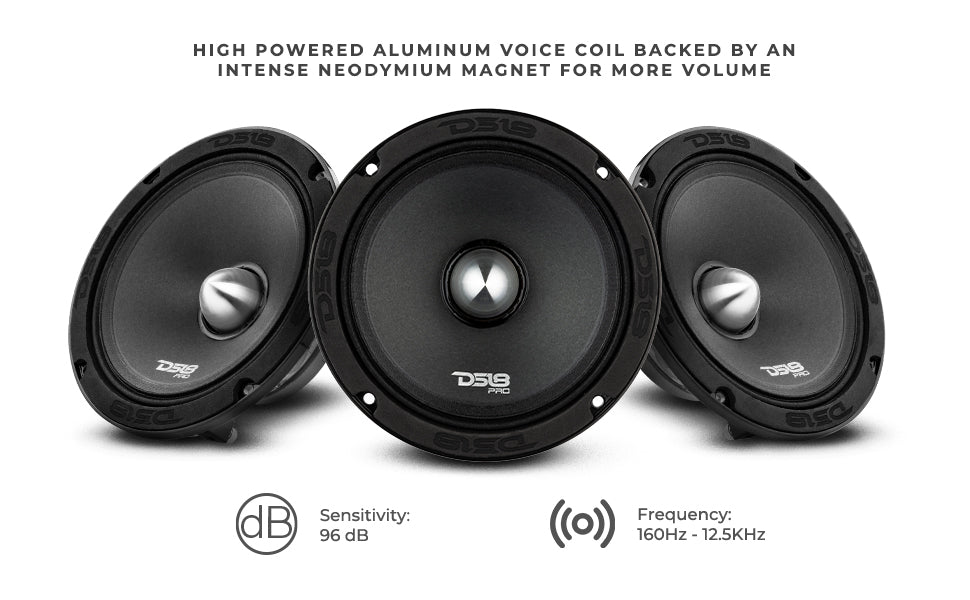

- High powered aluminum voice coil backed by an intense neodymium magnet for more volume at the highest efficiency on the market.
- Beautiful DS18 design including a DS18 Tooled aluminum brushed accented basket and high quality terminals.

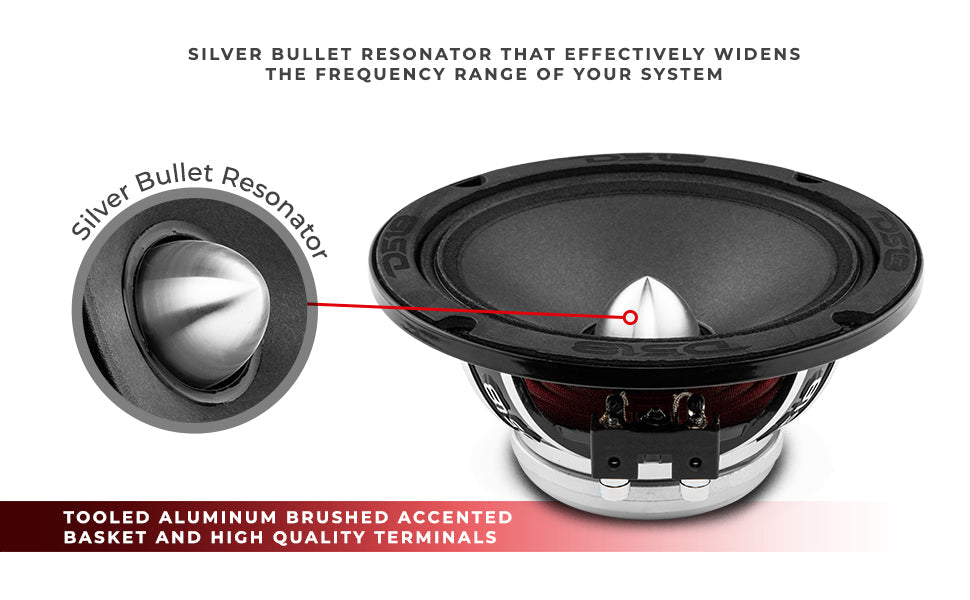

- Silver Bullet Resonator (tweeter) that effectively widens the higher range of your NEO bringing you a fuller range of frequencies to blast.
Technical Details
| Model: | PRO-NEO6 |
| Type: | Midrange Loudspeaker |
| Size: | 6.5" |
| RMS Power: | 250W |
| MAX Power: | 500W |
| Frequency Response: | 160Hz - 12.5KHz |
| Impedance: | 4 Ohms |
| Sensitivity: | 96dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Heavy Duty Aluminum Basket |
| Cone Material: | Paper Cone |
| Magnet: | Neodymium |
| Voice Coil Wire: | KCCAW |
| Measurements | |
| Voice Coil Size: | 1.5" (38.6mm) |
| Magnet Size: | Neo 7.6 oz. (90 x 45 x 6) |

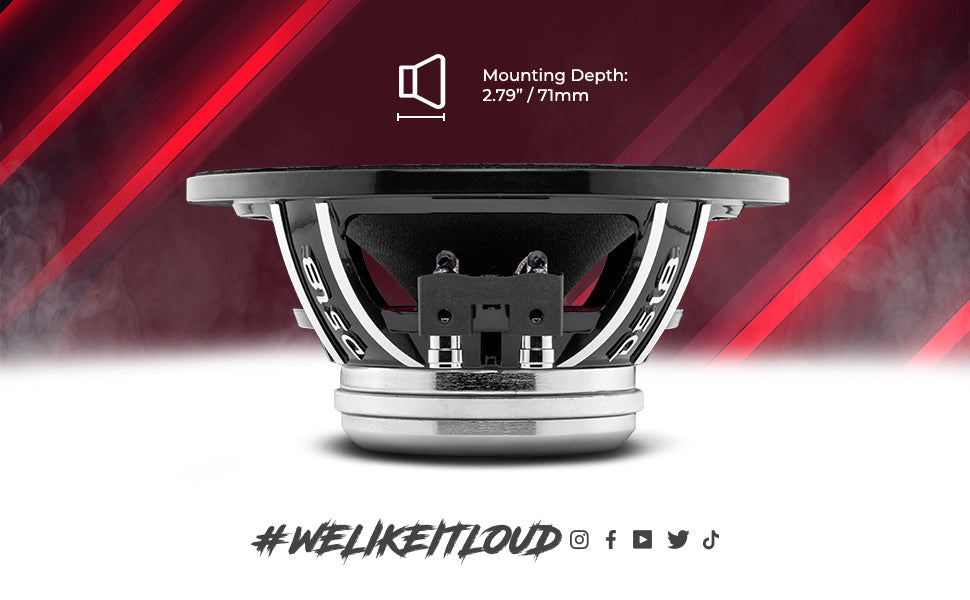

| Mounting Depth: | 2.79" (73mm) |
| Cut-Out Dimensions: | 5.85" (148.5mm) |
Key Features
- 6.5" Mid-Range w/Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 96dB
Specifications
| SKU | PRO-NEO6 |
|---|---|
| Nominal Diameter | 6.5" |
| Nominal Impedance | 4 ohms |
| RMS Power Handing | 250 Watts |
| Maximum Power Handing | 500 Watts |
| Sensitivity (1w/1m) | 96 dB |
| Frequency Response | 160Hz -12.5KHz |
| Recommended Hi Pass Crossover | 200 Hz |
| Voice Coil Diameter | 1.5" / 38.1mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | 7.6 oz |
| Vas | 1.566 L |
| Xmax | 8.5 mm |
| Fs | 201.9 Hz |
| Qms | 5.429 |
| Qes | 0.562 |
| Qts | 0.509 |
| Re | 3.543 |

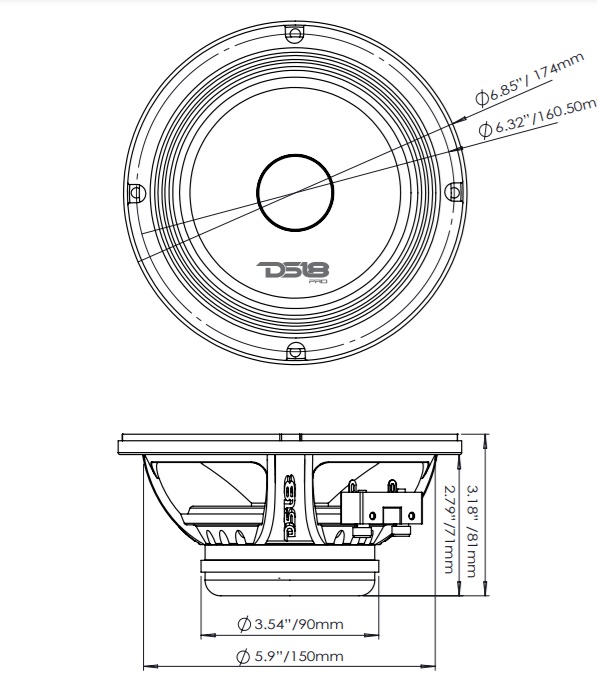

| Overall Diameter | 6.85" /174 mm |
| Front Mount Baffle Cutout | 5.9" /150 mm |
| Mounting Depth | 2.79" /90 mm |
| Overall Depth | 3.18" /81 mm |
| Product Weight | 4.5 lbs |
| Product Dimensions | 7.25 x 7.25 x 3.875 |
| M/C Weight | 38 lbs |
| M/C Dimensions | 15.5 x 15.5 x 8.5 |
| M/C QTY | 8 |
| Sold In | Piece |
