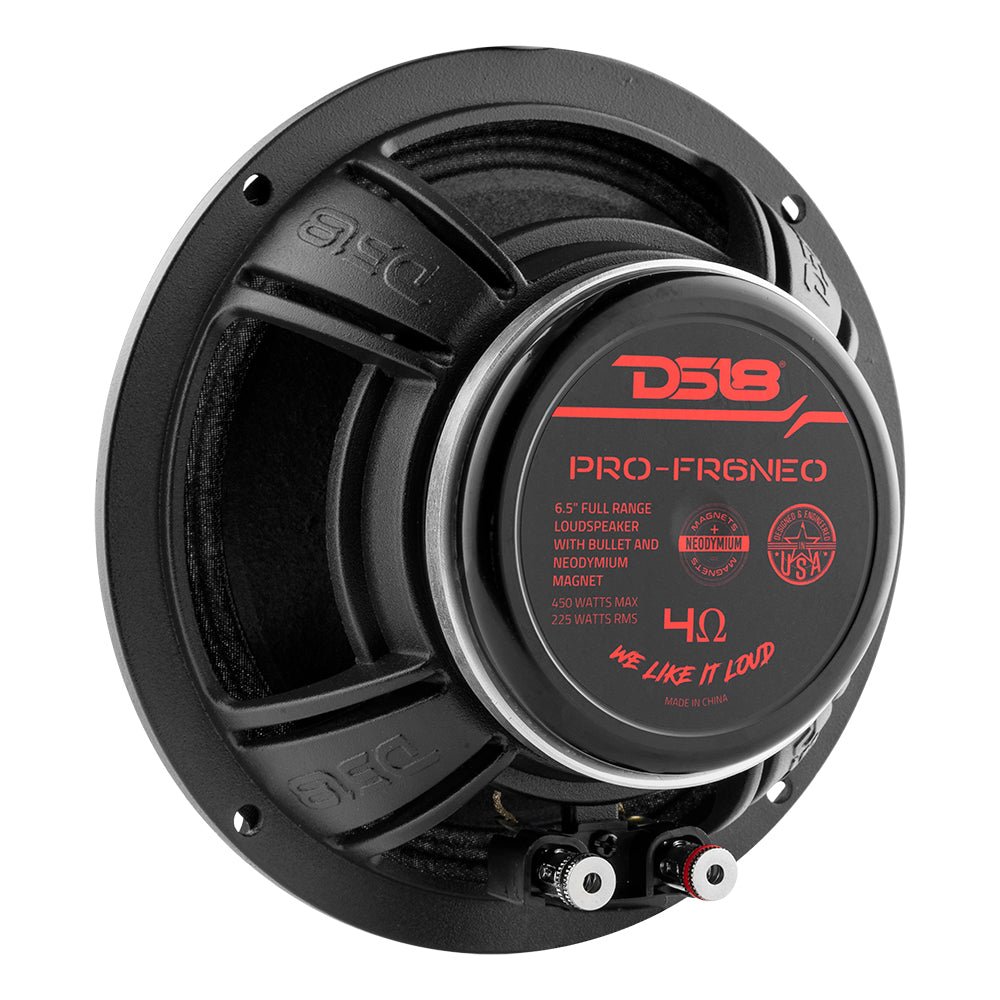

PRO 6.5" Neodymium Full-Range Bullet Loudspeaker 225 Watts Rms 4-Ohm
Product Overview DS18 PRO-FR6NEO 6.5" Neodymium Full-Range Loudspeaker with Bullet 450 Watts 4-Ohm with Grill DS18 amassed...
- $143.95
- $143.95
- Unit price
- per
Subtotal:
$143.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

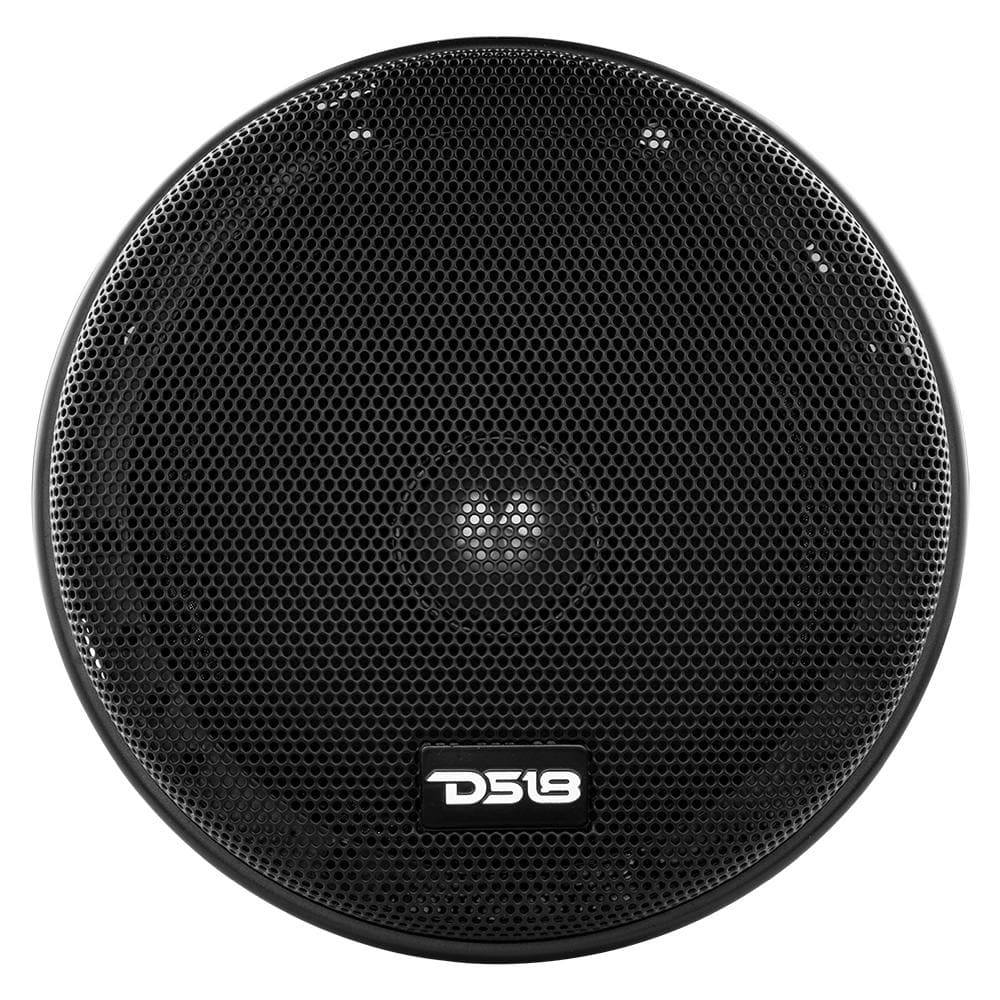

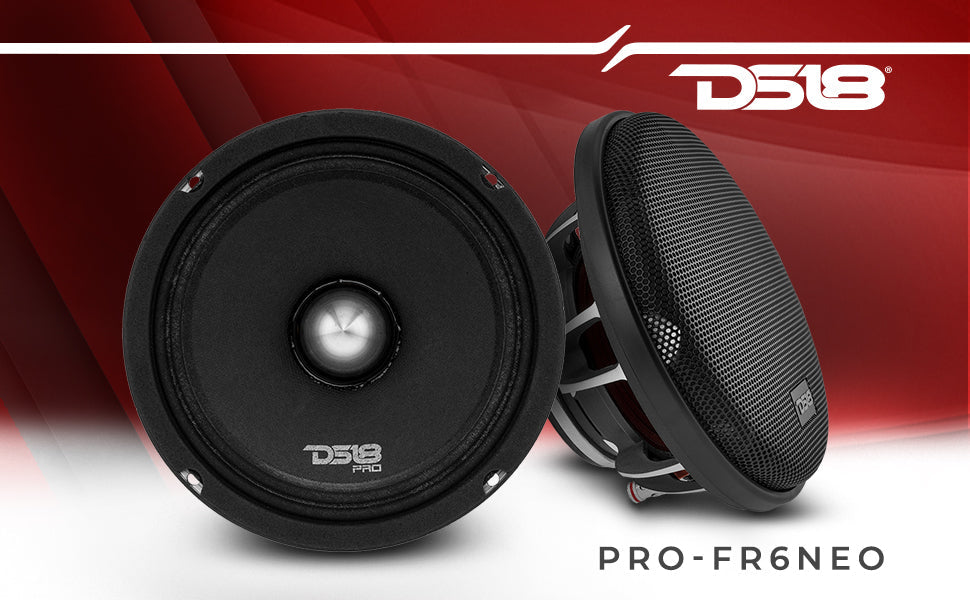

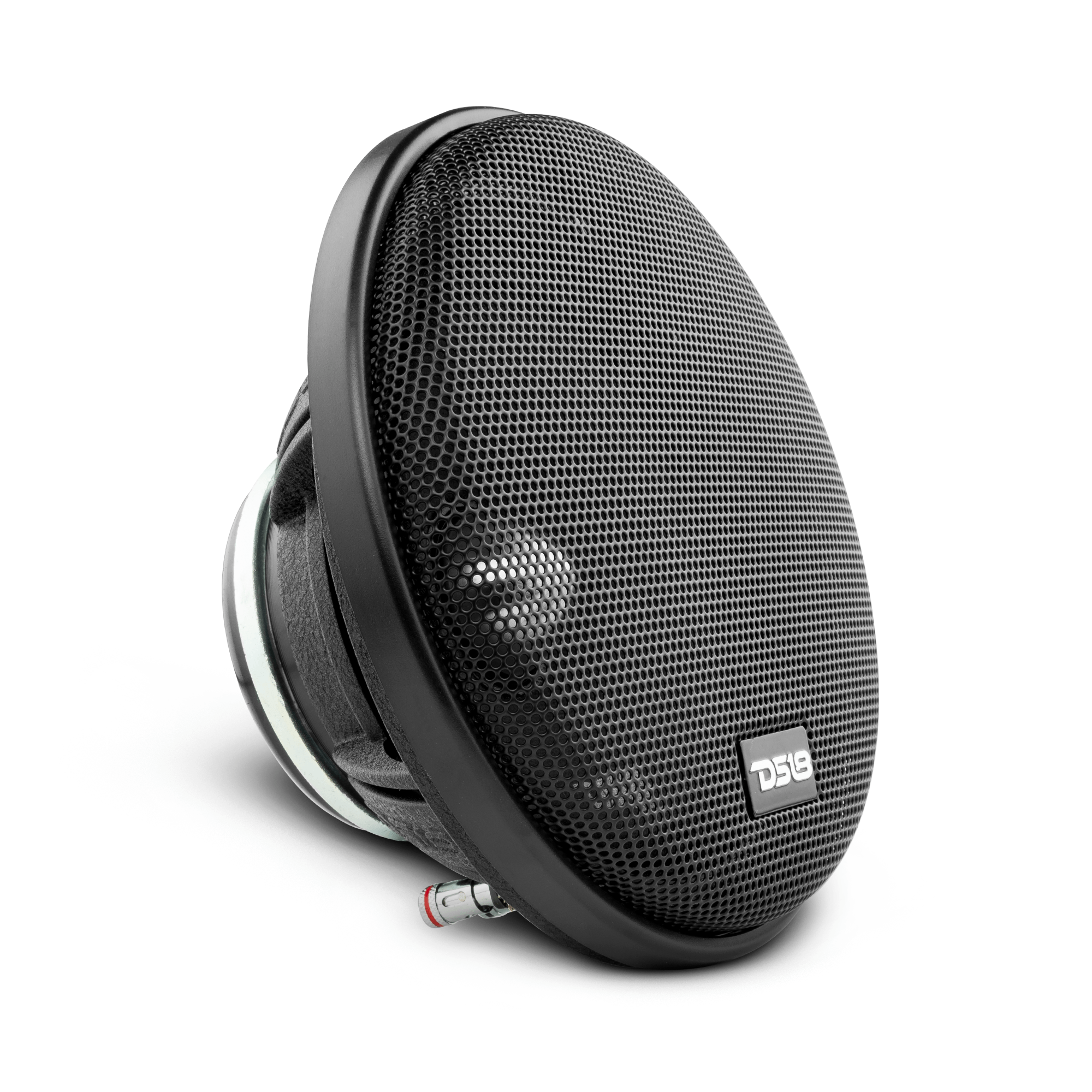

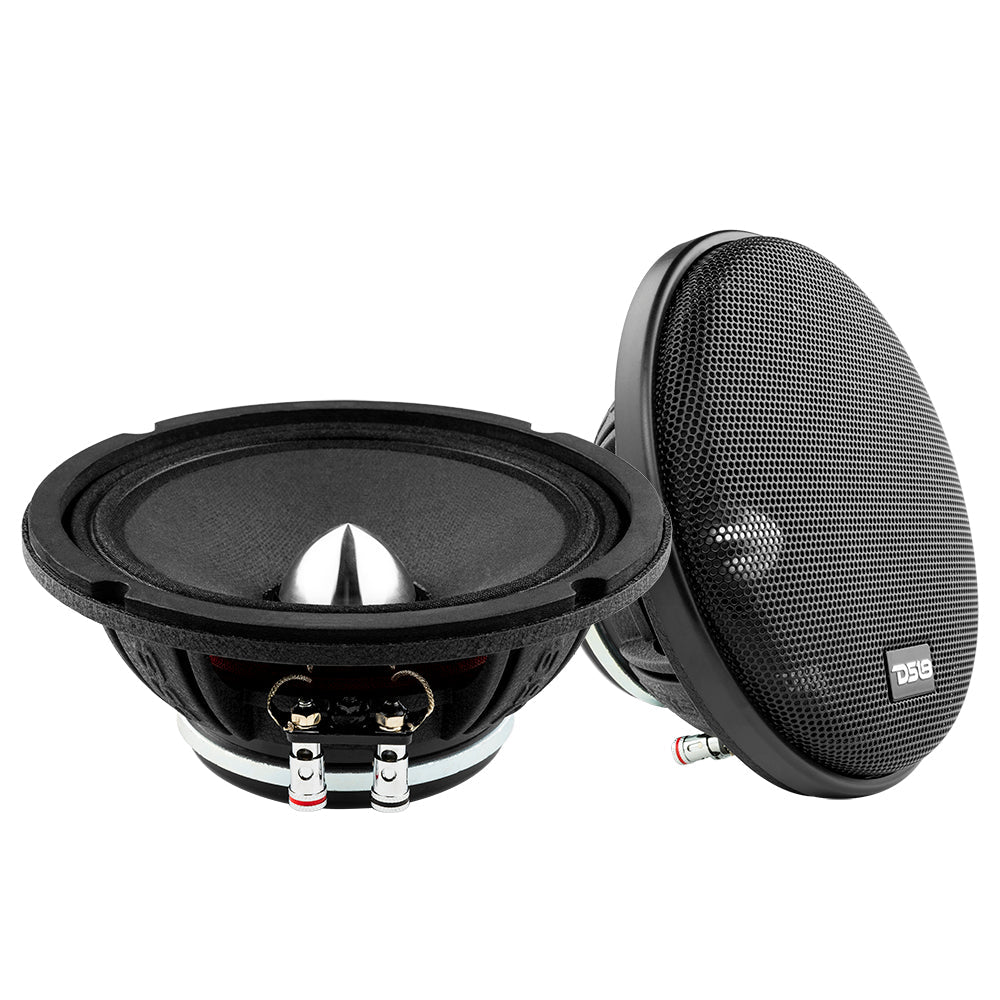

DS18 PRO-FR6NEO 6.5" Neodymium Full-Range Loudspeaker with Bullet 450 Watts 4-Ohm with Grill
|
DS18 amassed a wealth of experience in manufacturing the most elegant neodymium midranges for those seeking simple perfection. Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the voice coil. For this reason, Neo magnets have the strongest permanent magnets of all the commercially available speakers. Ranging in sizes, mounting depths, and frequency responses, we have more than 10 different models of Neo midranges to accommodate any build. Highlights
|
Technical Details
Download PRO-FR6NEO Product Manual
| Model: | PRO-FR6NEO |

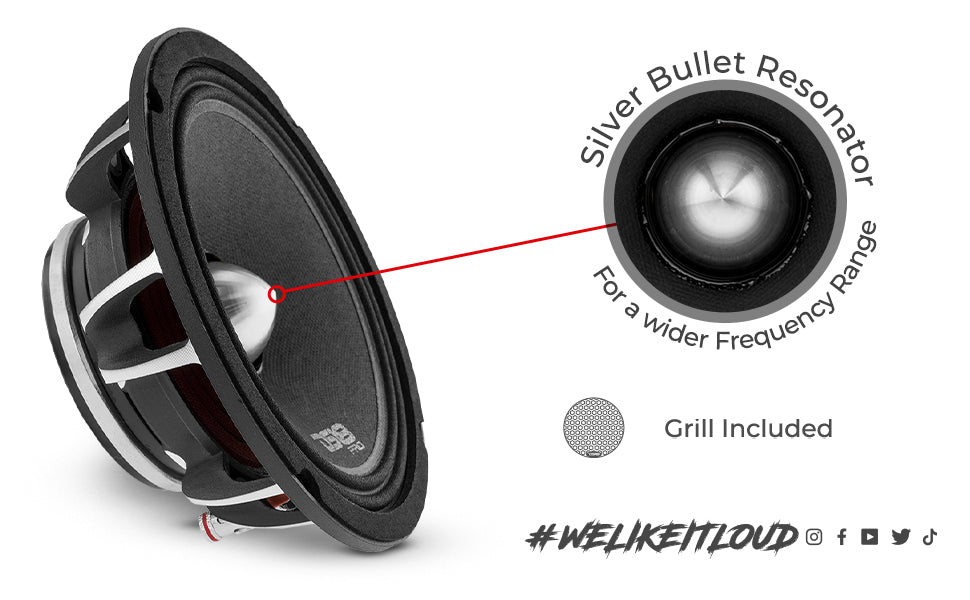

| Type: | Full Range Loudspeaker with Bullet |
| Size: | 6.5" |

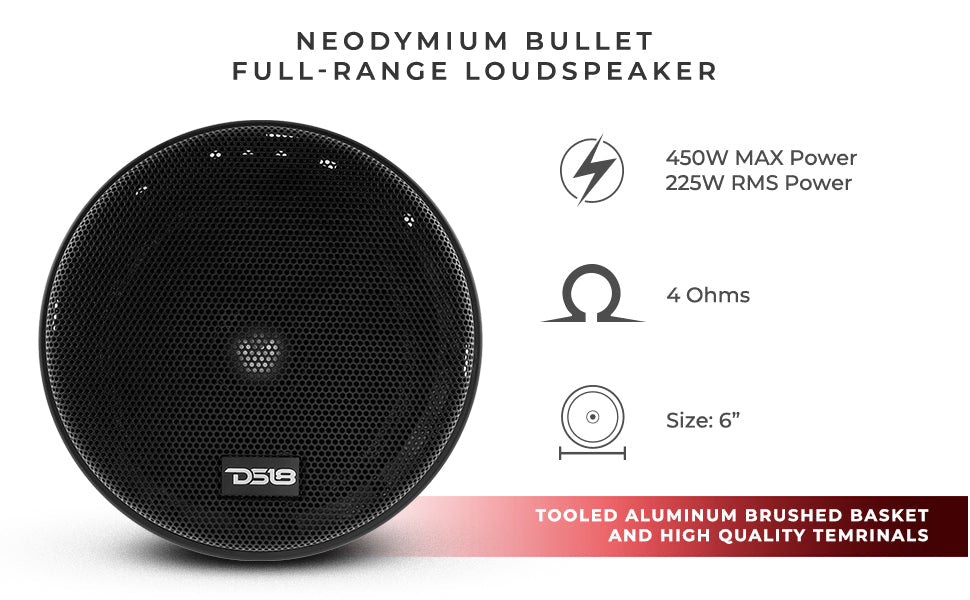

| RMS Power: | 225W |
| MAX Power: | 450W |

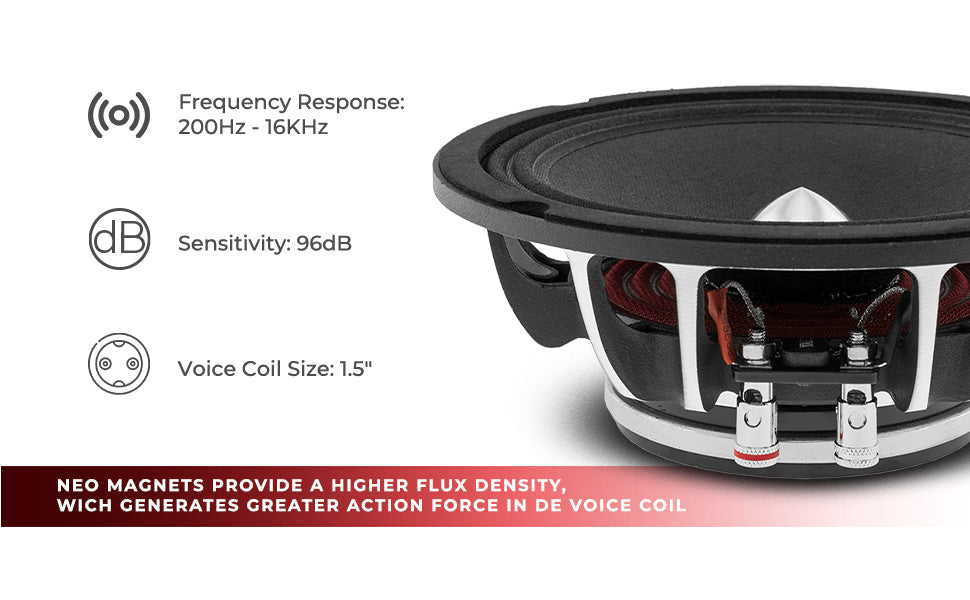

| Frequency Response: | 200Hz - 16KHz |
| Impedance: | 4 Ohms |
| Sensitivity: | 96dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Aluminum |
| Cone: | Non-Pressed Paper Cone |
| Magnet Material: | Neodymium |
| Voice Coil Wire: | KCCAW |
| Diameters | |
| Voice Coil Size: | 1.5" |
| Mounting Depth: | 2.36" (61.5mm) |
| Cut-Out Dimension: | 5.7" (145mm) |
Key Features
- 6.5" Full-Range w/Bullet
- MAX Power: 450 Watts
- RMS Power: 225 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 96dB ~ w/Grill
Specifications
| SKU | PRO-FR6NEO |
|---|---|
| Nominal Diameter | 6.5" |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 225 Watts |
| Maximum Power Handling | 450 Watts |
| Sensitivity (1w/1m) | 96 dB |
| Frequency Response | 200 Hz - 16KHz |
| Recommended Hi Pass Crossover | 200 Hz |
| Voice Coil Diameter | 1.5" (38.6 mm) |
| Voice Coil Former Material | Kapton |
| Winding Material | KCCAW |
| Basket Material | Aluminum |
| Vas | 4.288 Ltr |
| Xmax | 6.8 mm |
| Fs | 151.63 Hz |
| Qms | 9.143 |
| Qes | 0.319 |
| Qts | 0.309 |
| Re | 3.2 ohms |

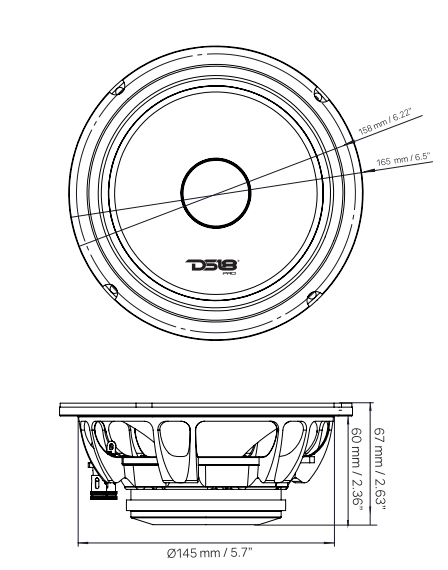

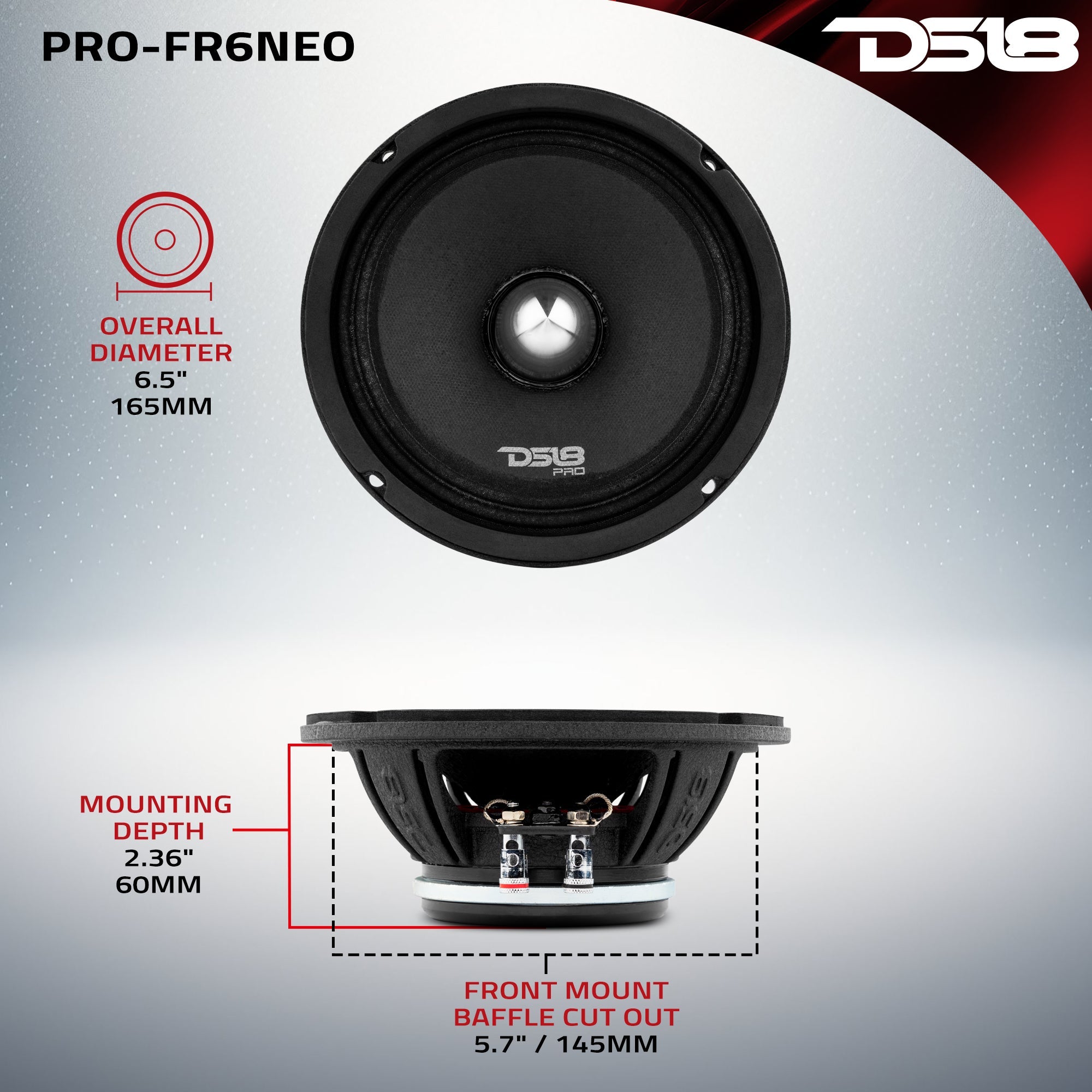

| Overall Diameter | 165 mm (6.5") |
| Front Mount Baffle Cutout | 145 mm (5.7") |
| Mounting Depth | 60 mm (2.36") |
| Overall Depth | 67 mm (2.63") |
| Product Weight | 2.9 lbs |
| Product Dimensions | 8 x 8 x 3.25 inches |
| M/C Weight | 48.5 lbs |
| M/C Dimensions | 17.75 x 17.75 x 14.5 inches |
| M/C QTY | 16 |
| Sold In | Piece |
