3" Throat Bolt on Driver 600 Watts 4" Phenolic Vc 8-Ohm
3" Throat Bolt on Driver 600 Watts 4" Phenolic Vc 8-Ohm
Product Overview

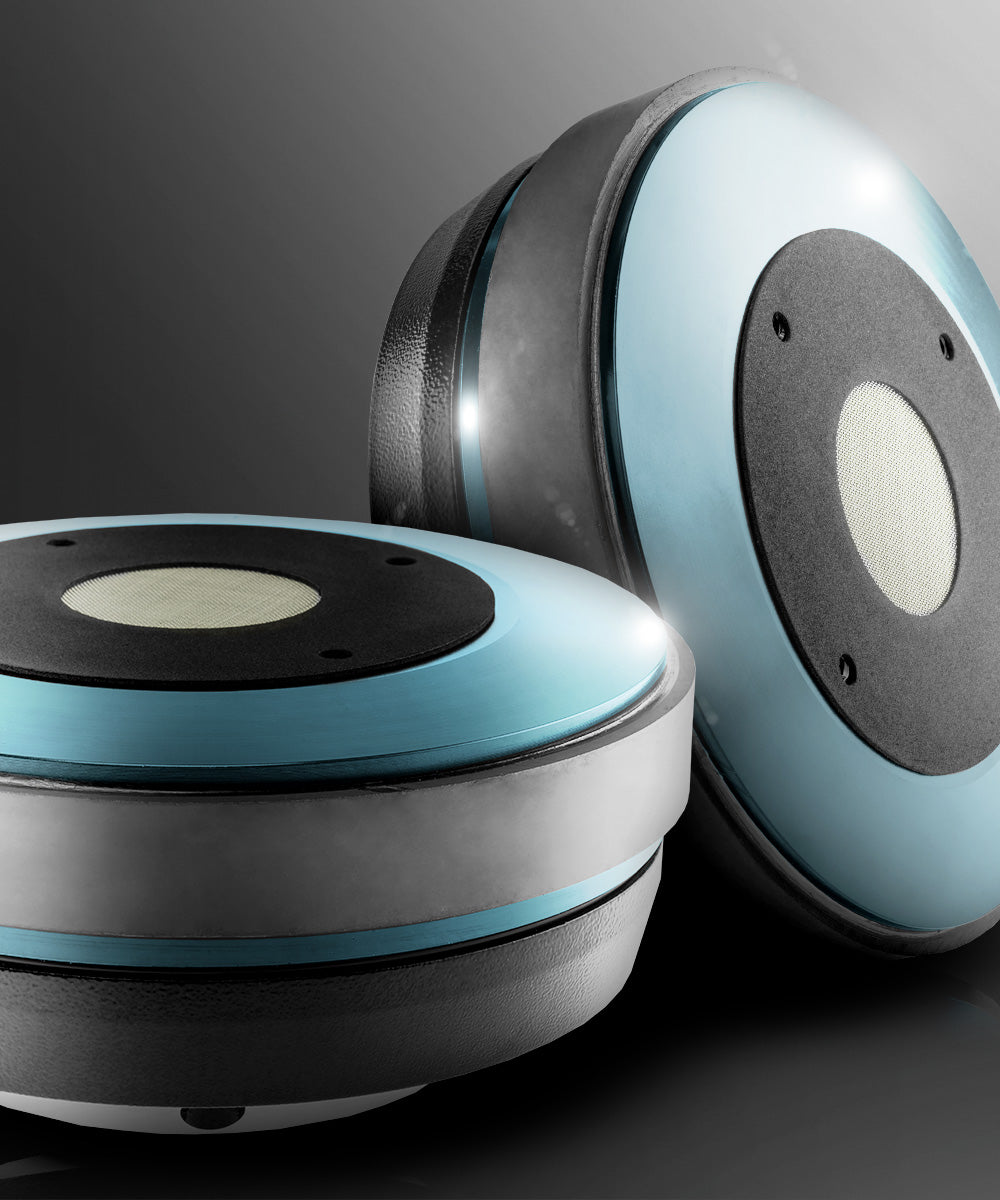

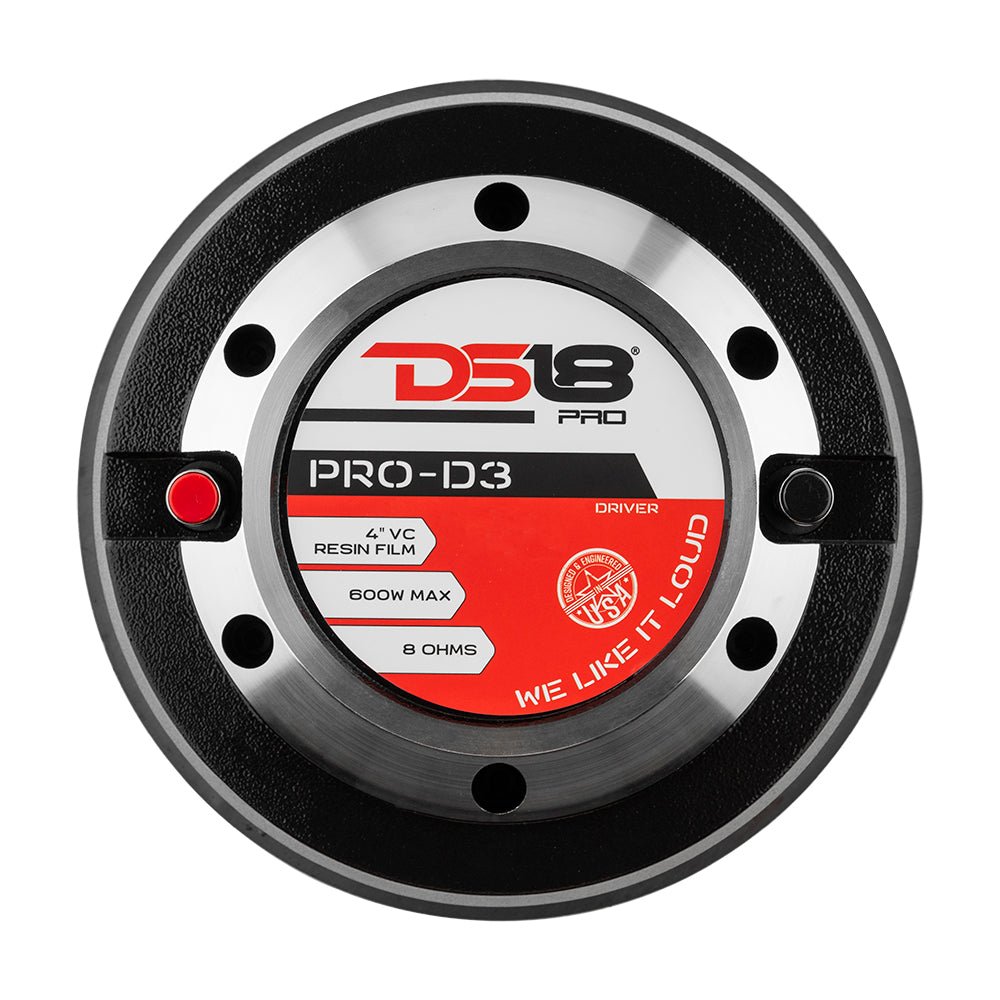

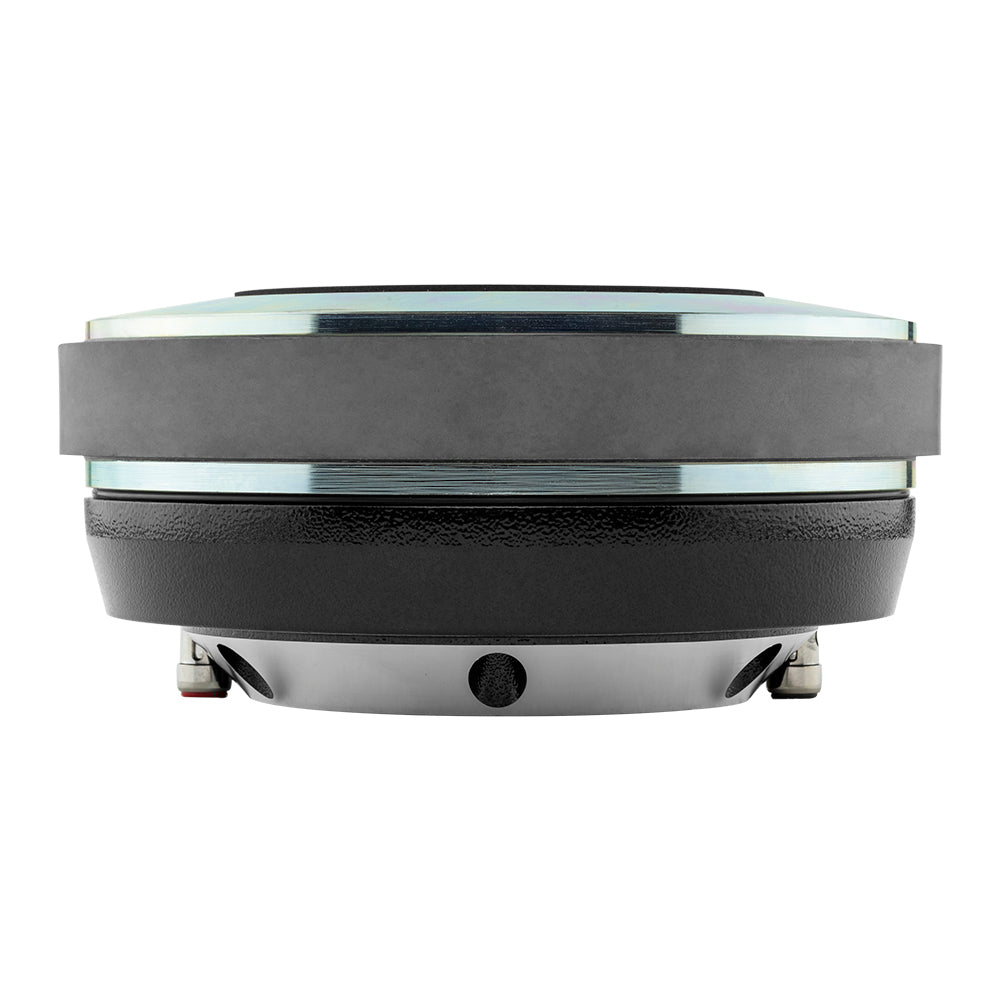

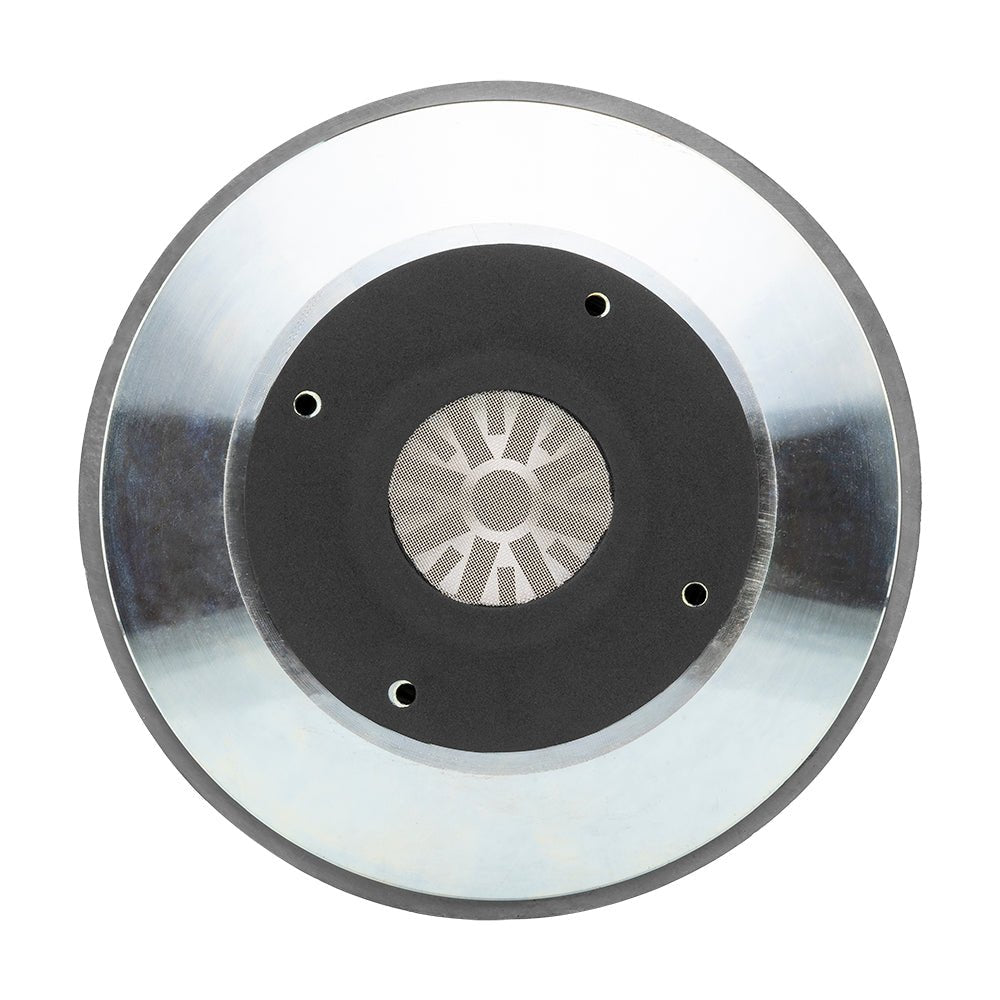

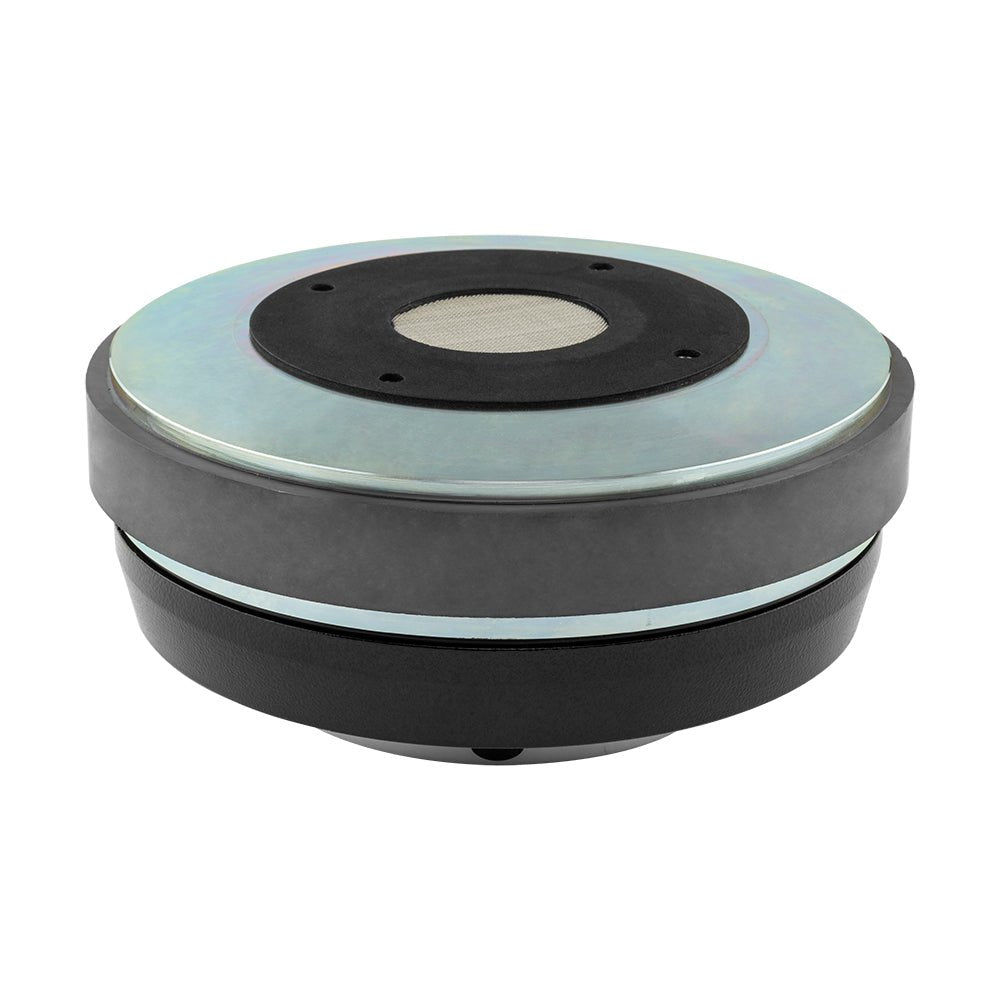

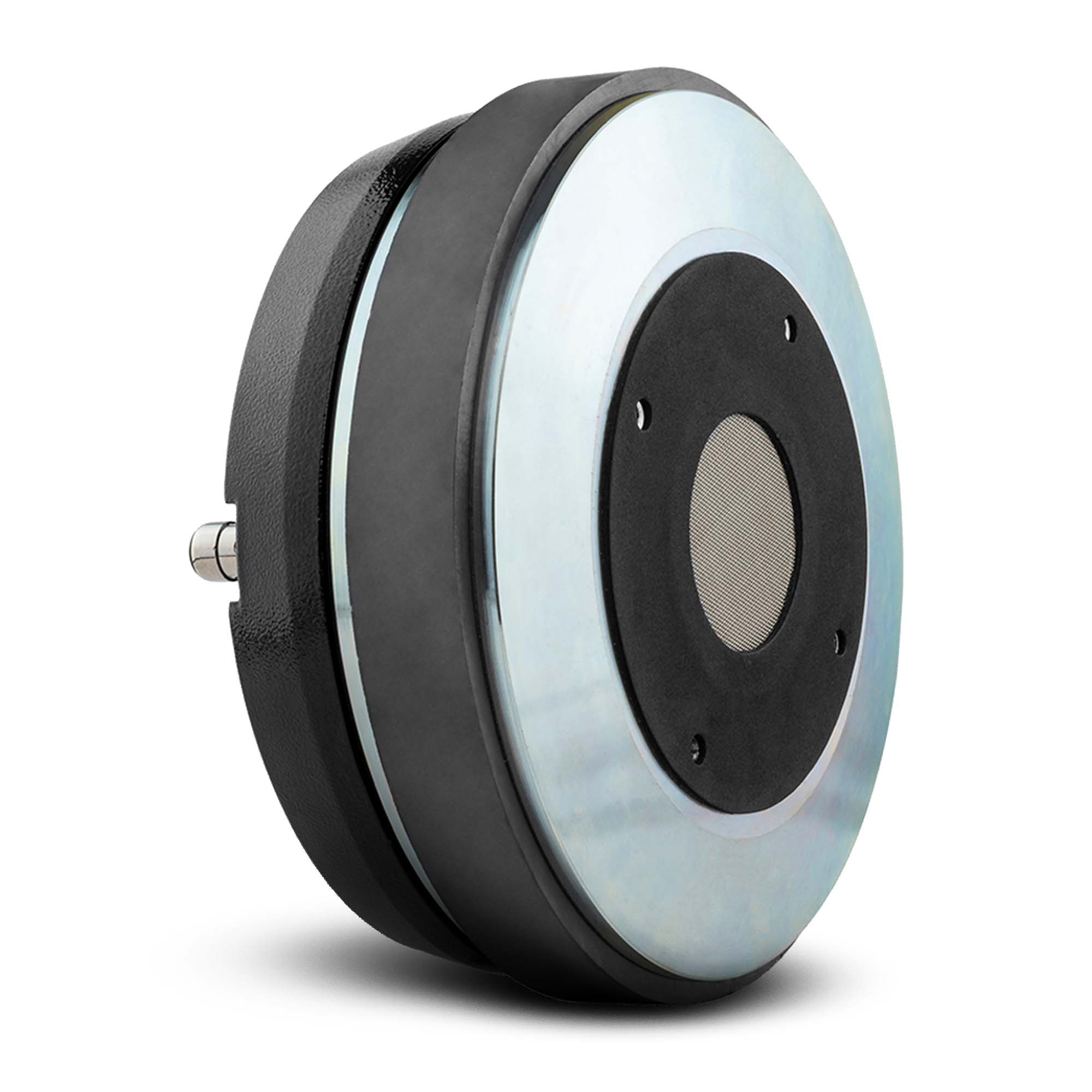

DS18 PRO-D3 3" Throat Bolt On Compression Driver 4" Phenolic VC 600 Watts 8 ohm (PRO-HA300A Recommended)
|
Engineered and Designed in the US, the DS18 Compression Drivers with aluminum horns are the top of the line high frequency driver/tweeter/horns in the market. These bad boys deliver so much power that you'd think with one horn your whole sound system is ready to deploy for a major concert. Simply put, there are no compression drivers that can compare to the sophistication, beauty, and precision of these horns especially in the Pro Audio/ Voceteo World. Thanks to the demands of our customers, after months of relentless tests and experiments, our team of audio-experts perfected the PRO line. We are ecstatic to share with you the product of hard-work and non-stop innovating attitude! We are sure that you will love your Compression Driver as much as we do. WARNING: EXTREMELY LOUD!! |
Technical Details
| Model: | PRO-D3 |
| Type: | Compression |
| RMS Power: | 300W |
| MAX Power: | 600W |
| Sensitivity: | 104.5dB |
| Impedance: | 8 Ohms |
| Frequency Response: | 700Hz - 16.5KHz |
| Diaphragm Material: | Phenolic |
| Throat Diameter: | 3" |
| Replacement Diaphragm Model: | PRO-D3VC |


Key Features
- 3" Compression Driver
- RMS Power: 300 Watts(600 Watts Peak)
- Impedance: 8 Ohm ~ 104.5dB
- Ferrite Magnet
- Phenolic Diaphragm
- Bolt On
Specifications
| SKU | PRO-D3 |
|---|---|
| Nominal Impedance | 8 OHM |
| RMS Power Handling | 300 Watts |
| Maximum Power Handling | 600 Watts |
| Exit Throat Diameter | 3" |
| Sensitivity (1w/1m) | 104.5 dB |

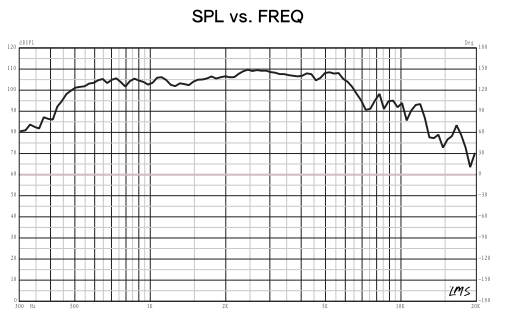

| Frequency Response | 700 - 16.5K Hz |
| Recommended Hi Pass Crossover | 800 Hz / 12 oct |
| Voice Coil Diameter | 99.8mm (4") |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | KAPTON |
| Diaphragm Material | Phenolic |
| Magnet Weight | 98 OZ |
| Magnet Material | Ferrite |
| Flux Density | 2.1T |
| Gross Single Unit Weight | 16 kg |
| Single Unit Box Dimensions W x L x H | 210 x 210 x 115 mm |
| Quantity of Units in Master Carton | 2 pcs |
| Gross Master Carton Weight | 17 kg |
| Master Carton Dimensions W x L x H | 440 x 230 x 140 mm |

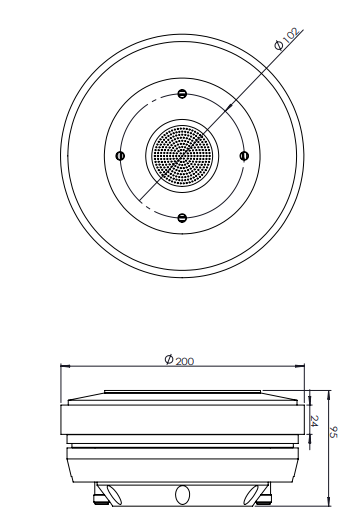

| Overall Diameter | 200mm / (7.87") |
| Overall Depth | 95mm (3.74") |
| Mounting Bolt Circle | 102mm (4") |
| Net Weight | 7.7 KG |
| Product Weight | 18 lbs |
| Product Dimensions | 8.3 x 8.5 x 4.75 |
| M/C Weight | 36.5 lbs |
| M/C Dimensions | 9 x 9 x 10.5 |
| M/C QTY | 2 |
| Sold In | Piece |
