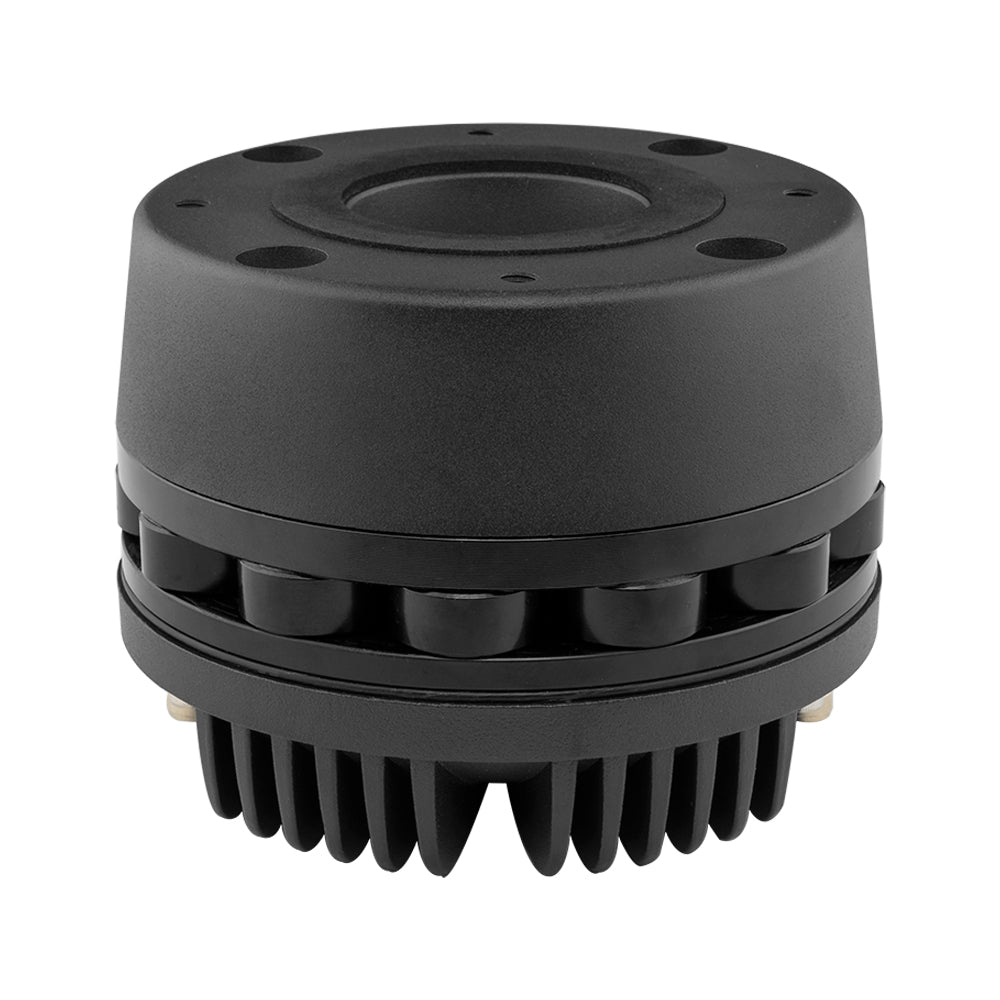

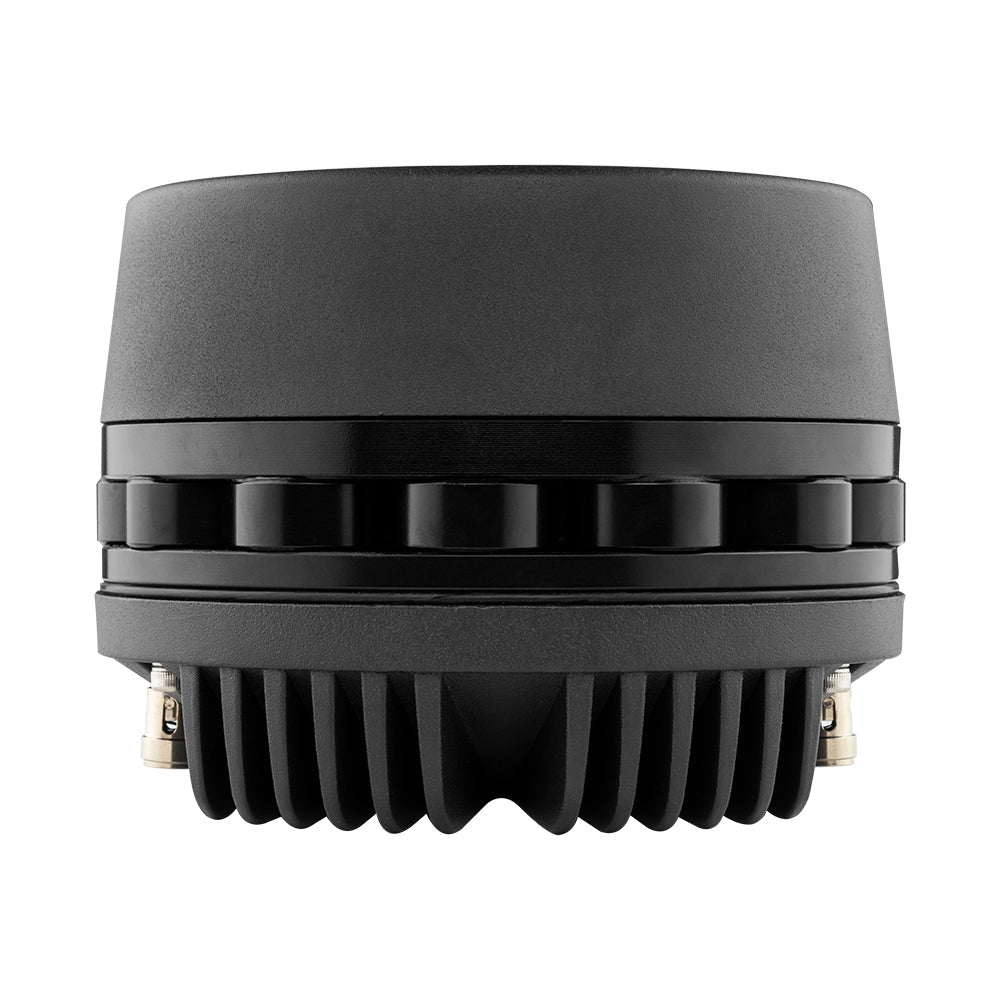

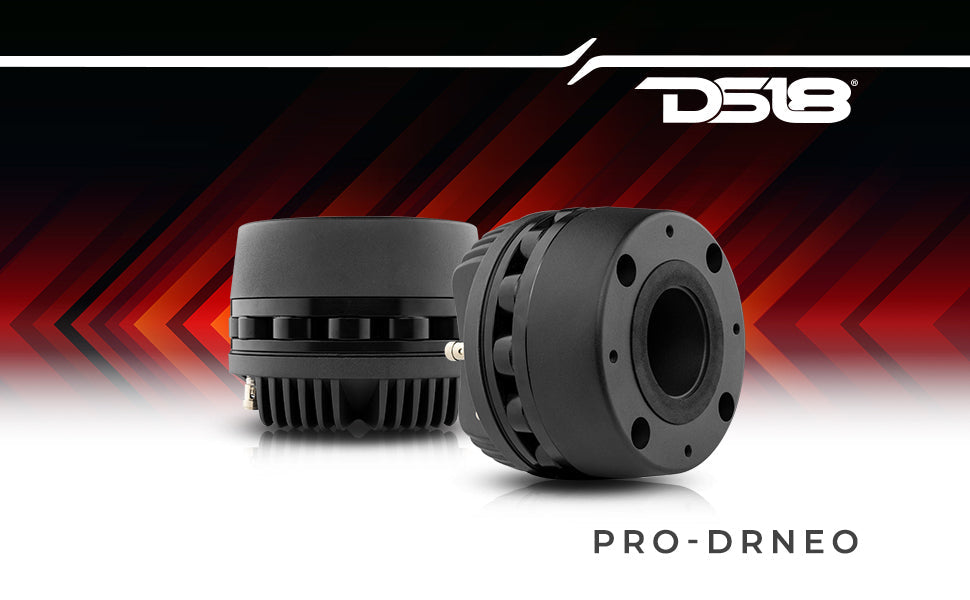

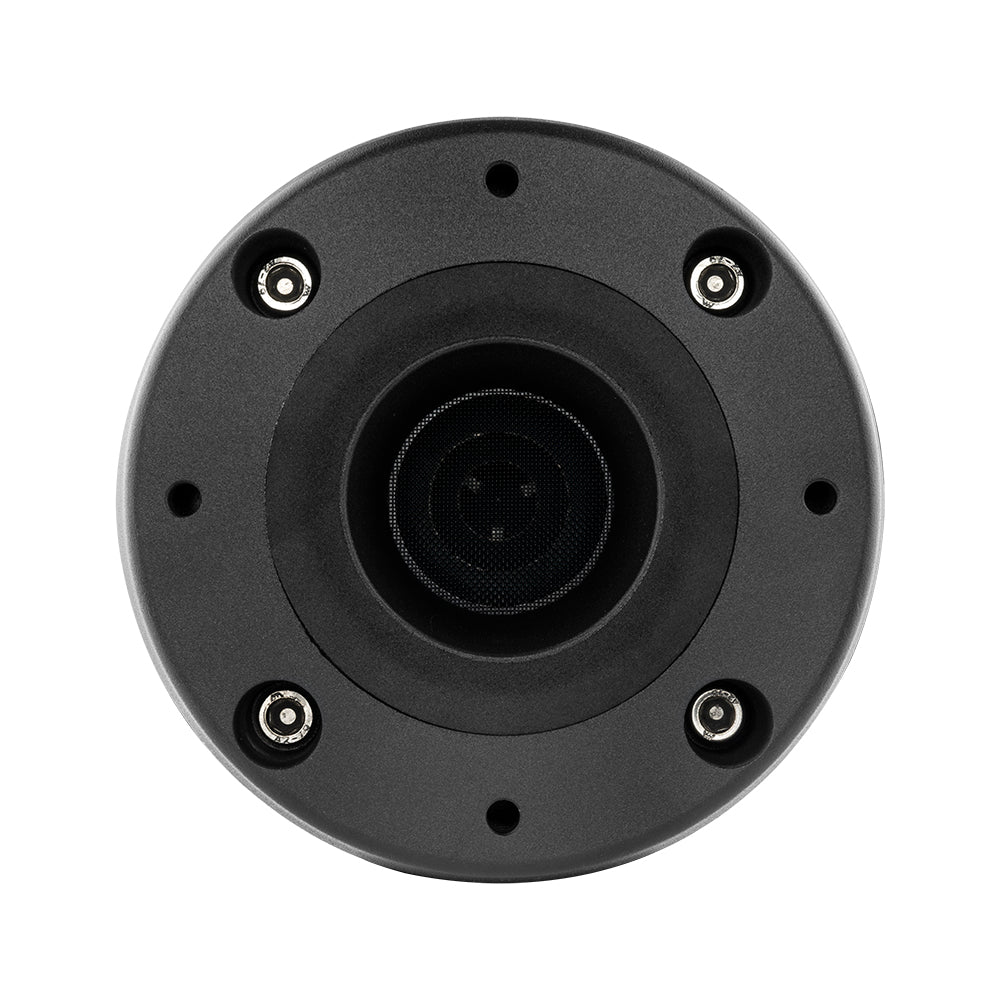

2" Throat Bolt on Neodymium Driver 450 Watts 3" Titanium Vc 8-Ohm
Product Overview DS18 PRO-DRNEO 2" Throat Bolt On Neodymium Driver 3" Titanium VC 800 Watts 115dB 8...
Vendor:
DS18
Manufacturer SKU
PRO-DRNEO
Availability:
In Stock
Product Type:
Compression Drivers & Horns
- $479.95
- $479.95
- Unit price
- per
Subtotal:
$479.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 PRO-DRNEO 2" Throat Bolt On Neodymium Driver 3" Titanium VC 800 Watts 115dB 8 Ohm
DS18 designs its Compression Drivers with aluminum horns to make sure they are above and beyond the standard high frequency driver/tweeter/horns in the market. These bad boys give so much clarity to their frequencies that any audio enthusiast would believe their whole sound system is ready to deploy for a major concert. Simply put, there are no compression drivers that can compare to the sophistication, beauty, and precision of these horns especially in the Pro Audio/Voceteo World.
Thanks to the demands of our customers, after months of relentless tests and experiments, our team of audio-experts perfected the PRO line. We are ecstatic to share the product of hard-work and determination in pursuit of perfection. We are sure that you will love your Compression Driver as much as we do.

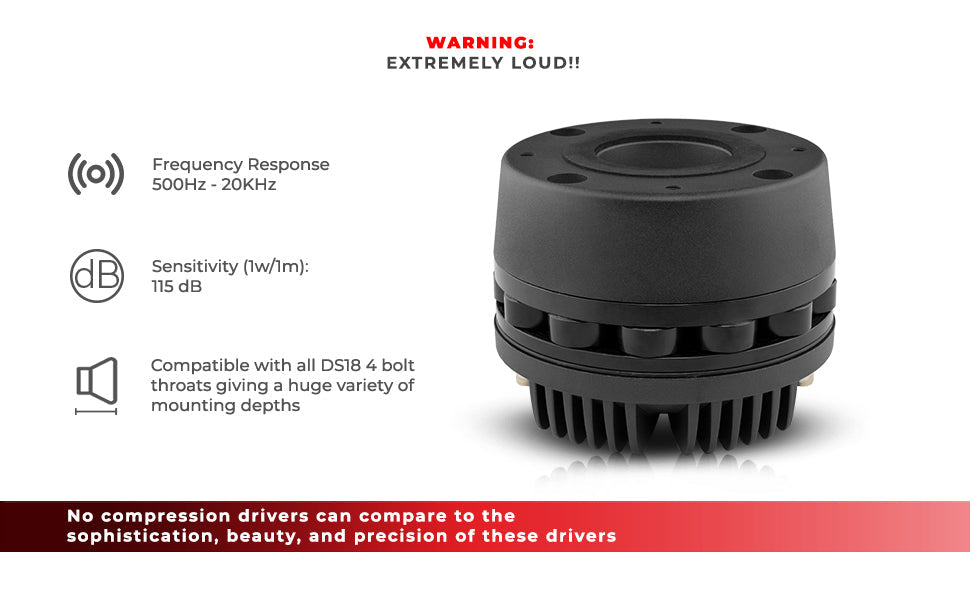

Warning: EXTREMELY LOUD!!
Highlights

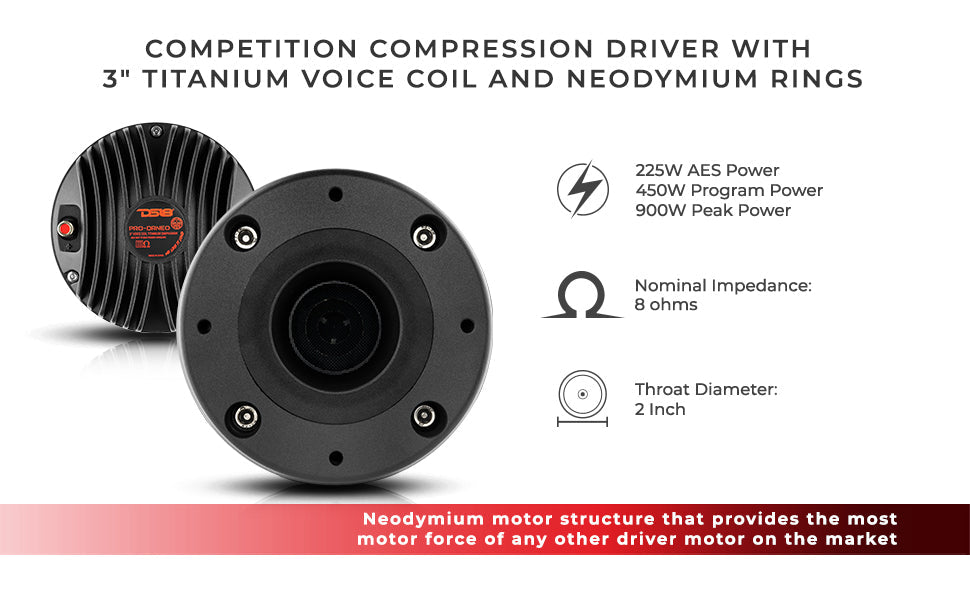

- Neodymium motor structure that provides the most motor force of any other driver motor on the market.
- Intense high frequency loudness without sacrificing sound quality.
- Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths.

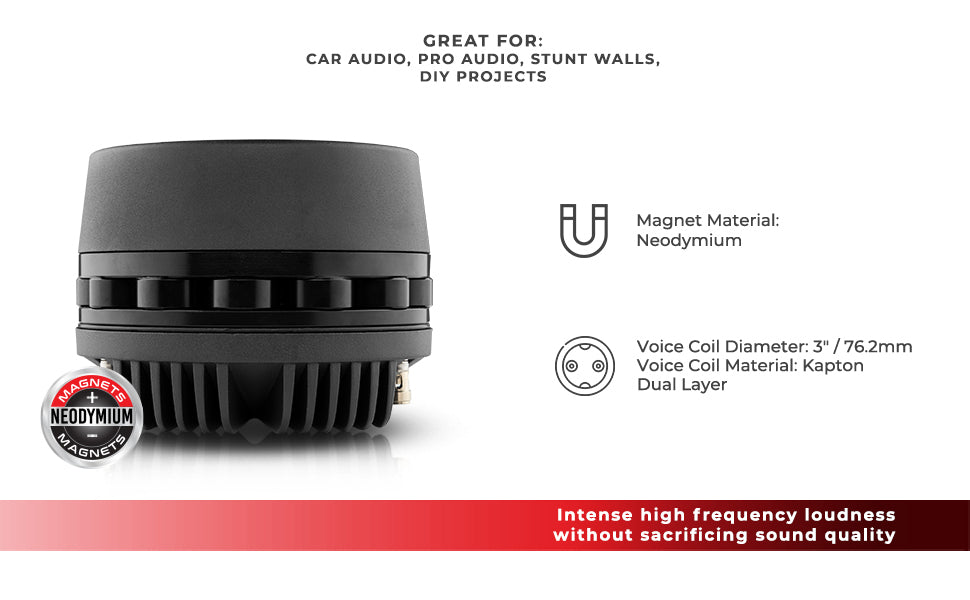

Great For:
- Car Audio
- Pro audio

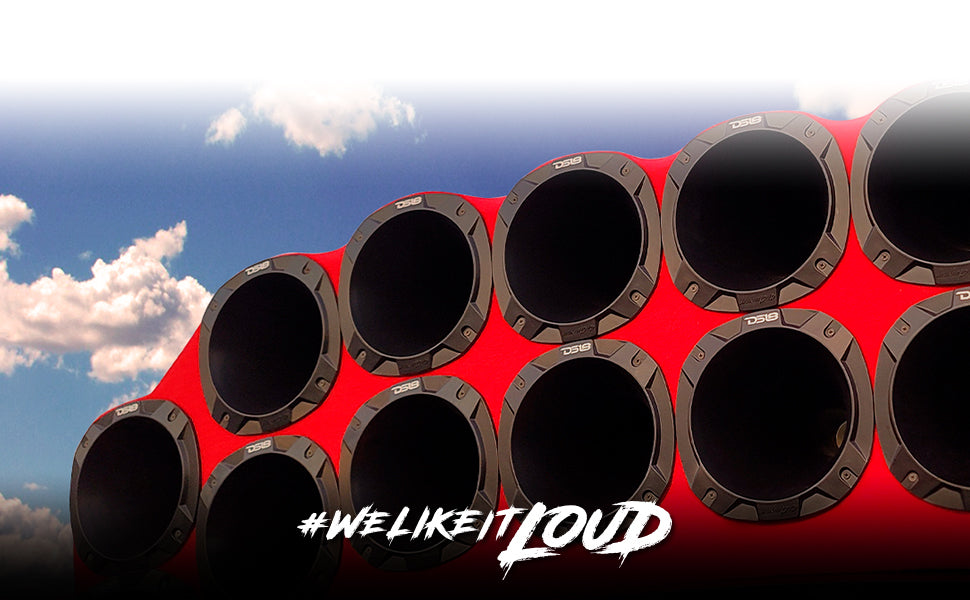

- Stunt Walls
- Diy projects
Technical Details
| Specifications | |
| Overall Diameter | 5.16" /131mm |
| Baffle Cutout Diameter | 4.02" /102mm |
| Overall Depth | 3.90" /99mm |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 450W |
| Max Power Handling | 900W |
| Sensitivity (1w/1m) | 115 dB |
| Frequency Response | 500 Hz - 20 KHZ |
| Voice Coil Diameter | 3"/76.2mm |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
Key Features
- 2" Compression Driver
- RMS Power: 450 Watts(900 Watts Peak)
- Impedance: 8 Ohm ~ 115dB
- Neodymium Magnet
- Titanium Diaphragm - Bolt On
- Easily Repaired With The PRO-DRNEOVC
Specifications
| SKU | PRO-DRNEO |
|---|---|
| Nominal Diameter | 2" / 50.8mm |
| Installation Type | Bolt-on |
| Nominal Impedance | 8 Ohms |
| AES Power Handling | 225W |
| Program Power Handling | 450W |
| Peak Power Handling | 900W |
| Sensitivity (1w/1m) | 115 dB |
| Frequency Response | 500Hz-20KHz |
| Recommended Hi Pass Crossover | 800Hz |
| Sold in Pair or Single | Single |
| Filter (Bass Blocker) | 5.6uf / 50v (included) |
| Body Material | Aluminum |
| Body Color / Finish | Black Sandblasted |
| Voice Coil Diameter | 3" / 76.2mm |
| Voice Coil Former Material | Kapton Dual Layers |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium Ring |
| Overall Diameter | 5.15" / 131mm |
| Overall Depth | 3.89" / 99mm |
| Bolt Pattern - Type | 4-M5 / Ø 4.2" / 102mm |
| Product Weight | 7 lbs |
| Product Dimensions | 5.75 x 5.75 x 4.25 |
| M/C Weight | 60 lbs |
| M/C Dimensions | 12.75 x 12.75 x 9.25 |
| M/C QTY | 8 |
| Sold In | Piece |
