2" Throat Bolt on With Spacer Driver 500 Watts 3" Titanium Vc 8-Ohm
Product Overview DS18 PRO-D2X 2" Throat Bolt On Compression Driver 3" Titanium VC 1000 Watts 8 ohm...
Vendor:
DS18
Manufacturer SKU
PRO-D2X
Availability:
In Stock
Product Type:
Compression Drivers & Horns
- $197.95
- $197.95
- Unit price
- per
Subtotal:
$197.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

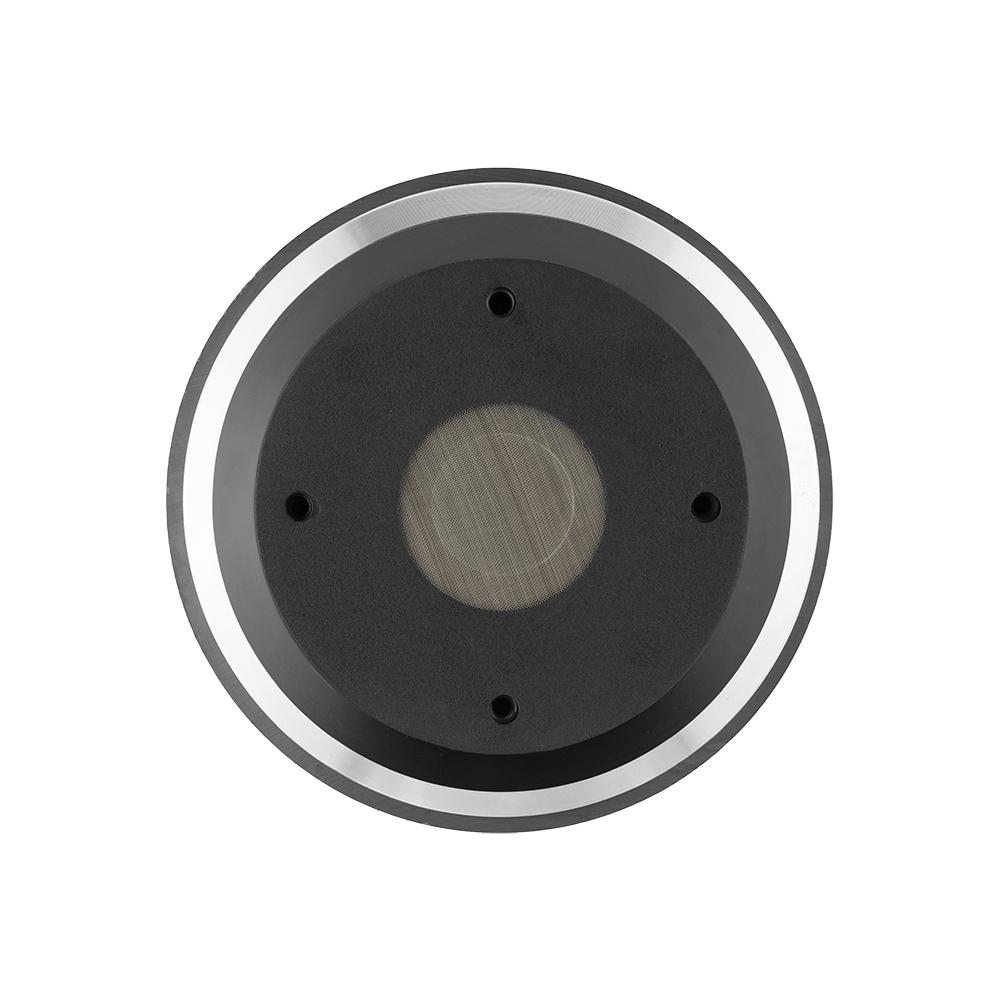

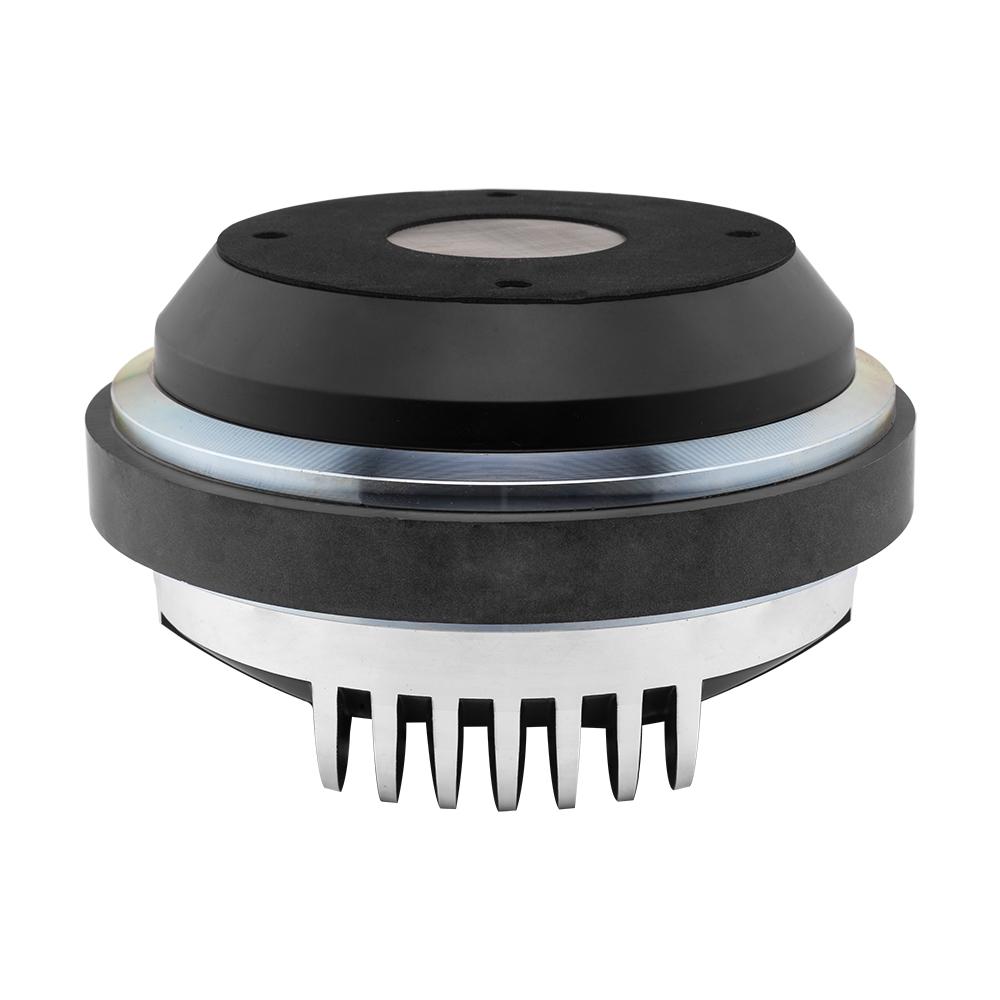

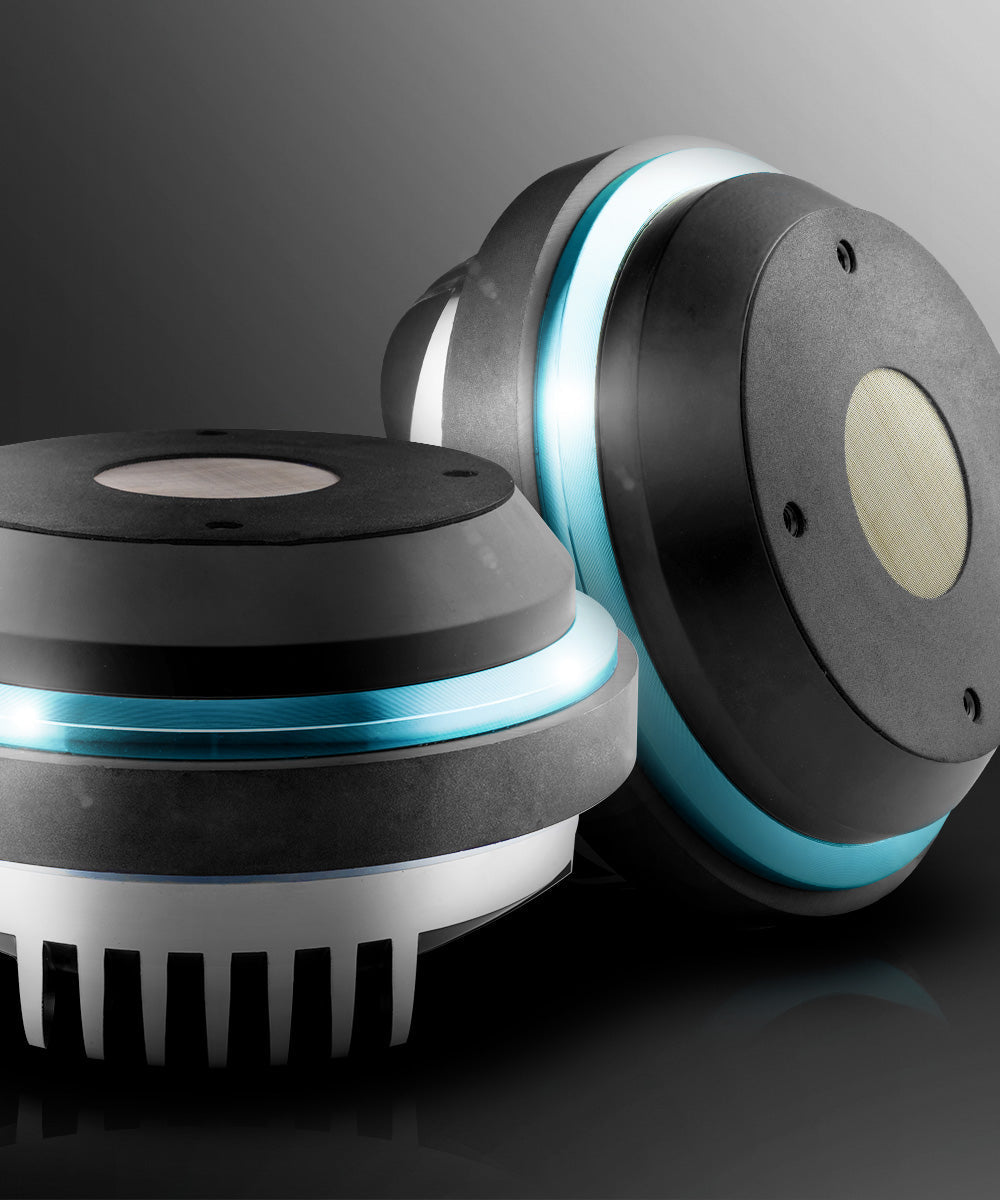

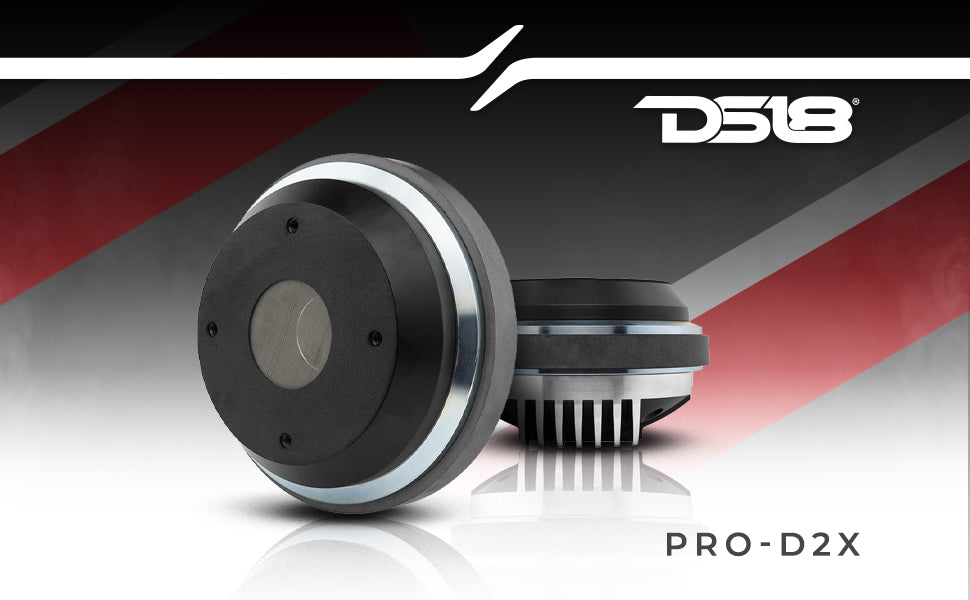

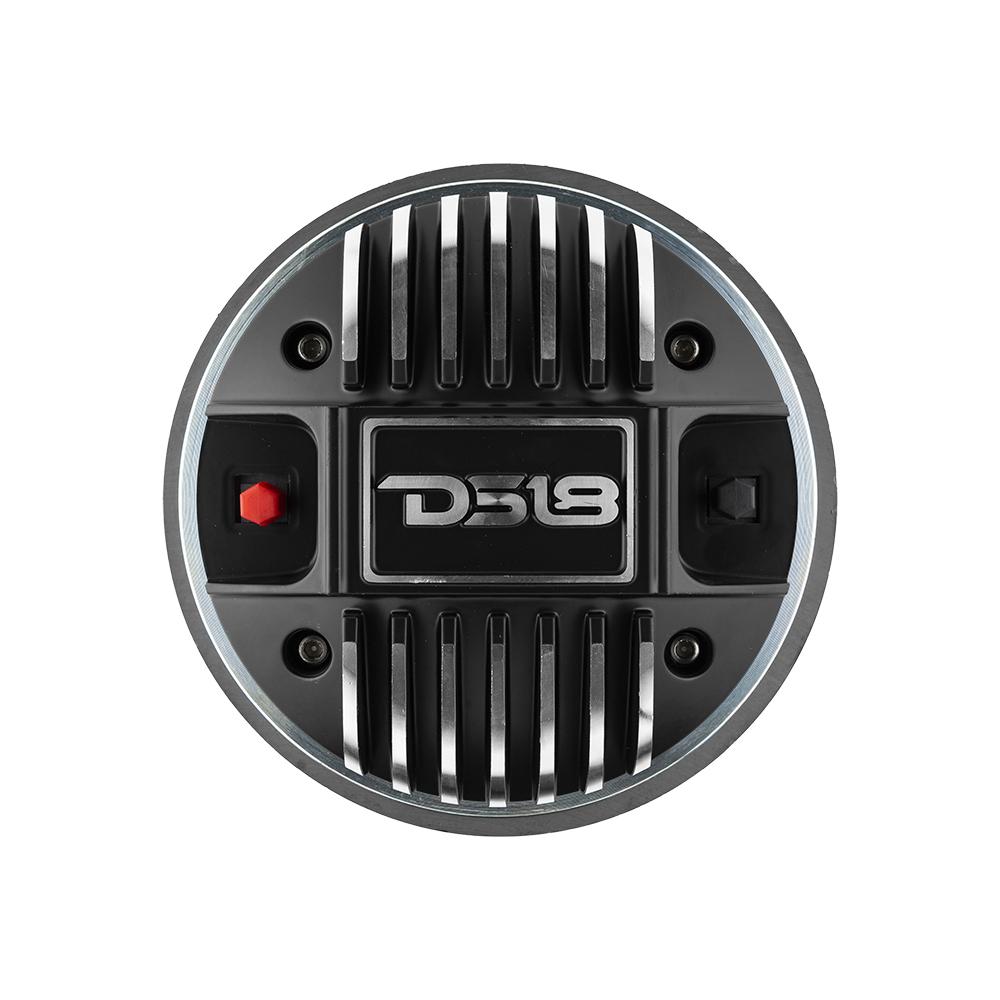

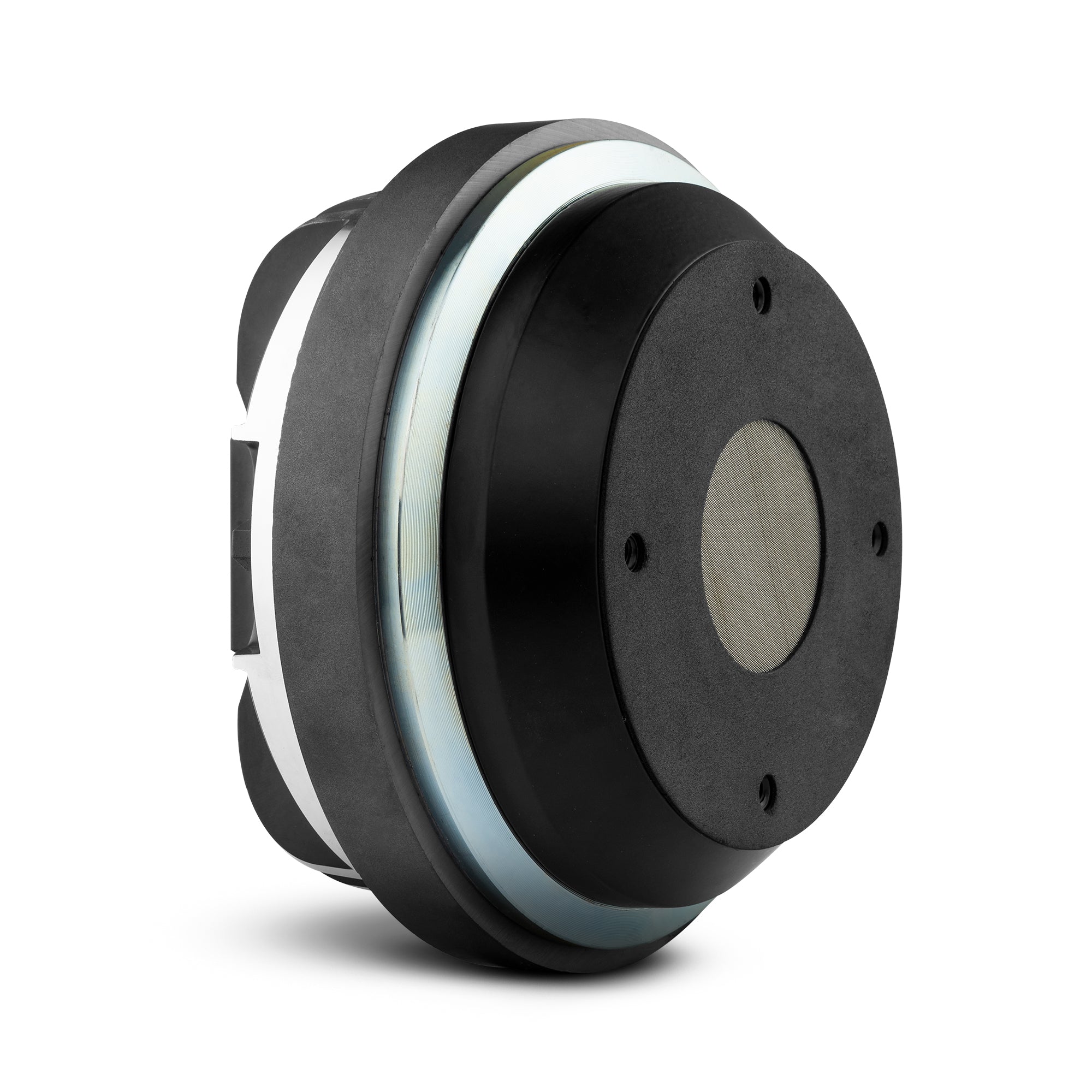

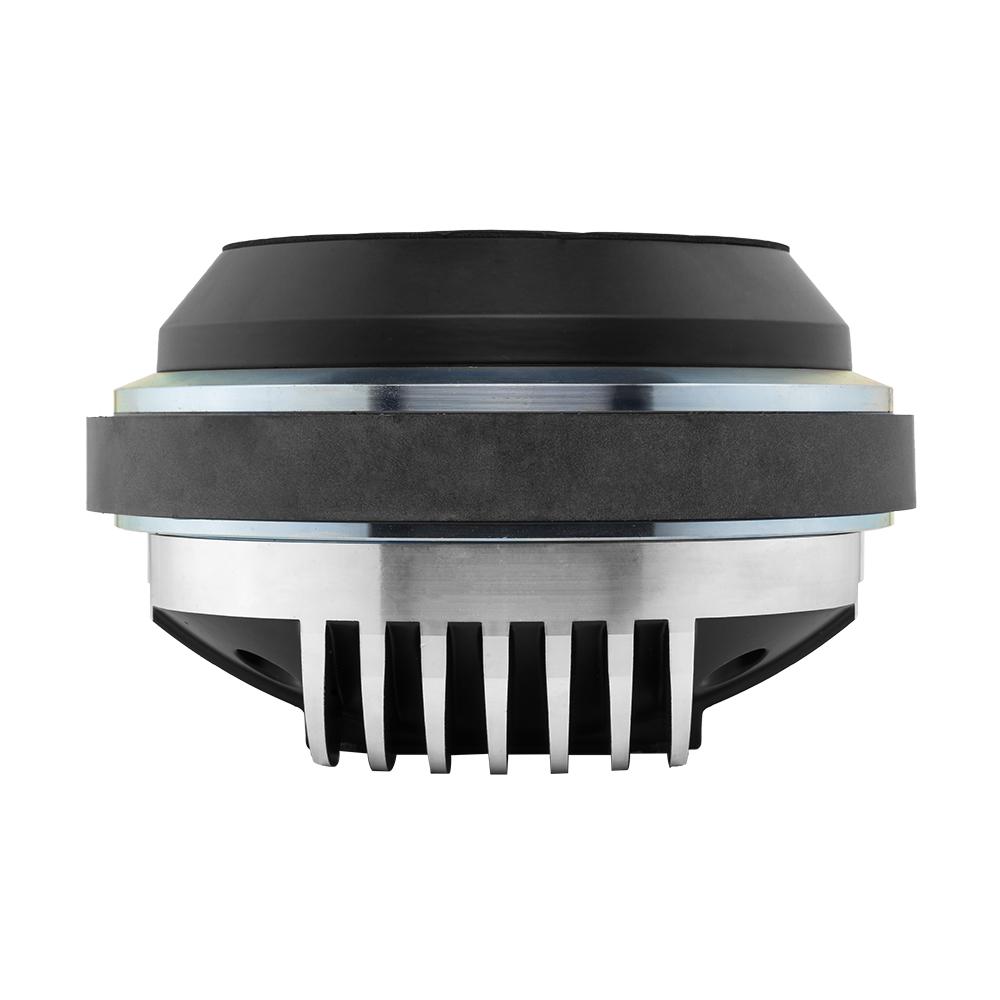

DS18 PRO-D2X 2" Throat Bolt On Compression Driver 3" Titanium VC 1000 Watts 8 ohm with Spacer

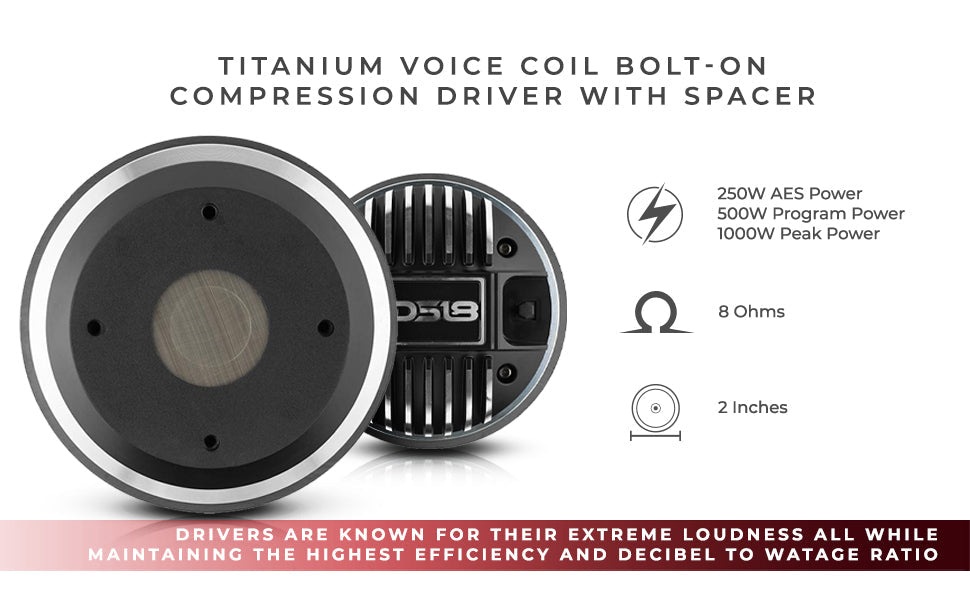

Drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio possible. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies available. This ferrite driver is compatible with 4 bolt horns (throats) of all sizes and depths. This will be an amazing addition to any system that needs super loud highs with no compromises!
This driver comes with a large 2 inch voice coil that takes 250 AES and 1000w Peak power for extreme decibel production backed with a high efficiency motor.
Highlights
- Ferrite motor structure that provides great motor force and loudness.
- High strength phenolic voice coil taking 250 AES watts and 1000 peak watts.
- Intense high frequency volume without sacrificing sound quality.

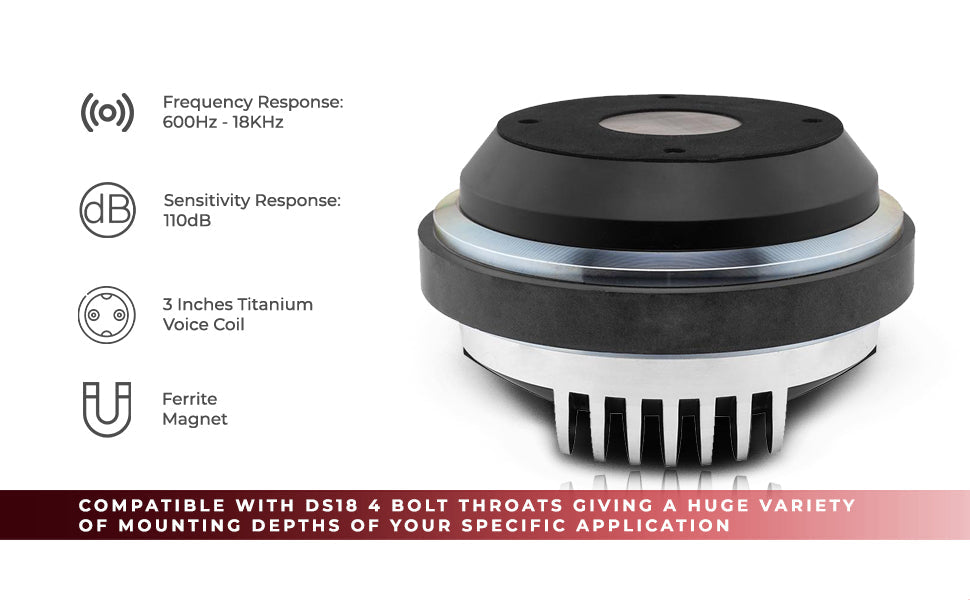

- Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths for your specific application.
Technical Details
| SPECIFICATIONS | |
| Throat Diameter | 2” / 50.8mm |
| Installation Type | Bolt-on |
| Nominal Impedance | 8 Ohms |
| AES Power Handling | 250W |
| Program Power Handling | 500W |
| Peak Power Handling | 1000W |
| Sensitivity (1w/1m) | 110 dB |

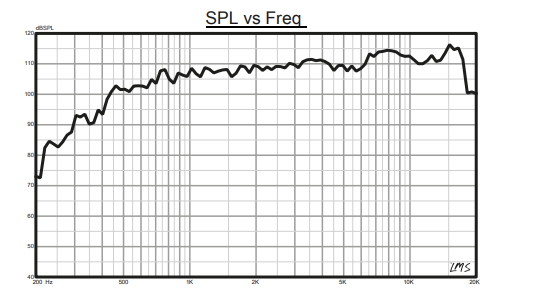

| Frequency Response | 600Hz-18KHz |
| Recommended Hi Pass Crossover | 900 Hz |
| MOTOR | |
| Voice Coil Diameter | 3” / 76.2mm |
| Voice Coil Former Materia | Kapton |
| Winding Material | Aluminum |
| Diaphragm Material | Titanium |
| Magnet Materia | Ferrite |
| Magnet Weight | 75 Oz |
| Body Material | Aluminum |
| Color | Black | Machined |

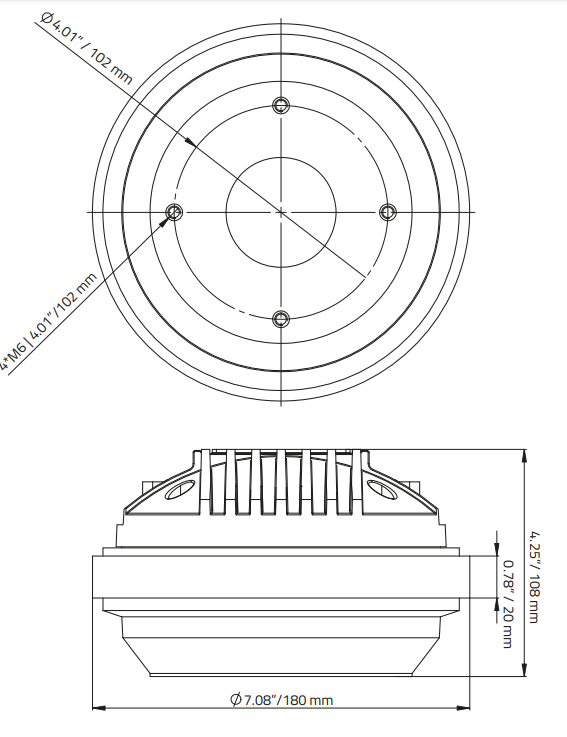

| MEASUREMENTS | |
| Overall Diameter | 7.08”/180 mm |
| Overall Depth | 4.25”/ 108 mm |
| Bolt Pattern | Type | 4*M6 | 4.01”/102 mm |
Key Features
- 2" Compression Driver
- With Spacer
- RMS Power: 500 Watts(1000 Watts Peak)
- Impedance: 8 Ohm ~ 110dB
- Ferrite Magnet
- Titanium Diaphragm
Specifications
| SKU | PRO-D2X |
|---|---|
| Throat Diameter | 2" / 50.8mm |
| Installation Type | Bolt-on |
| Nominal Impedance | 8 ohm |
| AES Power Handling | 250W |
| Program Power Handling | 500W |
| Peak Power Handling | 1000W |
| Sensitivity (1w/1m) | 110 dB |
| Frequency Response | 600Hz-18KHz |
| Recommended Hi Pass Crossover | 900 Hz |
| Voice Coil Diameter | 3" / 76.2mm |
| Voice Coil Former Material | Kapton |
| Winding Material | Aluminum |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weight | 75 Oz |
| Body Material | Aluminum |
| Color | Black | Machined |
| Overall Diameter | 7.08" / 180mm |
| Overall Depth | 4.25" / 108 mm |
| Bolt Pattern | 4*M6 | 4.01" /102 mm |
| Product Weight | 14 lbs |
| Product Dimensions | 8 x 7.5 x 4.5 |
| M/C Weight | 29 lbs |
| M/C Dimensions | 16.75 x 8.5 x 5.5 |
| M/C QTY | 2 |
| Sold In | Piece |
